GETTING TO KNOW YOUR CAR
152
Soft Mute function
When the Mute function is turned on or
off, the volume lowers or increases gradu-
ally (Soft Mute function). The Soft Mute
function is also activated when one of the
six presetting buttons, the “BN” button
(13) or “ON” button (20) is pressed.
Tone adjustment
Proceed as follows:
– briefly and repeatedly press the “AUD”
button (18) until the display shows the
wording “BASS” or “TREBLE” (Bass or
Treble select function)
– press “
▲” (6) to increase the basses
or trebles or “
▼” (8) to lower them.
Pressing the buttons briefly, the change
is gradual by steps. Pressing them longer,
the change is fast.
For a few seconds the display shows the
levels of the basses/trebles (from -6 to +6).
After about 5 seconds from the last ad-
justment the display returns to the main ra-
dio screen. Balance adjustment
Proceed as follows:
– briefly and repeatedly press the “AUD”
button (18) until the display shows the
wording “BALANCE” (Balance function
select)
– press “
▲” (6) to increase the sound
from the right speakers or “
▼” (8) to in-
crease the sound from the left speakers.
Pressing the buttons briefly, the change
is gradual by steps. Pressing them longer,
the change is fast. For a few seconds the
display shows the balancing levels from R+9
to L+9 (“R” = right, “L” = left). After
about 5 seconds from the last adjustment,
the display returns to the main radio screen.
Fader adjustment
Proceed as follows:
– briefly and repeatedly press the “AUD”
button (18) until the display shows the
wording “FADER” (Fader select function)
– press “
▲” (6) to increase the sound
from the rear speakers or “
▼” (8) to in-
crease the sound from the front speakers.Pressing the buttons briefly the change is
gradual by steps. Pressing them longer, the
change is fast. For a few seconds the dis-
play shows the fader levels from R+9 to
F+9 (“R” = rear, “F” = front).
After about 5 seconds from the last ad-
justment the display returns to the main ra-
dio screen.
Loudness Function
(except versions with
BOSE HI-FI system)
The Loudness function improves the sound
volume when listening at low level, in-
creasing the basses and trebles. It is cut off
when the volume is set to maximum. To
switch the function on/off keep the “AUD”
(18) pressed until hearing the “beep”. The
function condition (on or off) is shown on
the display for a few seconds by “LOUD
ON” or “LOUD OFF”.
On versions with BOSE HI-FI system the
Loudness function is activated automatical-
ly by the amplifier.

GETTING TO KNOW YOUR CAR
153
TELEPHONE PROVISION
(fig. 137)
If the voice kit is installed on the car, when
a phone call is received the radio sound is
connected to the phone input. The telephone
sound is heard with a fixed volume, but it
can be adjusted during the conversation us-
ing “VOL+” (21) to higher the volume or
“VOL-” (19) to lower it.
The fixed telephone volume can be ad-
justed through the “PHONE” function of
the menu (see“MENU” paragraph). The only buttons active during phone calls
are:
– “VOL+” (21), “VOL-” (19): for
volume adjustment
– “ON” (20): turning the radio on/off
– “AF-TA” (1): traffic information.
While the sound is off for a phone call, the
display shows the word “PHONE”.
The sound of the phone call will be inter-
rupted in the case of transmission of a traf-
fic bulletin or a PTY31 announcement; if
wishing to interrupt the bulletin press the
“AF-TA” button (1).
RADIO(fig. 137)
When the set is turned on the last function
selected before turning off is played (Radio,
Compact Disc or CD-Changer).
To select the Radio function while listening
to a Compact Disc, briefly and repeatedly
press the “SRC” button (14) until this
function is selected.
Selecting the frequency band
If in the Radio mode, briefly and repeat-
edly press the “BN” button (13) to select
the required reception band.
Every time the button is pressed the fol-
lowing bands are selected in sequence
“FM1”, “FM2”, “FMT”, “MW” and
“LW” shown by the respective wording on
the display.
The FM band is divided into section: FM1,
FM2 and FMT.
The FMT reception band is reserved to the
stations stored automatically with the Au-
tostore function.
The radio is always ready to receive sta-
tions in the RDS Mode (Radio Data System).

GETTING TO KNOW YOUR CAR
154
Presetting buttons
The buttons with the symbols 1 to 6
(“17”, “16”, “15”, “12”, “11”,
“10”) make it possible to choose the fol-
lowing presettings:
– 18 in the FM band (6 in FM1, 6 in
FM2, 6 in FMT)
– 6 in the MW band
– 6 in the LW band
– 6 types of PTY programming (only in
the FM mode when PTY is selected).
To call a preset station, choose the required
frequency band and then press briefly (less
than 1 second) the corresponding preset but-
ton (from 1 to 6). For a few seconds the
display will show the number of the station
preset and the related frequency before
showing the frequency band and the name
of the RDS station.
Storing the last station heard
The radio automatically keeps in storage
the last station heard for each reception
band, which is then tuned when the radio is
turned on or the reception band is changed.Automatic tuning
Briefly press (less than 1 second) “
▲”
(6) or “
▼” (8) to start automatically
searching the tuning for the next station that
it is possible to receive in the direction cho-
sen.
if “
▲” (6) or “▼” (8) is pressed for
longer (over 1 second) quick searching
takes place: upon having tuned in to the first
well receivable station, the tuner stops for
about 1 second (in Mute) before quick
searching continues. When the button is re-
leased, the tuner stops on the next receiv-
able station.
If the TA function is on (traffic information),
the tuner only searches stations which broad-
cast traffic bulletins.
If the PTY function is on, the tuner only
searches PTY stations. When searching the
display alternatively shows the type of pro-
gramme and the word “SEARCH”.
If the station on which the tuner stops is
one of the stations stored with the preset
buttons, the display will show the presetting
number for a few seconds.Manual tuning
This allows manual station searching in the
chosen band.
– Select the band with the “BN” button
(13): FM1, FM2, FMT, MW or LW.
– Briefly and repeatedly press “¯¯” (4)
or “
˙˙” (7).
– Pressing the button longer (over 1 sec-
ond) obtains fast forward searching , which
is stopped when the button is released.
To turn on manual tuning search it is nec-
essary to turn off the PTY and AF (alterna-
tive frequencies) functions, if on.
If the station tuned is a station stored with
the preset buttons, the display will show the
presetting number for a few seconds.

GETTING TO KNOW YOUR CAR
155
Station scanning (Scan function)
Keeping the “SRC” button pressed (14).
Each station found will be heard for a few
seconds and the name and frequency will
flash on the display. While searching, the
display will show “FM-SCAN”, “AM-
SCAN” or “PTY-SCAN” for a few sec-
onds.
If the TA function is on (traffic information),
the system will search only the stations that
broadcast traffic bulletins. If the PTY func-
tion is on, the system will only search PTY
stations.
When the Scan function is on, all the oth-
er functions are cancelled.
When wanting to continue listening to a
station selected during scanning, press
“SRC” (14) again.The Scan function is interrupted in the fol-
lowing cases:
– turning the set off
– pressing “SRC” (14)
– pressing “
▲” (6) or “▼” (8) (starts
manual or automatic tuning)
– pressing a preset button
– turning Autostore on
– turning PTY on/off
– changing the chosen frequency band
– pressing “AUD” (18)
– pressing “MENU” (9)
– when a station is found that is broad-
casting a traffic bulletin, if the TA function
is on
– inserting a Compact Disc.
In any case the search function will be
turned off after scanning the frequency
band, even if no station is selected.Scanning preset stations
Press the “MENU” (9) button for a pro-
longed length of time to start scanning the
preset stations in the present frequency
band:
–FM: FMI 1, FMI 2, ..., FMI 6, FMII 1,
FMII 2, ... FMII 6, FMT 1, FMT 2, ..., FMT 6
–MW: MW 1, MW 2, ..., MW 6
–LW: LW 1, LW 2, ..., LW 6.
Each preset station will be heard for a few
seconds and its name or frequency will flash
on the display, if the signal intensity is suf-
ficient. In passing from one presetting to an-
other the display will show the word
“SCAN” for about 2 seconds.
In the first 2 seconds in which the new pre-
set station is heard, the display shows the
current frequency band and the number of
the pre-select button.
If the TA function is on (traffic information),
the system will only search stations that
broadcast traffic bulletins.

GETTING TO KNOW YOUR CAR
156
The preset station Scan function is inter-
rupted in the following cases:
– turning the set off
– pressing “BN” (13)
– pressing “
▲” (6) or “▼” (8) (starts
manual or automatic tuning)
– pressing a preset button
– turning Autostore on
– turning PTY on/off
– changing the sound source (CD, CD-
Changer)
– changing the FM level or frequency band
selected
– pressing “AUD” (18)
– pressing “MENU” (9)
– when a station is found that is broad-
casting a traffic bulletin, if the TA function
is on
– inserting a Compact Disc.
If no presetting has been selected, hear-
ing the station chosen previously will be re-
sumed.Manual station storage
The station being heard can be stored in
the range selected with buttons (17),
(16), (15), (12), (11), (10) numbered
from 1 to 6.
Keep one of these buttons pressed (from
1 to 6 until receiving the confirmation
“beep”. After storage, the display shows the
number of the button with which the station
has been stored.
Autostore function
To turn on the Autostore function keep the
“BN” button (13) pressed until hearing
the confirmation “beep”. With this function
the radio automatically stores the stations
with the strongest signal in decreasing order
of intensity of the FMT frequency band.
IMPORTANTActivating the Autostore
function cancels the stations stored previ-
ously in the FMT Band.
If the TA function is on (traffic information),
only the stations that send traffic informa-
tion will be stored. This function may also
be turned on when listening to a Compact
Disc or the CD-Changer.During automatic storage the display will
show the wording “A-STORE”. To inter-
rupt the storage process press the “BN”
(13) button again: the radio will automat-
ically tune to the station heard before acti-
vation of the Autostore function.
At the end of the Autostore function the ra-
dio automatically tunes on the first preset
station in the FM1 band.
On buttons (17), (16), (15), (12),
(11), (10) numbered from 1 to 6, the sta-
tions are automatically stored that give a
strong signal in that moment in the preset
band.
After storage the radio automatically tunes
on the frequency stored on button 1 (17).
Every station is stored only once, except
in the case of regional programmes which
in certain cases might be stored twice.
During the automatic storage process the
display shows the wording “A-STORE”.

GETTING TO KNOW YOUR CAR
157
The behaviour of the set during Autostore
is as follows:
– at the beginning of the Autostore func-
tion all the other functions are disabled
– any change in volume is not shown on
the display
– pressing one of the radio function but-
tons, for example “PTY” (2), “
˙˙” (7),
“
¯¯” (4), (17), (16), (15), (12),
(11), (10) the automatic storage process
is interrupted, the last station heard before
Autostore was turned on is tuned and the
function associated with the button pressed
is run
– pressing “AF-TA” (1) during auto-
matic storage will interrupt it, the TA func-
tion (traffic information) will be turned
on/off and a new automatic storage process
will be started
– Changing the sound source (Radio, Com-
pact Disc, CD-Changer) during automatic
storage, Autostore is not interrupted.
IMPORTANTSometimes the Autostore
function is unable to find 6 stations with a
strong signal. In this case, the free presetting
buttons will be shown on the display, for
about 2 seconds, by 4 dashes and the last
station heard will be returned.Listening to stored stations
Proceed as follows:
– select the required frequency band (FM,
MW, LW)
– briefly press one of the six station stor-
age buttons.
The display will show the number that cor-
responds to the button.
In bands FM1, FM2 and FMT, if reception
is poor and the AF alternative frequency
search function is active, the station with the
strongest signal that is broadcasting the
same programme will be sought automati-
cally. AF Function
(alternative frequency search)
Within the RDS system the radio can work
in two different modes:
AF ON: alternative frequency search on
AF OFF: alternative frequency search off.
When the signal of the RDS station tuned
weakens, the following two cases may oc-
cur:
– With AF ONthe RDS system activates
automatic tuning of the optimum frequency
of the station chosen, with the stations en-
abled, therefore the radio is automatically
tuned to the station with the strongest sig-
nal that is broadcasting the same pro-
gramme. During the journey it will thus be
possible to continue listening to the station
chosen without having to change the fre-
quency when changing area. Of course, the
station being listened to must be receivable
in the area the car is crossing.
– With AF OFFthe radio will not tune
the strongest station automatically and it
will have to be found manually using the
tuner buttons.

GETTING TO KNOW YOUR CAR
158
To turn alternative frequency search AFof
the station chosen on/off, keep the “AF-
TA” button pressed (1) pressed until hear-
ing the “beep”. The name RDS (if available)
stays on the display and if the AF function
has been turned on the symbol “AF” is
shown.
If the radio is working in the AM band,
when the “AF-TA” (1) is pressed, it pass-
es to the FM band on the last station se-
lected.
TA function
(traffic information)
Some stations in the FM band (FM1, FM2
and FMT) are enabled to also broadcast in-
formation about traffic conditions. In this
case the display shows the wording “TP”.
To turn on/off the traffic information TA
function briefly press (less than 1 second)
the “AF-TA” button (1).
The listening conditions and information
given on the display may be the following:
TAandTP: if tuned to a station that sends
traffic information and the traffic informa-
tion function is onTP: if tuned to a station that sends traf-
fic information but the traffic information
function is off
TA(*): the traffic information function is
on but the radio is tuned to a station that
does not give traffic information
TAandTPnot shown on the display: the
radio is tuned to a station that does not give
traffic information and the traffic informa-
tion function is off.
(*) If the traffic information function TAis on,
but the radio station chosen does not give traf-
fic information, the device “beeps” every 30 sec-
onds.
With the TAfunction on (traffic informa-
tion) it is possible:
a)to search only RDS stations that trans-
mit in the FM band, enabled to broadcast
traffic information
b)receive traffic information even if the
Compact Disc player or CD-Changer is in use
c)receive traffic information at a prede-
fined minimum volume even with the ra-
dio volume off.The operations to be carried out for each
of the three above conditions are listed be-
low.
a)To receive stations enabled to broad-
cast traffic information:
– select band FM1, FM2 or FMT
– briefly press (less than 1 second) the
“AF-TA” button (1) so that the display
shows “TA”.
– press the tuner buttons “
˙˙” (7) or
“
¯¯” (4).
To store stations with TAon, carry out the
storage operations (see “Manual station
storage”).
b)If wishing to receive traffic informa-
tion when listening to a Compact Disc, be-
fore inserting the Compact Disc or turning
on the CD-Changer, tune to a station enabled
to broadcast traffic information (TP) and
turn on the TAfunction. If while listening to
the Compact Disc, this station broadcasts
traffic information, the Compact Disc will be
suspended temporarily and resumed again
automatically after the end of the message.
At the start of reception of traffic informa-
tion, the display will briefly show “INFO
TRA”, while the display continues giving
further information (frequency, name, time
of CD etc.).

GETTING TO KNOW YOUR CAR
159
If the Compact Disc player is already work-
ing and at the same time you want to re-
ceive traffic information, briefly pressing
(less than 1 second) the “AF-TA” button
(1) the radio tunes to the last station heard
in the FM band, the TA traffic information
function is activated and the traffic messages
are transmitted. If the station selected does
not send traffic information, the search for
an enabled station starts automatically.
If wishing to interrupt the traffic informa-
tion message, briefly press (less than 1 sec-
ond) the “AF-TA” button (1) during trans-
mission of the message.
c)To receive traffic information while not
listening to the radio:
– turn on the TAfunction, briefly pressing
(less than 1 second) “AF-TA” button (1),
so that the display shows “TA”
– tune to a station enabled to transmit
traffic information so that the display
shows“TP” take the volume to zero keep-
ing the “VOL-” button pressed (19).
This way, if that station broadcasts traffic
information, this will be heard at a minimum
predefined volume. IMPORTANTIn certain countries radio
stations exist which, even if the TPfunction
is on (the display shows “TP”), do not
transmit traffic information.
If the radio is working in the AM band
when the “AF-TA” button (1) is pressed,
it passes to the FM band on the last sta-
tion heard. If the station selected does not
broadcast traffic information (wording “TP”
not shown on the display), the search for
an enabled station starts automatically.
The volume with which the traffic bulletin
is transmitted varies depending on the lis-
tening volume:
– listening volume below 30: traffic bul-
letin volume = 20 (fixed value)
– listening volume above 30: traffic bul-
letin volume the same as the listening vol-
ume + 1.
If the volume is changed during a traffic
bulletin the value is not shown on the dis-
play and the new value is kept only for the
bulletin in progress.
During a traffic bulletin it is possible to turn
on sound adjustment with the “AUD” but-
ton (18). The new values set are also kept
at the end of the bulletin.IMPORTANTIf the TAfunction is on
and the station tuned is not able to provide
traffic information or it is no longer able to
provide this information (the display will not
show “TP”), so after 1 minute in which the
radio is in these conditions:
– if listening to a Compact Disc another
station is sought that is enabled to trans-
mit traffic information
– if when listening to the radio a “beep”
is given to alert that it is not possible to re-
ceive traffic information; to interrupt it, it is
necessary to tune to a station that can pro-
vide traffic information or switch off the TA
function.

GETTING TO KNOW YOUR CAR
160

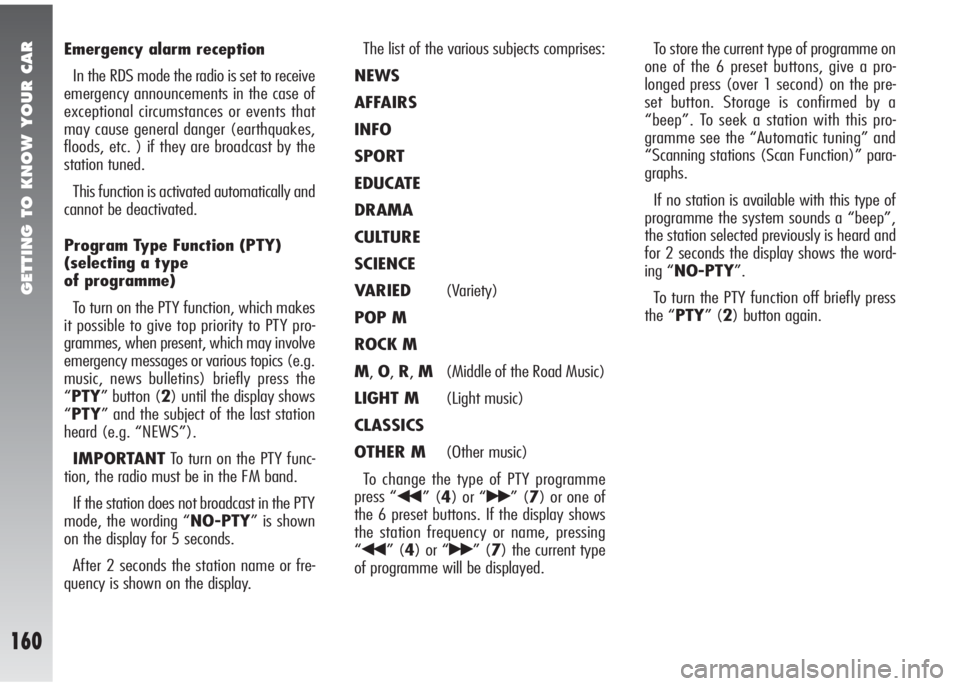

Emergency alarm reception
In the RDS mode the radio is set to receive
emergency announcements in the case of
exceptional circumstances or events that
may cause general danger (earthquakes,
floods, etc. ) if they are broadcast by the
station tuned.
This function is activated automatically and
cannot be deactivated.
Program Type Function (PTY)
(selecting a type
of programme)
To turn on the PTY function, which makes
it possible to give top priority to PTY pro-
grammes, when present, which may involve
emergency messages or various topics (e.g.
music, news bulletins) briefly press the
“PTY” button (2) until the display shows
“PTY” and the subject of the last station
heard (e.g. “NEWS”).
IMPORTANTTo turn on the PTY func-
tion, the radio must be in the FM band.
If the station does not broadcast in the PTY
mode, the wording “NO-PTY” is shown
on the display for 5 seconds.
After 2 seconds the station name or fre-
quency is shown on the display.The list of the various subjects comprises:
NEWS
AFFAIRS
INFO
SPORT
EDUCATE
DRAMA
CULTURE
SCIENCE
VARIED(Variety)
POP M
ROCK M
M,O,R,M(Middle of the Road Music)
LIGHT M(Light music)
CLASSICS
OTHER M(Other music)
To change the type of PTY programme
press “
¯¯” (4) or “˙˙” (7) or one of
the 6 preset buttons. If the display shows
the station frequency or name, pressing
“
¯¯” (4) or “˙˙” (7) the current type
of programme will be displayed.To store the current type of programme on
one of the 6 preset buttons, give a pro-
longed press (over 1 second) on the pre-
set button. Storage is confirmed by a
“beep”. To seek a station with this pro-
gramme see the “Automatic tuning” and
“Scanning stations (Scan Function)” para-
graphs.
If no station is available with this type of
programme the system sounds a “beep”,
the station selected previously is heard and
for 2 seconds the display shows the word-
ing “NO-PTY”.
To turn the PTY function off briefly press
the “PTY” (2) button again.

GETTING TO KNOW YOUR CAR
161
Controlling the station’s type of
PTY programme
To know the type of PTY programme of
the station heard, keep the “PTY” (2)
pressed until a “beep” is heard. After the
“beep” the display will show the type of pro-
gramme (see previous paragraph) offered
by the station tuned. If the station has no
PTY code, the display will show the wording
“NO-PTY”. After about 5 seconds the dis-
play will again show the RDS name or fre-
quency of the station tuned.
EON Function
(Enhanced Other Network)
Some countries have circuits which group
together several stations enabled to broad-
cast traffic information. In this case the pro-
gramme of the station being heard, will be
interrupted temporarily to receive traffic in-
formation (only with the TA function on),
every time these bulletins are given by one
of the stations of the same circuit. Scrolling transmissions
It is possible to receive different pro-
grammes in the same network and scroll
them in FM Band only) - e.g.: NDR1, NDR2,
NDR3, NDR4, N-JOY...
To turn on this function, briefly press the
“AF-TA” button (1) to turn on the AF func-
tion. The user can then start scrolling press-
ing “
˙˙” (7) or “¯¯” (4).
IMPORTANTThe station must have
been received previously at least once.
Stereophonic stations
If the signal received is weak, the device
switches automatically from Stereo to Mono.
MENU(fig. 137)
Functions of “MENU” button (9)
To turn on the menu function briefly press
(less than 1 second) the “MENU” button
(9). The display will show the word
“MENU”.
To scroll the Menu functions use “
▲” (6)
or “
▼” (8). To turn on/off the function se-
lected use “
˙˙” (7) or “¯¯” (4).
The display will show the current status
of the function selected.
The functions controlled by the menu are
the following:
–EQ SET(Equalizer settings, only if the
equalizer is on)
–PRESET/USER/CLASSIC/
ROCK/JAZZ(Turning on/off and choos-
ing predefined equalizer adjustments)
–HICUT(Treble reduction)
–PHONE(Volume of phone, if installed)
–CD NAME(Allocation of CD names,
only with CD inserted)
–SVC(Automatic volume control in re-
lation to speed)
–SENS DX/LO(Tuning sensitivity)
–CD(CD display setting)
