80
Warning
light on dialMessage
on display
BRAKE PAD WEAR
The message + symbol are shown on the reconfigurable multifunction display when the front brake
pads are worn; in this case have them changed as soon as possible.
IMPORTANTAs the car is fitted with wear sensors for the front brake pads, when changing them,
also check the rear brake pads.
SELESPEED GEARBOX FAILURE
The message + symbol are shown by the reconfigurable multifunction display when a fault to Se-
lespeed gearbox is detected.
If warning light tand the message appear on the display, contact Al-
fa Romeo Authorised Services as soon as possible to have the fault eli-
minated.
WARNING

GETTING TO KNOW YOUR CAR
109
To release the hand brake:
– slightly lift the lever (A) and press the
release button (B);
– keeping the button pressed lower the
lever, the warning light
xon the instru-
ment cluster will go out.
To prevent the car from moving acciden-
tally, keep the brake pedal pressed when
engaging the hand brake.
IMPORTANTThe hand brake lever (A)
is fitted with a safety device which prevents
the brake from being released when, with
the lever pulled, button (B) is pressed.
Therefore, to release the brake, in addition
to pressing button (B) it is also necessary
to pull lever (A) further upwards to release
the safety device, then lower the lever com-
pletely.
IMPORTANTOn certain versions a
buzzer sounds to alert the driver if the car
is moved with the hand brake engaged.
GEARSHIFT LEVER (fig. 95)
The position of the single gears is shown
by the pictogram on the gearshift lever
knob.
When shifting gear, always fully depress
the clutch pedal. Before engaging reverse
gear (R) wait for the car to be stationary.
For versions fitted with six speed gearbox,
to engage reverse gear (R), raise the ring
under the grip (with the fingers of the same
hand holding the lever).
After engaging reverse gear, release the
ring. It is not necessary to raise the ring on
the lever when shifting from reverse to an-
other gear.
fig. 95
A0A0410m
To change gear smoothly,
the clutch pedal must be
fully depressed. Therefore, there
should be no obstacles on the floor
under the pedal unit: make sure
that any mats are well laid and do
not interfere with the pedals.
WARNING
IMPORTANTReverse gear may only be
engaged with the car completely at a stand-
still. With the engine running, before en-
gaging reverse gear it is necessary to wait
for at least 3 seconds with the clutch pedal
fully depressed to prevent clashing and the
possibility of damaging the gears.

GETTING TO KNOW YOUR CAR
110
SELESPEED
TRANSMISSION
The car may be fitted with a mechanical
transmission with electronic control called
“Selespeed”.
The Selespeed considerably simplifies use
of the car, reducing the fatigue of city dri-
ving or when frequent gearshifting is re-
quired, at the same time offering brilliant
performance.
IMPORTANTTo be able to use the Se-
lespeed correctly, this chapter should be read
in full to understand the correct, permissible
operations to be carried out right from the
start.This device comprises a conventional me-
chanical gearbox to which an electronical-
ly-operated electrohydraulic device has been
added which automatically controls the
clutch and gear engagement.
The clutch pedal has been eliminated and
the vehicle moves off using only the accel-
erator pedal.
Gearshifting takes place through the con-
trol lever (A-fig. 96) which is of the float-
ing type with a “single central stable posi-
tion”.
Using the lever it is possible to request an
increase/decrease of the gear ratio engaged
and/or reverse gear engagement (R) or
neutral (N).There are also two stalks on the steering
wheel spokes (fig. 97) through which, on-
ly with the car on the move (with speed
above 2 km/h), it is possible to shift gear
up or down.
The gearbox can work in two operating
modes:
– the first is semiautomatic (MANUAL),
in which the driver directly requests gearshift-
ing through the lever on the centre console
or pressing the buttons at the steering
wheel;
– the second is automatic, called CITY,
in which the system decides directly when
to shift gear (mode selectable with the spe-
cific button A-fig. 98).
fig. 97
A0A0098m
fig. 98
A0A0096m
fig. 96
A0A0097m

GETTING TO KNOW YOUR CAR
111fig. 99
A0A9017g
fig. 100
A0A9081g
With the gearbox in the CITYmode it is
still possible to carry out manual gearshift-
ing, both using the gear lever and the steer-
ing wheel controls. The gearbox remains in
theCITYmode.

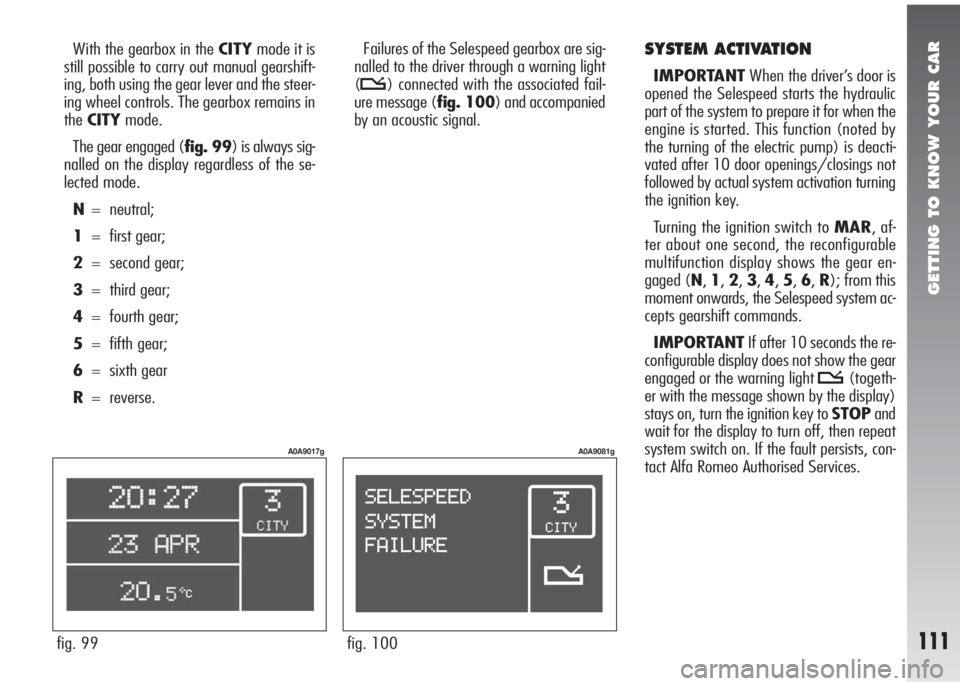

The gear engaged (fig. 99) is always sig-
nalled on the display regardless of the se-
lected mode.
N= neutral;
1= first gear;
2= second gear;
3= third gear;
4= fourth gear;
5= fifth gear;
6= sixth gear
R= reverse.Failures of the Selespeed gearbox are sig-
nalled to the driver through a warning light
(
t) connected with the associated fail-
ure message (fig. 100) and accompanied
by an acoustic signal.
SYSTEM ACTIVATION
IMPORTANTWhen the driver’s door is
opened the Selespeed starts the hydraulic
part of the system to prepare it for when the
engine is started. This function (noted by
the turning of the electric pump) is deacti-
vated after 10 door openings/closings not
followed by actual system activation turning
the ignition key.
Turning the ignition switch to MAR, af-
ter about one second, the reconfigurable
multifunction display shows the gear en-
gaged (N,1,2,3,4,5,6,R); from this
moment onwards, the Selespeed system ac-
cepts gearshift commands.
IMPORTANTIf after 10 seconds the re-
configurable display does not show the gear
engaged or the warning light
t(togeth-
er with the message shown by the display)
stays on, turn the ignition key to STOPand
wait for the display to turn off, then repeat
system switch on. If the fault persists, con-
tact Alfa Romeo Authorised Services.

GETTING TO KNOW YOUR CAR
113
STARTING THE ENGINE
The engine can be started either with a
gear engaged or in neutral (N) provided
that the brake pedal is fully depressed.
IMPORTANTIf the brake pedal is not
depressed, the starter motor will not turn,
thus preventing the engine from being start-
ed.
After starting, the gearbox sets to neutral
automatically, the reconfigurable multifunc-
tion display shows the letter (N) and the
system selects the semiautomatic operating
mode (manual).
SWITCHING OFF THE ENGINE
AND SYSTEM DEACTIVATION
Turning the ignition key to STOPthe en-
gine turns off but the Selespeed system is
still active waiting for the car to stop com-
pletely. After about 2 - 4 seconds from when
the key has been moved to STOP, the hy-
draulic part is deactivated and the reconfig-
urable multifunction display is turned off im-
mediately afterwards; at this point is the Se-
lespeed system deactivated.
The gear selected before switching off the
engine remains engaged.
If the engine is stopped with the gearbox
in neutral (N), the buzzer calls the driver’s
attention so that the car can be put in safe-
ty conditions engaging first gear (1) or re-
verse (R). In this case, the ignition key
should be turned to MARand with the
brake pedal pressed, engage first gear (1)
or reverse (R).
IMPORTANTIf the engine is stopped
with the CITYmode engaged, this will be
stored by the system. Indeed, the next time
the engine is started, this condition will still
be active.IMPORTANTShould the engine go off
with the car on the move, the next time it
is started the Alfa Romeo CODE warning
light (Y) may come on. In this case check
that the warning light goes off turning the
engine off and on again with the vehicle sta-
tionary. If not contact Alfa Romeo Authorised
Services.
NEVER leave the car with
the gears in neutral (N).
WARNING
Never remove the ignition
key when the car is mov-
ing. In addition to the fact that the
Selespeed system would not work
properly up to stopping the car, the
steering wheel would lock auto-
matically the first time it is turned.
WARNING
If the engine fails to start
with the gear engaged, the
driver is informed of the potential-
ly dangerous situation due to the
fact that the gearbox is in neutral
by the buzzer and by the reconfig-
urable multifunction display.
WARNING

GETTING TO KNOW YOUR CAR
115
WARNINGS
– With the car stopped and a gear en-
gaged always keep the brake pedal pressed
until deciding to move off;
– during prolonged halts with the engine
running it is advisable to keep the gearbox in
neutral;
– when the car is parked facing uphill, do
not use the moving off manoeuvre to keep
the car still; use the brake pedal and press
the accelerator pedal only when deciding to
move off;
– use second gear onlywhen more con-
trol is needed for moving off manoeuvres at
low speed;
– if, in reverse gear, first gear is engaged
or vice versa, shift gear only when the car
is stopped completely and with the brake
pedal pressed.
Though highly unadvisable, if when trav-
elling downhill for some unexpected reason
the car is set to neutral (N), when the en-
gagement of a gear is requested the system
automatically engages the best gear in re-
lation to the speed of the car to allow the
correct transmission of torque to the wheels.When travelling downhill with a gear en-
gaged and the accelerator released (if the
vehicle is moving), beyond a pre-established
speed, the system engages the clutch au-
tomatically to give the car adequate engine
braking.
For safety reasons the Selespeed system
activates the buzzer when:
– clutch overheating occurs while the ve-
hicle is being started; in this case it is nec-
essary to “force” starting avoiding hesita-
tion or, if the car is on a slope, release the
accelerator and use the brake pedalto stop
the car;
– the car moves in the opposite direction
to the gear engaged, (e.g.: it moves for-
wards with reverse gear engaged; in this sit-
uation it is necessary to stop the car and en-
gage the correct gear, keeping the brake
pedal pressed.
Still due to safety reasons, with the car sta-
tionary, the engine running and gear (1),
(2) or (R) engaged, the system activates
the buzzer and automatically shifts to neu-
tral (N) when:
– no action is made on the accelerator
and/or brake pedals for at least 3 minutes;
– the brake is pressed for over 10 minutes;
– the driver’s door is opened and the ac-
celerator and brake are not touched for at
least 1 second.
STOPPING THE CAR
To stop the car, simply release the accel-
erator pedal and, if necessary press the
brake pedal.
Regardless of the gear engaged and the
operating mode activated (MANUALor
CITY) the system automatically disengages
the clutch and shifts to a lower gear.
If deciding to move off again without hav-
ing stopped the car completely, the most
suitable ratio will be available for acceler-
ating again.
Stopping the car the system automatical-
ly engages first gear (1).

GETTING TO KNOW YOUR CAR
116fig. 105
A0A0098m
fig. 104
A0A0097m
fig. 106
A0A0096m

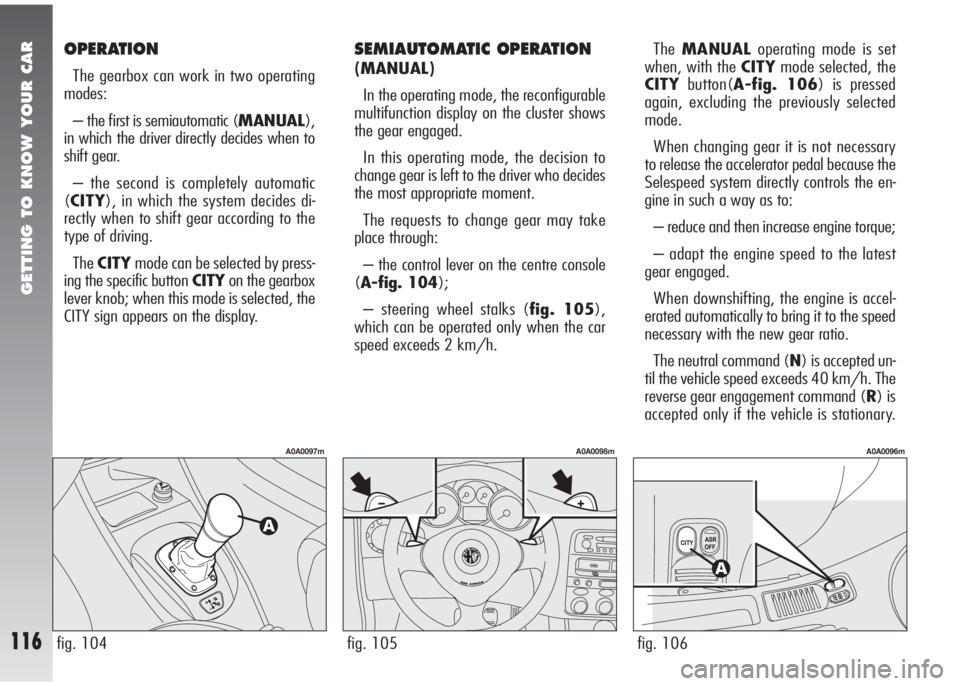

OPERATION
The gearbox can work in two operating
modes:
– the first is semiautomatic (MANUAL),
in which the driver directly decides when to
shift gear.
– the second is completely automatic
(CITY), in which the system decides di-
rectly when to shift gear according to the
type of driving.
TheCITYmode can be selected by press-
ing the specific button CITYon the gearbox
lever knob; when this mode is selected, the
CITY sign appears on the display.
SEMIAUTOMATIC OPERATION
(MANUAL)
In the operating mode, the reconfigurable
multifunction display on the cluster shows
the gear engaged.
In this operating mode, the decision to
change gear is left to the driver who decides
the most appropriate moment.
The requests to change gear may take
place through:
– the control lever on the centre console
(A-fig. 104);
– steering wheel stalks (fig. 105),
which can be operated only when the car
speed exceeds 2 km/h.TheMANUALoperating mode is set
when, with the CITYmode selected, the
CITYbutton(A-fig. 106) is pressed
again, excluding the previously selected
mode.
When changing gear it is not necessary
to release the accelerator pedal because the
Selespeed system directly controls the en-
gine in such a way as to:
– reduce and then increase engine torque;
– adapt the engine speed to the latest
gear engaged.
When downshifting, the engine is accel-
erated automatically to bring it to the speed
necessary with the new gear ratio.
The neutral command (N) is accepted un-
til the vehicle speed exceeds 40 km/h. The
reverse gear engagement command (R) is
accepted only if the vehicle is stationary.

GETTING TO KNOW YOUR CAR
117
In the “MANUAL” operating mode there
are certain automatic/security devices which
simplify driving:
– when slowing down the clutch is opened
and the transmission ratio is automatically
reduced to be ready for picking up again;
otherwise, when the car is stopped, the
gearbox will automatically be in firstgear
(1);
– requests to change gear that would take
the engine to above maximum speed or be-
low minimum speed are not accepted;
– if jamming occurs during gear engage-
ment, the system firstly tries to engage the
gear required again and, if it is still not pos-
sible, it automatically engages the imme-
diately higher one to avoid leaving the car
inneutral.
IMPORTANTIt is advisable to wait for
the end of a gear shifting operation before
requesting another one, to avoid multiple
requests in rapid succession.AUTOMATIC OPERATION (CITY)
The automatic operating mode CITYis se-
lected pressing button (A-fig. 106) at the
base of the gearshift lever.
In addition to the gear, the reconfigurable
multifunction display shows the word CITY
(fig. 99).
The system decides directly when gearshift-
ing according to the engine running speed
and the driving style.
Releasing the accelerator pedal quickly, the
system does not engage a higher gear in or-
der to maintain an adequate level of engine
brake.
FAILURE WARNING
Failures of the Selespeed gearbox are shown
by the
twarning light (fig. 100) con-
nected with the associated failure message,
both shown on the display.
When the system is turned on (turning the
ignition key to MAR), the warning light
should turn on glowing steadily for about
4 seconds and then turn off.If the warning light stays on it means that
a fault to the gearbox has been detected; at
the same time a buzzer sounds intermit-
tently for 4 seconds to attract the driver's
attention.
In the case of a fault to the gearshift con-
trol lever, the system automatically engages
the automatic operating mode CITYto
make it possible to reach the nearest Alfa
Romeo Authorised Service to have the fault
eliminated.
In the case of a fault to other gearbox com-
ponents, the system only allows the en-
gagement of certain gears: first gear (1),
second gear (2) and reverse (R).
If warning light tand
the message appear on the
display, contact Alfa Romeo Au-
thorised Services as soon as pos-
sible to have the fault eliminated.
WARNING

GETTING TO KNOW YOUR CAR
118
BUZZER WARNINGS
The buzzer is activated when:
– reverse gear is engaged (R);
– the car is parked with the gearbox in
neutral (N); signal that can be noted turn-
ing the ignition key to STOP;
– clutch overheating occurs when moving
off;
– the car moves in the opposite direction
to the gear engaged (e.g.: the car moves
downwards with reverse gear engaged);
– in the event of gearbox failure;
– the system has shifted automatically
to neutral (N) when:
•an attempt is made to start the engine
with a gear engaged and the brake ped-
al is not pressed completely;
•no action is made on the accelerator
and/or brake pedal for at least 3 min-
utes;
•the brake is pressed for over 10 min-
utes;
•the driver’s door is opened and no ac-
tion is made on the accelerator and
brake for at least 1 second;
•a gearbox failure has been detected.
PARKING THE CAR
To park the car safely it is absolutely
necessaryto engage first gear (1) or re-
verse (R) and also the hand brake if the
road is on a slope.
Turning off the engine with the car on an
uphill slope and a gear engaged, it is ab-
solutely necessaryto wait for the re-
configurable multifunction display showing
the gear engaged to go off before releasing
the brake pedal, so that the clutch is com-
pletely inserted.
If the gearbox is in neutral (N) and want-
ing to engage a parking gear, the system
should be activated and with the foot on the
brake pedal it is necessary to engage 1st
gear (1) or (R).
TOWING THE CAR
IMPORTANTFor towing the car follow
local regulations. Make sure that the gear-
box is in neutral (N) (checking that the car
moves if pushed) and tow as for a car with
normal mechanical gearbox following the in-
structions given in the chapter “In an emer-
gency”.
Should it be impossible to set to neutral,
do not tow the vehicle but contact Alfa
Romeo Authorised Services.
While towing the car do
not start the engine.
WARNING
In the event of a gearbox
fault to any component,
contact Alfa Romeo Authorised
Services as soon as possible to
have the system checked over.
WARNING

IN AN EMERGENCY
189
STARTING
WITH AN AUXILIARY BATTERY
If the battery is flat, (for battery with op-
tical hydrometer: dark colour without green
area in the centre), it is possible to start the
engine using an auxiliary battery with the
same capacity or a little higher than the flat
one.
Proceed as follows (fig. 1):
1) Remove the protective cover on the pos-
itive battery post, pressing on the opening
catches (front), then connect the positive
terminals (+sign next to the terminal) of
the two batteries using a special cable.
2) Connect the end of the second jump
lead to the negative terminal (–) of the
auxiliary battery with an earth point
Eon
the engine or gearbox of the vehicle to be
started.IMPORTANTDo not directly connect the
negative terminals of the two batteries: any
sparks may ignite the detonating gas which
could come out of the battery. If the auxil-
iary battery is installed on another car, avoid
metal parts touching accidentally between
this car and the one with the flat battery.
3) Start the engine.
4) When the engine has started, remove
the cables, reversing the sequence followed
for connection.
If after a few attempts the engine does not
start, do not insist but contact the nearest Al-
fa Romeo Authorised Service.
fig. 1
A0A0492m
Never use a battery
charger to start the engine
as this could damage the
electronic systems of your vehicle,
particularly the ignition and fuel
supply control units.
This starting procedure
must be carried out by
qualified personnel because incor-
rect operations may cause electri-
cal discharge of considerable in-
tensity. The liquid contained in the
battery is poisonous and corrosive.
Avoid contact with the skin and
eyes. Keep naked flames and light-
ed cigarettes away from the bat-
tery and do not cause sparks.
WARNING
