PERFORMANCE
SALOON VERSIONS Top speed Acceleration Kilometer with standing start
from 0-100 km/h
km/h sec. sec.
1.9 JTS212 9.7 30.7
2.2 JTS222 8.8 29.6
3.2 JTS240 7.0 27.5
1.9 JTDM8v191 11.0 32.8
1.9 JTDM16v210 9.4 30.8
2.4 JTDM228 8.4 29.2
SPORTWAGON VERSIONSTop speed Acceleration Kilometer with standing start
from 0-100 km/h
km/h sec. sec.
1.9 JTS210 9.9 31.3
2.2 JTS220 9.0 30.3
3.2 JTS 237 7.2 27.9
1.9 JTDM8v190 11.2 33.3
1.9 JTDM16v208 9.6 31.3
2.4 JTDM226 8.6 29.7

264
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
2.2 JTS
1490
1200
1100
2010
520
1500
70
80
3.2 JTS
1680
1300
1100
2200
520
1700
60
80
1.9 JTDM8v
1525
1200
1100
2045
520
1500
70
80
1.9 JTDM16v
1535
1200
1100
2055
520
1500
70
80
2.4 JTDM
1630
1300
1100
2150
520
1500
70
80
1.9 JTS
1480
1200
1100
2000
520
1500
70
80
WEIGHTS
Weights (kg)
Saloon versions
Kerb weight
Maximum admitted load (*)
– front axle
– rear axle
– total
Payload including
driver (**)
Towable loads
Max. load on ball
Maximum load on roof (***)
(*) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot an/or on the roof so
that they comply with these limits.
(**) If special equipment is fitted (sunroof, tow hitch etc.) the unladen weight increases, thus reducing the payload as specified in
the maximum weight allowed.
(***) Lineaccessori Alfa Romeo roof rack, max capacity: 50 kg.

1.9 JTS
1530
1200
1100
2050
520
1500
70
80
2.2 JTS
1540
1200
1100
2060
520
1500
70
80
3.2 JTS
1730
1300
1100
2250
520
1800
70
80
1.9 JTDM8v
1575
1200
1100
2095
520
1500
70
80
1.9 JTDM16v
1585
1200
1100
2105
520
1500
70
80
2.4 JTDM
1680
1300
1100
2200
520
1500
70
80
265
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
Weights (kg)
Sportwagonversions
Kerb weight
Maximum admitted load (*)
– front axle
– rear axle
– total
Payload including
driver (**)
Towable loads
Max. load on ball
Maximum load on roof (***)
(*) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot an/or on the roof so
that they comply with these limits.
(**) If special equipment is fitted (sunroof, tow hitch etc.) the unladen weight increases, thus reducing the payload as specified in
the maximum weight allowed.
(***) Lineaccessori Alfa Romeo roof rack, max capacity: 50 kg.

266
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
CAPACITIES
1.9 JTDM8v
70❍10❍
7.5
4.6
❑
2.3
6.0
1.9 JTDM16v
70❍10❍
7.5
4.6
❑
2.3
6.0
2.4 JTDM
70❍10❍
7.35
6.4
❑
2.8
6.0
1.9 JTS
70●10●
8.15
5.4
■
2.3
6.0
2.2 JTS
70●10●
8.15
5.4
■
2.3
6.0
3.2 JTS
69●10●
10.3
5.4
■
2.8 (Õ)
6.0
Specified fuels and
original lubricants
●Unleaded petrol
with no less than
95 R.O.N.
(EN228 Specification)
❍Diesel fuel for motor vehi-
cles (EN590 Specification)
Mixture of 50%
water and
PARAFLU UP
■SELENIA StAR
❑SELENIA WR
TUTELA CAR MATRYX
(Õ) TUTELA
CAR MULTIAXLE
Mixture of water and liquid
TUTELA
PROFESSIONAL SC 35
Fuel tank: litres
– including a reserve of litres
Engine cooling systemlitres
Lubrication system litres
engine
Mechanical gearbox/
differential litres
Windscreen/headlight
washer fluid reservoir: litres

267
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
Use Fluid and lubricant specifications Original fluids Change
for correct car operation and lubricants
Lubricants for
petrol engines
Lubricants for
diesel engines
Synthetic-based oils, grade SAE 5W-40,
FIAT 9.55535-H2qualification.
Synthetic-based oils, grade SAE 5W-40,
FIAT 9.55535-M2qualification.SELENIA StAR
SELENIA WRAccording to Service
Schedule
According to Service
Schedule
For regular operation of Multijet versions with DPF, use only original oil. In an emergency (lacking the original product) only top up with max. 0,5 l
and then drive immediately to the nearest to contact Alfa Romeo Authorized Services.
If using non original SAE 5W-40 products, oils with minimum ACEA A3 specifications for petrol engines and ACEA B4 specifications for Diesel engines
are admitted; in this event top engine performance is not guaranteed.
Use of products with low-quality properties than ACEA A3 and ACEA B4 could cause damages to the engine that are not covered by the warranty.
For very cold climate conditions, ask to contact Alfa Romeo Authorized Services for the appropriate Seleniaproduct to use.

268
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
Synthetic-based oil, grade SAE 75W-85
that passes API GL 4 specifications
Synthetic-based oil, grade SAE 75W-90 that passes
API GL-5 specifications
Lubricant for hydrostatic transmissions that passes
“ATF DEXRON III” specification
Lithium-soap-based grease with molybdenum bisulphate.
Consistency NLGI 2
Lithium soap based grease. NLGI 0 consistency
Synthetic fluid FMVSS no. 116, DOT 4, ISO 4925, SAE J-1704
CUNA NC 956-01
Protective with antifreeze action, red colour based on inhibited
monoethylen glycol and organic formula,
that passes CUNA NC 956-16, ASTM D 3306 specifications
Mixture of alcohol, water and surfactants CUNA NC 956-11TUTELA CAR
MATRYX
TUTELA CAR
MULTIAXLE
TUTELA GI/E
TUTELA STAR 500
TUTELA
MRM ZERO
TUTELA TOP 4
PARAFLU UP
TUTELA
PROFESSIONAL
SC 35Mechanical gearbox and
differential
Rear differential and
transmission unit
(3.2 JTS version)
Power steering
CV joints
on wheel side
CV joints
on differential side
Hydraulic brake and
clutch controls
Cooling
circuits
Proportion:
50% water and
50% Paraflu UP
To be used diluted
or undiluted
Use Fluid and lubricant specifications Original fluids Applications
for correct car operation and lubricants
Lubricants and
greases
for transmission
Windscreen/
headlight washer
fluid Protective agent for
radiators Brake fluid

269
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
–extra-urban cycle: frequent ac-
celerating in all gears, simulating ex-
traurban use of the car; the speed varies
between 0 and 120 km/h;
–combined consumption: is cal-
culated weighing about 37% of urban
cycle consumption and about 63% of
extraurban consumption.IMPORTANT The type of route,
traffic situations, weather condi-
tions, driving style, general con-
ditions of the car, trim level/
equipment/accessories, load, cli-
mate control system, roof rack,
other situations that affect air
drag may lead to different fuel
consumption levels than those
measured.FUEL CONSUMPTION
The fuel consumption figures given in
the table below are determined on the
basis of the homologation tests set
down by specific European Directives.
The procedures below are followed for
measuring consumption:
–urban cycle: cold starting followed
by driving that simulates urban use of
the car;
Fuel consumption according to Urban Extra-urban Combined
1999/100/ECDirective (litres x 100 km)
1.9 JTS12,2 (
) 6.6 () 8.7 ()12.4 () 6.7 () 8.8 ()
2.2 JTS13.0 (
) 7.3 () 9.4 ()13.2 () 7.3 () 9.5 ()
3.2 JTS 16.9 (
) 8.4 () 11.5 ()17.0 () 8.4 () 11.6 ()
1.9 JTD
M8v7.8 () 4.9 () 5.9 ()7.9 () 4.9 () 6.0 ()
1.9 JTD
M16v8.1 () 4.8 () 6.0 ()8.3 () 4.8 () 6.1 ()
2.4 JTD
M9.2 () 5.4 () 6.8 ()9.4 () 5.6 () 7.0 ()
(
) Saloon versions
(
) Sportwagon versions

270
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
CO2EMISSIONS
The CO2emission levels given in the following tables refer to combined consumption.
CO2EMISSIONS ACCORDING TO 1999/100/EC DIRECTIVE (g/km)
1.9 JTS 2.2 JTS 3.2 JTS 1.9 JTDM8v 1.9 JTDM16v 2.4 JTDM
205 221 273 157 159 179
Sportwagon versions
1.9 JTS 2.2 JTS 3.2 JTS 1.9 JTDM8v 1.9 JTDM16v 2.4 JTDM
209 224 275 159 162 184 Saloon versions

ODDMENT COMPARTMENTS
fig. 8 - 9
The boot sides are equipped with two odd-
ment compartments closed by a cover.
To open the cover press button Aand
turn it downwards.
274
ALFA 159 SPORTWAGONIf you want to carry
reserve fuel in a can,
follow law regulations, only
using a certified can, suitably
fastened to the load securing
eyelets. Even in this way the
risk of fire is increased in the
case of an accident.
WARNING
A heavy load that has
not been secured may
cause serious harm.
WARNING
A0E0273mfig. 8
A0E0272mfig. 9
A0E0270mfig. 6A0E0271mfig. 7
ANCHORING THE LOAD
The boot houses 4 hooks (see fig. 6
andfig. 7) for anchoring ropes in or-
der to guarantee perfect load anchoring.
Hooks shall also be used to secure the
luggage retaining net (available as op-
tional, for versions/markets where ap-
plicable, at Alfa Romeo Authorised Ser-
vices).

PASSENGER'S
COMPARTMENT UPPER
SEPARATION NET
(where provided)

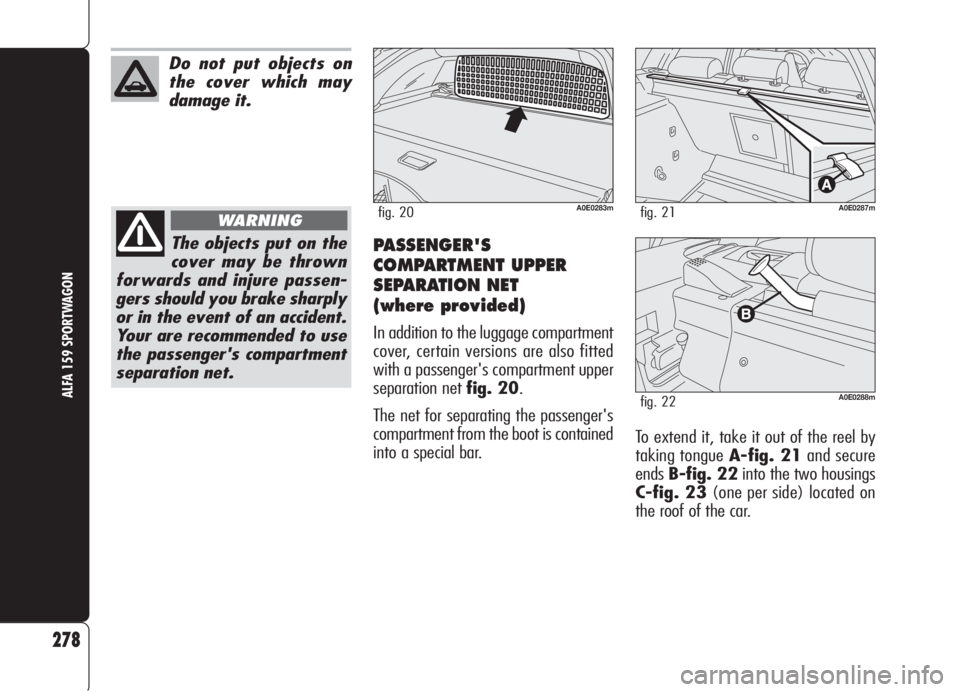

In addition to the luggage compartment
