ANCHORING THE LOAD
The boot houses 4 hooks A-fig. 97
for anchoring ropes in order to guaran-
tee perfect load anchoring.
A0E0131mfig. 97
A heavy load that has
not been secured may
cause serious harm.
WARNING
If you want to carry
reserve fuel in a can,
follow law regulations, only
using a certified can, suitably
fastened to the load securing
eyelets. Even in this way the
risk of fire is increased in the
case of an accident.
WARNINGTO RETURN THE REAR SEAT
BACK TO ITS ORIGINAL
POSITION
Move aside the seat belts, check that
they are not twisted.
Raise the seat backrests and push them
back until hearing the locking click of
both retainers; the “red band” Baside
the levers Ashall no longer be visible.
The “red band” Bactually indicates that
the backrest is not properly secured.
IMPORTANTMake sure the head re-
straints are properly positioned.
Make sure the backrest
is properly secured at
both sides (“red bands” B-fig.
96 not visible) to prevent it
moves forward in the event of
sharp braking causing injuries
to passengers.
WARNING

165
SAFETY
DEVICES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
WARNING
LIGHTS AND
MESSAGES
W W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S
LOW BRAKE FLUID/HANDBRAKE ON ..................... 167
BRAKE PAD WEAR ............................................. 167
SEAT BELTS NOT FASTENED ................................. 167
AIR BAG FAILURE................................................ 168
FRONT AIR BAGS DEACTIVATED ............................ 168
ENGINE COOLANT
HIGH TEMPERATURE ........................................... 169
ENGINE OIL HIGH TEMPERATURE .......................... 170
LOW ENGINE OIL PRESSURE/
EXHAUST OIL..................................................... 170
LOW BATTERY CHARGE ....................................... 170
INCOMPLETE DOOR LOCKING ............................... 171
BONNET OPEN ................................................... 171
BOOT OPEN....................................................... 171
INJECTION SYSTEM FAILURE/
EOBD SYSTEM FAILURE....................................... 171
CAR PROTECTION SYSTEM FAILURE/
STEERING LOCK INHIBITION................................. 172
ALARM FAILURE/BREAK-IN ATTEMPT
ELECTRONIC KEY NOT RECOGNIZED ...................... 172
POSSIBLE PRESENCE OF ICE ON THE ROAD............ 173
PRE-HEATING GLOW PLUGS/
PRE-HEATING GLOW PLUG FAILURE ....................... 173
WATER IN DIESEL FUEL FILTER ............................. 174
INERTIAL FUEL CUT-OFF
SWITCHED ON .................................................. 174
ABS SYSTEM FAILURE......................................... 175
EBD SYSTEM FAILURE......................................... 175
VDC SYSTEM .................................................... 175HILL HOLDER FAILURE ........................................ 176
ASR SYSTEM (WHEEL ANTISKID SYSTEM) ............. 176
EXTERNAL LIGHTS FAILURE .................................. 176
BRAKE LIGHTS FAILURE ....................................... 177
REAR FOGLIGHTS ............................................... 177
FRONT FOG LIGHTS ............................................ 177
SIDE/TAILLIGHTS/FOLLOW ME HOME .................. 177
DIPPED BEAM HEADLIGHTS.................................. 177
MAIN BEAM HEADLIGHTS .................................... 177
LEFT-HAND DIRECTION INDICATOR ........................ 177
RIGHT-HAND DIRECTION INDICATOR ...................... 177
LIGHT SENSOR FAILURE........................................ 178
RAIN SENSOR FAILURE......................................... 178
PARKING SENSORS FAILURE ................................ 178
FUEL RESERVE – LIMITED CRUISING RANGE .......... 178
CRUISE CONTROL .............................................. 178
DIESEL PARTICULATE FILTER CLOGGED .................. 178
ANTIPINCH SYSTEM FAILURE ............................... 179
WINDSCREEN WASHER FLUID LOW LEVEL ............. 179
SPEED LIMIT EXCEEDED ..................................... 179
T.P.M.S. SYSTEM FAILURE ................................... 179
CHECK TYRE PRESSURE ...................................... 179
LOW INFLATION PRESSURE ................................. 180
TYRE PRESSURE UNSUITABLE FOR SPEED ............. 180

178
SAFETY
DEVICES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
WARNING
LIGHTS AND
MESSAGES
FUEL RESERVE –
LIMITEDCRUISING
RANGE(amber)
The warning light on the fuel level gauge
turns on when about 10 litres fuel are
left in the tank. On certain versions. the
display will show a warning message
when the cruising range is less than 50
km (or 31 mi).
If warning light
K
starts flashing when
travelling contact Alfa
Romeo Authorized Services.
CRUISE CONTROL
(where provided)
(green)
The warning light turns on (on certain
versions a dedicated message is dis-
played) when turning the the knurled
ring of the Cruise Control to
Ü.
LIGHT SENSOR
FAILURE
(where provided)
(amber)
The warning light (or as an alternative,
on certain versions, a symbol and a mes-
sage are displayed) turns on to indicate
a failure at the light sensor.
PARKING SENSOR
FAILURE
(where provided)
(amber)
The warning light (or as an alternative,
on certain versions, a symbol and a mes-
sage are displayed) turns on to indicate
a failure at parking sensors.
RAIN SENSOR
FAILURE
(where provided)
(amber)
The warning light(where provided) turns
on (on certain versions a message is dis-
played) when the rain sensor is failing.
1
u
t
K
Ü
DIESEL PARTICULATE
FILTER CLOGGED
(diesel versions)
(amber)
The warning light (or as an alternative,
on certain versions, a symbol and a mes-
sage are displayed) turns on when the
diesel particulate filter is clogged and the
driving conditions do not enable to ac-
tivate automatically the reclaiming pro-
cedure.
To enable the cleaning procedure, keep
the car running until the warning light
turns on (or, on certain versions, sym-
bol
hdisappears from the display).
h

266
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
CAPACITIES
1.9 JTDM8v
70❍10❍
7.5
4.6
❑
2.3
6.0
1.9 JTDM16v
70❍10❍
7.5
4.6
❑
2.3
6.0
2.4 JTDM
70❍10❍
7.35
6.4
❑
2.8
6.0
1.9 JTS
70●10●
8.15
5.4
■
2.3
6.0
2.2 JTS
70●10●
8.15
5.4
■
2.3
6.0
3.2 JTS
69●10●
10.3
5.4
■
2.8 (Õ)
6.0
Specified fuels and
original lubricants
●Unleaded petrol
with no less than
95 R.O.N.
(EN228 Specification)
❍Diesel fuel for motor vehi-
cles (EN590 Specification)
Mixture of 50%
water and
PARAFLU UP
■SELENIA StAR
❑SELENIA WR
TUTELA CAR MATRYX
(Õ) TUTELA
CAR MULTIAXLE
Mixture of water and liquid
TUTELA
PROFESSIONAL SC 35
Fuel tank: litres
– including a reserve of litres
Engine cooling systemlitres
Lubrication system litres
engine
Mechanical gearbox/
differential litres
Windscreen/headlight
washer fluid reservoir: litres

ODDMENT COMPARTMENTS
fig. 8 - 9
The boot sides are equipped with two odd-
ment compartments closed by a cover.
To open the cover press button Aand
turn it downwards.
274
ALFA 159 SPORTWAGONIf you want to carry
reserve fuel in a can,
follow law regulations, only
using a certified can, suitably
fastened to the load securing
eyelets. Even in this way the
risk of fire is increased in the
case of an accident.
WARNING
A heavy load that has
not been secured may
cause serious harm.
WARNING
A0E0273mfig. 8
A0E0272mfig. 9
A0E0270mfig. 6A0E0271mfig. 7

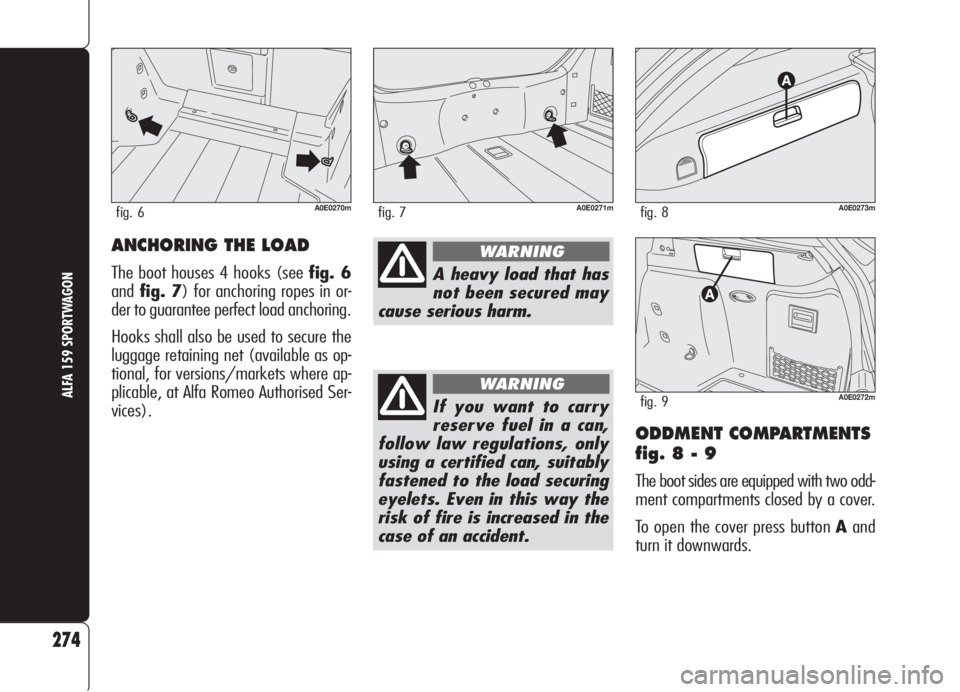

ANCHORING THE LOAD
