technical data Alfa Romeo 159 2011 Owner handbook (in English)

59
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
I - OFF button to disable climate control;
L- air recirculation on/off button;
M- climate control compressor on/off button;
N- passenger’s compartment temperature sensor TWO-ZONE controls fig. 49
A- air distribution buttons (on driver and
passenger side);
B- temperature adjustment knob on dri-
ver side;
C - automatic operation button (AUTO);
D- climate control data display;
E - temperature adjustment knob on
passenger side;
F - heated rear window/door mirrors
on/off button;
G- MAX-DEF function button (fast de-
frosting/demisting function for wind-
screen, heated rear window and door
mirrors with heating function);
H - buttons for adjusting the fan speed;
fig. 49 - TWO-ZONE configurationA0E0453m
046-082 Alfa 159 GB 8-04-2009 14:22 Pagina 59

60
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
THREE-ZONE controls fig. 50
Front controls
A- air distribution buttons (driver and pas-
senger side);
B- temperature adjustment knob on driver
side;
C - automatic operation button (AUTO);
D- climate control data display;
E - temperature adjustment knob on passen-
ger side;
F - heated rear window/door mirrors on/off
button;
G- MAX-DEF function button (fast defrost-
ing/demisting function for windscreen, heat-
ed rear window and door mirrors with heating
function);
H - buttons for adjusting the fan speed;
I - OFF button to disable climate control;
L- air recirculation on/off button;
M- climate control compressor on/off button;
N- passenger’s compartment temperature
sensor
Rear controls
P- knob for adjusting temperature on rear
passenger side;
Q- button for turning on automatic operation
(AUTO) and for turning off air flow to rear
seats (OFF);
R- air distribution buttons;
S- rear temperature display.
fig. 50 - THREE-ZONE configuration - Front and rear controlsA0E0454m
046-082 Alfa 159 GB 8-04-2009 14:22 Pagina 60

CLEARING THE
PROGRAMMED BUTTONS
You are recommended to clear the
HomeLink programming before selling
the car.
Programming is cleared on all the three
buttons at the same time.
Proceed as follows:
❒press and keep pressed the outer
buttons (Aand C): 20 seconds af-
ter led Dwill start flashing.
❒Release both buttons.
TECHNICAL DATA FOR THE
ASSISTANCE SERVICE
If after following the previous instruc-
tions you are still unable to set the
HomeLink system, contact the Assis-
tance Service (HomeLink toll free num-
ber 00800046635465) and commu-
nicate the following data:
❒make and model of your car, in-
cluding the date of manufacture and
the country where you bought it;
❒make, model, date of manufacture
and operating frequency of the orig-
inal portable remote control (if
known).
IMPORTANTCertain phone carriers
do not permit the use of the toll-free
number. It is therefore required to dial
the alternative pay-number, +49 6838
907-277 (dialling this number will start
an international call). The distance required between the
portable remote control and the Home-
Link depends on the system to be pro-
grammed (type of frequency of main
door, gate or other system).
If Ddoes not start to flash quickly try
again changing the distance between
HomeLink and portable remote control
(move them away slightly). If 20 sec-
onds later the led is still flashing slow-
ing, repeat the operation changing again
the distance between Homelink and re-
mote control.
3) the HomeLink led Dwill start blink-
ing, first slowly and then quickly. When
it starts flashing quickly, release both
buttons (HomeLink and portable remote
control).
In this way the system previously pro-
grammed on HomeLink is cleared and
the new system is ready for use. This
operation has no effect on the other two
HomeLink buttons.
92
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
083-128 Alfa 159 GB 3-12-2009 14:08 Pagina 92

128
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
Since this filter physically traps particu-
lates, it shall be cleaned (reclaimed) at
regular intervals by burning carbon par-
ticles. Reclaiming procedure is controlled
automatically by the engine control unit
according to the filter conditions and the
conditions of use of the car. During re-
claiming the following phenomena could
take place: idling slight increase, fan ac-
tivation, slight smoke increase, high ex-
haust temperatures. These situations
shall not be considered as faults and they
do not affect car performance and envi-
ronment. DIESEL PARTICULATE FILTER
(DPF) (where required)
The Diesel Particulate Filter is a me-
chanical filter, integral with the exhaust
system, that physically traps particulate
present in the exhaust gases of Diesel
engines.
The diesel particular filter has been
adopted to eliminate almost totally par-
ticulates in compliance with current /
future law regulations.
During normal use of the car, the engine
control unit records a set of data (e.g.:
travel time, type of route, temperatures,
etc.) and it will then calculate how much
particulates has been trapped by the fil-
ter.
During normal service
the diesel particulate
filter (DPF) (where required)
reaches high temperatures.
Do not therefore park the car
over inflammable materials
(grass, dry leaves, pine nee-
dles, etc.): fire hazard.
WARNING
083-128 Alfa 159 GB 3-12-2009 14:09 Pagina 128

135
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
SAFETY
DEVICES
The results of research on the best child
restraint systems are contained in the
European Standard ECE-R44. This Stan-
dard enforces the use of restraint sys-
tems classified in five groups:
Group 0 - 0-10 kg in weight
Group 0+ - 0-13 kg in weight
Group 1 9-18 kg in weight
Group 2 15-25 kg in weight
Group 3 22-36 kg in weight
As it may be noted, the groups overlap
partly and in fact, in commerce it is pos-
sible to find devices that cover more
than one weight group.
All restraint devices must bear the cer-
tification data, together with the control
brand, on a solidly fixed label which
must absolutely never be removed.
Over 1.50 m in height, from the point
of view of restraint systems, children are
considered as adults and wear the seat
belts normally.Lineaccessori Alfa Romeo offers seats for
each weight group, which are the rec-
ommended choice, as they have been
designed and experimented specifical-
ly for Alfa Romeo cars.CARRYING
CHILDREN SAFELY
For optimal protection in the event of
a crash, all passengers must be seated
and wearing adequate restraint systems.
This is even more important for children.
This prescription is compulsory in all EC
countries according to EC Directive
2003/20/EC.
Compared with adults, a child’s head is
proportionately larger and heavier than
the rest of the body, while muscles and
bone structure are not completely de-
veloped. Therefore, in order to restraint
them correctly in the event of a crash,
different systems are needed than adult
seat belts.
With passenger’s air
bag active, never place
child’s seats with the cradle
facing backwards since the air
bag activation could cause to
the child serious injuries, even
mortal, regardless of the seri-
ousness of the crash that trig-
gered it. You are advised to
carry children always with
proper restraint systems on
the rear seats, as this is the
most protected position in the
case of a crash.
WARNING
129-148 Alfa 159 GB 8-04-2009 10:50 Pagina 135

249
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICAL SPECIFICATIONS
T T
E E
C C
H H
N N
I I
C C
A A
L L

S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S
IDENTIFICATION DATA ........................................ 250
ENGINE CODES - BODYWORK VERSIONS ............... 252
ENGINE .......................................................... 253
FUEL FEED/IGNITION ........................................ 255
TRANSMISSION ............................................... 255
BRAKES........................................................... 256
STEERING........................................................ 256
SUSPENSIONS.................................................. 256
WHEELS.......................................................... 257
DIMENSIONS.................................................... 261
PERFORMANCE................................................. 263
WEIGHTS......................................................... 264
CAPACITIES...................................................... 266
FLUIDS AND LUBRICANTS................................... 267
FUEL CONSUMPTION......................................... 269
CO
2EMISSIONS .............................................. 270

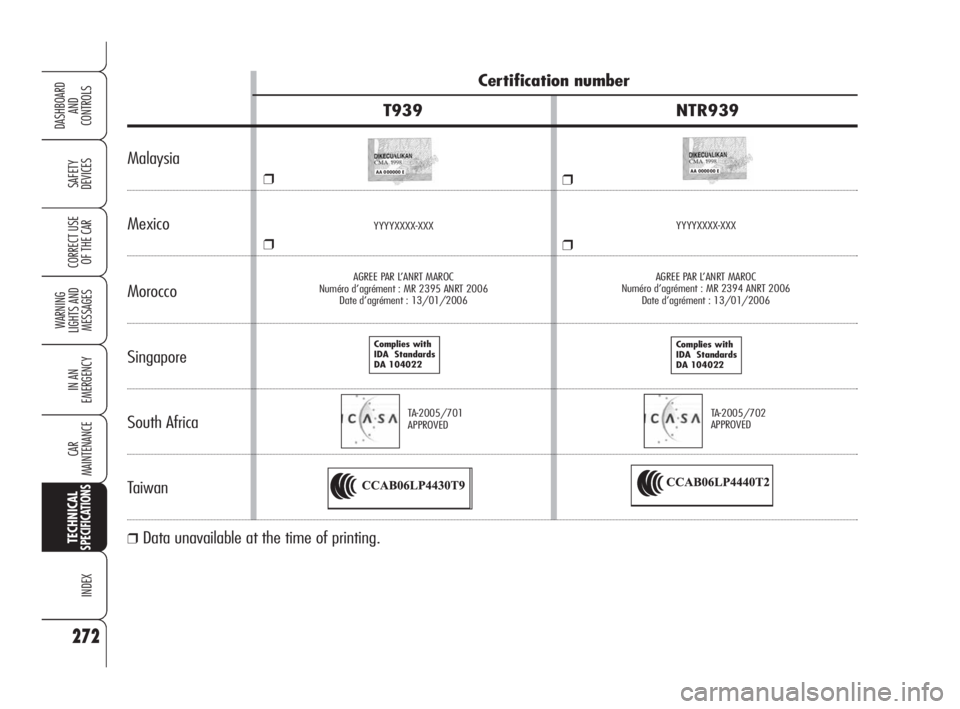

RADIO FREQUENCY REMOTE CONTROL:
MINISTERIAL CERTIFICATIONS ............................. 271
249-270 Alfa 159 GB 3-12-2009 15:51 Pagina 249

250
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICAL SPECIFICATIONS
IDENTIFICATION LABEL
This is to be found in the engine com-
partment, aside the upper right shock-
absorber connection and it bears the fol-
lowing identification data:
A.Space for details of national ho-
mologation
B.Space for punching the consecutive
chassis number
IDENTIFICATION
DATA
You are advised to note the identifica-
tion codes. The identification data
stamped and given on the plates and
their position are the following fig. 1:
1- Identification label
2- Body label
3- Bodywork paint identification label
4- Engine label.C.Space available for maximum
weights authorised by various national
regulations
D.Space for version and any supple-
mentary indications to those specified
E.Space for smoke coefficient (diesel
versions only)
F.Space for punching the Manufactur-
er’s name.
A0A0045mfig. 1A0E0013mfig. 2
249-270 Alfa 159 GB 3-12-2009 15:51 Pagina 250

271
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICAL SPECIFICATIONS
Certification number
T939 NTR939
European Union and
Countries applying
EC directive
Argentina
Australia
Brazil
Bulgaria
China
❒Data unavailable at the time of printing.
N15278
HHHH-AA-FFFFHHHH-AA-FFFF
CMII ID : 2006DJ0352CMII ID : 2006DJ0351
RADIO FREQUENCY REMOTE CONTROL: Ministerial Certifications
05230523
❒
❒
–
❒
❒
271-292 Alfa 159 GB 8-04-2009 10:55 Pagina 271

272
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICAL SPECIFICATIONS
Certification number
T939 NTR939
Malaysia
Mexico
Morocco
Singapore
South Africa
Taiwan
❒Data unavailable at the time of printing.
AGREE PAR L’ANRT MAROC
Numéro d’agrément : MR 2395 ANRT 2006
Date d’agrément : 13/01/2006AGREE PAR L’ANRT MAROC
Numéro d’agrément : MR 2394 ANRT 2006
Date d’agrément : 13/01/2006
Complies with
IDA Standards
DA 104022Complies with
IDA Standards
DA 104022
TA-2005/701
APPROVEDTA-2005/702
APPROVED YYYYXXXX-XXXYYYYXXXX-XXX
AA 000000 EAA 000000 E❒
❒
❒
❒
271-292 Alfa 159 GB 8-04-2009 10:55 Pagina 272

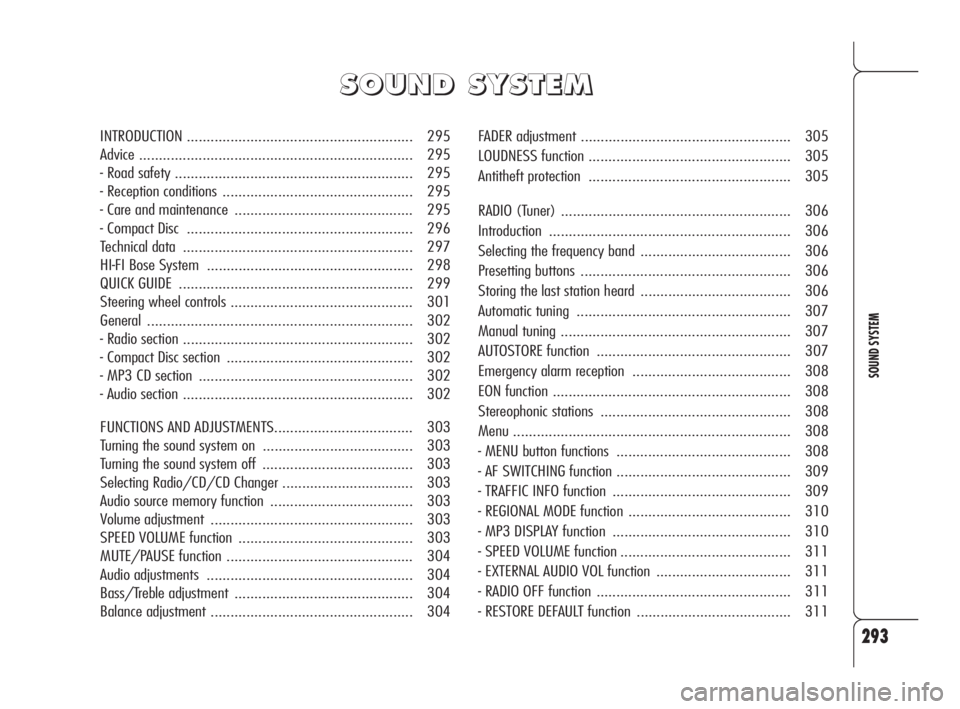

293
SOUND SYSTEM
FADER adjustment ..................................................... 305
LOUDNESS function ................................................... 305
Antitheft protection ................................................... 305
RADIO (Tuner) .......................................................... 306
Introduction ............................................................. 306
Selecting the frequency band ...................................... 306
Presetting buttons ..................................................... 306
Storing the last station heard ...................................... 306
Automatic tuning ...................................................... 307
Manual tuning .......................................................... 307
AUTOSTORE function ................................................. 307
Emergency alarm reception ........................................ 308
EON function ............................................................ 308
Stereophonic stations ................................................ 308
Menu ...................................................................... 308
- MENU button functions ............................................ 308
- AF SWITCHING function ............................................ 309
- TRAFFIC INFO function ............................................. 309
- REGIONAL MODE function ......................................... 310
- MP3 DISPLAY function ............................................. 310
- SPEED VOLUME function ........................................... 311
- EXTERNAL AUDIO VOL function .................................. 311
- RADIO OFF function ................................................. 311
- RESTORE DEFAULT function ....................................... 311
S S
O O
U U
N N
D D

S S
Y Y
S S
T T
E E
M M
INTRODUCTION ......................................................... 295
Advice ..................................................................... 295
- Road safety ............................................................ 295
- Reception conditions ................................................ 295
- Care and maintenance ............................................. 295
- Compact Disc ......................................................... 296
Technical data .......................................................... 297
HI-FI Bose System .................................................... 298
QUICK GUIDE ........................................................... 299
Steering wheel controls .............................................. 301
General ................................................................... 302
- Radio section .......................................................... 302
- Compact Disc section ............................................... 302
- MP3 CD section ...................................................... 302
- Audio section .......................................................... 302
FUNCTIONS AND ADJUSTMENTS................................... 303
Turning the sound system on ...................................... 303
Turning the sound system off ...................................... 303
Selecting Radio/CD/CD Changer ................................. 303
Audio source memory function .................................... 303
Volume adjustment ................................................... 303
SPEED VOLUME function ............................................ 303
MUTE/PAUSE function ............................................... 304
Audio adjustments .................................................... 304
Bass/Treble adjustment ............................................. 304
Balance adjustment ................................................... 304
293-318 Alfa 159 GB 8-04-2009 10:56 Pagina 293
