technical specifications Alfa Romeo 4C 2013 Owner handbook (in English)

Dear Customer,We would like to congratulate and thank you for choosing an Alfa Romeo. We have written this handbook to help you get to know all the features of your car and use it in the best possible way. You should read it right through before taking to the road for the first time. You will find information, tips and important warnings regarding the driving of your car to help you derive the maximum from your Alfa Romeo's technological features. It also provides a description of special features and essential information for the care and maintenance of your AlfaRomeo over time as well as for safe driving. We urge you to read the warnings and indications found throughout the text with care, marked with the following symbols:
personal safety;car safety;environmental protection.
NOTE These symbols, when necessary, are reported at the end of each paragraph and are followed by a number. That number recalls the corresponding warning at the end of the relevant section. In the attached Warranty Booklet you will also find a description of the Services that Alfa Romeo offers to its customers, the Warranty Certificate and the detail of the terms and conditions for maintaining its validity. We are sure that these will help you to get in touch with and appreciate your new car and the service provided by the people at Alfa Romeo.The Alfa Romeo 4C is a truly exclusive car in terms of content and technology; for this reason and to guarantee the highest level of service, Alfa Romeo has provided a dedicated Dealership for 4C customers. Up-to-date information on service centres is available on freephone number00 800 2532 4200 (should this number be unavailable, use the international toll number +39 02 44412 987, or anyway refer to the instructionsin the Warranty Booklet). Enjoy reading and happy motoring!
This Owner Handbook describes all versions of the Alfa Romeo 4C; please consider only the information relevant to your car’s trim level, engine and version. All data contained in this publication is purely indicative. Fiat Group Automobiles canmodify the specifications of the vehicle model described in this publication at any time, for technical or marketing
purposes. For further information, contact the dedicated Alfa Romeo Dealership.
24-9-2013 11:49 Pagina 1

SNOW TYRESUse snow tyres of the same size as the
normal tyres provided with the car:
the dedicated Alfa Romeo Dealership
will be able to advise you on the most
appropriate tyre to use.
Only use these tyres in the event of ice
or snow on the roads.
For the type of tyre to be used, inflation
pressures and the specifications of
snow tyres, follow the instructions given
in the "Wheels" paragraph in the
"Technical specifications" chapter.
90)
The performance of these tyres on
low-grip surfaces are reduced
considerably when the tread depth is
below 4 mm. They should be replaced
in this case.
Due to the specific characteristics of
snow tyres, in normal weather
conditions or on long motorway
journeys, the performance of these
tyres is lower than that of standard
tyres. Their usage should therefore be
restricted in accordance with their
type approval.IMPORTANT When using snow tyres
with a maximum speed index below the
one that can be reached by the car
(increased by 5%), place a notice in the
passenger compartment, plainly in
view, which states the maximum speed
allowed by the snow tyres (as per EC
Directive).
All four tyres should be the same brand
to ensure greater safety when driving
and braking as well as making the
car more responsive. It is inadvisable to
change the rotation direction of tyres.
Refer to the "Raising the car" section in
the "In an emergency" chapter for
further details on how to raise the car
correctly.
WARNING
90) The maximum speed for snow
tyres marked “Q” is 160 km/h,
while it is 190 km/h for “T” tyres
and 210 km/h for "H" tyres. The
highway code speed limits must
however always be complied with.
CAR INACTIVITYIf the car is to be left inactive for longer
than a month, observe the following
precautions:
❒park the car in covered, dry and if
possible well-ventilated premises and
slightly open the windows;
❒ check that the handbrake is not
engaged;
❒ disconnect the negative battery
terminal and check the battery
charge. Repeat this check once
every three months during storage.
For optimum preservation of the
battery charge, it is advisable to use
the charge-holder (for versions/
markets, where provided, or
alternatively, available from
Lineaccessori). For more details on
its operation, refer to the attached
Supplement;
❒ if the battery is not disconnected
from the electrical system, checks its
state of charge every thirty days;
❒ clean and protect the painted parts
using protective wax;
111
24-9-2013 11:50 Pagina 111

IMPORTANT
12) Punctures caused by foreignbodies can be repaired if the
damage does not exceed 4 mm on
the tread and on the shoulder of
the tyre. Do not use the repair
kit if the tyre was damaged as a
result of being used when
underinflated.
IMPORTANT
2) Dispose of the bottle and thesealant properly. Dispose of the
components in compliance with
national and local regulations.
CHANGING A BULB
13)101) 102) 103)
GENERAL
INSTRUCTIONS
❒Before changing a bulb check the
contacts for oxidation;
❒ replace blown bulbs with others of
the same type and power;
❒ after replacing a headlight bulb,
always check its alignment;
❒ when a light is not working, check
that the corresponding fuse is intact
before changing the bulb. For the
location of fuses, refer to the
paragraph “If a fuse blows” in this
chapter.
IMPORTANT
13) Halogen bulbs must be handled
by holding the metallic part only.
Touching the transparent part
of the bulb with your fingers may
reduce the intensity of the
emitted light and even reduce the
lifespan of the bulb. In the case
of accidental contact, rub the
lamp with a cloth and spirit and
leave to dry.
WARNING
101) Modifications or repairs to theelectric system that are not
carried out properly or do not take
the system technical
specifications into account can
cause malfunctions leading to the
risk of fire.
102) Halogen bulbs contain pressurised gas; in the case of
breakage they may burst.
118
IN AN EMERGENCY
24-9-2013 11:50 Pagina 118

Thousands of kilometres20 40 60 80 100 120
Months 12 24 36 48 60 72
Check condition and wear of rear brake pads and discs, and
operation of pad wear indicator ●●●●●●
Check and, if necessary, top-up fluid levels (engine cooling,
brakes, windscreen washer, etc.) ●●●●●●
Visually inspect condition of the accessory drive belt(s) ●
Inspect the conditions of toothed timing drive belt ●
Check handbrake lever travel and adjust, if necessary (or every 12
months) ●●●●●●
Check exhaust emissions/smokiness ●●●
Check engine control system operation (through diagnosis socket) ●●●●●●
Check and possible top up of oil level for the dual clutch
automatic transmission ●
Replace spark plugs (#) ●●
Replace accessory drive belt(s) ●
Replace toothed timing drive belt (*) ●(#) The following are essential to ensure correct operation and prevent serious damage to the engine: only use spark plugs of the same make and type which are
specially certified for such engines (see the information in the “Engine” paragraph in the “Technical specifications” section); strictly comply with the spark plug
replacement interval given in the Scheduled Servicing Plan; for spark plug replacement, it is advisable to contact the dedicated Alfa Romeo Dealership.
(*) Irrespective of the mileage, the timing drive belt must be changed every 4 years for heavy-duty use (cold climates, town use, long periods of idling) or at least every 5 years.
136
SERVICING AND MAINTENANCE
24-9-2013 11:50 Pagina 136

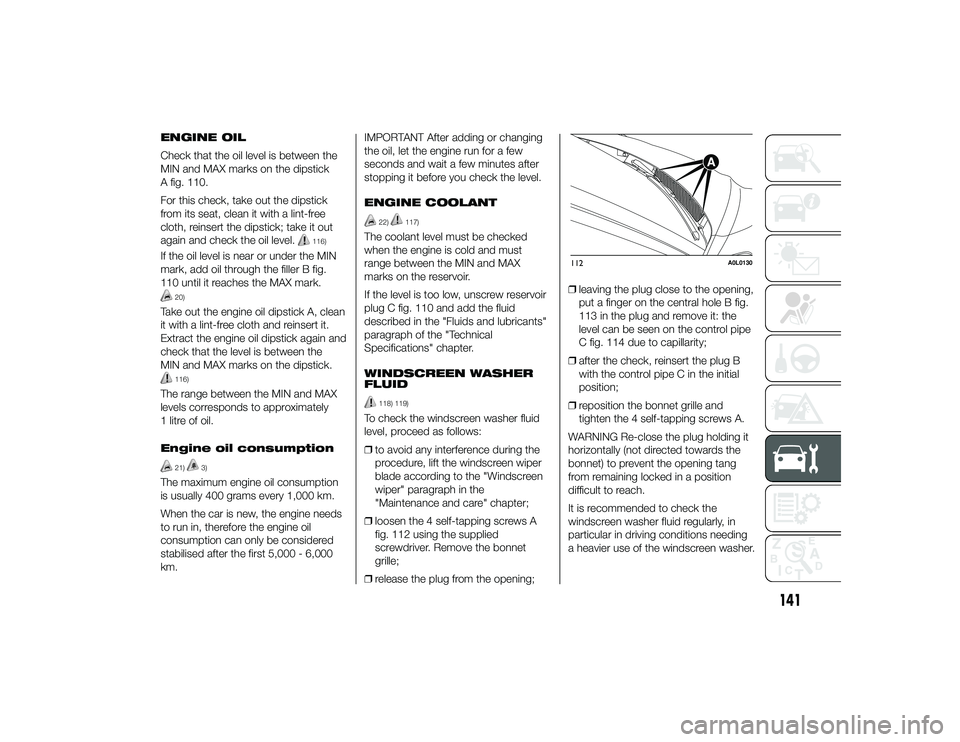

ENGINE OIL
Check that the oil level is between the
MIN and MAX marks on the dipstick
A fig. 110.
For this check, take out the dipstick
from its seat, clean it with a lint-free
cloth, reinsert the dipstick; take it out
again and check the oil level.
116)
If the oil level is near or under the MIN
mark, add oil through the filler B fig.
110 until it reaches the MAX mark.
20)
Take out the engine oil dipstick A, clean
it with a lint-free cloth and reinsert it.
Extract the engine oil dipstick again and
check that the level is between the
MIN and MAX marks on the dipstick.
116)
The range between the MIN and MAX
levels corresponds to approximately
1 litre of oil.
Engine oil consumption
21)
3)
The maximum engine oil consumption
is usually 400 grams every 1,000 km.
When the car is new, the engine needs
to run in, therefore the engine oil
consumption can only be considered
stabilised after the first 5,000 - 6,000
km.IMPORTANT After adding or changing
the oil, let the engine run for a few
seconds and wait a few minutes after
stopping it before you check the level.
ENGINE COOLANT
22)
117)
The coolant level must be checked
when the engine is cold and must
range between the MIN and MAX
marks on the reservoir.
If the level is too low, unscrew reservoir
plug C fig. 110 and add the fluid
described in the "Fluids and lubricants"
paragraph of the "Technical
Specifications" chapter.
WINDSCREEN WASHER
FLUID
118) 119)
To check the windscreen washer fluid
level, proceed as follows:
❒
to avoid any interference during the
procedure, lift the windscreen wiper
blade according to the "Windscreen
wiper" paragraph in the
"Maintenance and care" chapter;
❒ loosen the 4 self-tapping screws A
fig. 112 using the supplied
screwdriver. Remove the bonnet
grille;
❒ release the plug from the opening; ❒
leaving the plug close to the opening,
put a finger on the central hole B fig.
113 in the plug and remove it: the
level can be seen on the control pipe
C fig. 114 due to capillarity;
❒ after the check, reinsert the plug B
with the control pipe C in the initial
position;
❒ reposition the bonnet grille and
tighten the 4 self-tapping screws A.
WARNING Re-close the plug holding it
horizontally (not directed towards the
bonnet) to prevent the opening tang
from remaining locked in a position
difficult to reach.
It is recommended to check the
windscreen washer fluid regularly, in
particular in driving conditions needing
a heavier use of the windscreen washer.
112
A0L0130
141
24-9-2013 11:50 Pagina 141

WHEELS AND TYRESBefore embarking on a long trip, and
every two weeks, check the tyre
inflation pressure. Check the tyres when
cold.
126) 127) 128) 129) 130)
It is normal for the pressure to increase
when the car is used; for the correct
tyre inflation pressure, see “Wheels” in
the “Technical specifications” section.
Incorrect pressure causes abnormal
tyre wear fig. 119:
A normal pressure: tread evenly worn;
B low pressure: tread particularly wornat the edges;
C high pressure: tread particularly worn in the centre. The tyres must be replaced when the
tread is less than 1.6 mm thick. In
any case, follow the laws in force in the
country you are in.
IMPORTANT
For versions/markets, where provided,
the 4C may be equipped with
high-performance tyres able to
guarantee superior grip; this results,
however, in increased wear.
Take the following precautions to
prevent damage to the tyres:
❒
avoid violent impact against the kerb,
potholes or obstacles as well as
driving for extended periods on
uneven road surfaces;
❒ periodically check that the tyres have
no cuts in the side wall, abnormal
swelling or irregular tread wear;
❒ avoid travelling with the car
overloaded. If a tyre is punctured,
stop immediately and change it;
❒ tyres age even if they are not used a
great deal. Cracks in the tread and
on the sidewalls are a sign of ageing.
Have the tyres checked by
specialised personnel if they have
been fitted for longer than 6 years;
❒ if replaced, always fit new tyres,
avoiding those of dubious origin; ❒
if a tyre is changed, also change the
inflation valve.
WARNING
126) The road holding qualities of
the car also depend on the correct
inflation pressure of the tyres.
127) If tyre pressure is too low, it may overheat and be severely
damaged as a result.
128) Do not switch tyres from the left to the right side and vice
versa, in order to prevent
inversion of the rotation direction.
129) Do not repaint alloy wheel rims at temperatures higher than
150°C. The mechanical
characteristics of the wheels
could be compromised.
130) The car is always equipped with front and rear wheels of different
dimensions. It is not therefore
possible to move the wheels from
the front to the back and vice
versa.
119
A0L0085
147
24-9-2013 11:50 Pagina 147

TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your car is made
and works is contained in this chapter
and illustrated with data, tables and
graphics. For the enthusiasts and the
technician, but also just for those who
want to know every detail of their
car.IDENTIFICATION DATA....................154
ENGINE CODES - BODY
VERSIONS ......................................156
ENGINE ..........................................157
FUEL SUPPLY .................................158
TRANSMISSION .............................159
BRAKES .........................................160
SUSPENSION .................................161
STEERING ......................................162
WHEELS .........................................163
DIMENSIONS ..................................167
PERFORMANCE .............................168
WEIGHTS .......................................169
REFUELLING ..................................170
FLUIDS AND LUBRICANTS ............171
FUEL CONSUMPTION ....................174
CO2 EMISSIONS ............................175
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE ................................................176
153
24-9-2013 11:50 Pagina 153

IDENTIFICATION
D ATAThe identification data of the car are:
❒VIN plate;
❒ Chassis marking;
❒ Bodywork paint identification plate;
❒ Engine marking.
VIN PLATE
This is located on the body behind the
driver side seat backrest and bears
the following data fig. 124:BType-approval number.CVehicle type identification code.DChassis serial number.EMaximum permitted weight of vehicle
fully laden.FMaximum authorised weight of
vehicle fully laden plus trailer.
GMaximum permitted weight on first
(front) axle.HMaximum permitted weight on
second (rear) axle.IEngine type.LBodywork version code.M
Number for spare parts.
NCorrect fume coefficient value.
CHASSIS
IDENTIFICATION
VIN (Vehicle
Identification Number)
plate
This is located on the dashboard at the
bottom of the windscreen fig. 125. Marking
Marking A fig. 126 is printed on the
passenger compartment floor panel,
near the passenger side seat.
The marking includes:
❒
type of vehicle;
❒ chassis serial number.
124
A0L0088
125
A0L0158
126
A0L0089
154
TECHNICAL SPECIFICATIONS
24-9-2013 11:50 Pagina 154

ENGINE CODES - BODY VERSIONSVersionsEngine codeBody versions
1750 Turbo Petrol 960A1000960CXB1A 01
156
TECHNICAL SPECIFICATIONS
24-9-2013 11:50 Pagina 156

FUEL SUPPLYVersionsFuel supply
1750 Turbo Petrol
135)
Electronically controlled direct injection with turbocharger and intercooler
WARNING
135) Modifications or repairs to the fuel supply system that are not carried out properly or do not take the system’s
technical specifications into account may cause malfunctions leading to a risk of fire.
158
TECHNICAL SPECIFICATIONS
24-9-2013 11:50 Pagina 158
