technical specifications Alfa Romeo 4C 2014 Owner handbook (in English)

BRAKESVersionsFront brakesRear brakesParking brake
1750 Turbo Petrol Self-ventilating discs Self-ventilating discs Controlled by hand lever,
acting on the rear brakes
IMPORTANT Water, ice and salt spread on the roads may deposit on the brake discs, reducing braking efficiency the first time
the brakes are applied.
160
TECHNICAL SPECIFICATIONS
24-9-2013 11:50 Pagina 160

STEERINGVersionsTurning circle, kerb to kerb (m) Type
1750 Turbo Petrol 11Rack and pinion
162
TECHNICAL SPECIFICATIONS
24-9-2013 11:50 Pagina 162

READING THE RIM CODE
Example fig. 128:7Jx
17 H2 ET 337rim width in inches (1).Jrim drop centre outline (side
projection where the tyre bead rests)
(2).17
rim fitting diameter in inches
(corresponds to the diameter of the
tyre to be mounted) (3 = Ø).
H2
shape and number of humps
(circumference measurement which
keeps the bead of tubeless tyres
in position on the rim).
ET 33
wheel camber (distance between
the disc/rim support plane and
the wheel rim centre line).RIM PROTECTOR TYRES
136)
WARNING
136) DO NOT fit hub caps when
using integral hub caps fixed (with
springs) to the steel rim and
after-sale tyres provided with Rim
Protector (fig. 129). The use of
unsuitable tyres and hub caps
may cause sudden loss of tyre
pressure.129
A0L0115
164
TECHNICAL SPECIFICATIONS
24-9-2013 11:50 Pagina 164

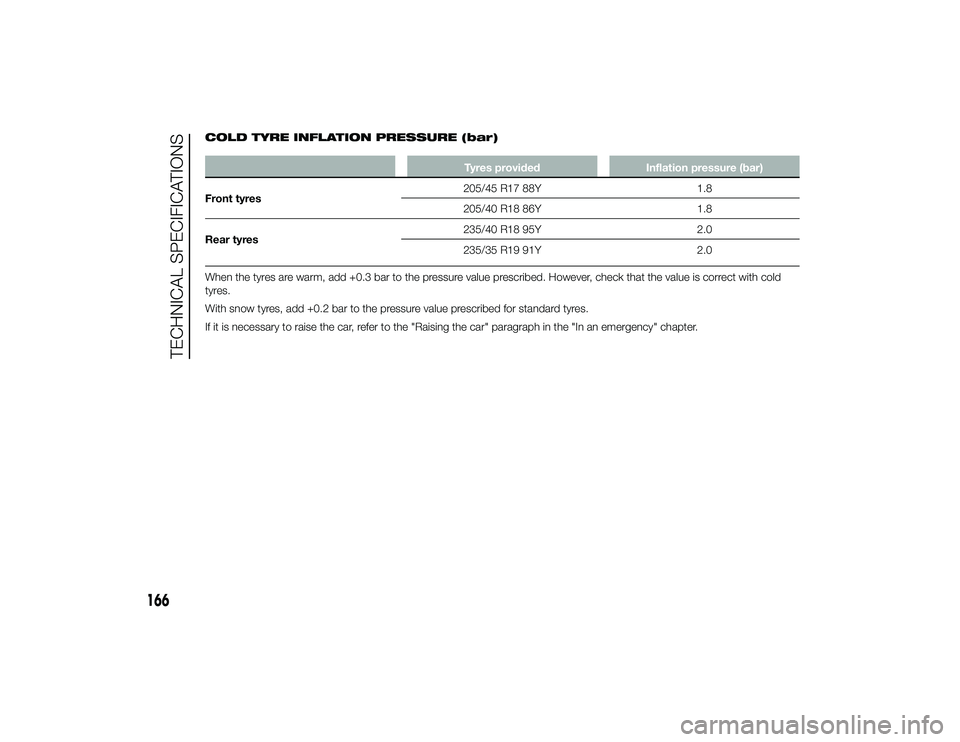

COLD TYRE INFLATION PRESSURE (bar)
Tyres providedInflation pressure (bar)
Front tyres 205/45 R17 88Y
1.8
205/40 R18 86Y 1.8
Rear tyres 235/40 R18 95Y
2.0
235/35 R19 91Y 2.0
When the tyres are warm, add +0.3 bar to the pressure value prescribed. However, check that the value is correct with cold
tyres.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
If it is necessary to raise the car, refer to the "Raising the car" paragraph in the "In an emergency" chapter.
166
TECHNICAL SPECIFICATIONS
24-9-2013 11:50 Pagina 166

PERFORMANCEVersionsTop speed (km/h)Acceleration from 0-100
km/h (sec)
1750 Turbo Petrol 2584,5
168
TECHNICAL SPECIFICATIONS
24-9-2013 11:50 Pagina 168

REFUELLING
1750 Turbo PetrolPrescribed fuels / Original fluids
and lubricants
litres kg
Fuel tank 40-
Unleaded petrol not less than 95
RON (EN 228 specification)
including a reserve of 4 - 5-
Engine cooling system 10.69.4Mixture of 50% demineralised water
and 50% PARAFLU
UP
(*)
Engine sump 5.44.6
SELENIA SPORT POWER
Engine sump and filter 5.85.0
Transmission/differential casing: 1.881.6TUTELA TRANSMISSION
GEARTECH
Transmission hydraulic activation system 1.45 1.2 TUTELA CS SPEED
Hydraulic brake circuit with ABS 0.520.56 TUTELA TOP 4
Windscreen washer fluid reservoir 1.91.7Mixture of water and TUTELA
PROFESSIONAL SC 35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand demineralised water.
170
TECHNICAL SPECIFICATIONS
24-9-2013 11:50 Pagina 170

FLUIDS AND LUBRICANTSYour car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of the
Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
PRODUCT SPECIFICATIONS
UseFluid and lubricant specifications for a correct
use of the car Genuine fluids and
lubricants Replacement interval
Lubricant for
petrol engines
29)
SAE 5W-40 ACEA C3 grade totally synthetic
lubricant.
FIAT 9.55535-GH2 classification. SELENIA SPORT
POWER
Contractual Technical
Reference No. F052.H12According to
Scheduled Servicing
Plan
In case of emergency, if lubricants with the prescribed specifications are not available, products with the minimum indicated
ACEA performance can be used for topping up; in this case optimal performance of the engine is not guaranteed.
IMPORTANT
29) The use of products with specifications other than those indicated above could cause damage to the engine not covered by the warranty.
171
24-9-2013 11:50 Pagina 171

UseFluid and lubricant specifications for a correct
use of the car Genuine fluids and
lubricants Applications
Lubricants and
greases for drive
transmission SAE 75W 85 grade synthetic lubricant
FIAT 9.55550-MZ3 classification.
TUTELA
TRANSMISSION
GEARTECH
Contractual Technical
Reference No. F704.C08TCT automatic
transmission
Specific fluid for electro-hydraulic ratio selector
actuators
FIAT 9.55550-SA1 classification TUTELA CS SPEED
Contractual Technical
Reference No. F005.F98
Lubricant for electro-
hydraulic actuator
Molybdenum disulphide grease, for use at high
temperatures. NL.G.I. 1-2 consistency
FIAT 9.55580 classification TUTELA ALL STAR
Contractual Technical
Reference No. F702.G07
Wheel side constant
velocity joints
Grease for constant velocity joints with low friction
coefficient. NL.G.I. 0-1 consistency
FIAT 9.55580 classification TUTELA STAR 700
Contractual Technical
Reference No. F701.C07
Differential side
constant velocity joints
Brake fluid Synthetic fluid for brake and clutch systems.
Exceeds specifications: FMVSS no. 116 DOT 4,
ISO 4925, SAE J1704.
FIAT 9.55597 classification TUTELA TOP 4
Contractual Technical
Reference No. F001.A93
Hydraulic brakes and
hydraulic clutch
controls
172
TECHNICAL SPECIFICATIONS
24-9-2013 11:50 Pagina 172

UseFluid and lubricant specifications for a correct
use of the car Genuine fluids and
lubricants Applications
Protective agent
for radiators Red protective agent with antifreeze action, based
on inhibited monoethylene glycol with organic
formula. Exceeds CUNA NC 956-16, ASTM D
3306 specifications.
FIAT 9.55523 classification PARAFLU
UP
(*)
Contractual Technical
Reference No. F101.M01 Usage percentage:
50% demineralised
water 50%
PARAFLU
UP
(**)
Windscreen
washer fluid Mixture of alcohol, water and surfactants CUNA
NC 956-11
FIAT 9.55522 classification TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in
windscreen/rear
window washer/wiper
systems
(*)IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%
PARAFLU
UPand 40% demineralised water.
173
24-9-2013 11:50 Pagina 173
Adhesive for
glassesMS Polymer
base adhesive
FIAT 9.55738/C classification SIMSON ISR 70-08 APSticking the glasses on
the body

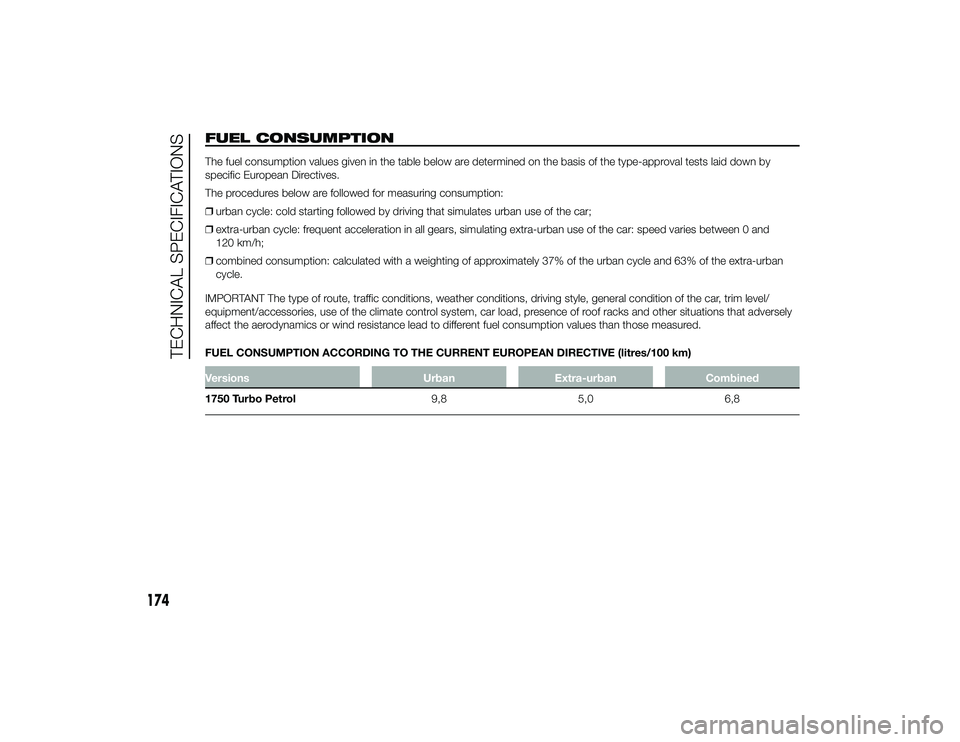

FUEL CONSUMPTIONThe fuel consumption values given in the table below are determined on the basis of the type-approval tests laid down by
specific European Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the car;
❒ extra-urban cycle: frequent acceleration in all gears, simulating extra-urban use of the car: speed varies between 0 and
120 km/h;
❒ combined consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-urban
cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim level/
equipment/accessories, use of the climate control system, car load, presence of roof racks and other situations that adversely
affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)Versions UrbanExtra-urban Combined
1750 Turbo Petrol 9,85,06,8
174
