REPLACING FUSES
GENERAL INFORMATION
Fuses protect the electrical system:
they intervene (blow) in the event of a
fault or improper action on the system.
When a device does not work, check
the condition of its fuse: the filament
A fig. 110 must be intact.
If it is not, replace the blown fuse with
another with the same amperage (same
colour).
110) 111) 112) 113) 114)16)
B = intact fuse;
C = fuse with damaged filament.FUSE LOCATION
The fuses are grouped in two fuse
boxes located in the engine and
passenger compartments.
Engine compartment fuse box
This is located next to the battery fig.
111: to access the fuses, undo screws
A and remove cover B.
The number identifying the electrical
component corresponding to each fuse
is shown on the back of the cover.
After replacing the fuse, make sure you
close cover B on the fuse box.
17)

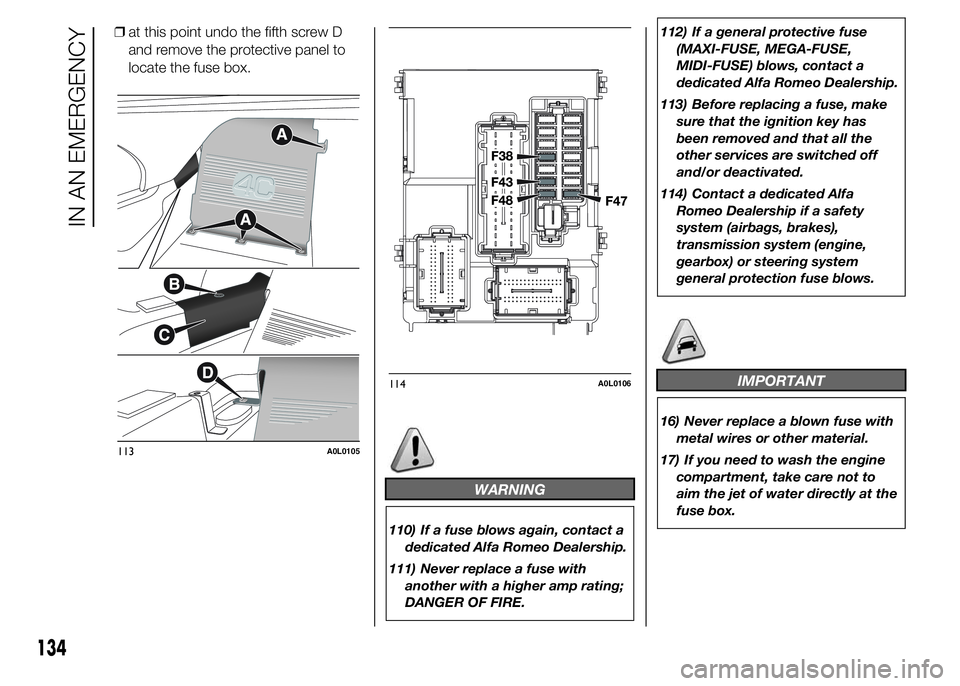

Dashboard fuse box
This is located under the dashboard in
the area in front of the passenger seat.
To access the fuse box fig. 114 remove
the protective panel, following the
procedure described below:
❒undo the four screws A fig. 113;
❒to locate the fifth locking screw,
remove block B and remove plastic
cover C;
110A0L0102
111A0L0137112A0L0104
133

❒at this point undo the fifth screw D
and remove the protective panel to
locate the fuse box.
WARNING
110) If a fuse blows again, contact a
dedicated Alfa Romeo Dealership.
111) Never replace a fuse with
another with a higher amp rating;
DANGER OF FIRE.112) If a general protective fuse
(MAXI-FUSE, MEGA-FUSE,
MIDI-FUSE) blows, contact a
dedicated Alfa Romeo Dealership.
113) Before replacing a fuse, make
sure that the ignition key has
been removed and that all the
other services are switched off
and/or deactivated.
114) Contact a dedicated Alfa
Romeo Dealership if a safety
system (airbags, brakes),
transmission system (engine,
gearbox) or steering system
general protection fuse blows.
IMPORTANT
16) Never replace a blown fuse with
metal wires or other material.
17) If you need to wash the engine
compartment, take care not to
aim the jet of water directly at the
fuse box.
113A0L0105
114A0L0106
134
IN AN EMERGENCY

ENGINE COMPARTMENT FUSE BOX
fig. 112
DEVICE PROTECTED FUSE AMPERE
Headlight beam switch (for versions/markets, where provided) F09 5
Single tone hornF10 10
12 V socket / cigar lighter F86 15
External mirror defrosters F88 7.5
.
DASHBOARD FUSE BOX
fig. 114
DEVICE PROTECTED FUSE AMPERE
Central lockingF38 15
Two-way windscreen washer pump F43 20
+30 Driver side electric windows F47 20
+30 Passenger side electric windows F48 20
