technical data Alfa Romeo 4C 2015 Owner handbook (in English)

Dear Customer,
We would like to congratulate and thank you for choosing an Alfa Romeo. We have written this handbook to help you get to know all the
features of your car and use it in the best possible way. You should read it right through before taking to the road for the first time.
You will find information, tips and important warnings regarding the driving of your car to help you derive the maximum from your Alfa Romeo's
technological features. It also provides a description of special features and essential information for the care and maintenance of your Alfa
Romeo over time as well as for safe driving.
We urge you to read the warnings and indications found throughout the text with care, marked with the following symbols:
personal safety;
car safety;
environmental protection.
NOTE These symbols, when necessary, are reported at the end of each paragraph and are followed by a number. That number recalls the
corresponding warning at the end of the relevant section.
In the attached Warranty Booklet you will also find a description of the Services that Alfa Romeo offers to its customers, the Warranty
Certificate and the detail of the terms and conditions for maintaining its validity.
We are sure that these will help you to get in touch with and appreciate your new car and the service provided by the people at Alfa Romeo.
The Alfa Romeo 4C is a truly exclusive car in terms of content and technology; for this reason and to guarantee the highest level of service, Alfa
Romeo has provided a dedicated Dealership for 4C customers. Up-to-date information on service centres is available on freephone number
00 800 2532 4200 (should this number be unavailable, use the international toll number +39 02 44412 987, or anyway refer to the instructions
in the Warranty Booklet).
Enjoy reading and happy motoring!
This Owner Handbook describes all versions of the Alfa Romeo 4C; please consider only the information relevant to your
car’s trim level, engine and version. All data contained in this publication is purely indicative. Fiat Group Automobiles can
modify the specifications of the vehicle model described in this publication at any time, for technical or marketing
purposes. For further information, contact the dedicated Alfa Romeo Dealership.

.
REAR LIGHTS
❒Bulb types ..........................................127
❒Bulb replacement ................................126
LUGGAGE COMPARTMENT /
ENGINE COVER
❒Opening/closing .................................. 39
ENGINE
❒Checking levels ...................................145
❒Technical data .....................................165
FUEL CAP
❒Opening/closing .................................. 58
2A0L0121
6
GRAPHICAL INDEX

Warning lights on
panelWhat it means What to do
amberTPMSIMPORTANT Do not continue driving with one or
more flat tyres as handling may be
compromised. Stop the car, avoiding sharp
braking and steering. Repair immediately using
the dedicated kit (see "Repairing a wheel"
paragraph in the "In an emergency" chapter)
and contact the dedicated Alfa Romeo
Dealership as soon as possible.
TPMS failure
The warning light switches on when a fault is
detected in the TPMS.
Should one or more wheels be fitted without
sensors, the display will show a warning message
until initial conditions are restored.In this case, contact the dedicated Alfa Romeo
Dealership as soon as possible.
Low tyre pressure - See manual
The warning light switches on, together with a
dedicated message on the display, to indicate that
the tyre pressure is lower than the recommended
value and/or that slow pressure loss is occurring. In
these circumstances, optimal tyre duration and fuel
consumption may not be guaranteed.
Should two or more tyres be in the condition
mentioned above, the display will show the
indications corresponding to each tyre in
sequence.In any situation in which the message on the
display is "See manual", it is ESSENTIAL to refer
to the contents of the "Wheel" paragraph in the
"Technical data" chapter, strictly complying with
the indications that you find there.
78
KNOWING THE INSTRUMENT PANEL

REPAIRING A WHEEL
GENERAL
INSTRUCTIONS
The car is equipped with a quick tyre
repair device called the "Fix&Go
automatic" kit.
92) 94)
To use it, follow the instructions below.
93) 95) 96)13)2)
"Fix&Go automatic" KIT
It is located in the luggage
compartment.
The kit includes:
❒bottle A fig. 80 containing sealant
and fitted with: filling tube B and
adhesive label C with the wording
“max. 80 km/h” to be placed in
a clearly visible position (e.g. on the
dashboard) after repairing the tyre;
❒compressor D complete with
pressure gauge and connectors;
❒an information leaflet fig. 81,
providing instructions for using the kit
correctly. This booklet should be
given to the persons charged with
handling the tyre treated with this kit;
❒a pair of gloves located in the side
compartment of the compressor;
❒adaptors for inflating different
elements.IMPORTANT The sealant is suitable for
use at temperatures in the range from
−20°C to +50°C. The sealant has an
expiry date.INFLATION PROCEDURE
Proceed as follows:
97)
❒engage the handbrake, unscrew the
tyre valve cap, take out filler hose A
fig. 82 and tighten ring nut B on
the tyre valve;
❒make sure that switch A fig. 83 for
the compressor is in position 0 (off),
start the engine, insert the plug
into the cigar lighter socket on the
central tunnel (see fig. 84) and switch
on the compressor by bringing
switch A fig. 83 to I (on);
❒inflate the tyre to the pressure
indicated in the “Wheels” paragraph
in the “Technical data” chapter. In
order to obtain a more precise
reading, check the pressure value on
pressure gauge B fig. 83 with the
compressor off;
80A0L0076
81A0L0077
82A0L0078
119

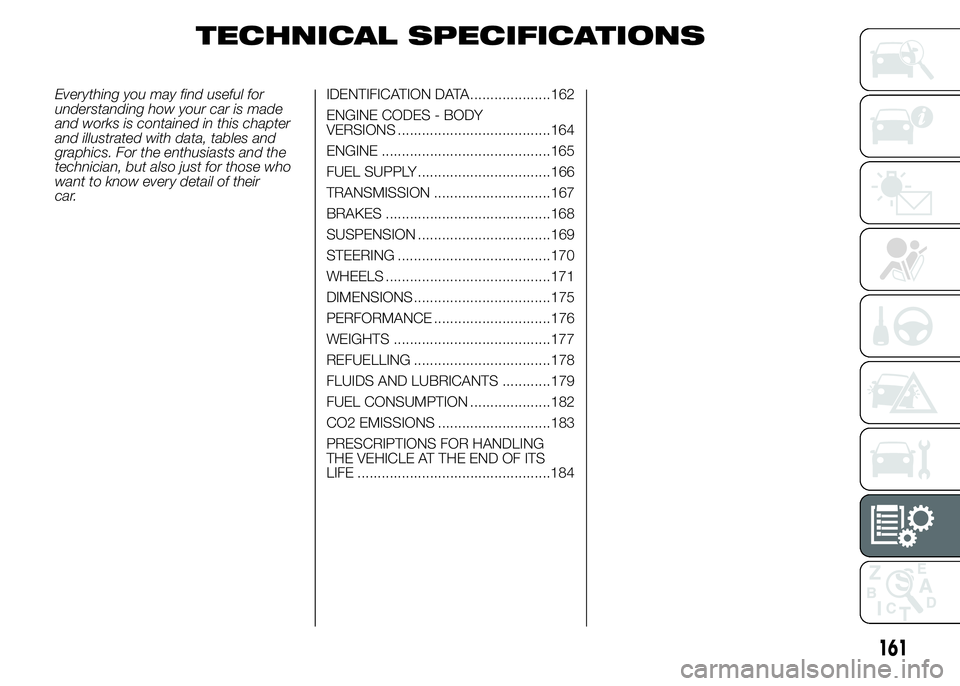

TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your car is made
and works is contained in this chapter
and illustrated with data, tables and
graphics. For the enthusiasts and the
technician, but also just for those who
want to know every detail of their
car.IDENTIFICATION DATA....................162
ENGINE CODES - BODY
VERSIONS ......................................164
ENGINE ..........................................165
FUEL SUPPLY .................................166
TRANSMISSION .............................167
BRAKES .........................................168
SUSPENSION .................................169
STEERING ......................................170
WHEELS .........................................171
DIMENSIONS ..................................175
PERFORMANCE .............................176
WEIGHTS .......................................177
REFUELLING ..................................178
FLUIDS AND LUBRICANTS ............179
FUEL CONSUMPTION ....................182
CO2 EMISSIONS ............................183
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE ................................................184
161

IDENTIFICATION
DATA
The identification data of the car are:
❒VIN plate;
❒Chassis marking;
❒Bodywork paint identification plate;
❒Engine marking.
VIN PLATE
This is located on the body behind the
driver side seat backrest and bears
the following data fig. 133:
BType-approval number.
CVehicle type identification code.
DChassis serial number.
EMaximum permitted weight of vehicle
fully laden.
FMaximum authorised weight of
vehicle fully laden plus trailer.
GMaximum permitted weight on first
(front) axle.
HMaximum permitted weight on
second (rear) axle.
IEngine type.
LBodywork version code.
MNumber for spare parts.
NCorrect fume coefficient value.
CHASSIS
IDENTIFICATION
VIN (Vehicle
Identification Number)
plate
This is located on the dashboard at the
bottom of the windscreen fig. 134.Marking
Marking A fig. 135 is printed on the
passenger compartment floor panel,
near the passenger side seat.
The marking includes:
❒type of vehicle;
❒chassis serial number.
133A0L0088
134A0L0158
135A0L0089
162
TECHNICAL SPECIFICATIONS

– checking levels .......................... 145
– washing .................................... 157
Engine coolant indicator ................. 64
Engine cover
– Closing ...................................... 40
– Opening .................................... 39
Engine
– engine cooling system fluid
level........................................... 147
– identification codes ................... 164
– marking ..................................... 163
– technical data............................ 165
Engine oil
– consumption ............................. 147
– level check ................................ 147
EOBD system ................................ 49
ESC (Electronic Stability Control)
system ......................................... 42
Exterior lights ................................. 28
Extinguisher ................................... 36
Filling the tank ............................... 58
Fitting "Universal" child restraint
system ......................................... 96
Fix&Go automatic kit ...................... 119
Flashing ......................................... 28
Fluids and lubricants
(specifications) ............................. 179
Follow Me Home device ............. 29
ront airbags................................. 99
Fuel consumption .......................... 182Fuel cut-off system......................... 33
Fuel level gauge ............................. 64
Fuel supply..................................... 166
Fuses (replacement) ....................... 133
Gear Shift Indicator ....................... 64
Handbrake.................................... 105
Hazard warning lights..................... 33
HBA system ................................... 44
Headlights...................................... 41
– Adjusting the headlights
abroad ...................................... 41
– bulb replacement ...................... 129
– Light beam direction.................. 41
Heating and ventilation ................... 22
Hill Holder system .......................... 44
Identification data
– bodywork paint plate ................. 162
– chassis marking ........................ 162
– engine marking.......................... 163
Identification data
– identification data plate.............. 162
Ignition switch ................................ 14
– Steering lock ............................. 15
Installing electrical/electronic
devices ........................................ 50
Instrument panel ............................ 62
Interior fittings ................................ 34
Interiors (cleaning) .......................... 157
Jack.............................................. 122
Light clusters
– front light clusters (changing a
bulb).......................................... 129
– rear light clusters (changing a
bulb).......................................... 130
Lubricants (specifications) .............. 179
Luggage compartment / Engine
cover............................................ 39
Luggage compartment
– Opening .................................... 39
Luggage compartment roof light
– bulb replacement ...................... 132
Main beam headlights .................. 28
– bulb replacement ...................... 129
Maintenance and care
– heavy-duty use of the car .......... 144
– periodic checks ......................... 144
– scheduled servicing ................... 140
– scheduled servicing plan ........... 141
Manual climate control ................... 25
Menu options ................................. 66
Number plate lights
– bulb replacement ...................... 131
Oddments pocket......................... 35
On-board instruments
– display....................................... 62
– engine coolant temperature
indicator .................................... 64
– fuel level gauge ......................... 64
– On-board instruments ............... 62

F

– rev counter ................................ 64
– speedometer ............................. 64
Parking ......................................... 105
– Handbrake ................................ 105
Parking lights ................................. 28
Parking sensors ............................. 51
Passenger side front airbag ............ 100
Performance .................................. 176
Plugs (type) .................................... 165
Power socket ................................. 35
Pre-Fill system (RAB - Ready
Alert Brake) .................................. 45
Pretensioners ................................. 94
– Load limiters.............................. 95
Protecting the environment ............ 59
Radio system................................ 50
Radio transmitters and mobile
phones......................................... 51
Raising the car ............................... 136
Rear direction indicators................. 130
Rear fog light.................................. 33
Rear fog light/reversing light ........... 131
Rear view mirrors ........................... 18
– Internal mirror ............................ 18
Rear window washer
– rear window washer fluid level ... 147
Refuelling ....................................... 178
Refuelling the car ........................... 58Rev counter ................................... 64
Roof light
– bulb replacement ...................... 132
Roof lights...................................... 32
– Front roof light ........................... 32
Saving fuel .................................... 111
SBR system (Seat Belt
Reminder) .................................... 94
Scheduled Servicing Plan ............... 141
Screen wiper/washer ..................... 29
– “Smart washing” function .......... 30
Seat belts....................................... 92
– Use ........................................... 92
Seats ............................................. 15
Setup menu ............................... 64-65
Side air diffusers............................. 19
Side lights/brake lights ................... 130
Side lights/daytime running lights
(DRL)
– bulb replacement ...................... 129
Side lights/dipped headlights ......... 28
Snow chains .................................. 113
Snow tyres ..................................... 113
Speedometer ................................. 64
Speedometer (speed indicator) ...... 64
Starting the engine ......................... 104
Starting the engine ......................... 118
– Bump starting ........................... 118
– Jump starting ............................ 118Steering ......................................... 170
Steering lock .................................. 15
Steering wheel ............................... 17
Storage compartments .................. 34
Sun visors ...................................... 36
Suspension .................................... 169
Symbols......................................... 10
Technical data .............................. 162
The keys ........................................ 11
– Key without remote control........ 11
– Key with remote control............. 11
Third brake lights
– bulb replacement ...................... 131
Towing the car ............................... 137
– Attaching the tow hook ............. 137
TPMS (Tyre Pressure Monitoring
System)........................................ 54
Transmission .................................. 167
TRIP button.................................... 71
Trip Computer ................................ 70
Ty r e s
– Fix&Go automatic (kit) ............... 119
– inflation pressures ..................... 174
– reading the tyre code ................ 171
– snow tyres................................. 173
– tyres provided ........................... 173
Tyres - maintenance ....................... 153
Using the transmission.................. 106
INDEX
