stop start Alfa Romeo 4C 2017 Owner's Manual

A WORD ABOUT YOUR KEYS
The key fob contains the Key Fob with an integrated
mechanical key. To use the mechanical key, simply push
the key release button.
Lock
or unlockthe door with a push of the
button. Ignition Key Removal
1. Push the brake pedal and place the transmission into
first (1) or reverse (R) gear by selecting/pushing the
buttons on the console.
2. Rotate the key to the STOP (OFF/LOCK) position and engage the handbrake and release brake pedal.
3.
Remove the key from the ignition switch lock cylinder.
RKE Key Fob
1 — Vehicle Key
2 — Push To Open/Close Vehicle Key
Transmission Gear Selector
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 9

WARNING!
•Before exiting a vehicle, always shift the auto-
matic transmission into PARK or the manual
transmission into REVERSE, apply the parking
brake, turn the engine OFF, remove the key fob
from the ignition and lock your vehicle.
(Continued)
WARNING! (Continued)
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the transmission gear selec-
tor.
• Do not leave the key fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up
may cause serious injury or death.
CAUTION!
An unlocked vehicle is an invitation. Always re-
move the key from the ignition and lock all the
doors when leaving the vehicle unattended.
Ignition Switch Positions
1 — STOP (OFF/LOCK)
2 — MAR (ON/RUN)
3 — AVV (START) 10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Locking Doors With A Key
You can insert the key with either side up. To lock the
door, turn the key to the left. To unlock the door, turn
the key to the right. Refer to “Body Lubrication” in
“Maintaining Your Vehicle” for maintenance informa-
tion.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the
ignition and the ignition switch position is in the STOP
(OFF/LOCK) position, sounds a signal to remove the
key.
SENTRY KEY
The Sentry Key Immobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Opera-
tion is automatic, regardless of whether the vehicle is
locked or unlocked.
The system uses ignition keys which have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle.NOTE:
A key which has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
If the Vehicle Security Light is on after the key is turned
to the MAR/ON/RUN position, it indicates that there
is a problem with the electronics.
CAUTION!
• Always remove the Sentry Key from the vehicle
and lock all doors when leaving the vehicle
unattended.
• The Sentry Key Immobilizer system is not com-
patible with some aftermarket remote starting
systems. Use of these systems may result in
vehicle starting problems and loss of security
protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

To Arm The System
With the doors and decklid closed and the ignition key
either turned to STOP (OFF/LOCK) or removed, point
the key towards the vehicle then push and release the
lock button.
The system emits a visual signal and activates door
locking.
A self-diagnosis stage lasting approximately 30 seconds
precedes the activation of the alarm. During the self-
diagnosis, the vehicle security light flashes in the instru-
ment panel at a frequency of about one flash per second.
After the self-diagnosis stage, the vehicle security light
flashes at a lower frequency (approximately one flash
every three seconds).
If, after the alarm is switched on, a second visual signal
emit via the vehicle security light in the instrument
panel, wait about four seconds and switch off the alarm
by pushing the lock button, check that the doors and
decklid are closed correctly and then reactivate the
system by pushing the unlock button.If the alarm emits a visual signal even when the doors
and decklid are closed correctly, a system malfunction
has occurred: in this case, contact a authorized vehicle
Dealership.
To Disarm The System
Deactivation
Push the unlock button.
The following operations are performed:
•
Two brief flashes of the direction indicators.
• Unlocking of the doors.
NOTE:
• If the central door locking system is released using
the metal insert of the key, the alarm is not disabled.
• In the event of accidental activation of the alarm, or
in any case to interrupt the visual signal cycle when
activated, it is possible to push the unlock button or
turn the ignition key to MAR (ON/RUN) for at least
five seconds, after which the system will deactivate.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

Door Opening/Closing Mechanism Reset
If the battery is disconnected or the protection fuse
blows, the door opening/closing mechanism must be
reset as follows:
1. Close all the doors.
2. Push the unlock button
on the Key Fob or the
door locking/unlocking LED indicator button
on the dashboard.
3. Push the lock buttonon the Key Fob or the door
locking/unlocking LED indicator button
on
the dashboard.
WINDOWS
Power Windows
NOTE:
• These operate when the ignition key is turned to
MAR/ON/RUN and for about three minutes after
the ignition key is turned to STOP or removed unless
one of the doors is opened.
• The buttons are located on the center console. Push/Pull the corresponding buttons to open/close the
desired window.
When one of the two buttons is pushed briefly, the
window moves in stages; if the button is held down to
open,
continuous automatic operation is activated.
If the button is pushed again, the window will stop in
its current position. If the button is pushed for several
seconds, the window lowers automatically (only with
ignition key in MAR/ON/RUN position).
Power Window Switch
1 — Driver Power Window Switch
2 — Passenger Power Window Switch
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Continuous Automatic Operation
This is activated by pushing one of the two buttons for
longer than half a second. The window will stop when
it is fully opened, or when the button is pushed again.
It can be used on both the driver side and passenger
side, only for lowering the window.
Electric Window System Reset
After a break in power supply for the control units
(battery replaced or disconnected or protective fuses for
the electric window control units replaced), the auto-
matic operation of the windows must be restored.
The restoration procedure must be performed as de-
scribed below with the doors closed:
1. Completely open the driver’s door window keepingthe operating button pushed for at least three sec-
onds after the (lower) end of travel position is
reached.
2. Completely raise the driver side window and hold the button down for at least three seconds once the
(upper) end of travel position has been reached.
3. Proceed in the same way as described in points 1 and 2 for the passenger side door. 4. Make sure that the reset is correct by checking that
the windows work automatically.
WARNING!
Improper actuation of the power windows may be
dangerous. Never leave children unattended in a
vehicle, and do not let children play with power
windows. Before and during window operation
make sure no one and no object (including cloth-
ing) is in the path of the moving glass or its
mechanism. Do not leave the Key Fob in or near the
vehicle, or in a location accessible to children.
Occupants, particularly unattended children, can
become entrapped by the windows while operating
the power window switches. Such entrapment may
result in serious injury or death.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

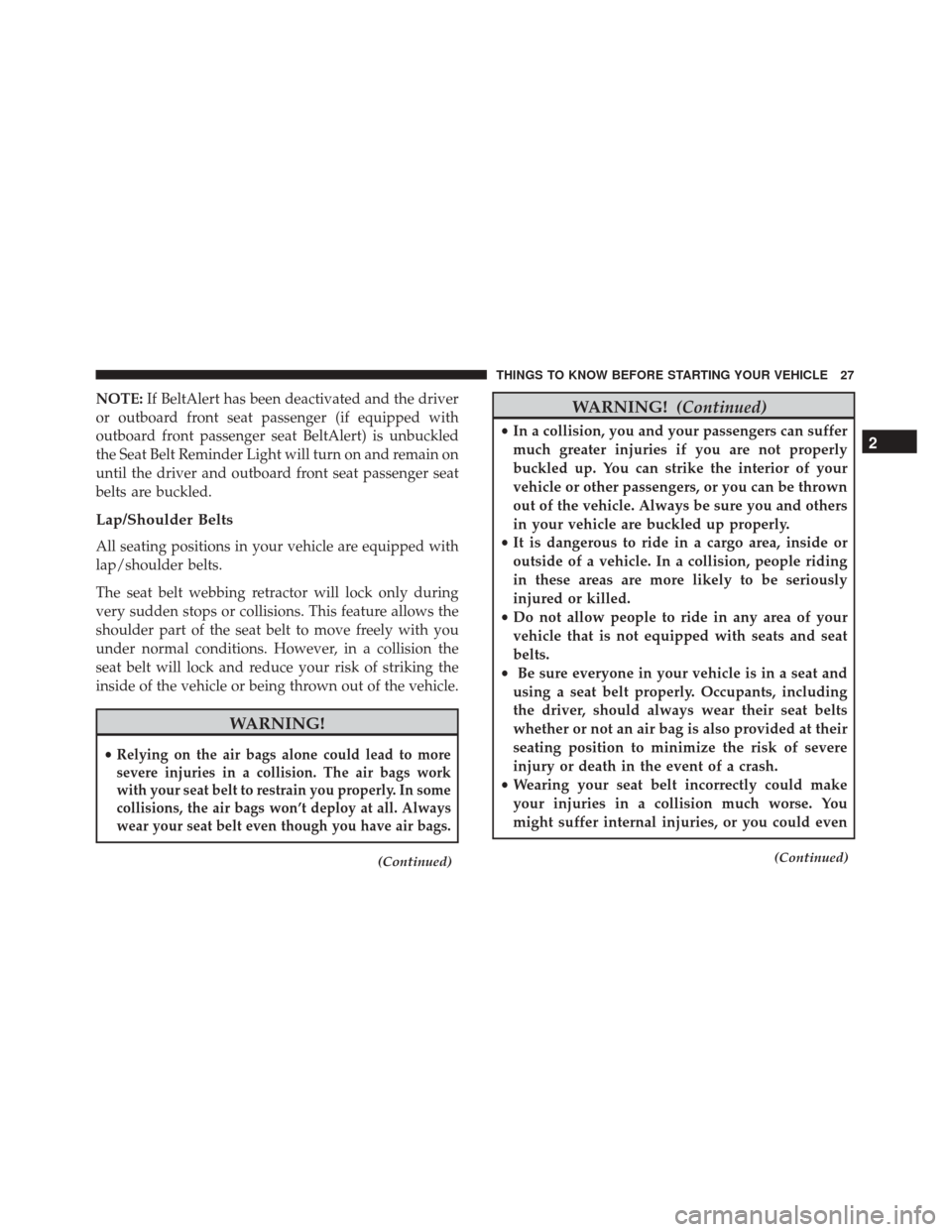

NOTE:If BeltAlert has been deactivated and the driver
or outboard front seat passenger (if equipped with
outboard front passenger seat BeltAlert) is unbuckled
the Seat Belt Reminder Light will turn on and remain on
until the driver and outboard front seat passenger seat
belts are buckled.
Lap/Shoulder Belts
All seating positions in your vehicle are equipped with
lap/shoulder belts.
The seat belt webbing retractor will lock only during
very sudden stops or collisions. This feature allows the
shoulder part of the seat belt to move freely with you
under normal conditions. However, in a collision the
seat belt will lock and reduce your risk of striking the
inside of the vehicle or being thrown out of the vehicle.
WARNING!
•Relying on the air bags alone could lead to more
severe injuries in a collision. The air bags work
with your seat belt to restrain you properly. In some
collisions, the air bags won’t deploy at all. Always
wear your seat belt even though you have air bags.
(Continued)
WARNING! (Continued)
•In a collision, you and your passengers can suffer
much greater injuries if you are not properly
buckled up. You can strike the interior of your
vehicle or other passengers, or you can be thrown
out of the vehicle. Always be sure you and others
in your vehicle are buckled up properly.
• It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding
in these areas are more likely to be seriously
injured or killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly. Occupants, including
the driver, should always wear their seat belts
whether or not an air bag is also provided at their
seating position to minimize the risk of severe
injury or death in the event of a crash.
• Wearing your seat belt incorrectly could make
your injuries in a collision much worse. You
might suffer internal injuries, or you could even
(Continued)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

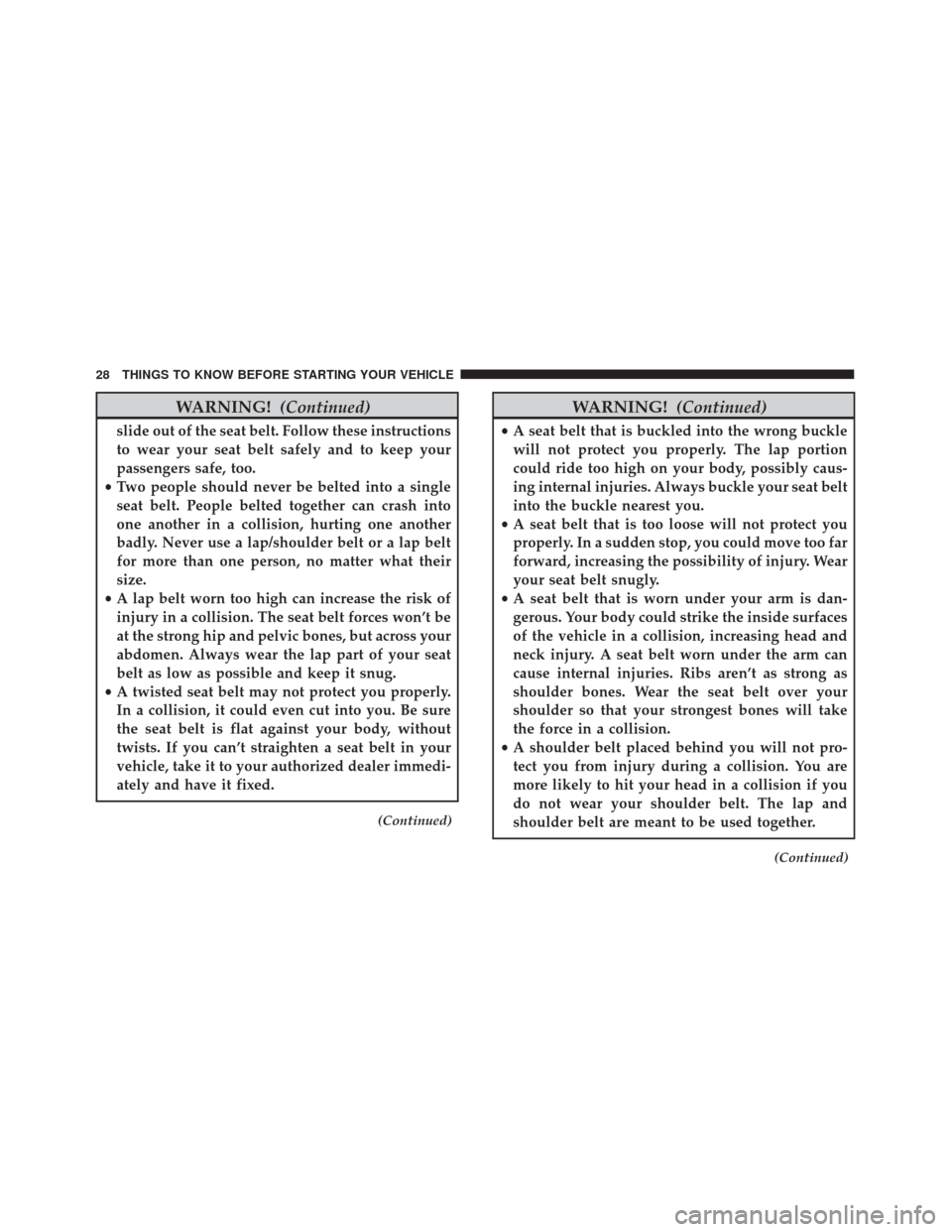

WARNING!(Continued)
slide out of the seat belt. Follow these instructions
to wear your seat belt safely and to keep your
passengers safe, too.
• Two people should never be belted into a single
seat belt. People belted together can crash into
one another in a collision, hurting one another
badly. Never use a lap/shoulder belt or a lap belt
for more than one person, no matter what their
size.
• A lap belt worn too high can increase the risk of
injury in a collision. The seat belt forces won’t be
at the strong hip and pelvic bones, but across your
abdomen. Always wear the lap part of your seat
belt as low as possible and keep it snug.
• A twisted seat belt may not protect you properly.
In a collision, it could even cut into you. Be sure
the seat belt is flat against your body, without
twists. If you can’t straighten a seat belt in your
vehicle, take it to your authorized dealer immedi-
ately and have it fixed.
(Continued)
WARNING! (Continued)
•A seat belt that is buckled into the wrong buckle
will not protect you properly. The lap portion
could ride too high on your body, possibly caus-
ing internal injuries. Always buckle your seat belt
into the buckle nearest you.
• A seat belt that is too loose will not protect you
properly. In a sudden stop, you could move too far
forward, increasing the possibility of injury. Wear
your seat belt snugly.
• A seat belt that is worn under your arm is dan-
gerous. Your body could strike the inside surfaces
of the vehicle in a collision, increasing head and
neck injury. A seat belt worn under the arm can
cause internal injuries. Ribs aren’t as strong as
shoulder bones. Wear the seat belt over your
shoulder so that your strongest bones will take
the force in a collision.
• A shoulder belt placed behind you will not pro-
tect you from injury during a collision. You are
more likely to hit your head in a collision if you
do not wear your shoulder belt. The lap and
shoulder belt are meant to be used together.
(Continued)
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Air Bag Warning Light
The ORC monitors the readiness of the elec-
tronic parts of the air bag system whenever
the ignition switch is in the AVV/START or
MAR/ON/RUN position. If the ignition
switch is in the STOP/OFF/LOCK position or in the
ACC position, the air bag system is not on and the air
bags will not inflate.
The ORC contains a backup power supply system that
may deploy the air bag system even if the battery loses
power or it becomes disconnected prior to deployment.
The ORC turns on the Air Bag Warning Light in the
instrument panel for approximately four to eight sec-
onds for a self-check when the ignition switch is in the
MAR/ON/RUN position. After the self-check, the Air
Bag Warning Light will turn off. If the ORC detects a
malfunction in any part of the system, it turns on the
Air Bag Warning Light, either momentarily or continu-
ously. A single chime will sound to alert you if the light
comes on again after initial startup.
The ORC also includes diagnostics that will illuminate
the instrument panel Air Bag Warning Light if a mal-
function is detected that could affect the air bag system. The diagnostics also record the nature of the malfunc-
tion. While the air bag system is designed to be main-
tenance free, if any of the following occurs, have an
authorized dealer service the air bag system
immediately.
•
The Air Bag Warning Light does not come on during
the four to eight seconds when the ignition switch is
first in the ON/RUN position.
• The Air Bag Warning Light remains on after the four
to eight-second interval.
• The Air Bag Warning Light comes on intermittently
or remains on while driving.
NOTE: If the speedometer, tachometer, or any engine
related gauges are not working, the Occupant Restraint
Controller (ORC) may also be disabled. In this condi-
tion the air bags may not be ready to inflate for your
protection. Have an authorized dealer service the air
bag system immediately.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35

•Turn on the interior lights, which remain on as long
as the battery has power or for 15 minutes from the
intervention of the Enhanced Accident Response
System.
• Unlock the power door locks.
Enhanced Accident Response System Reset
Procedure
After the event occurs, when the system is active, a
message regarding fuel cutoff is displayed. Turn the
ignition switch from ignition AVV/START or MAR/
ACC/ON/RUN to ignition STOP/OFF/LOCK. Care-
fully check the vehicle for fuel leaks in the engine
compartment and on the ground near the engine com-
partment and fuel tank before resetting the system and
starting the engine.
Depending on the nature of the event the left and right
turn signal lights, located in the instrument panel, may
both be blinking and will continue to blink. In order to
move your vehicle to the side of the road, you must
follow the system reset procedure.
Customer Action Customer Will See
NOTE: Each step MUST BE held for at least 2 sec-
onds
1. Turn ignition STOP/
OFF/LOCK. (Turn Sig-
nal Must be placed in
Neutral State).
2. Turn ignition MAR/
ACC/ON/RUN. Right turn light BLINKS.
Left turn light is OFF.
3. Turn right turn signal
switch ON. Right turn light is ON
SOLID.
Left turn light BLINKS.
4. Place turn signal in
neutral state. Right turn light is OFF.
Left turn light BLINKS.
5. Turn left turn signal
switch ON. Right turn light BLINKS.
Left turn light is ON
SOLID.
6. Place turn signal in
neutral state. Right turn light BLINKS.
Left turn light is OFF.
7. Turn right turn signal
switch ON. Right turn light is ON
SOLID.
Left turn light BLINKS.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43
