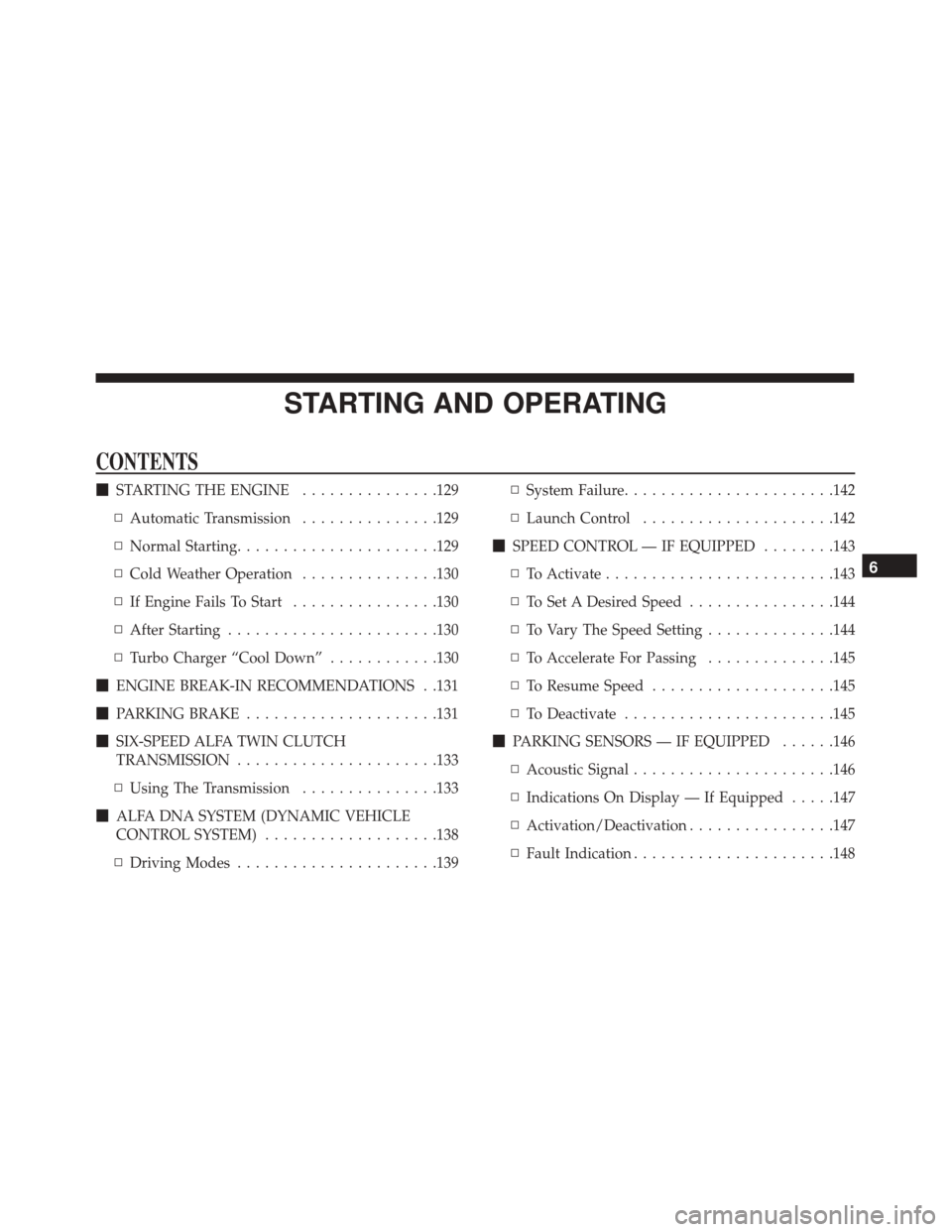

STARTING AND OPERATING
CONTENTS
STARTING THE ENGINE ...............129
▫ Automatic Transmission ...............129
▫ Normal Starting ..................... .129
▫ Cold Weather Operation ...............130
▫ If Engine Fails To Start ................130
▫ After Starting ...................... .130
▫ Turbo Charger “Cool Down” ............130
ENGINE BREAK-IN RECOMMENDATIONS . .131
PARKING BRAKE .....................131
SIX-SPEED ALFA TWIN CLUTCH
TRANSMISSION ..................... .133
▫ Using The Transmission ...............133
ALFA DNA SYSTEM (DYNAMIC VEHICLE
CONTROL SYSTEM) ...................138
▫ Driving Modes ..................... .139▫
System Failure ...................... .142
▫ Launch Control .....................142
SPEED CONTROL — IF EQUIPPED ........143
▫ To Activate ........................ .143
▫ To Set A Desired Speed ................144
▫ To Vary The Speed Setting ..............144
▫ To Accelerate For Passing ..............145
▫ To Resume Speed ....................145
▫ To Deactivate ...................... .145
PARKING SENSORS — IF EQUIPPED ......146
▫ Acoustic Signal ..................... .146
▫ Indications On Display — If Equipped .....147
▫ Activation/Deactivation ................147
▫ Fault
Indication ..................... .148
6
Page 148 of 279
PARKING SENSORS — IF EQUIPPED
The vehicle’s parking sensors are located in the rear
bumper, and will detect the presence of any obstacles
near the rear part of the vehicle while moving in
REVERSE gear. The driver is then informed through an
intermittent acoustic signal.
Acoustic Signal
When REVERSE gear is engaged, and there is an
obstacle behind the vehicle, an acoustic signal is emitted
which varies according to the distance of the bumper
from the obstacle.
The frequency of the acoustic signal:
•Increases as the distance between vehicle and ob-
stacle decreases, culminating in a continuous acous-
tic signal when the distance is less than approxi-
mately 12 inches (30 cm).
• Decreases if the distance from the obstacle increases,
until the signal ceases entirely.
• Remains constant if the distance between vehicle and
obstacle remains unchanged; if this situation con-
cerns the side sensors, the signal will stop after
approximately 3 seconds, for example, in the event of
manoeuvres along a wall.
If several obstacles are detected by the sensors, only the
nearest one is considered.
Parking Sensors
146 STARTING AND OPERATING
Page 149 of 279
Indications On Display — If Equipped
When the sensors are activated, the parking sensor
display screen appears in the instrument cluster.
Obstacle presence and distance information is therefore
provided both by the acoustic signal and the instrument
cluster display.
The system indicates a detected obstacle by displaying
an arc in one or more positions according to the distance
of the obstacle and its position in relation to the vehicle.If an obstacle is detected in the rear central area, the
instrument cluster display shows all the arcs in the rear
central area, up to the one that corresponds to the
position of the obstacle itself.
The signal is similar for obstacles in the rear left or right
area.
The arc that corresponds to the position of the obstacle
will flash.
The color on the instrument cluster display depends on
the distance from and position of the obstacle.
The vehicle is close to the obstacle when the instrument
cluster display shows a single constant arc and emits a
continuous sound.
If there are several obstacles, the closest one is indi-
cated.
Activation/Deactivation
The sensors are automatically activated when REVERSE
gear is engaged. As the obstacle behind the vehicle gets
closer, the acoustic signal becomes more frequent.
Parking Sensor Display Screen
6
STARTING AND OPERATING 147
Page 150 of 279

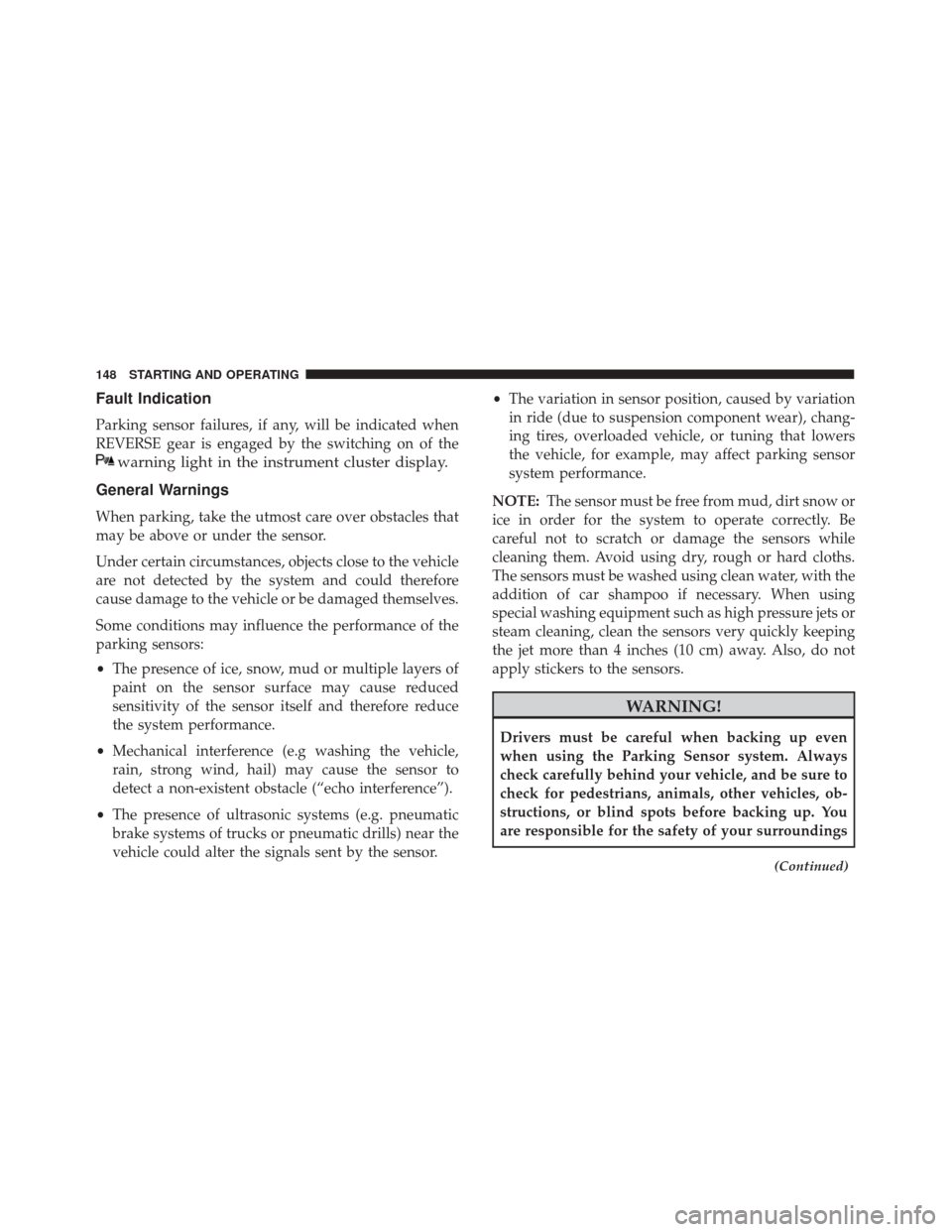

Fault Indication
Parking sensor failures, if any, will be indicated when
REVERSE gear is engaged by the switching on of the
warning light in the instrument cluster display.
General Warnings
When parking, take the utmost care over obstacles that
may be above or under the sensor.
Under certain circumstances, objects close to the vehicle
are not detected by the system and could therefore
cause damage to the vehicle or be damaged themselves.
Some conditions may influence the performance of the
parking sensors:
• The presence of ice, snow, mud or multiple layers of
paint on the sensor surface may cause reduced
sensitivity of the sensor itself and therefore reduce
the system performance.
• Mechanical interference (e.g washing the vehicle,
rain, strong wind, hail) may cause the sensor to
detect a non-existent obstacle (“echo interference”).
• The presence of ultrasonic systems (e.g. pneumatic
brake systems of trucks or pneumatic drills) near the
vehicle could alter the signals sent by the sensor. •
The variation in sensor position, caused by variation
in ride (due to suspension component wear), chang-
ing tires, overloaded vehicle, or tuning that lowers
the vehicle, for example, may affect parking sensor
system performance.
NOTE: The sensor must be free from mud, dirt snow or
ice in order for the system to operate correctly. Be
careful not to scratch or damage the sensors while
cleaning them. Avoid using dry, rough or hard cloths.
The sensors must be washed using clean water, with the
addition of car shampoo if necessary. When using
special washing equipment such as high pressure jets or
steam cleaning, clean the sensors very quickly keeping
the jet more than 4 inches (10 cm) away. Also, do not
apply stickers to the sensors.
WARNING!
Drivers must be careful when backing up even
when using the Parking Sensor system. Always
check carefully behind your vehicle, and be sure to
check for pedestrians, animals, other vehicles, ob-
structions, or blind spots before backing up. You
are responsible for the safety of your surroundings
(Continued)
148 STARTING AND OPERATING
Page 151 of 279
WARNING!(Continued)
and must continue to pay attention while backing
up. Failure to do so can result in serious injury or
death.
CAUTION!
•The Parking Sensor system is only a parking aid
and it is unable to recognize every obstacle,
including small obstacles. Parking curbs might be
temporarily detected or not detected at all. Ob-
stacles located above or below the sensors will
not be detected when they are in close proximity.
• The vehicle must be driven slowly when using
the Parking Sensor system in order to be able to
stop in time when an obstacle is detected. It is
recommended that the driver looks over his/her
shoulder when using the Parking Sensor system.
ADDING FUEL/SMART FUEL
NOTE:
• The Smart Fuel is a device placed on the top of the
filler pipe; it opens and closes automatically when
the fuel nozzle is inserted or extracted.
• Only the correct nozzle size diameter allows the flap
door to open when the nozzle is inserted.
Refueling Procedure
1. Open the fuel filler door pulling towards outside.
Fuel Filler Door Location
