Page 34 of 279
Turn Signals
Move the multifunction lever up or down and the
arrows on each side of the instrument cluster flash to
show proper operation of the front and rear turn signal
lights.
NOTE:If either light remains on and does not flash, or
there is a very fast flash rate, check for a defective
outside light bulb. If an indicator fails to light when the
lever is moved, it would suggest that the indicator bulb
is defective.
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
five times then automatically turn off.
INTERIOR LIGHTS
Interior Light
The interior light is located in the headliner in between
the sun visors. The interior light can be set to three
different positions (off/left position, center position,
on/right position).
Using the interior light lens, push the lens to the right
from its center position and the lights are always on. Push the lens to the left from its center position and the
lights are always off. Leave the lens in the center
position, and the light is turned on and off when the
doors are opened or closed.
CAUTION!
Before getting out of the vehicle be sure that the
Overhead Dome Lamp is in the center position or
that the lights are off to avoid draining the battery.
Interior Light (Off Position Shown)
32 GETTING TO KNOW YOUR VEHICLE
Page 78 of 279
CAUTION!(Continued)
catalytic converter damage and power loss will soon
occur. Immediate service is required.
— Generic Warning Light
The Generic Warning Light will illuminate if there is an
Engine Oil Pressure Sensor Failure.
— Passenger Air Bag Indicator Light
This light should come and remain on for four to eight
seconds as a bulb check when the ignition is first turned
to the AVV/START or MAR/ON/RUN position. If the
light stays on, or comes on while driving it may indicate
a problem with a passenger air bag system, if the light
flickers it may indicate an air bag warning light failure.
Have an authorized dealer service the air bag system
immediately.
Green Indicator Lights
— Turn Signal Indicator Lights
The turn signal arrows will flash independently when
left or right turn signals are selected. Turn signals can be
activated when the multifunction lever is moved down
(left) or up (right).
— Park/Headlight On Indicator Light
This indicator will illuminate when the park lights or
headlights are turned on.
— Cruise Control Set Indicator Light — If
Equipped
This light will turn on when the speed control is set to
the desired speed. Refer to “Speed Control” in “Starting
And Operating” for further information.
— Door Mirror Defrost Indicator Light
This indicator will illuminate when the Door Mirror
Defrost button on the instrument panel is pushed to the
on position.
Blue Indicator Lights
— High Beam Indicator Light
This indicator shows that the high beam headlights are
on. With the low beams activated, push the multifunc-
tion lever forward (toward the front of the vehicle) to
turn on the high beams. Pull the multifunction lever
rearward (toward the rear of the vehicle) to turn off the
high beams. If the high beams are off, pull the lever
toward you for a temporary high beam on, flash to
pass scenario.
76 GETTING TO KNOW YOUR INSTRUMENT PANEL

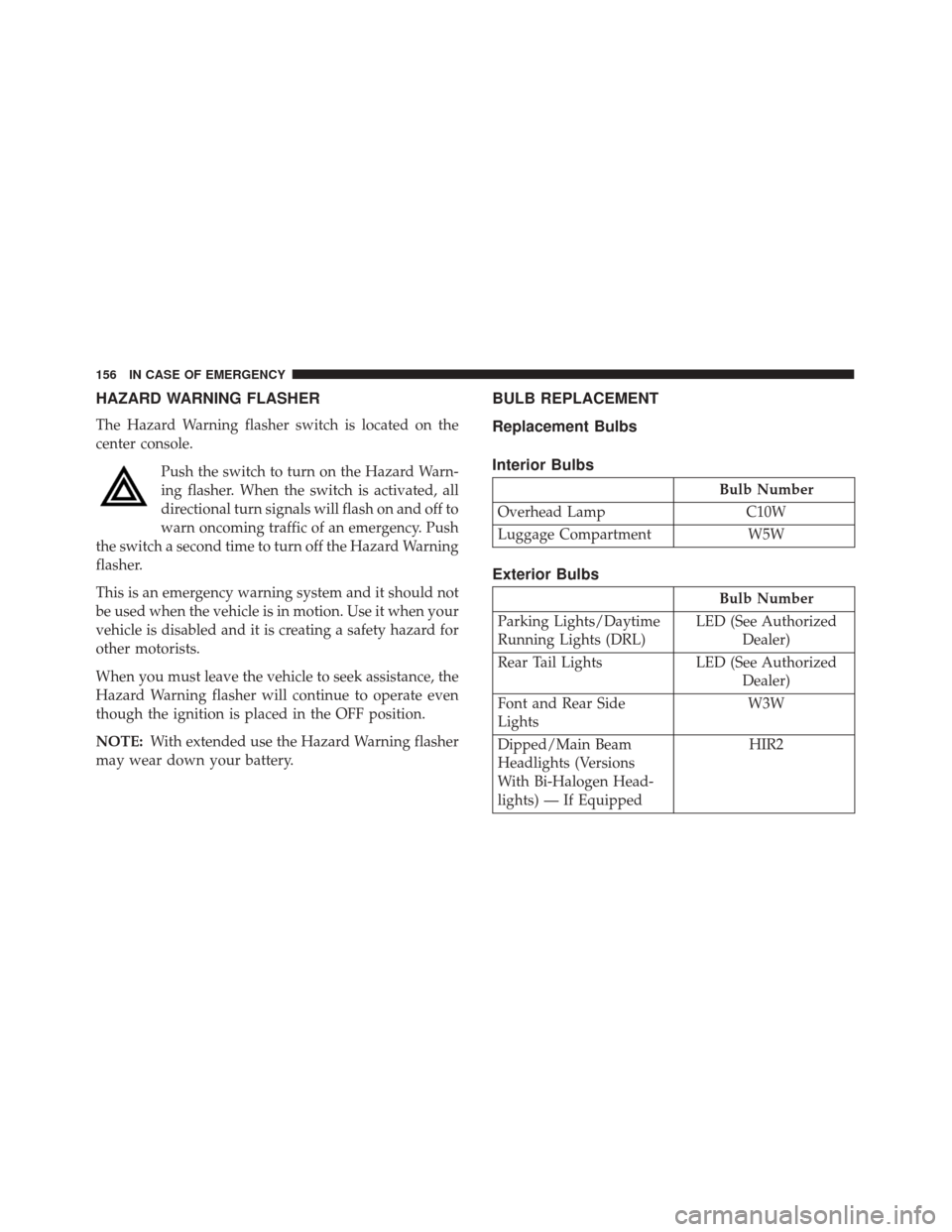

Page 158 of 279
HAZARD WARNING FLASHER
The Hazard Warning flasher switch is located on the
center console.Push the switch to turn on the Hazard Warn-
ing flasher. When the switch is activated, all
directional turn signals will flash on and off to
warn oncoming traffic of an emergency. Push
the switch a second time to turn off the Hazard Warning
flasher.
This is an emergency warning system and it should not
be used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.
When you must leave the vehicle to seek assistance, the
Hazard Warning flasher will continue to operate even
though the ignition is placed in the OFF position.
NOTE: With extended use the Hazard Warning flasher
may wear down your battery.
BULB REPLACEMENT
Replacement Bulbs
Interior Bulbs
Bulb Number
Overhead Lamp C10W
Luggage Compartment W5W
Exterior Bulbs
Bulb Number
Parking Lights/Daytime
Running Lights (DRL) LED (See Authorized
Dealer)
Rear Tail Lights LED (See Authorized
Dealer)
Font and Rear Side
Lights W3W
Dipped/Main Beam
Headlights (Versions
With Bi-Halogen Head-
lights) — If Equipped HIR2
156 IN CASE OF EMERGENCY
