Alfa Romeo 4C Spider 2016 User Guide
Manufacturer: ALFA ROMEO, Model Year: 2016, Model line: 4C Spider, Model: Alfa Romeo 4C Spider 2016Pages: 371, PDF Size: 2.93 MB
Page 11 of 371

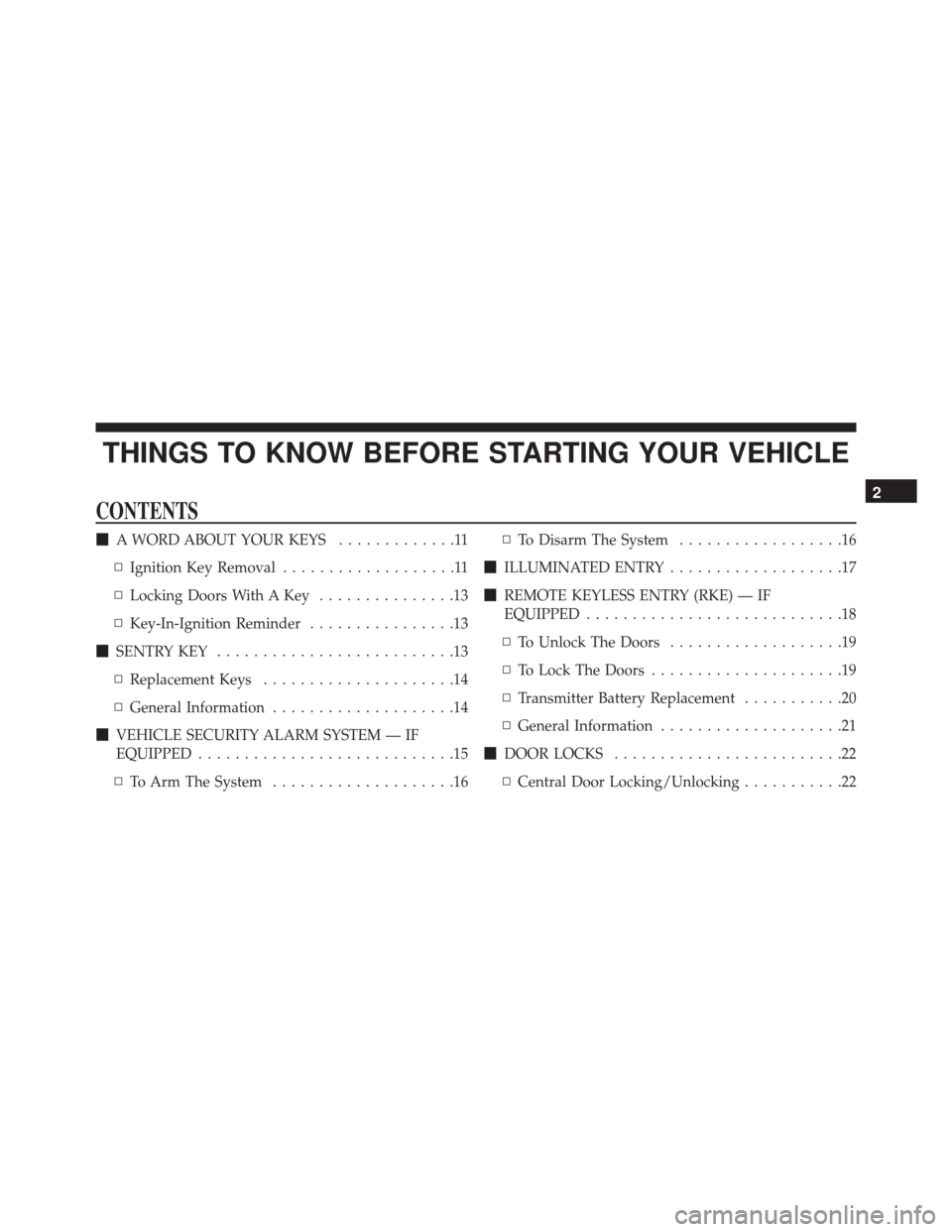

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS .............11
▫ Ignition Key Removal ...................11
▫ Locking Doors With A Key ...............13
▫ Key-In-Ignition Reminder ................13
SENTRY KEY ..........................13
▫ Replacement Keys .....................14
▫ General Information ....................14
VEHICLE SECURITY ALARM SYSTEM — IF
EQUIPPED ............................15
▫ To Arm The System ....................16 ▫
To Disarm The System ..................16
ILLUMINATED ENTRY ...................17
REMOTE KEYLESS ENTRY (RKE) — IF
EQUIPPED ............................18
▫ To Unlock The Doors ...................19
▫ To Lock The Doors .....................19
▫ Transmitter Battery Replacement ...........20
▫ General Information ....................21
DOOR LOCKS .........................22
▫ Central Door Locking/Unlocking ...........22
2

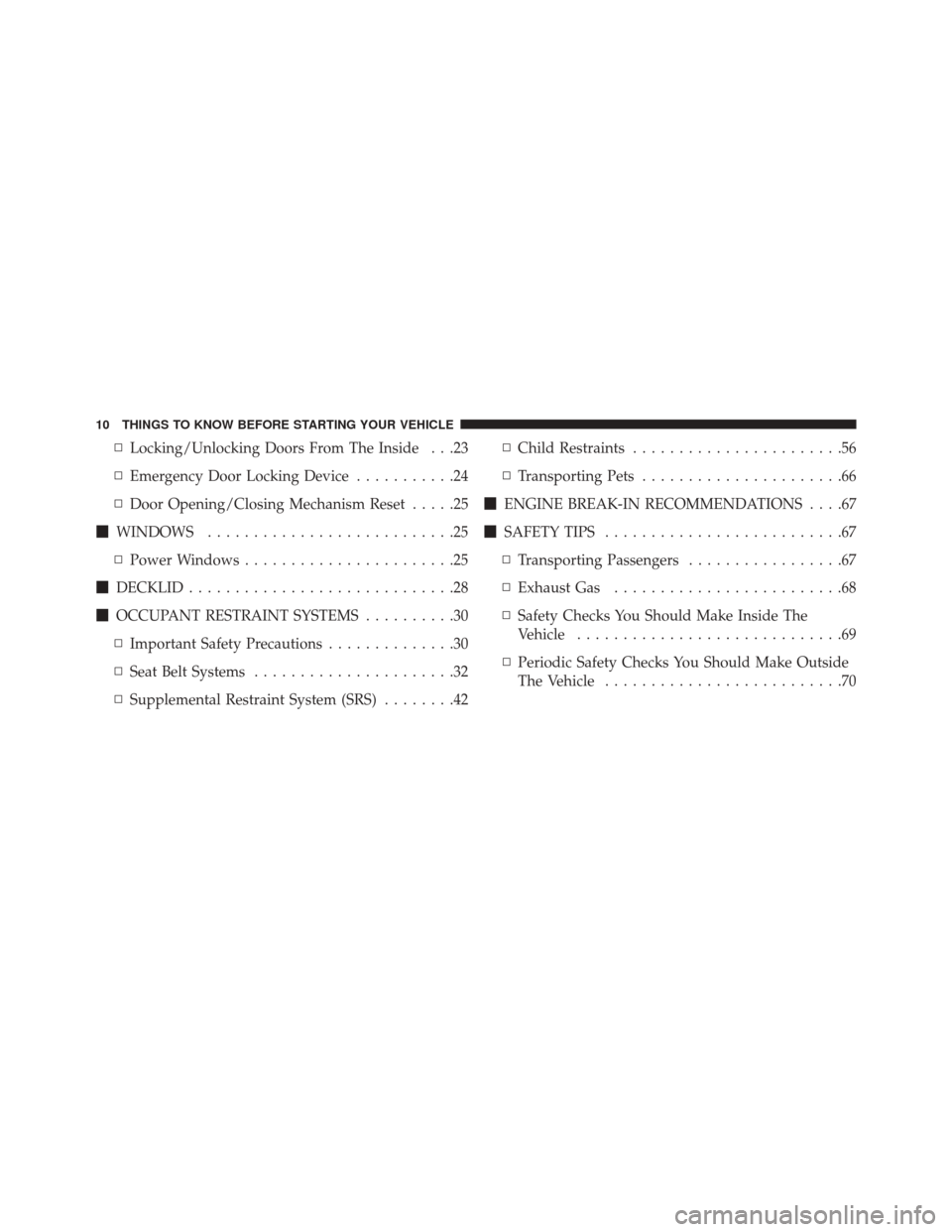

Page 12 of 371
▫Locking/Unlocking Doors From The Inside . . .23
▫ Emergency Door Locking Device ...........24
▫ Door Opening/Closing Mechanism Reset .....25
WINDOWS ...........................25
▫ Power Windows .......................25
DECKLID .............................28
OCCUPANT RESTRAINT SYSTEMS ..........30
▫ Important Safety Precautions ..............30
▫ Seat Belt Systems ......................32
▫ Supplemental Restraint System (SRS) ........42▫
Child Restraints .......................56
▫ Transporting Pets ......................66
ENGINE BREAK-IN RECOMMENDATIONS ....67
SAFETY TIPS ..........................67
▫ Transporting Passengers .................67
▫ Exhaust Gas .........................68
▫ Safety Checks You Should Make Inside The
Vehicle .............................69
▫ Periodic Safety Checks You Should Make Outside
The Vehicle ..........................70
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 13 of 371
A WORD ABOUT YOUR KEYS
The key fob contains the Remote Keyless Entry (RKE)
transmitter with an integrated key. To use the mechanical
key simply push the mechanical key release button.
Ignition Key Removal
1. Push the brake pedal and place the transmission intofirst (1) or reverse (R) gear by selecting/pushing the
buttons on the console.
2. Rotate the key to the STOP (OFF/LOCK) position and engage the handbrake and release brake pedal.
Key Fob
1 — Vehicle Key
2 — Push To Open/Close Vehicle KeyTransmission Gear Selector
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
Page 14 of 371
3. Remove the key from the ignition switch lock cylinder.WARNING!
•Before exiting a vehicle, always shift the vehicle
into FIRST gear or REVERSE, apply the parking
brake, turn the vehicle OFF, remove the key fob
from the ignition and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the transmission gear selec-
tor.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
(Continued)
Ignition Switch Positions
1 — STOP (OFF/LOCK)
2 — MAR (ON/RUN)
3 — AVV (START) 12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 15 of 371

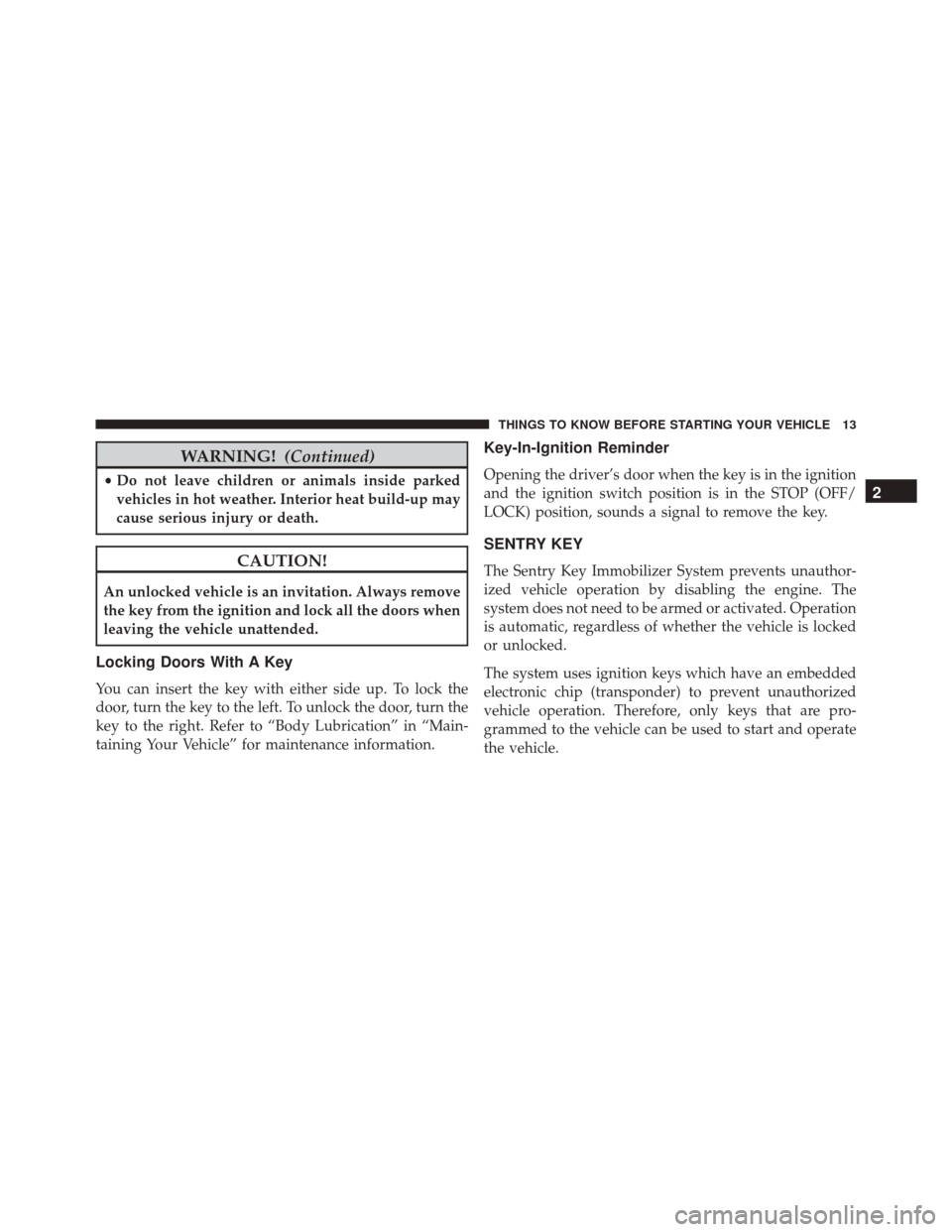

WARNING!(Continued)
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked vehicle is an invitation. Always remove
the key from the ignition and lock all the doors when
leaving the vehicle unattended.
Locking Doors With A Key
You can insert the key with either side up. To lock the
door, turn the key to the left. To unlock the door, turn the
key to the right. Refer to “Body Lubrication” in “Main-
taining Your Vehicle” for maintenance information.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
and the ignition switch position is in the STOP (OFF/
LOCK) position, sounds a signal to remove the key.
SENTRY KEY
The Sentry Key Immobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys which have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
Page 16 of 371

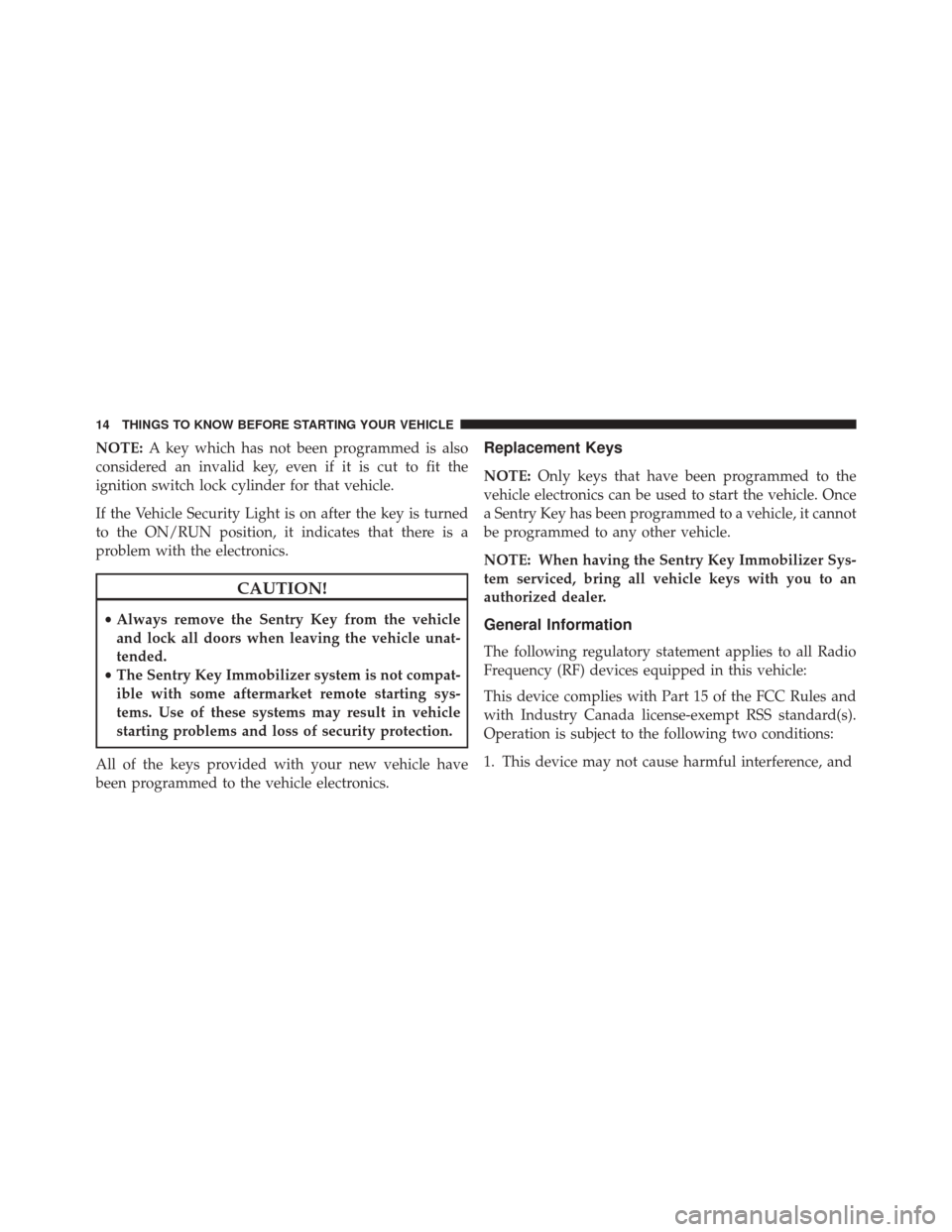

NOTE:A key which has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
If the Vehicle Security Light is on after the key is turned
to the ON/RUN position, it indicates that there is a
problem with the electronics.
CAUTION!
• Always remove the Sentry Key from the vehicle
and lock all doors when leaving the vehicle unat-
tended.
• The Sentry Key Immobilizer system is not compat-
ible with some aftermarket remote starting sys-
tems. Use of these systems may result in vehicle
starting problems and loss of security protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it cannot
be programmed to any other vehicle.
NOTE: When having the Sentry Key Immobilizer Sys-
tem serviced, bring all vehicle keys with you to an
authorized dealer.
General Information
The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 17 of 371

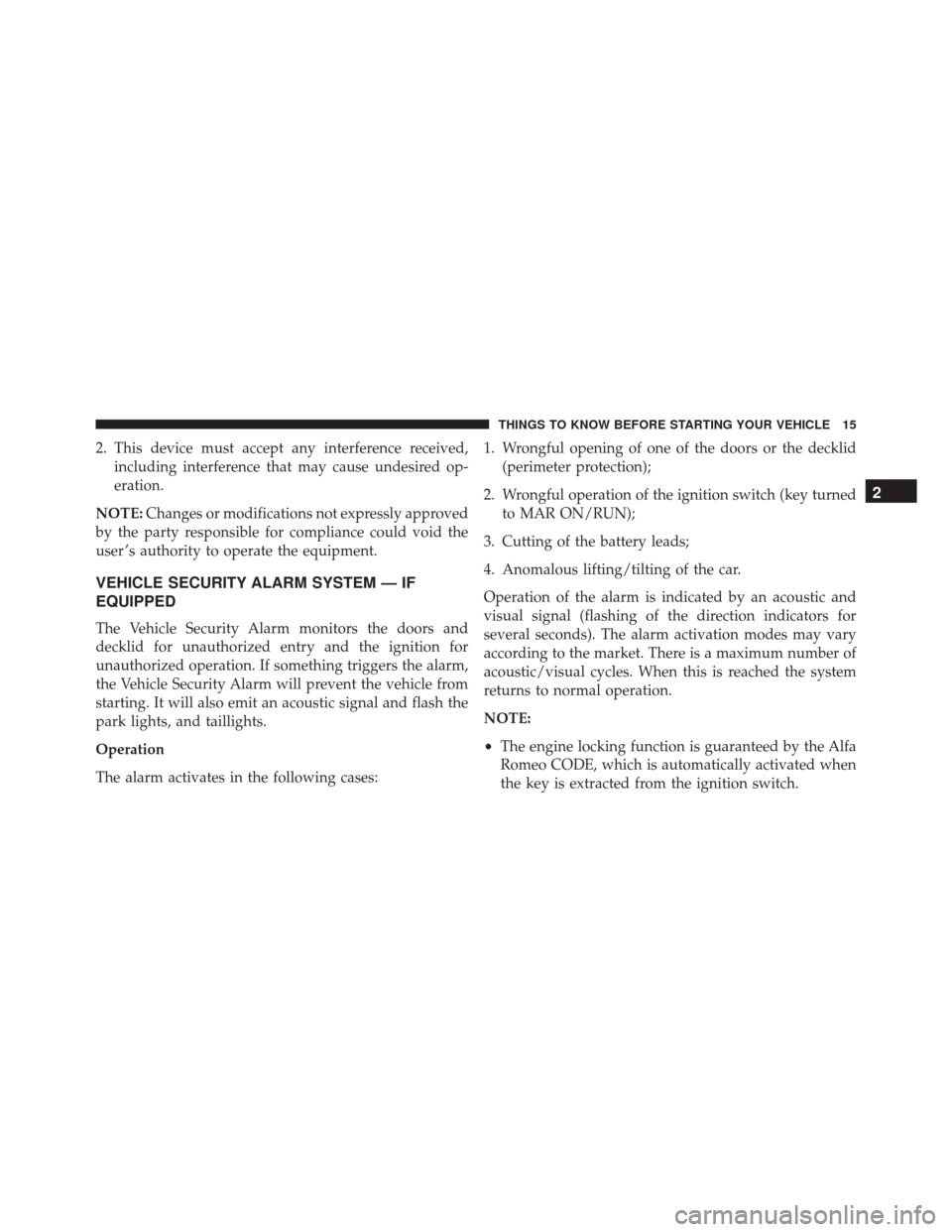

2. This device must accept any interference received,including interference that may cause undesired op-
eration.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
VEHICLE SECURITY ALARM SYSTEM — IF
EQUIPPED
The Vehicle Security Alarm monitors the doors and
decklid for unauthorized entry and the ignition for
unauthorized operation. If something triggers the alarm,
the Vehicle Security Alarm will prevent the vehicle from
starting. It will also emit an acoustic signal and flash the
park lights, and taillights.
Operation
The alarm activates in the following cases: 1. Wrongful opening of one of the doors or the decklid
(perimeter protection);
2. Wrongful operation of the ignition switch (key turned to MAR ON/RUN);
3. Cutting of the battery leads;
4. Anomalous lifting/tilting of the car.
Operation of the alarm is indicated by an acoustic and
visual signal (flashing of the direction indicators for
several seconds). The alarm activation modes may vary
according to the market. There is a maximum number of
acoustic/visual cycles. When this is reached the system
returns to normal operation.
NOTE:
• The engine locking function is guaranteed by the Alfa
Romeo CODE, which is automatically activated when
the key is extracted from the ignition switch.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
Page 18 of 371

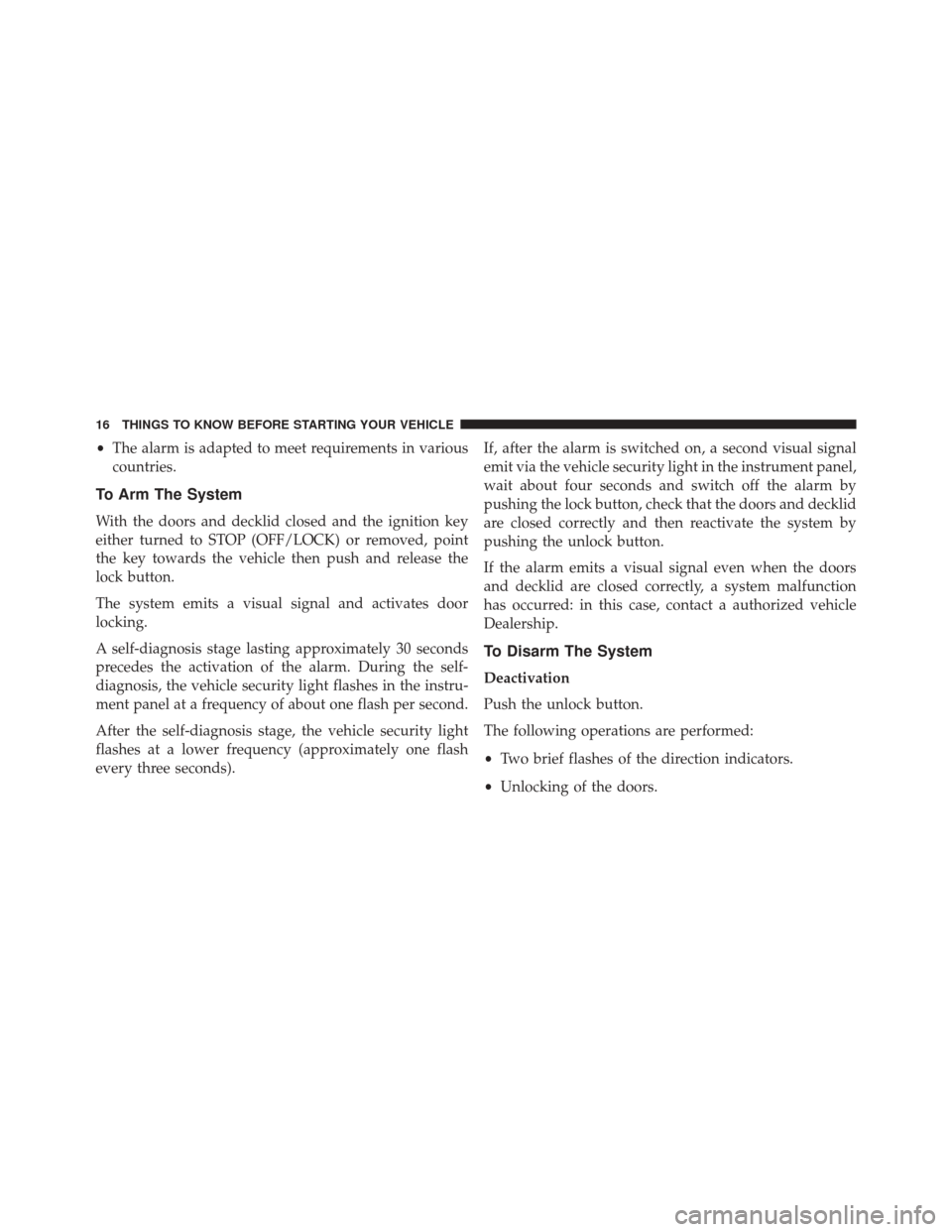

•The alarm is adapted to meet requirements in various
countries.
To Arm The System
With the doors and decklid closed and the ignition key
either turned to STOP (OFF/LOCK) or removed, point
the key towards the vehicle then push and release the
lock button.
The system emits a visual signal and activates door
locking.
A self-diagnosis stage lasting approximately 30 seconds
precedes the activation of the alarm. During the self-
diagnosis, the vehicle security light flashes in the instru-
ment panel at a frequency of about one flash per second.
After the self-diagnosis stage, the vehicle security light
flashes at a lower frequency (approximately one flash
every three seconds). If, after the alarm is switched on, a second visual signal
emit via the vehicle security light in the instrument panel,
wait about four seconds and switch off the alarm by
pushing the lock button, check that the doors and decklid
are closed correctly and then reactivate the system by
pushing the unlock button.
If the alarm emits a visual signal even when the doors
and decklid are closed correctly, a system malfunction
has occurred: in this case, contact a authorized vehicle
Dealership.
To Disarm The System
Deactivation
Push the unlock button.
The following operations are performed:
•
Two brief flashes of the direction indicators.
• Unlocking of the doors.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 19 of 371

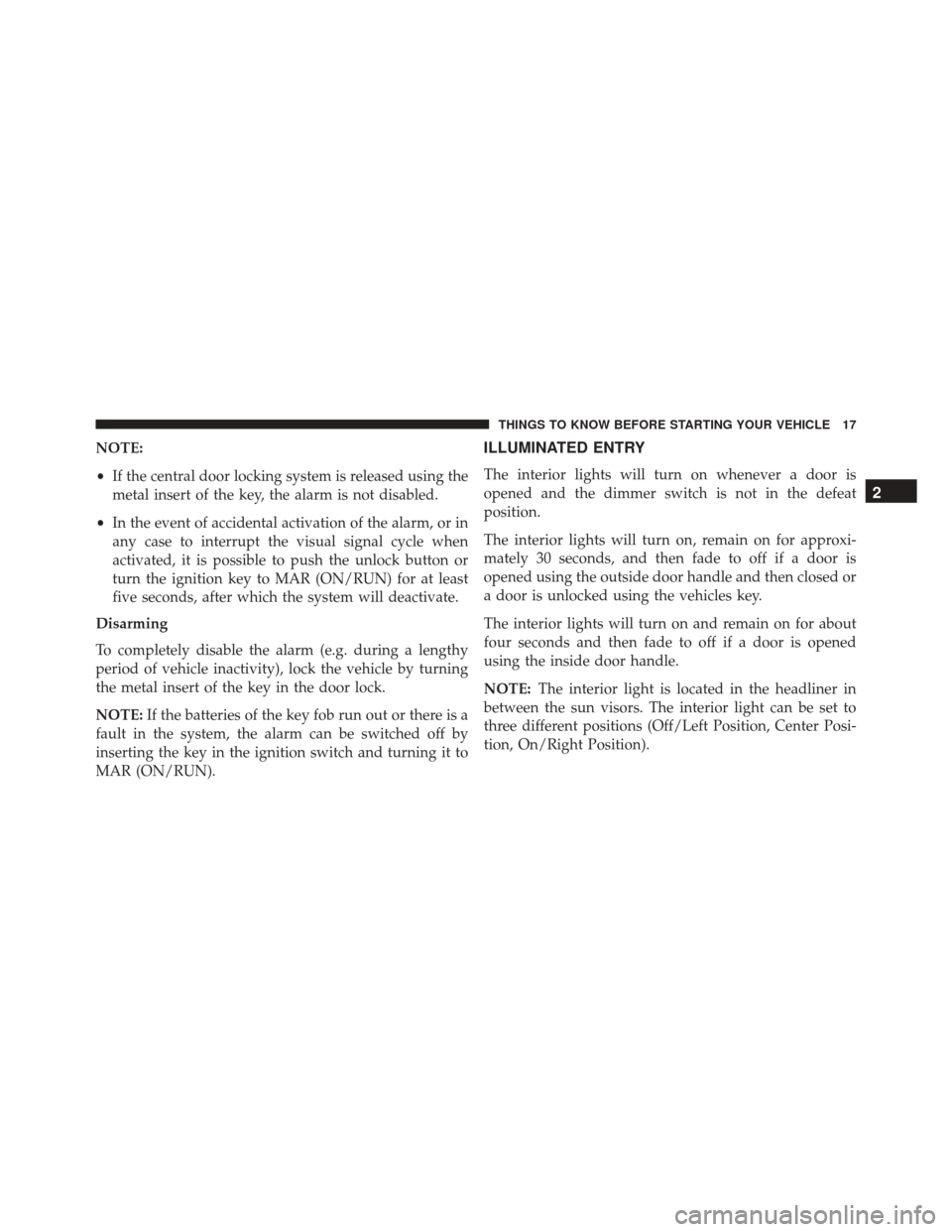

NOTE:
•If the central door locking system is released using the
metal insert of the key, the alarm is not disabled.
• In the event of accidental activation of the alarm, or in
any case to interrupt the visual signal cycle when
activated, it is possible to push the unlock button or
turn the ignition key to MAR (ON/RUN) for at least
five seconds, after which the system will deactivate.
Disarming
To completely disable the alarm (e.g. during a lengthy
period of vehicle inactivity), lock the vehicle by turning
the metal insert of the key in the door lock.
NOTE: If the batteries of the key fob run out or there is a
fault in the system, the alarm can be switched off by
inserting the key in the ignition switch and turning it to
MAR (ON/RUN).ILLUMINATED ENTRY
The interior lights will turn on whenever a door is
opened and the dimmer switch is not in the defeat
position.
The interior lights will turn on, remain on for approxi-
mately 30 seconds, and then fade to off if a door is
opened using the outside door handle and then closed or
a door is unlocked using the vehicles key.
The interior lights will turn on and remain on for about
four seconds and then fade to off if a door is opened
using the inside door handle.
NOTE: The interior light is located in the headliner in
between the sun visors. The interior light can be set to
three different positions (Off/Left Position, Center Posi-
tion, On/Right Position).
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
Page 20 of 371
REMOTE KEYLESS ENTRY (RKE) — IF
EQUIPPED
This system allows you to lock or unlock the doors from
distances up to approximately 66 ft (20 m) using a
hand-held Remote Keyless Entry (RKE) transmitter. The
RKE transmitter does not need to be pointed at the
vehicle to activate the system.NOTE:The line of transmission must not be blocked
with metal objects.
Key Fob
1 — Vehicle Key
2 — Push To Open/Close Vehicle Key
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
