Alfa Romeo 4C Spider 2016 Owner's Manual

Direction Indicators
To change the bulb, proceed as follows:
1. Remove the protective cap (one for each side) on theside cover of the luggage compartment. 2. Remove the second protective cap insert a hand inside
the opening.
3. Rotate clockwise to remove the bulb holder remove the bulb from the bulb holder.
First Protective Cap
Second Protective Cap
7
MAINTAINING YOUR VEHICLE 319

4. Install the bulb by pressing it into bulb holder thenturn install the bulb holder and turn it counterclock-
wise.
5. Install the previously removed protective caps.
Tail Lights/Brake Lights
These are LEDs. For the replacement, contact the your
local dealer.
Reversing Light
WARNING!
The reversing light are located close to the exhaust
pipes; take the utmost care not to get burnt during
the bulb replacement. To replace the reversing lights turn the bulb holder
counterclockwise, remove the bulb and replace it.
1 — Reverse Light Location
2 — Reverse Light Location
320 MAINTAINING YOUR VEHICLE

Third Brake Lights
These are LEDs. For the replacement, contact your local
dealer.
License Plate Lights
To replace the bulbs proceed as follows:
1. Position the lens in the point shown laterally tocompress the retaining clip, then pull the license plate
light cluster out.
Reversing Light Bulb Holder
License Plate Lamp Removal
7
MAINTAINING YOUR VEHICLE 321

2. Turn bulb holder (1) counterclockwise, remove bulb(2) and replace it.Roof Light
To change the bulb, proceed as follows:
1. Remove roof light working at the points indicated bythe arrows.
1 — Bulb Holder
2 — Bulb
Roof Light
322 MAINTAINING YOUR VEHICLE

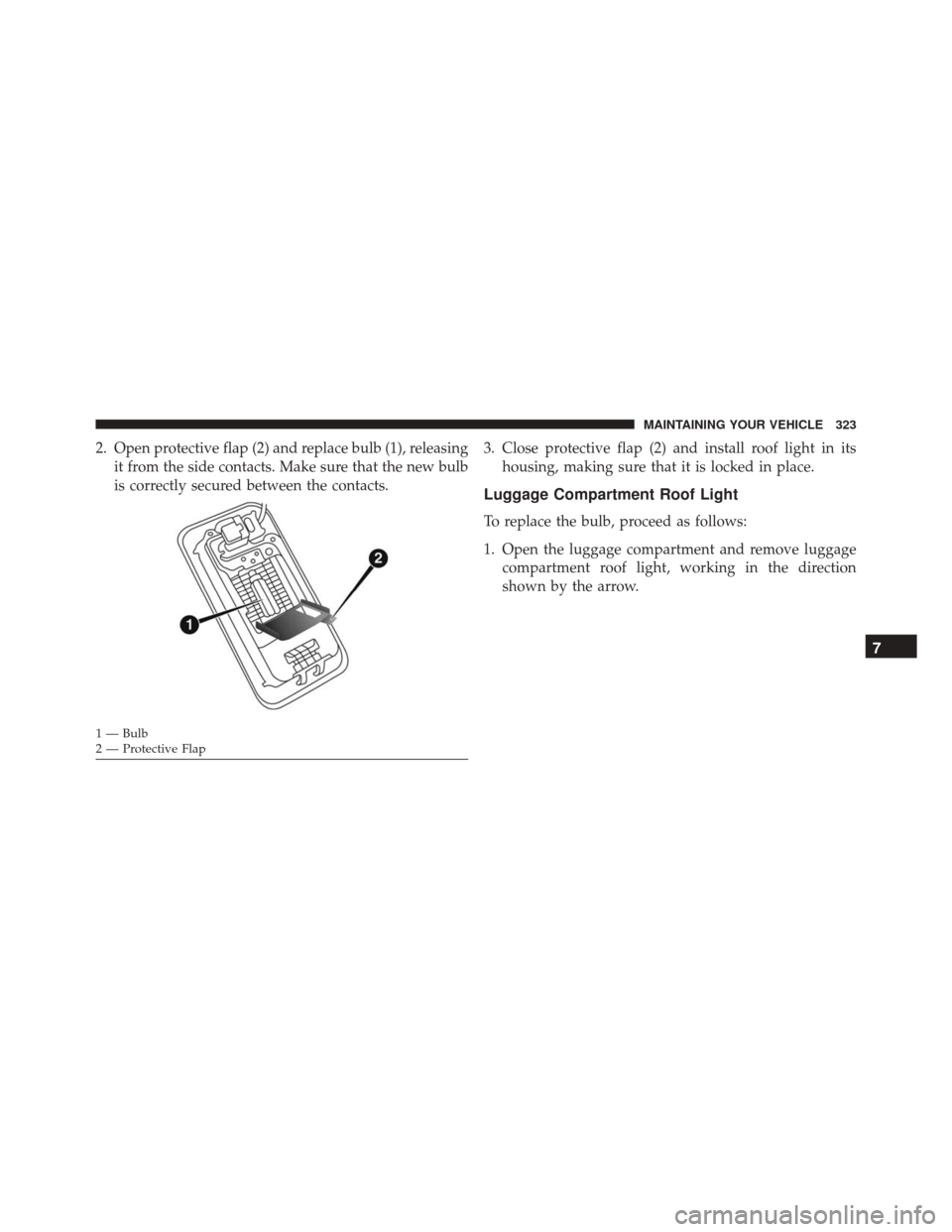

2. Open protective flap (2) and replace bulb (1), releasingit from the side contacts. Make sure that the new bulb
is correctly secured between the contacts. 3. Close protective flap (2) and install roof light in its
housing, making sure that it is locked in place.
Luggage Compartment Roof Light
To replace the bulb, proceed as follows:
1. Open the luggage compartment and remove luggagecompartment roof light, working in the direction
shown by the arrow.
1 — Bulb
2 — Protective Flap
7
MAINTAINING YOUR VEHICLE 323

2. Open light protector (2) and replace the bulb.
3. Close protector on the lens.
4. Install luggage compartment roof light by inserting itin its correct position, first on one side and then
pressing on the other side until it clicks into place.
1 — Light Cover
2 — Light Protector 324 MAINTAINING YOUR VEHICLE

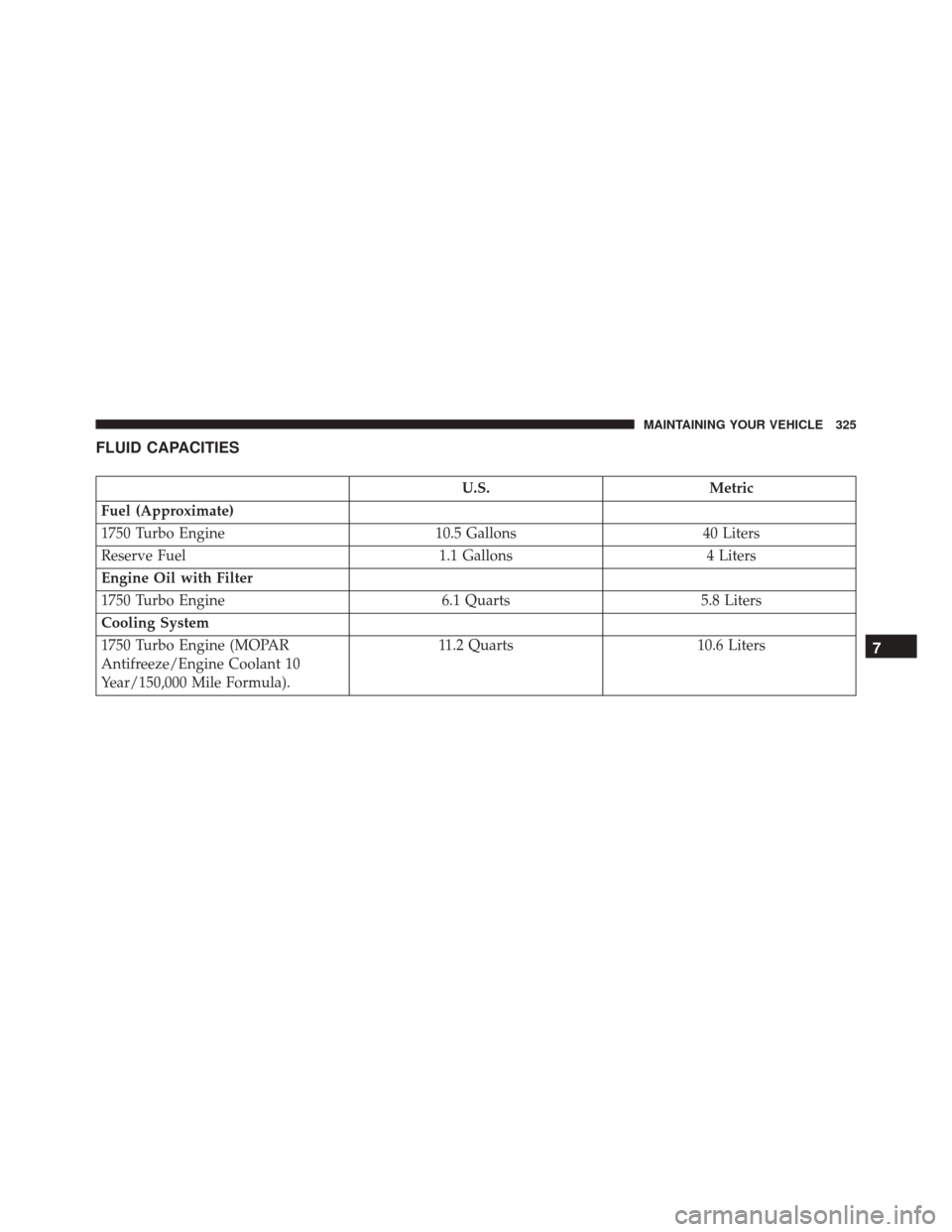

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
1750 Turbo Engine 10.5 Gallons40 Liters
Reserve Fuel 1.1 Gallons4 Liters
Engine Oil with Filter
1750 Turbo Engine 6.1 Quarts5.8 Liters
Cooling System
1750 Turbo Engine (MOPAR
Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula). 11.2 Quarts
10.6 Liters
7
MAINTAINING YOUR VEHICLE 325

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant – 1750 Turbo Engine We recommend you use MOPAR Antifreeze/Coolant 10 Year/150,000 Mile Formula OAT (Organic Additive Technology) or equivalent meeting the
requirements of FCA Material Standard MS.90032.
Engine Oil – 1750 Turbo Engine We recommend you use SAE 5W-40 API Certified Synthetic Engine Oil, meeting the requirements of FCA Material Standard MS-12991.
Engine Oil Filter – 1750 Turbo EngineWe recommend you use MOPAR Engine Oil Filter.
Spark Plugs – 1750 Turbo Engine We recommend you use MOPAR Spark Plugs. *
Fuel Selection – 1750 Turbo Engine Use Only 91 Octane or higher, 0-10% Ethanol.
NOTE: * The following are essential to ensure correct
operation and prevent serious damage to the engine: only
use spark plugs of the same make and type which are
specially certified for such engines strictly comply with the spark plug replacement interval given in the mainte-
nance schedule. For spark plug replacement, it is advis-
able to contact the dedicated Alfa Romeo Dealership.
Refer to the “Maintenance Schedule” section for the
required spark plug intervals.
326 MAINTAINING YOUR VEHICLE

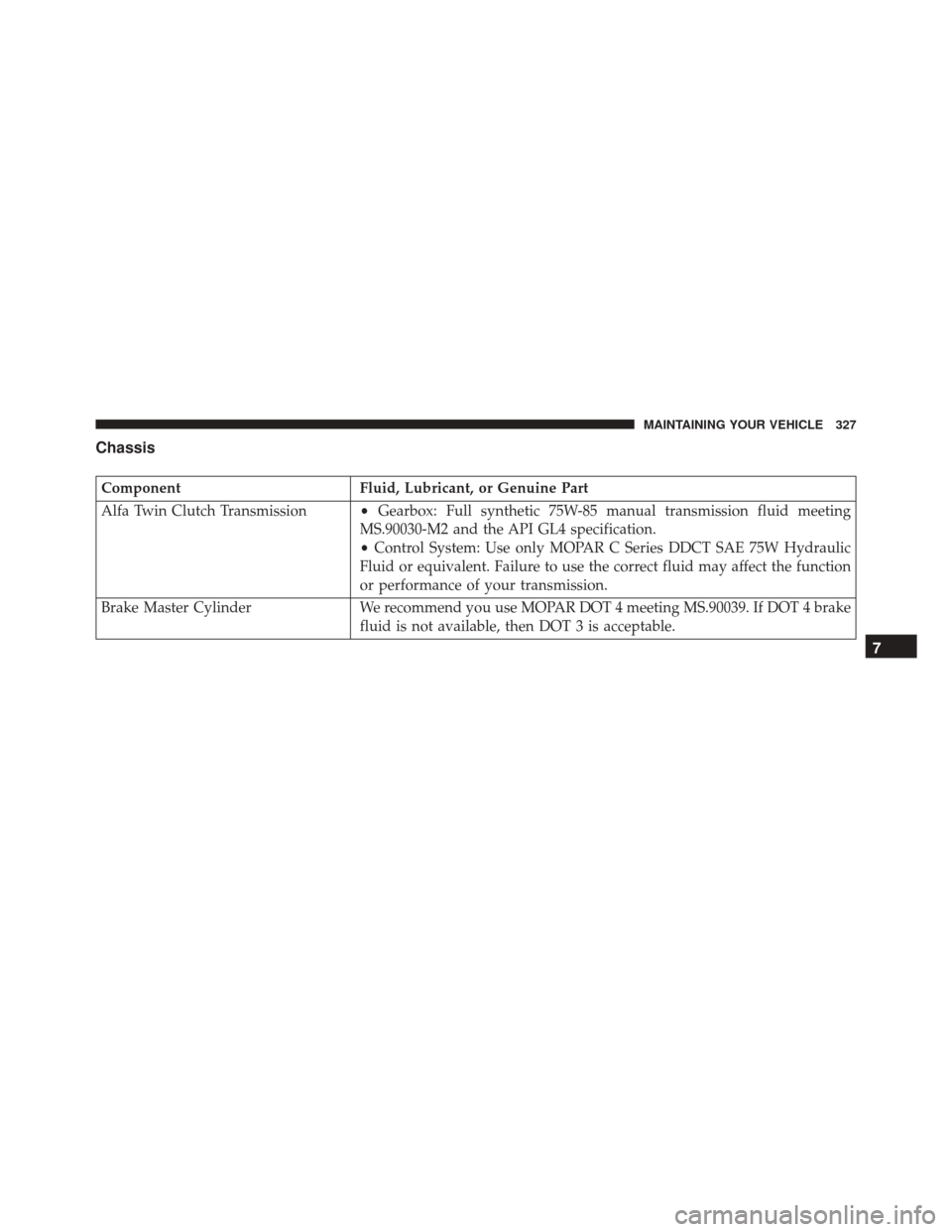

Chassis
ComponentFluid, Lubricant, or Genuine Part
Alfa Twin Clutch Transmission •Gearbox: Full synthetic 75W-85 manual transmission fluid meeting
MS.90030-M2 and the API GL4 specification.
• Control System: Use only MOPAR C Series DDCT SAE 75W Hydraulic
Fluid or equivalent. Failure to use the correct fluid may affect the function
or performance of your transmission.
Brake Master Cylinder We recommend you use MOPAR DOT 4 meeting MS.90039. If DOT 4 brake fluid is not available, then DOT 3 is acceptable.
7
