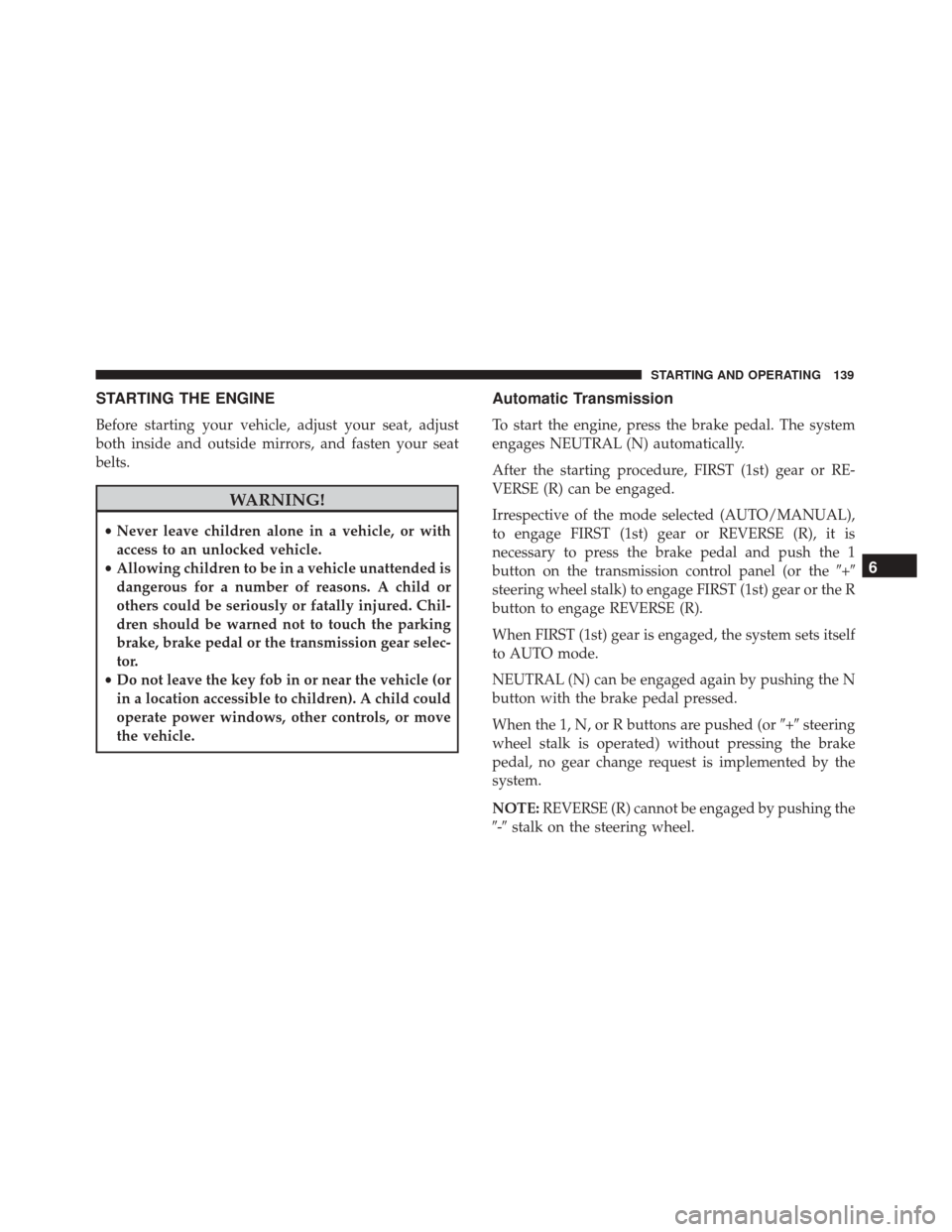

STARTING THE ENGINE
Before starting your vehicle, adjust your seat, adjust
both inside and outside mirrors, and fasten your seat
belts.
WARNING!
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the transmission gear selec-
tor.
• Do not leave the key fob in or near the vehicle (or
in a location accessible to children). A child could
operate power windows, other controls, or move
the vehicle.
Automatic Transmission
To start the engine, press the brake pedal. The system
engages NEUTRAL (N) automatically.
After the starting procedure, FIRST (1st) gear or RE-
VERSE (R) can be engaged.
Irrespective of the mode selected (AUTO/MANUAL),
to engage FIRST (1st) gear or REVERSE (R), it is
necessary to press the brake pedal and push the 1
button on the transmission control panel (or the +
steering wheel stalk) to engage FIRST (1st) gear or the R
button to engage REVERSE (R).
When FIRST (1st) gear is engaged, the system sets itself
to AUTO mode.
NEUTRAL (N) can be engaged again by pushing the N
button with the brake pedal pressed.
When the 1, N, or R buttons are pushed (or +steering
wheel stalk is operated) without pressing the brake
pedal, no gear change request is implemented by the
system.
NOTE: REVERSE (R) cannot be engaged by pushing the
- stalk on the steering wheel.
6
STARTING AND OPERATING 139

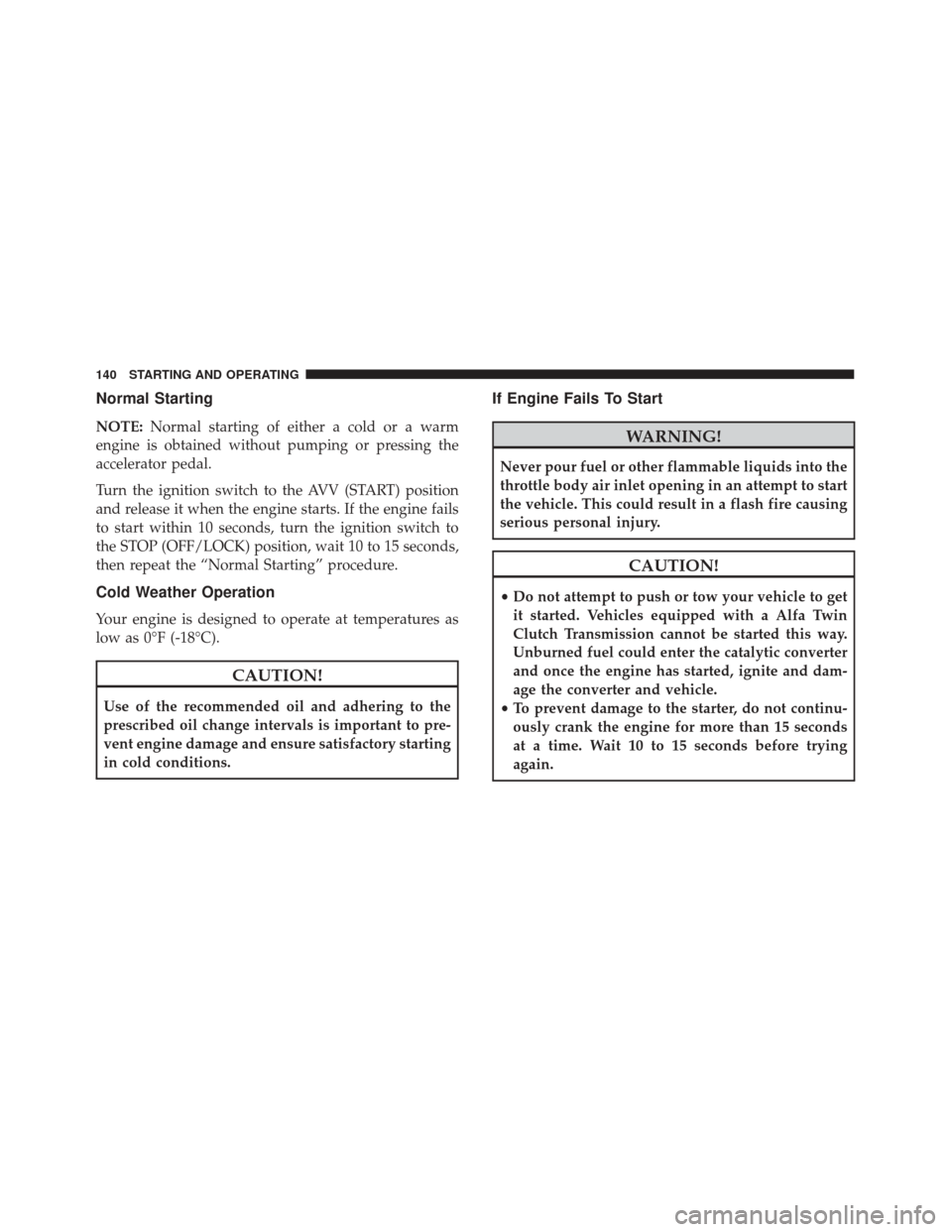

Normal Starting
NOTE:Normal starting of either a cold or a warm
engine is obtained without pumping or pressing the
accelerator pedal.
Turn the ignition switch to the AVV (START) position
and release it when the engine starts. If the engine fails
to start within 10 seconds, turn the ignition switch to
the STOP (OFF/LOCK) position, wait 10 to 15 seconds,
then repeat the “Normal Starting” procedure.
Cold Weather Operation
Your engine is designed to operate at temperatures as
low as 0°F (-18°C).
CAUTION!
Use of the recommended oil and adhering to the
prescribed oil change intervals is important to pre-
vent engine damage and ensure satisfactory starting
in cold conditions.
If Engine Fails To Start
WARNING!
Never pour fuel or other flammable liquids into the
throttle body air inlet opening in an attempt to start
the vehicle. This could result in a flash fire causing
serious personal injury.
CAUTION!
• Do not attempt to push or tow your vehicle to get
it started. Vehicles equipped with a Alfa Twin
Clutch Transmission cannot be started this way.
Unburned fuel could enter the catalytic converter
and once the engine has started, ignite and dam-
age the converter and vehicle.
• To prevent damage to the starter, do not continu-
ously crank the engine for more than 15 seconds
at a time. Wait 10 to 15 seconds before trying
again.
140 STARTING AND OPERATING

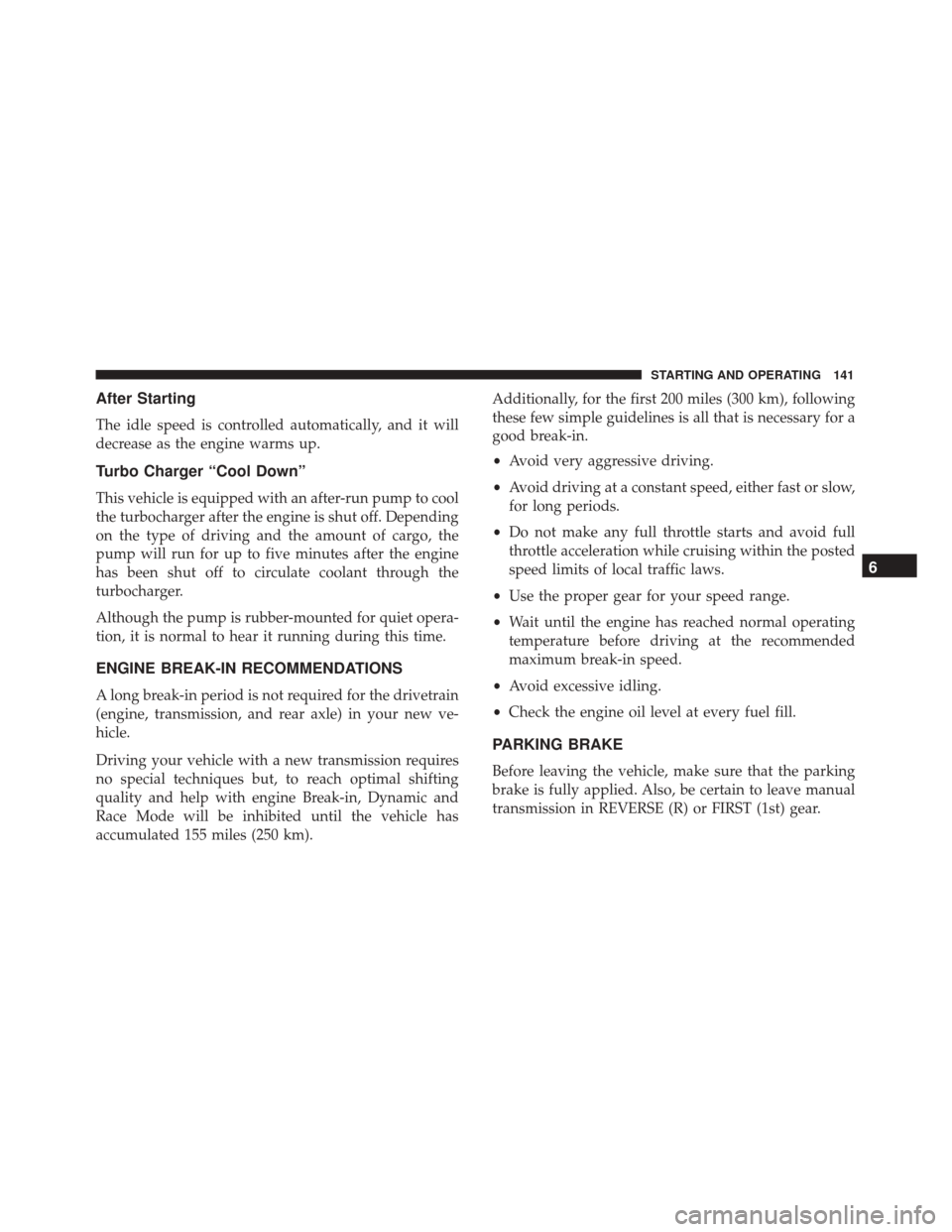

After Starting
The idle speed is controlled automatically, and it will
decrease as the engine warms up.
Turbo Charger “Cool Down”
This vehicle is equipped with an after-run pump to cool
the turbocharger after the engine is shut off. Depending
on the type of driving and the amount of cargo, the
pump will run for up to five minutes after the engine
has been shut off to circulate coolant through the
turbocharger.
Although the pump is rubber-mounted for quiet opera-
tion, it is normal to hear it running during this time.
ENGINE BREAK-IN RECOMMENDATIONS
A long break-in period is not required for the drivetrain
(engine, transmission, and rear axle) in your new ve-
hicle.
Driving your vehicle with a new transmission requires
no special techniques but, to reach optimal shifting
quality and help with engine Break-in, Dynamic and
Race Mode will be inhibited until the vehicle has
accumulated 155 miles (250 km).Additionally, for the first 200 miles (300 km), following
these few simple guidelines is all that is necessary for a
good break-in.
•
Avoid very aggressive driving.
• Avoid driving at a constant speed, either fast or slow,
for long periods.
• Do not make any full throttle starts and avoid full
throttle acceleration while cruising within the posted
speed limits of local traffic laws.
• Use the proper gear for your speed range.
• Wait until the engine has reached normal operating
temperature before driving at the recommended
maximum break-in speed.
• Avoid excessive idling.
• Check the engine oil level at every fuel fill.
PARKING BRAKE
Before leaving the vehicle, make sure that the parking
brake is fully applied. Also, be certain to leave manual
transmission in REVERSE (R) or FIRST (1st) gear.
6
STARTING AND OPERATING 141

The parking brake lever is located in the central tunnel.
To apply the parking brake, pull the parking brake lever
up as firmly as possible. To release the parking brake,
pull the parking brake lever up slightly, push the center
button, then lower the parking brake lever completely.
When the parking brake is applied with the ignition
switch in the MAR (ACC/ON/RUN) position, the
Brake Warning Light in the instrument cluster display
will illuminate.
When parking on a hill, it is important to turn the front
wheels toward the curb on a downhill grade and away
from the curb on an uphill grade. The parking brakeshould always be applied whenever the driver is not in
the vehicle.
WARNING!
•
Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
•
Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the transmission gear selector.
• Do not leave the key fob in or near the vehicle or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
• Be sure the parking brake is fully disengaged
before driving; failure to do so can lead to brake
failure and a collision.
• Always fully apply the parking brake when leav-
ing your vehicle, or it may roll and cause damage
or injury. Also be certain to leave a manual
transmission in REVERSE or FIRST gear. Failure
to do so may allow the vehicle to roll and cause
damage or injury.
Parking Brake Lever
142 STARTING AND OPERATING

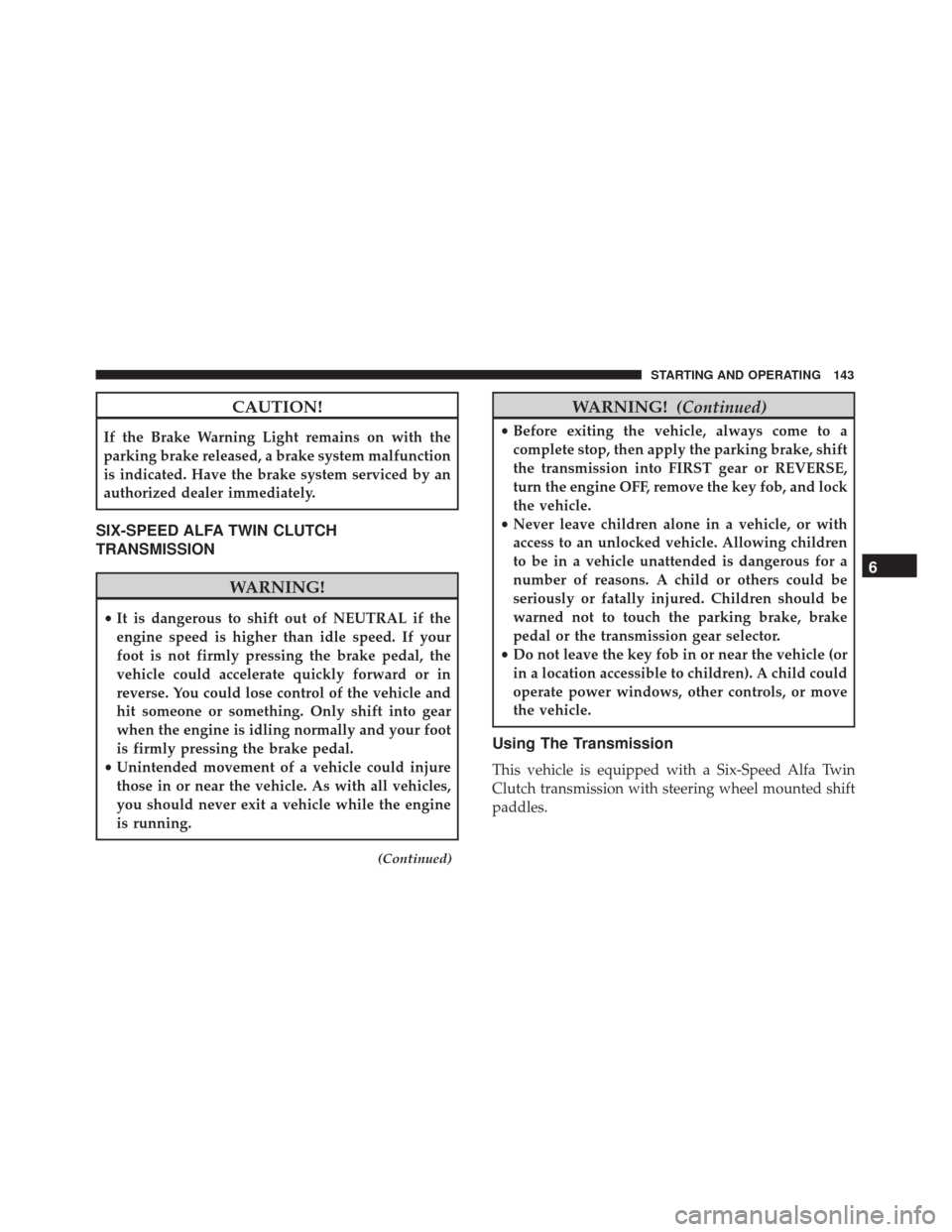

CAUTION!
If the Brake Warning Light remains on with the
parking brake released, a brake system malfunction
is indicated. Have the brake system serviced by an
authorized dealer immediately.
SIX-SPEED ALFA TWIN CLUTCH
TRANSMISSION
WARNING!
•It is dangerous to shift out of NEUTRAL if the
engine speed is higher than idle speed. If your
foot is not firmly pressing the brake pedal, the
vehicle could accelerate quickly forward or in
reverse. You could lose control of the vehicle and
hit someone or something. Only shift into gear
when the engine is idling normally and your foot
is firmly pressing the brake pedal.
• Unintended movement of a vehicle could injure
those in or near the vehicle. As with all vehicles,
you should never exit a vehicle while the engine
is running.
(Continued)
WARNING! (Continued)
•Before exiting the vehicle, always come to a
complete stop, then apply the parking brake, shift
the transmission into FIRST gear or REVERSE,
turn the engine OFF, remove the key fob, and lock
the vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children
to be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake
pedal or the transmission gear selector.
• Do not leave the key fob in or near the vehicle (or
in a location accessible to children). A child could
operate power windows, other controls, or move
the vehicle.
Using The Transmission
This vehicle is equipped with a Six-Speed Alfa Twin
Clutch transmission with steering wheel mounted shift
paddles.
6
STARTING AND OPERATING 143

When the ignition is in the OFF position, the transmis-
sion controls (shift paddles on the steering wheel, and
gear selector buttons on the center console) are dis-
abled.
When the key is turned to the ON position, the current
transmission gear will be displayed in the instrument
cluster, along with theAUTOindicator. This indicates
the transmission is in Automatic mode.Operating Modes
The transmission has two normal operating modes
(except when the “Race” mode is selected on the DNA
switch):
• MANUAL mode: The driver must shift gears manu-
ally (using the steering wheel mounted shift
paddles).
• Automatic (AUTO) mode: The system shifts between
all forward gears automatically.
When the “Race” mode is selected via the DNA selector,
the only allowed transmission operating mode is
MANUAL.
MANUAL Mode
In this operating mode, the driver is responsible for
choosing the best gear to engage, depending on the
vehicle’s operating conditions. The current gear is dis-
played in the instrument cluster.
To activate/deactivate MANUAL mode, push the A/M
button on the center console when the transmission is in
any forward gear.
Use the “+” shift paddle to engage a higher gear, or the
“–” paddle to engage a lower gear.
Transmission Gear Selector
144 STARTING AND OPERATING

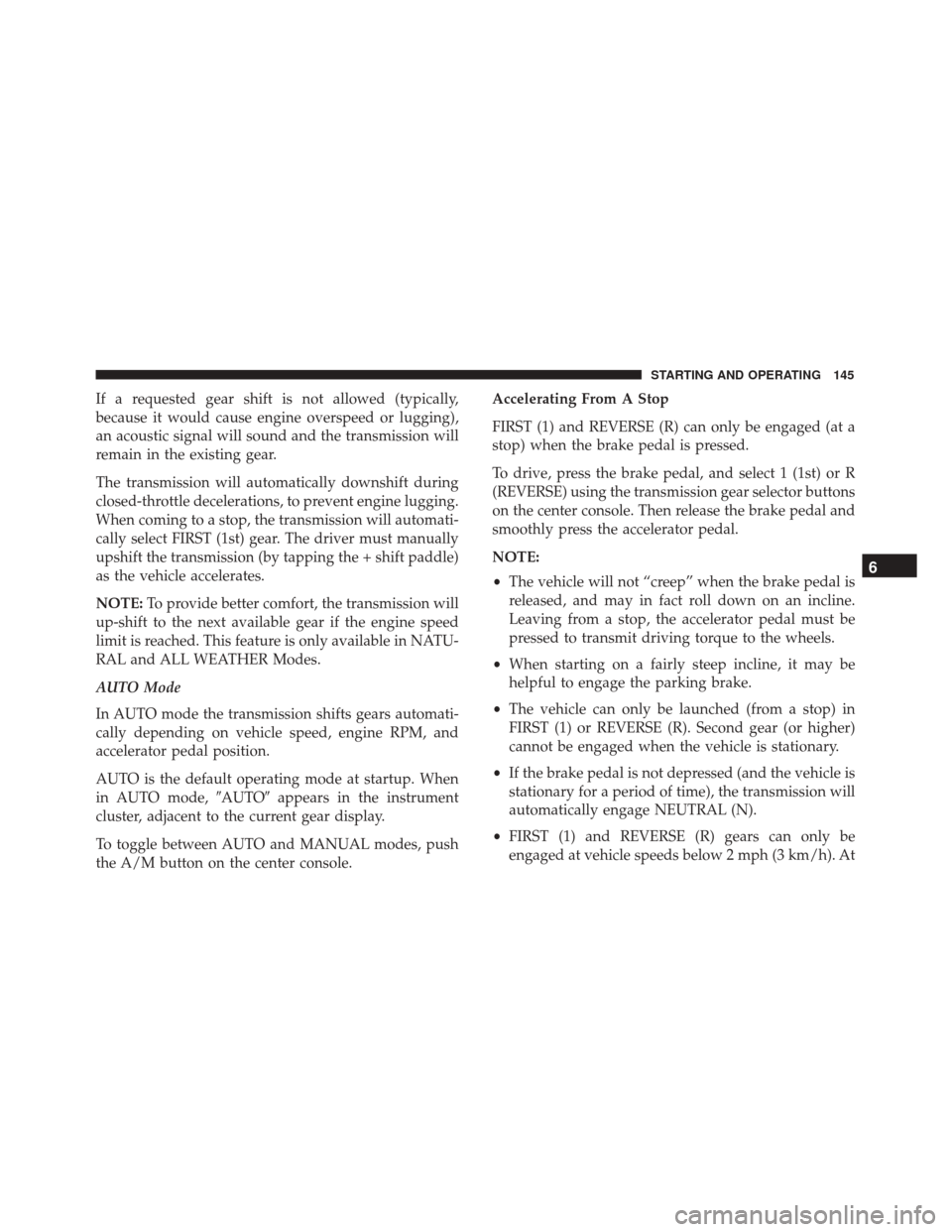

If a requested gear shift is not allowed (typically,
because it would cause engine overspeed or lugging),
an acoustic signal will sound and the transmission will
remain in the existing gear.
The transmission will automatically downshift during
closed-throttle decelerations, to prevent engine lugging.
When coming to a stop, the transmission will automati-
cally select FIRST (1st) gear. The driver must manually
upshift the transmission (by tapping the + shift paddle)
as the vehicle accelerates.
NOTE:To provide better comfort, the transmission will
up-shift to the next available gear if the engine speed
limit is reached. This feature is only available in NATU-
RAL and ALL WEATHER Modes.
AUTO Mode
In AUTO mode the transmission shifts gears automati-
cally depending on vehicle speed, engine RPM, and
accelerator pedal position.
AUTO is the default operating mode at startup. When
in AUTO mode, AUTOappears in the instrument
cluster, adjacent to the current gear display.
To toggle between AUTO and MANUAL modes, push
the A/M button on the center console. Accelerating From A Stop
FIRST (1) and REVERSE (R) can only be engaged (at a
stop) when the brake pedal is pressed.
To drive, press the brake pedal, and select 1 (1st) or R
(REVERSE) using the transmission gear selector buttons
on the center console. Then release the brake pedal and
smoothly press the accelerator pedal.
NOTE:
•
The vehicle will not “creep” when the brake pedal is
released, and may in fact roll down on an incline.
Leaving from a stop, the accelerator pedal must be
pressed to transmit driving torque to the wheels.
• When starting on a fairly steep incline, it may be
helpful to engage the parking brake.
• The vehicle can only be launched (from a stop) in
FIRST (1) or REVERSE (R). Second gear (or higher)
cannot be engaged when the vehicle is stationary.
• If the brake pedal is not depressed (and the vehicle is
stationary for a period of time), the transmission will
automatically engage NEUTRAL (N).
• FIRST (1) and REVERSE (R) gears can only be
engaged at vehicle speeds below 2 mph (3 km/h). At
6
STARTING AND OPERATING 145

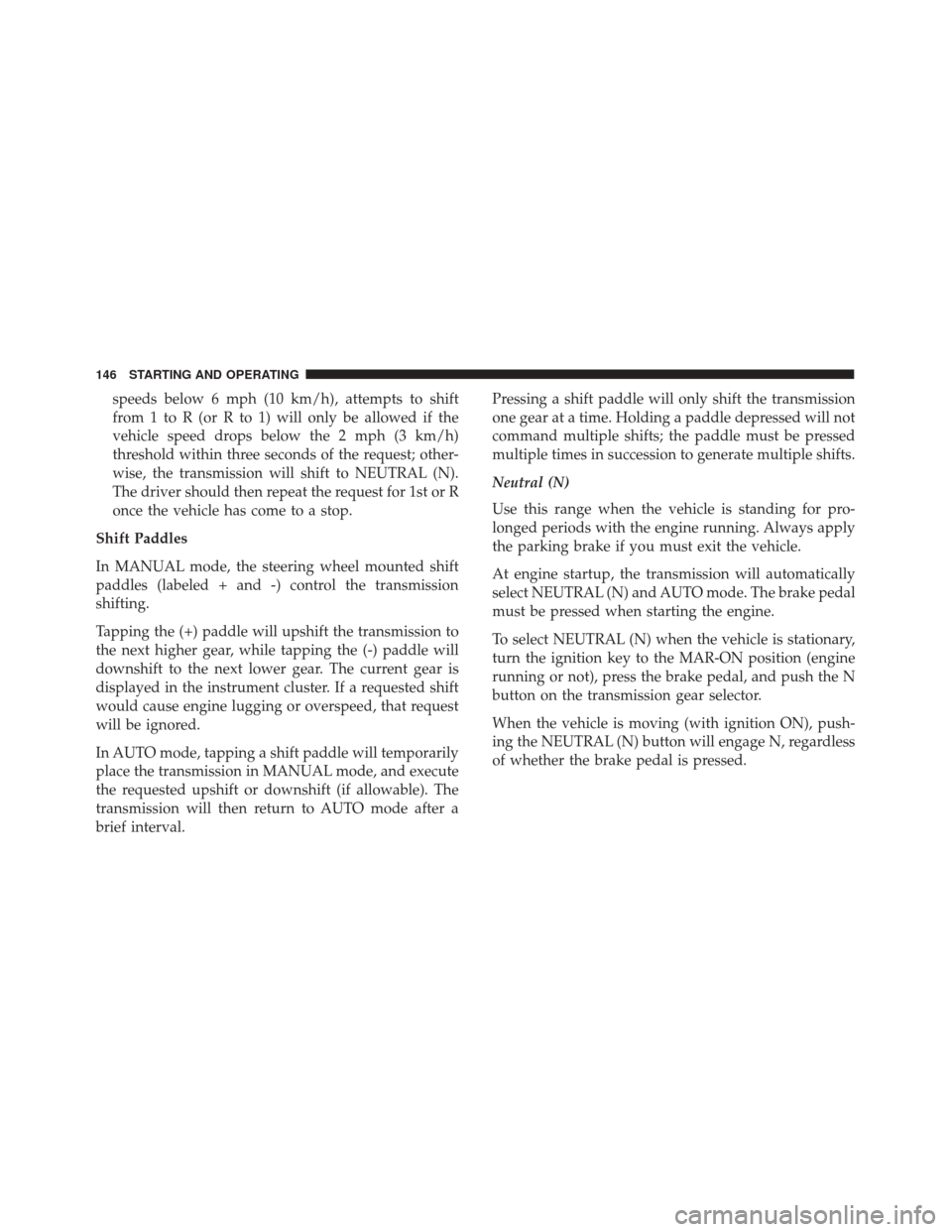

speeds below 6 mph (10 km/h), attempts to shift
from 1 to R (or R to 1) will only be allowed if the
vehicle speed drops below the 2 mph (3 km/h)
threshold within three seconds of the request; other-
wise, the transmission will shift to NEUTRAL (N).
The driver should then repeat the request for 1st or R
once the vehicle has come to a stop.
Shift Paddles
In MANUAL mode, the steering wheel mounted shift
paddles (labeled + and -) control the transmission
shifting.
Tapping the (+) paddle will upshift the transmission to
the next higher gear, while tapping the (-) paddle will
downshift to the next lower gear. The current gear is
displayed in the instrument cluster. If a requested shift
would cause engine lugging or overspeed, that request
will be ignored.
In AUTO mode, tapping a shift paddle will temporarily
place the transmission in MANUAL mode, and execute
the requested upshift or downshift (if allowable). The
transmission will then return to AUTO mode after a
brief interval. Pressing a shift paddle will only shift the transmission
one gear at a time. Holding a paddle depressed will not
command multiple shifts; the paddle must be pressed
multiple times in succession to generate multiple shifts.
Neutral (N)
Use this range when the vehicle is standing for pro-
longed periods with the engine running. Always apply
the parking brake if you must exit the vehicle.
At engine startup, the transmission will automatically
select NEUTRAL (N) and AUTO mode. The brake pedal
must be pressed when starting the engine.
To select NEUTRAL (N) when the vehicle is stationary,
turn the ignition key to the MAR-ON position (engine
running or not), press the brake pedal, and push the N
button on the transmission gear selector.
When the vehicle is moving (with ignition ON), push-
ing the NEUTRAL (N) button will engage N, regardless
of whether the brake pedal is pressed.
146 STARTING AND OPERATING

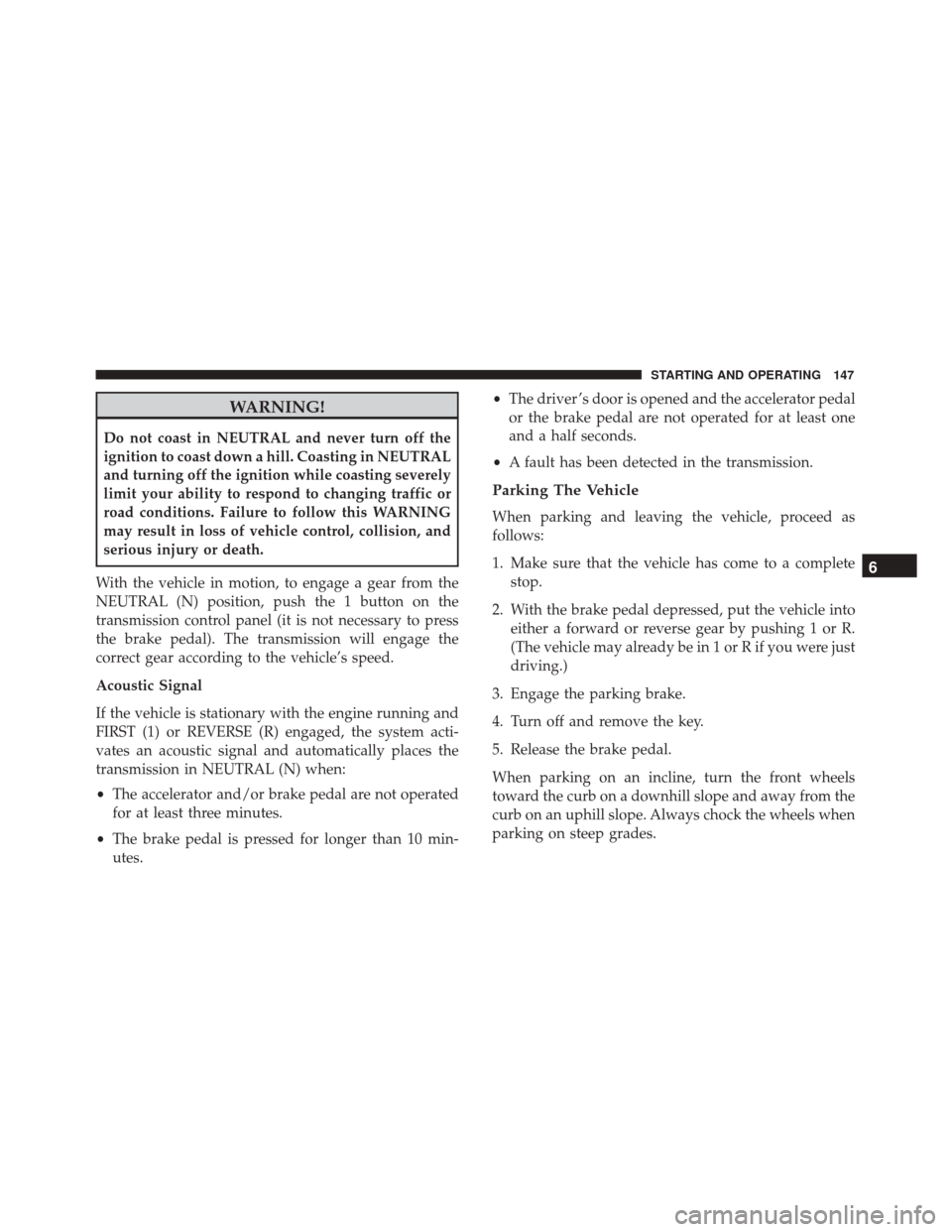

WARNING!
Do not coast in NEUTRAL and never turn off the
ignition to coast down a hill. Coasting in NEUTRAL
and turning off the ignition while coasting severely
limit your ability to respond to changing traffic or
road conditions. Failure to follow this WARNING
may result in loss of vehicle control, collision, and
serious injury or death.
With the vehicle in motion, to engage a gear from the
NEUTRAL (N) position, push the 1 button on the
transmission control panel (it is not necessary to press
the brake pedal). The transmission will engage the
correct gear according to the vehicle’s speed.
Acoustic Signal
If the vehicle is stationary with the engine running and
FIRST (1) or REVERSE (R) engaged, the system acti-
vates an acoustic signal and automatically places the
transmission in NEUTRAL (N) when:
• The accelerator and/or brake pedal are not operated
for at least three minutes.
• The brake pedal is pressed for longer than 10 min-
utes. •
The driver ’s door is opened and the accelerator pedal
or the brake pedal are not operated for at least one
and a half seconds.
• A fault has been detected in the transmission.
Parking The Vehicle
When parking and leaving the vehicle, proceed as
follows:
1. Make sure that the vehicle has come to a complete
stop.
2. With the brake pedal depressed, put the vehicle into either a forward or reverse gear by pushing 1 or R.
(The vehicle may already be in 1 or R if you were just
driving.)
3. Engage the parking brake.
4. Turn off and remove the key.
5. Release the brake pedal.
When parking on an incline, turn the front wheels
toward the curb on a downhill slope and away from the
curb on an uphill slope. Always chock the wheels when
parking on steep grades.
6
STARTING AND OPERATING 147

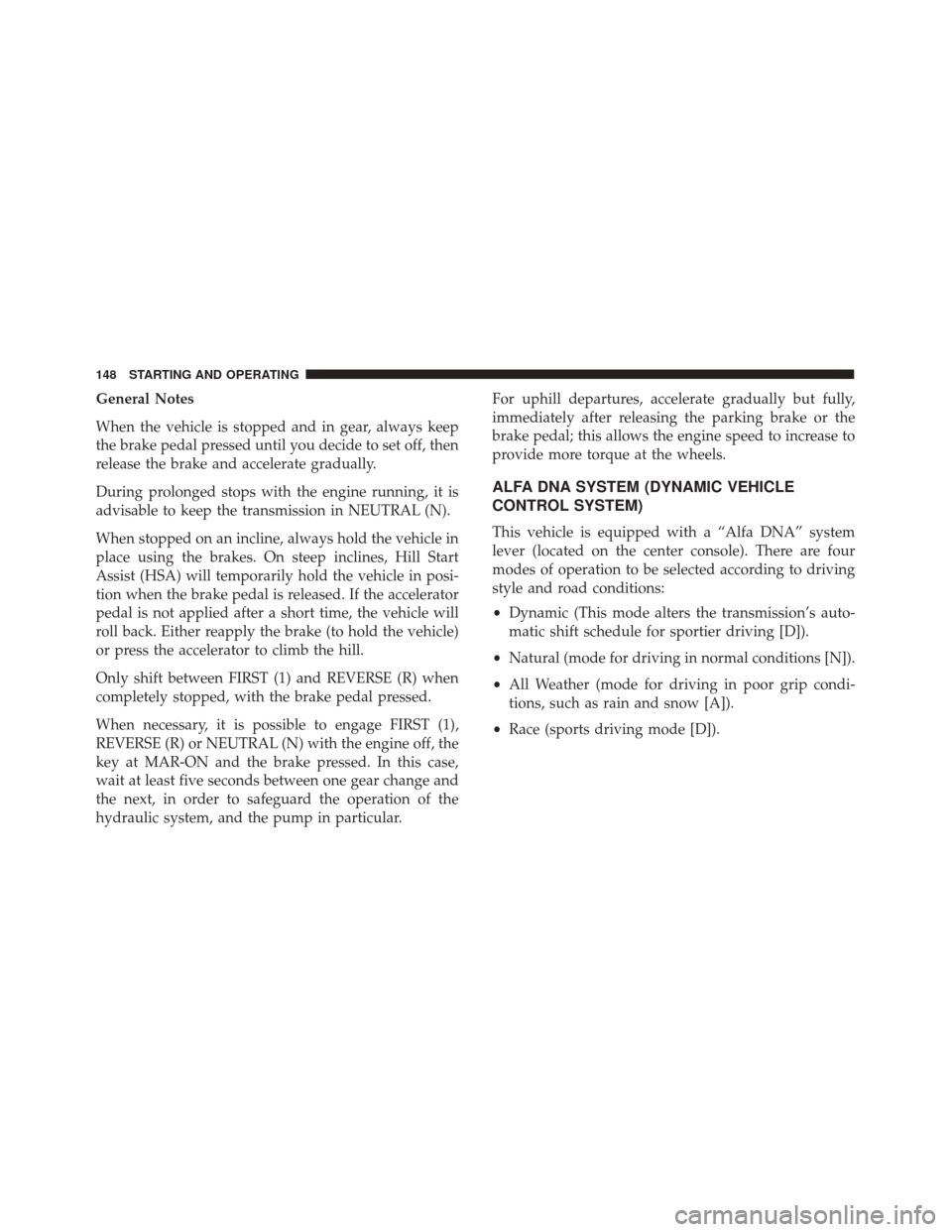

General Notes
When the vehicle is stopped and in gear, always keep
the brake pedal pressed until you decide to set off, then
release the brake and accelerate gradually.
During prolonged stops with the engine running, it is
advisable to keep the transmission in NEUTRAL (N).
When stopped on an incline, always hold the vehicle in
place using the brakes. On steep inclines, Hill Start
Assist (HSA) will temporarily hold the vehicle in posi-
tion when the brake pedal is released. If the accelerator
pedal is not applied after a short time, the vehicle will
roll back. Either reapply the brake (to hold the vehicle)
or press the accelerator to climb the hill.
Only shift between FIRST (1) and REVERSE (R) when
completely stopped, with the brake pedal pressed.
When necessary, it is possible to engage FIRST (1),
REVERSE (R) or NEUTRAL (N) with the engine off, the
key at MAR-ON and the brake pressed. In this case,
wait at least five seconds between one gear change and
the next, in order to safeguard the operation of the
hydraulic system, and the pump in particular.For uphill departures, accelerate gradually but fully,
immediately after releasing the parking brake or the
brake pedal; this allows the engine speed to increase to
provide more torque at the wheels.
ALFA DNA SYSTEM (DYNAMIC VEHICLE
CONTROL SYSTEM)
This vehicle is equipped with a “Alfa DNA” system
lever (located on the center console). There are four
modes of operation to be selected according to driving
style and road conditions:
•
Dynamic (This mode alters the transmission’s auto-
matic shift schedule for sportier driving [D]).
• Natural (mode for driving in normal conditions [N]).
• All Weather (mode for driving in poor grip condi-
tions, such as rain and snow [A]).
• Race (sports driving mode [D]).
148 STARTING AND OPERATING
