technical specifications Alfa Romeo 4C Spider 2018 User Guide

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
1750 Turbo Engine 10.5 Gallons40 Liters
Reserve Fuel 1.1 Gallons4 Liters
Engine Oil with Filter
1750 Turbo Engine 6.1 Quarts5.8 Liters
Cooling System
1750 Turbo Engine (Mopar Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula). 11.2 Quarts
10.6 Liters
FLUIDS AND LUBRICANTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant – 1750 Turbo Engine We recommend you use Mopar Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive
Technology) or equivalent meeting the requirements of
FCA Material Standard MS.90032.
Engine Oil – 1750 Turbo Engine We recommend you use SAE 5W-40 API Certified
Synthetic Engine Oil, meeting the requirements of FCA
Material Standard MS-12991.
266 TECHNICAL SPECIFICATIONS

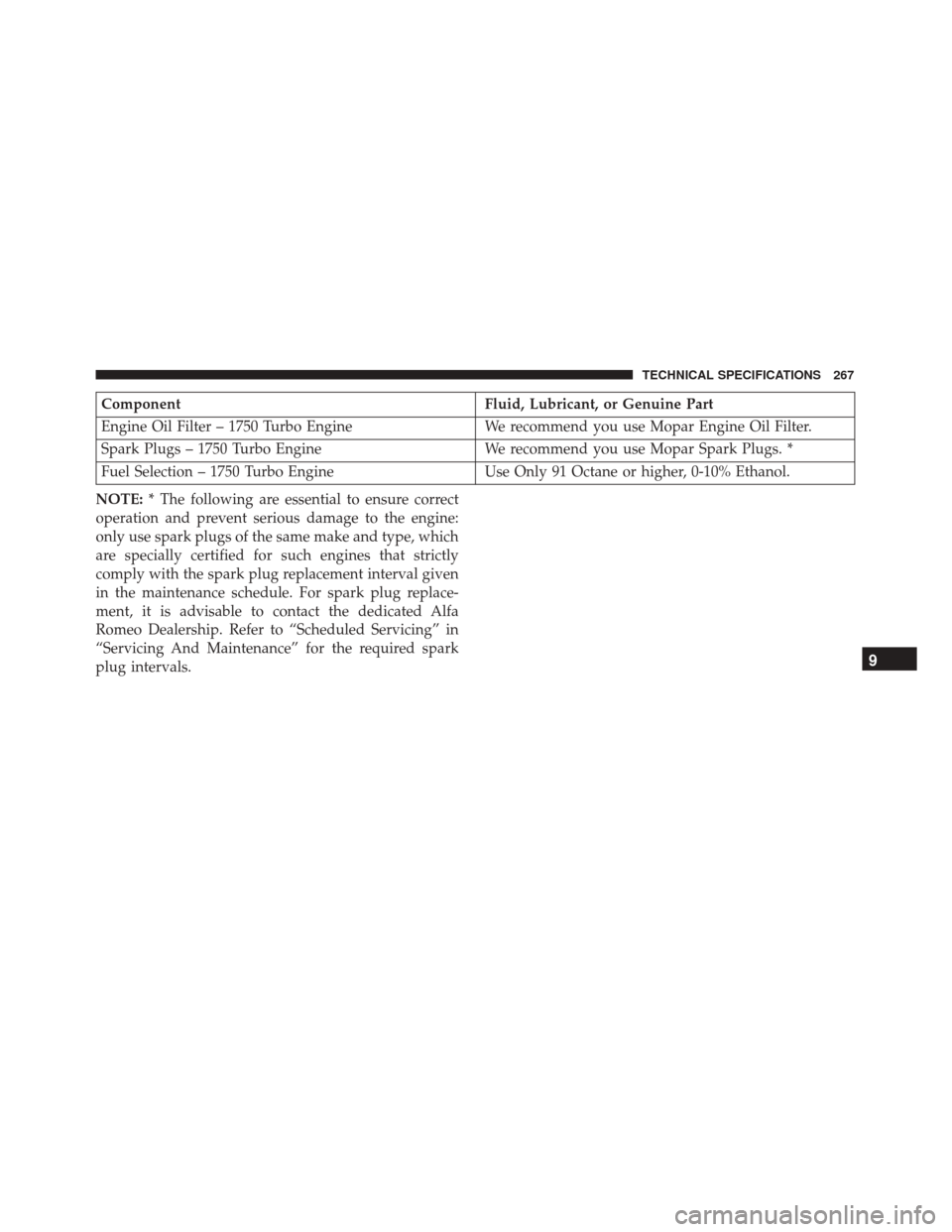

ComponentFluid, Lubricant, or Genuine Part
Engine Oil Filter – 1750 Turbo Engine We recommend you use Mopar Engine Oil Filter.
Spark Plugs – 1750 Turbo Engine We recommend you use Mopar Spark Plugs. *
Fuel Selection – 1750 Turbo Engine Use Only 91 Octane or higher, 0-10% Ethanol.
NOTE: * The following are essential to ensure correct
operation and prevent serious damage to the engine:
only use spark plugs of the same make and type, which
are specially certified for such engines that strictly
comply with the spark plug replacement interval given
in the maintenance schedule. For spark plug replace-
ment, it is advisable to contact the dedicated Alfa
Romeo Dealership. Refer to “Scheduled Servicing” in
“Servicing And Maintenance” for the required spark
plug intervals.
9
TECHNICAL SPECIFICATIONS 267

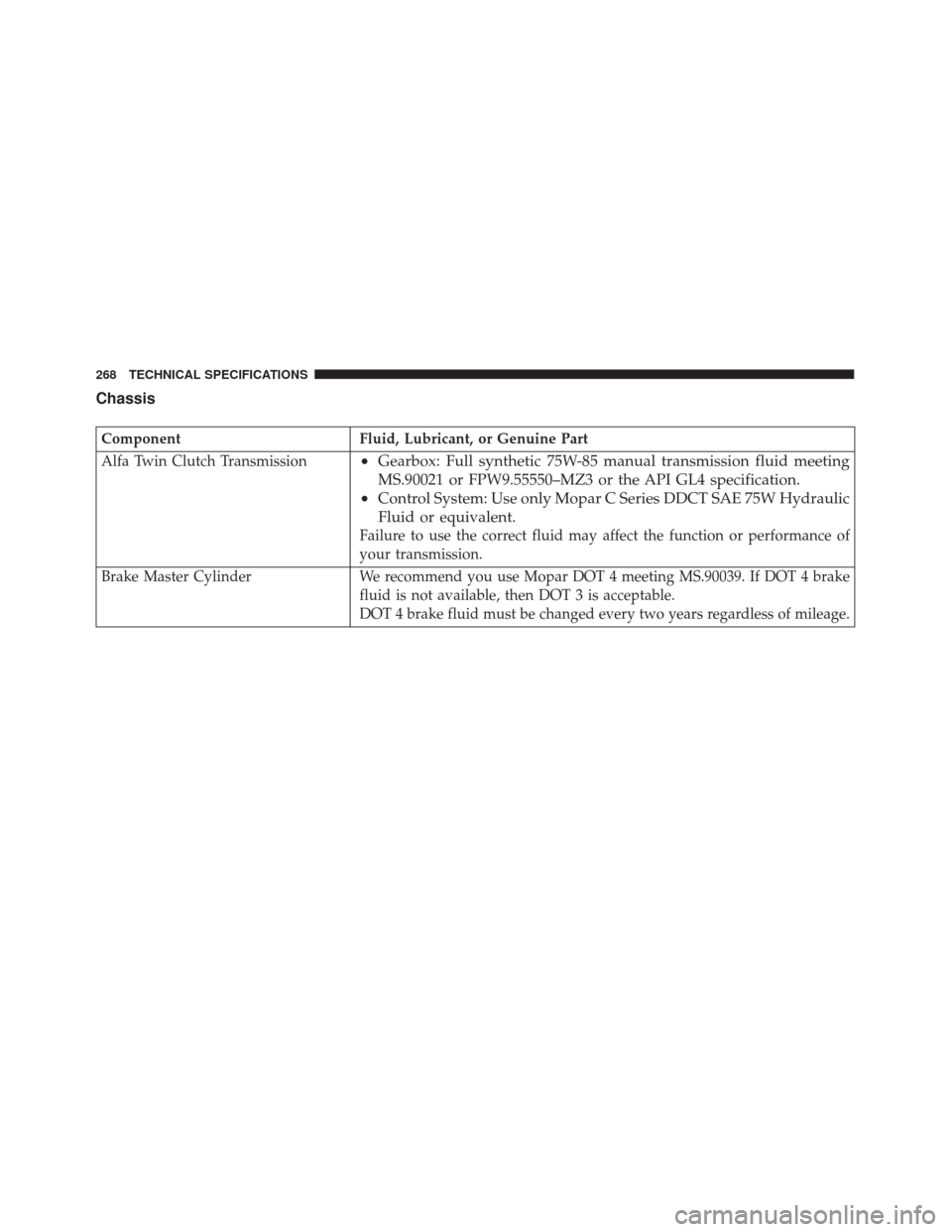

Chassis
ComponentFluid, Lubricant, or Genuine Part
Alfa Twin Clutch Transmission
• Gearbox: Full synthetic 75W-85 manual transmission fluid meeting
MS.90021 or FPW9.55550–MZ3 or the API GL4 specification.
• Control System: Use only Mopar C Series DDCT SAE 75W Hydraulic
Fluid or equivalent.
Failure to use the correct fluid may affect the function or performance of
your transmission.
Brake Master Cylinder We recommend you use Mopar DOT 4 meeting MS.90039. If DOT 4 brake
fluid is not available, then DOT 3 is acceptable.
DOT 4 brake fluid must be changed every two years regardless of mileage.
268 TECHNICAL SPECIFICATIONS
