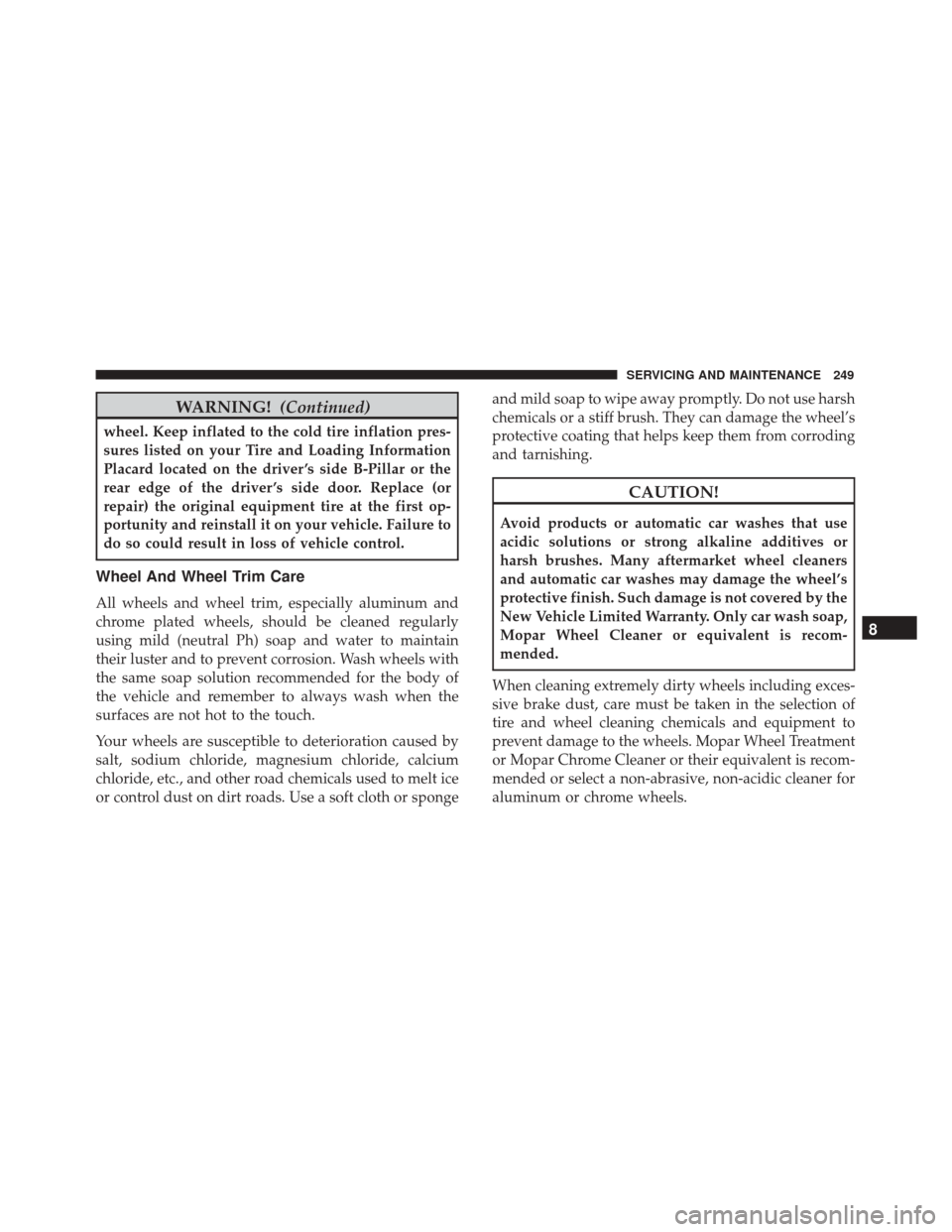

WARNING!(Continued)
wheel. Keep inflated to the cold tire inflation pres-
sures listed on your Tire and Loading Information
Placard located on the driver ’s side B-Pillar or the
rear edge of the driver ’s side door. Replace (or
repair) the original equipment tire at the first op-
portunity and reinstall it on your vehicle. Failure to
do so could result in loss of vehicle control.
Wheel And Wheel Trim Care
All wheels and wheel trim, especially aluminum and
chrome plated wheels, should be cleaned regularly
using mild (neutral Ph) soap and water to maintain
their luster and to prevent corrosion. Wash wheels with
the same soap solution recommended for the body of
the vehicle and remember to always wash when the
surfaces are not hot to the touch.
Your wheels are susceptible to deterioration caused by
salt, sodium chloride, magnesium chloride, calcium
chloride, etc., and other road chemicals used to melt ice
or control dust on dirt roads. Use a soft cloth or sponge and mild soap to wipe away promptly. Do not use harsh
chemicals or a stiff brush. They can damage the wheel’s
protective coating that helps keep them from corroding
and tarnishing.
CAUTION!
Avoid products or automatic car washes that use
acidic solutions or strong alkaline additives or
harsh brushes. Many aftermarket wheel cleaners
and automatic car washes may damage the wheel’s
protective finish. Such damage is not covered by the
New Vehicle Limited Warranty. Only car wash soap,
Mopar Wheel Cleaner or equivalent is recom-
mended.
When cleaning extremely dirty wheels including exces-
sive brake dust, care must be taken in the selection of
tire and wheel cleaning chemicals and equipment to
prevent damage to the wheels. Mopar Wheel Treatment
or Mopar Chrome Cleaner or their equivalent is recom-
mended or select a non-abrasive, non-acidic cleaner for
aluminum or chrome wheels.
8
SERVICING AND MAINTENANCE 249

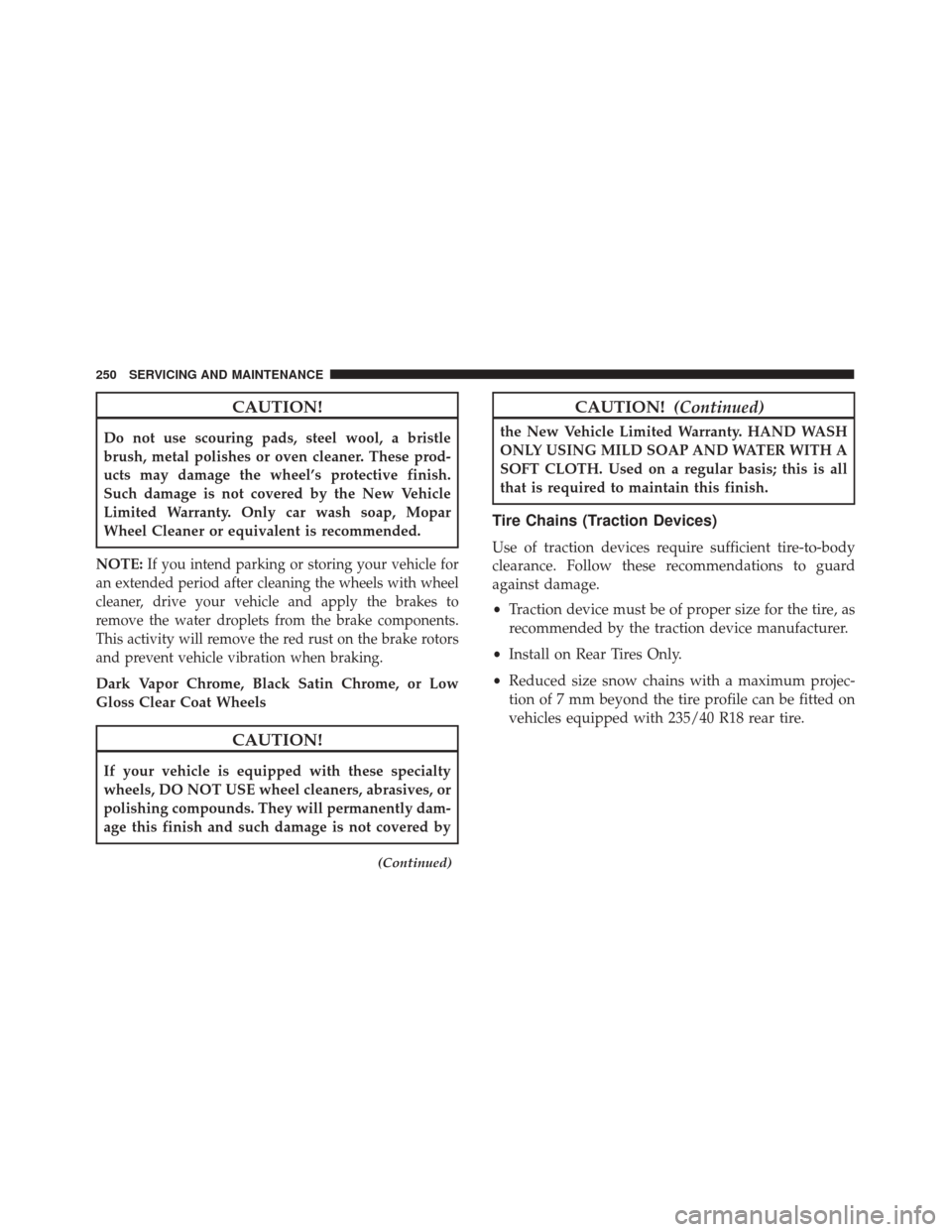

Page 252 of 294
CAUTION!
Do not use scouring pads, steel wool, a bristle
brush, metal polishes or oven cleaner. These prod-
ucts may damage the wheel’s protective finish.
Such damage is not covered by the New Vehicle
Limited Warranty. Only car wash soap, Mopar
Wheel Cleaner or equivalent is recommended.
NOTE:
If you intend parking or storing your vehicle for
an extended period after cleaning the wheels with wheel
cleaner, drive your vehicle and apply the brakes to
remove the water droplets from the brake components.
This activity will remove the red rust on the brake rotors
and prevent vehicle vibration when braking.
Dark Vapor Chrome, Black Satin Chrome, or Low
Gloss Clear Coat Wheels
CAUTION!
If your vehicle is equipped with these specialty
wheels, DO NOT USE wheel cleaners, abrasives, or
polishing compounds. They will permanently dam-
age this finish and such damage is not covered by
(Continued)
CAUTION! (Continued)
the New Vehicle Limited Warranty. HAND WASH
ONLY USING MILD SOAP AND WATER WITH A
SOFT CLOTH. Used on a regular basis; this is all
that is required to maintain this finish.
Tire Chains (Traction Devices)
Use of traction devices require sufficient tire-to-body
clearance. Follow these recommendations to guard
against damage.
•Traction device must be of proper size for the tire, as
recommended by the traction device manufacturer.
• Install on Rear Tires Only.
• Reduced size snow chains with a maximum projec-
tion of 7 mm beyond the tire profile can be fitted on
vehicles equipped with 235/40 R18 rear tire.
250 SERVICING AND MAINTENANCE
Page 253 of 294

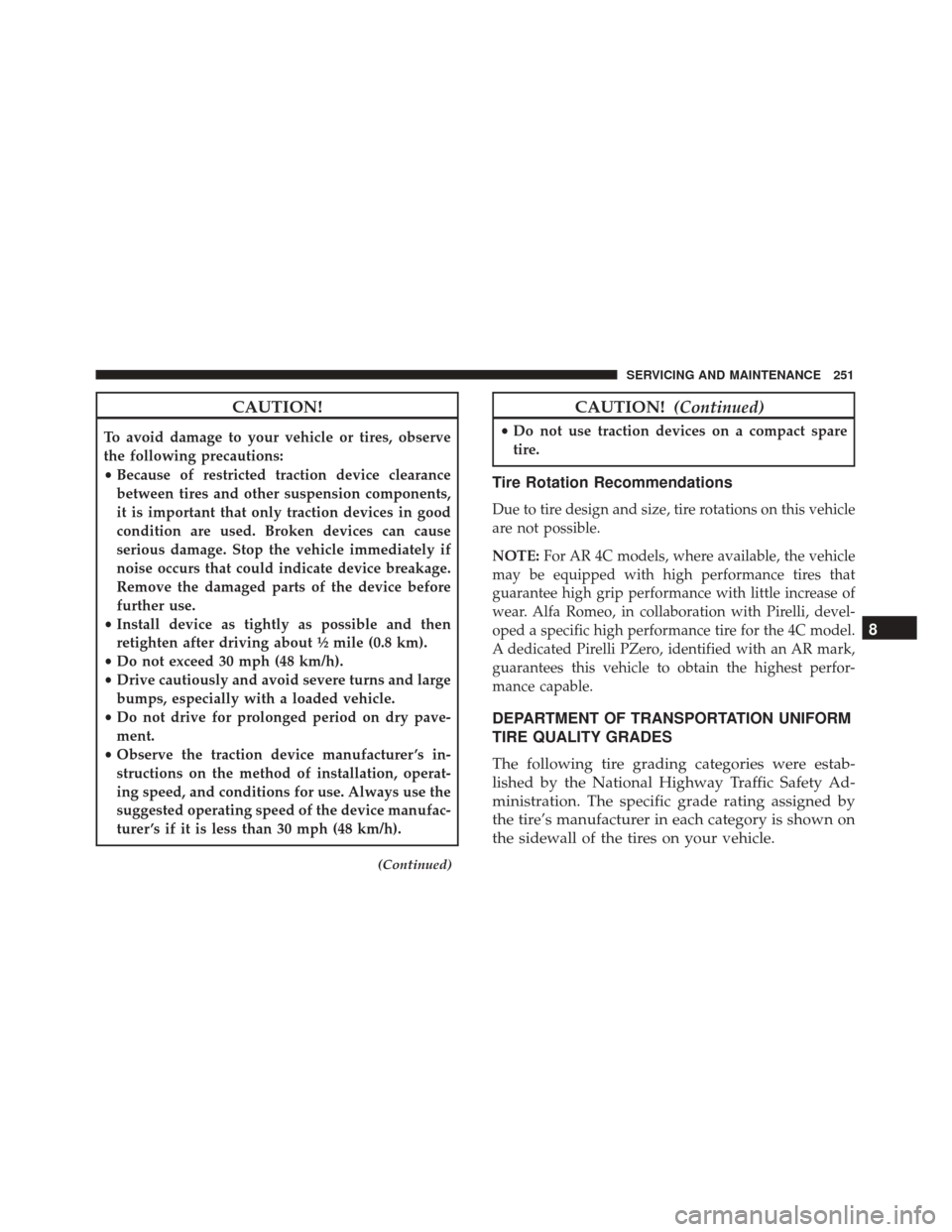

CAUTION!
To avoid damage to your vehicle or tires, observe
the following precautions:
•Because of restricted traction device clearance
between tires and other suspension components,
it is important that only traction devices in good
condition are used. Broken devices can cause
serious damage. Stop the vehicle immediately if
noise occurs that could indicate device breakage.
Remove the damaged parts of the device before
further use.
• Install device as tightly as possible and then
retighten after driving about ½ mile (0.8 km).
• Do not exceed 30 mph (48 km/h).
• Drive cautiously and avoid severe turns and large
bumps, especially with a loaded vehicle.
• Do not drive for prolonged period on dry pave-
ment.
• Observe the traction device manufacturer ’s in-
structions on the method of installation, operat-
ing speed, and conditions for use. Always use the
suggested operating speed of the device manufac-
turer ’s if it is less than 30 mph (48 km/h).
(Continued)
CAUTION! (Continued)
•Do not use traction devices on a compact spare
tire.
Tire Rotation Recommendations
Due to tire design and size, tire rotations on this vehicle
are not possible.
NOTE: For AR 4C models, where available, the vehicle
may be equipped with high performance tires that
guarantee high grip performance with little increase of
wear. Alfa Romeo, in collaboration with Pirelli, devel-
oped a specific high performance tire for the 4C model.
A dedicated Pirelli PZero, identified with an AR mark,
guarantees this vehicle to obtain the highest perfor-
mance capable.
DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES
The following tire grading categories were estab-
lished by the National Highway Traffic Safety Ad-
ministration. The specific grade rating assigned by
the tire’s manufacturer in each category is shown on
the sidewall of the tires on your vehicle. 8
SERVICING AND MAINTENANCE 251
Page 254 of 294

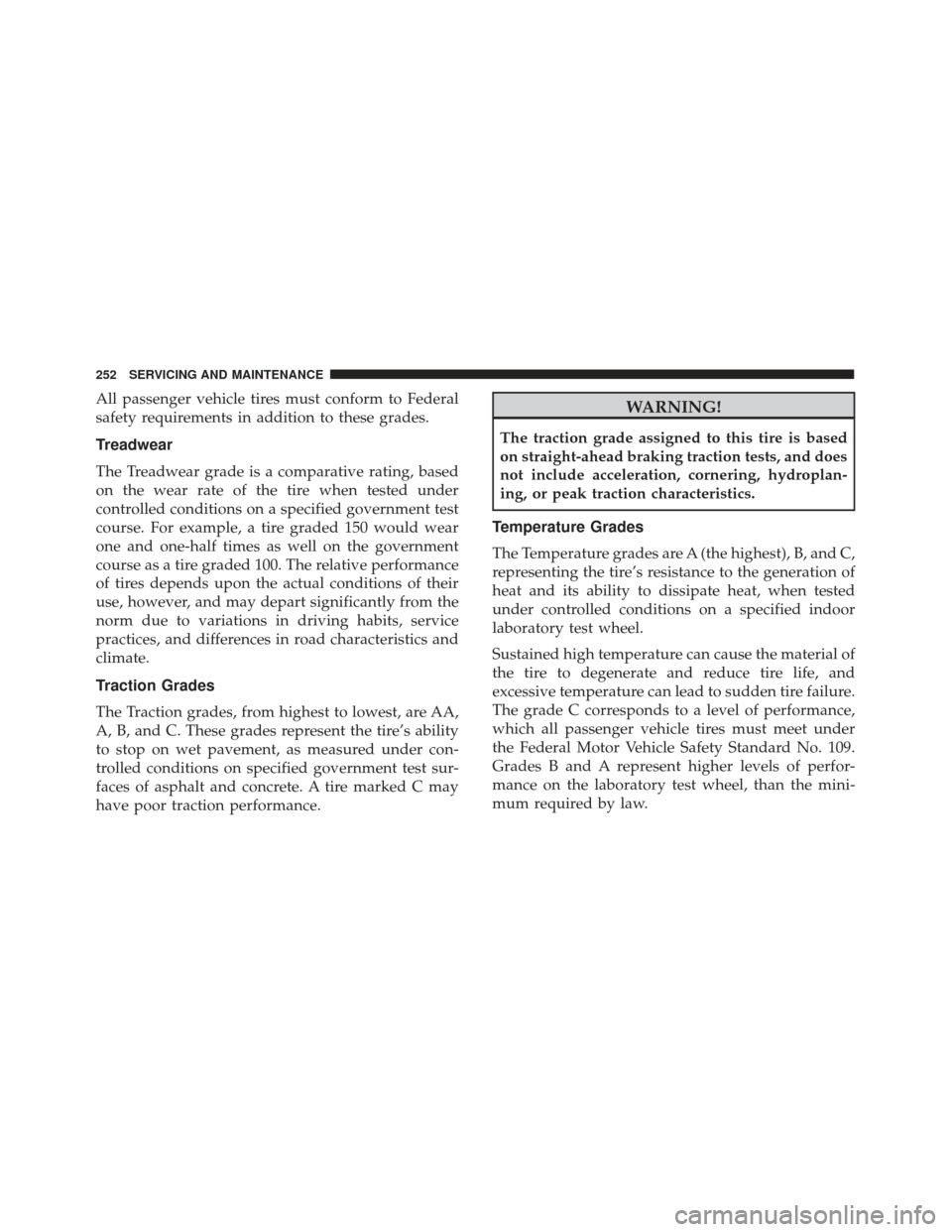

All passenger vehicle tires must conform to Federal
safety requirements in addition to these grades.
Treadwear
The Treadwear grade is a comparative rating, based
on the wear rate of the tire when tested under
controlled conditions on a specified government test
course. For example, a tire graded 150 would wear
one and one-half times as well on the government
course as a tire graded 100. The relative performance
of tires depends upon the actual conditions of their
use, however, and may depart significantly from the
norm due to variations in driving habits, service
practices, and differences in road characteristics and
climate.
Traction Grades
The Traction grades, from highest to lowest, are AA,
A, B, and C. These grades represent the tire’s ability
to stop on wet pavement, as measured under con-
trolled conditions on specified government test sur-
faces of asphalt and concrete. A tire marked C may
have poor traction performance.WARNING!
The traction grade assigned to this tire is based
on straight-ahead braking traction tests, and does
not include acceleration, cornering, hydroplan-
ing, or peak traction characteristics.
Temperature Grades
The Temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of
heat and its ability to dissipate heat, when tested
under controlled conditions on a specified indoor
laboratory test wheel.
Sustained high temperature can cause the material of
the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure.
The grade C corresponds to a level of performance,
which all passenger vehicle tires must meet under
the Federal Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of perfor-
mance on the laboratory test wheel, than the mini-
mum required by law.
252 SERVICING AND MAINTENANCE
Page 255 of 294
WARNING!
The temperature grade for this tire is established
for a tire that is properly inflated and not over-
loaded. Excessive speed, under-inflation, or ex-
cessive loading, either separately or in combina-
tion, can cause heat buildup and possible tire
failure.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take these steps to protect
your battery.
• Disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (e.g., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
BODYWORK
Protection From Atmospheric Agents
Vehicle body care requirements vary according to geo-
graphic locations and usage. Chemicals that make roads
passable in snow and ice and those that are sprayed on
trees and road surfaces during other seasons are highly
corrosive to the metal in your vehicle. Outside parking,
which exposes your vehicle to airborne contaminants,
road surfaces on which the vehicle is operated, extreme
hot or cold weather and other extreme conditions will
have an adverse effect on paint, metal trim, and under-
body protection.
The following maintenance recommendations will en-
able you to obtain maximum benefit from the corrosion
resistance built into your vehicle.
8
SERVICING AND MAINTENANCE 253
Page 256 of 294

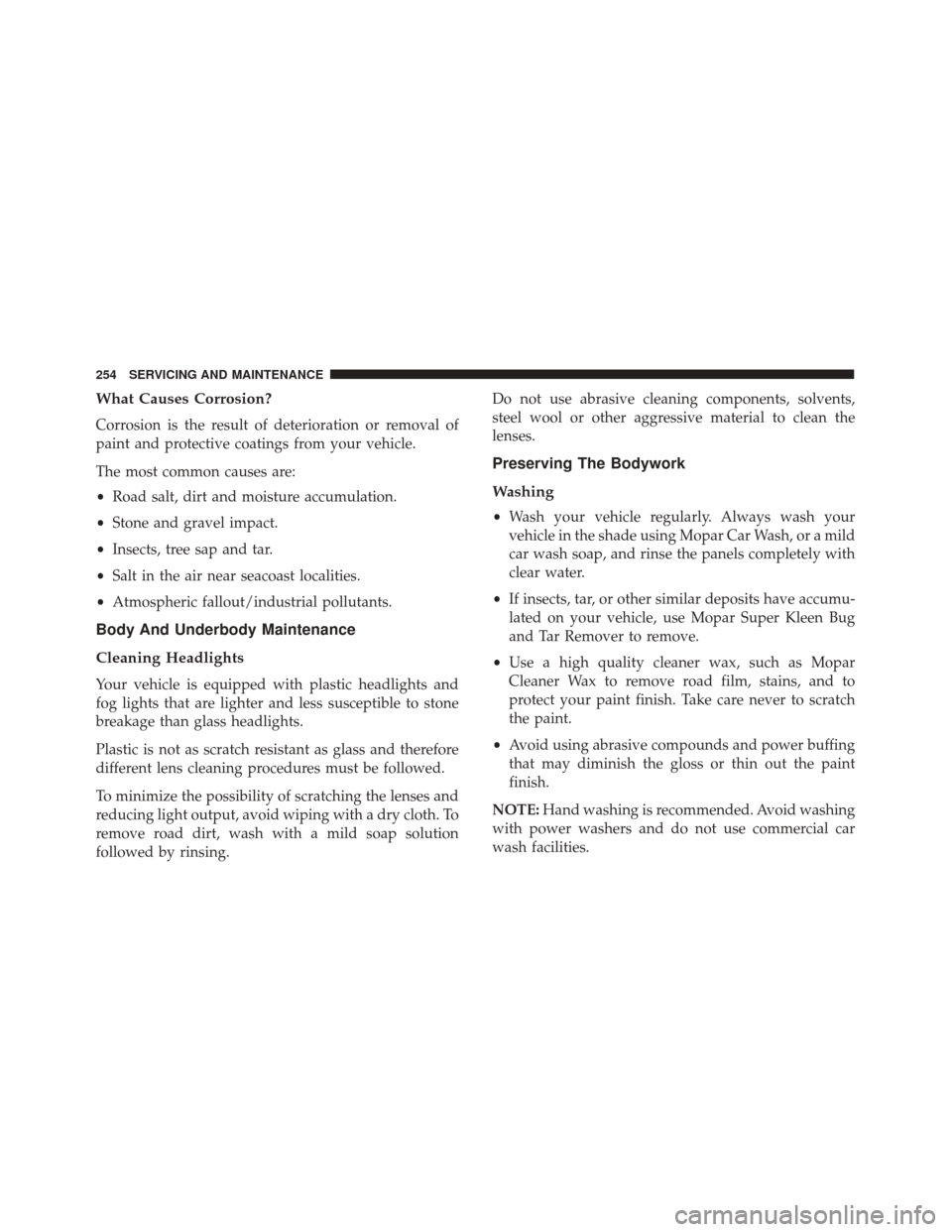

What Causes Corrosion?
Corrosion is the result of deterioration or removal of
paint and protective coatings from your vehicle.
The most common causes are:
•Road salt, dirt and moisture accumulation.
• Stone and gravel impact.
• Insects, tree sap and tar.
• Salt in the air near seacoast localities.
• Atmospheric fallout/industrial pollutants.
Body And Underbody Maintenance
Cleaning Headlights
Your vehicle is equipped with plastic headlights and
fog lights that are lighter and less susceptible to stone
breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution
followed by rinsing. Do not use abrasive cleaning components, solvents,
steel wool or other aggressive material to clean the
lenses.
Preserving The Bodywork
Washing
•
Wash your vehicle regularly. Always wash your
vehicle in the shade using Mopar Car Wash, or a mild
car wash soap, and rinse the panels completely with
clear water.
• If insects, tar, or other similar deposits have accumu-
lated on your vehicle, use Mopar Super Kleen Bug
and Tar Remover to remove.
• Use a high quality cleaner wax, such as Mopar
Cleaner Wax to remove road film, stains, and to
protect your paint finish. Take care never to scratch
the paint.
• Avoid using abrasive compounds and power buffing
that may diminish the gloss or thin out the paint
finish.
NOTE: Hand washing is recommended. Avoid washing
with power washers and do not use commercial car
wash facilities.
254 SERVICING AND MAINTENANCE
Page 257 of 294

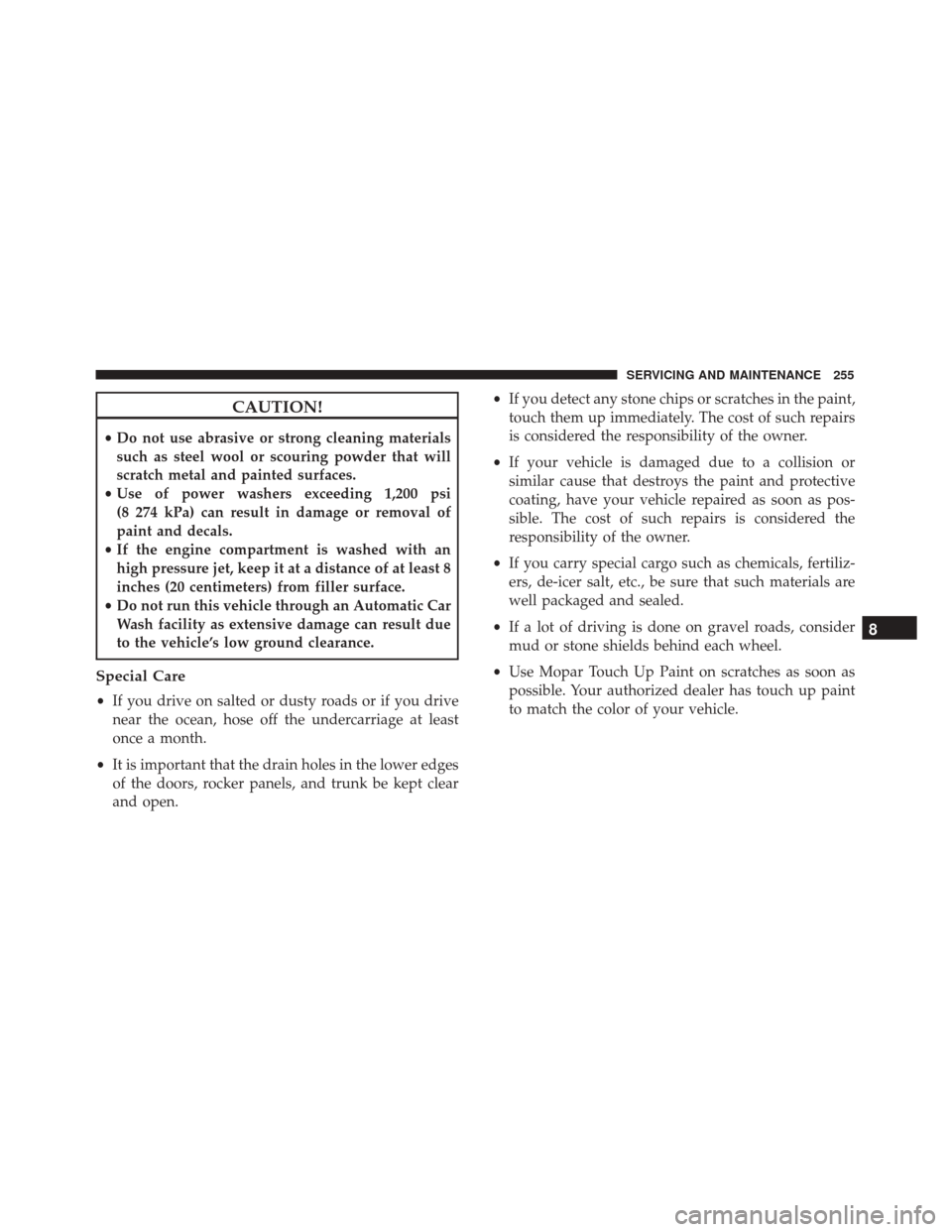

CAUTION!
•Do not use abrasive or strong cleaning materials
such as steel wool or scouring powder that will
scratch metal and painted surfaces.
• Use of power washers exceeding 1,200 psi
(8 274 kPa) can result in damage or removal of
paint and decals.
• If the engine compartment is washed with an
high pressure jet, keep it at a distance of at least 8
inches (20 centimeters) from filler surface.
• Do not run this vehicle through an Automatic Car
Wash facility as extensive damage can result due
to the vehicle’s low ground clearance.
Special Care
• If you drive on salted or dusty roads or if you drive
near the ocean, hose off the undercarriage at least
once a month.
• It is important that the drain holes in the lower edges
of the doors, rocker panels, and trunk be kept clear
and open. •
If you detect any stone chips or scratches in the paint,
touch them up immediately. The cost of such repairs
is considered the responsibility of the owner.
• If your vehicle is damaged due to a collision or
similar cause that destroys the paint and protective
coating, have your vehicle repaired as soon as pos-
sible. The cost of such repairs is considered the
responsibility of the owner.
• If you carry special cargo such as chemicals, fertiliz-
ers, de-icer salt, etc., be sure that such materials are
well packaged and sealed.
• If a lot of driving is done on gravel roads, consider
mud or stone shields behind each wheel.
• Use Mopar Touch Up Paint on scratches as soon as
possible. Your authorized dealer has touch up paint
to match the color of your vehicle.
8
SERVICING AND MAINTENANCE 255
Page 258 of 294

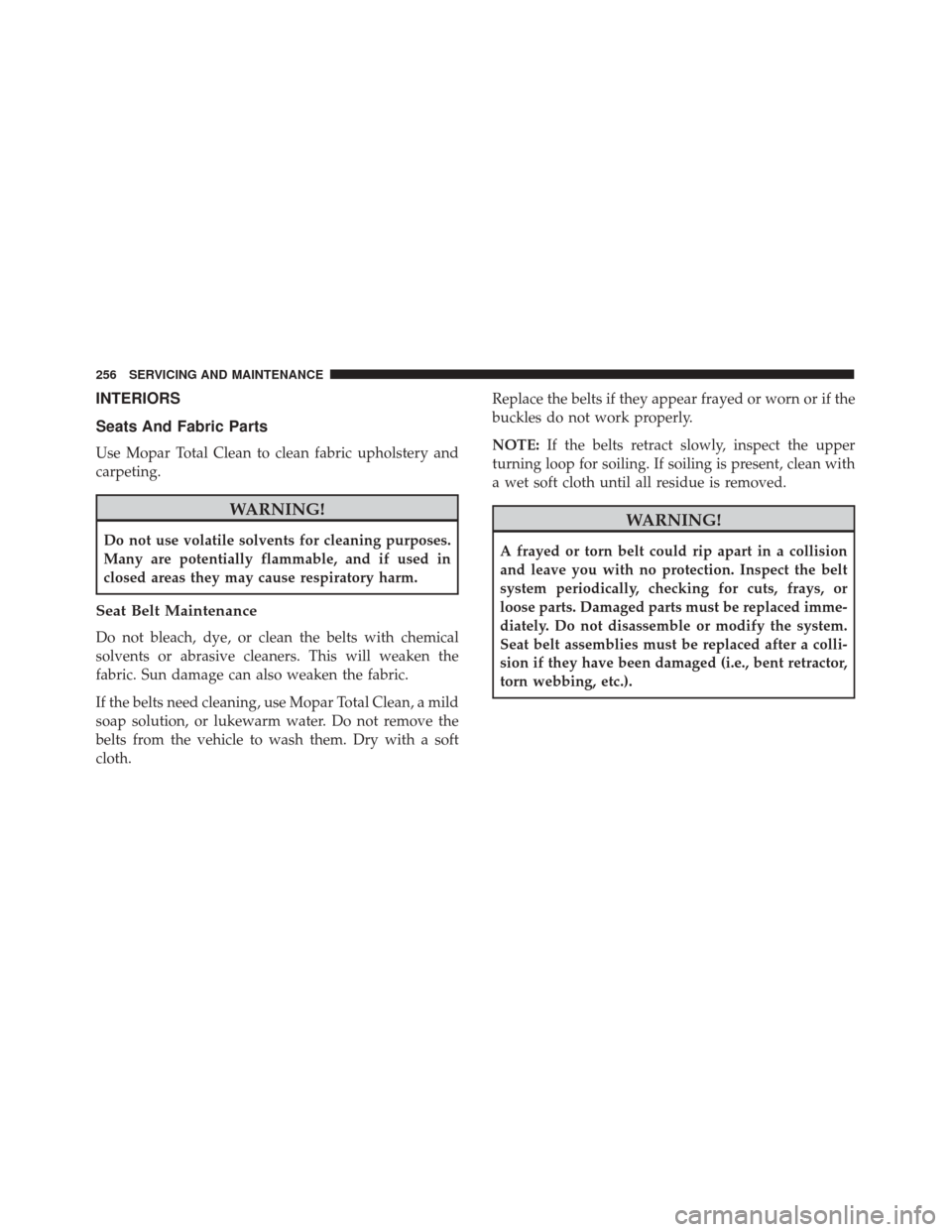

INTERIORS
Seats And Fabric Parts
Use Mopar Total Clean to clean fabric upholstery and
carpeting.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the
fabric. Sun damage can also weaken the fabric.
If the belts need cleaning, use Mopar Total Clean, a mild
soap solution, or lukewarm water. Do not remove the
belts from the vehicle to wash them. Dry with a soft
cloth.Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
NOTE:
If the belts retract slowly, inspect the upper
turning loop for soiling. If soiling is present, clean with
a wet soft cloth until all residue is removed.
WARNING!
A frayed or torn belt could rip apart in a collision
and leave you with no protection. Inspect the belt
system periodically, checking for cuts, frays, or
loose parts. Damaged parts must be replaced imme-
diately. Do not disassemble or modify the system.
Seat belt assemblies must be replaced after a colli-
sion if they have been damaged (i.e., bent retractor,
torn webbing, etc.).
256 SERVICING AND MAINTENANCE
Page 259 of 294

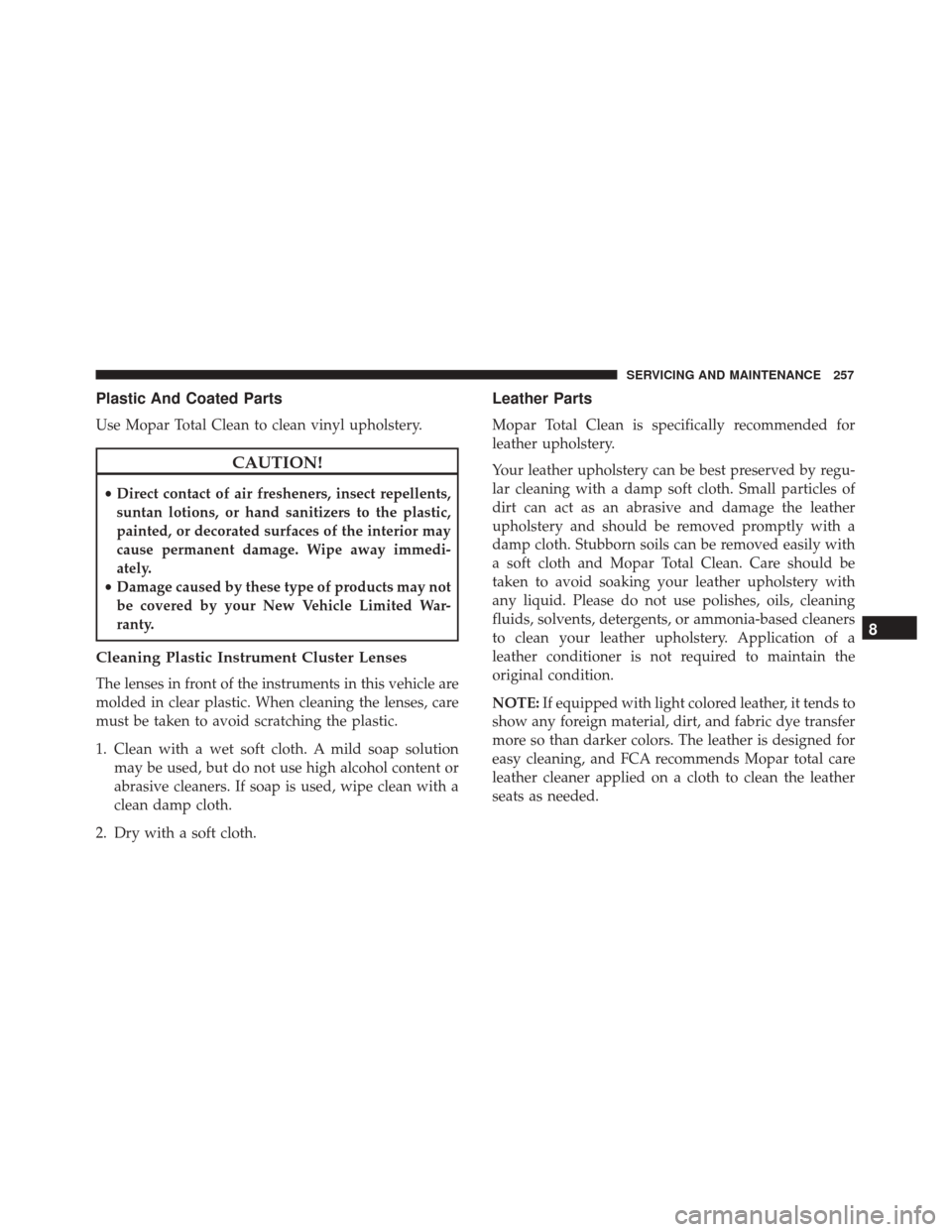

Plastic And Coated Parts
Use Mopar Total Clean to clean vinyl upholstery.
CAUTION!
•Direct contact of air fresheners, insect repellents,
suntan lotions, or hand sanitizers to the plastic,
painted, or decorated surfaces of the interior may
cause permanent damage. Wipe away immedi-
ately.
• Damage caused by these type of products may not
be covered by your New Vehicle Limited War-
ranty.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft cloth. A mild soap solution may be used, but do not use high alcohol content or
abrasive cleaners. If soap is used, wipe clean with a
clean damp cloth.
2. Dry with a soft cloth.
Leather Parts
Mopar Total Clean is specifically recommended for
leather upholstery.
Your leather upholstery can be best preserved by regu-
lar cleaning with a damp soft cloth. Small particles of
dirt can act as an abrasive and damage the leather
upholstery and should be removed promptly with a
damp cloth. Stubborn soils can be removed easily with
a soft cloth and Mopar Total Clean. Care should be
taken to avoid soaking your leather upholstery with
any liquid. Please do not use polishes, oils, cleaning
fluids, solvents, detergents, or ammonia-based cleaners
to clean your leather upholstery. Application of a
leather conditioner is not required to maintain the
original condition.
NOTE: If equipped with light colored leather, it tends to
show any foreign material, dirt, and fabric dye transfer
more so than darker colors. The leather is designed for
easy cleaning, and FCA recommends Mopar total care
leather cleaner applied on a cloth to clean the leather
seats as needed.
8
SERVICING AND MAINTENANCE 257
Page 260 of 294

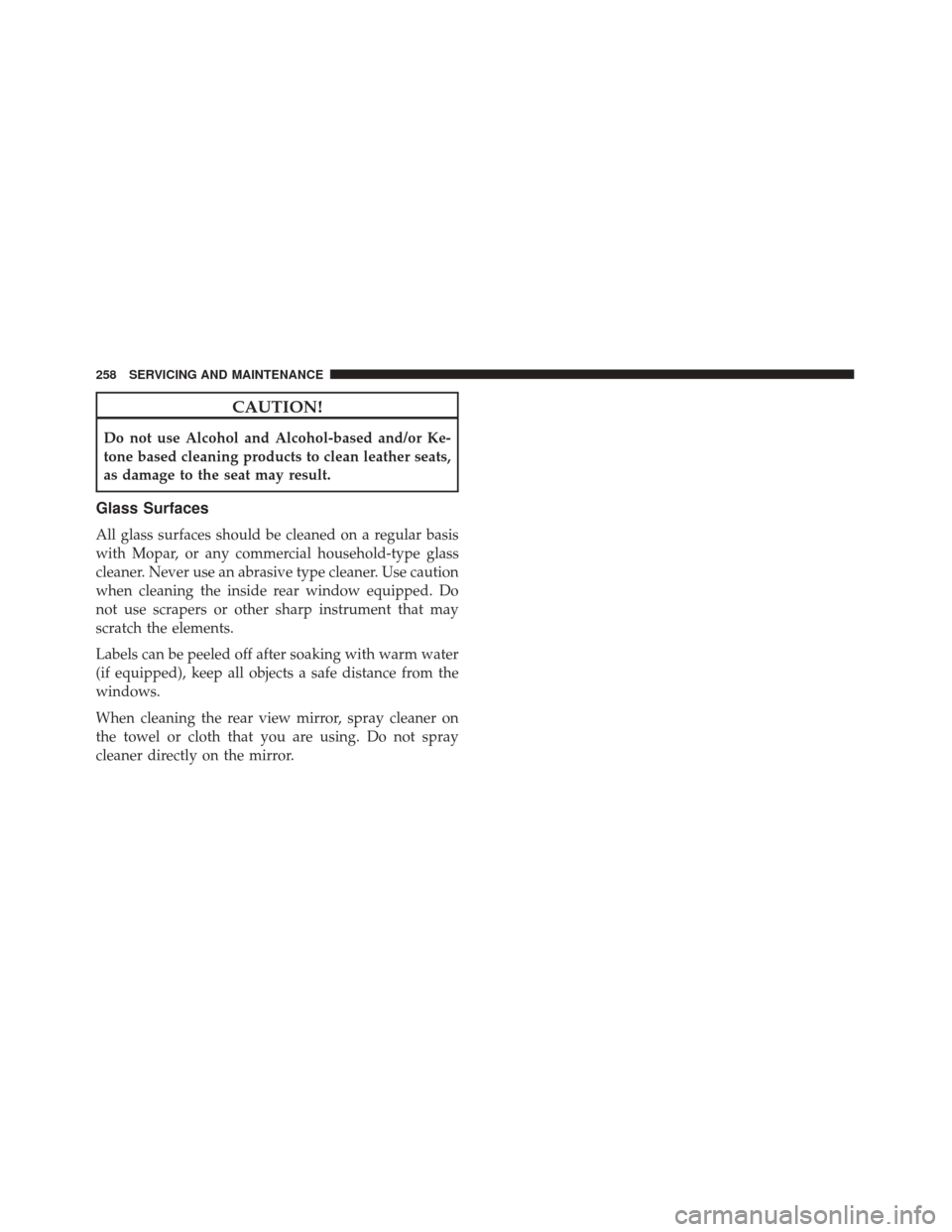

CAUTION!
Do not use Alcohol and Alcohol-based and/or Ke-
tone based cleaning products to clean leather seats,
as damage to the seat may result.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with Mopar, or any commercial household-type glass
cleaner. Never use an abrasive type cleaner. Use caution
when cleaning the inside rear window equipped. Do
not use scrapers or other sharp instrument that may
scratch the elements.
Labels can be peeled off after soaking with warm water
(if equipped), keep all objects a safe distance from the
windows.
When cleaning the rear view mirror, spray cleaner on
the towel or cloth that you are using. Do not spray
cleaner directly on the mirror.
258 SERVICING AND MAINTENANCE
