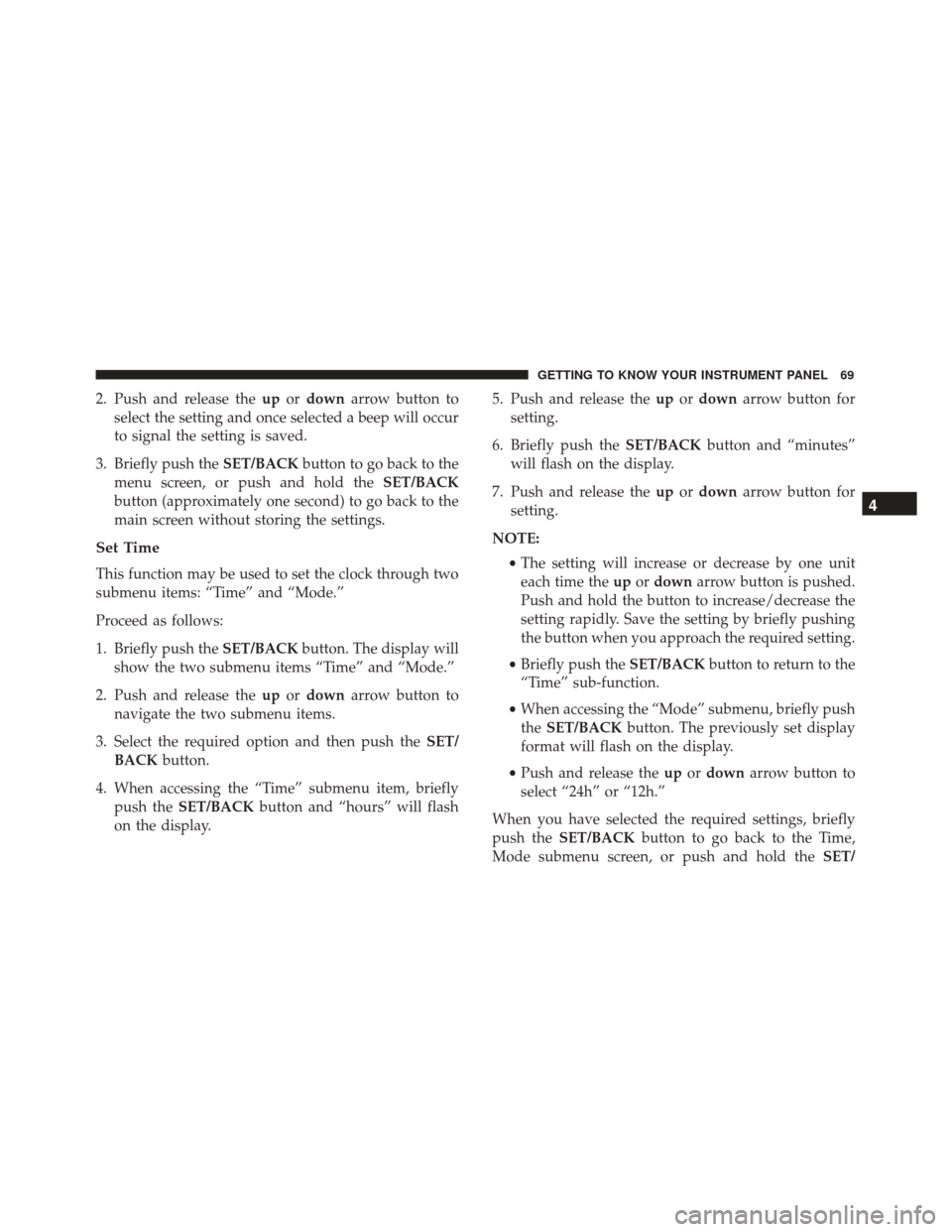

2. Push and release theupordown arrow button to
select the setting and once selected a beep will occur
to signal the setting is saved.
3. Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.
Set Time
This function may be used to set the clock through two
submenu items: “Time” and “Mode.”
Proceed as follows:
1. Briefly push the SET/BACKbutton. The display will
show the two submenu items “Time” and “Mode.”
2. Push and release the upordown arrow button to
navigate the two submenu items.
3. Select the required option and then push the SET/
BACK button.
4. When accessing the “Time” submenu item, briefly push the SET/BACK button and “hours” will flash
on the display. 5. Push and release the
upordown arrow button for
setting.
6. Briefly push the SET/BACKbutton and “minutes”
will flash on the display.
7. Push and release the upordown arrow button for
setting.
NOTE: •The setting will increase or decrease by one unit
each time the upordown arrow button is pushed.
Push and hold the button to increase/decrease the
setting rapidly. Save the setting by briefly pushing
the button when you approach the required setting.
• Briefly push the SET/BACKbutton to return to the
“Time” sub-function.
• When accessing the “Mode” submenu, briefly push
the SET/BACK button. The previously set display
format will flash on the display.
• Push and release the upordown arrow button to
select “24h” or “12h.”
When you have selected the required settings, briefly
push the SET/BACK button to go back to the Time,
Mode submenu screen, or push and hold the SET/
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 69

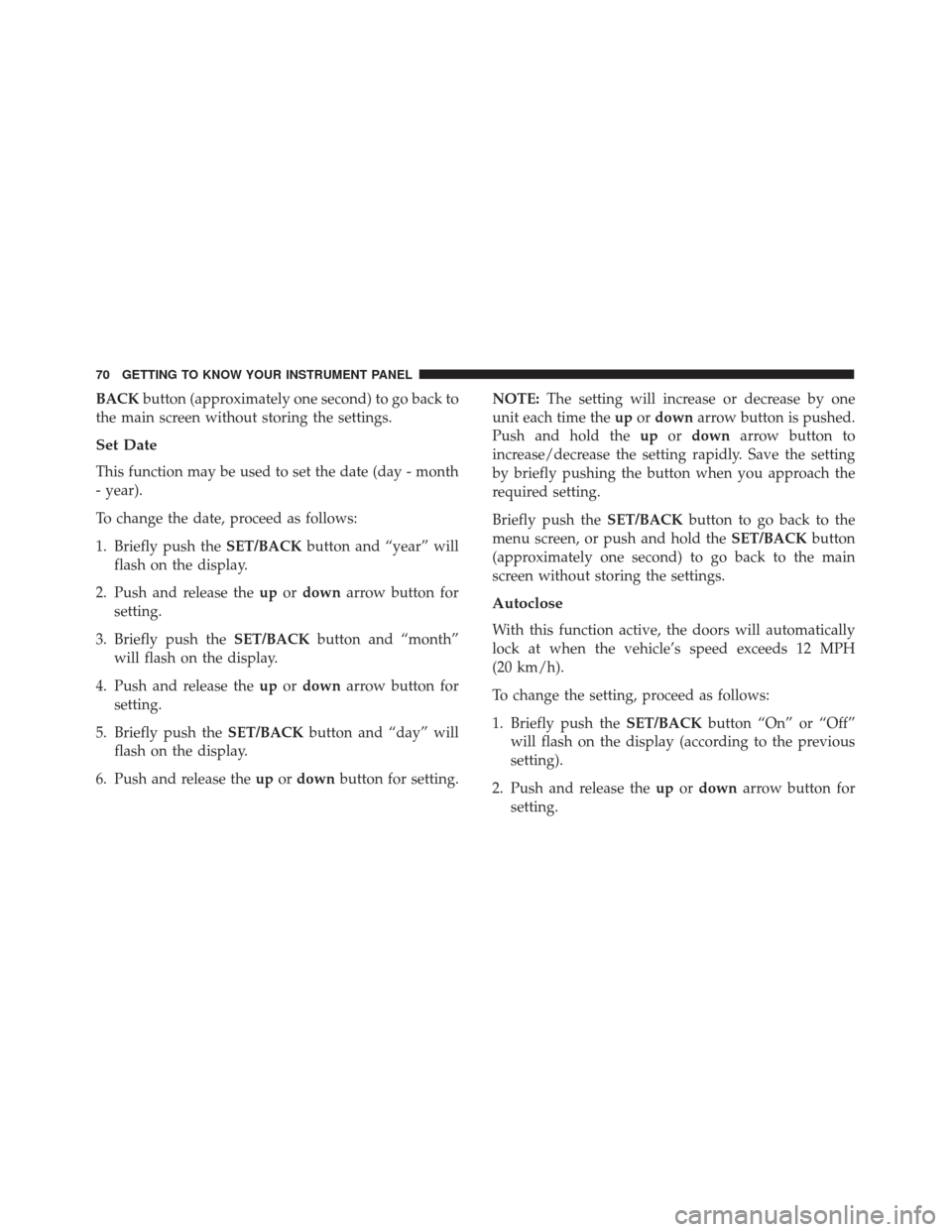

BACKbutton (approximately one second) to go back to
the main screen without storing the settings.
Set Date
This function may be used to set the date (day - month
- year).
To change the date, proceed as follows:
1. Briefly push the SET/BACKbutton and “year” will
flash on the display.
2. Push and release the upordown arrow button for
setting.
3. Briefly push the SET/BACKbutton and “month”
will flash on the display.
4. Push and release the upordown arrow button for
setting.
5. Briefly push the SET/BACKbutton and “day” will
flash on the display.
6. Push and release the upordown button for setting. NOTE:
The setting will increase or decrease by one
unit each time the upordown arrow button is pushed.
Push and hold the upordown arrow button to
increase/decrease the setting rapidly. Save the setting
by briefly pushing the button when you approach the
required setting.
Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACKbutton
(approximately one second) to go back to the main
screen without storing the settings.
Autoclose
With this function active, the doors will automatically
lock at when the vehicle’s speed exceeds 12 MPH
(20 km/h).
To change the setting, proceed as follows:
1. Briefly push the SET/BACKbutton “On” or “Off”
will flash on the display (according to the previous
setting).
2. Push and release the upordown arrow button for
setting.
70 GETTING TO KNOW YOUR INSTRUMENT PANEL

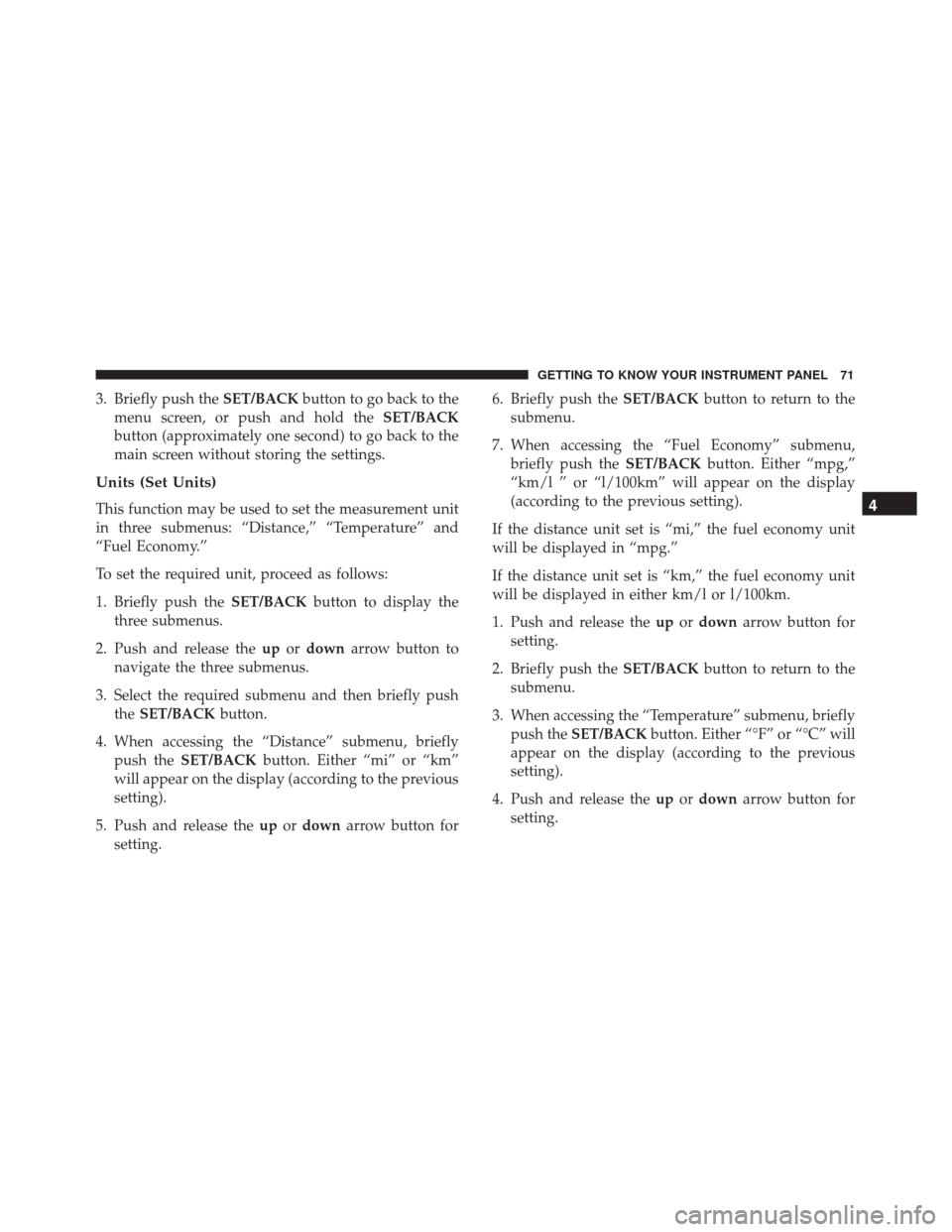

3. Briefly push theSET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.
Units (Set Units)
This function may be used to set the measurement unit
in three submenus: “Distance,” “Temperature” and
“Fuel Economy.”
To set the required unit, proceed as follows:
1. Briefly push the SET/BACKbutton to display the
three submenus.
2. Push and release the upordown arrow button to
navigate the three submenus.
3. Select the required submenu and then briefly push the SET/BACK button.
4. When accessing the “Distance” submenu, briefly push the SET/BACK button. Either “mi” or “km”
will appear on the display (according to the previous
setting).
5. Push and release the upordown arrow button for
setting. 6. Briefly push the
SET/BACKbutton to return to the
submenu.
7. When accessing the “Fuel Economy” submenu, briefly push the SET/BACKbutton. Either “mpg,”
“km/l ” or “l/100km” will appear on the display
(according to the previous setting).
If the distance unit set is “mi,” the fuel economy unit
will be displayed in “mpg.”
If the distance unit set is “km,” the fuel economy unit
will be displayed in either km/l or l/100km.
1. Push and release the upordown arrow button for
setting.
2. Briefly push the SET/BACKbutton to return to the
submenu.
3. When accessing the “Temperature” submenu, briefly push the SET/BACK button. Either “°F” or “°C” will
appear on the display (according to the previous
setting).
4. Push and release the upordown arrow button for
setting.4
GETTING TO KNOW YOUR INSTRUMENT PANEL 71

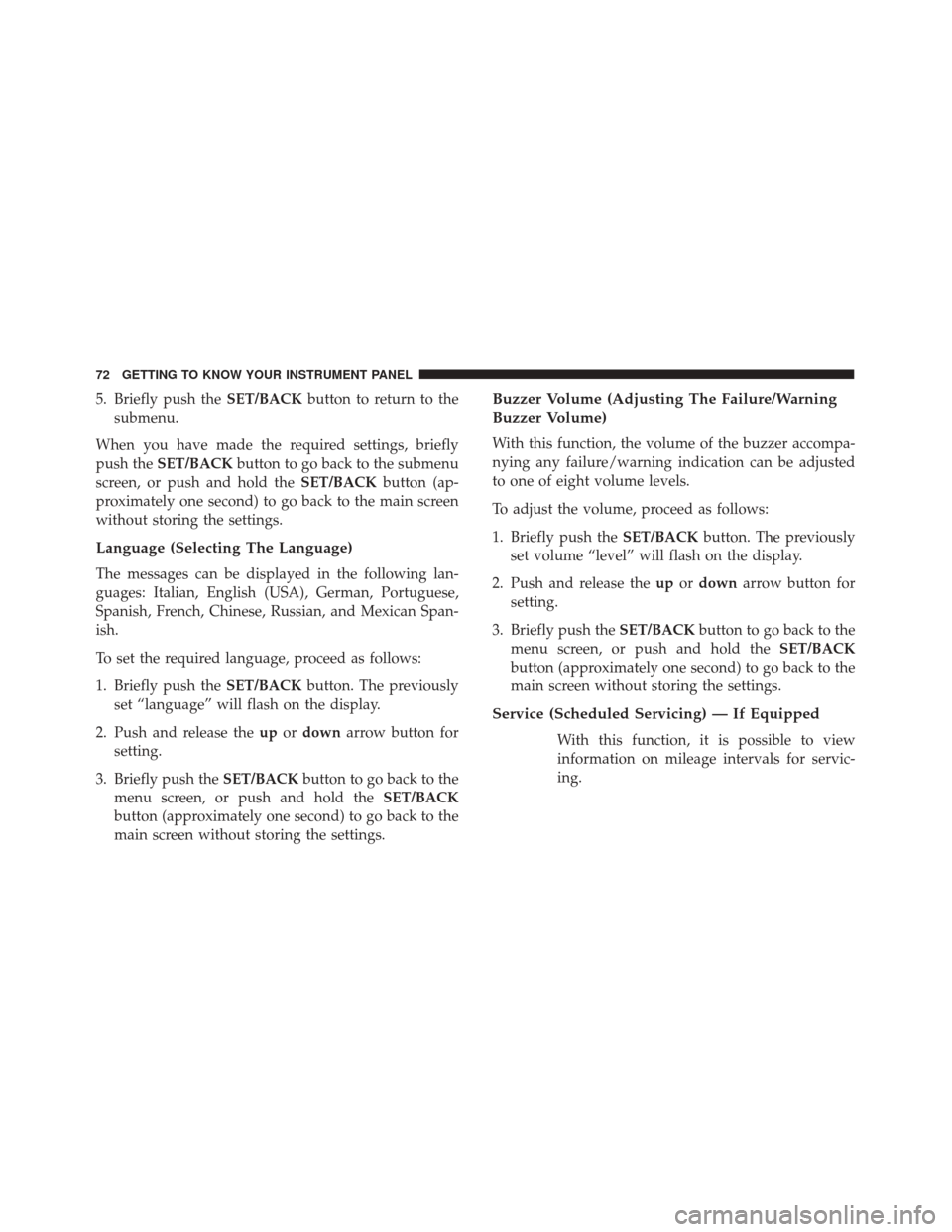

5. Briefly push theSET/BACKbutton to return to the
submenu.
When you have made the required settings, briefly
push the SET/BACK button to go back to the submenu
screen, or push and hold the SET/BACKbutton (ap-
proximately one second) to go back to the main screen
without storing the settings.
Language (Selecting The Language)
The messages can be displayed in the following lan-
guages: Italian, English (USA), German, Portuguese,
Spanish, French, Chinese, Russian, and Mexican Span-
ish.
To set the required language, proceed as follows:
1. Briefly push the SET/BACKbutton. The previously
set “language” will flash on the display.
2. Push and release the upordown arrow button for
setting.
3. Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.
Buzzer Volume (Adjusting The Failure/Warning
Buzzer Volume)
With this function, the volume of the buzzer accompa-
nying any failure/warning indication can be adjusted
to one of eight volume levels.
To adjust the volume, proceed as follows:
1. Briefly push the SET/BACKbutton. The previously
set volume “level” will flash on the display.
2. Push and release the upordown arrow button for
setting.
3. Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.
Service (Scheduled Servicing) — If Equipped
With this function, it is possible to view
information on mileage intervals for servic-
ing.
72 GETTING TO KNOW YOUR INSTRUMENT PANEL

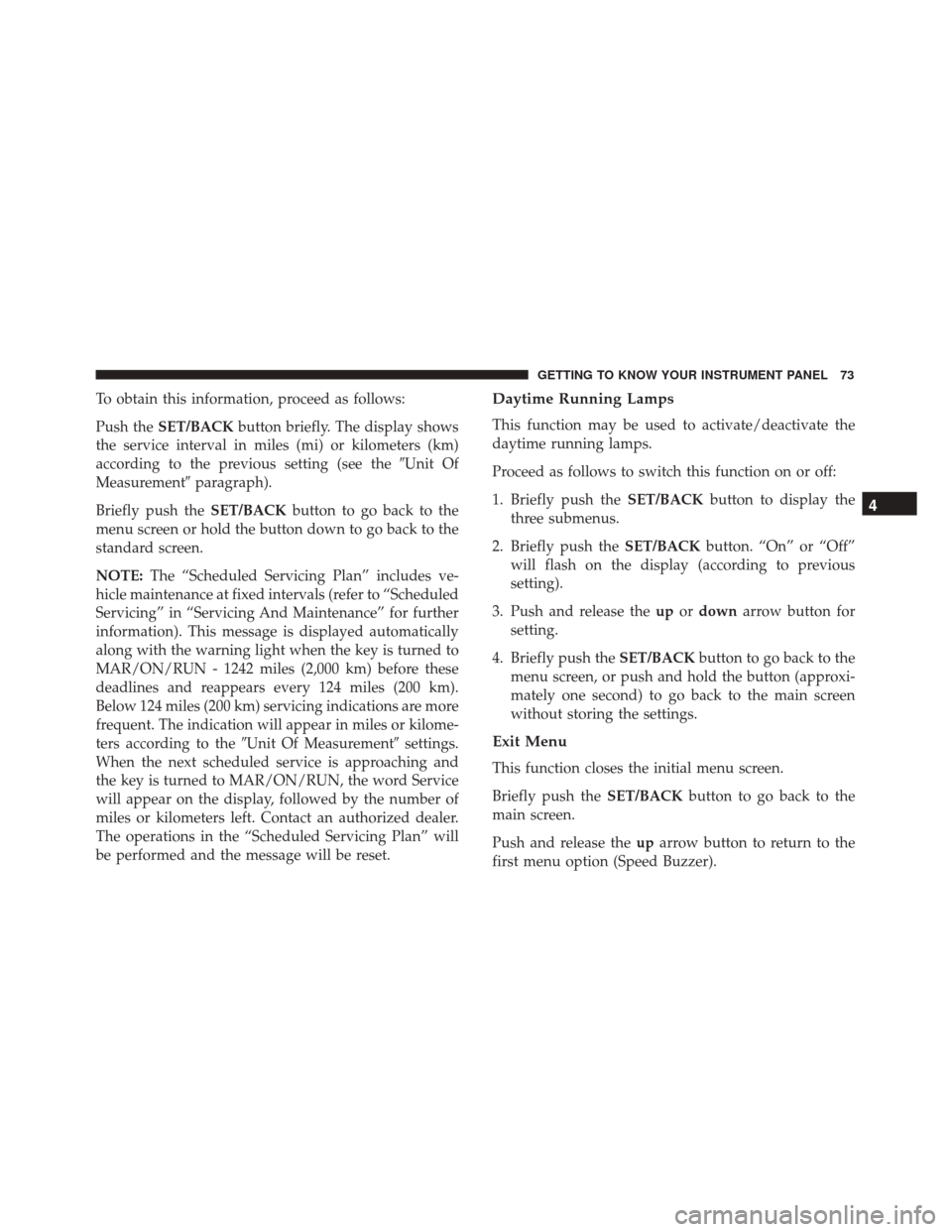

To obtain this information, proceed as follows:
Push theSET/BACK button briefly. The display shows
the service interval in miles (mi) or kilometers (km)
according to the previous setting (see the Unit Of
Measurement paragraph).
Briefly push the SET/BACKbutton to go back to the
menu screen or hold the button down to go back to the
standard screen.
NOTE: The “Scheduled Servicing Plan” includes ve-
hicle maintenance at fixed intervals (refer to “Scheduled
Servicing” in “Servicing And Maintenance” for further
information). This message is displayed automatically
along with the warning light when the key is turned to
MAR/ON/RUN - 1242 miles (2,000 km) before these
deadlines and reappears every 124 miles (200 km).
Below 124 miles (200 km) servicing indications are more
frequent. The indication will appear in miles or kilome-
ters according to the Unit Of Measurement settings.
When the next scheduled service is approaching and
the key is turned to MAR/ON/RUN, the word Service
will appear on the display, followed by the number of
miles or kilometers left. Contact an authorized dealer.
The operations in the “Scheduled Servicing Plan” will
be performed and the message will be reset.Daytime Running Lamps
This function may be used to activate/deactivate the
daytime running lamps.
Proceed as follows to switch this function on or off:
1. Briefly push the SET/BACKbutton to display the
three submenus.
2. Briefly push the SET/BACKbutton. “On” or “Off”
will flash on the display (according to previous
setting).
3. Push and release the upordown arrow button for
setting.
4. Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the button (approxi-
mately one second) to go back to the main screen
without storing the settings.
Exit Menu
This function closes the initial menu screen.
Briefly push the SET/BACKbutton to go back to the
main screen.
Push and release the uparrow button to return to the
first menu option (Speed Buzzer).
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 73

Push and release thedownarrow button to return to the
last menu option (Daylights).
Values Displayed
Indications On Display
Each time a value is selected, the following information
is shown in the instrument cluster display:
• “Trip A” or “Trip B” location(s)
• Name, value and unit of measure of the selected
value (e.g. Range 520 mi). After a few seconds, the name of the selected value is
replaced by the corresponding icon.
Range
This indicates the distance which may be traveled with
the fuel remaining in the tank, assuming that driving
conditions will not change. The message “----” will
appear on the display in the following cases:
•
Distance less than 30 miles (or 50 km).
• The vehicle is parked for a long time with the engine
running.
NOTE: The range depends on several factors: driving
style, type of route (freeway, residential, mountain
roads, etc.), conditions of use of the vehicle (load, tire
pressure, etc.). Trip planning must take into account the
above notes.
Average Fuel Consumption
This value shows the approximate average consump-
tion since the last reset.
Travel Distance
This value shows the distance covered since the last
reset.Instrument Cluster Display
74 GETTING TO KNOW YOUR INSTRUMENT PANEL

Current Fuel Consumption
This indicates the fuel consumption. The value is con-
stantly updated. The message “----” will appear on the
display if the vehicle is parked with the engine running.
Average Speed
This value shows the vehicle’s average speed as a
function of the overall time elapsed since the last reset.
Travel Time
This value shows the time elapsed since the last reset.
Tire Pressure Values
This screen will display OK at each Tire Pressure
Monitoring sensor. Refer to “Tire Pressure Monitoring
System” in “Safety” for further information.
TRIP COMPUTER
The Trip Computer is located in the instrument cluster.
It features a driver-interactive display (displays infor-
mation such as trip information, range, fuel consump-
tion, average speed, and travel time).
Trip Button
TheTRIP/RESET button, located on the right steering
column stalk, can be used to display and to reset the trip
values.
• A short button push displays the different values.
• A long button push resets the system and then starts
a new trip.
TRIP/RESET Button
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 75

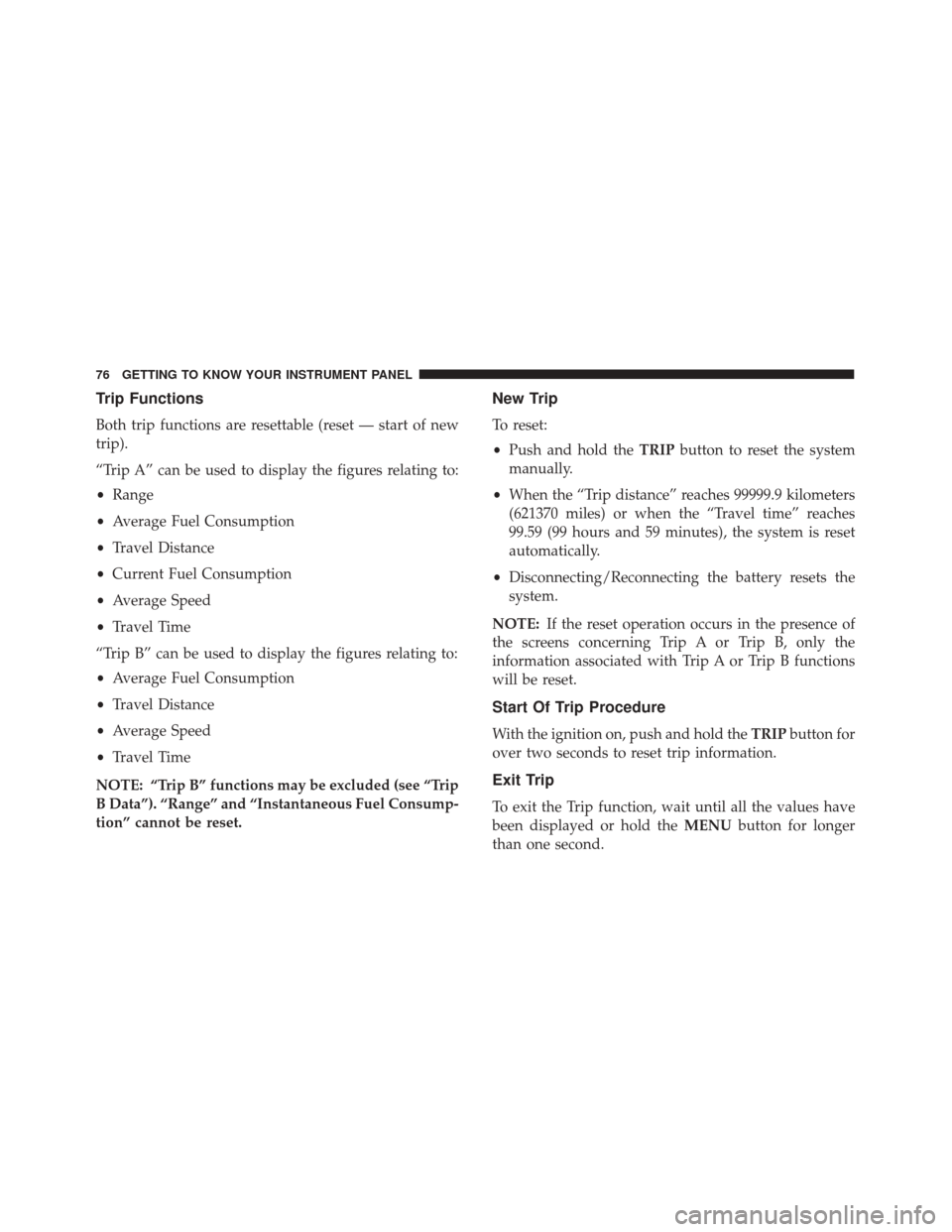

Trip Functions
Both trip functions are resettable (reset — start of new
trip).
“Trip A” can be used to display the figures relating to:
•Range
• Average Fuel Consumption
• Travel Distance
• Current Fuel Consumption
• Average Speed
• Travel Time
“Trip B” can be used to display the figures relating to:
• Average Fuel Consumption
• Travel Distance
• Average Speed
• Travel Time
NOTE: “Trip B” functions may be excluded (see “Trip
B Data”). “Range” and “Instantaneous Fuel Consump-
tion” cannot be reset.
New Trip
To reset:
• Push and hold the TRIPbutton to reset the system
manually.
• When the “Trip distance” reaches 99999.9 kilometers
(621370 miles) or when the “Travel time” reaches
99.59 (99 hours and 59 minutes), the system is reset
automatically.
• Disconnecting/Reconnecting the battery resets the
system.
NOTE: If the reset operation occurs in the presence of
the screens concerning Trip A or Trip B, only the
information associated with Trip A or Trip B functions
will be reset.
Start Of Trip Procedure
With the ignition on, push and hold the TRIPbutton for
over two seconds to reset trip information.
Exit Trip
To exit the Trip function, wait until all the values have
been displayed or hold the MENUbutton for longer
than one second.
76 GETTING TO KNOW YOUR INSTRUMENT PANEL

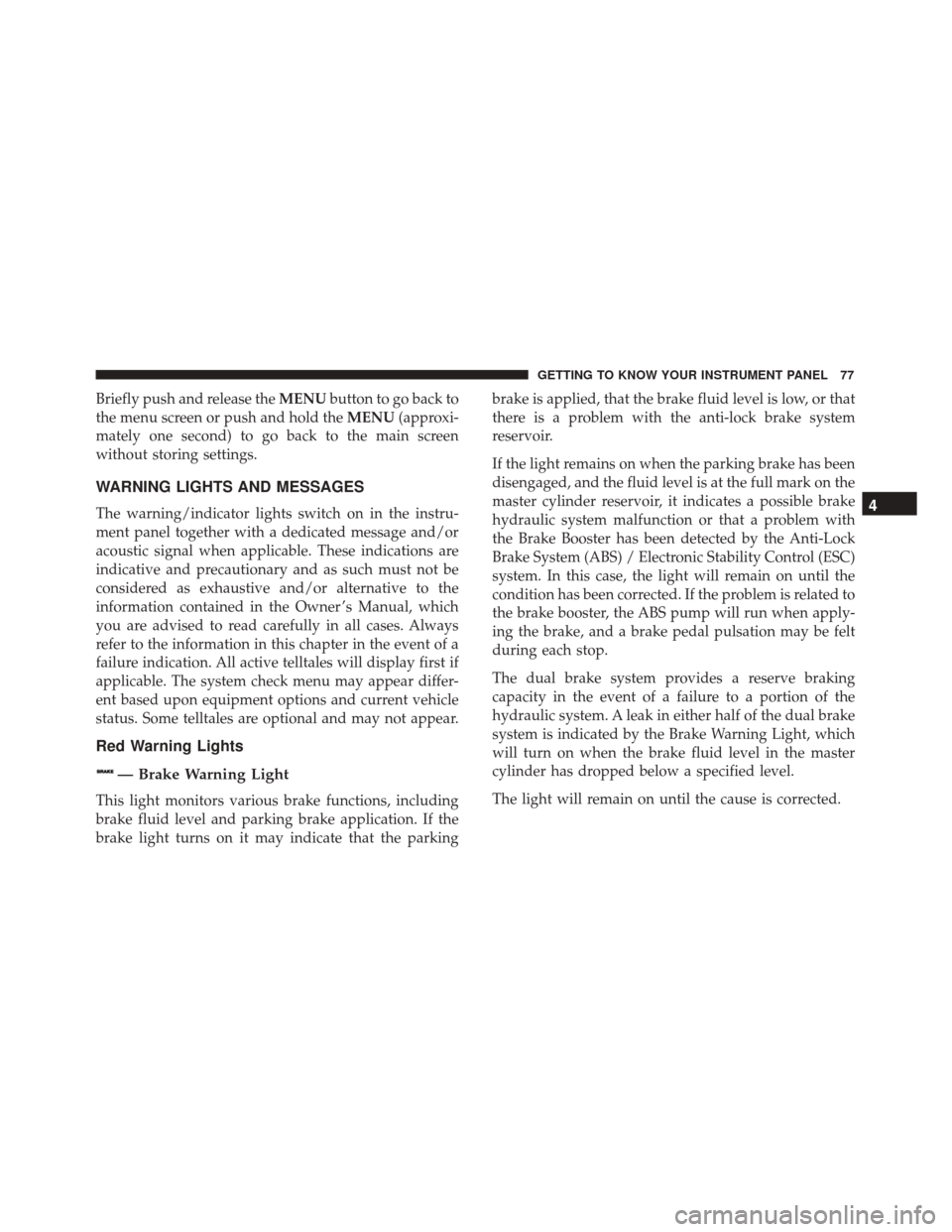

Briefly push and release theMENUbutton to go back to
the menu screen or push and hold the MENU(approxi-
mately one second) to go back to the main screen
without storing settings.
WARNING LIGHTS AND MESSAGES
The warning/indicator lights switch on in the instru-
ment panel together with a dedicated message and/or
acoustic signal when applicable. These indications are
indicative and precautionary and as such must not be
considered as exhaustive and/or alternative to the
information contained in the Owner ’s Manual, which
you are advised to read carefully in all cases. Always
refer to the information in this chapter in the event of a
failure indication. All active telltales will display first if
applicable. The system check menu may appear differ-
ent based upon equipment options and current vehicle
status. Some telltales are optional and may not appear.
Red Warning Lights
— Brake Warning Light
This light monitors various brake functions, including
brake fluid level and parking brake application. If the
brake light turns on it may indicate that the parking brake is applied, that the brake fluid level is low, or that
there is a problem with the anti-lock brake system
reservoir.
If the light remains on when the parking brake has been
disengaged, and the fluid level is at the full mark on the
master cylinder reservoir, it indicates a possible brake
hydraulic system malfunction or that a problem with
the Brake Booster has been detected by the Anti-Lock
Brake System (ABS) / Electronic Stability Control (ESC)
system. In this case, the light will remain on until the
condition has been corrected. If the problem is related to
the brake booster, the ABS pump will run when apply-
ing the brake, and a brake pedal pulsation may be felt
during each stop.
The dual brake system provides a reserve braking
capacity in the event of a failure to a portion of the
hydraulic system. A leak in either half of the dual brake
system is indicated by the Brake Warning Light, which
will turn on when the brake fluid level in the master
cylinder has dropped below a specified level.
The light will remain on until the cause is corrected.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 77

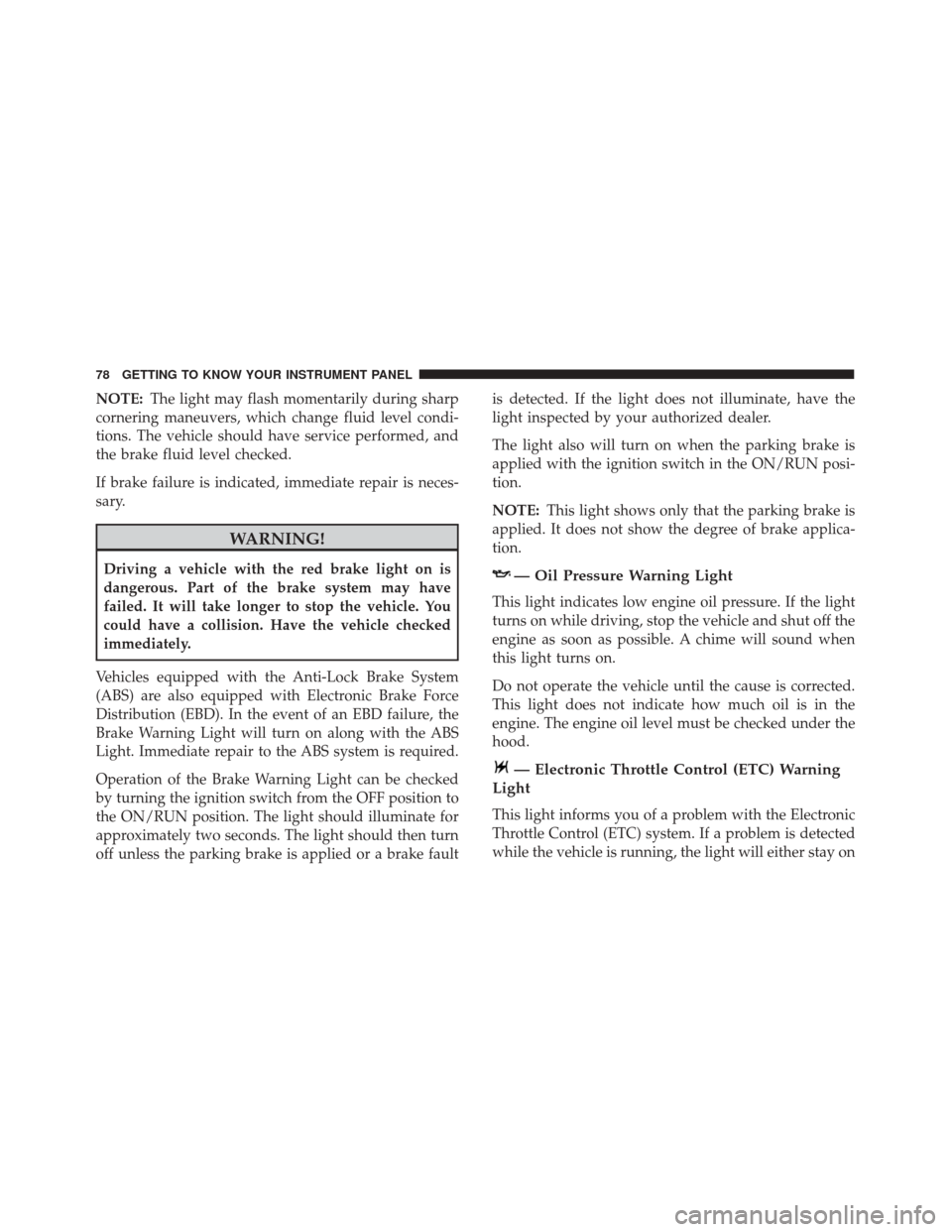

NOTE:The light may flash momentarily during sharp
cornering maneuvers, which change fluid level condi-
tions. The vehicle should have service performed, and
the brake fluid level checked.
If brake failure is indicated, immediate repair is neces-
sary.
WARNING!
Driving a vehicle with the red brake light on is
dangerous. Part of the brake system may have
failed. It will take longer to stop the vehicle. You
could have a collision. Have the vehicle checked
immediately.
Vehicles equipped with the Anti-Lock Brake System
(ABS) are also equipped with Electronic Brake Force
Distribution (EBD). In the event of an EBD failure, the
Brake Warning Light will turn on along with the ABS
Light. Immediate repair to the ABS system is required.
Operation of the Brake Warning Light can be checked
by turning the ignition switch from the OFF position to
the ON/RUN position. The light should illuminate for
approximately two seconds. The light should then turn
off unless the parking brake is applied or a brake fault is detected. If the light does not illuminate, have the
light inspected by your authorized dealer.
The light also will turn on when the parking brake is
applied with the ignition switch in the ON/RUN posi-
tion.
NOTE:
This light shows only that the parking brake is
applied. It does not show the degree of brake applica-
tion.— Oil Pressure Warning Light
This light indicates low engine oil pressure. If the light
turns on while driving, stop the vehicle and shut off the
engine as soon as possible. A chime will sound when
this light turns on.
Do not operate the vehicle until the cause is corrected.
This light does not indicate how much oil is in the
engine. The engine oil level must be checked under the
hood.
— Electronic Throttle Control (ETC) Warning
Light
This light informs you of a problem with the Electronic
Throttle Control (ETC) system. If a problem is detected
while the vehicle is running, the light will either stay on
78 GETTING TO KNOW YOUR INSTRUMENT PANEL
