Page 15 of 292

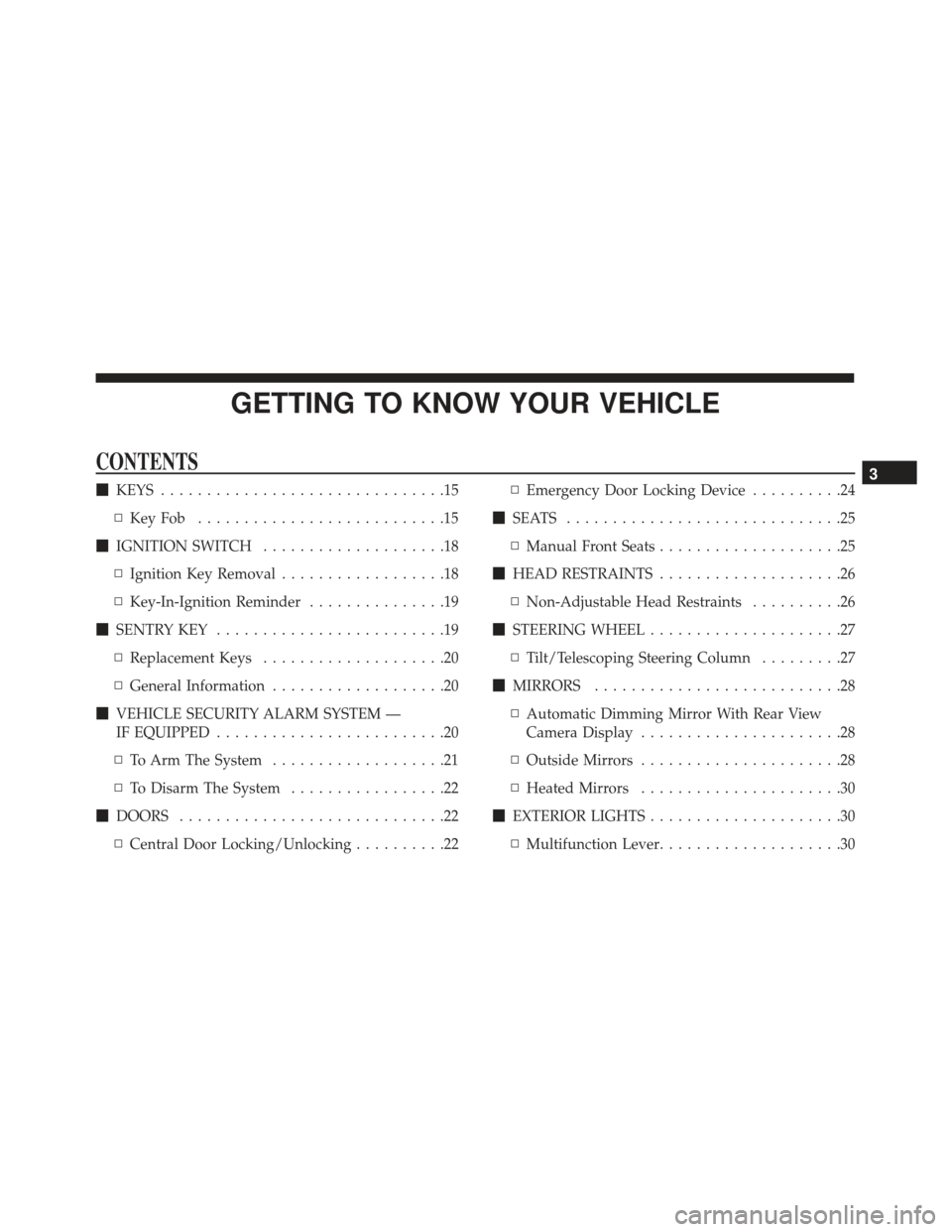

GETTING TO KNOW YOUR VEHICLE
CONTENTS
KEYS ...............................15
▫ KeyFob ...........................15
IGNITION SWITCH ....................18
▫ Ignition Key Removal ..................18
▫ Key-In-Ignition Reminder ...............19
SENTRY KEY .........................19
▫ Replacement Keys ....................20
▫ General Information ...................20
VEHICLE SECURITY ALARM SYSTEM —
IF EQUIPPED .........................20
▫ To Arm The System ...................21
▫ To Disarm The System .................22
DOORS .............................22
▫ Central Door Locking/Unlocking ..........22▫
Emergency Door Locking Device ..........24
SEATS ..............................25
▫ Manual Front Seats ....................25
HEAD RESTRAINTS ....................26
▫ Non-Adjustable Head Restraints ..........26
STEERING WHEEL .....................27
▫ Tilt/Telescoping Steering Column .........27
MIRRORS ...........................28
▫ Automatic Dimming Mirror With Rear View
Camera Display ......................28
▫ Outside Mirrors ......................28
▫ Heated Mirrors ......................30
EXTERIOR LIGHTS .....................30
▫ Multifunction Lever ....................303
Page 19 of 292

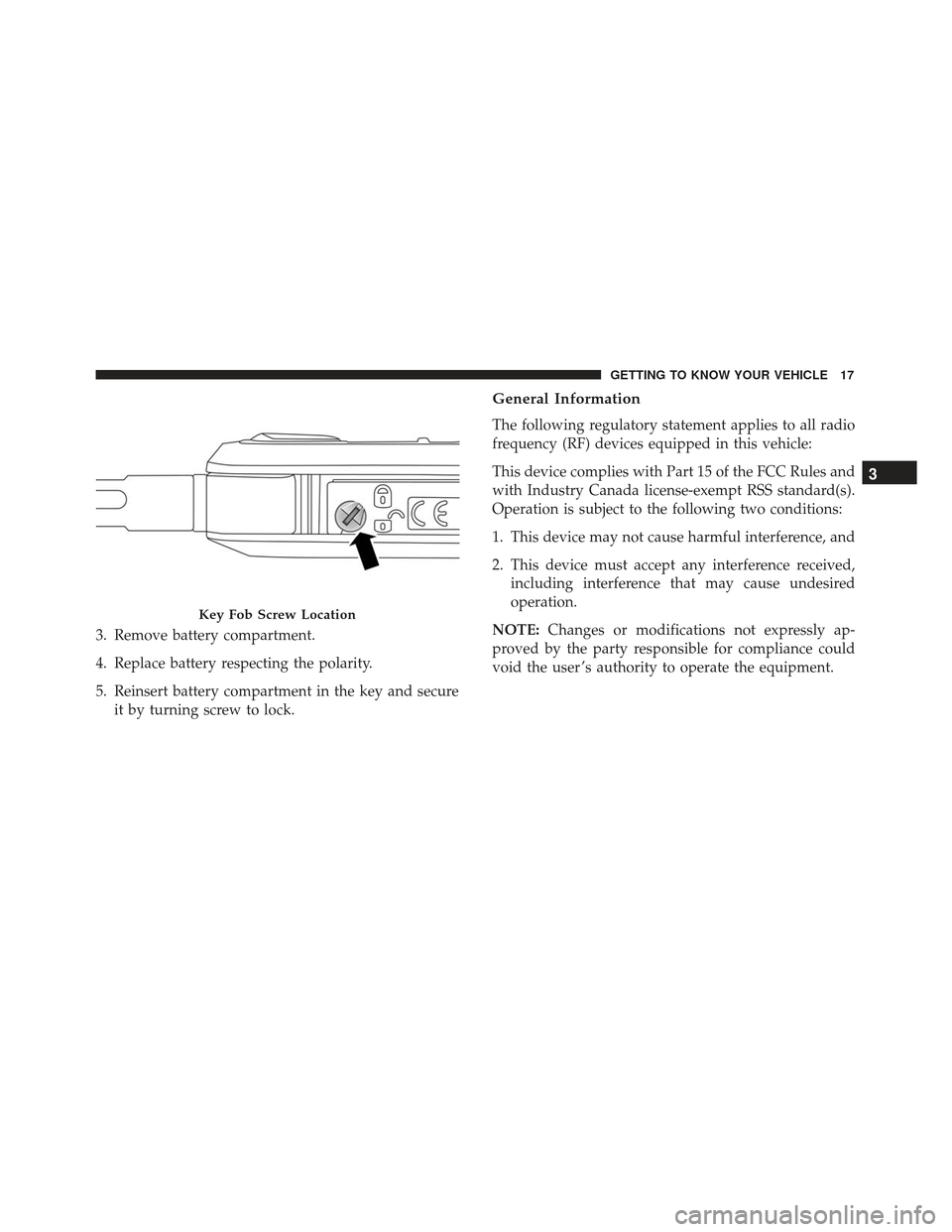

3. Remove battery compartment.
4. Replace battery respecting the polarity.
5. Reinsert battery compartment in the key and secureit by turning screw to lock.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,including interference that may cause undesired
operation.
NOTE: Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user ’s authority to operate the equipment.
Key Fob Screw Location
3
GETTING TO KNOW YOUR VEHICLE 17

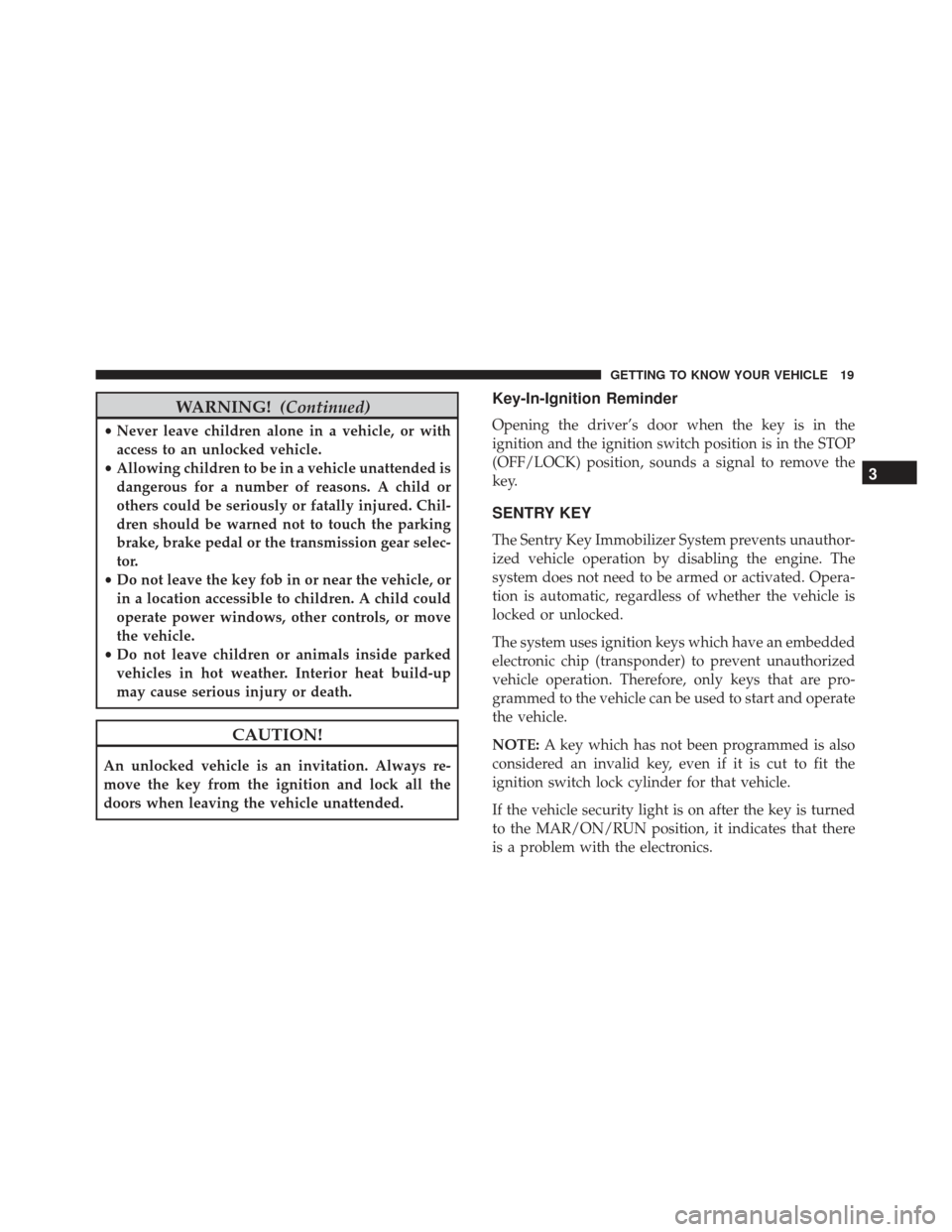

Page 21 of 292
WARNING!(Continued)
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the transmission gear selec-
tor.
• Do not leave the key fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up
may cause serious injury or death.
CAUTION!
An unlocked vehicle is an invitation. Always re-
move the key from the ignition and lock all the
doors when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the
ignition and the ignition switch position is in the STOP
(OFF/LOCK) position, sounds a signal to remove the
key.
SENTRY KEY
The Sentry Key Immobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Opera-
tion is automatic, regardless of whether the vehicle is
locked or unlocked.
The system uses ignition keys which have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle.
NOTE: A key which has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
If the vehicle security light is on after the key is turned
to the MAR/ON/RUN position, it indicates that there
is a problem with the electronics.
3
GETTING TO KNOW YOUR VEHICLE 19
Page 22 of 292

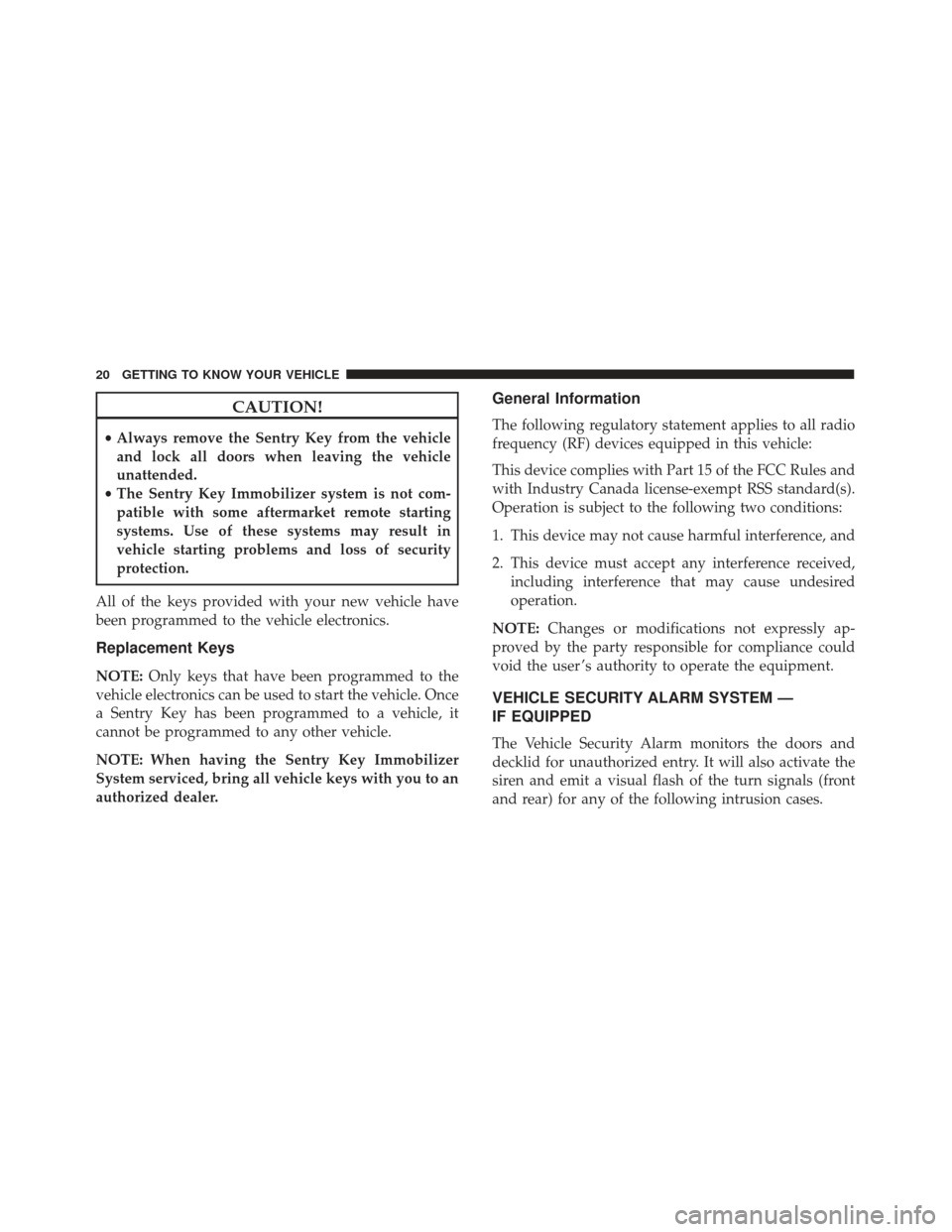

CAUTION!
•Always remove the Sentry Key from the vehicle
and lock all doors when leaving the vehicle
unattended.
• The Sentry Key Immobilizer system is not com-
patible with some aftermarket remote starting
systems. Use of these systems may result in
vehicle starting problems and loss of security
protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it
cannot be programmed to any other vehicle.
NOTE: When having the Sentry Key Immobilizer
System serviced, bring all vehicle keys with you to an
authorized dealer.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
NOTE: Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user ’s authority to operate the equipment.
VEHICLE SECURITY ALARM SYSTEM —
IF EQUIPPED
The Vehicle Security Alarm monitors the doors and
decklid for unauthorized entry. It will also activate the
siren and emit a visual flash of the turn signals (front
and rear) for any of the following intrusion cases.
20 GETTING TO KNOW YOUR VEHICLE
Page 23 of 292

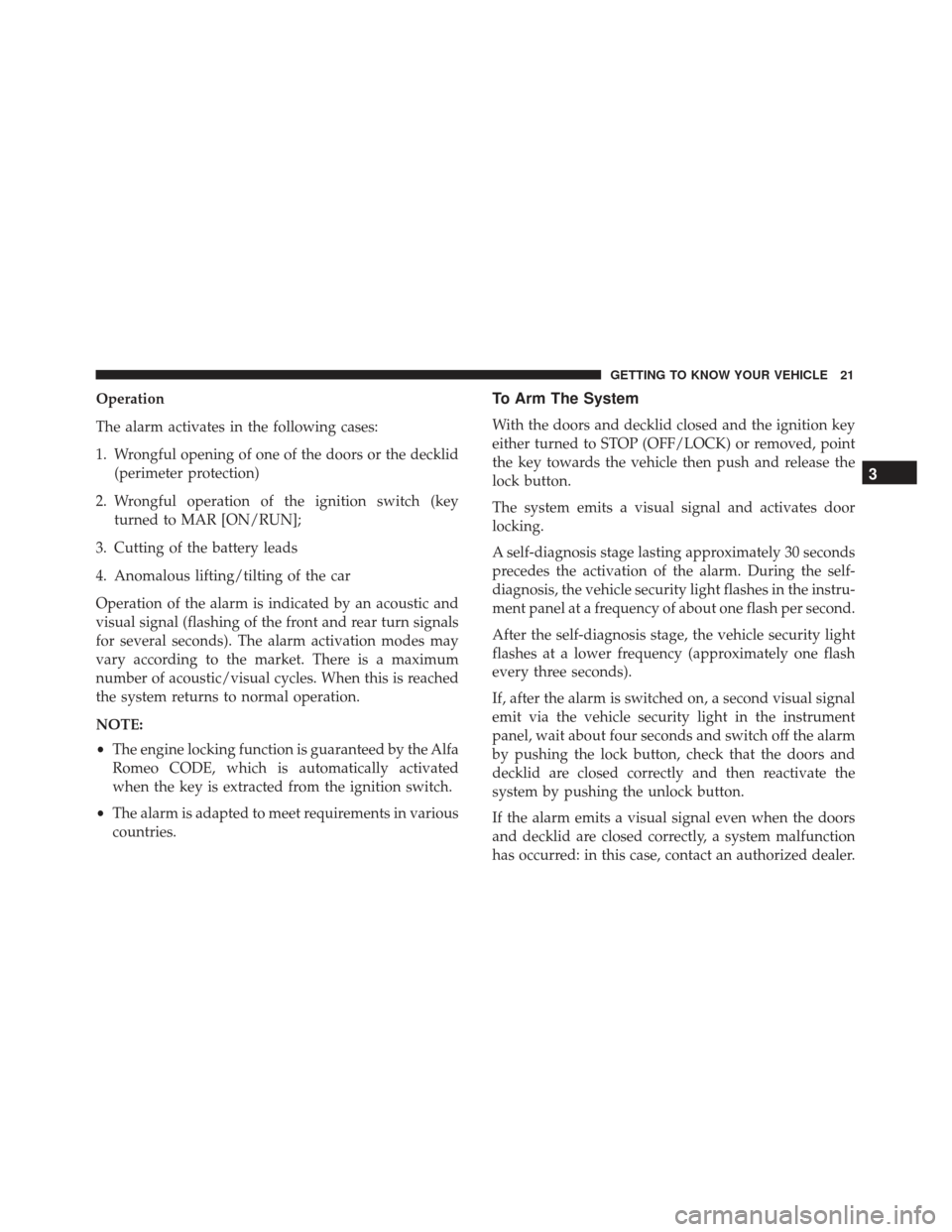

Operation
The alarm activates in the following cases:
1. Wrongful opening of one of the doors or the decklid(perimeter protection)
2. Wrongful operation of the ignition switch (key turned to MAR [ON/RUN];
3. Cutting of the battery leads
4. Anomalous lifting/tilting of the car
Operation of the alarm is indicated by an acoustic and
visual signal (flashing of the front and rear turn signals
for several seconds). The alarm activation modes may
vary according to the market. There is a maximum
number of acoustic/visual cycles. When this is reached
the system returns to normal operation.
NOTE:
• The engine locking function is guaranteed by the Alfa
Romeo CODE, which is automatically activated
when the key is extracted from the ignition switch.
• The alarm is adapted to meet requirements in various
countries.To Arm The System
With the doors and decklid closed and the ignition key
either turned to STOP (OFF/LOCK) or removed, point
the key towards the vehicle then push and release the
lock button.
The system emits a visual signal and activates door
locking.
A self-diagnosis stage lasting approximately 30 seconds
precedes the activation of the alarm. During the self-
diagnosis, the vehicle security light flashes in the instru-
ment panel at a frequency of about one flash per second.
After the self-diagnosis stage, the vehicle security light
flashes at a lower frequency (approximately one flash
every three seconds).
If, after the alarm is switched on, a second visual signal
emit via the vehicle security light in the instrument
panel, wait about four seconds and switch off the alarm
by pushing the lock button, check that the doors and
decklid are closed correctly and then reactivate the
system by pushing the unlock button.
If the alarm emits a visual signal even when the doors
and decklid are closed correctly, a system malfunction
has occurred: in this case, contact an authorized dealer.
3
GETTING TO KNOW YOUR VEHICLE 21
Page 25 of 292
Locking Doors From The Outside
With the doors closed, push the lock button on the key
fob or turn the metal insert (located inside the key fob)
in the door lock.
The door lock LED indicator button will illuminate to
indicate that the doors have locked.
NOTE:Door locking is carried out with all doors shut.
Unlocking Doors From The Outside
Push the unlock button on the key fob or turn the metal
insert (located inside the key fob) in the driver side door
lock.WARNING!
• For personal security and safety in the event of a
collision, lock the vehicle doors before you drive
as well as when you park and leave the vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children
to be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake
pedal or the transmission gear selector.
• Do not leave the key fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
Door Opening/Closing Mechanism Reset
If the battery is disconnected or the protection fuse
blows, the door opening/closing mechanism must be
reset as follows:
1. Close all the doors.
Door Lock LED Indicator
3
GETTING TO KNOW YOUR VEHICLE 23
Page 29 of 292
WARNING!(Continued)
head restraints are placed in their proper posi-
tions in order to minimize the risk of neck injury
in the event of a crash.
• Be certain that the seatback is securely locked into
position. If the seatback is not securely locked
into position the seat will not provide the proper
stability for child seats and/or passengers. An
improperly latched seat could cause serious in-
jury.
STEERING WHEEL
Tilt/Telescoping Steering Column
This feature allows you to tilt the steering column
upward or downward. It also allows you to lengthen or
shorten the steering column. The tilt/telescoping con-
trol handle is located below the steering wheel at the
end of the steering column. To unlock the steering column, push the lever down-
ward (toward the floor). To tilt the steering column,
move the steering wheel upward or downward as
desired. To lengthen or shorten the steering column,
pull the steering wheel outward or push it inward as
desired. To lock the steering column in position, push
the lever upward until fully engaged.
Tilt/Telescoping Column Lever
3
GETTING TO KNOW YOUR VEHICLE 27
Page 54 of 292
5. Place the decklid prop rod in the decklid slot tosecure the decklid in the open position.
WARNING!
•The maximum load limit for the luggage compart-
ment, in addition to the kits provided, is 33.1 lbs.
(15kg). Do not exceed the maximum permitted
load in the luggage compartment. When accessing
the rear luggage compartment, do not come into
contact with engine, or other components, that
may be hot and could burn you if touched.
(Continued)
WARNING! (Continued)
•Access the luggage compartment only with the
vehicle stationary. Before exiting the vehicle, you
should always place the vehicle into FIRST gear
or REVERSE, apply the parking brake, and re-
move the key from the ignition. Never leave the
key fob in the vehicle or in a location accessible to
children.
• The decklid may drop suddenly, causing serious
injury, if the supporting rod is not positioned
correctly.
• The decklid must always be closed properly, and
the lock engaged, while the vehicle is in motions.
To Close The Decklid
1. Hold the decklid up with one hand and use the other to remove rod from housing and reinsert it in its
locking device.
2. Lower the decklid approximately 7.8 inches (20 cm) from the engine compartment and let it drop. Make
sure that the decklid is completely closed and not
only fastened in safety position by trying to open it.
If it is not completely closed, do not push the decklid
down, but raise it and repeat the procedure.
Decklid Prop Rod Slot
52 GETTING TO KNOW YOUR VEHICLE
Page 57 of 292
WARNING!
Do not allow children to have access to rear storage
compartment. Always close the decklid when your
vehicle is unattended. Once in the rear storage
compartment, young children may not be able to
escape. If trapped in the rear compartment, children
can die from suffocation or heat stroke.
As a security measure, an internal decklid emergency
release lever is built into the rear compartment storage
latching mechanism. In a event of a person trapped
inside the storage compartment, the decklid can be
simply opened by pulling on the phosphorescent
handle attached to the decklid latching mechanism.
WARNING!
• The maximum load limit for the luggage compart-
ment, in addition to the kits provided, is 33.1 lbs.
(15kg). Do not exceed the maximum permitted
load in the luggage compartment. When accessing
the rear luggage compartment, do not come into
contact with engine, or other components, that
may be hot and could burn you if touched.
(Continued)
Rear Compartment Light
3
GETTING TO KNOW YOUR VEHICLE 55
Page 61 of 292

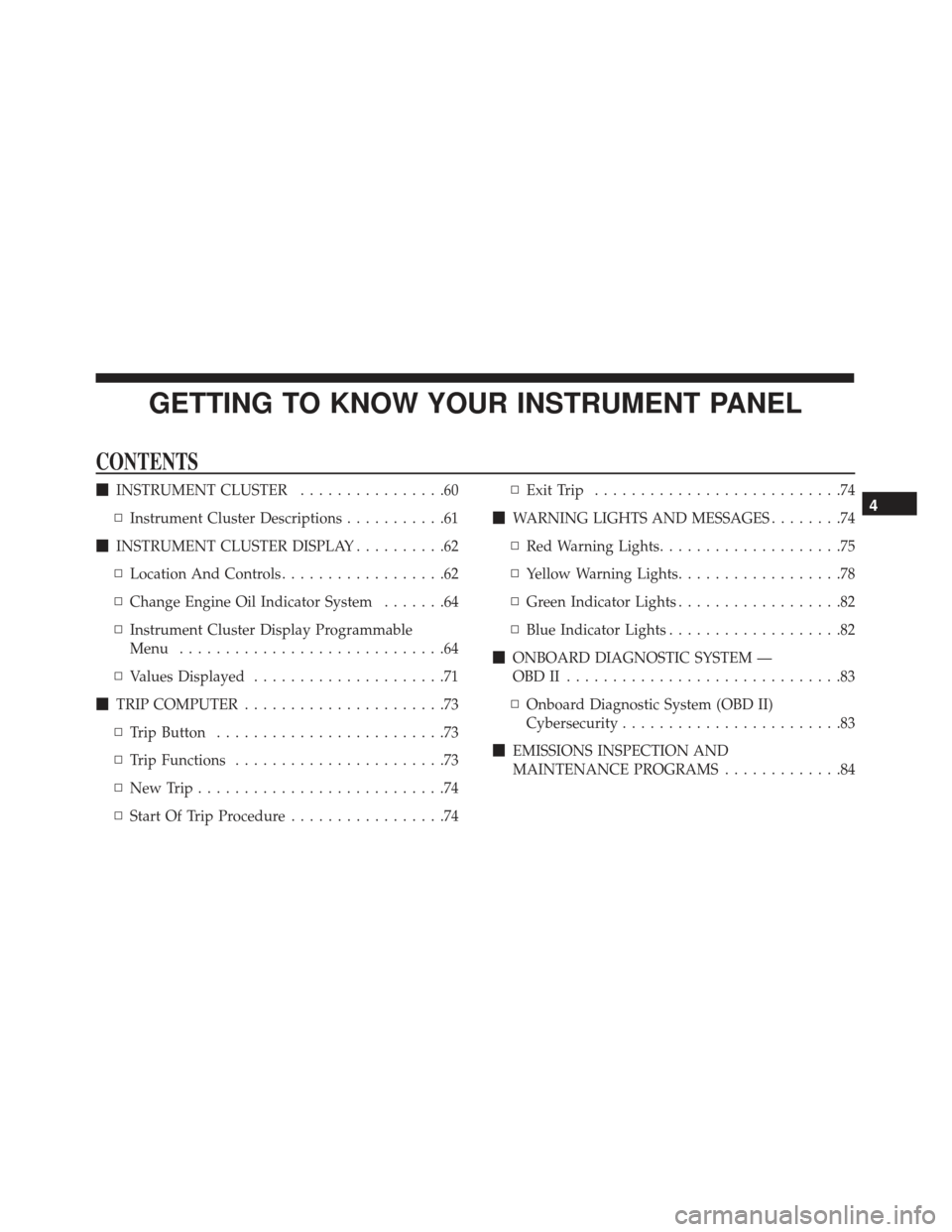

GETTING TO KNOW YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT CLUSTER ................60
▫ Instrument Cluster Descriptions ...........61
INSTRUMENT CLUSTER DISPLAY ..........62
▫ Location And Controls ..................62
▫ Change Engine Oil Indicator System .......64
▫ Instrument Cluster Display Programmable
Menu .............................64
▫ Values Displayed .....................71
TRIP COMPUTER ......................73
▫ Trip Button .........................73
▫ Trip Functions .......................73
▫ NewTrip...........................74
▫ Start Of Trip Procedure .................74 ▫
Exit Trip ...........................74
WARNING LIGHTS AND MESSAGES ........74
▫ Red Warning Lights ....................75
▫ Yellow Warning Lights ..................78
▫ Green Indicator Lights ..................82
▫ Blue Indicator Lights ...................82
ONBOARD DIAGNOSTIC SYSTEM —
OBDII ..............................83
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ........................83
EMISSIONS INSPECTION AND
MAINTENANCE PROGRAMS .............844
