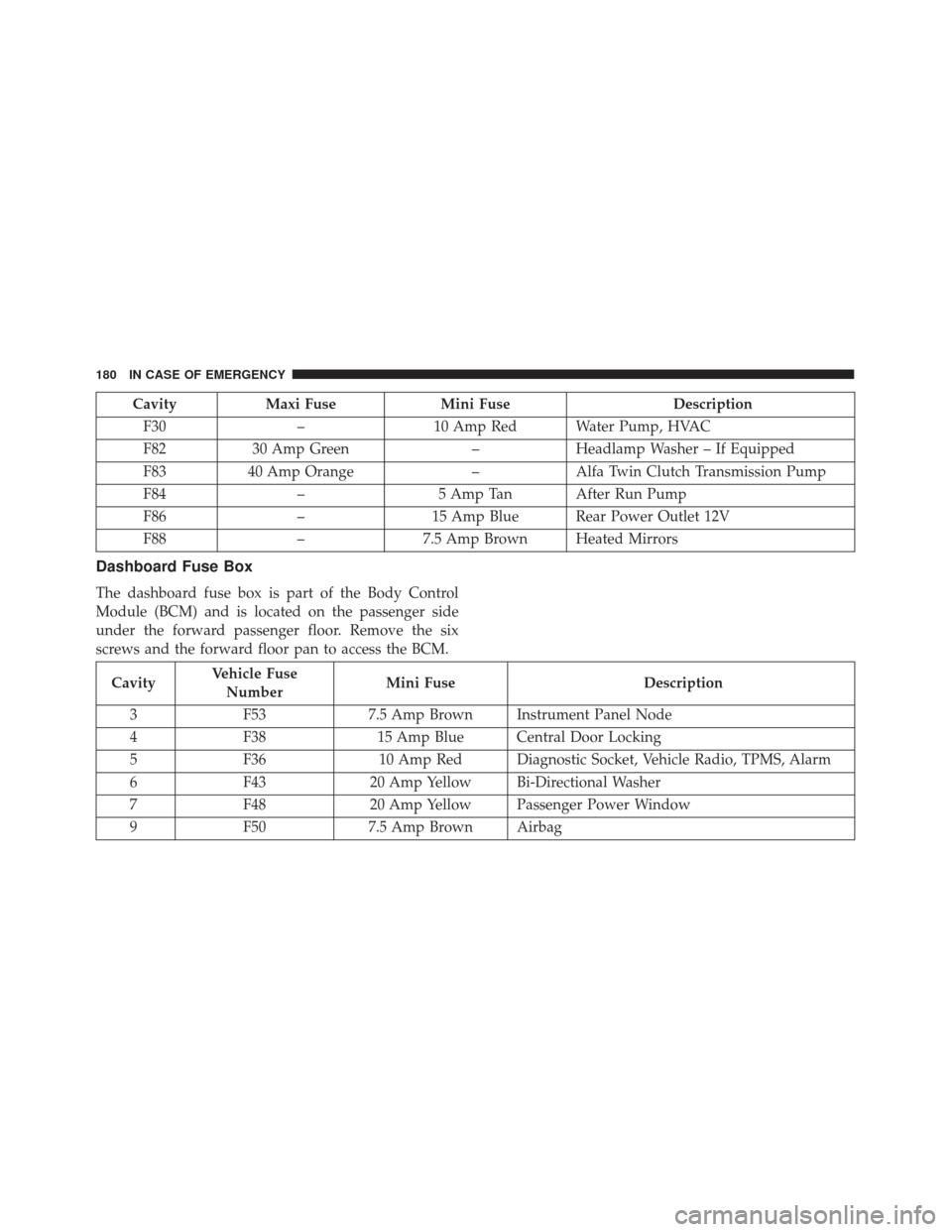

CavityMaxi Fuse Mini Fuse Description
F30 –10 Amp Red Water Pump, HVAC
F82 30 Amp Green –Headlamp Washer – If Equipped
F83 40 Amp Orange –Alfa Twin Clutch Transmission Pump
F84 –5 Amp Tan After Run Pump
F86 –15 Amp Blue Rear Power Outlet 12V
F88 –7.5 Amp Brown Heated Mirrors
Dashboard Fuse Box
The dashboard fuse box is part of the Body Control
Module (BCM) and is located on the passenger side
under the forward passenger floor. Remove the six
screws and the forward floor pan to access the BCM.
CavityVehicle Fuse
Number Mini Fuse
Description
3 F53 7.5 Amp Brown Instrument Panel Node
4 F38 15 Amp Blue Central Door Locking
5 F36 10 Amp Red Diagnostic Socket, Vehicle Radio, TPMS, Alarm
6 F43 20 Amp Yellow Bi-Directional Washer
7 F48 20 Amp Yellow Passenger Power Window
9 F50 7.5 Amp Brown Airbag
180 IN CASE OF EMERGENCY

WARNING!(Continued)
Failure to follow this warning can result in injuries
that are serious or fatal to you, your passengers, and
others around you.

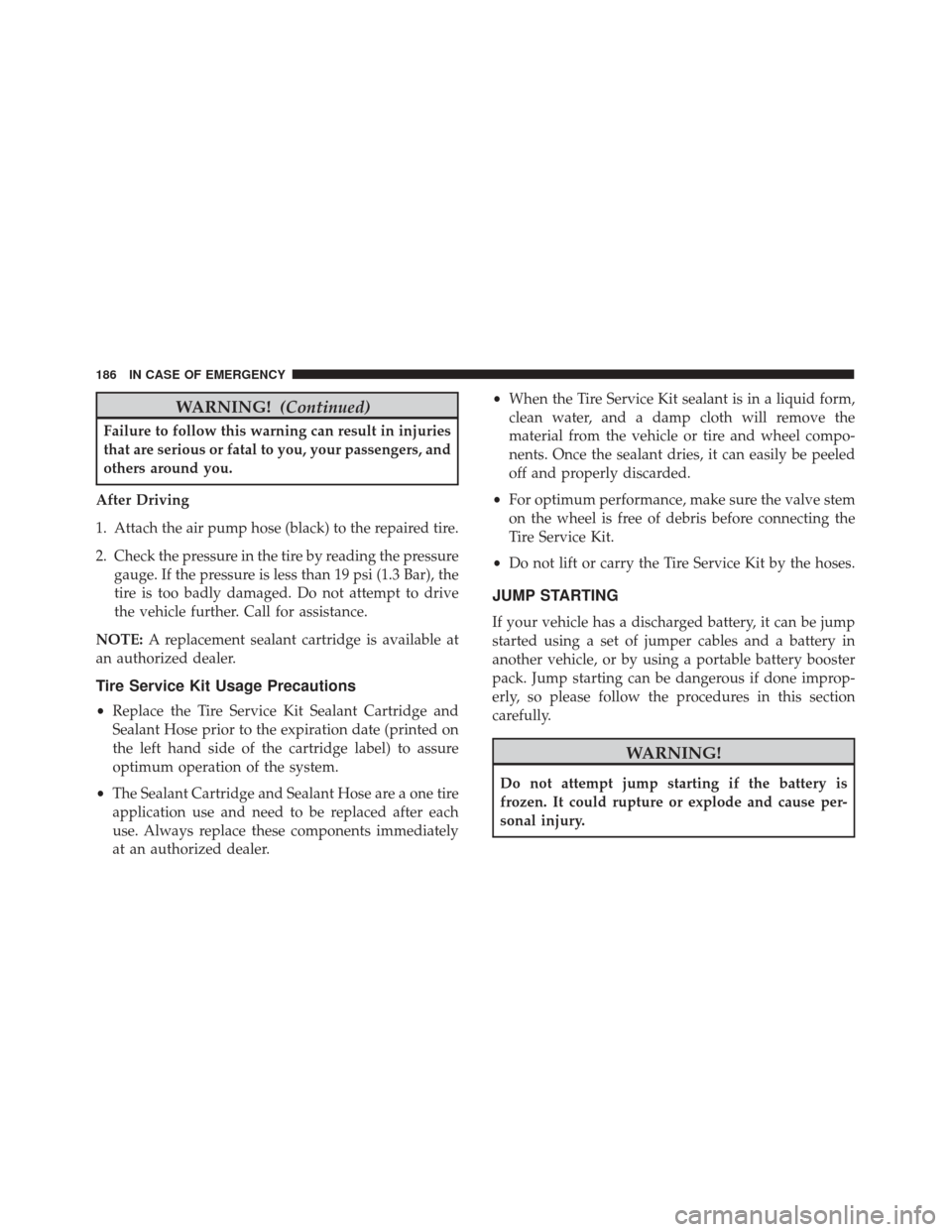

After Driving
1. Attach the air pump hose (black) to the repaired tire.
2. Check the pressure in the tire by reading the pressure gauge. If the pressure is less than 19 psi (1.3 Bar), the
tire is too badly damaged. Do not attempt to drive
the vehicle further. Call for assistance.
NOTE: A replacement sealant cartridge is available at
an authorized dealer.
Tire Service Kit Usage Precautions
• Replace the Tire Service Kit Sealant Cartridge and
Sealant Hose prior to the expiration date (printed on
the left hand side of the cartridge label) to assure
optimum operation of the system.
• The Sealant Cartridge and Sealant Hose are a one tire
application use and need to be replaced after each
use. Always replace these components immediately
at an authorized dealer. •
When the Tire Service Kit sealant is in a liquid form,
clean water, and a damp cloth will remove the
material from the vehicle or tire and wheel compo-
nents. Once the sealant dries, it can easily be peeled
off and properly discarded.
• For optimum performance, make sure the valve stem
on the wheel is free of debris before connecting the
Tire Service Kit.
• Do not lift or carry the Tire Service Kit by the hoses.
JUMP STARTING
If your vehicle has a discharged battery, it can be jump
started using a set of jumper cables and a battery in
another vehicle, or by using a portable battery booster
pack. Jump starting can be dangerous if done improp-
erly, so please follow the procedures in this section
carefully.
WARNING!
Do not attempt jump starting if the battery is
frozen. It could rupture or explode and cause per-
sonal injury.
186 IN CASE OF EMERGENCY
