INFORMATION SHOWN
ON THE STANDARD PAGE 1) Time2) Outside temperature3) Failure/information symbol4) Trip odometer5) Total odometer6) Q-Select gearbox status 7) Engine oil temperature8) Coolant temperature 9) Fuel level gauge
The central area of the display indicating the
engine oil and coolant temperatures and the
fuel level remains active until another function
is activated or other information on the vehicle
status needs to be displayed.
RECONFIGURABLE
MULTIFUNCTION
DISPLAY The “reconfigurable multifunction display” shows
useful information while driving, in particular:With the key turned to MAR the following
information is immediately displayed for 2
seconds:
- Clock
- Outside air temperature
- Date
- Total odometer
- Trip odometer
- Q-Select gearbox status.
After two seconds the display will automatically
return to the standard page.

47
3
INSTRUMENTS AND CONTROLS

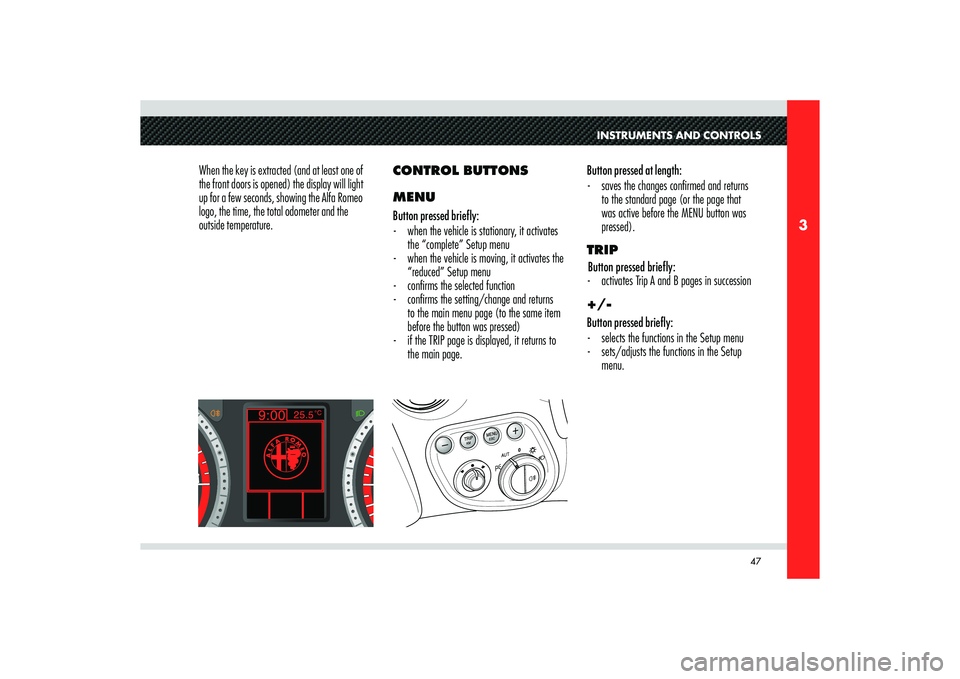

When the key is extracted (and at least one of
the front doors is opened) the display will light
up for a few seconds, showing the Alfa Romeo
logo, the time, the total odometer and the
outside temperature. Button pressed at length:
- saves the changes confi rmed and returns
to the standard page (or the page that
was active before the MENU button was
pressed).
TRIP
Button pressed brie y:
- activates Trip A and B pages in succession
+/-
Button pressed briefly:
- selects the functions in the Setup menu
- sets/adjusts the functions in the Setup
menu. CONTROL BUTTONS
MENU
Button pressed briefly:
- when the vehicle is stationary, it activates
the “complete” Setup menu
- when the vehicle is moving, it activates the
“reduced” Setup menu
- confi rms the selected function
- confi rms the setting/change and returns
to the main menu page (to the same item
before the button was pressed)
- if the TRIP page is displayed, it returns to
the main page.
