216
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

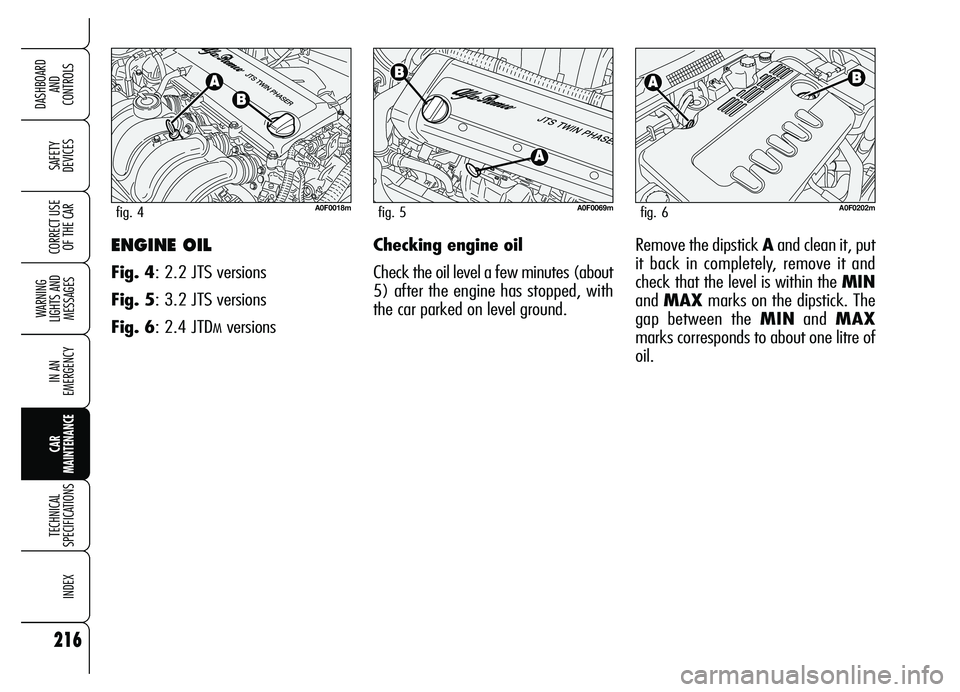

OF THE CARENGINE OIL
Fig. 4: 2.2 JTS versions
Fig. 5: 3.2 JTS versions
Fig. 6: 2.4 JTD
MversionsChecking engine oil
Check the oil level a few minutes (about
5) after the engine has stopped, with
the car parked on level ground.
A0F0018mfig. 4A0F0069mfig. 5A0F0202mfig. 6
Remove the dipstick Aand clean it, put
it back in completely, remove it and
check that the level is within the MIN
and MAXmarks on the dipstick. The
gap between the MINand MAX
marks corresponds to about one litre of
oil.

217
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

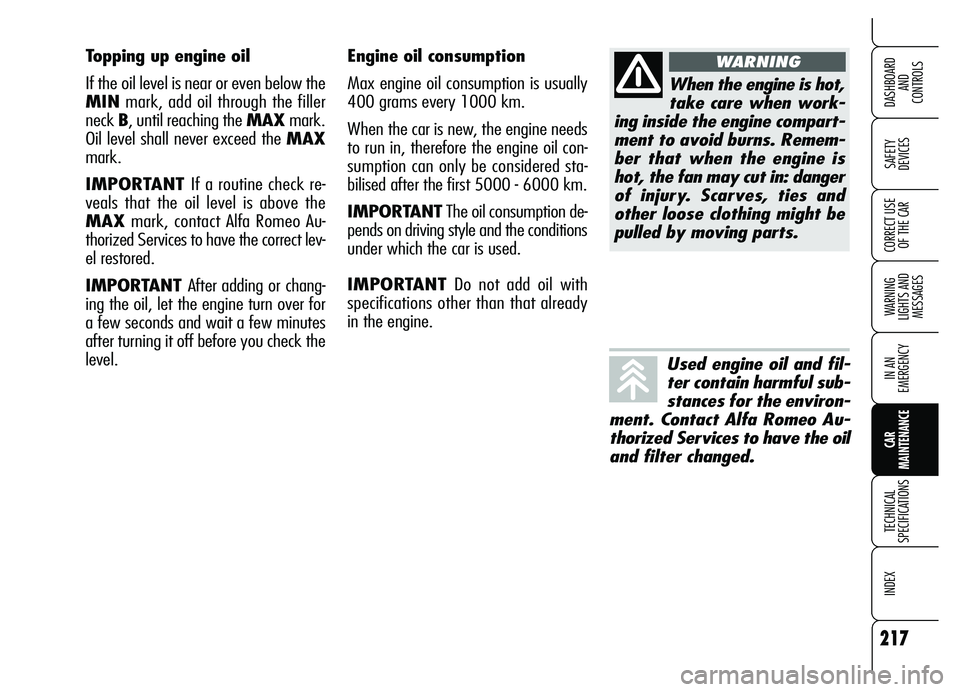

Engine oil consumption
Max engine oil consumption is usually
400 grams every 1000 km.
When the car is new, the engine needs
to run in, therefore the engine oil con-
sumption can only be considered sta-
bilised after the first 5000 - 6000 km.
IMPORTANTThe oil consumption de-
pends on driving style and the conditions
under which the car is used.
IMPORTANTDo not add oil with
specifications other than that already
in the engine. Topping up engine oil
If the oil level is near or even below the
MINmark, add oil through the filler
neck B, until reaching the MAXmark.
Oil level shall never exceed the MAX
mark.
IMPORTANT If a routine check re-
veals that the oil level is above the
MAXmark, contact Alfa Romeo Au-
thorized Services to have the correct lev-
el restored.
IMPORTANT After adding or chang-
ing the oil, let the engine turn over for
a few seconds and wait a few minutes
after turning it off before you check the
level.
When the engine is hot,
take care when work-
ing inside the engine compart-
ment to avoid burns. Remem-
ber that when the engine is
hot, the fan may cut in: danger
of injury. Scarves, ties and
other loose clothing might be
pulled by moving parts.
WARNING
Used engine oil and fil-
ter contain harmful sub-
stances for the environ-
ment. Contact Alfa Romeo Au-
thorized Services to have the oil
and filter changed.

218
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
The cooling system uses
PARAFLU UP that shall
be used for topping up
and that cannot be mixed with
other types of fluids. Should
other fluids be added, do not
start the engine and contact Al-
fa Romeo Authorized Services
as soon as possible.
Do not remove the
reservoir cap when the
engine is hot: you risk scalding
yourself.
WARNING
The cooling system is
pressurised. If neces-
sary, replace the cap only with
another genuine one, other-
wise system efficiency could
be compromised.
WARNING
ENGINE COOLANT FLUID
fig. 7
If the level is low, pour slowly a mixture
of 50% distilled water and 50%
PARAFLU UPthrough the filler neck
A.
A 50% mixture of distilled water and
PARAFLU UP gives freeze protection
to –35°C.
A0F0017mfig. 7

219
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

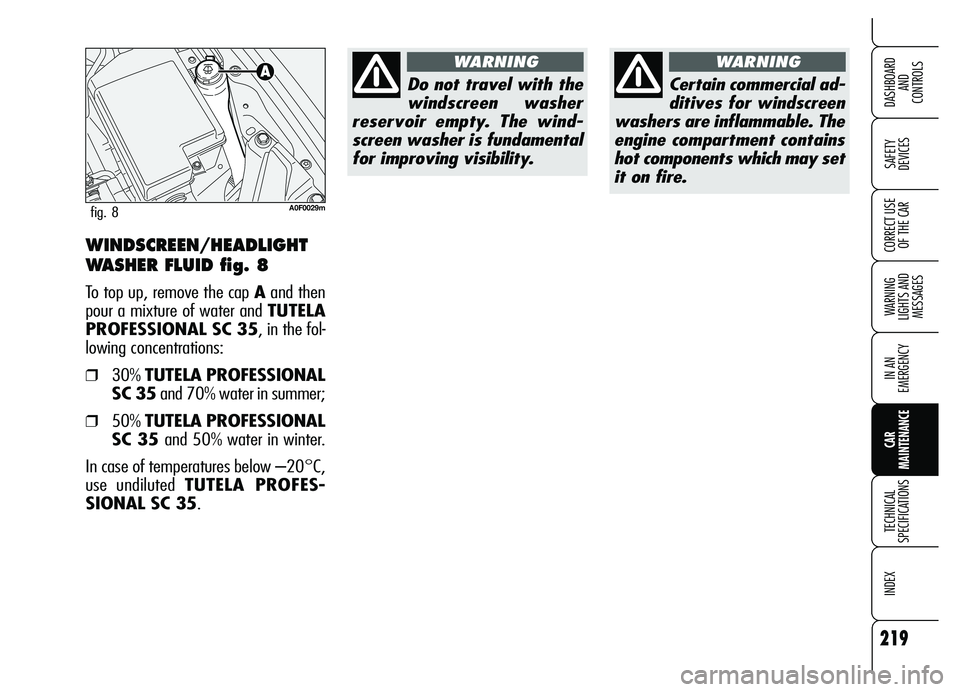

OF THE CARWINDSCREEN/HEADLIGHT
WASHER FLUID fig. 8
To top up, remove the cap Aand then
pour a mixture of water and TUTELA
PROFESSIONAL SC 35, in the fol-
lowing concentrations:
❒30% TUTELA PROFESSIONAL
SC 35and 70% water in summer;
❒50% TUTELA PROFESSIONAL
SC 35 and 50% water in winter.
In case of temperatures below –20°C,
use undiluted TUTELA PROFES-
SIONAL SC 35.
A0F0029mfig. 8
Do not travel with the
windscreen washer
reservoir empty. The wind-
screen washer is fundamental
for improving visibility.
WARNING
Certain commercial ad-
ditives for windscreen
washers are inflammable. The
engine compartment contains
hot components which may set
it on fire.
WARNING

220
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARPOWER STEERING FLUID
fig. 9-10
Check that the fluid level in the reservoir
is at maximum level: this operation shall
be carried out with the car on level sur-
face, engine not running and cold.
Check that the fluid level is at the MAX
mark on the reservoir or at the top mark
(maximum level) shown on the dipstick
under the reservoir cap.
A0F0027mfig. 9 2.2 JTS - 2.4 JTDMversionsA0F0234mfig. 10 3.2 JTS versions
If the fluid level in the reservoir is below
the specified level, top up as follows:
❒start the engine and wait until the
fluid level in the reservoir has stabi-
lized;
❒with the engine started, turn re-
peatedly the steering wheel fully
rightwards and leftwards;
❒top up until reaching the MAX
mark then refit the cap.
Do not allow the pow-
er steering fluid to
touch the hot parts of the en-
gine: it is inflammable.
WARNING
IMPORTANTFor this operation it is
however recommended to always con-
tact Alfa Romeo Authorized Services.

221
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

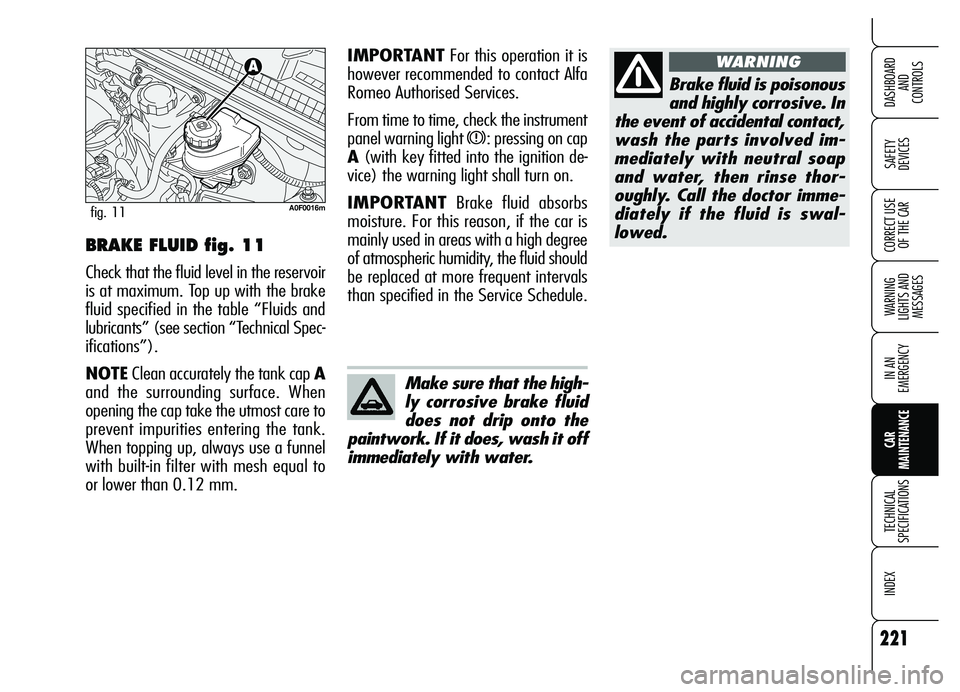

Brake fluid is poisonous
and highly corrosive. In
the event of accidental contact,
wash the parts involved im-
mediately with neutral soap
and water, then rinse thor-
oughly. Call the doctor imme-
diately if the fluid is swal-
lowed.
WARNING
BRAKE FLUID fig. 11
Check that the fluid level in the reservoir
is at maximum. Top up with the brake
fluid specified in the table “Fluids and
lubricants” (see section “Technical Spec-
ifications”).
NOTEClean accurately the tank cap A
and the surrounding surface. When
opening the cap take the utmost care to
prevent impurities entering the tank.
When topping up, always use a funnel
with built-in filter with mesh equal to
or lower than 0.12 mm.
A0F0016mfig. 11
Make sure that the high-
ly corrosive brake fluid
does not drip onto the
paintwork. If it does, wash it off
immediately with water.
IMPORTANTFor this operation it is
however recommended to contact Alfa
Romeo Authorised Services.
From time to time, check the instrument
panel warning light
x: pressing on cap
A(with key fitted into the ignition de-
vice) the warning light shall turn on.
IMPORTANTBrake fluid absorbs
moisture. For this reason, if the car is
mainly used in areas with a high degree
of atmospheric humidity, the fluid should
be replaced at more frequent intervals
than specified in the Service Schedule.

222
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

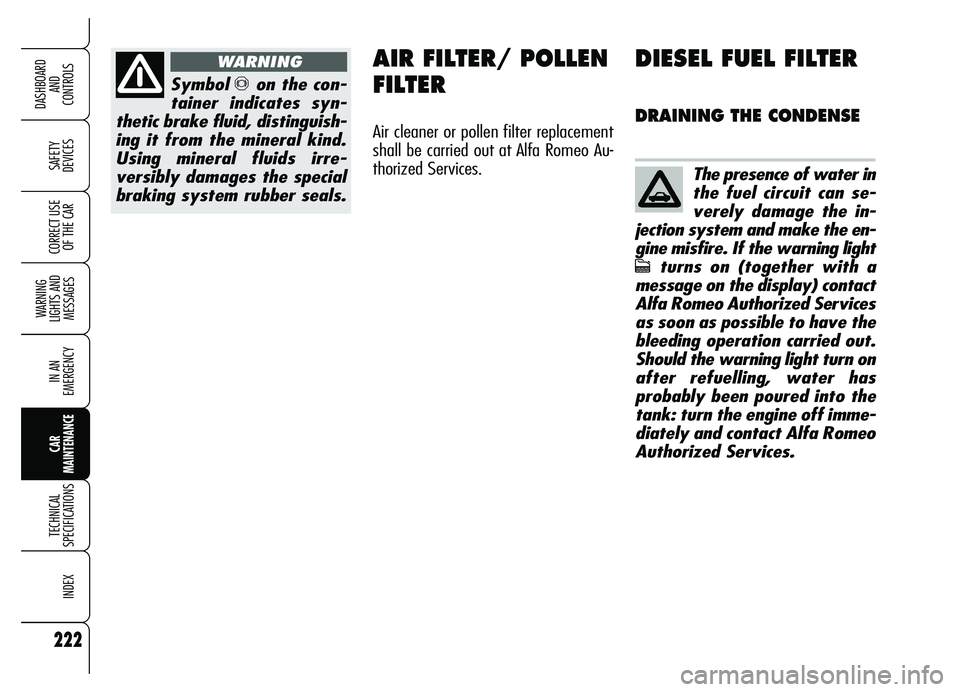

Symbol πon the con-
tainer indicates syn-
thetic brake fluid, distinguish-
ing it from the mineral kind.
Using mineral fluids irre-
versibly damages the special
braking system rubber seals.
WARNINGAIR FILTER/ POLLEN
FILTER
Air cleaner or pollen filter replacement
shall be carried out at Alfa Romeo Au-
thorized Services.
DIESEL FUEL FILTER
DRAINING THE CONDENSE
The presence of water in
the fuel circuit can se-
verely damage the in-
jection system and make the en-
gine misfire. If the warning light
cturns on (together with a
message on the display) contact
Alfa Romeo Authorized Services
as soon as possible to have the
bleeding operation carried out.
Should the warning light turn on
after refuelling, water has
probably been poured into the
tank: turn the engine off imme-
diately and contact Alfa Romeo
Authorized Services.

223
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Bright white colourTop up electrolyte Contact Alfa Romeo
Authorized Services
Dark colour withoutLow charge level Charge the battery
green area in the centre(advisable to contact Alfa
Romeo Authorized Services)
Dark colour withElectrolyte level and charge No action
green area in the centresufficient
BATTERY
The battery is of the “Limited mainte-
nance” type: under normal conditions
of use the electrolyte does not need top-
ping up with distilled water. Contact Al-
fa Romeo Authorized Services to have
the battery checked/replaced.
CHECKING THE CHARGE
fig. 12
The battery charge may be checked
through the indicator A(where re-
quired) set on the battery cover and act-
ing according to the colour the indica-
tor shows. Should the battery be not fit-
ted with battery charge inspection de-
vice (optical electrolyte indicator), in-
spection operations shall be carried out
by skilled personnel only.
Refer to the table below.
A0F0127mfig. 12
After connecting/discon-
necting the battery, wait
for 3 minutes at least be-
fore fitting the electronic key in-
to the ignition device in order to
allow the climate control system
control unit to reset the positions
of the electric actuators that ad-
just air temperature and distrib-
ution.
IMPORTANT The charge in the bat-
tery should be checked at the start of
winter to limit the risk of electrolyte
freezing. This check should be carried
out more frequently if the car is used
mainly for short trips, or if it is fitted with
accessories that permanently absorb
electricity also with the ignition key re-
moved, especially in the case of after
market accessories.

224
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

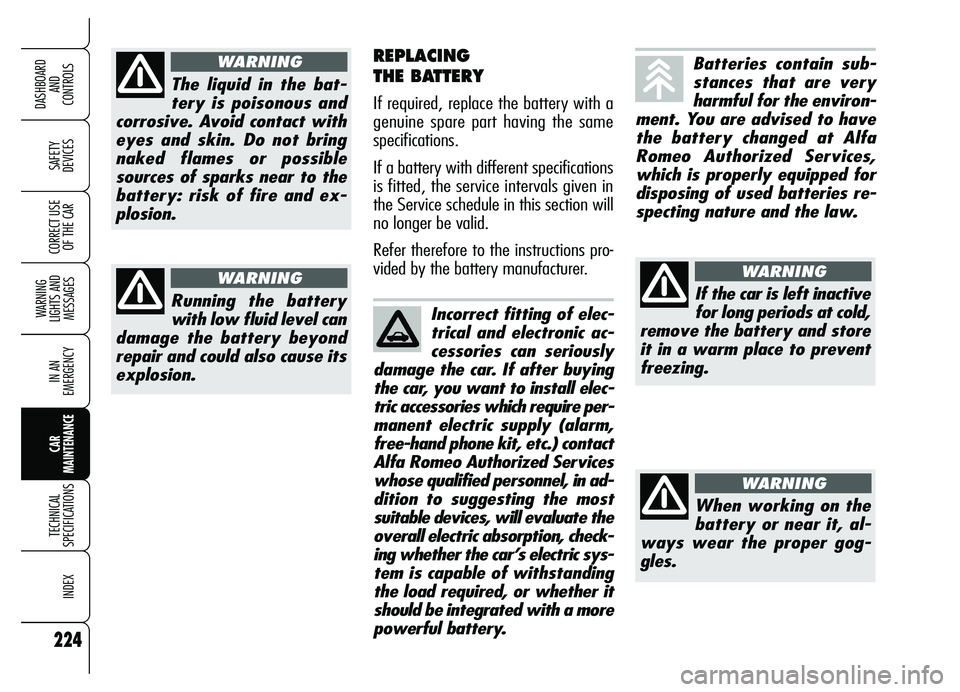

REPLACING
THE BATTERY
If required, replace the battery with a
genuine spare part having the same
specifications.
If a battery with different specifications
is fitted, the service intervals given in
the Service schedule in this section will
no longer be valid.
Refer therefore to the instructions pro-
vided by the battery manufacturer.
Incorrect fitting of elec-
trical and electronic ac-
cessories can seriously
damage the car. If after buying
the car, you want to install elec-
tric accessories which require per-
manent electric supply (alarm,
free-hand phone kit, etc.) contact
Alfa Romeo Authorized Services
whose qualified personnel, in ad-
dition to suggesting the most
suitable devices, will evaluate the
overall electric absorption, check-
ing whether the car’s electric sys-
tem is capable of withstanding
the load required, or whether it
should be integrated with a more
powerful battery.
If the car is left inactive
for long periods at cold,
remove the battery and store
it in a warm place to prevent
freezing.
WARNING
When working on the
battery or near it, al-
ways wear the proper gog-
gles.
WARNING
Batteries contain sub-
stances that are very
harmful for the environ-
ment. You are advised to have
the battery changed at Alfa
Romeo Authorized Services,
which is properly equipped for
disposing of used batteries re-
specting nature and the law.
The liquid in the bat-
tery is poisonous and
corrosive. Avoid contact with
eyes and skin. Do not bring
naked flames or possible
sources of sparks near to the
battery: risk of fire and ex-
plosion.
WARNING
Running the battery
with low fluid level can
damage the battery beyond
repair and could also cause its
explosion.
WARNING

225
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

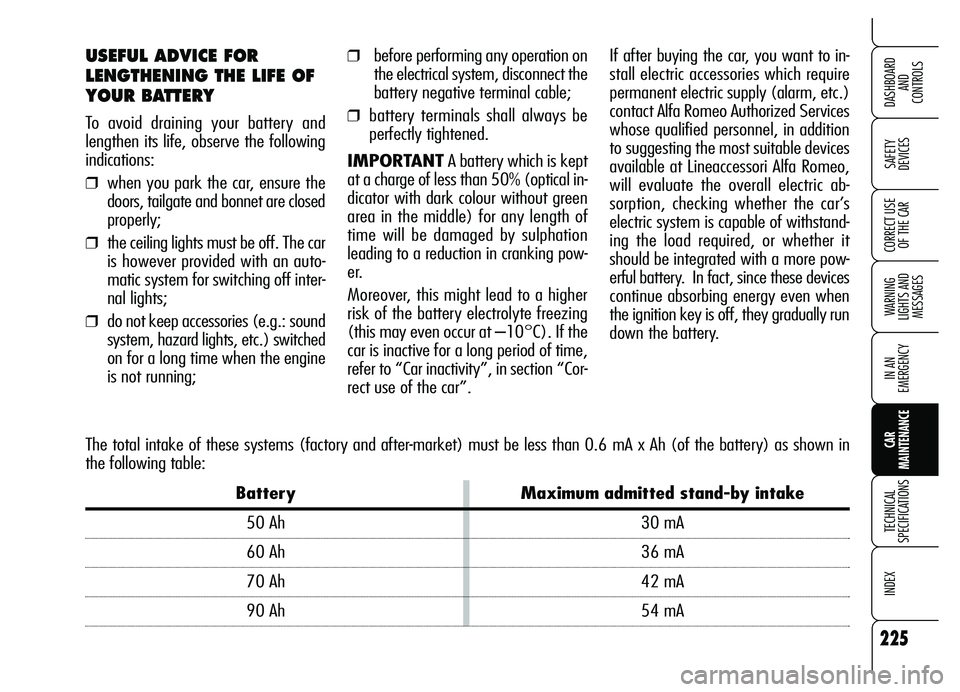

USEFUL ADVICE FOR
LENGTHENING THE LIFE OF
YOUR BATTERY
To avoid draining your battery and
lengthen its life, observe the following
indications:
❒when you park the car, ensure the
doors, tailgate and bonnet are closed
properly;
❒the ceiling lights must be off. The car
is however provided with an auto-
matic system for switching off inter-
nal lights;
❒do not keep accessories (e.g.: sound
system, hazard lights, etc.) switched
on for a long time when the engine
is not running;
❒before performing any operation on
the electrical system, disconnect the
battery negative terminal cable;
❒battery terminals shall always be
perfectly tightened.
IMPORTANTA battery which is kept
at a charge of less than 50% (optical in-
dicator with dark colour without green
area in the middle) for any length of
time will be damaged by sulphation
leading to a reduction in cranking pow-
er.
Moreover, this might lead to a higher
risk of the battery electrolyte freezing
(this may even occur at –10°C). If the
car is inactive for a long period of time,
refer to “Car inactivity”, in section “Cor-
rect use of the car”. If after buying the car, you want to in-
stall electric accessories which require
permanent electric supply (alarm, etc.)
contact Alfa Romeo Authorized Services
whose qualified personnel, in addition
to suggesting the most suitable devices
available at Lineaccessori Alfa Romeo,
will evaluate the overall electric ab-
sorption, checking whether the car’s
electric system is capable of withstand-
ing the load required, or whether it
should be integrated with a more pow-
erful battery. In fact, since these devices
continue absorbing energy even when
the ignition key is off, they gradually run
down the battery.
The total intake of these systems (factory and after-market) must be less than 0.6 mA x Ah (of the battery) as shown in
the following table:
Battery Maximum admitted stand-by intake
50 Ah 30 mA
60 Ah 36 mA
70 Ah 42 mA
90 Ah 54 mA
