refuelling Alfa Romeo Brera/Spider 2007 Owner handbook (in English)
[x] Cancel search | Manufacturer: ALFA ROMEO, Model Year: 2007, Model line: Brera/Spider, Model: Alfa Romeo Brera/Spider 2007Pages: 271, PDF Size: 6.04 MB
Page 4 of 271
MUST BE READ!
REFUELLING
Petrol engines:only refuel with unleaded petrol with octane rating (RON) not less than 95.
Diesel engines: only refuel with diesel fuel conforming to the European specification EN590. The use of
other products or mixtures may irreparably damage the engine with invalidation of the warranty due to the
damage caused.
K
ENGINE STARTING
Petrol engines: make sure that the handbrake is engaged; set the gearshift lever to neutral; fit the electronic key in-
to the ignition switch to the stop limit; fully depress the clutch or the brake pedal without pressing the accelerator; press
button START/STOPand release it as soon as the engine has started.
Diesel engines:make sure that the handbrake is engaged; set the gearshift lever to neutral; fit the electronic key in-
to the ignition switch to the stop limit; wait for the
mwarning light to go off; fully depress the clutch or the brake ped-
al without pressing the accelerator; press buttonSTART/STOPand release it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
While working, the catalyst develops a very high temperature. Do not park the car over grass, dry leaves, pine
needles or any other inflammable materials: risk of fire.
RESPECTING THE ENVIRONMENT
A system for continuously monitoring emission system components to ensure greater environmental protec-
tion is fitted in your car.
Page 113 of 271
111
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
DIESEL ENGINES
If the outside temperature is very low,
the diesel thickens due to the formation
of paraffin and could clog the diesel fu-
el filter.
In order to avoid these problems, dif-
ferent types of diesel are distributed ac-
cording to the season: summer type,
winter type arctic type (mountains/cold
areas).
If refuelling with diesel fuel not suitable
for the current temperature, mix diesel
fuel with TUTELA DIESEL ARTad-
ditive in the proportions stated on the
can, putting first the antifreeze in the
tank and then the diesel fuel.
If driving or parking the vehicle for a long
period in cold areas/mountains, refuel
with the diesel fuel available at local fill-
ing stations. In this situation you are al-
so recommended to have in the tank an
amount of fuel 50% higher than usable
capacity.
AT THE FILLING
STATION
PETROL ENGINES
Use only unleaded petrol. To prevent er-
rors, the diameter of the fuel tank filler
is too small to introduce a lead petrol
pump filler. Use petrol with a rated oc-
tane number (R.O.N.) not lower than
95.
IMPORTANTAn inefficient catalyst
leads to harmful exhaust emissions, thus
contributing to air pollution.
IMPORTANT Never use leaded
petrol, even in small amount or in an
emergency, as this would damage the
catalyst beyond repair.
The car must only be
filled with diesel fuel for
motor vehicles, in com-
pliance with European Standard
EN590. The use of other prod-
ucts or mixtures may irrepara-
bly damage the engine with in-
validation of the warranty due
to the damage caused. In the
event of accidentally filling with
another type of fuel, do not
start the engine and empty the
tank. If the engine has been run
even for only a very short time,
in addition to the tank, it is al-
so necessary to drain out the
whole fuel circuit.
REFUELLING
To guarantee full tank filling, carry out
two refuelling operations after the first
click of the fuel delivery gun. Avoid fur-
ther topping up operations that could
cause damages to the fuel system.
Page 114 of 271
112
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAREMERGENCY OPENING OF
THE FUEL FILLER CAP
In case of failure, the fuel filler cap can
be opened by pulling string set on the
right side of the boot fig. 89.
A0F0130mfig. 89
FUEL FILLER CAP
The fuel tank lid can only be opened
with doors unlocked and engine
switched off.
To open the fuel filler cap, operate as
shown by the arrow infig. 87.
The fuel filler cap A-fig. 88 is fitted
with an antiloss device Bwhich fastens
it to the flap Cso it cannot be mislaid.
A0F0159mfig. 87A0F0160mfig. 88
Do not put naked
flames or lighted ciga-
rettes near the fuel filler hole
as there is danger of fire. Do
not bend too close to the hole
either so as not to breathe in
harmful vapours.
WARNING
When refuelling, position the cap on the
device inside the flap as shown in the
figure.
IMPORTANTThe sealing of the tank
may cause light pressurising in the tank.
A little breathing off, while slackening
the cap, is absolutely normal.
Page 164 of 271
INERTIAL FUEL CUT-
OFF SWITCHED ON
The intervention of the inertial
fuel cut-off switch is indicated by a mes-
sage + symbol on the display. Pre-heating glow plugs failure
The warning light (on certain versions
together with the message on the dis-
play) will flash to indicate a failure in the
pre-heating glow plugs system. Contact
Alfa Romeo Authorized Services as soon
as possible to have the failure eliminat-
ed.
WATER IN DIESEL
FUEL FILTER
(diesel versions -
amber)
The warning light turns on glowing
steadily (together with the message on
the display), when travelling to indicate
that there is water in the diesel fuel fil-
ter.
162
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
c
The presence of water in
the fuel circuit may
cause serious damage to
the entire injection system and
cause irregular engine opera-
tion. If the warning light con
the dial turns on (on certain ver-
sions together with the mes-
sage on the display) contact Al-
fa Romeo Authorized Services
as soon as possible to have the
system relieved. If the above
indications come on immediate-
ly after refuelling, water has
probably been poured into the
tank: turn the engine off imme-
diately and contact Alfa Romeo
Authorized Services.
If, after a crash, you
smell fuel or see leaks
from the fuel system, do not
reset the switch to avoid fire
risk.
WARNING
s
Page 224 of 271
222
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Symbol πon the con-
tainer indicates syn-
thetic brake fluid, distinguish-
ing it from the mineral kind.
Using mineral fluids irre-
versibly damages the special
braking system rubber seals.
WARNINGAIR FILTER/ POLLEN
FILTER
Air cleaner or pollen filter replacement
shall be carried out at Alfa Romeo Au-
thorized Services.
DIESEL FUEL FILTER
DRAINING THE CONDENSE
The presence of water in
the fuel circuit can se-
verely damage the in-
jection system and make the en-
gine misfire. If the warning light
cturns on (together with a
message on the display) contact
Alfa Romeo Authorized Services
as soon as possible to have the
bleeding operation carried out.
Should the warning light turn on
after refuelling, water has
probably been poured into the
tank: turn the engine off imme-
diately and contact Alfa Romeo
Authorized Services.
Page 270 of 271

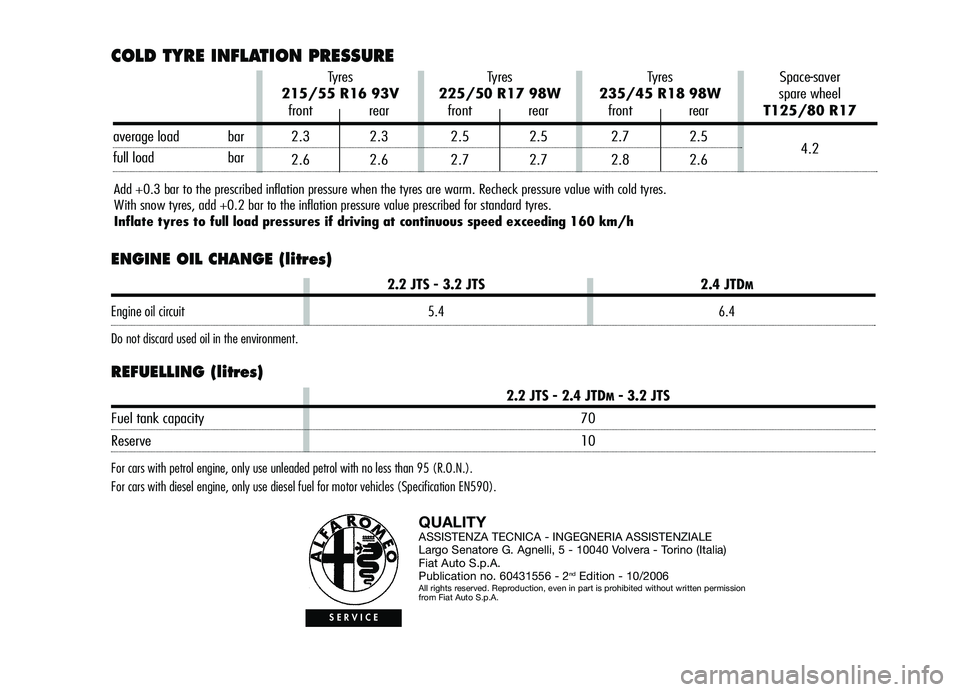

ENGINE OIL CHANGE (litres)
REFUELLING (litres)
QUALITYASSISTENZA TECNICA - INGEGNERIA ASSISTENZIALE
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Fiat Auto S.p.A.
Publication no. 60431556 - 2
ndEdition - 10/2006All rights reserved. Reproduction, even in part is prohibited without written permission
from Fiat Auto S.p.A.
SERVICE
2.2 JTS - 3.2 JTS 2.4 JTDM
Engine oil circuit 5.4 6.4
Do not discard used oil in the environment.
COLD TYRE INFLATION PRESSURE
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
Inflate tyres to full load pressures if driving at continuous speed exceeding 160 km/h
2.2 JTS - 2.4 JTDM- 3.2 JTS
Fuel tank capacity 70
Reserve 10
For cars with petrol engine, only use unleaded petrol with no less than 95 (R.O.N.).
For cars with diesel engine, only use diesel fuel for motor vehicles (Specification EN590).
Tyres
215/55 R16 93V
front rear
2.3 2.3
2.6 2.6Space-saver
spare wheel
T125/80 R17
4.2 Tyres
225/50 R17 98W
front rear
2.5 2.5
2.7 2.7Tyres
235/45 R18 98W
front rear
2.7 2.5
2.8 2.6
average load bar
full load bar
