ASR SYSTEM
(WHEEL ANTISKID
SYSTEM)
(amber)
Fitting the key into the ignition device
the warning light turns on, but it should
go off after few seconds. The warning
light flashes when the system cuts in, to
alert the driver that the system is adapt-
ing to the road surface grip conditions.
ASR deactivation
When the ASR is deactivated manually
(pressing the ASR/VDC button) (see
paragraph “ASR system” in section
“Dashboard and controls”) the led on
the ASR/VDC button will turn on and
the display will show symbol
V.
ASR system failure
In the event of a failure the ASR system
is deactivated automatically and the dis-
play will show symbol
V. In this case
contact Alfa Romeo Authorized Services
as soon as possible.
164
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
á
EXTERNAL LIGHTS
FAILURE (amber)
The display will show message
+ symbol when one of the following
lights is failing:
– sidelights
– direction indicators
– rear fog guards
– number plate lights.
The failure referring to these lights could
be: one or more blown bulbs, a blown
protection fuse or an electric connection
cut-off.
W
HILL HOLDER
FAILURE
(amber)
In the event of a failure to the Hill Hold-
er system, the display will show a mes-
sage + symbol. In this case contact Al-
fa Romeo Authorized Services.
*

187
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

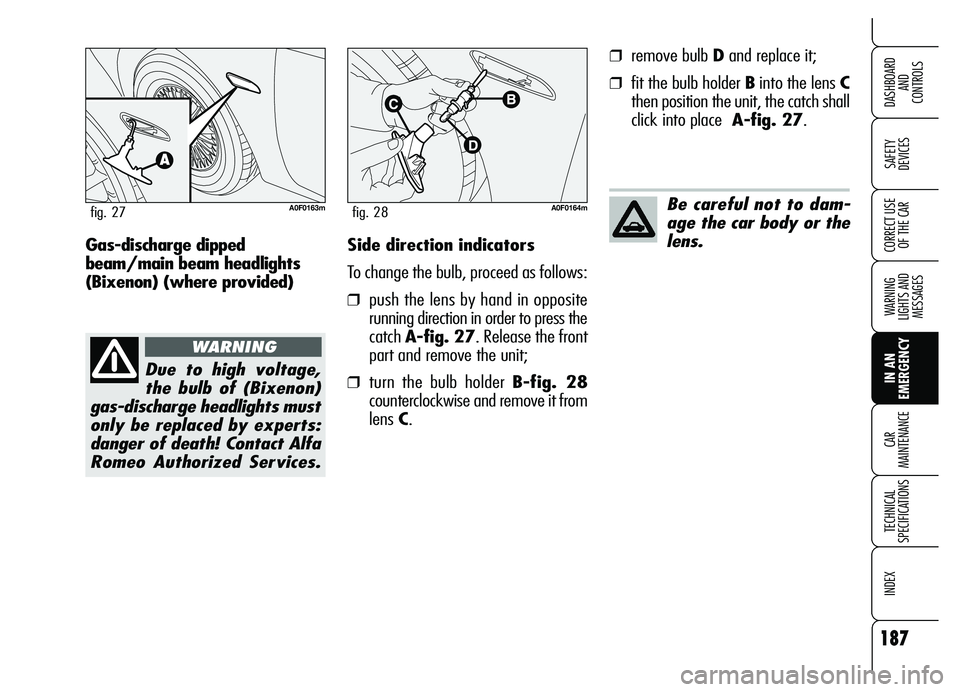

OF THE CARSide direction indicators
To change the bulb, proceed as follows:
❒push the lens by hand in opposite
running direction in order to press the
catch A-fig. 27. Release the front
part and remove the unit;
❒turn the bulb holder B-fig. 28
counterclockwise and remove it from
lens C.
A0F0163mfig. 27A0F0164mfig. 28Be careful not to dam-
age the car body or the
lens.
Due to high voltage,
the bulb of (Bixenon)
gas-discharge headlights must
only be replaced by experts:
danger of death! Contact Alfa
Romeo Authorized Services.
WARNING
Gas-discharge dipped
beam/main beam headlights
(Bixenon) (where provided)
❒remove bulb Dand replace it;
❒fit the bulb holder Binto the lens C
then position the unit, the catch shall
click into place A-fig. 27.

188
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

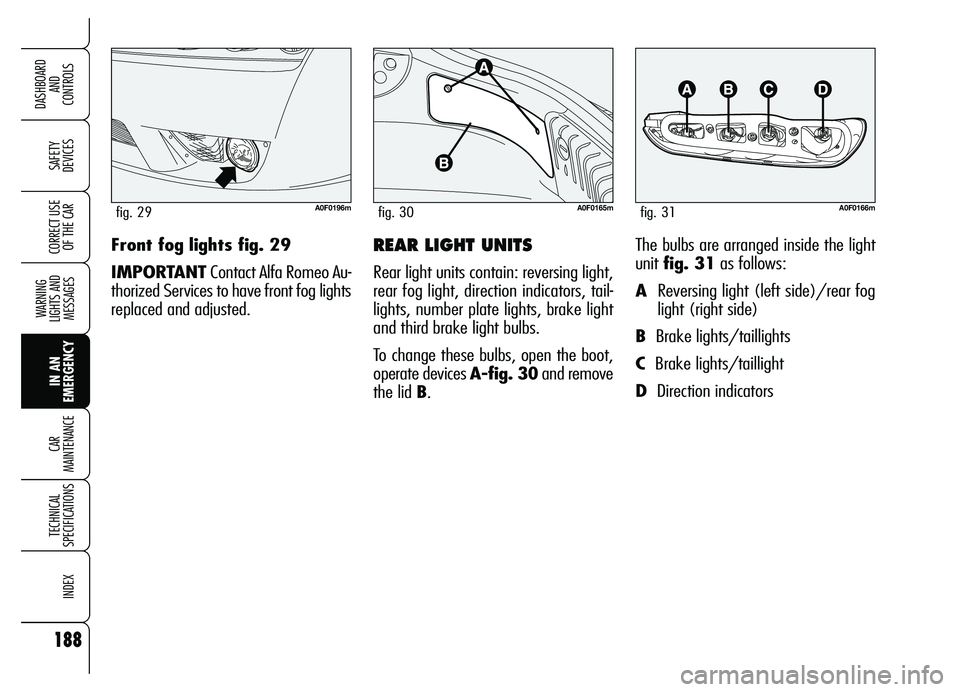

OF THE CARREAR LIGHT UNITS
Rear light units contain: reversing light,
rear fog light, direction indicators, tail-
lights, number plate lights, brake light
and third brake light bulbs.
To change these bulbs, open the boot,
operate devices A-fig. 30and remove
the lid B.
A0F0165mfig. 30A0F0166mfig. 31
The bulbs are arranged inside the light
unit fig. 31as follows:
A Reversing light (left side)/rear fog
light (right side)
B Brake lights/taillights
C Brake lights/taillight
D Direction indicators
A0F0196mfig. 29
Front fog lights fig. 29
IMPORTANTContact Alfa Romeo Au-
thorized Services to have front fog lights
replaced and adjusted.

190
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

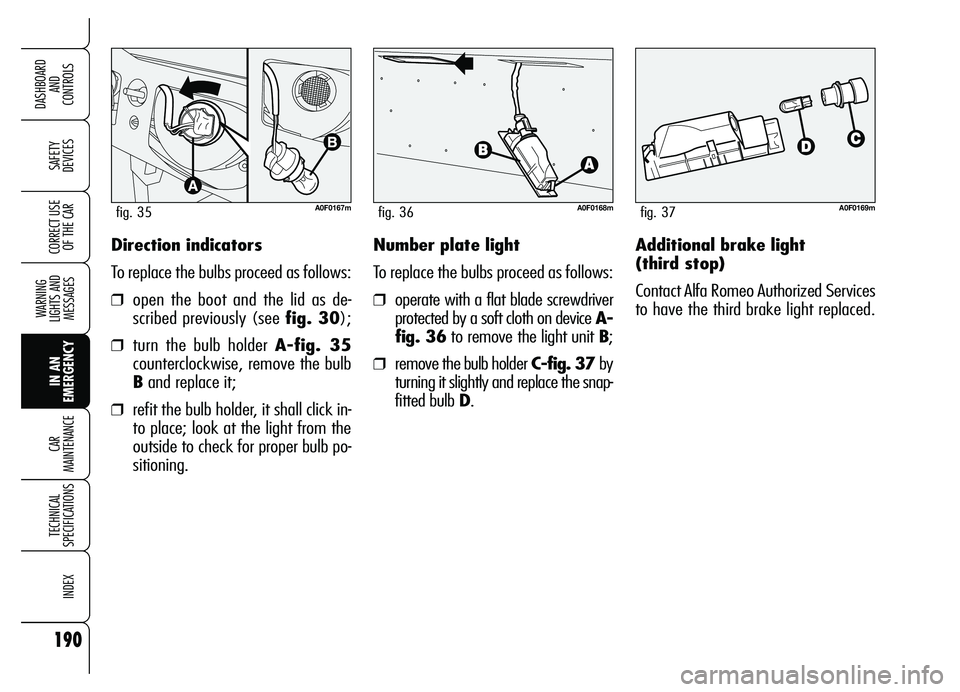

OF THE CARDirection indicators
To replace the bulbs proceed as follows:
❒open the boot and the lid as de-
scribed previously (see fig. 30);
❒turn the bulb holder A-fig. 35
counterclockwise, remove the bulb
Band replace it;
❒refit the bulb holder, it shall click in-
to place; look at the light from the
outside to check for proper bulb po-
sitioning.
A0F0167mfig. 35
Additional brake light
(third stop)
Contact Alfa Romeo Authorized Services
to have the third brake light replaced. Number plate light
To replace the bulbs proceed as follows:
❒operate with a flat blade screwdriver
protected by a soft cloth on device A-
fig. 36to remove the light unit B;
❒remove the bulb holderC-fig. 37 by
turning it slightly and replace the snap-
fitted bulb D.
A0F0168mfig. 36A0F0169mfig. 37

211
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
30 60 90 120 150 180

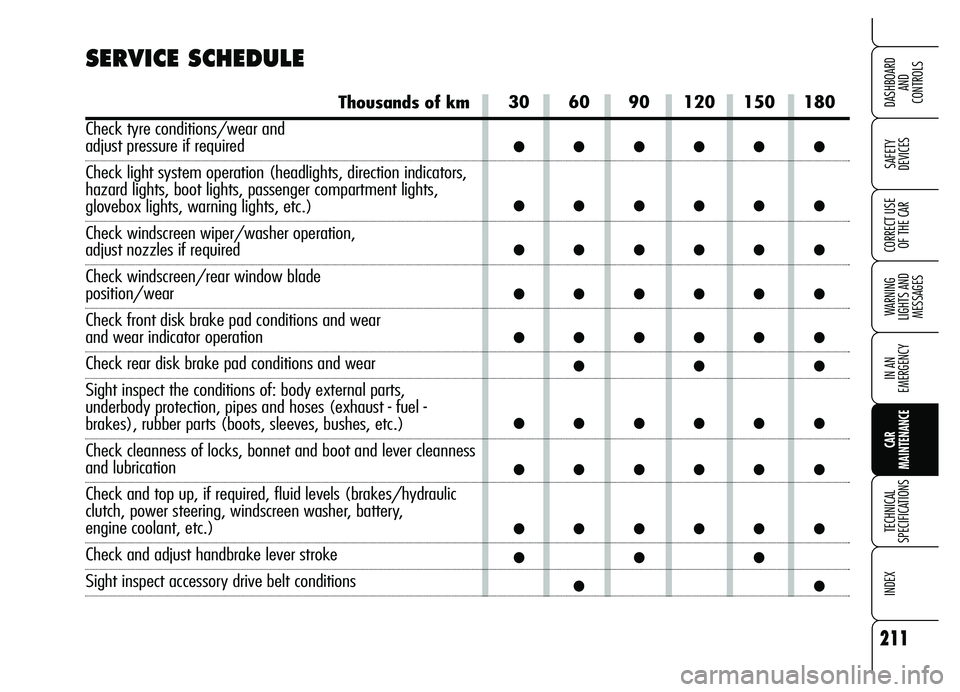

SERVICE SCHEDULE
Thousands of km
Check tyre conditions/wear and
adjust pressure if required
Check light system operation (headlights, direction indicators,
hazard lights, boot lights, passenger compartment lights,
glovebox lights, warning lights, etc.)
Check windscreen wiper/washer operation,
adjust nozzles if required
Check windscreen/rear window blade
position/wear
Check front disk brake pad conditions and wear
and wear indicator operation
Check rear disk brake pad conditions and wear
Sight inspect the conditions of: body external parts,
underbody protection, pipes and hoses (exhaust - fuel -
brakes), rubber parts (boots, sleeves, bushes, etc.)
Check cleanness of locks, bonnet and boot and lever cleanness
and lubrication
Check and top up, if required, fluid levels (brakes/hydraulic
clutch, power steering, windscreen washer, battery,
engine coolant, etc.)
Check and adjust handbrake lever stroke
Sight inspect accessory drive belt conditions

213
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

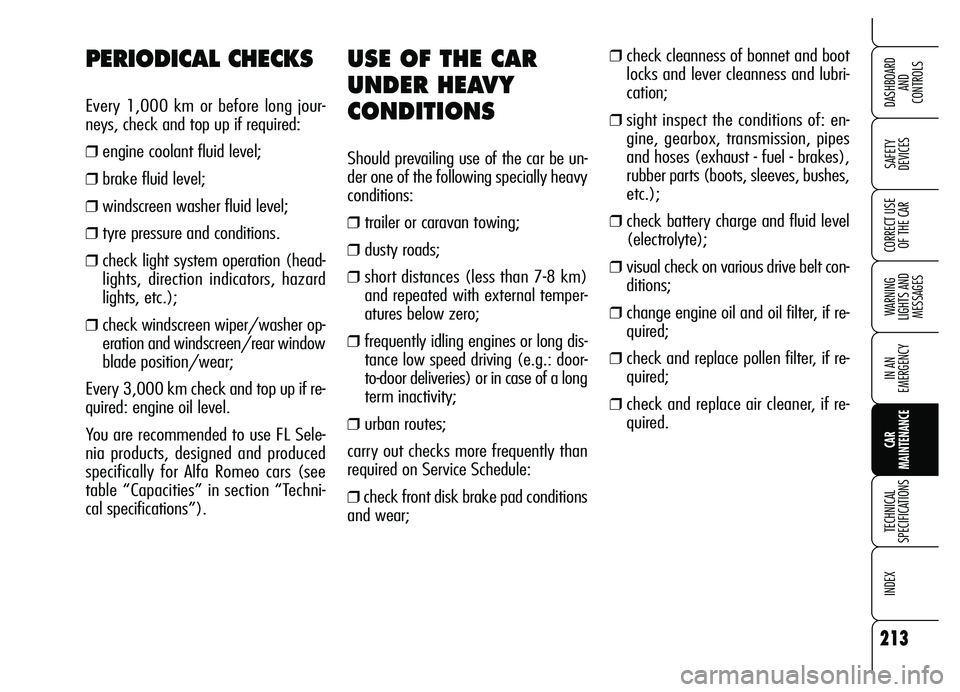

USE OF THE CAR
UNDER HEAVY
CONDITIONS
Should prevailing use of the car be un-
der one of the following specially heavy
conditions:
❒trailer or caravan towing;
❒dusty roads;
❒short distances (less than 7-8 km)
and repeated with external temper-
atures below zero;
❒frequently idling engines or long dis-
tance low speed driving (e.g.: door-
to-door deliveries) or in case of a long
term inactivity;
❒urban routes;
carry out checks more frequently than
required on Service Schedule:
❒check front disk brake pad conditions
and wear;
❒check cleanness of bonnet and boot
locks and lever cleanness and lubri-
cation;
❒sight inspect the conditions of: en-
gine, gearbox, transmission, pipes
and hoses (exhaust - fuel - brakes),
rubber parts (boots, sleeves, bushes,
etc.);
❒check battery charge and fluid level
(electrolyte);
❒visual check on various drive belt con-
ditions;
❒change engine oil and oil filter, if re-
quired;
❒check and replace pollen filter, if re-
quired;
❒check and replace air cleaner, if re-
quired.
PERIODICAL CHECKS
Every 1,000 km or before long jour-
neys, check and top up if required:
❒engine coolant fluid level;
❒brake fluid level;
❒windscreen washer fluid level;
❒tyre pressure and conditions.
❒check light system operation (head-
lights, direction indicators, hazard
lights, etc.);
❒check windscreen wiper/washer op-
eration and windscreen/rear window
blade position/wear;
Every 3,000 km check and top up if re-
quired: engine oil level.
You are recommended to use FL Sele-
nia products, designed and produced
specifically for Alfa Romeo cars (see
table “Capacities” in section “Techni-
cal specifications”).

223
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Bright white colourTop up electrolyte Contact Alfa Romeo
Authorized Services
Dark colour withoutLow charge level Charge the battery
green area in the centre(advisable to contact Alfa
Romeo Authorized Services)
Dark colour withElectrolyte level and charge No action
green area in the centresufficient

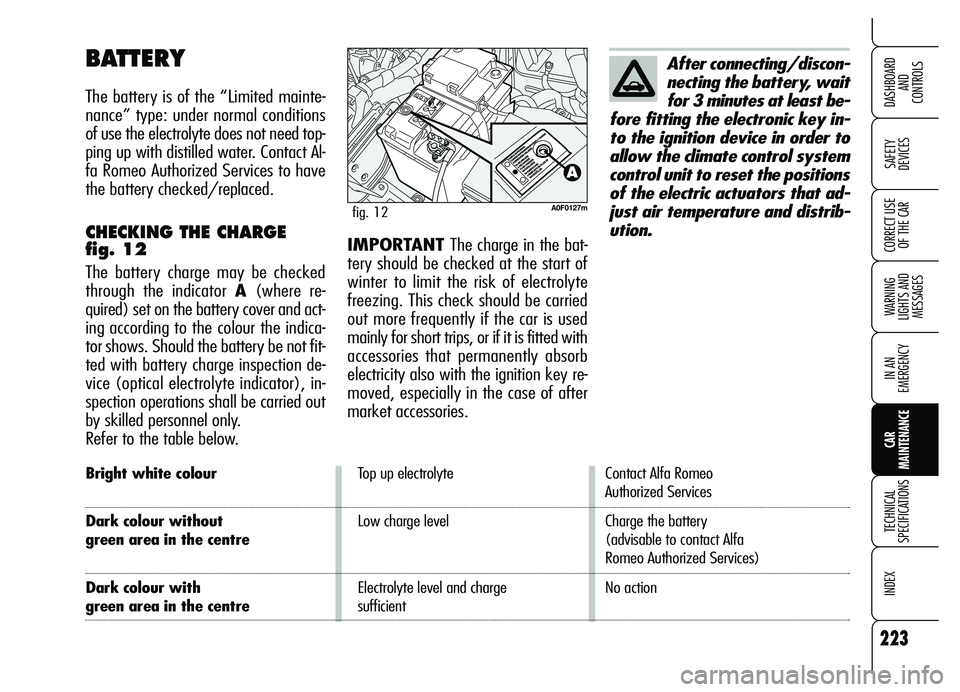

BATTERY
The battery is of the “Limited mainte-
nance” type: under normal conditions
of use the electrolyte does not need top-
ping up with distilled water. Contact Al-
fa Romeo Authorized Services to have
the battery checked/replaced.
CHECKING THE CHARGE
fig. 12
The battery charge may be checked
through the indicator A(where re-
quired) set on the battery cover and act-
ing according to the colour the indica-
tor shows. Should the battery be not fit-
ted with battery charge inspection de-
vice (optical electrolyte indicator), in-
spection operations shall be carried out
by skilled personnel only.
Refer to the table below.
A0F0127mfig. 12
After connecting/discon-
necting the battery, wait
for 3 minutes at least be-
fore fitting the electronic key in-
to the ignition device in order to
allow the climate control system
control unit to reset the positions
of the electric actuators that ad-
just air temperature and distrib-
ution.
IMPORTANT The charge in the bat-
tery should be checked at the start of
winter to limit the risk of electrolyte
freezing. This check should be carried
out more frequently if the car is used
mainly for short trips, or if it is fitted with
accessories that permanently absorb
electricity also with the ignition key re-
moved, especially in the case of after
market accessories.
