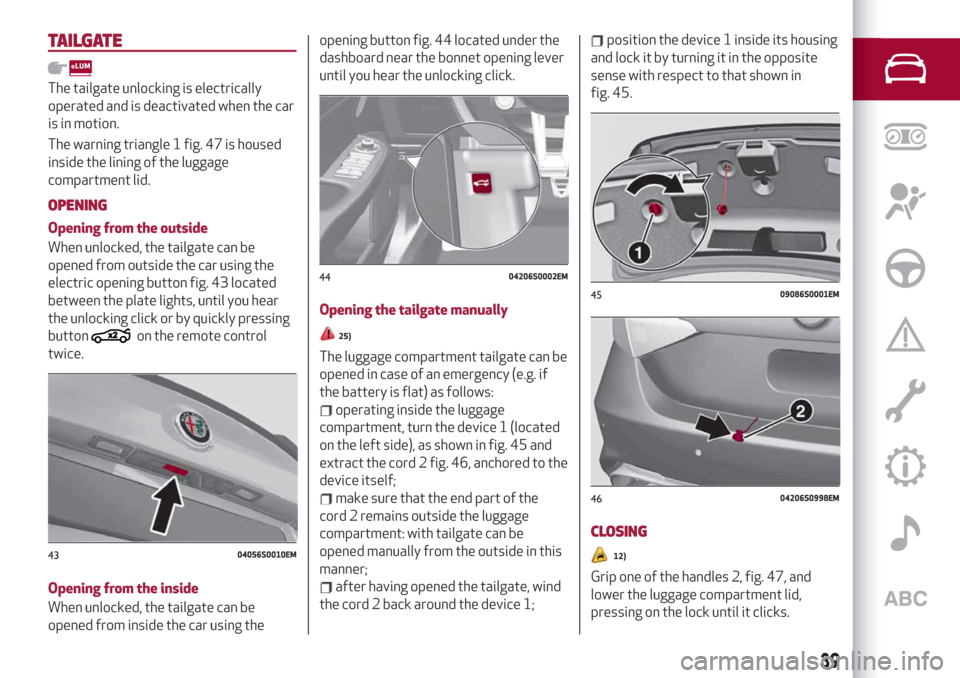

TAILGATE
The tailgate unlocking is electrically
operated and is deactivated when the car
is in motion.
The warning triangle 1 fig. 47 is housed
inside the lining of the luggage
compartment lid.
OPENING
Opening from the outside
When unlocked, the tailgate can be
opened from outside the car using the
electric opening button fig. 43 located
between the plate lights, until you hear
the unlocking click or by quickly pressing
button
on the remote control
twice.
Opening from the inside
When unlocked, the tailgate can be
opened from inside the car using theopening button fig. 44 located under the
dashboard near the bonnet opening lever
until you hear the unlocking click.
Opening the tailgate manually25)
The luggage compartment tailgate can be
opened in case of an emergency (e.g. if
the battery is flat) as follows:
operating inside the luggage
compartment, turn the device 1 (located
on the left side), as shown in fig. 45 and
extract the cord 2 fig. 46, anchored to the
device itself;
make sure that the end part of the
cord 2 remains outside the luggage
compartment: with tailgate can be
opened manually from the outside in this
manner;
after having opened the tailgate, wind
the cord 2 back around the device 1;
position the device 1 inside its housing
and lock it by turning it in the opposite
sense with respect to that shown in
fig. 45.
CLOSING
12)
Grip one of the handles 2, fig. 47, and
lower the luggage compartment lid,
pressing on the lock until it clicks.
4304056S0010EM
4404206S0002EM
4509086S0001EM
4604206S0998EM
39
Page 42 of 232

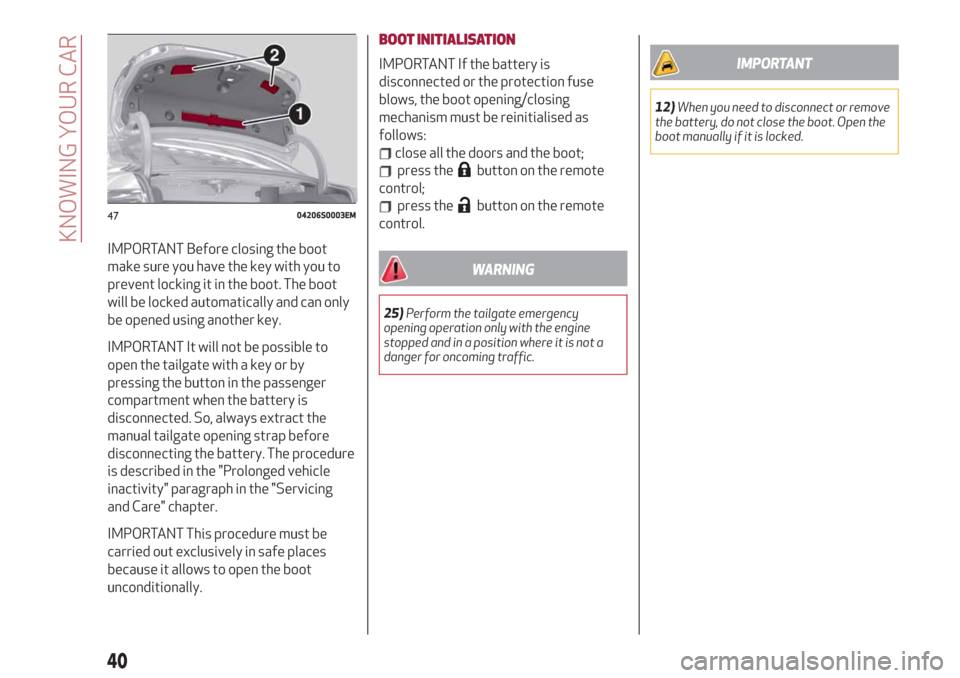

IMPORTANT Before closing the boot
make sure you have the key with you to
prevent locking it in the boot. The boot
will be locked automatically and can only
be opened using another key.
IMPORTANT It will not be possible to
open the tailgate with a key or by
pressing the button in the passenger
compartment when the battery is
disconnected. So, always extract the
manual tailgate opening strap before
disconnecting the battery. The procedure
is described in the "Prolonged vehicle
inactivity" paragraph in the "Servicing
and Care" chapter.
IMPORTANT This procedure must be
carried out exclusively in safe places
because it allows to open the boot
unconditionally.BOOT INITIALISATION
IMPORTANT If the battery is
disconnected or the protection fuse
blows, the boot opening/closing
mechanism must be reinitialised as
follows:
close all the doors and the boot;
press thebutton on the remote
control;
press thebutton on the remote
control.
WARNING
25)Perform the tailgate emergency
opening operation only with the engine
stopped and in a position where it is not a
danger for oncoming traffic.
IMPORTANT
12)When you need to disconnect or remove
the battery, do not close the boot. Open the
boot manually if it is locked.
4704206S0003EM
40
KNOWING YOUR CAR
Page 43 of 232

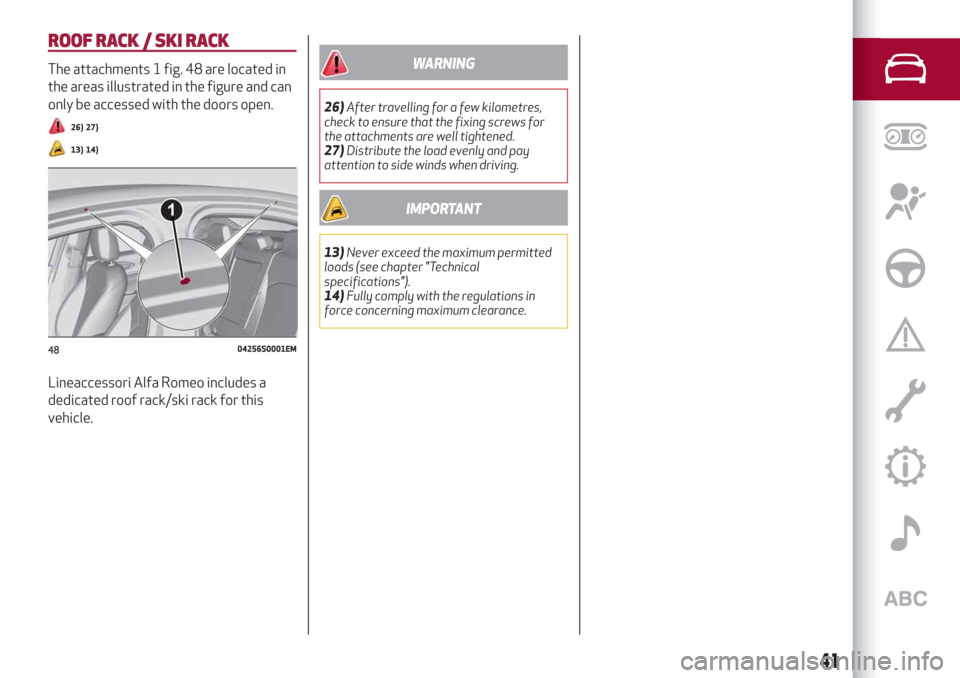

ROOF RACK / SKI RACK
The attachments 1 fig. 48 are located in
the areas illustrated in the figure and can
only be accessed with the doors open.
26) 27)
13) 14)
Lineaccessori Alfa Romeo includes a
dedicated roof rack/ski rack for this
vehicle.
WARNING
26)After travelling for a few kilometres,
check to ensure that the fixing screws for
the attachments are well tightened.
27)Distribute the load evenly and pay
attention to side winds when driving.
IMPORTANT
13)Never exceed the maximum permitted
loads (see chapter "Technical
specifications").
14)Fully comply with the regulations in
force concerning maximum clearance.
4804256S0001EM
41
Page 44 of 232
This page is intentionally left blank
Page 45 of 232
This section of the handbook gives you all the information you
need to understand, interpret and use the instrument panel
correctly.
KNOWING THE INSTRUMENT PANEL
CONTROL PANEL AND ON-BOARD INSTRUMENTS .........44
DISPLAY....................................46
WARNING LIGHTS AND MESSAGES . ..................51
Page 46 of 232
CONTROL PANEL AND ON-BOARD INSTRUMENTS
VERSIONS WITH 3.5” TFT DISPLAY
1. Rev counter 2. Digital engine oil temperature gauge with overheating warning light 3. TFT Display 4. Digital fuel level gauge
(the triangle on the left side of the symbol indicates the side of the vehicle with the fuel filler) 5. Speedometer
4905026S0001EM
44
KNOWING THE INSTRUMENT PANEL
Page 47 of 232
VERSIONS WITH 7” TFT DISPLAY
1. Rev counter 2. Digital engine oil temperature gauge with overheating warning light 3. TFT Display 4. Digital fuel level gauge
(the triangle on the left side of the symbol indicates the side of the vehicle with the fuel filler) 5. Speedometer (speed indicator)
