jump start Alfa Romeo Giulietta 2010 Owner handbook (in English)

120
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
EMERGENCY STARTING
When jump starting, never connect the negative lead (–) of the
auxiliary battery to the negative pole A-fig. 84 of the car battery,
but rather to an engine/gearbox earth point.
Before opening the engine hood, make sure that
the engine is off and that the ignition key is in STOP
position. Follow the instructions on the plate af-
fixed on the front crossmember (fig. 85). You are advised
to extract the key when other people are inside the car.
Remove the ignition key or turn it to the STOP position be-
fore leaving the car. During refuelling, make sure that the
engine is off and the key is in STOP position.
fig. 84A0K0180mfig. 85A0K0224m
001-130 Alfa Giulietta EN 5ed 26-07-2010 16:34 Pagina 120

152
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
It is advisable not to demand maximum perfor-
mance from your car (e.g. excessive acceleration,
long distances at top rpm, excessively intense brak-
ing, etc.) when it is first used.
Remember that the brake servo and electro-
mechanical power steering are not operational un-
til the engine has been started, therefore much
more effort than usual is required on the brake pedal and
steering wheel.
Never jump start the engine by pushing, towing or
driving downhill. These manoeuvres may damage
the catalytic converter.
When the engine is switched off never leave the
key in the MAR position to prevent useless cur-
rent absorption from draining the battery.
HOW TO WARM UP THE ENGINE
AFTER IT HAS JUST STARTED
Proceed as follows:
❍drive off slowly, letting the engine turn at medium speed. Do
not accelerate abruptly;
❍do not demand maximum performance for the first few kilo-
metres. Wait until the engine coolant temperature indicator
starts moving.
STOPPING THE ENGINE
Turn the ignition key to STOP while the engine is idling.
IMPORTANT After a taxing drive, before turning the engine off you
should allow it to idle to allow the temperature in the engine com-
partment to fall.
A quick burst on the accelerator before turning off
the engine serves absolutely no practical purpose;
it wastes fuel and is especially damaging to tur-
bocharged engines.
151-160 Alfa Giulietta EN 3ed 13-04-2010 11:46 Pagina 152

161
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
IN AN EMERGENCY
In an emergency we recommend that you call the freephone number found in the Warranty Booklet.
You can also consult www.alfaromeo.com to find your nearest Alfa Romeo Authorized Services.
STARTING THE ENGINE
If the Ywarning light in the instrument panel remains on con-
stantly, contact Alfa Romeo Authorized Services immediately.

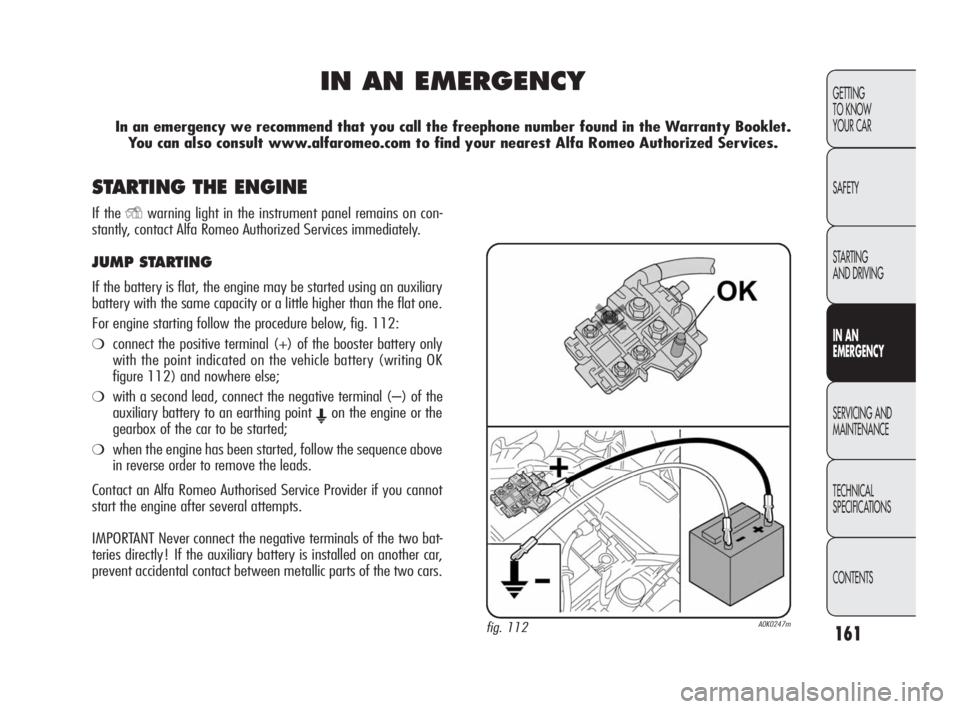

JUMP STARTING
If the battery is flat, the engine may be started using an auxiliary
battery with the same capacity or a little higher than the flat one.
For engine starting follow the procedure below, fig. 112:
❍connect the positive terminal (+) of the booster battery only
with the point indicated on the vehicle battery (writing OK
figure 112) and nowhere else;
❍with a second lead, connect the negative terminal (–) of the
auxiliary battery to an earthing point
Eon the engine or the
gearbox of the car to be started;
❍when the engine has been started, follow the sequence above
in reverse order to remove the leads.
Contact an Alfa Romeo Authorised Service Provider if you cannot
start the engine after several attempts.
IMPORTANT Never connect the negative terminals of the two bat-
teries directly! If the auxiliary battery is installed on another car,
prevent accidental contact between metallic parts of the two cars.
fig. 112A0K0247m
161-198 Alfa Giulietta EN 4ed 5-05-2010 9:04 Pagina 161
