Alfa Romeo Giulietta 2016 Owner's Guide

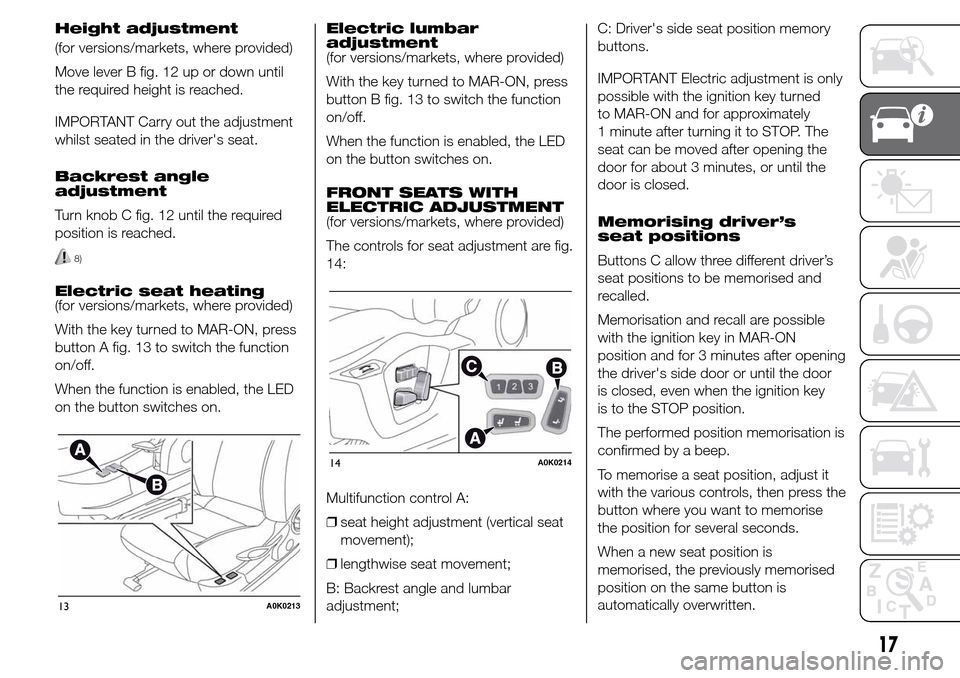

Height adjustment
(for versions/markets, where provided)
Move lever B fig. 12 up or down until
the required height is reached.
IMPORTANT Carry out the adjustment
whilst seated in the driver's seat.
Backrest angle
adjustment
Turn knob C fig. 12 until the required
position is reached.
8)
Electric seat heating
(for versions/markets, where provided)
With the key turned to MAR-ON, press
button A fig. 13 to switch the function
on/off.
When the function is enabled, the LED
on the button switches on.Electric lumbar
adjustment
(for versions/markets, where provided)
With the key turned to MAR-ON, press
button B fig. 13 to switch the function
on/off.
When the function is enabled, the LED
on the button switches on.
FRONT SEATS WITH
ELECTRIC ADJUSTMENT
(for versions/markets, where provided)
The controls for seat adjustment are fig.
14:
Multifunction control A:
❒seat height adjustment (vertical seat
movement);
❒lengthwise seat movement;
B: Backrest angle and lumbar
adjustment;C: Driver's side seat position memory
buttons.
IMPORTANT Electric adjustment is only
possible with the ignition key turned
to MAR-ON and for approximately
1 minute after turning it to STOP. The
seat can be moved after opening the
door for about 3 minutes, or until the
door is closed.
Memorising driver’s
seat positions
Buttons C allow three different driver’s
seat positions to be memorised and
recalled.
Memorisation and recall are possible
with the ignition key in MAR-ON
position and for 3 minutes after opening
the driver's side door or until the door
is closed, even when the ignition key
is to the STOP position.
The performed position memorisation is
confirmed by a beep.
To memorise a seat position, adjust it
with the various controls, then press the
button where you want to memorise
the position for several seconds.
When a new seat position is
memorised, the previously memorised
position on the same button is
automatically overwritten.
13A0K0213
14A0K0214
17

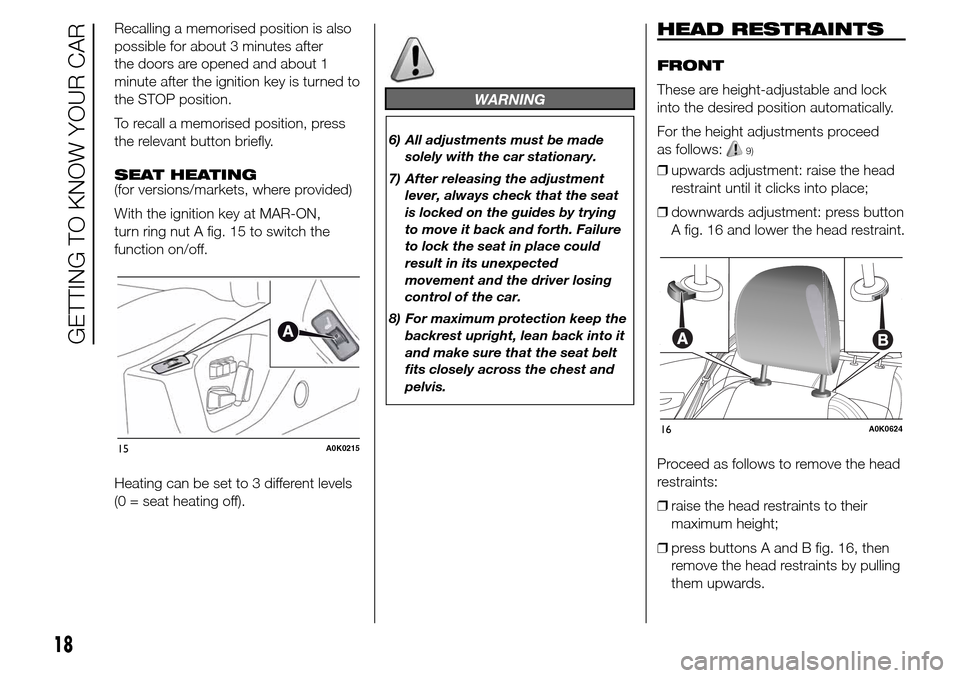

Recalling a memorised position is also
possible for about 3 minutes after
the doors are opened and about 1
minute after the ignition key is turned to
the STOP position.
To recall a memorised position, press
the relevant button briefly.
SEAT HEATING
(for versions/markets, where provided)
With the ignition key at MAR-ON,
turn ring nut A fig. 15 to switch the
function on/off.
Heating can be set to 3 different levels
(0 = seat heating off).
WARNING
6) All adjustments must be made
solely with the car stationary.
7) After releasing the adjustment
lever, always check that the seat
is locked on the guides by trying
to move it back and forth. Failure
to lock the seat in place could
result in its unexpected
movement and the driver losing
control of the car.
8) For maximum protection keep the
backrest upright, lean back into it
and make sure that the seat belt
fits closely across the chest and
pelvis.
HEAD RESTRAINTS
FRONT
These are height-adjustable and lock
into the desired position automatically.
For the height adjustments proceed
as follows:
9)
❒upwards adjustment: raise the head
restraint until it clicks into place;
❒downwards adjustment: press button
A fig. 16 and lower the head restraint.
Proceed as follows to remove the head
restraints:
❒raise the head restraints to their
maximum height;
❒press buttons A and B fig. 16, then
remove the head restraints by pulling
them upwards.
15A0K0215
16A0K0624
18
GETTING TO KNOW YOUR CAR

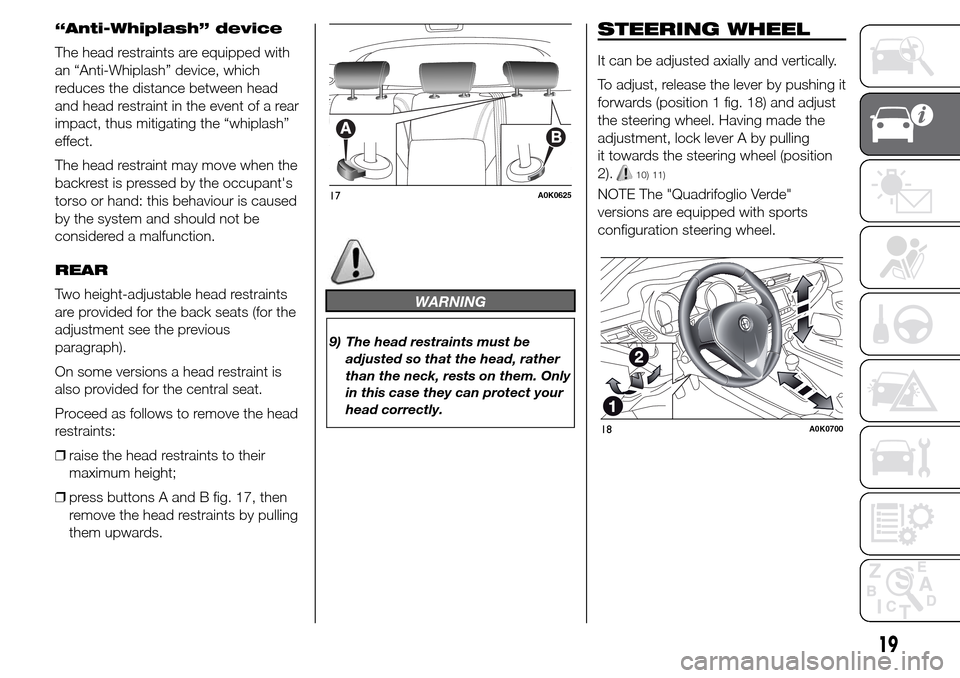

“Anti-Whiplash” device
The head restraints are equipped with
an “Anti-Whiplash” device, which
reduces the distance between head
and head restraint in the event of a rear
impact, thus mitigating the “whiplash”
effect.
The head restraint may move when the
backrest is pressed by the occupant's
torso or hand: this behaviour is caused
by the system and should not be
considered a malfunction.
REAR
Two height-adjustable head restraints
are provided for the back seats (for the
adjustment see the previous
paragraph).
On some versions a head restraint is
also provided for the central seat.
Proceed as follows to remove the head
restraints:
❒raise the head restraints to their
maximum height;
❒press buttons A and B fig. 17, then
remove the head restraints by pulling
them upwards.
WARNING
9) The head restraints must be
adjusted so that the head, rather
than the neck, rests on them. Only
in this case they can protect your
head correctly.
STEERING WHEEL
It can be adjusted axially and vertically.
To adjust, release the lever by pushing it
forwards (position 1 fig. 18) and adjust
the steering wheel. Having made the
adjustment, lock lever A by pulling
it towards the steering wheel (position
2).
10) 11)
NOTE The "Quadrifoglio Verde"
versions are equipped with sports
configuration steering wheel.17A0K0625
18A0K0700
19

WARNING
10) Any adjustment of the steering
wheel position must be carried
out only with the car stationary
and the engine turned off.
11) It is absolutely forbidden to carry
out any after-market operation
involving steering system or
steering column modifications
(e.g. installation of anti-theft
device) that could adversely affect
performance and safety,
invalidate the warranty and also
result in the car not meeting
type-approval requirements.

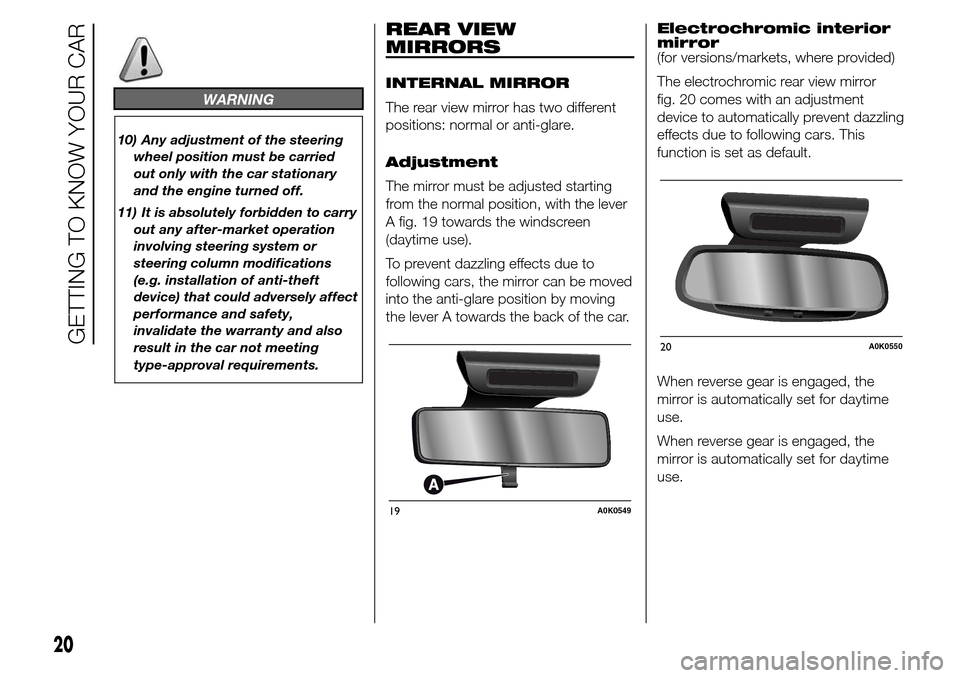

REAR VIEW
MIRRORS
INTERNAL MIRROR
The rear view mirror has two different
positions: normal or anti-glare.
Adjustment
The mirror must be adjusted starting
from the normal position, with the lever
A fig. 19 towards the windscreen
(daytime use).
To prevent dazzling effects due to
following cars, the mirror can be moved
into the anti-glare position by moving
the lever A towards the back of the car.Electrochromic interior
mirror
(for versions/markets, where provided)
The electrochromic rear view mirror
fig. 20 comes with an adjustment
device to automatically prevent dazzling
effects due to following cars. This
function is set as default.
When reverse gear is engaged, the
mirror is automatically set for daytime
use.
When reverse gear is engaged, the
mirror is automatically set for daytime
use.
19A0K0549
20A0K0550
20
GETTING TO KNOW YOUR CAR

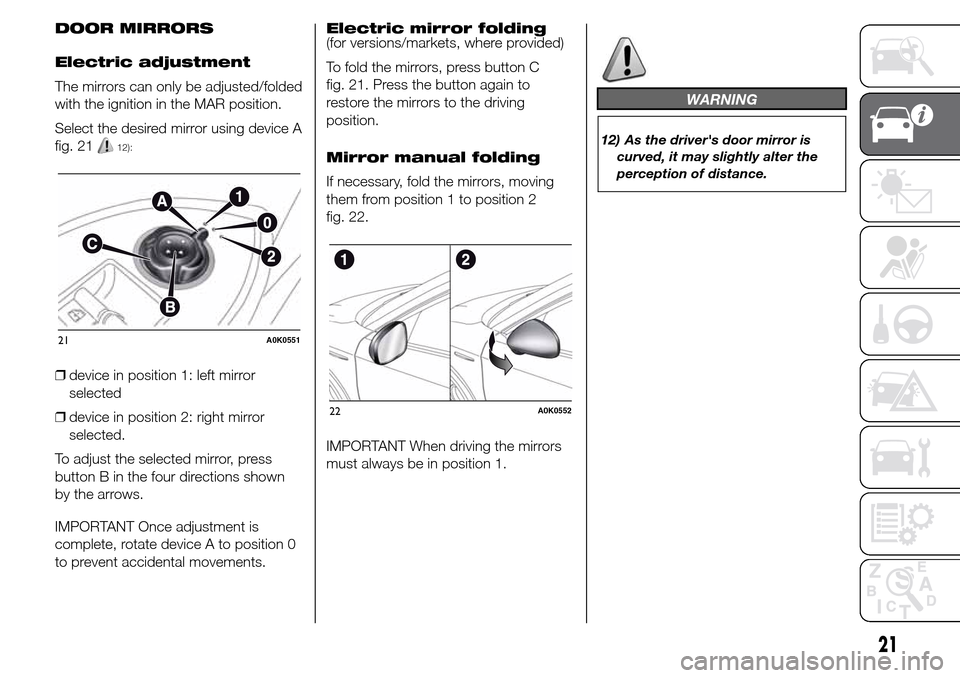

DOOR MIRRORS
Electric adjustment
The mirrors can only be adjusted/folded
with the ignition in the MAR position.
Select the desired mirror using device A
fig. 21
12):
❒device in position 1: left mirror
selected
❒device in position 2: right mirror
selected.
To adjust the selected mirror, press
button B in the four directions shown
by the arrows.
IMPORTANT Once adjustment is
complete, rotate device A to position 0
to prevent accidental movements.Electric mirror folding
(for versions/markets, where provided)
To fold the mirrors, press button C
fig. 21. Press the button again to
restore the mirrors to the driving
position.
Mirror manual folding
If necessary, fold the mirrors, moving
them from position 1 to position 2
fig. 22.
IMPORTANT When driving the mirrors
must always be in position 1.
WARNING
12) As the driver's door mirror is
curved, it may slightly alter the
perception of distance.
21A0K0551
22A0K0552
21

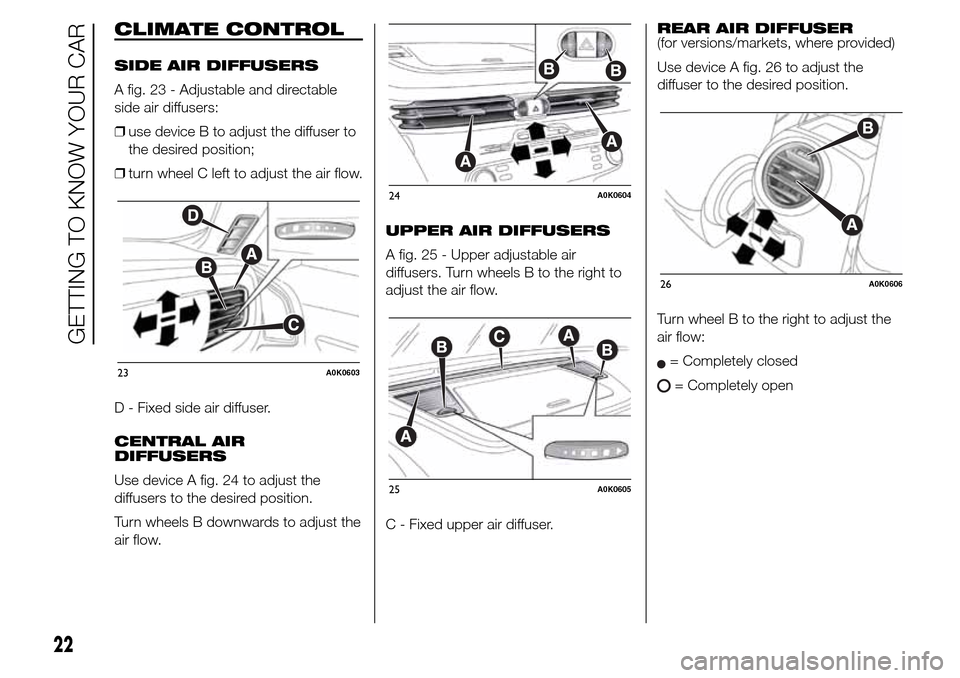

CLIMATE CONTROL
SIDE AIR DIFFUSERS
A fig. 23 - Adjustable and directable
side air diffusers:
❒use device B to adjust the diffuser to
the desired position;
❒turn wheel C left to adjust the air flow.
D - Fixed side air diffuser.
CENTRAL AIR
DIFFUSERS
Use device A fig. 24 to adjust the
diffusers to the desired position.
Turn wheels B downwards to adjust the
air flow.UPPER AIR DIFFUSERS
A fig. 25 - Upper adjustable air
diffusers. Turn wheels B to the right to
adjust the air flow.
C - Fixed upper air diffuser.REAR AIR DIFFUSER
(for versions/markets, where provided)
Use device A fig. 26 to adjust the
diffuser to the desired position.
Turn wheel B to the right to adjust the
air flow:
= Completely closed
= Completely open23A0K0603
24A0K0604
25A0K0605
26A0K0606
22
GETTING TO KNOW YOUR CAR

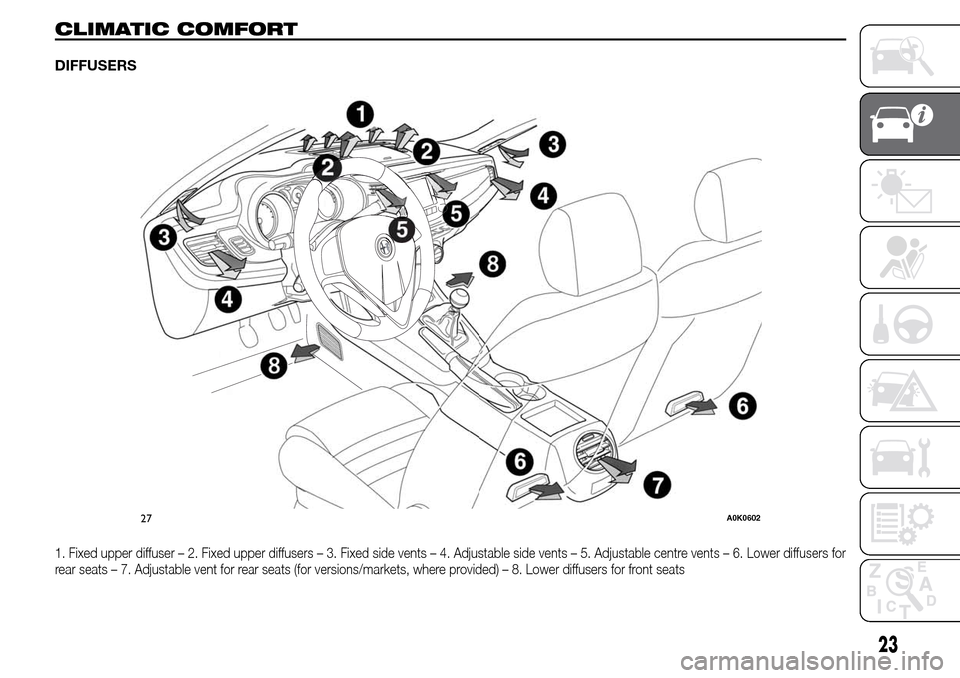

CLIMATIC COMFORT
DIFFUSERS
1. Fixed upper diffuser – 2. Fixed upper diffusers – 3. Fixed side vents – 4. Adjustable side vents – 5. Adjustable centre vents – 6. Lower diffusers for
rear seats – 7. Adjustable vent for rear seats (for versions/markets, where provided) – 8. Lower diffusers for front seats
27A0K0602
23

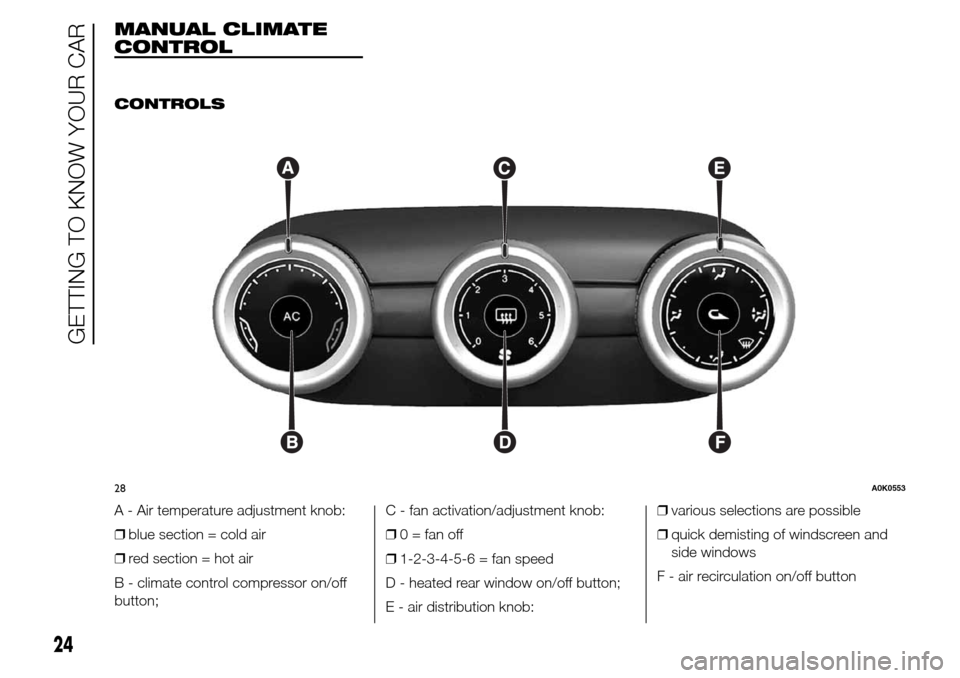

MANUAL CLIMATE
CONTROL
.
CONTROLS
A - Air temperature adjustment knob:
❒blue section = cold air
❒red section = hot air
B - climate control compressor on/off
button;C - fan activation/adjustment knob:
❒0 = fan off
❒1-2-3-4-5-6 = fan speed
D - heated rear window on/off button;
E - air distribution knob:❒various selections are possible
❒quick demisting of windscreen and
side windows
F - air recirculation on/off button
28A0K0553
24
GETTING TO KNOW YOUR CAR

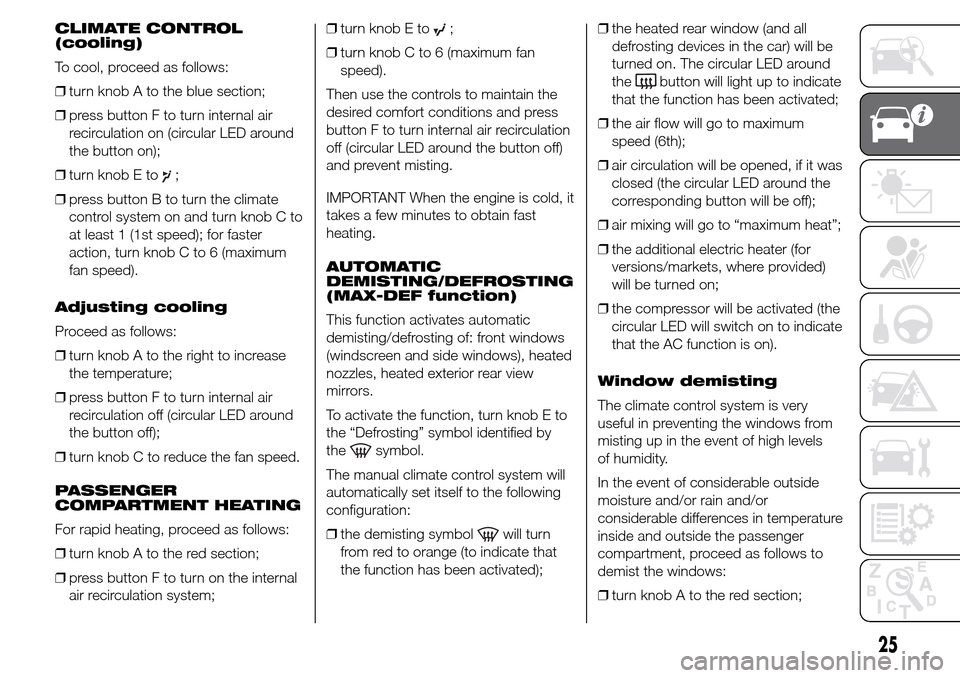

CLIMATE CONTROL
(cooling)
To cool, proceed as follows:
❒turn knob A to the blue section;
❒press button F to turn internal air
recirculation on (circular LED around
the button on);
❒turn knob E to
;
❒press button B to turn the climate
control system on and turn knob C to
at least 1 (1st speed); for faster
action, turn knob C to 6 (maximum
fan speed).
Adjusting cooling
Proceed as follows:
❒turn knob A to the right to increase
the temperature;
❒press button F to turn internal air
recirculation off (circular LED around
the button off);
❒turn knob C to reduce the fan speed.
PASSENGER
COMPARTMENT HEATING
For rapid heating, proceed as follows:
❒turn knob A to the red section;
❒press button F to turn on the internal
air recirculation system;❒turn knob E to
;
❒turn knob C to 6 (maximum fan
speed).
Then use the controls to maintain the
desired comfort conditions and press
button F to turn internal air recirculation
off (circular LED around the button off)
and prevent misting.
IMPORTANT When the engine is cold, it
takes a few minutes to obtain fast
heating.
AUTOMATIC
DEMISTING/DEFROSTING
(MAX-DEF function)
This function activates automatic
demisting/defrosting of: front windows
(windscreen and side windows), heated
nozzles, heated exterior rear view
mirrors.
To activate the function, turn knob E to
the “Defrosting” symbol identified by
the
symbol.
The manual climate control system will
automatically set itself to the following
configuration:
❒the demisting symbol
will turn
from red to orange (to indicate that
the function has been activated);❒the heated rear window (and all
defrosting devices in the car) will be
turned on. The circular LED around
the
button will light up to indicate
that the function has been activated;
❒the air flow will go to maximum
speed (6th);
❒air circulation will be opened, if it was
closed (the circular LED around the
corresponding button will be off);
❒air mixing will go to “maximum heat”;
❒the additional electric heater (for
versions/markets, where provided)
will be turned on;
❒the compressor will be activated (the
circular LED will switch on to indicate
that the AC function is on).
Window demisting
The climate control system is very
useful in preventing the windows from
misting up in the event of high levels
of humidity.
In the event of considerable outside
moisture and/or rain and/or
considerable differences in temperature
inside and outside the passenger
compartment, proceed as follows to
demist the windows:
❒turn knob A to the red section;
25

❒press button F to turn internal air
recirculation off (circular LED around
the button off);
❒turn knob E to
with the possibility
of moving it to position
(B) if
demisting does not occur;
❒turn knob C to the 2nd speed.
HEATED REAR WINDOW
DEMISTING/DEFROSTING
Press button D (
) to activate/
deactivate the function. The function is
automatically deactivated after 20
minutes.
For versions/markets where provided,
press the
button to activate
demisting/defrosting of exterior rear
view mirrors and heated nozzles (for
versions/markets, where provided).
IMPORTANT Do not affix stickers to the
inside of the heated rear window over
the heating filaments, to avoid damage
that might cause them to stop working
properly.INTERNAL AIR
RECIRCULATION
Press button F (
) so that the LED
around the button turns on. It is
advisable to switch internal air
recirculation on while standing in traffic
or in tunnels to prevent the introduction
of polluted air.
Do not use the function for a long time,
particularly if there are many
passengers on board, to prevent the
windows from misting up.
IMPORTANT Internal air recirculation
makes it possible to reach the required
heating or cooling conditions more
quickly depending on the mode
selected. Do not use the air
recirculation function on rainy/cold days
as it would considerably increase the
possibility of the windows misting.
SETTING THE AIR
DISTRIBUTION
Turn knob E to manually select one of
the four possible air distribution settings
in the passenger compartment:
Air flow to the windscreen and front
side window diffusers to demist/
defrost them.
Air flow to the front/rear footwell
diffusers. This air distribution allows
the passenger compartment to
be warmed up quickly.
Air flow distribution between front
and rear diffusers, centre/side
dashboard diffusers, rear diffuser
and windscreen and front side
window demisting/defrosting
diffusers.
Air flow distribution to centre/side
dashboard diffusers (passenger's
body).

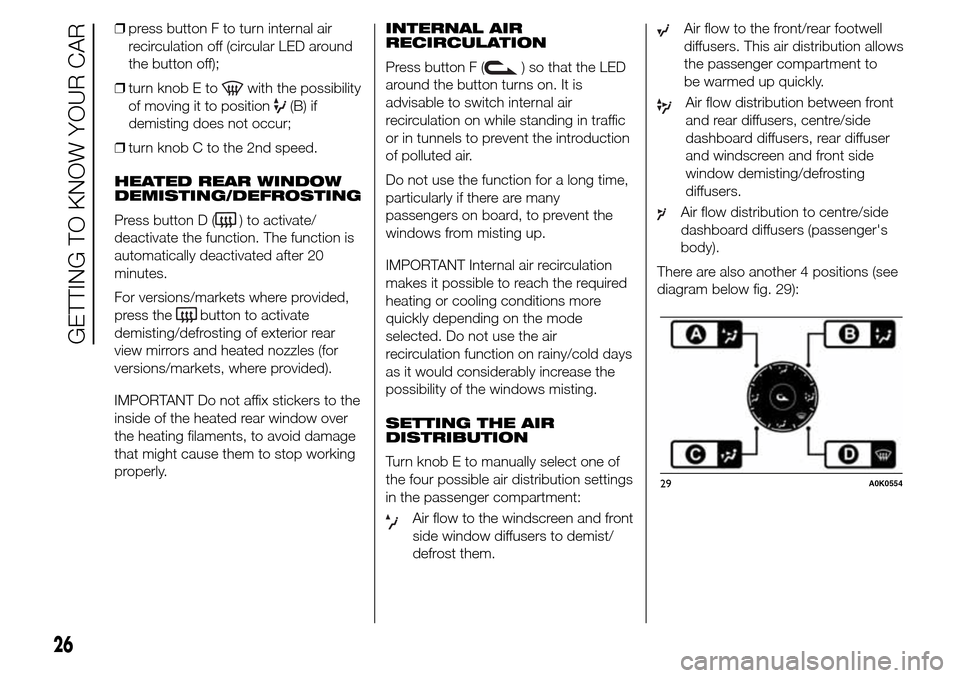

There are also another 4 positions (see
diagram below fig. 29):
29A0K0554
26
GETTING TO KNOW YOUR CAR
