GETTING TO KNOW YOUR CAR
145

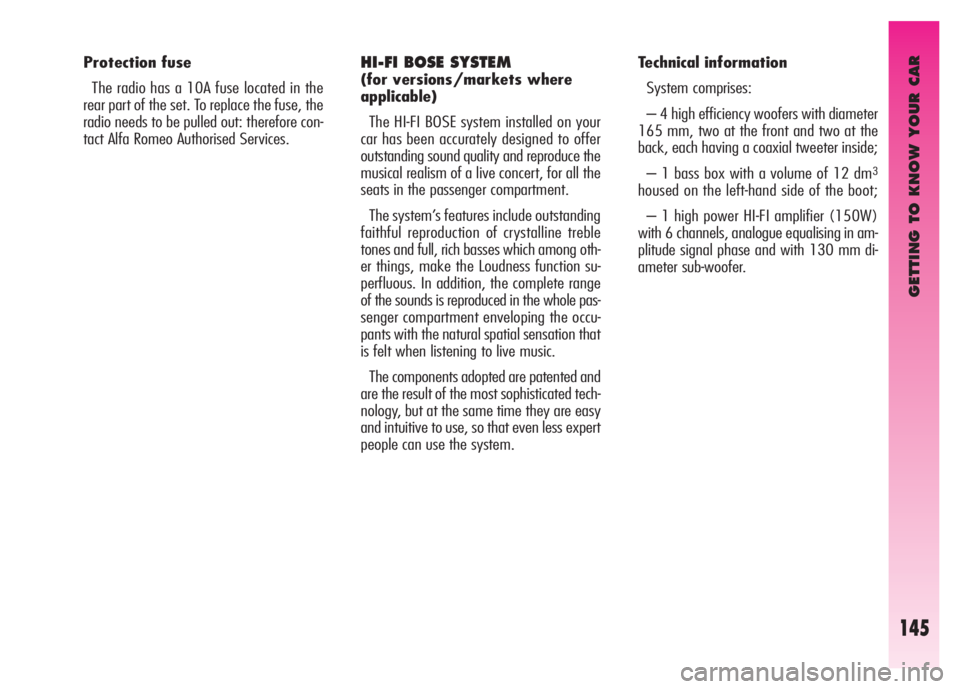

HI-FI BOSE SYSTEM
(for versions/markets where
applicable)
The HI-FI BOSE system installed on your
car has been accurately designed to offer
outstanding sound quality and reproduce the
musical realism of a live concert, for all the
seats in the passenger compartment.
The system’s features include outstanding
faithful reproduction of crystalline treble
tones and full, rich basses which among oth-
er things, make the Loudness function su-
perfluous. In addition, the complete range
of the sounds is reproduced in the whole pas-
senger compartment enveloping the occu-
pants with the natural spatial sensation that
is felt when listening to live music.
The components adopted are patented and
are the result of the most sophisticated tech-
nology, but at the same time they are easy
and intuitive to use, so that even less expert
people can use the system. Technical information
System comprises:
– 4 high efficiency woofers with diameter
165 mm, two at the front and two at the
back, each having a coaxial tweeter inside;
– 1 bass box with a volume of 12 dm
3
housed on the left-hand side of the boot;
– 1 high power HI-FI amplifier (150W)
with 6 channels, analogue equalising in am-
plitude signal phase and with 130 mm di-
ameter sub-woofer. Protection fuse
The radio has a 10A fuse located in the
rear part of the set. To replace the fuse, the
radio needs to be pulled out: therefore con-
tact Alfa Romeo Authorised Services.

IN AN EMERGENCY
205
IN THE EVENT OF A BLOWN FUSE
GENERAL
The fuse is a protective device for the elec-
tric system: it comes into action (i.e. it cuts
off) mainly due to a fault or improper action
on the system.
When a device does not work, check the
efficiency of its fuse. The conductor ele-
ment(A-fig. 49) must be intact; if not, re-
place the fuse with one of the same amp
rating (same colour).(B) - Undamaged fuse
(C) - Fuse with damaged filament.
Remove the blown fuse using the pincer
provided (D), in the control box.
fig. 49
A0A0185b
Never replace a fuse with
metal wires or anything
else. Always use an intact
fuse of the same colour.
Never replace a fuse with
another with a higher amp
rating; DANGER OF FIRE.
If a general fuse (MAXI-
FUSE or MEGA-FUSE) cuts
in, do not attempt any re-
pair and contact Alfa Romeo Au-
thorised Services.
Before replacing a fuse,
make sure the ignition key
has been removed and that
all the other services are switched
off and/or disengaged.
If a fuse blows again,
contact an Alfa Romeo Au-
thorised Service.

IN AN EMERGENCY
206
To locate the protection fuses, consulting
the summary table on the following pages,
refer to the following illustrations fig. 52,
fig. 53and54.Alfa GTfuses are located in three fuse
boxes set on the dashboard, on battery pos-
itive terminal and near the battery.
To gain access to the fuses in the fuse box
on the dashboard, loosen the two retain-
ers (A-fig. 50) and remove the protective
cover (B).
To gain access to the fuses in the fusebox
on the battery post, remove the protective
cover pressing the opening catches (front).
Access is gained to the control box next to
the battery releasing the perimetral catches
(A-fig. 51) and removing the protective
cover (B).
fig. 50
A0A0186b
fig. 51
A0A0187b
fig. 52 - Fuse box on the dashboard
A0A0134b

IN AN EMERGENCY
207

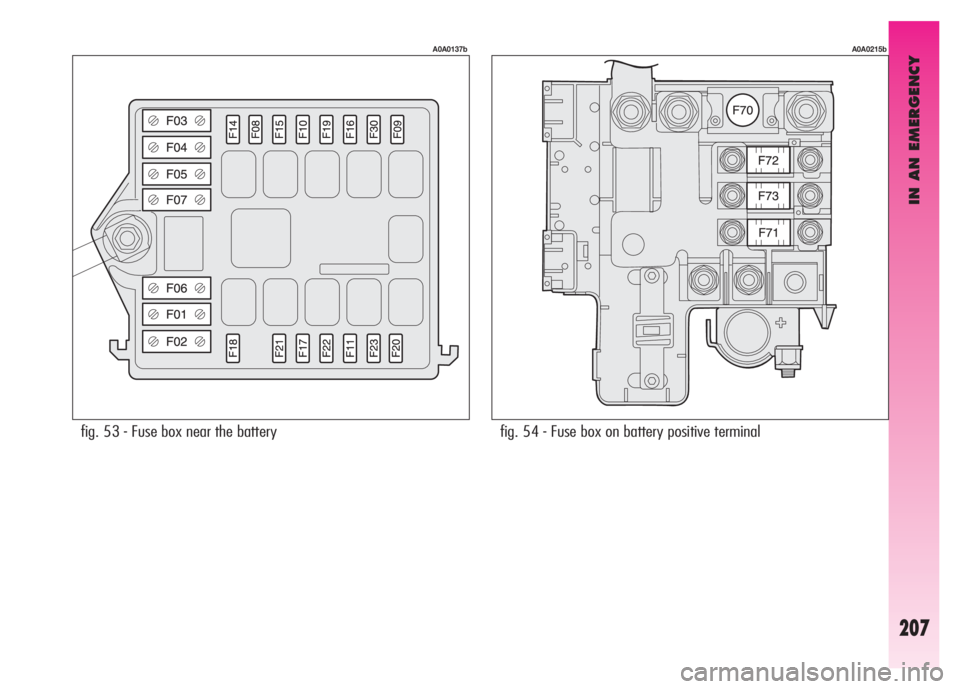

fig. 53 - Fuse box near the battery
A0A0137b
fig. 54 - Fuse box on battery positive terminal
A0A0215b

Volumetric sensors
ESP system sensor
Steering angle sensor
EOBD system diagnosis socket
Cell phone provision
Driver’s door control unit supply
Passenger’s door control unit supply
Control lighting
Climate control system control lighting
Instrument cluster
Instrument cluster
Driver’s door control unit
ABS control unit
ABS control unit
Dashboard control unit
Air - bag control unit
Electronic injection control unit +30
Engine compartment control box (petrol versions)
Dashboard control unit
Trailer control unit15
7.5
7.5
15
15
20
20
7.5
7.5
10
10
15
7.5
50
50
7.5
7.5
125
70
10 F39
F42
F42
F39
F39
F47
F48
F49
F35
F37
F53
F39
F42
F04 (MAXI-FUSE)
F02 (MAXI-FUSE)
F50
F18
F70 (MEGA-FUSE)
F71 (MAXI-FUSE)
F36 52
52
52
52
52
52
52
52
52
52
52
52
52
53
53
52
53
54
54
52
SERVICES FIGURE FUSE AMPERES
IN AN EMERGENCY
210

IN AN EMERGENCY
211
40
30
50
15
15
15
15
25
7.5
15
15
30
30
50
20
150
40
60
20 F05 (MAXI-FUSE)
F06 (MAXI-FUSE)
F07 (MAXI-FUSE)
F10
F21
F22
F21
F60 (*)
F16
F61 (*)
F62 (*)
F08
F72 (MAXI-FUSE)
F01 (MAXI-FUSE)
F20
F70 (MEGA-FUSE)
F06 (MAXI-FUSE)
F07 (MAXI-FUSE)
F22 53
53
53
53
53
53
53
52
53
52
52
53
54
53
53
54
53
53
53
SERVICES FIGURE FUSE AMPERES
(*) Fuse behind dashboard control box on an auxiliary bracket.
Climate control fan
Radiator fan (first speed - petrol versions)
Radiator fan (second speed - petrol versions)
Horn
Fuel pump
Injectors (petrol versions)
Ignition coils
Tailgate electric unlocking
Electronic injection system
Bose system
Bose system
Additional heater
Ignition switch
Glow plug warming (JTD versions)
Heated fuel oil filter (JTD versions)
Engine compartment control box (JTD versions)
Radiator fan (first speed – JTD versions)
Radiator fan (second speed – JTD versions)
Injectors (JTD versions)
