VERY IMPORTANT!
FUEL CAPACITY
Petrol engines:only use unleaded petrol with no less than 95 R.O.N.
Diesel engines:only refuel with diesel fuel conforming to the European specification EN590. The use of other products or
mixtures may irreparably damage the engine with invalidation of the warranty due to the damage caused.
STARTING THE ENGINE
Petrol engines with mechanical transmission:make sure that the handbrake is engaged; set the gearshift lever
to neutral, fully depress the clutch without pressing the accelerator, then turn the ignition key to AV Vand release it as soon
as the engine has started.
Petrol engine with Selespeed transmission:keep the brake pedal fully depressed, turn the ignition key to AV Vand
release it as soon as the engine has started; the transmission sets to neutral automatically (the display shows position N).
JTD engines:turn the ignition key to MARand wait for the
Yandmwarning lights to go off; turn the ignition key
toAV Vand release it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
While working, the catalyst develops a very high temperature. Do not park the car over grass, dry leaves, pine needles or
any other inflammable materials: risk of fire.
K
Page 11 of 271

GETTING TO KNOW YOUR CAR
9
The codes of any keys not
presented during the mem-
orising procedure are
erased. The reason for this is to en-
sure that any lost or stolen keys
cannot be used to start the engine.OPERATION
Each time the ignition key is turned to the
STOPposition the Alfa Romeo CODE system
deactivates the functions of the engine elec-
tronic control unit.
Each time the car is started turning the ig-
nition key to MAR, the Alfa Romeo CODE
control unit sends a recognition code to the
engine control unit to deactivate the in-
hibitor. The code is crypted and variable be-
tween over four billion possible combina-
tions, and it is sent only if the system con-
trol unit has recognised the code transmit-
ted from the key which contains an elec-
tronic transmitter, through an aerial wound
around the ignition switch.IMPORTANTTurning on of the Alfa
Romeo CODE warning light (
Y) when trav-
elling with the ignition key at MAR:
1) If the warning light turns on, this means
that the system is running a self-test (for ex-
ample for a voltage drop). At the first stop,
it will be possible to test the system: switch
off the engine turning the ignition key to
STOP; then turn the ignition key to MAR:
the warning light turns on and should go off
in about one second. If the warning light
stays on, repeat the procedure described pre-
viously leaving the key at STOPfor over
30 seconds. Should the inconvenience per-
sists, contact Alfa Romeo Authorised Ser-
vices. If the code has not been recognised cor-
rectly, the Alfa Romeo CODE warning light
(
Y) on the cluster turns on.
In this case, the key should be moved to
theSTOPposition and then back to MAR;
if the lock continues, possibly try again with
the other key provided with the car. If it is
still not possible to start the car, follow the
instructions given in the “In an emergency”
chapter and then contact Alfa Romeo Au-
thorised Services.
IMPORTANTEvery key has its own
code, which must be memorised by the sys-
tem control unit. To memorise new keys, up
to a maximum of eight, apply solely to Al-
fa Romeo Authorised Services taking with
you all the keys in your possession, the
CODE card, a personal identity document
and the car’s ownership documents.
Page 12 of 271

GETTING TO KNOW YOUR CAR
10
2) For versions without the reconfigurable
multifunction display, the flashing of the
warning light means that the car is not pro-
tected by the engine inhibitor device. This
condition for cars with reconfigurable mul-
tifunction display is shown by the turning on
of the warning light together with the dis-
play of the message: “C
ODE SYSTEM NOT PRO-
GRAMMED”. Contact Alfa Romeo Authorised
Services immediately to have all the keys
memorised.
If after about 2 seconds
with the ignition key at
MAR, for versions without
reconfigurable multifunction dis-
play, the Alfa Romeo CODE warn-
ing light (
Y) turns on again flash-
ing, or for versions with reconfig-
urable multifunction display, the
warning light turns on again to-
gether with the message “C
ODE
SYSTEM NOT PROGRAMMED
”, this
means that the code of the keys
has not been stored, therefore the
car is not protected by the Alfa
Romeo CODE system against at-
tempted theft. In this case contact
Alfa Romeo Authorised Services to
have the key codes stored.
KEY BATTERY
REPLACEMENT
If when pressing button (BorC-fig. 6)
on the remote control, nothing happens, the
battery should be replaced by a new one
of the same type to be found c/o normal
retailers.
Used batteries are harm-
ful to the environment.
They should be disposed of
as specified by law in the special
containers provided. Avoid expo-
sure to naked flames and high tem-
peratures. Keep out of reach of
children.

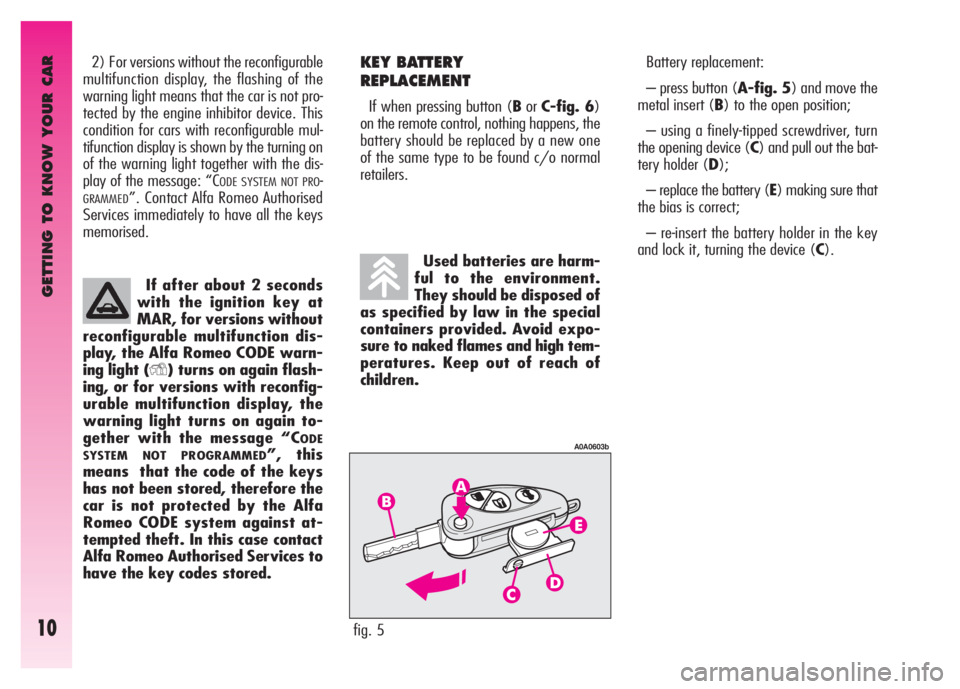

fig. 5
A0A0603b
Battery replacement:
– press button (A-fig. 5) and move the
metal insert (B) to the open position;
– using a finely-tipped screwdriver, turn
the opening device (C) and pull out the bat-
tery holder (D);
– replace the battery (E) making sure that
the bias is correct;
– re-insert the battery holder in the key
and lock it, turning the device (C).
Page 15 of 271

GETTING TO KNOW YOUR CAR
13
WHEN THE ALARM IS
TRIGGERED
When the system is on, the alarm comes
into action in the following cases:
– opening of one of the doors, bonnet or
tailgate;
– disconnection of the battery or section-
ing of electric cables;
– intrusion in the passenger compartment,
for example breakage of windows (volu-
metric protection);
– attempt to start the engine (key in
MARposition);
– abnormal car lifting/sloping (for ver-
sions/markets where applicable).
Depending on the markets, the cutting in
of the alarm causes operation of the siren
and hazard warning lights (for about 26 sec-
onds). The ways of operating and the num-
ber of cycles may vary depending on the
markets.
A maximum number of cycles is however
envisaged.
Once the alarm cycle has ended, the sys-
tem resumes its normal control function.
VOLUMETRIC PROTECTION
To make sure that the protection system
works correctly the side windows and sun-
roof (if fitted) must be properly shut.
The function can be cut off (if, for exam-
ple, leaving animals in the car) carrying out
the following operations in rapid succession:
starting from the condition with the igni-
tion key at MAR, move the key to STOP,
then immediately back to MARand then
toSTOPagain, then remove the ignition
key.
The deterrent led (A-fig. 7) on the dash-
board lights up for about 2 seconds to con-
firm that the function has been cut off.
To restore volumetric protection, move the
and keep the ignition key at MARfor over
30 seconds.
If, with the volumetric protection function
deactivated, an electric control controlled by
the ignition key at MAR(e.g. power win-
dows) turn the ignition key to MAR, op-
erate the control and move the key to
STOPin a maximum time of 30 seconds.
This way volumetric protection is not re-
stored.
HOW TO CUT OFF
THE ALARM SYSTEM
To deactivate the alarm system complete-
ly (for instance during prolonged inactivity
of the car) simply lock the car turning the
key in the lock.

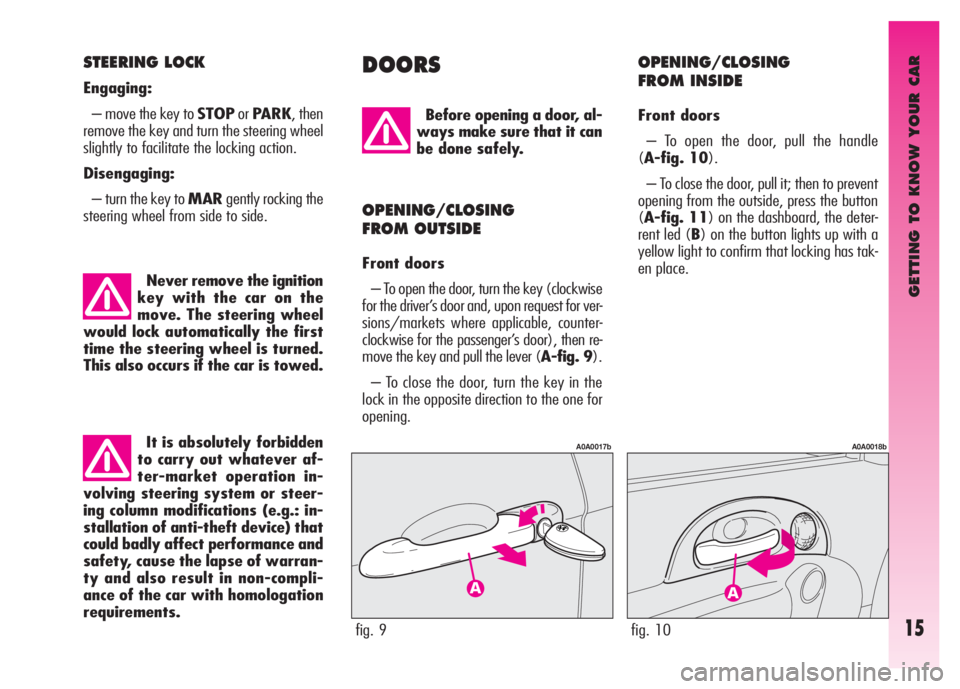

MINISTERIAL CERTIFICATION
In accordance with the law in force in each
country, on the subject of radio frequency,
we wish to point out that for the markets in
which the transmitter needs to be marked,
the certification number is given on the com-
ponent.
Depending on the versions/markets, the
code may also be given on the transmitter
and/or on the receiver.

Page 16 of 271

GETTING TO KNOW YOUR CAR
14
IGNITION DEVICE
SWITCH(fig. 8)
The key can be turned to one of four po-
sitions:
–STOP: engine switched off, key can be
removed, engine inhibitor engaged, steer-
ing lock engaged, services excluded apart
from those supplied directly (e.g. hazard
warning lights).
–MAR: drive position. The engine lock
is deactivated and all electrical devices are
powered.
fig. 8
A0A0016b
When leaving the car al-
ways remove the key from
the ignition to prevent any
occupants of the car from acciden-
tally activating the controls. Nev-
er leave children in the car unac-
companied. Remember to engage
the handbrake and, if the car is
parked on an uphill slope, to en-
gage the first gear. If the car is fac-
ing downhill, engage reverse gear.
If the ignition device is
tampered with (for exam-
ple an attempted theft)
have it checked over by Alfa
Romeo Authorised Services before
travelling again.
IMPORTANTDo not leave the key in
this position when the engine is stopped.
–AV V: unstable position for starting the
engine.
IMPORTANTIf the engine fails to start
move the key back to STOPand repeat.
The ignition switch has a safety device
which prevents passage to AV Vwhen the
engine is running.
–PARK: engine switched off, key can
be removed, engine lock engaged, steer-
ing lock engaged, sidelights switched on au-
tomatically.
IMPORTANTTo turn the key to the
PARKposition, button (A) on the switch
must be pressed first.
Page 17 of 271

It is absolutely forbidden
to carry out whatever af-
ter-market operation in-
volving steering system or steer-
ing column modifications (e.g.: in-
stallation of anti-theft device) that
could badly affect performance and
safety, cause the lapse of warran-
ty and also result in non-compli-
ance of the car with homologation
requirements.
GETTING TO KNOW YOUR CAR
15
STEERING LOCK
Engaging:
– move the key to STOPorPARK, then
remove the key and turn the steering wheel
slightly to facilitate the locking action.
Disengaging:
– turn the key to MARgently rocking the
steering wheel from side to side.
Never remove the ignition
key with the car on the
move. The steering wheel
would lock automatically the first
time the steering wheel is turned.
This also occurs if the car is towed.
DOORS
Before opening a door, al-
ways make sure that it can
be done safely.
OPENING/CLOSING
FROM OUTSIDE
Front doors
– To open the door, turn the key (clockwise
for the driver’s door and, upon request for ver-
sions/markets where applicable, counter-
clockwise for the passenger’s door), then re-
move the key and pull the lever (A-fig. 9).
– To close the door, turn the key in the
lock in the opposite direction to the one for
opening.
fig. 9
A0A0017b
fig. 10
A0A0018b
OPENING/CLOSING
FROM INSIDE
Front doors
– To open the door, pull the handle
(A-fig. 10).
– To close the door, pull it; then to prevent
opening from the outside, press the button
(A-fig. 11) on the dashboard, the deter-
rent led (B) on the button lights up with a
yellow light to confirm that locking has tak-
en place.
Page 18 of 271

Fabric upholstery of your
car is purpose-made to
withstand common wear
resulting from normal use of the
car. It is however absolutely nec-
essary to prevent hard and/or pro-
longed scratching/scraping caused
by clothing accessories like metal-
lic buckles, studs, “Velcro” fixings,
etc. that stressing locally the fabric
could break yarns and damage the
upholstery as a consequence.
GETTING TO KNOW YOUR CAR
16
FRONT SEATSCENTRAL LOCKING
This allows central locking of the door
locks.
To engage central locking, the doors must
be perfectly shut, otherwise locking is de-
nied.
IMPORTANTWith central locking en-
gaged, pulling the inside lever for opening
one of the front doors causes the unlock-
ing of all the doors.
In the event of a power cut off (blown
fuse, battery disconnected, etc.) it is still pos-
sible to work the lock by hand.
fig. 11
A0A0019b
Only make adjustments
when the car is stationary.
LENGTHWISE ADJUSTMENT
(fig. 12)
Raise the lever (A) and push the seat
backwards or forwards; in the driving posi-
tion the arms should be slightly flexed and
the hands should rest on the rim of the steer-
ing wheel.
fig. 12
A0A0602b
After releasing the ad-
justment lever, always
check that the seat is
locked on the runners, trying to
move it to and fro. The lack of this
clamping action could cause the
seat to move unexpectedly and
cause loss of car control.
Page 19 of 271

GETTING TO KNOW YOUR CAR
17
CENTRAL ARMREST (fig. 13)
The armrest, fitted on some versions, is ad-
justable and can be raised and lowered to
the required position.
To adjust, slightly raise the armrest, then
press the the release device (A).
Inside the armrest there is an oddments
compartment, to use it, raise the cover,
pressing the device (B).
TILTING THE BACK REST (fig. 12)
To gain access to the rear seats, pull the
handle (E), the back rest folds and the seat
is free to run forwards.
A recovery mechanism with memory
makes it possible to take the seat back to
its previous position.
Once the seat back has been returned to
the travelling condition, make sure that it
is correctly clamped, checking that the “red
band” on the upper part of the handle (E)
is concealed. In fact, this “red band” indi-
cates that the seat back is not clamped.
Also check that the seat is firmly locked on
the runners, trying to move it to and fro.
BACK REST ANGLE
ADJUSTMENT
(fig. 12)
Turn the knob(C) until reaching the posi-
tion required.
fig. 13
A0A0023b
DRIVER’S SEAT LUMBAR
ADJUSTMENT
(fig. 12)
Turn the knob (D) until obtaining the most
comfortable position.
DRIVER’S SEAT HEIGHT
ADJUSTMENT
(fig. 12)
To raise the seat, pull the lever (B) up-
wards, then work the lever (up and down)
until reaching the required height, then re-
lease it. To lower the seat, push the lever
(B) downwards, then work the lever (up
and down) until reaching the required
height.
IMPORTANTAdjustment must be car-
ried out only seated in the driver’s seat.
Page 20 of 271

GETTING TO KNOW YOUR CAR
18
REAR POCKETS (fig. 16)
(for versions/markets where
applicable
)
The front seats are fitted with a pocket in
the rear of the back rest.
HEADREST ADJUSTMENT
(fig. 15)
To increase passengers’ safety, the head-
rests are adjustable in height.
To adjust, press the button (A) and move
the headrest up or down until it clicks into
place.
IMPORTANTThe configuration of the
headrest cushion may vary depending on
the versions and markets. The purpose of
the illustration is only to show how it is ad-
justed.
fig. 15
A0A0604b
Remember that headrests
should be adjusted so that
the nape, and not the neck,
rests on them. Only in this position
do they exert their protective ac-
tion in the event of a crash from
behind.
fig. 16
A0A0026b
SEAT WARMING (fig. 14)
Seat warming, fitted on certain versions,
is turned on and off through the switch (A)
on the outer side of the seat.
Switching on is shown by the lighting up
of the led (B) on the switch itself.
fig. 14
A0A0024b
Page 24 of 271

GETTING TO KNOW YOUR CAR
22
STEERING WHEEL
The driver can adjust the steering wheel
position in rake and height.
To do this, release the lever (A-fig. 27)
pulling it towards the steering wheel.
After moving the steering wheel to the
most suitable position, lock it pushing the
lever fully forwards.
LUGGAGE
RETAINER NET
(where provided)
Present only on certain versions, the re-
tainer net (fig. 26) is helpful in correctly
arranging the load and/or suitable for trans-
porting light materials.
fig. 27
A0A0706b
Any adjustment of the
steering wheel position
must be carried out only
with the car stationary.
CENTRAL ARMREST (fig. 25)
To use the armrest (A), present only on
certain versions, lower it as illustrated.
fig. 26
A0A0624b
fig. 25
A0A0611b
