GETTING TO KNOW YOUR CAR
14
IGNITION DEVICE
SWITCH(fig. 8)
The key can be turned to one of four po-
sitions:
–STOP: engine switched off, key can be
removed, engine inhibitor engaged, steer-
ing lock engaged, services excluded apart
from those supplied directly (e.g. hazard
warning lights).
–MAR: drive position. The engine lock
is deactivated and all electrical devices are
powered.
fig. 8
A0A0016b
When leaving the car al-
ways remove the key from
the ignition to prevent any
occupants of the car from acciden-
tally activating the controls. Nev-
er leave children in the car unac-
companied. Remember to engage
the handbrake and, if the car is
parked on an uphill slope, to en-
gage the first gear. If the car is fac-
ing downhill, engage reverse gear.
If the ignition device is
tampered with (for exam-
ple an attempted theft)
have it checked over by Alfa
Romeo Authorised Services before
travelling again.
IMPORTANTDo not leave the key in
this position when the engine is stopped.
–AV V: unstable position for starting the
engine.
IMPORTANTIf the engine fails to start
move the key back to STOPand repeat.
The ignition switch has a safety device
which prevents passage to AV Vwhen the
engine is running.
–PARK: engine switched off, key can
be removed, engine lock engaged, steer-
ing lock engaged, sidelights switched on au-
tomatically.
IMPORTANTTo turn the key to the
PARKposition, button (A) on the switch
must be pressed first.

GETTING TO KNOW YOUR CAR
93
HOW TO USE
THE AUTOMATIC TWO-ZONE
CLIMATE CONTROL SYSTEM
(fig. 97)
IMPORTANTThe knob rings do not
have a mechanical stopper therefore, once
the maximum or minimum value has been
reached, they are free to turn in both
directions.
The system can be started in different
ways, but it is advisable to set the tem-
peratures required on the displays; then
press the (13)
AUTObutton.
This way the system will start working
completely automatically to reach the
temperatures set as quickly as possible
and then maintain them.
During completely automatic system
operation, the temperatures set can be
changed at any time; the system will auto-
matically change its settings to adjust to
the new requirements. IMPORTANTTo be able to be accepted
by the system, the difference in the tem-
perature between the driver’s and passen-
ger’s side must be within a range of 7°C.
It is possible to personalise the choices
made automatically by the system inter-
veningmanually on the following controls:
- fan speed adjustment knob (4)
- air distribution selection buttons (10)
- inside air re-circulation on/off button
(8)
v
- climate control on enable button (14)
√.
Manually selecting one or more of these
functions turns off the right led on the but-
ton (13)
AUTO.With one or more functions engaged
manually, the adjustment of the tempera-
ture of the air admitted to the passenger
compartment continues to be controlled
automatically by the system (left led on
button13
AUTOon) except with the cli-
mate control compressor off.
In fact, in this condition the air admitted
to the passenger compartment cannot
have a lower temperature than the out-
side air; this condition is indicated by the
turning off of the two leds on button (13)
AUTOand flashing on the display (1)
and/or (5) related with the temperature
rate that cannot be obtained.

GETTING TO KNOW YOUR CAR
104
WING MIRROR AND
REARSCREEN
DEFROSTING/DEMISTING
BUTTON
(fig. 110)
Pressing button (9)
(turns on
demisting/defrosting of the rearscreen
and, if present, the wing mirror coils.
The turning on of this function is shown
by the turning on of the led on the button.
This function is timed and switches off
automatically after 20 minutes, or press-
ing the button again; the function is also
switched off when the engine is stopped
and will not be switched on again the next
time the engine is started.
IMPORTANTThe system automatical-
ly turns on rearscreen heating if the tem-
perature is below 3°C.
IMPORTANTDo not apply stickers on
the inside of the rearscreen over the heat-
ing filaments to avoid damage that might
cause it to stop working properly.
POLLEN FILTER
Have the conditions of the filter checked
by Alfa Romeo Authorised Services at least
once a year, preferably at the onset of
summer.
If the car is used mainly in dusty or pol-
luted areas it should be checked and, if
necessary, replaced at shorter intervals.
A0A0214b
The filter has the specific capability of fil-
tering external air, thus admitting to the
passenger compartment purified air, free
from particles such as dust, pollen, etc.
In addition to the above mentioned func-
tions, is also reduces the concentration of
pollutants.
The filtering action takes place under all
air inlet conditions and it is clearly most
effective with the windows shut.If the filter is not replaced
the efficiency of the cli-
mate control system may
be seriously compromised up to
blocking the air flow at the outlets
and vents.
fig. 110

GETTING TO KNOW YOUR CAR
106
CONTROLS
TAILGATE OPENING (fig. 112)
Electric tailgate release is only allowed with
the ignition key in the ignition switch at
MARcar stationary, at STOPorPARK
for 3 minutes without opening/closing a
door. To release the tailgate, press button
(A) on the central console panel.
HAZARD WARNING LIGHTS
(fig. 112)
They are switched on by pressing button
(C), on the central console panel, regard-
less of the position of the ignition key.
When the hazard lights are switched on,
the switch itself begins to flash together with
the direction indicators and warning lights
on the instrument panel. This function is
switched off by pressing the button again. Use of the hazard lights is
ruled by the Highway Code
of the country in which the
car is used. Observe regulations.
FOG LIGHTS (fig. 112)
These are turned on pressing button (B),
on the centre console panel, when the out-
er lights are already on, at the same time
the led on the button itself turns on.
Press button (B) again to switch off.
IMPORTANTThe front foglights should
be used in compliance with the local traffic
laws.
fig. 112
A0A0091b
REAR FOG GUARDS (fig. 112)
These are turned on, with the dipped beam
headlights or fog lights on, pressing button
(D) on the centre console panel, at the
same time the warning light on the button
itself turns on.
Turning the ignition key to STOPthe fog
guards are automatically turned off and they
do not come on the next time the engine
is started unless button (D) is pressed. To
turn them off press button (D).
IMPORTANTAlways use the rear fog
guards in compliance with local regulations.

GETTING TO KNOW YOUR CAR
107
If no leaks are found the car can be restart-
ed. Press button (A) to activate the fuel sup-
ply system again.
fig. 113
A0A0092b
If a smell of fuel is noted
following an accident, or
the fuel system is leaking,
to avoid the risk of fire do not re-
set the switch. DOOR LOCKING SYSTEM
(fig. 112)
To lock the doors simultaneously, press but-
ton (E), on the centre console panel, re-
gardless of the position of the ignition key.
The deterrent led turns on as follows:
– with the ignition key at MARglowing
steadily with a yellow light;
– with the ignition key at STOPflash-
ing with a red light (deterrence condition).
INERTIAL FUEL CUT-OFF
SWITCH
(fig. 113)
This is an automatic safety switch, to be
found on the floor next to the driver’s door
pillar, which is triggered in the event of a
crash of a certain magnitude to interrupt the
flow of fuel.
The cutting in of the inertial switch is shown
on the display of the instrument cluster.

GETTING TO KNOW YOUR CAR

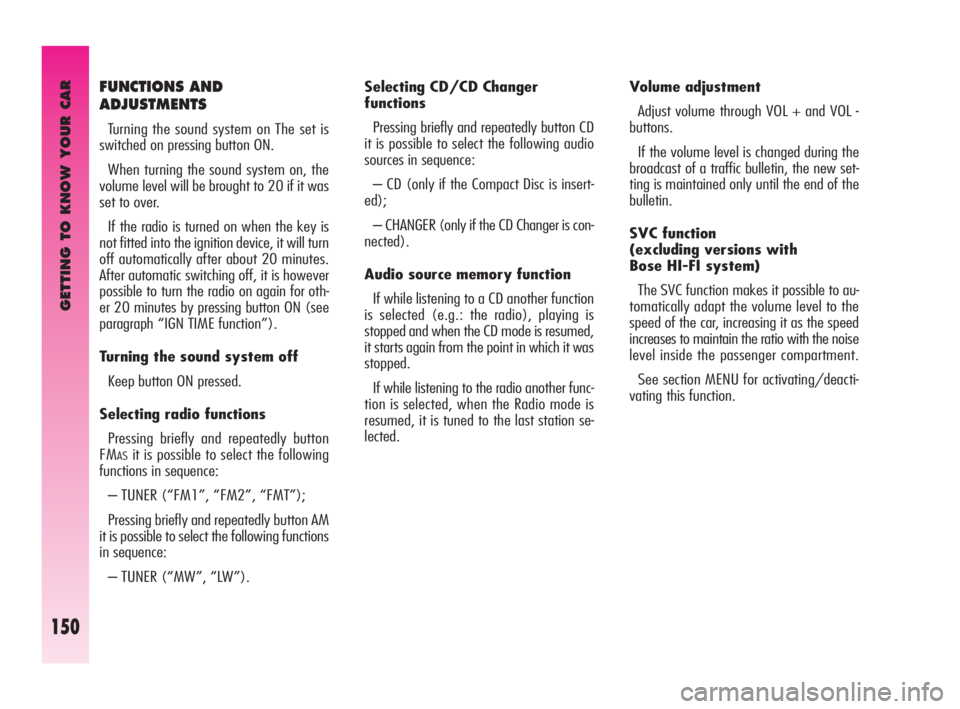

150
Selecting CD/CD Changer
functions
Pressing briefly and repeatedly button CD
it is possible to select the following audio
sources in sequence:
– CD (only if the Compact Disc is insert-
ed);
– CHANGER (only if the CD Changer is con-
nected).
Audio source memory function
If while listening to a CD another function
is selected (e.g.: the radio), playing is
stopped and when the CD mode is resumed,
it starts again from the point in which it was
stopped.
If while listening to the radio another func-
tion is selected, when the Radio mode is
resumed, it is tuned to the last station se-
lected.Volume adjustment
Adjust volume through VOL + and VOL -
buttons.
If the volume level is changed during the
broadcast of a traffic bulletin, the new set-
ting is maintained only until the end of the
bulletin.
SVC function
(excluding versions with
Bose HI-FI system)
The SVC function makes it possible to au-
tomatically adapt the volume level to the
speed of the car, increasing it as the speed
increases to maintain the ratio with the noise
level inside the passenger compartment.
See section MENU for activating/deacti-
vating this function. FUNCTIONS AND
ADJUSTMENTS
Turning the sound system on The set is
switched on pressing button ON.
When turning the sound system on, the
volume level will be brought to 20 if it was
set to over.
If the radio is turned on when the key is
not fitted into the ignition device, it will turn
off automatically after about 20 minutes.
After automatic switching off, it is however
possible to turn the radio on again for oth-
er 20 minutes by pressing button ON (see
paragraph “IGN TIME function”).
Turning the sound system off
Keep button ON pressed.
Selecting radio functions
Pressing briefly and repeatedly button
FM
ASit is possible to select the following
functions in sequence:
– TUNER (“FM1”, “FM2”, “FMT”);
Pressing briefly and repeatedly button AM
it is possible to select the following functions
in sequence:
– TUNER (“MW”, “LW”).

GETTING TO KNOW YOUR CAR
153
Each band is shown by the respective
wording on the display.
The last station selected in the respective
frequency band will be tuned.
The FM band is divided into sections: FM1,
FM2 and FMT. The FMT reception band is
reserved to the stations stored automatically
with the Autostore function.
Presetting buttons
The buttons with symbols from 1 to 6
make it possible to set the following pre-
settings:
– 18 in the FM band (6 in FM1, 6 in
FM2, 6 in FMT);
– 6 in the MW band;
– 6 in the LW band;
To call a preset station, choose the required
frequency band and then press briefly the
corresponding preset button (from 1 to 6).
Pressing the respective preset button for
longer than 2 seconds will store the tuned
station. Storing is confirmed by a beep. Storing the last station heard
The radio automatically keeps in storage
the last station heard for each reception
band, which is then tuned when the radio is
turned on or the reception band is changed.
Automatic tuning
Briefly press button
÷or˜to start
automatically searching the tuning for the
next station that it is possible to receive in
the direction chosen.
If button
÷or˜is pressed for
longer, quick searching takes place. When
the button is released, the tuner stops on
the next receivable station.
If the TA function is on (traffic information),
the tuner only searches stations which broad-
cast traffic bulletins.
RADIO (TUNER)
Introduction
When the set is turned on the last function
selected before turning off is played (Radio,
CD or CD Changer).
To select the Tuner source while listening
to another audio source, press briefly but-
tons FM
ASor AM, according to the required
frequency band.
When Tuner is on, the display will show
the selected station name (RDS stations on-
ly) (or frequency), the frequency band (e.g.:
FM1) and the preselection button number
(e.g.: P1).
Selecting the frequency band
If in the Tuner mode, briefly and repeat-
edly press button FM
ASor AM to select the
required frequency band.
Every time the button is pressed the fol-
lowing bands are selected in sequence:
– Pressing button FM
AS: “FM1”, “FM2”,
“FMT”;
– Pressing button AM: “MW” and “LW”.

GETTING TO KNOW YOUR CAR
154
A-STORE function
(automatic station storage)
To switch on the A-STORE function, keep
button FM
ASpressed until receiving the con-
firmation beep. With this function the ra-
dio automatically stores the six stations with
the strongest signal in decreasing order of
intensity of the FMT frequency band.
IMPORTANTActivating the A-STORE
function cancels the stations stored previ-
ously in the FMT band.
If the TA function is on (traffic information),
only the stations that send traffic informa-
tion will be stored.
During automatic storage the display
shows “A-STORE”.
To interrupt A-STORE press button FM
AS
again: the radio will automatically tune to
the station heard before activation of the Au-
toSTore function. At the end of the A-STORE function the ra-
dio automatically tunes on the first preset
station in the FMT band stored on preset but-
ton 1.
On buttons numbered from 1 to 6, the sta-
tions are automatically stored that give a
strong signal in that moment in the present
band.
Activating the A-STORE function in MW or
LW bands will automatically select the FMT
band where the function is then run.
IMPORTANTSometimes the A-STORE
function is unable to find 6 stations with a
strong signal. In this case the previous sta-
tions will be stored on the free preset but-
tons. Manual tuning
This allows manual station searching in the
chosen band.
Select the required frequency band and
then press briefly and repeatedly button
▲
or▼to start searching in the chosen band.
Pressing one of the buttons
▲or▼longer
obtains fast forward searching, which is
stopped when the button is released.

GETTING TO KNOW YOUR CAR
160
Select track
(forward/backward)
Briefly press button
÷to play the pre-
vious track and button
˜to play the next
one. Tracks are played in sequence: after the
last track, the first one will be played and
vice versa.
If playing the track started more than 3
seconds ago, pressing briefly button
÷
the track is played again from the start. In
this case if wanting to play the previous
track, press the button twice consecutively.
Fast forward/backward
Keep button
˜pressed to move the
track selected forward at high speed and
keep button
÷pressed to move it quick-
ly backward. Fast forward/backward is
stopped once the button is released. Pause function
To pause the CD player, press button
MUTE. The display will show “PAUSE”.
To resume playing the track, press button
MUTE again.
The pause function is deactivated chang-
ing the sound source. Possible error messages
If the CD inserted is illegible (e.g.: CD-ROM
inserted, CD not inserted properly or read-
ing error), the display will show the mes-
sage “CD ERROR” for about 2 seconds.
The CD is then ejected and the previous
source before CD was selected returns.
Display information
When the CD player is working, the dis-
play shows the following information which
means:
“T05”: shows the number of the track on
the CD;
“03:42”: shows the time elapsed since
the start of the track (if the corresponding
Menu function is on);

CAR MAINTENANCE
232
Proceed as follows with doors closed:
1.open completely the driver’s window
keeping the button pressedfor at
least 3 seconds after full opening;
2.close completely the driver’s window
keeping the button pressedfor at
least 3 seconds after full closing;
3.proceed as described in points 1 and
2 also for the passenger’s side;
4.check for proper initialisation by oper-
ating the windows in automatic.
USEFUL HINTS TO EXTEND
THE LIFE OF YOUR BATTERY
To avoid rapidly draining the battery and
ensure that it continues to work correctly,
the following should be noted:
– The terminals must always be firmly
tightened.
– As far as possible, avoid keeping ser-
vices on for a long time with the engine
stopped (radio, hazard lights, parking lights,
etc.). IMPORTANTIf the battery is kept with
a charge of below 50% it is damaged by sul-
phation, its starting capability is reduced and
it is also more subject to the possibility of
freezing (this may occur already at -10 °C).
In the event of a prolonged inactivity, refer
to the paragraph “car inactivity”, in the
chapter “Correct use of the car”.
CHANGING
THE BATTERY
When changing the battery it should be re-
placed with another original one with the
same characteristics. If it is replaced by a
battery with different characteristics, the
maintenance intervals given in the Sched-
uled Maintenance Programme in this chap-
ter are no longer valid and for maintenance
it will be necessary to follow the battery
Manufacturer’s instructions.
IMPORTANTLacking power to control
units (e.g. battery change/disconnection
and replacement of power window control
unit protection fuses), window automatism
must be reset.– When leaving the car parked in a
garage, make sure that the doors, bonnet,
boot and interior lids are properly shut to
prevent lights from staying on.
– Before carrying out any work on the
electric system, disconnect the negative ca-
ble from the battery.
– If after buying the car, you wish to in-
stall electric accessories which require a per-
manent electric supply (alarm, voice feature,
radionavigator with satellite antitheft func-
tion etc.) or accessories that burden the elec-
tric system, contact Alfa Romeo Authorised
Services whose qualified personnel, in ad-
dition to suggesting the most suitable de-
vices belonging to Lineaccessori Alfa Romeo,
will evaluate the overall electric absorption,
checking whether the car’s electric system
is capable of withstanding the load required,
or whether it should be integrated with a
more powerful battery. In fact, as some of
these devices continue absorbing energy
even when the ignition key is off (car sta-
tionary, engine off), they gradually drain the
battery.
