VERY IMPORTANT!
FUEL CAPACITY
Petrol engines:only use unleaded petrol with no less than 95 R.O.N.
Diesel engines:only refuel with diesel fuel conforming to the European specification EN590. The use of other products or
mixtures may irreparably damage the engine with invalidation of the warranty due to the damage caused.
STARTING THE ENGINE
Petrol engines with mechanical transmission:make sure that the handbrake is engaged; set the gearshift lever
to neutral, fully depress the clutch without pressing the accelerator, then turn the ignition key to AV Vand release it as soon
as the engine has started.
Petrol engine with Selespeed transmission:keep the brake pedal fully depressed, turn the ignition key to AV Vand
release it as soon as the engine has started; the transmission sets to neutral automatically (the display shows position N).
JTD engines:turn the ignition key to MARand wait for the
Yandmwarning lights to go off; turn the ignition key
toAV Vand release it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
While working, the catalyst develops a very high temperature. Do not park the car over grass, dry leaves, pine needles or
any other inflammable materials: risk of fire.
K


GETTING TO KNOW YOUR CAR
9
The codes of any keys not
presented during the mem-
orising procedure are
erased. The reason for this is to en-
sure that any lost or stolen keys
cannot be used to start the engine.
OPERATION
Each time the ignition key is turned to the
STOPposition the Alfa Romeo CODE system
deactivates the functions of the engine elec-
tronic control unit.
Each time the car is started turning the ig-
nition key to MAR, the Alfa Romeo CODE
control unit sends a recognition code to the
engine control unit to deactivate the in-
hibitor. The code is crypted and variable be-
tween over four billion possible combina-
tions, and it is sent only if the system con-
trol unit has recognised the code transmit-
ted from the key which contains an elec-
tronic transmitter, through an aerial wound
around the ignition switch.
If the code has not been recognised cor-
rectly, the Alfa Romeo CODE warning light
(
Y) on the cluster turns on.
In this case, the key should be moved to
theSTOPposition and then back to MAR;
if the lock continues, possibly try again with
the other key provided with the car. If it is
still not possible to start the car, follow the
instructions given in the “In an emergency”
chapter and then contact Alfa Romeo Au-
thorised Services.IMPORTANTTurning on of the Alfa
Romeo CODE warning light (
Y) when trav-
elling with the ignition key at MAR:
1) If the warning light turns on, this means
that the system is running a self-test (for ex-
ample for a voltage drop). At the first stop,
it will be possible to test the system: switch
off the engine turning the ignition key to
STOP; then turn the ignition key to MAR:
the warning light turns on and should go off
in about one second. If the warning light
stays on, repeat the procedure described pre-
viously leaving the key at STOPfor over
30 seconds. Should the inconvenience per-
sists, contact Alfa Romeo Authorised Ser-
vices.
2) For versions without the reconfigurable
multifunction display, the flashing of the
warning light means that the car is not pro-
tected by the engine inhibitor device. This
condition for cars with reconfigurable mul-
tifunction display is shown by the turning on
of the warning light together with the dis-
play of the message: “C
ODE SYSTEM NOT PRO-
GRAMMED”. Contact Alfa Romeo Authorised
Services immediately to have all the keys
memorised. IMPORTANTEvery key has its own
code, which must be memorised by the sys-
tem control unit. To memorise new keys, up
to a maximum of eight, apply solely to Al-
fa Romeo Authorised Services taking with
you all the keys in your possession, the
CODE card, a personal identity document
and the car’s ownership documents.

GETTING TO KNOW YOUR CAR
10
If after about 2 seconds
with the ignition key at
MAR, for versions without
reconfigurable multifunction dis-
play, the Alfa Romeo CODE warn-
ing light (
Y) turns on again flash-
ing, or for versions with reconfig-
urable multifunction display, the
warning light turns on again to-
gether with the message “C
ODE
SYSTEM NOT PROGRAMMED
”, this
means that the code of the keys
has not been stored, therefore the
car is not protected by the Alfa
Romeo CODE system against at-
tempted theft. In this case contact
Alfa Romeo Authorised Services to
have the key codes stored.
KEY BATTERY
REPLACEMENT
If when pressing button (BorC-fig. 6)
on the remote control, nothing happens, the
battery should be replaced by a new one
of the same type to be found c/o normal
retailers.
Used batteries are harm-
ful to the environment.
They should be disposed of
as specified by law in the special
containers provided. Avoid expo-
sure to naked flames and high tem-
peratures. Keep out of reach of
children.
fig. 5
A0A0603b
Battery replacement:
– press button (A-fig. 5) and move the
metal insert (B) to the open position;
– using a finely-tipped screwdriver, turn
the opening device (C) and pull out the bat-
tery holder (D);
– replace the battery (E) making sure that
the bias is correct;
– re-insert the battery holder in the key
and lock it, turning the device (C).

GETTING TO KNOW YOUR CAR
13
WHEN THE ALARM IS
TRIGGERED
When the system is on, the alarm comes
into action in the following cases:
– opening of one of the doors, bonnet or
tailgate;
– disconnection of the battery or section-
ing of electric cables;
– intrusion in the passenger compartment,
for example breakage of windows (volu-
metric protection);
– attempt to start the engine (key in
MARposition);
– abnormal car lifting/sloping (for ver-
sions/markets where applicable).
Depending on the markets, the cutting in
of the alarm causes operation of the siren
and hazard warning lights (for about 26 sec-
onds). The ways of operating and the num-
ber of cycles may vary depending on the
markets.
A maximum number of cycles is however
envisaged.
Once the alarm cycle has ended, the sys-
tem resumes its normal control function.
VOLUMETRIC PROTECTION
To make sure that the protection system
works correctly the side windows and sun-
roof (if fitted) must be properly shut.
The function can be cut off (if, for exam-
ple, leaving animals in the car) carrying out
the following operations in rapid succession:
starting from the condition with the igni-
tion key at MAR, move the key to STOP,
then immediately back to MARand then
toSTOPagain, then remove the ignition
key.
The deterrent led (A-fig. 7) on the dash-
board lights up for about 2 seconds to con-
firm that the function has been cut off.
To restore volumetric protection, move the
and keep the ignition key at MARfor over
30 seconds.
If, with the volumetric protection function
deactivated, an electric control controlled by
the ignition key at MAR(e.g. power win-
dows) turn the ignition key to MAR, op-
erate the control and move the key to
STOPin a maximum time of 30 seconds.
This way volumetric protection is not re-
stored.
HOW TO CUT OFF
THE ALARM SYSTEM
To deactivate the alarm system complete-
ly (for instance during prolonged inactivity
of the car) simply lock the car turning the
key in the lock.
MINISTERIAL CERTIFICATION
In accordance with the law in force in each
country, on the subject of radio frequency,
we wish to point out that for the markets in
which the transmitter needs to be marked,
the certification number is given on the com-
ponent.
Depending on the versions/markets, the
code may also be given on the transmitter
and/or on the receiver.

GETTING TO KNOW YOUR CAR
14
IGNITION DEVICE
SWITCH(fig. 8)
The key can be turned to one of four po-
sitions:
–STOP: engine switched off, key can be
removed, engine inhibitor engaged, steer-
ing lock engaged, services excluded apart
from those supplied directly (e.g. hazard
warning lights).
–MAR: drive position. The engine lock
is deactivated and all electrical devices are
powered.
fig. 8
A0A0016b
When leaving the car al-
ways remove the key from
the ignition to prevent any
occupants of the car from acciden-
tally activating the controls. Nev-
er leave children in the car unac-
companied. Remember to engage
the handbrake and, if the car is
parked on an uphill slope, to en-
gage the first gear. If the car is fac-
ing downhill, engage reverse gear.
If the ignition device is
tampered with (for exam-
ple an attempted theft)
have it checked over by Alfa
Romeo Authorised Services before
travelling again.
IMPORTANTDo not leave the key in
this position when the engine is stopped.
–AV V: unstable position for starting the
engine.
IMPORTANTIf the engine fails to start
move the key back to STOPand repeat.
The ignition switch has a safety device
which prevents passage to AV Vwhen the
engine is running.
–PARK: engine switched off, key can
be removed, engine lock engaged, steer-
ing lock engaged, sidelights switched on au-
tomatically.
IMPORTANTTo turn the key to the
PARKposition, button (A) on the switch
must be pressed first.

GETTING TO KNOW YOUR CAR
32
CARRYING
CHILDREN SAFELY

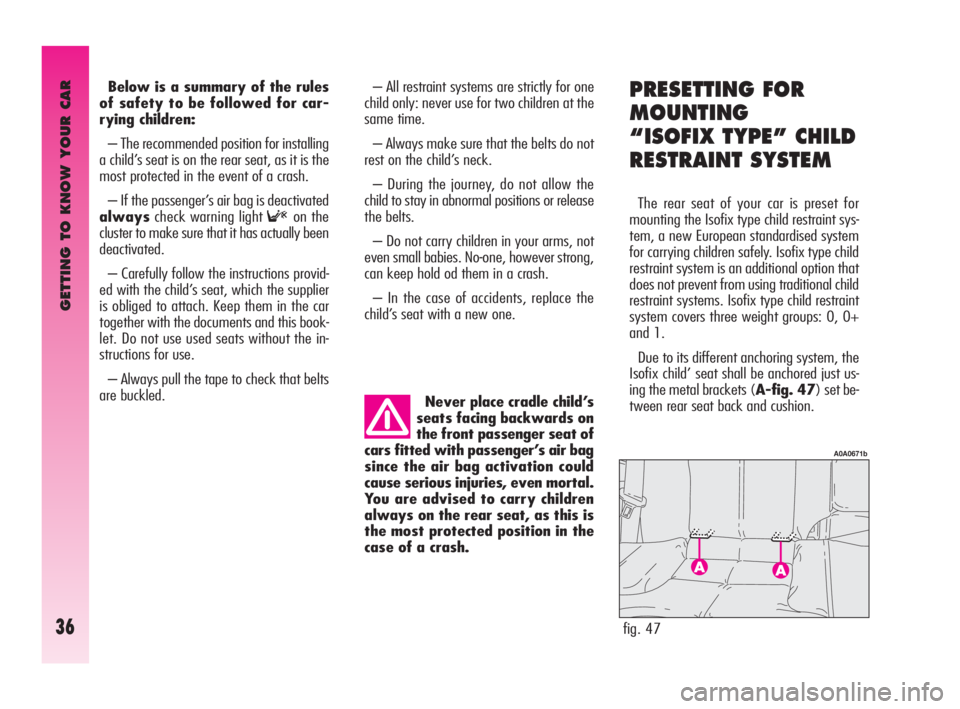

For optimal protection in the event of a
crash, all passengers must be seated and
wearing adequate restraint systems. This is
even more important for children.
This prescription is compulsory in all EC
countries according to EC Directive
2003/20/EC.
Compared with adults, their head is pro-
portionally larger and heavier than the rest
of the body, while the muscles and bone
structure are not completely developed.
Therefore, correct restraint systems are nec-
essary, other than adult seat belts.
The results of research on the best pro-
tection for a child are summarised in Euro-
pean Standard ECE- R44, which in addition
to making them compulsory, subdivides re-
straint systems into five groups:
Group 0 0 - 10 kg in weight
Group 0+ 0 - 13 kg in weight
Group 1 9 - 18 kg in weight
Group 2 15 - 25 kg in weight
Group 3 22 - 36 kg in weightAs it may be noted, the groups overlap
partly and in fact, in commerce it is possible
to find devices that cover more than one
weight group. All restraint devices must bear
the certification data, together with the con-
trol brand, on a solidly fixed label which
must absolutely never be removed.
Over 1.50 m in height, from the point of
view of restraint systems, children are con-
sidered as adults and wear the seat belts
normally. Lineaccessori Alfa Romeo offers
seats for each weight group, which are the
recommended choice, as they have been de-
signed and experimented specifically for Al-
fa Romeo cars.
Never place cradle child’s
seats facing backwards on
the front passenger seat of
cars fitted with passenger’s air bag
since the air bag activation could
cause serious injuries, even mortal.
You are advised to carry children
always on the rear seat, as this is
the most protected position in the
case of a crash.
SERIOUS DANGER
Children may placed
on the front seat of
cars fitted with passenger’s air bag
deactivation. In this case, it is ab-
solutely necessary to check the
warning light Fon the instru-
ment panel to make sure that de-
activation has actually took place
(see paragraph “Front passenger
air bag”). The front passenger’s
seat shall be adjusted in the most
backward position to prevent any
contact between child’s seat and
dashboard.

GETTING TO KNOW YOUR CAR
36
Below is a summary of the rules
of safety to be followed for car-
rying children:
– The recommended position for installing
a child’s seat is on the rear seat, as it is the
most protected in the event of a crash.
– If the passenger’s air bag is deactivated
alwayscheck warning light
Fon the
cluster to make sure that it has actually been
deactivated.
– Carefully follow the instructions provid-
ed with the child’s seat, which the supplier
is obliged to attach. Keep them in the car
together with the documents and this book-
let. Do not use used seats without the in-
structions for use.
– Always pull the tape to check that belts
are buckled.
Never place cradle child’s
seats facing backwards on
the front passenger seat of
cars fitted with passenger’s air bag
since the air bag activation could
cause serious injuries, even mortal.
You are advised to carry children
always on the rear seat, as this is
the most protected position in the
case of a crash.– All restraint systems are strictly for one
child only: never use for two children at the
same time.
– Always make sure that the belts do not
rest on the child’s neck.
– During the journey, do not allow the
child to stay in abnormal positions or release
the belts.
– Do not carry children in your arms, not
even small babies. No-one, however strong,
can keep hold od them in a crash.
– In the case of accidents, replace the
child’s seat with a new one.
PRESETTING FOR
MOUNTING
“ISOFIX TYPE” CHILD
RESTRAINT SYSTEM
The rear seat of your car is preset for
mounting the Isofix type child restraint sys-
tem, a new European standardised system
for carrying children safely. Isofix type child
restraint system is an additional option that
does not prevent from using traditional child
restraint systems. Isofix type child restraint
system covers three weight groups: 0, 0+
and 1.
Due to its different anchoring system, the
Isofix child’ seat shall be anchored just us-
ing the metal brackets (A-fig. 47) set be-
tween rear seat back and cushion.
fig. 47
A0A0671b

GETTING TO KNOW YOUR CAR
40
PASSENGER’S
FRONT AIRBAG
It consists of an instant-inflating cushion
contained in a special recess in the dash-
board; its volume is bigger than the driver’s
one (fig. 51).
MANUAL DEACTIVATION OF
PASSENGER’S FRONT AIRBAG
(
fig. 52)
(upon request for versions /
markets where applicable)
Should it be absolutely necessary to car-
ry a child on the front seat, the passenger’s
font air bag can be deactivated.
Deactivation/reactivation takes place with
ignition key at STOP, and operating it in
the special key switch set in the glovebox. SERIOUS DANGER
Children may placed
on the front seat of
cars fitted with passenger’s air bag
deactivation. In this case, it is ab-
solutely necessary to check the
warning light Fon the instru-
ment panel to make sure that de-
activation has actually took place
(see paragraph “Front passenger
air bag”). The front passenger’s
seat shall be adjusted in the most
backward position to prevent any
contact between child’s seat and
dashboard.
fig. 51
A0A0392b
fig. 52
A0A0392b
Never place cradle child’s
seats facing backwards on
the front passenger seat of
cars fitted with passenger’s air bag
since the air bag activation could
cause serious injuries, even mortal.
You are advised to carry children
always on the rear seat, as this is
the most protected position in the
case of a crash.

GETTING TO KNOW YOUR CAR
41
The key can be inserted and removed in
both positions.
IMPORTANTOperate the switch only
when the engine is not running and the ig-
nition key is removed.
The key-operated switch has two positions:
– passenger’s front airbag activated (ON
positionP): warning light
Fon instru-
ment cluster off; it is absolutely prohibited
to carry a child on the front seat.
– passenger’s front airbag deactivated
(OFFposition
F): warning light Fon
instrument cluster on; it is possible to carry
a child protected by special restraint system
on the front seat.
The warning light
Fon the cluster stays
on permanently until the passenger’s air bag
is reactivated.
Deactivation of the passenger’s front air
bag does not inhibit operation of the side air
bag.
SIDE AIR BAGS
(SIDE BAG - WINDOW BAG)
SIDE BAG (
fig. 53)
The side bag is formed of an instanta-
neously-inflating cushion housed in the back
rest of the front seat and protects the chest
of occupants in case of a side crash of medi-
um-high severity.
WINDOW BAG (fig. 54)
The window bag is formed of two “cur-
tain” cushions housed in the side roof lining
covered by a special trim, which protects the
head of front and rear occupants in the event
of a side crash thanks to the wide cushion
inflation surface.
IMPORTANTIn the event of side crash,
you can obtain the best protection by the
system keeping a correct position on the
seat, thus allowing correct window bag un-
folding.
fig. 53
A0A0614b
fig. 54
A0A0615b

GETTING TO KNOW YOUR CAR
43
GENERAL CAUTIONS
If when turning the ignition
key to MAR, the warning
light
¬does not turn on or
if it stays on when travelling there
could be a failure in safety sys-
tems; in this event air bags or pre-
tensioners could not trigger in case
of impact or, in a minor number of
cases, they could trigger acciden-
tally. Contact Alfa Romeo Autho-
rized Services immediately to have
the system checked.
Do not cover the backrest
of front seats with trims or
covers that are not suitable
to be used with side bags.Never travel with objects
on your lap, in front of
your chest or with a pipe,
pencil, etc. between your lips; in-
jury may result in the event of the
air bag being triggered.
Always keep your hands
on the steering wheel rim
when driving, so that if the
air bag is triggered, it can inflate
without meeting any obstacles
which could cause serious harm to
you. Do not drive with the body
bent forwards, keep the seat back
rest in the erect position and lean
your back well against it.
If the car has been stolen
or an attempt to steal it
has been made, if it has
been subjected to vandals or
floods, have the air bag system
checked by Alfa Romeo Authorized
Services.
Remember that with the
key engaged and at MAR,
even if the engine is not
running, the air bags may be trig-
gered on a stationary car if it is
bumped by another moving car.
Therefore, never seat children on
the front seat even when the car is
stationary. On the other hand re-
member that if the key is at STOP,
no safety system (air bags or pre-
tensioners) is triggered in the
event of an impact; in this case,
failure to come into action cannot
be considered as a sign that the
system is not working properly.
