GETTING TO KNOW YOUR CAR97
1
IMPORTANT If the anti-pinch protection intervenes 5 times consec-
utively within 1 minute or a system failure is detected, the auto-
matic window closing function is inhibited. The window can then
only be operated in steps of half a second and the button must
be released following each step.
One of the following manoeuvres must be carried out in order to
restore correct operation:
❍switch off and restart the engine;
❍fully lower the window concerned.
IMPORTANT With ignition key at STOP or removed, the electric win-
dows remain active for about 3 minutes and are deactivated the
moment a door is opened.
IMPORTANT Where the anti-crush safety device is present, when
button
Ëon the remote control is pressed for more than 2 seconds,
the windows are opened, whilst when button
Áis pressed for more
than 2 seconds the windows are closed.
Passenger-side door
The passenger-side door is equipped with a button that controls
the opening/closing of the passenger-side window.
The system conforms to the 2000/4/EC standard
concerning the safety of passengers leaning out of
the passenger compartment.
Incorrect use of the electric windows may be dan-
gerous. Before operation, always check that no
passenger is at risk of being injured directly by the
moving window or by objects getting caught in or dragged
by the window. When leaving the car, always remove the
key from the ignition device to avoid the risk of injury due
to accidental operation of the electric windows.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 97

104GETTING TO KNOW YOUR CAR
❍lower the bonnet to about 20 centimetres above the engine
compartment and then let it drop. Make sure that the bonnet
is closed correctly and not just in the safety position by trying
to lift it. If it is not perfectly closed, open the bonnet and re-
peat the procedure. Do not simply press it.
IMPORTANT Always check that the bonnet is closed properly to avoid
its opening while the car is travelling.ROOF RACK/SKI RACK
To fit the roof rack/ski rack, raise the special tabs A-fig. 68 using
the screwdriver provided to access attachment housings B.
The bonnet must always be perfectly closed while
travelling for safety reasons. Make sure that the
bonnet is perfectly closed and that the lock is en-
gaged. If when driving you realise that the bonnet is not
properly closed, stop immediately and close the bonnet
correctly.
Carry out these operations with the vehicle at a
standstill.
If the support rod is incorrectly positioned this may
cause the bonnet to fall down without warning.
fig. 68A0J0059m
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 104

114GETTING TO KNOW YOUR CAR
ELECTRIC POWER STEERING
This only works with the key turned to MAR and the engine start-
ed. Power steering allows the force required at the steering wheel
to adapt to driving conditions.
The different power assistance modes can be selected via the d,n,a
positions of the“DNA System” lever (see paragraph “ALFA dna Sys-
tem”).
EOBD SYSTEM (provided on
request for versions/markets
where provided)
The aim of the EOBD system (European On Board Diagnosis) is to:
❍keep the system efficiency under control;
❍indicate an increase in emissions;
❍indicate the need to replace deteriorated components.
The vehicle also has a diagnostic connector that can be interfaced
with appropriate tools, which makes it possible to read the error
codes stored in the electronic control units together with a series
of specific parameters for engine operation and diagnosis. This check
can also be carried out by the traffic police.
IMPORTANT After eliminating a fault, to check the system com-
pletely, Alfa Romeo Authorised Services are obliged to run tests
and, if necessary, road tests which may also call for a long journey.
It is absolutely forbidden to carry out any after-
market operation involving steering system or
steering column modifications (e.g.: installation of
anti-theft device). This could badly affect performance and
safety, invalidate the warranty and also result in the non-
compliance of the car with approval requirements.
Before carrying out any maintenance operation
switch off the engine and remove the ignition key
to activate the steering lock. This is particularly im-
portant if the vehicle’s wheels are raised from the ground.
If this is not possible (if the key must be on MAR or the
engine must be running), remove the main fuse which
protects the electric power steering.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 114

120GETTING TO KNOW YOUR CAR
T.P.M.S. SYSTEM (Tyre Pressure
Monitoring System)
(where provided)
The vehicle can be fitted with a tyre pressure monitoring system
(T.P.M.S.), which informs the driver of the tyre inflation pressure
via the “Check the tyre inflation pressure” and “Insufficient tyre in-
flation pressure” warning messages.
This system comprises of a radio frequency transmitter fitted to
each wheel (on the wheel rim inside the tyre), which is able to
send information on the tyre inflation pressure of each wheel to
the control unit.
IMPORTANT NOTES ABOUT
THE T.P.M.S. SYSTEM
The fault indications are not stored and will therefore not be dis-
played after the engine has been switched off and then on again.
If the fault conditions persist, the control unit will send fault infor-
mation to the instrument panel only after the vehicle has been in
motion for a short time.
Take the greatest of care when checking and top-
ping up the tyre inflation pressure. Excessive pres-
sure compromises road holding, increases the stress
on the suspension and wheels as well as increasing the risk
of the tyres wearing out un-evenly.
The tyre inflation pressure should be measured
with the tyres at rest and cold; if for any reason
the pressure is checked when the tyres are warm,
do not reduce the pressure if it is excessive but rather wait
until the tyres have cooled down and carry out the check
again.
The presence of the T.P.M.S. system does not mean
the driver should not carry out regular checks on
the tyre inflation pressure and spare wheel.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 120

SAFETY147
2
The expiry dates of the pyrotechnic charge and spi-
ral contact are shown in the plate installed inside
the glove compartment. Refer to an Alfa Romeo
Authorised Services when it’s time to replace them.
Do not travel with objects on your lap, in front of
your chest, or between your lips (e.g. pipes, pen-
cils, etc.) In the event of a crash with airbag acti-
vation, you may be seriously injured.
If someone tries to steal or damage your car, and
in the event of floods, have the air bag system
checked by an Alfa Romeo Authorised Services.
With the ignition key inserted and turned to MAR,
even if the engine is off, the air bags can activate
also with the car at a standstill, if it is hit by an-
other vehicle. For this reason, children must never sit on
the front seat, even if the car is not moving. Please re-
member that if the key is inserted and turned to the STOP
position, no safety device (airbag or pretensioner) acti-
vates following a collision. Non-deployment in such cas-
es must not be considered a sign of malfunction.
When the ignition key is turned to MAR, the “
warning light turns on (front airbag on passenger’s
side enabled) and blinks for a few seconds as a re-
minder that the passenger airbag will activate in the event
of a collision. Then it turns off.
The front airbags deploy in the event of more se-
vere collisions than those required for deploying
the pretensioners. For collisions in the range be-
tween the two thresholds, it is normal for only the pre-
tensioners to be activated.
127-148 Alfa MiTo GB 12-11-2008 15:41 Pagina 147

158STARTING UP AND DRIVING
SNOW CHAINS
The use of snow chains should be in compliance with local regu-
lations. The snow chains may be applied only to the front wheel
tyres (drive wheels).
Check the tension of the chains after the first few metres have been
driven.
Use reduced bulk snow chains: for 195/55 R16” and 205/45
R17” tyres. Use reduced bulk snow chains with a maximum pro-
trusion from the tyres of 9 mm.
IMPORTANT The spare wheel cannot be fitted with snow chains.
If a front (drive) wheel is punctured and snow chains must be used,
you must remove a normal wheel from the rear and replace this
one with the small spare wheel. In this way, with two normal dri-
ve wheels, it is possible to use snow chains.
CAR INACTIVITY
If the car is to be left inactive for longer than a month, the following
precautions should be noted:
❍park the vehicle in a dry, covered and, if possible, ventilated
area; engage a gear and check that the handbrake is not en-
gaged;
❍disconnect the negative battery terminal and check battery
charge. Repeat this check once every three months during stor-
age;
❍clean and protect painted areas using protective wax;
❍clean and protect the shiny metal areas using special com-
mercially-available products;
❍sprinkle talcum powder on the rubber windscreen and rear win-
dow wiper blades and lift them off the glass;
❍slightly open the windows;
❍cover the car with a fabric or perforated plastic sheet. Do not
use compact plastic sheets which do not allow humidity to evap-
orate from the surface of the car.
❍inflate tyres to a pressure of +0.5 bar above the normal spec-
ified pressure and check the pressure at regular intervals;
❍if you have not disconnected the battery, check the battery
charge every thirty days;
❍do not drain the engine cooling system.
Keep your speed down when snow chains are fit-
ted. Do not exceed 50 km/h. Avoid potholes, steps
and pavements and also avoid driving long dis-
tances on roads not covered with snow to prevent dam-
aging the car and the roadbed.
149-158 Alfa MiTo GB 12-11-2008 15:41 Pagina 158

172IN AN EMERGENCY
❍inflate the tyre to the pressure shown in the paragraph entitled
“Wheels” in chapter 6. In order to obtain a precise reading,
check the pressure on pressure gauge B-fig. 18 with the com-
pressor off;
❍if a pressure value of a least 1.5 bars is not reached within 5
minutes, disconnect the compressor from the valve and current
socket, move the vehicle forwards by about 10 metres to dis-
tribute the sealant fluid in the tyre and repeat the inflation
procedure;
fig. 18A0J0114m
❍if a pressure value of a least 1.8 bars is not reached within 5
minutes of switching on the compressor, do not continue dri-
ving. Contact an Alfa Romeo Authorised Services;
❍after having driven for about 10 minutes, stop the car and check
the tyre pressure once more: remember to engage the hand-
brake;
❍if a pressure value of at least 1.8 bars is detected, restore the
correct pressure (with the engine running and the handbrake
engaged), and drive with care to an Alfa Romeo Authorised
Services.
159-196 Alfa MiTo GB 12-11-2008 15:45 Pagina 172

CARE AND MAINTENANCE199
5
SCHEDULED SERVICING PLAN
PETROL VERSIONS
Thousands of kilometres
Check tyre condition/wear and adjust pressure if required
Check lighting system operation (headlights, direction indicators, hazard lights, passenger
compartment lights, boot lights, instrument panel warning lights, etc.)
Check windscreen wiper/washer operation
Check the position/wear of the windscreen/rearscreen wiper blades
Check condition and wear of front disc brake pads and
brake pad wear indication
Check rear disc brake pad condition and wear
Visually inspect the condition of: bodywork, underbody
protection, pipes and hoses (exhaust - fuel - brakes),
rubber parts (gaiters, sleeves, bushes, etc.)
Check cleanliness of locks, bonnet and boot, and
cleanliness and lubrication of linkages
Check and top up, if required, fluid levels
(engine coolant, brake/hydraulic clutch fluid, windscreen washer fluid, battery fluid, etc)
Check the handbrake lever travel and adjust it, if necessary
Check timing belt condition
Visually inspect condition of auxiliary drive belt/s
Check tension and adjust auxiliary drive belt (versions with heater system)30 60 90 120 150 180
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●
●●
●●
197-220 Alfa MiTo GB 12-11-2008 15:42 Pagina 199

200CARE AND MAINTENANCE
2 If the car is mainly used in cities or travels less than 10,000 km a year, change the engine oil and filter every
12 months.
30 60 90 120 150 180
●●● ●●●
●●● ●●●
●
●
●●● ●●●
●●●
●●● ●●●
●●●
●●● ●●●
1 For 1.4 Turbo Petrol versions, in order to guarantee correct operation and prevent serious damage to the
engine, it is essential to observe the following:
- only use spark plugs specifically certified for Turbo Petrol engines; all spark plugs should be of the same type and brand
(see the “Engine” paragraph);
- adhere strictly to the spark plug replacement intervals detailed in the Scheduled Service Plan;
- it is advisable to have this carried out by an Alfa Romeo Authorised Services.
Thousands of kilometres
Check exhaust emissions
Check engine management system operation (via diagnostic socket)
Replace auxiliary drive belt/s
Replace toothed timing drive belt (*)
Replace spark plugs 1
Replace air filter cartridge
Change engine oil and oil filter (or every 24 months) 2
Change brake fluid (or every 24 months)
Change pollen filter (or every 24 months)
(*) Regardless of the number of kilometres covered, the timing belt should be replaced every 4 years for particularly demanding use (cold climates,
driving in the city, idling for a long time) or in any case every 5 years.
197-220 Alfa MiTo GB 12-11-2008 15:42 Pagina 200

CARE AND MAINTENANCE201
5

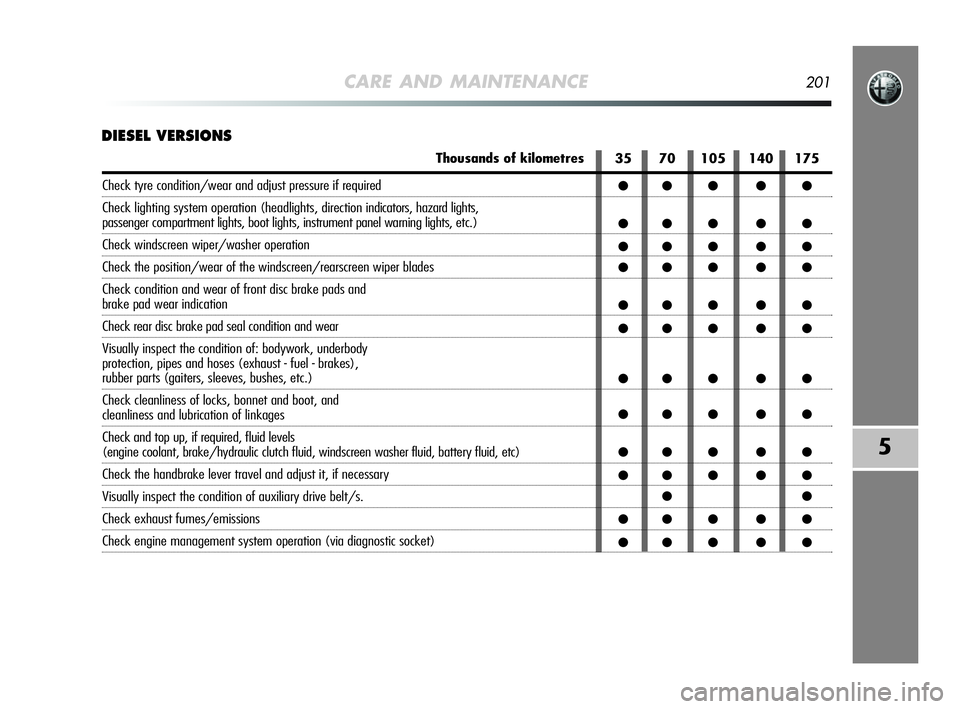

DIESEL VERSIONS
35 70 105 140 175
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●●
●● ● ● ●
●● ● ● ●
Thousands of kilometres
Check tyre condition/wear and adjust pressure if required
Check lighting system operation (headlights, direction indicators, hazard lights,
passenger compartment lights, boot lights, instrument panel warning lights, etc.)
Check windscreen wiper/washer operation
Check the position/wear of the windscreen/rearscreen wiper blades
Check condition and wear of front disc brake pads and
brake pad wear indication
Check rear disc brake pad seal condition and wear
Visually inspect the condition of: bodywork, underbody
protection, pipes and hoses (exhaust - fuel - brakes),
rubber parts (gaiters, sleeves, bushes, etc.)
Check cleanliness of locks, bonnet and boot, and
cleanliness and lubrication of linkages
Check and top up, if required, fluid levels
(engine coolant, brake/hydraulic clutch fluid, windscreen washer fluid, battery fluid, etc)
Check the handbrake lever travel and adjust it, if necessary
Visually inspect the condition of auxiliary drive belt/s.
Check exhaust fumes/emissions
Check engine management system operation (via diagnostic socket)
197-220 Alfa MiTo GB 12-11-2008 15:42 Pagina 201
