GETTING TO KNOW YOUR CAR79
1
Moving the lever upwards (unstable position) limits operation to
the time the lever is held in this position. The lever will return to
position and the wiper will be automatically stopped when released.WINDOW WASHING
The right lever controls windscreen wiper/washer and heated rear
window wiper/washer operation.

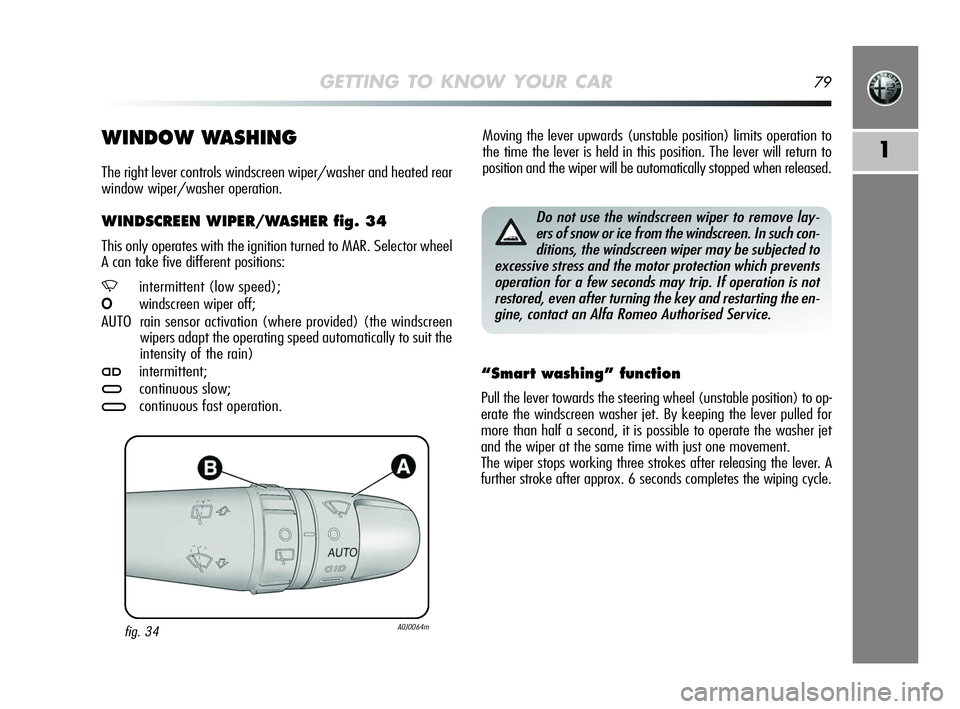

WINDSCREEN WIPER/WASHER fig. 34
This only operates with the ignition turned to MAR. Selector wheel
A can take five different positions:
,intermittent (low speed);
Owindscreen wiper off;
AUTO rain sensor activation (where provided) (the windscreen
wipers adapt the operating speed automatically to suit the
intensity of the rain)
≤intermittent;
≥continuous slow;
¥continuous fast operation.
fig. 34A0J0064m
Do not use the windscreen wiper to remove lay-
ers of snow or ice from the windscreen. In such con-
ditions, the windscreen wiper may be subjected to
excessive stress and the motor protection which prevents
operation for a few seconds may trip. If operation is not
restored, even after turning the key and restarting the en-
gine, contact an Alfa Romeo Authorised Service.
“Smart washing” function
Pull the lever towards the steering wheel (unstable position) to op-
erate the windscreen washer jet. By keeping the lever pulled for
more than half a second, it is possible to operate the washer jet
and the wiper at the same time with just one movement.
The wiper stops working three strokes after releasing the lever. A
further stroke after approx. 6 seconds completes the wiping cycle.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 79

80GETTING TO KNOW YOUR CAR
If the vehicle is switched off with the lever in the automatic posi-
tion, when the vehicle is next started no wiping cycle will take place
even if it is raining. This is to prevent unwanted activation of the
rain sensor when the engine is started (i.e. when the windscreen
is being washed by hand or the wipers are stuck to the windscreen
by ice).
Carry out any of the following manoeuvres to restore automatic
operation:
❍move the left-hand lever from the automatic position to any
other position and then back to automatic;
❍adjust the sensitivity (by turning selector wheel A-fig. 34 to
increase or decrease).
When the rain sensor is reactivated using any of the manoeuvres
described above, reactivation is indicated by a single stroke of
the windscreen wipers, regardless of the condition of the wind-
screen. If the sensitivity of the rain sensor is adjusted whilst it is
in operation, a single stroke of the windscreen wiper takes place
to confirm the changed setting.
In the event of the malfunction of the rain sensor whilst it is ac-
tive, the windscreen wiper operates intermittently at a speed con-
sistent with the sensitivity setting of the rain sensor, regardless of
whether it is raining or not (the sensor failure is indicated on the
instrument panel display). The sensor continues to operate and it
is possible to set the windscreen wiper to continuous mode (1
stor
2ndspeed). The failure indication remains for as long as the sen-
sor is active.

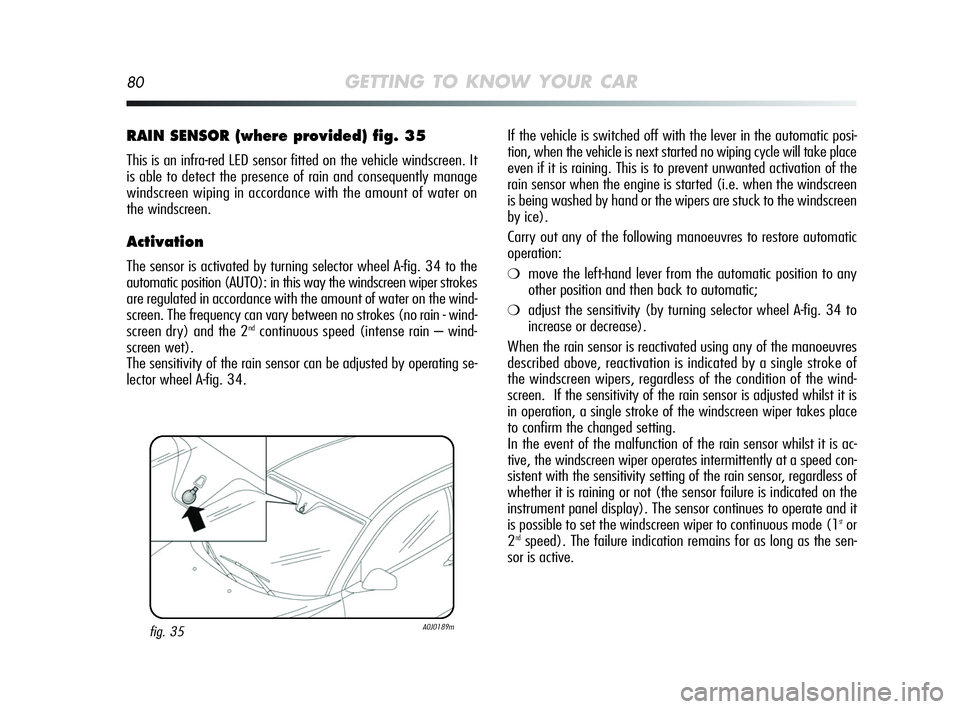

RAIN SENSOR (where provided) fig. 35
This is an infra-red LED sensor fitted on the vehicle windscreen. It
is able to detect the presence of rain and consequently manage
windscreen wiping in accordance with the amount of water on
the windscreen.
Activation
The sensor is activated by turning selector wheel A-fig. 34 to the
automatic position (AUTO): in this way the windscreen wiper strokes
are regulated in accordance with the amount of water on the wind-
screen. The frequency can vary between no strokes (no rain - wind-
screen dry) and the 2
ndcontinuous speed (intense rain – wind-
screen wet).
The sensitivity of the rain sensor can be adjusted by operating se-
lector wheel A-fig. 34.
fig. 35A0J0189m
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 80

GETTING TO KNOW YOUR CAR117
1
RADIO TRANSMITTERS AND CELLULAR PHONES
Radio sets (e.g. mobile phones, CB radio systems and the like)
cannot be used inside the car unless a separate aerial is mounted
on the roof.
IMPORTANT The use of these devices inside the passenger com-
partment (without a separate aerial) may cause the vehicle elec-
trical systems to malfunction. This could compromise safety in ad-
dition to constituting a potential hazard for passengers.
In addition, transmission and reception of these devices may be af-
fected by the shielding effect of the car body. With regards to the
use of EC-approved mobile phones (GSM, GPRS, UMTS), adhere
strictly to the instructions for use provided by the mobile phone
manufacturer.

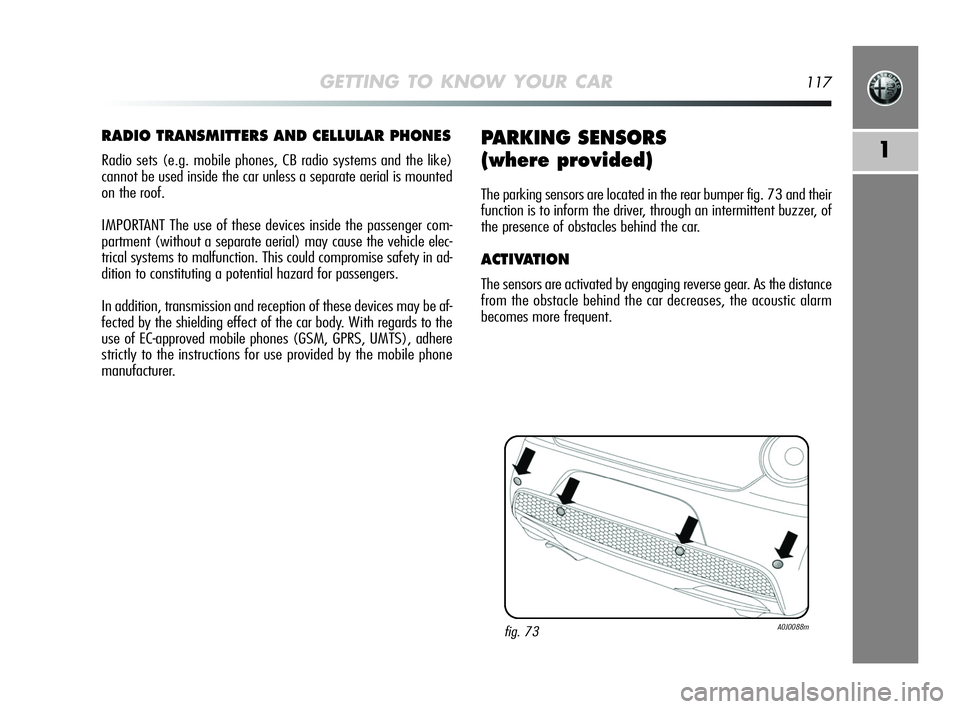

PARKING SENSORS
(where provided)
The parking sensors are located in the rear bumper fig. 73 and their
function is to inform the driver, through an intermittent buzzer, of
the presence of obstacles behind the car.
ACTIVATION
The sensors are activated by engaging reverse gear. As the distance
from the obstacle behind the car decreases, the acoustic alarm
becomes more frequent.
fig. 73A0J0088m
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 117

118GETTING TO KNOW YOUR CAR
BUZZER WARNINGS
When reverse gear is engaged a buzzer warning is automatically
activated if there is an obstacle within the range of operation.
The acoustic signal:
❍becomes louder as the distance between the car and the obsta-
cle decreases;
❍becomes continuous when the distance between the car and
the obstacle is less than 30 cm and stops immediately if the
distance increases;
❍is constant if the distance is unchanged; if this situation con-
cerns the side sensors, the buzzer will stop after about 3 sec-
onds to avoid, for example, warning indications in the event of
manoeuvres along walls.
Detection distances
Central action range: 140 cm
Side action range: 60 cm
If several obstacles are detected, the control unit indicates the near-
est one.
OPERATION WITH TRAILER
Parking sensor operation is deactivated automatically when the
trailer electric cable plug is fitted into the car tow hook socket.
The sensors are automatically enabled again when the trailer ca-
ble plug is removed.
The sensor must be free of mud, dirt, snow or ice
in order for the system to work. Be careful not to
scratch or damage the sensors while cleaning them.
Avoid using dry, rough or hard cloths. Clean the sensors
with clean water with the addition of car shampoo if nec-
essary. In washing stations, clean sensors quickly keeping
the vapour jet/high pressure washing nozzles at a dis-
tance of at least 10 cm from the sensors.
For repainting the bumpers or retouching the paint-
work around the sensors contact an Alfa Romeo
Authorised Service. The incorrect application of
paint may compromise the operation of the parking sen-
sors.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 118

GETTING TO KNOW YOUR CAR119
1The ultimate responsibility when parking and car-
rying out other dangerous manoeuvres still rests
with the driver. When carrying out such manoeu-
vres, always ensure that the manoeuvring area is free
of people (particularly children) and animals. Parking sen-
sors are designed to assist drivers: in all cases, you must
always pay the utmost attention during potentially dan-
gerous manoeuvres, even when these are carried out at
low speed.GENERAL WARNINGS
During parking manoeuvres, pay the utmost attention to any ob-
stacles that could be located above or below the sensors.
Sometimes, objects located close to the rear part of the vehicle
may not be detected by the system and may damage the vehicle
or become damaged themselves.
Here below are some conditions that may influence the perfor-
mance of the parking system:
❍reduced sensor sensitivity and reduced parking aid system per-
formance could be caused by the presence of the following
on the sensors: ice, snow, mud, multiple layers of paint;
❍the sensors detect objects that are not there (“echo disturbance”)
caused by mechanical disturbances, for example: washing the
car, rain (extreme wind conditions), hail;
❍the indications sent by the sensors can also be altered by the
presence of ultrasound devices (e.g. pneumatic brake systems
or pneumatic drills) near the car;
❍sensor performance can also be influenced by the position of
the sensors. For example by a change in the ride setting (caused
by the wear of the shock absorbers, suspension), overloading
the vehicle and carrying out specific tuning operations that re-
quire the vehicle to be lowered;
❍the detection of obstacles to the upper part of the vehicle is not
guaranteed as the system is designed to detect obstacles that
could impact the lower part of the vehicle.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 119

GETTING TO KNOW YOUR CAR121

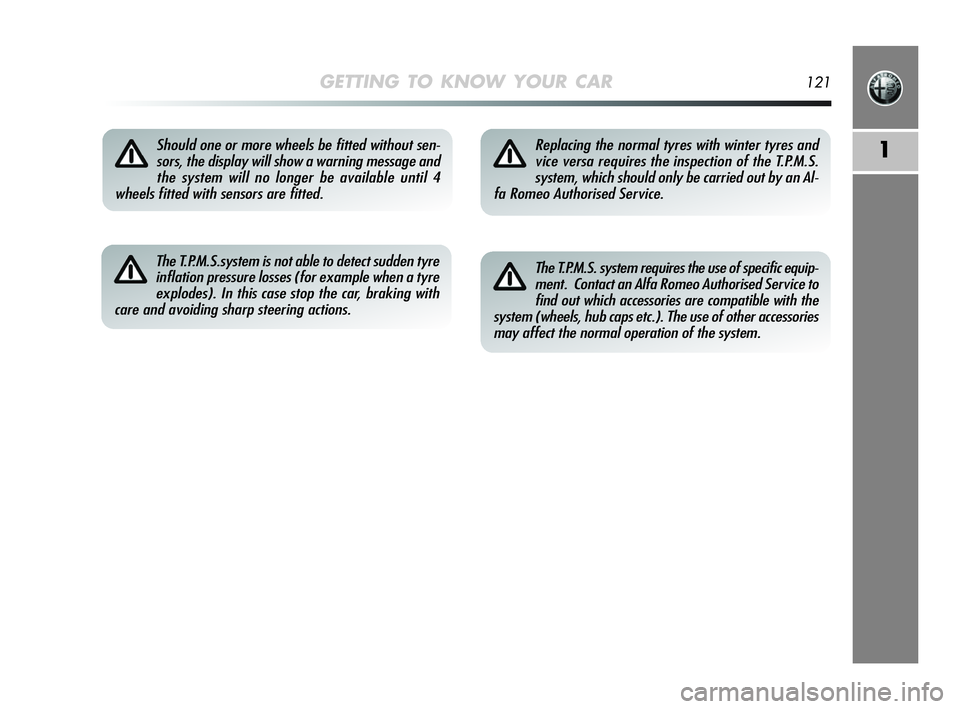

1Should one or more wheels be fitted without sen-
sors, the display will show a warning message and
the system will no longer be available until 4
wheels fitted with sensors are fitted.
The T.P.M.S.system is not able to detect sudden tyre
inflation pressure losses (for example when a tyre
explodes). In this case stop the car, braking with
care and avoiding sharp steering actions.
Replacing the normal tyres with winter tyres and
vice versa requires the inspection of the T.P.M.S.
system, which should only be carried out by an Al-
fa Romeo Authorised Service.
The T.P.M.S. system requires the use of specific equip-
ment. Contact an Alfa Romeo Authorised Service to
find out which accessories are compatible with the
system (wheels, hub caps etc.). The use of other accessories
may affect the normal operation of the system.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 121

122GETTING TO KNOW YOUR CAR

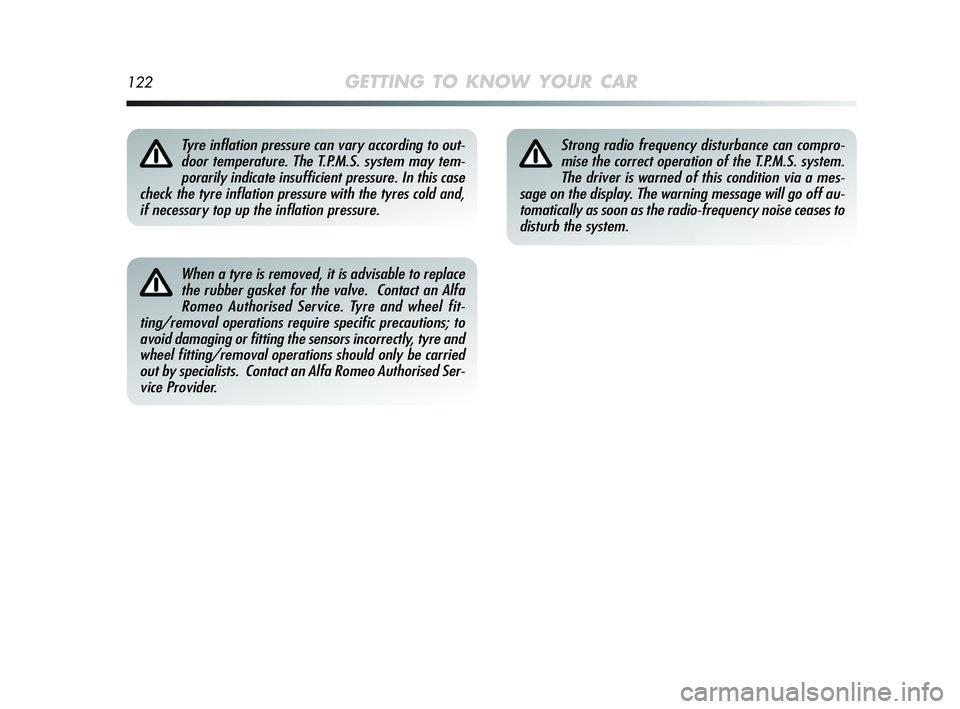

When a tyre is removed, it is advisable to replace
the rubber gasket for the valve. Contact an Alfa
Romeo Authorised Service. Tyre and wheel fit-
ting/removal operations require specific precautions; to
avoid damaging or fitting the sensors incorrectly, tyre and
wheel fitting/removal operations should only be carried
out by specialists. Contact an Alfa Romeo Authorised Ser-
vice Provider.
Strong radio frequency disturbance can compro-
mise the correct operation of the T.P.M.S. system.
The driver is warned of this condition via a mes-
sage on the display. The warning message will go off au-
tomatically as soon as the radio-frequency noise ceases to
disturb the system.Tyre inflation pressure can vary according to out-
door temperature. The T.P.M.S. system may tem-
porarily indicate insufficient pressure. In this case
check the tyre inflation pressure with the tyres cold and,
if necessary top up the inflation pressure.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 122

GETTING TO KNOW YOUR CAR123
1
–
NO
NO
YES
YES
YESYES
YES
YES
NO
NO
NOContact an Alfa Romeo
Authorised Service
Repair damaged
wheel
Contact an Alfa Romeo
Authorised Service
–
–
–
(*) Given as an alternative in the Owner Handbook and available in Lineaccessori Alfa Romeo.
(**) Not cross switched (tyres must stay on the same side).

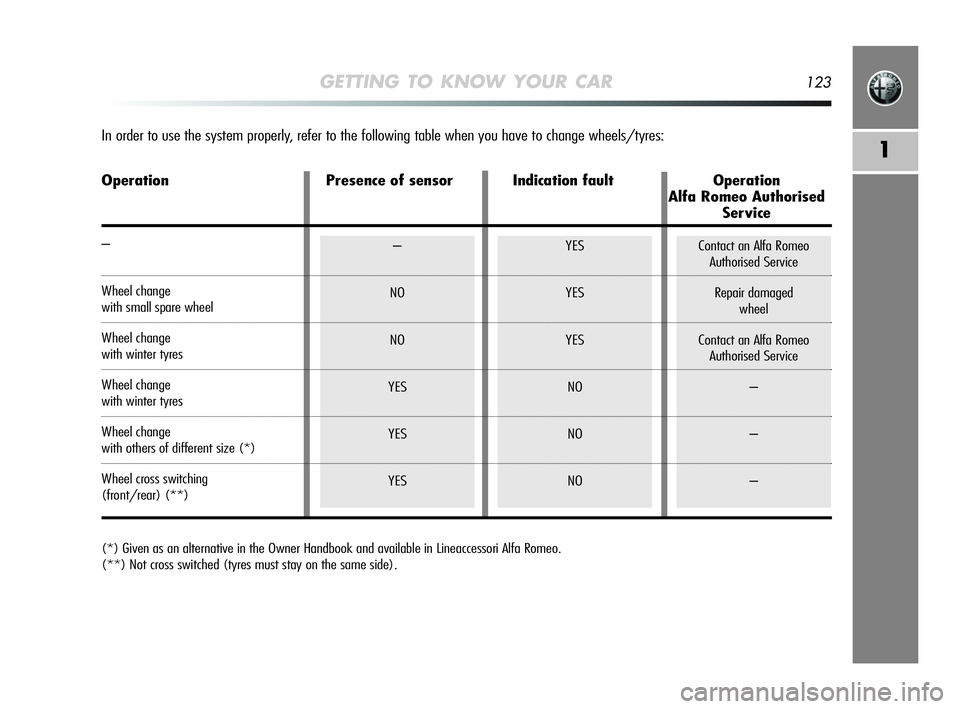

In order to use the system properly, refer to the following table when you have to change wheels/tyres:
Operation Presence of sensor Indication fault Operation
Alfa Romeo Authorised
Service
–
Wheel change
with small spare wheel
Wheel change
with winter tyres
Wheel change
with winter tyres
Wheel change
with others of different size (*)
Wheel cross switching
(front/rear) (**)
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 123

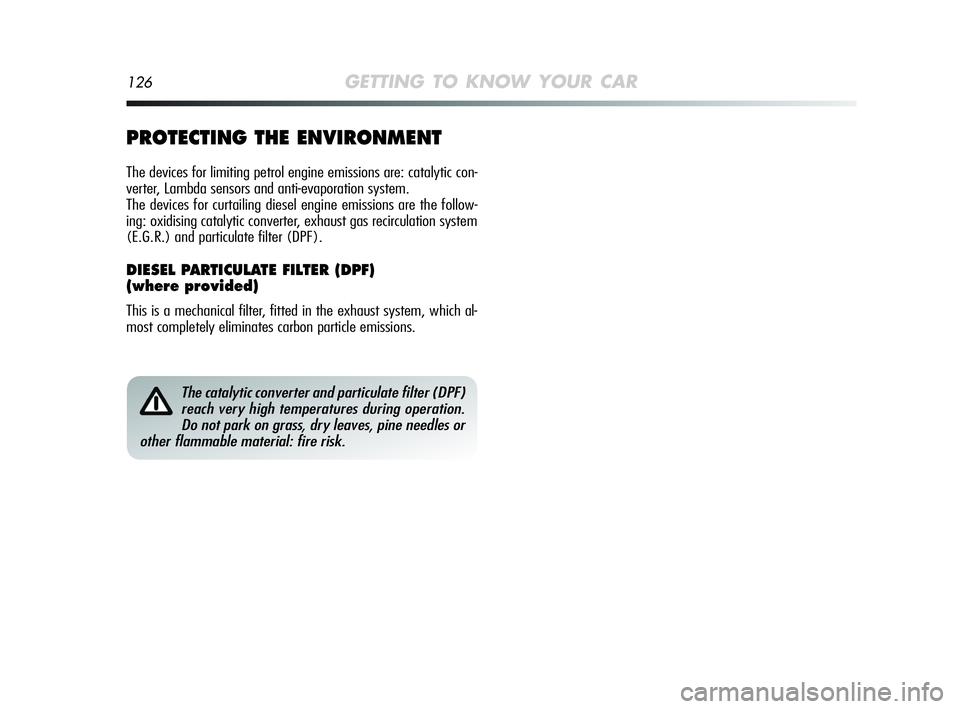

126GETTING TO KNOW YOUR CAR
The catalytic converter and particulate filter (DPF)
reach very high temperatures during operation.
Do not park on grass, dry leaves, pine needles or
other flammable material: fire risk.
PROTECTING THE ENVIRONMENT
The devices for limiting petrol engine emissions are: catalytic con-
verter, Lambda sensors and anti-evaporation system.
The devices for curtailing diesel engine emissions are the follow-
ing: oxidising catalytic converter, exhaust gas recirculation system
(E.G.R.) and particulate filter (DPF).
DIESEL PARTICULATE FILTER (DPF)
(where provided)
This is a mechanical filter, fitted in the exhaust system, which al-
most completely eliminates carbon particle emissions.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 126

41
41
41
41
43
41
41
41
41
41
41
41
41
4115
20
15
10
7.5
30
5
10
5
7.5
30
15
15
20F08
F09
F10
F11
F13
F15
F16
F17
F18
F19
F20
F21
F22
F22
IN AN EMERGENCY189
4
CONSUMERS FUSE AMPERE FIGURE
Heated windscreen
Headlight washer pump
Two-tone horn
Waste gate solenoid, Shut off solenoid, Canister solenoid,
Lambda Sensor Heater, VGT solenoid,
EGR cooling bypass solenoid, Swirl solenoid,
Throttle solenoid, Glow plug preheating control unit
Headlight alignment adjustment system
Additional heater (PTC 1)
Engine management control unit
Engine management control unit (power supply)
Control system relay coil,
Engine management control unit (1.4 versions),
Engine cooling system remote control switch coil
(300W+300W)
Air conditioning compressor
Heated rear windscreen, demisting system
Fuel pump on tank
Engine management system main loads (1.4 versions)
Engine management system main loads
(1.6 JTDMversions)
159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 189
