20GETTING TO KNOW YOUR CAR
Possible presence of ice on the road
On versions equipped with “Reconfigurable multi-
functional displays ” a message + symbol on the dis-
play are shown when the outdoor temperature falls to or
below 3°C.
On versions with “Multifunctional displays” only the dedicated mes-
sage is shown.
IMPORTANT In the event of the failure of the outdoor temperature
sensor, dashes are shown on the display instead of a temperature
value.√
Fuel lock
On some versions the display will show a message +
symbol if the fuel lock engages. For the fuel lock sys-
tem reactivation procedure see paragraph "Fuel cut-off
system" in this chapter.s
External lights failure
On some versions the display will show a message +
symbol if a fault is detected in one of the following
lights:
– daytime lights (DRL)
– side lights
– direction indicators
– rear fog lights
– number plate lights.
The fault may be caused by: one or more burnt bulbs, a blown pro-
tection fuse or an interruption of the electrical connection.W
Brakes lights failure
On some versions the display will show a message +
symbol if a fault is detected in the brake lights. The
fault may be caused by a burnt bulb, a blown protec-
tion fuse or an interruption of the electrical connection.T
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 20

GETTING TO KNOW YOUR CAR21
1
Dusk sensor failur
(for versions/markets, where provided)
On some versions the display will show a message +
symbol if there is a fault in the dusk sensor.1
Fuel reser ve – Limited range (amber)
This warning light comes on when about 5 to 7 litres
of fuel are left in the tank. When the remaining range
is approx. 50 km (or equivalent value in miles), on some
versions, the display will show a warning message.
Parking sensor failure
(for versions/markets, where provided)
On some versions the display will show a message +
symbol if there is a fault in the parking sensors.
Rain sensor failure
(for versions/markets, where provided)
On some versions the display will show a message +
symbol if there is a fault in the rain sensor.u
ç
t
If the warning light flashes with the vehicle in mo-
tion, contact an Alfa Romeo Authorised Service.
Cruise Control (green)
(for versions/markets, where provided)
This warning light comes on when the key is turned
to MAR, but should go out after a few seconds if the
Cruise Control function is deactivated. The warning light
comes on when the Cruise Control wheel is turned to the ON po-
sition (see the “Cruise Control” paragraph in this chapter). The dis-
play will show the dedicated message.
Ü
Dynamic Suspension failure
(active shock absorber system)
(for versions/markets where provided)
On some versions, the display shows a message + sym-
bol in case of active shock absorber failure. Contact your nearest
Alfa Romeo Authorised Service as soon as possible.i
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 21

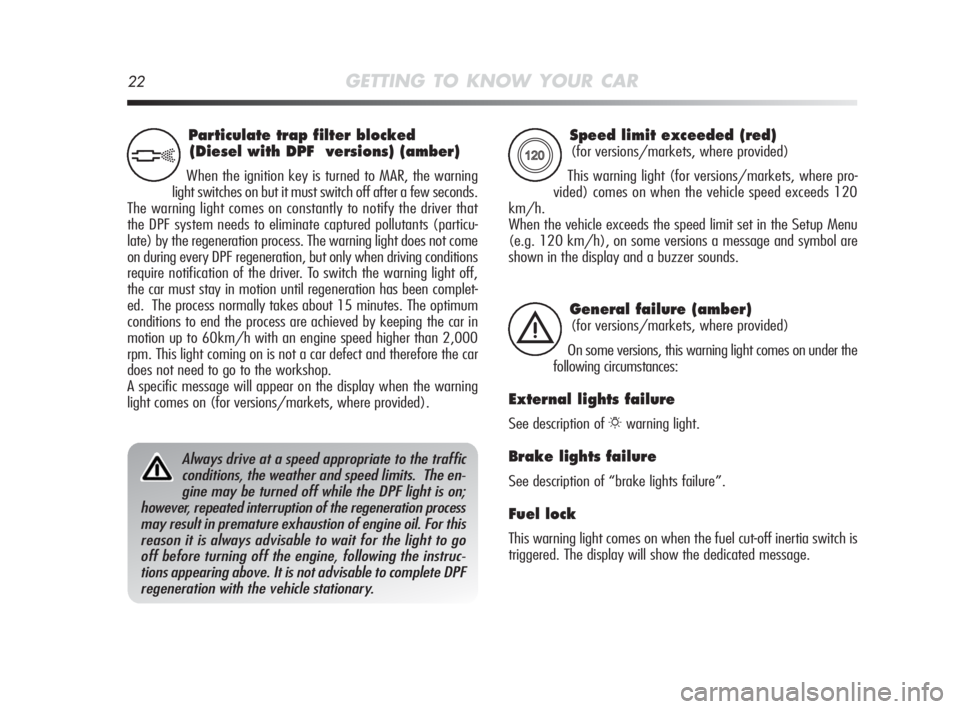

22GETTING TO KNOW YOUR CAR
Speed limit exceeded (red)
(for versions/markets, where provided)
This warning light (for versions/markets, where pro-
vided) comes on when the vehicle speed exceeds 120
km/h.
When the vehicle exceeds the speed limit set in the Setup Menu
(e.g. 120 km/h), on some versions a message and symbol are
shown in the display and a buzzer sounds.
X
General failure (amber)
(for versions/markets, where provided)
On some versions, this warning light comes on under the
following circumstances:
External lights failure
See description of 6warning light.
Brake lights failure
See description of “brake lights failure”.
Fuel lock
This warning light comes on when the fuel cut-off inertia switch is
triggered. The display will show the dedicated message.
è
Particulate trap filter blocked
(Diesel with DPF versions) (amber)
When the ignition key is turned to MAR, the warning
light switches on but it must switch off after a few seconds.
The warning light comes on constantly to notify the driver that
the DPF system needs to eliminate captured pollutants (particu-
late) by the regeneration process. The warning light does not come
on during every DPF regeneration, but only when driving conditions
require notification of the driver. To switch the warning light off,
the car must stay in motion until regeneration has been complet-
ed. The process normally takes about 15 minutes. The optimum
conditions to end the process are achieved by keeping the car in
motion up to 60km/h with an engine speed higher than 2,000
rpm. This light coming on is not a car defect and therefore the car
does not need to go to the workshop.
A specific message will appear on the display when the warning
light comes on (for versions/markets, where provided).
h
Always drive at a speed appropriate to the traffic
conditions, the weather and speed limits. The en-
gine may be turned off while the DPF light is on;
however, repeated interruption of the regeneration process
may result in premature exhaustion of engine oil. For this
reason it is always advisable to wait for the light to go
off before turning off the engine, following the instruc-
tions appearing above. It is not advisable to complete DPF
regeneration with the vehicle stationary.
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 22

GETTING TO KNOW YOUR CAR23
1
Insufficient tyre inflation pressure
(for versions/markets, where provided)
This warning light (or symbol in the display) comes on
(on some versions together with a message on the dis-
play) (together with the sounding of a buzzer) if the tyre infla-
tion pressure of one or more tyres goes below a preset value. In
this way the T.P.M.S. system warns the driver that one or more
tyres may be dangerously flat and liable to puncture.
IMPORTANT Do not continue driving with one or more tyres flat
as vehicle driveability may be compromised. Stop the car, avoid-
ing harsh braking or steering manoeuvres. Replace the wheel im-
mediately with the spare wheel (for versions/markets, where pro-
vided) or carry out a repair using the dedicated kit (see the para-
graph on “Replacing a wheel” in chapter 4) and contact an Alfa
Romeo Authorised Service as soon as possible.n
Start&Stop failure
(for versions/markets, where provided)
The warning light comes on when a Start&Stop failure is detect-
ed.
Rain sensor failure
(for versions/markets, where provided)
See description of
uwarning light.
Parking sensor failure
(for versions/markets, where provided)
See description of
twarning light.
Dusk sensor failure
(for versions/markets, where provided)
This warning light comes on when a dusk sensor failure is detect-
ed.
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 23

24GETTING TO KNOW YOUR CAR
Display of selected driving mode
(“Alfa DNA” system)
(for versions/markets, where provided)
On versions equipped with a “Reconfigurable multifunctional Dis-
play” a message + symbol associated with the selected driving
mode - “DYNAMIC”, “NORMAL” or “ALL WEATHER” - is shown.
A warning message is shown on the display if one of these dri-
ving modes is not available.
On versions equipped with a “Multifunctional display” a letter (d
or a) associated with the selected driving mode is shown togeth-
er with a dedicated message.
Rear fog lights (amber)
This warning light comes on when the rear fog lights
are turned on.4
Front fog lights (green)
This warning light comes on when the front fog lights
are turned on.5
T.P.M.S. system failure (amber)
(for versions/markets, where provided)
This warning light (or symbol in the display) comes on (on some
versions together with a message in the display) when a fault is
detected in the T.P.M.S tyre inflation pressure monitoring system:
if this occurs, contact your nearest Alfa Romeo Authorised Service
as soon as possible.
Should one or more wheels be fitted without sensors, the display
will show a warning message until initial conditions are restored.
Check tyre inflation pressure
(for versions/markets, where provided)
If this warning light (or symbol in the display) comes on (on some
versions together with a message in the display) this indicates that
the tyre pressure is below the optimum value recommended to
guarantee long tyre life and low fuel consumption. It may also in-
dicate a slow loss of pressure.
Should two or more tyres be discovered to be in the above men-
tioned condition, the display will show the indications corresponding
to each tyre in sequence. Under these circumstances you should
restore the correct pressure values (see chapter 6).
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 24

GETTING TO KNOW YOUR CAR25
1
Dipped beam headlights (green)
This warning light comes on when the dipped beam
headlights are turned on.
Side lights (green)
This warning light comes on when the side lights are
turned on.
Follow me home (green)
This warning light comes on (together with a message in the dis-
play), when this device is used.
3
2
Main beam headlights (blue)
This warning light comes on when the main beam head-
lights are turned on.1
Left direction indicator (green)
This warning light comes on when the direction indi-
cator control lever is moved downwards and when the
hazard warning light button is pressed.
Right direction indicator (green)
This warning light comes on when the direction indi-
cator control lever is moved upwards and when the haz-
ard warning light button is pressed.
R
E
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 25

26GETTING TO KNOW YOUR CAR
DISPLAY
The car may be equipped with the multifunctional display/multi-
functional reconfigurable display which, in accordance with the set-
tings made, can display useful information when driving.
MULTIFUNCTIONAL DISPLAY “STANDARD”
SCREEN fig. 6
The following information is shown on the display:
A. Date
B. Odometer (covered km or miles).
C. Driving mode selected via “Alfa DNA” (dynamic vehicle con-
trol system) (for versions/markets, where provided)
– d = Dynamic
– n = Normal
– a = All Weather
D. Clock (always displayed, even with ignition key removed and
the doors closed)
E. Start&Stop function indication (for versions/markets, where
provided)
F. Outdoor temperature
G. Gear Shift Indicator (for versions/markets, where provided)
H. Headlight alignment position (with dipped beam headlights on
only)
With the ignition key removed, when a door is opened/closed, the
display is activated and shows the time and total mileage (in km
or miles) for a few seconds.
fig. 6A0J1270g
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 26

GETTING TO KNOW YOUR CAR27
1
RECONFIGURABLE MULTIFUNCTIONAL DISPLAY
“STANDARD” SCREEN fig. 7
The following information is shown on the display:
A. Time
B. Partial mileage (in Km or miles)
C. Odometer (distance travelled in kilometres/miles)
D. Car conditions (e.g. doors open, ice on road, etc.)/Start&Stop
function indication (for versions/markets, where provided)/
Gear Shift Indicator (for versions/markets, where provided)
E. Headlight alignment position (with dipped beam headlights on
only).
F. Outdoor temperatureOn some versions when the “DYNAMIC” driving mode is select-
ed, the display shows the turbine pressure fig. 8.
fig. 7A0J0333mfig. 8A0J0228m
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 27

28GETTING TO KNOW YOUR CAR

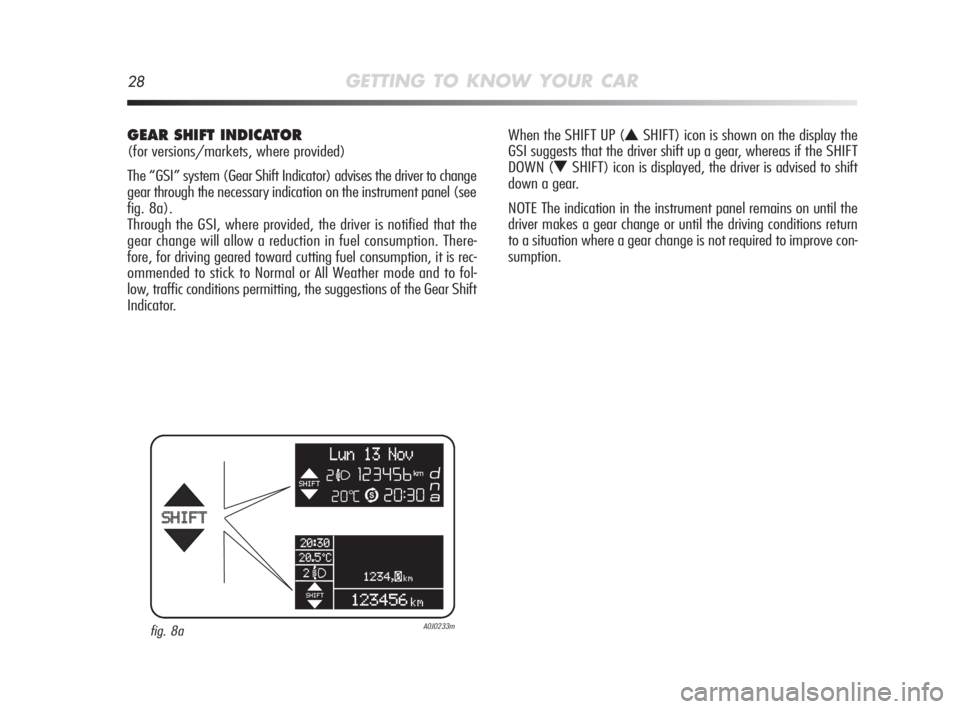

GEAR SHIFT INDICATOR
(for versions/markets, where provided)
The “GSI” system (Gear Shift Indicator) advises the driver to change
gear through the necessary indication on the instrument panel (see
fig. 8a).
Through the GSI, where provided, the driver is notified that the
gear change will allow a reduction in fuel consumption. There-
fore, for driving geared toward cutting fuel consumption, it is rec-
ommended to stick to Normal or All Weather mode and to fol-
low, traffic conditions permitting, the suggestions of the Gear Shift
Indicator.When the SHIFT UP (
NSHIFT) icon is shown on the display the
GSI suggests that the driver shift up a gear, whereas if the SHIFT
DOWN (
OSHIFT) icon is displayed, the driver is advised to shift
down a gear.
NOTE The indication in the instrument panel remains on until the
driver makes a gear change or until the driving conditions return
to a situation where a gear change is not required to improve con-
sumption.
fig. 8aA0J0233m
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 28

GETTING TO KNOW YOUR CAR29
1
WELCOME MOVEMENT
On some versions, when the key is turned to MAR, the following
occurs:
❍quick movement (up and down) of the speedometer and rpm
gauge;
❍illumination of graphic symbols/display;
❍an animated graphic representation of the vehicle profile ap-
pears on the display.
Gauge movement
❍If the key is removed from the ignition switch whilst the gauges
are moving, they immediately return to their initial position.
❍Once they have reached the end-of-scale values the gauges rest
on the value indicated by the vehicle.
❍The movement of the gauges stops when the engine is started.
Illumination of graphic symbols/display
A few seconds after the key is inserted, the gauges, graphic sym-
bols and display light up in sequence.
Display of graphic animation
When the key is removed from the ignition switch (with the doors
closed), the display remains lit up and shows a graphic animation.
The display illumination is then dimmed gradually until it goes
out completely.
CONTROL BUTTONS fig. 9/9a
“+” or “▲ Ò”(versions with Start&Stop system) To scroll the dis-
played menu and the related options upwards or to increase the
displayed value
“MENU ESC”: press briefly to access the menu and/or go to next
screen or confirm the required menu option. Hold
down to go back to the standard screen.
“–” or “
▼ “ (versions with Start&Stop system) to scroll the
displayed menu and the related options downwards or to decrease
the value displayed.
fig. 9A0J0024m
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 29
