IN AN EMERGENCY163
4
In an emergency we recommend that you call the freephone number found in the Warranty Booklet.
You can also consult www.alfaromeo.com to find Alfa Romeo Authorised Services your nearest
Starting the engine ..................................................................... 164
Replacing a wheel ....................................................................... 165
“Fix&Go Automatic” Kit ............................................................... 173
Changing a bulb .......................................................................... 178
Replacing exterior bulbs................................................................ 180
Replacing an interior bulb.............................................................. 184
Replacing fuses ........................................................................... 187
Recharging the battery ................................................................. 196
Lifting the car ............................................................................. 199
Towing the car ............................................................................ 199
163-200 Alfa MiTo GB 2ed:163-200 Alfa MiTo GB 23-12-2009 12:39 Pagina 163

178IN AN EMERGENCY
CHANGINGABULB
GENERAL INSTRUCTIONS
❍Before changing a bulb check the contacts for oxidation;
❍blown bulbs must be replaced with others of the same type and
power;
❍After replacing a headlight bulb, always check its alignment;
❍When a bulb is not working, check that the corresponding fuse
is intact before replacing it: refer to the “Replacing fuses” para-
graph in this section for the location of fuses.

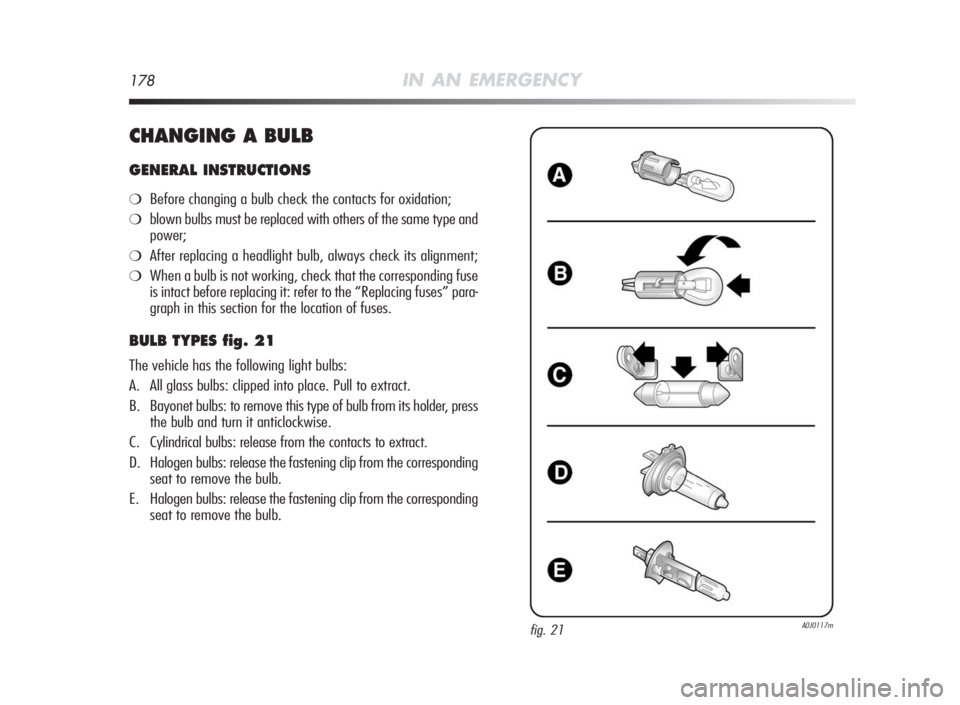

BULBTYPESfig.21
The vehicle has the following light bulbs:
A. All glass bulbs: clipped into place. Pull to extract.
B. Bayonet bulbs: to remove this type of bulb from its holder, press
the bulb and turn it anticlockwise.
C. Cylindrical bulbs: release from the contacts to extract.
D. Halogen bulbs: release the fastening clip from the corresponding
seat to remove the bulb.
E. Halogen bulbs: release the fastening clip from the corresponding
seat to remove the bulb.
fig. 21A0J0117m
163-200 Alfa MiTo GB 2ed:163-200 Alfa MiTo GB 23-12-2009 12:39 Pagina 178

IN AN EMERGENCY187
4
DOORLIGHTS
To change the bulb, proceed as follows:
❍open the door and remove the light by pushing on tab A-fig.
38 with a screwdriver;
❍press sideways on protective cover B near the two fastening
pins and replace bulb C;
❍refit the protective cover, locking the two fastening pins;
❍refit the courtesy light by inserting side D first and then press-
ing the other side until hearing the locking click of the clip.

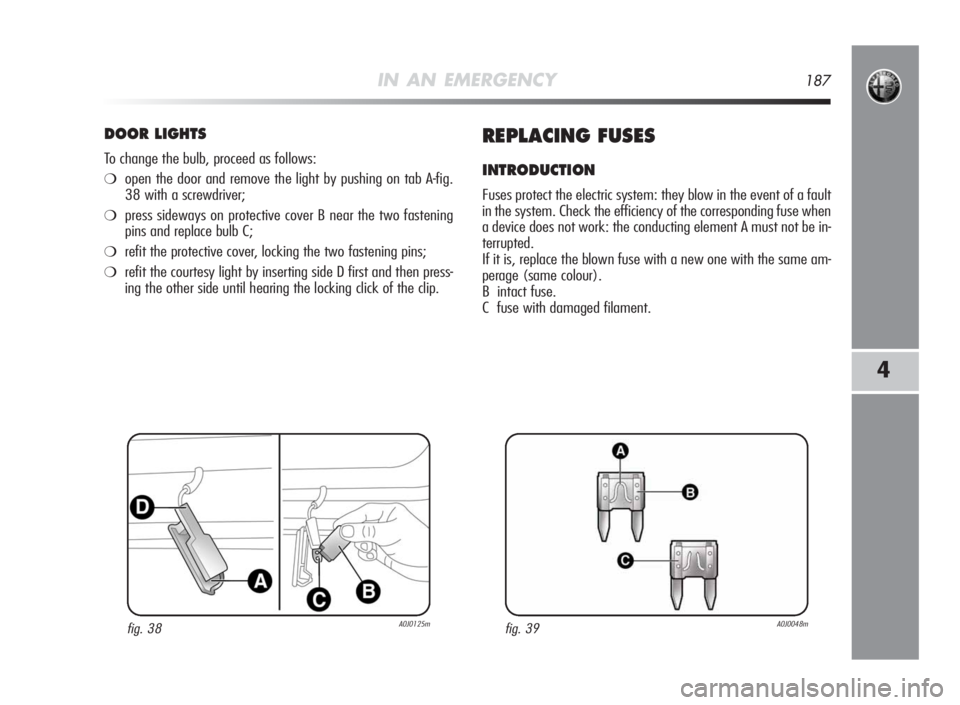

REPLACINGFUSES
INTRODUCTION
Fuses protect the electric system: they blow in the event of a fault
in the system. Check the efficiency of the corresponding fuse when
a device does not work: the conducting element A must not be in-
terrupted.
If it is, replace the blown fuse with a new one with the same am-
perage (same colour).
B intact fuse.
C fuse with damaged filament.
fig. 39A0J0048mfig. 38A0J0125m
163-200 Alfa MiTo GB 2ed:163-200 Alfa MiTo GB 23-12-2009 12:39 Pagina 187

IN AN EMERGENCY189
4
fig. 41A0J0204m
If you have to wash the engine compartment, take
care not to aim the jet of water directly at the fuse
box or windscreen wiper motors.FUSELOCAT ION
Fuses are grouped together in three junction units located in the
engine compartment, dashboard and luggage compartment
Fuseboxinengine compartment
This is located next to the battery: to access the fuses undo bolts
A-fig. 40 and remove cover B.
The ID number of the electrical component corresponding to each
fuse can be found on the back of the cover.
After replacing the fuse, make sure you close cover B on the fuse
box.
fig. 40A0J0126m
163-200 Alfa MiTo GB 2ed:163-200 Alfa MiTo GB 23-12-2009 12:39 Pagina 189

190IN AN EMERGENCY
Fuseboxondashboard
To access the fuses lower the lid A - fig. 42 and remove the cover B in the area C by releasing the inner retainers C and then the tabs D.
fig. 43A0J0205mfig. 42A0J0334m
