234TECHNICAL DATA

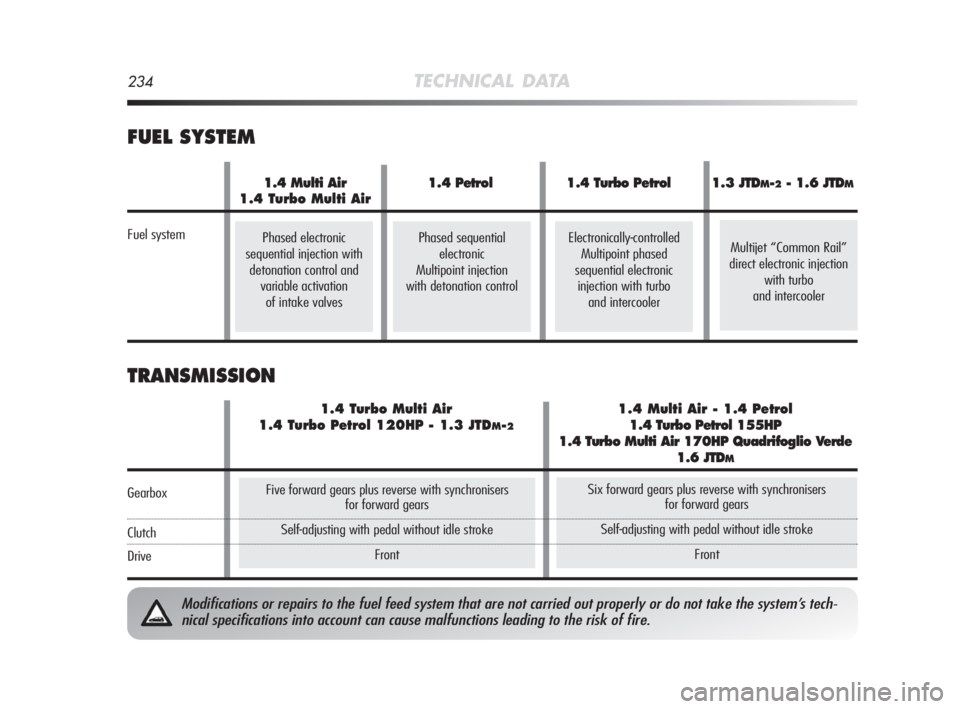

FUEL SYSTEM
TRANSMISSION
Modifications or repairs to the fuel feed system that are not carried out properly or do not take the system’s tech-
nical specifications into account can cause malfunctions leading to the risk of fire.
Five forward gears plus reverse with synchronisers
for forward gears
Self-adjusting with pedal without idle stroke
FrontSix forward gears plus reverse with synchronisers
for forward gears
Self-adjusting with pedal without idle stroke
Front
Phased sequential
electronic
Multipoint injection
with detonation controlElectronically-controlled
Multipoint phased
sequential electronic
injection with turbo
and intercoolerPhased electronic
sequential injection with
detonation control and
variable activation
of intake valvesMultijet “Common Rail”
direct electronic injection
with turbo
and intercooler
1.4 Multi Air 1.4 Petrol 1.4 Turbo Petrol 1.3 JTDM-2- 1.6 JTDM
1.4 Turbo Multi Air
Fuel system
1.4 Turbo Multi Air 1.4 Multi Air - 1.4 Petrol
1.4 Turbo Petrol 120HP - 1.3 JTD
M-21.4 Turbo Petrol 155HP
1.4 Turbo Multi Air 170HP Quadrifoglio Verde
1.6 JTDM
Gearbox
Clutch
Drive
227-250 Alfa MiTo GB 2ed:227-250 Alfa MiTo GB 23-12-2009 12:45 Pagina 234

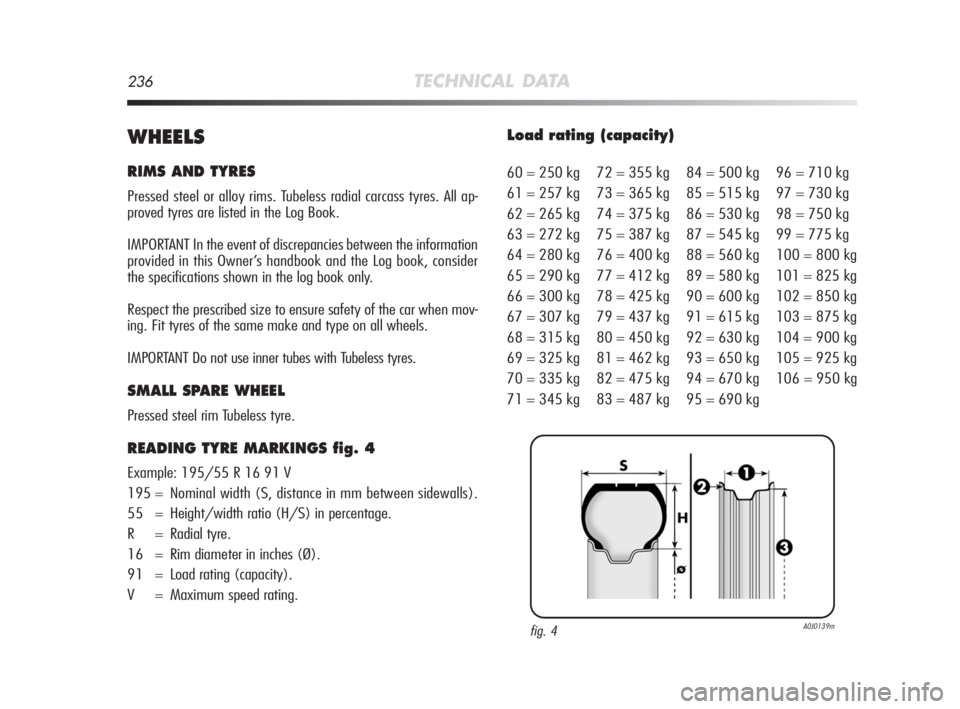

WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless radial carcass tyres. All ap-
proved tyres are listed in the Log Book.
IMPORTANT In the event of discrepancies between the information
provided in this Owner’s handbook and the Log book, consider
the specifications shown in the log book only.
Respect the prescribed size to ensure safety of the car when mov-
ing. Fit tyres of the same make and type on all wheels.
IMPORTANT Do not use inner tubes with Tubeless tyres.
SMALL SPARE WHEEL
Pressed steel rim Tubeless tyre.
READING TYRE MARKINGS fig. 4
Example: 195/55 R 16 91 V
195 = Nominal width (S, distance in mm between sidewalls).
55 = Height/width ratio (H/S) in percentage.
R = Radial tyre.
16 = Rim diameter in inches (Ø).
91 = Load rating (capacity).
V = Maximum speed rating.
fig. 4A0J0139m
236TECHNICAL DATA
Load rating (capacity)
60 = 250 kg
61 = 257 kg
62 = 265 kg
63 = 272 kg
64 = 280 kg
65 = 290 kg
66 = 300 kg
67 = 307 kg
68 = 315 kg
69 = 325 kg
70 = 335 kg
71 = 345 kg72 = 355 kg
73 = 365 kg
74 = 375 kg
75 = 387 kg
76 = 400 kg
77 = 412 kg
78 = 425 kg
79 = 437 kg
80 = 450 kg
81 = 462 kg
82 = 475 kg
83 = 487 kg84 = 500 kg
85 = 515 kg
86 = 530 kg
87 = 545 kg
88 = 560 kg
89 = 580 kg
90 = 600 kg
91 = 615 kg
92 = 630 kg
93 = 650 kg
94 = 670 kg
95 = 690 kg96 = 710 kg
97 = 730 kg
98 = 750 kg
99 = 775 kg
100 = 800 kg
101 = 825 kg
102 = 850 kg
103 = 875 kg
104 = 900 kg
105 = 925 kg
106 = 950 kg
227-250 Alfa MiTo GB 2ed:227-250 Alfa MiTo GB 23-12-2009 12:45 Pagina 236

246TECHNICAL DATA
Synthetic-based oil, grade SAE 5W-40 ACEA C3.
FIAT 9.55535-S2 Classification
Synthetic-based oil, grade SAE 5W-30
FIAT 9.55535-S1 Classification
For diesel engines, in emergency cases where genuine products are not available, lubricants with min. performance ACEA C2 are acceptable.
If this is the case, the best engine performance is not guaranteed. We recommend replacing the lubricant as soon as possible at an Alfa Romeo
Authorised Service.
The use of products with characteristics that are not up to ACEA C3 (for petrol engines) and ACEA C2 (for diesel engines) standard could cause
engine damage not covered by the warranty.
For petrol versions with Multi Air system, the use of lubricants with features below ACEA C3 and SAE grade other than 5W-40 could cause damage
to the engine, not covered by the warranty.
SELENIA StAR P.E.
Contractual Technical
Reference N
°F603.D08
SELENIA WR P.E.
Contractual Technical
Reference N
°F510.D07
According to
Scheduled
Servicing Plan
According to
Scheduled
Servicing Plan
FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND SPECIFICATIONS
Use Fluid qualitative specifications and lubricants Fluids and lubricants Interval
for correct vehicle operation original replacement
Lubricants for
petrol engines
Lubricants for
diesel engines
227-250 Alfa MiTo GB 2ed:227-250 Alfa MiTo GB 23-12-2009 12:45 Pagina 246

Manual gearboxes and
differentials (only 1.4 Petrol, 1.4
Multi Air, 1.4 Turbo Petrol 120HP,
1.4 Turbo Multi Air 135 HP,
1.3 JTD
M-2, versions)
Manual gearbox and differentials
(1.6 JTD
Mversions,
1.4 Turbo Petrol 155HP)
Manual gearbox and differentials
(1.4 Turbo Multi Air 170 HP
Quadrifoglio verde versions)
Constant velocity joints
differential-side
Constant velocity joints
wheel-side
Hydraulic brakes and
hydraulically operated
clutches
Cooling circuits
proportions of use:
50% water
50% PARAFLU
UP(❑)
To be mixed with diesel
(25 cc per 10 litres)
To be used diluted or
undiluted in windscreen/
rear window washer/
wiper systems
TUTELA CAR TECHNYX
Contractual Technical
Reference N° F010.B05
TUTELA CAR MATRYX
Contractual Technical
Reference N°F108.F02
TUTELA CAR GEARTECH
Contractual Technical
Reference N°F704.C08
TUTELA STAR 700
Contractual Technical
Reference N°F701.C07
TUTELA ALL STAR
Contractual Technical
Reference N°F702.G07
TUTELA TOP 4
Contractual Technical
Reference N°F001.A93
PARAFLU
UP(●)
Contractual Technical
Reference N°F101.M01
TUTELA DIESEL ART
Contractual Technical
Reference N°F601.L06
TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference N° F201.D02
TECHNICAL DATA247
6
Synthetic-based oil, grade SAE 75W-85.
Passes API GL-4 specifications
FIAT 9.55550-MX3 qualification
Synthetic-based oil, grade SAE 75W-85.
Passes API GL-4 specifications
FIAT 9.55550-MZ1 qualification
Synthetic-based oil, grade SAE 75W-85.
Passes API GL-4 specifications
FIAT 9.55550-MZ3 qualification
Grease for constant velocity joints with low
friction coefficient. Consistency N.L.G.I. 0-1.
FIAT 9.55580 qualification
Molybdenum disulphide grease, for use at
high temperatures. Consistency N.L.G.I. 1-2.
FIAT 9.55580 qualification
Synthetic fluid for braking and clutch systems
Exceeds specifications: FMVSS n
°116 DOT 4, ISO 4925,
SAE J 1704. FIAT 9.55597 qualification
Inhibited mono ethylene glycol-based antifreeze protection,
red, with organic formulation.
Passes CUNA NC 956-16, ASTM D 3306 specifications.
Additive for diesel fuel protecting Diesel engines.
Mixture of alcohols and surfactants.
Exceeds CUNA NC 956-11 specification.
FIAT 9.55522 qualificationBrakes
Fluid
Protective
for radiators
Additive for
diesel
Fluid for
windscreen/
rearscreen/
headlight washer Lubricants and
grease for drive
transmission
system
Use Fluid qualitative specifications and lubricants Fluids and lubricants Applicationsfor correct vehicle operation original
(●) IMPORTANT Don’t use fluids with different specifications for topping up or mixing.
(❑) When the vehicle is used under particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
227-250 Alfa MiTo GB 2ed:227-250 Alfa MiTo GB 23-12-2009 12:45 Pagina 247

252INDEX
Engine oil
– checking level ....................... 215
– consumption ......................... 215
– technical specifications ............ 245
EOBD system .............................. 120
External courtesy lights ................. 78
External lights ............................. 76
Fire extinguisher ......................... 91
Fix&Go Automatic kit ................... 173
Flashing the headlights ................. 77
Fluids and lubricants .................... 246
Fog lights
– activation ............................. 87
– bulb replacement ................... 182
Follow me home (device) ............. 77
Front air bags
– driver’s side .......................... 146
– knee on driver’s side .............. 148
– side air bags ......................... 149
Front armrest .............................. 89
Front courtesy light
– activation ............................. 83
– bulb replacement ................... 184
Fuel
– consumption ......................... 247
– fuel lock system .................... 88Fuel cap ..................................... 130
Fuel cut-off system ...................... 88
Fuel saving ................................. 158
Fuel system ................................ 234
Fuse replacement ........................ 187
– fuse location ............. 189-190-191
– fuse summary table ............... 192Gearbox (use of) ....................... 157
Gear Shift Indicator ...................... 28
Glove box light
– bulb replacement ................... 185
Handbrake ................................ 156
Hazard lights .............................. 86
Head restraints ............................ 59
Headlight alignment corrector ........ 105
Headlight washers
– activation ............................. 222
Headlights
– adjusting the light beam ......... 105
– headlight alignment corrector ... 106
– headlight alignment adjust
abroad ................................. 106
Heating/climate control system ..... 64
Hill Holder system ....................... 108
Identification data
– bodywork paint
identification plate .................. 229
– chassis marking ..................... 229
– engine marking ..................... 229
– identificationplate................. 228
In an emergency......................... 163
Installation of electrical/
electronic devices ........................ 122
Instrument panel
and instruments .................... 8-244
Interior equipment ....................... 89
Interiors
– cleaning seats and fabric
parts .................................... 225
– interior plastic parts ................ 225
– leather seats ......................... 225
– leather parts ......................... 226
Isofix (standardseat)................... 144
Jacking the car............................ 199
Jack .......................................... 167
Keys ........................................ 47
Knowing your car ......................... 5
251-260 Alfa MiTo GB 3ed:251-260 Alfa Mito GB 9-02-2010 11:28 Pagina 252

254INDEX
Spark plugs ........................ 231-232
Starting the engine ..................154-164
Start-up device ............................ 55
START&STOP system .................... 114
Steering ..................................... 235
Steering lock .............................. 56
Steering wheel (adjustment) ......... 60
Storing the car ............................ 162
Sun visors .................................. 91
Supplementary heater .................. 75
Suspension ................................. 235
Symbols .................................... 46
Storing the car ............................ 158
Sun visors .................................. 91
Supplementary heater ................... 75
Suspension ................................. 228
– Dynamic Suspension ............... 119
Symbols .................................... 46
T.P.M.S. (system) ....................... 125
Technical data ............................. 228
Third brake light .......................... 183
Top speeds ................................. 241
Towing the car ............................ 199
Towing trailers ............................ 160
Transmission ............................... 234Trip Computer ............................. 42
– TRIP button ........................... 45
Tyre marking .............................. 236
– inflation pressures .................. 239
Tyres
– standard ............................... 238
– snow tyres ............................ 161
– correct reading of ................... 236
Universal Isofix child restraint
assembly setup ......................... 139
VDC (system) ........................... 108
Warning lights on panel .............. 12
Weights ..................................... 242
Wheel replacement ...................... 165
Wheel rims
– correct reading ...................... 237
Wheels
– “Fix&Go” automatic .............. 173
– technical specifications ........... 236
– tyres pressure ........................ 239
– wheels and tyres ................... 219
Window Bag .............................. 149Window washing
– rain sensor ............................ 80
– rearscreen wiper/washer ........ 81
– “smart washing” function ....... 79
– windscreen wiper/washer ....... 79
Windows (cleaning) .................... 224
Windscreen wiper
– activation ............................. 79
– brushes ................................ 220
Wiring for navigation system ......... 122
251-260 Alfa MiTo GB 3ed:251-260 Alfa Mito GB 9-02-2010 11:28 Pagina 254

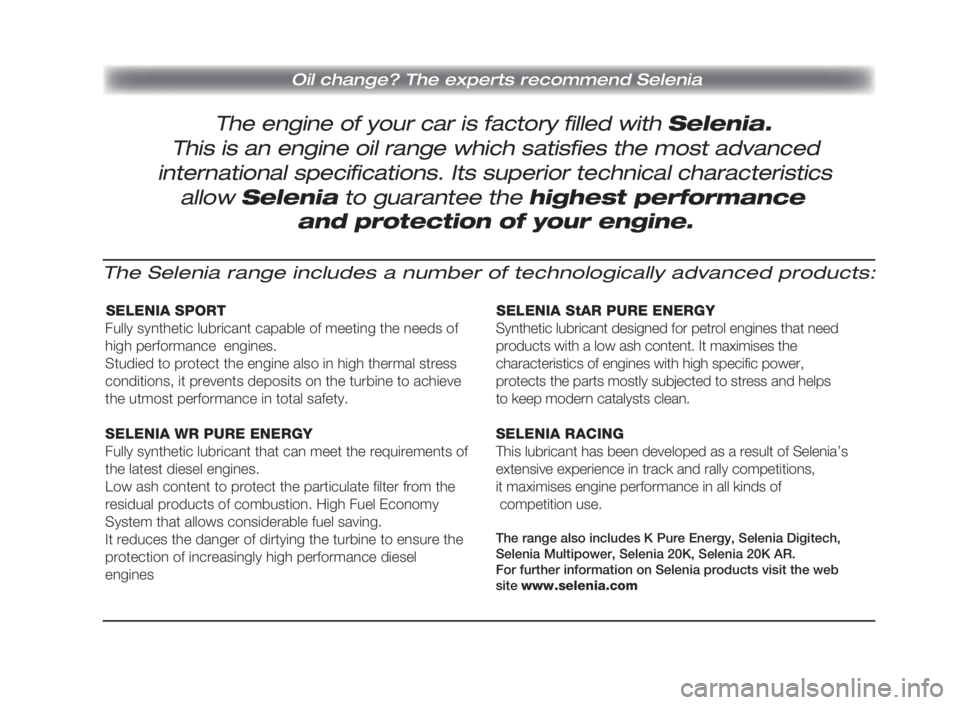

Oil change? The experts recommend Selenia
The engine of your car is factory filled withSelenia.
This is an engine oil range which satisfies the most advanced
international specifications. Its superior technical characteristics
allowSelenia to guarantee thehighest performance
and protection of your engine.
The Selenia range includes a number of technologically advanced products:
SELENIA SPORT
Fully synthetic lubricant capable of meeting the needs of
high performance engines.
Studied to protect the engine also in high thermal stress
conditions, it prevents deposits on the turbine to achieve
the utmost performance in total safety.
SELENIA WR PURE ENERGY
Fully synthetic lubricant that can meet the requirements of
the latest diesel engines.
Low ash content to protect the particulate filter from the
residual products of combustion. High Fuel Economy
System that allows considerable fuel saving.
It reduces the danger of dirtying the turbine to ensure the
protection of increasingly high performance diesel
enginesSELENIA StAR PURE ENERGY
Synthetic lubricant designed for petrol engines that need
products with a low ash content. It maximises the
characteristics of engines with high specific power,
protects the parts mostly subjected to stress and helps
to keep modern catalysts clean.
SELENIA RACING
This lubricant has been developed as a result of Selenia’s
extensive experience in track and rally competitions,
it maximises engine performance in all kinds of
competition use.

The range also includes K Pure Energy, Selenia Digitech,
Selenia Multipower, Selenia 20K, Selenia 20K AR.
For further information on Selenia products visit the web
sitewww.selenia.com
251-260 Alfa MiTo GB 3ed:251-260 Alfa Mito GB 9-02-2010 11:28 Pagina 259
