156STARTING UP AND DRIVING
PARKING
Switch off the engine and pull up the handbrake. Engage a gear
(1stif the car is facing uphill or reverse if it is facing downhill) and
leave the wheels steered to one side.
If the car is parked on a steep slope block the wheels with a wedge
or stone. Always remove the ignition key when leaving the vehi-
cle.
HANDBRAKE fig. 1
To engage the handbrake pull lever A upwards until the vehicle is
secured. To disengage slightly raise lever A, press and hold down
button B and lower the lever.IMPORTANT Carry out these manoeuvres with the brake pedal pressed.
IMPORTANT For vehicles equipped with a front armrest, lift this
up to ensure that it does not interfere with the action of the hand-
brake.
fig. 1A0J0110m
The vehicle should be secured after several clicks
of the lever: if this is not the case, contact an Alfa
Romeo Authorised Service Provider to have it ad-
justed.

IN AN EMERGENCY181
4

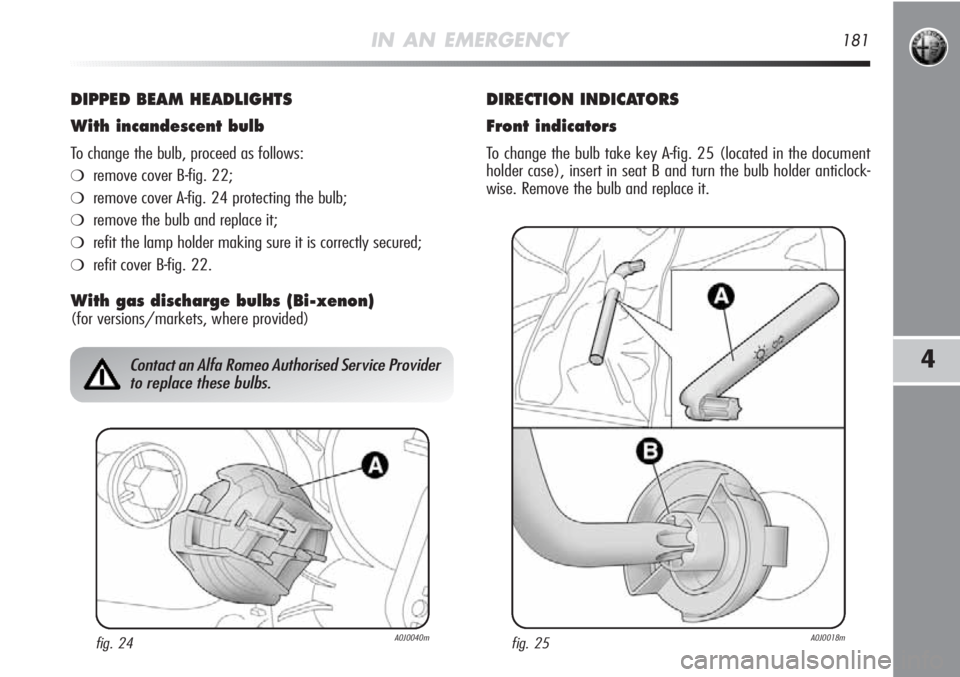

DIPPED BEAM HEADLIGHTS
With incandescent bulb
To change the bulb, proceed as follows:
❍remove cover B-fig. 22;
❍remove cover A-fig. 24 protecting the bulb;
❍remove the bulb and replace it;
❍refit the lamp holder making sure it is correctly secured;
❍refit cover B-fig. 22.
With gas discharge bulbs (Bi-xenon)
(for versions/markets, where provided)
DIRECTION INDICATORS
Front indicators
To change the bulb take key A-fig. 25 (located in the document
holder case), insert in seat B and turn the bulb holder anticlock-
wise. Remove the bulb and replace it.
fig. 24A0J0040m
Contact an Alfa Romeo Authorised Service Provider
to replace these bulbs.
fig. 25A0J0018m

188IN AN EMERGENCY

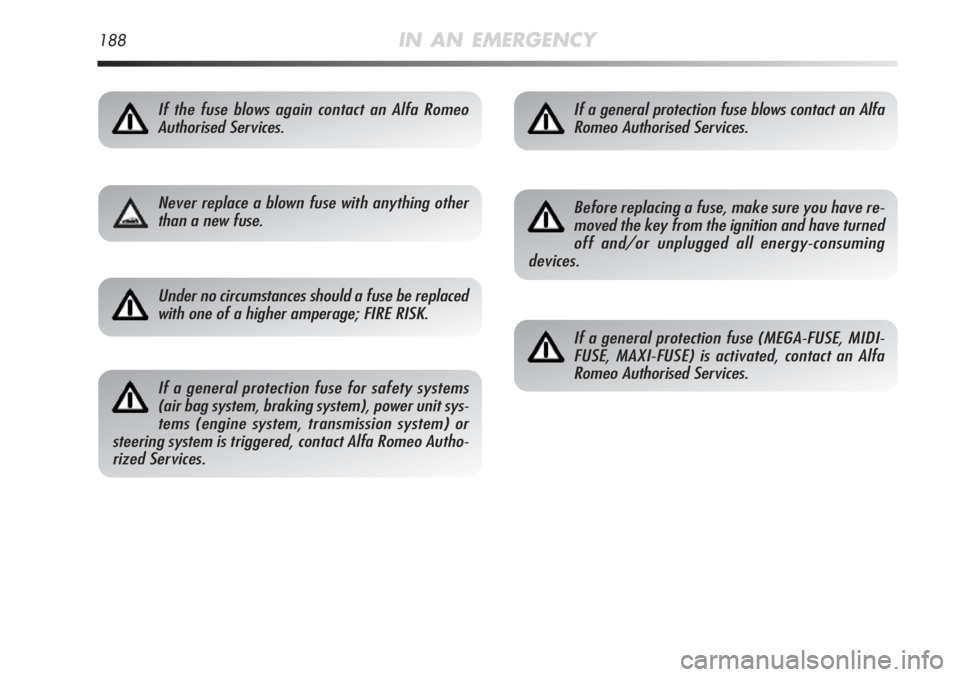

If the fuse blows again contact an Alfa Romeo
Authorised Services.
Never replace a blown fuse with anything other
than a new fuse.
Under no circumstances should a fuse be replaced
with one of a higher amperage; FIRE RISK.
If a general protection fuse for safety systems
(air bag system, braking system), power unit sys-
tems (engine system, transmission system) or
steering system is triggered, contact Alfa Romeo Autho-
rized Services.
If a general protection fuse blows contact an Alfa
Romeo Authorised Services.
Before replacing a fuse, make sure you have re-
moved the key from the ignition and have turned
off and/or unplugged all energy-consuming
devices.
If a general protection fuse (MEGA-FUSE, MIDI-
FUSE, MAXI-FUSE) is activated, contact an Alfa
Romeo Authorised Services.

41
41
41
43
41
41
41
41
43
43
4315
20
15
7.5
30
7.5
30
15
5
10
5F08
F09
F10
F13
F15
F19
F20
F21
F31
F36
F37
IN AN EMERGENCY193
4
CONSUMERS FUSE AMPERE FIGURE
Heated windscreen
Headlight washer pump
Two-tone horn
Headlight alignment adjustment system
Additional heater (PTC 1)
“Dynamic Suspension” control system
Air conditioning compressor
Heated rear windscreen, demisting system
Fuel pump on tank
INT/A key exhaust relay coils
on engine fuse box
Radio, Blue&Me
TMcontrol unit, Climate control unit,
Alarm control unit, Volume sensing system control unit,
EOBD external diagnostic socket,
Tyre pressure detection control unit
Instrument panel, Brake light switch,
Gas discharge headlights management system

IN AN EMERGENCY199
4

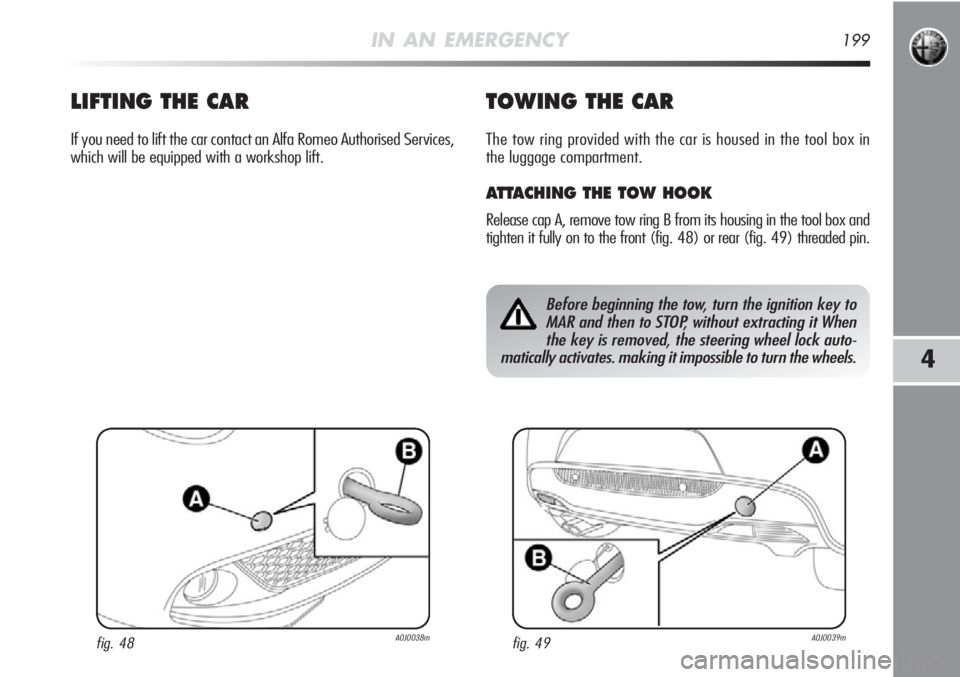

LIFTING THE CAR
If you need to lift the car contact an Alfa Romeo Authorised Services,
which will be equipped with a workshop lift.
TOWING THE CAR
The tow ring provided with the car is housed in the tool box in
the luggage compartment.
ATTACHING THE TOW HOOK
Release cap A, remove tow ring B from its housing in the tool box and
tighten it fully on to the front (fig. 48) or rear (fig. 49) threaded pin.
Before beginning the tow, turn the ignition key to
MAR and then to STOP, without extracting it When
the key is removed, the steering wheel lock auto-
matically activates. making it impossible to turn the wheels.
fig. 48A0J0038mfig. 49A0J0039m

224CARE AND MAINTENANCE

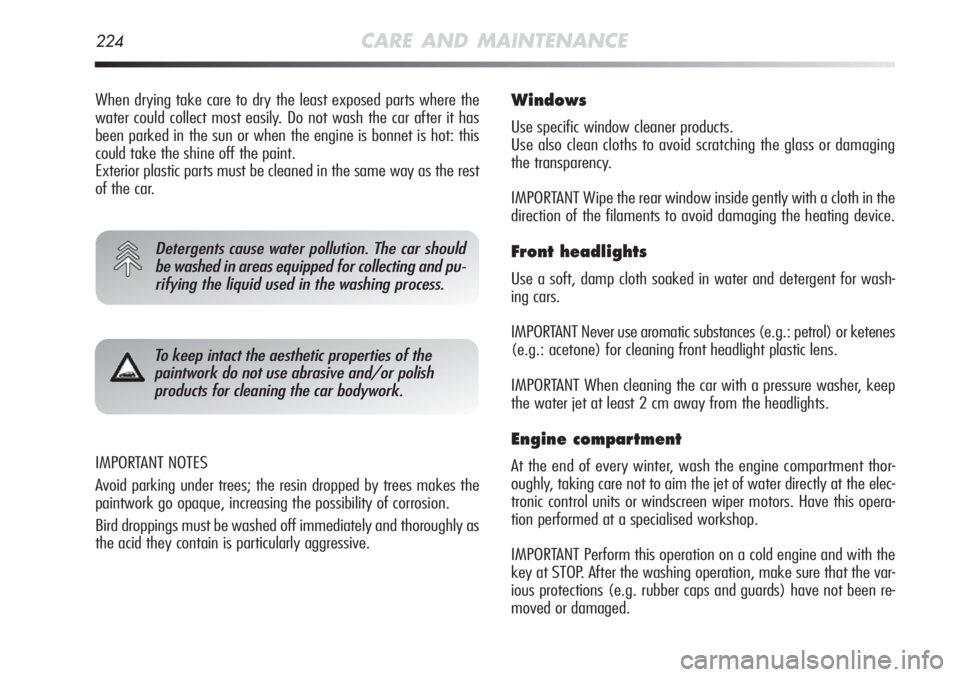

IMPORTANT NOTES
Avoid parking under trees; the resin dropped by trees makes the
paintwork go opaque, increasing the possibility of corrosion.
Bird droppings must be washed off immediately and thoroughly as
the acid they contain is particularly aggressive.
Windows
Use specific window cleaner products.
Use also clean cloths to avoid scratching the glass or damaging
the transparency.
IMPORTANT Wipe the rear window inside gently with a cloth in the
direction of the filaments to avoid damaging the heating device.
Front headlights
Use a soft, damp cloth soaked in water and detergent for wash-
ing cars.
IMPORTANT Never use aromatic substances (e.g.: petrol) or ketenes
(e.g.: acetone) for cleaning front headlight plastic lens.
IMPORTANT When cleaning the car with a pressure washer, keep
the water jet at least 2 cm away from the headlights.
Engine compartment
At the end of every winter, wash the engine compartment thor-
oughly, taking care not to aim the jet of water directly at the elec-
tronic control units or windscreen wiper motors. Have this opera-
tion performed at a specialised workshop.
IMPORTANT Perform this operation on a cold engine and with the
key at STOP. After the washing operation, make sure that the var-
ious protections (e.g. rubber caps and guards) have not been re-
moved or damaged.
Detergents cause water pollution. The car should
be washed in areas equipped for collecting and pu-
rifying the liquid used in the washing process.
When drying take care to dry the least exposed parts where the
water could collect most easily. Do not wash the car after it has
been parked in the sun or when the engine is bonnet is hot: this
could take the shine off the paint.
Exterior plastic parts must be cleaned in the same way as the rest
of the car.
To keep intact the aesthetic properties of the
paintwork do not use abrasive and/or polish
products for cleaning the car bodywork.

254INDEX
Engine oil
– checking level ....................... 215
– consumption......................... 215
– technical specifications ............245
EOBD system .............................. 120
External courtesy lights ................. 78
External lights ............................. 76
Fire extinguisher ......................... 91
Fix&Go Automatic kit ................... 173
Flashing the headlights ................. 77
Fluids and lubricants .................... 246
Fog lights
– activation............................. 87
– bulb replacement ................... 182
Follow me home (device) ............. 77
Front air bags
– driver’s side .......................... 146
– knee on driver’s side .............. 148
– side air bags ......................... 149
Front armrest .............................. 89
Front courtesy light
– activation............................. 83
– bulb replacement ................... 184
Fuel
– consumption......................... 247
– fuel lock system .................... 88Fuel cap ..................................... 130
Fuel cut-off system ...................... 88
Fuel saving ................................. 158
Fuel system ................................ 234
Fuse replacement........................ 187
– fuse location .............189-190-191
– fuse summary table ............... 192Gearbox (use of)....................... 157
Gear Shift Indicator ...................... 28
Glove box light
– bulb replacement ................... 185
Handbrake ................................ 156
Hazard lights .............................. 86
Head restraints ............................ 59
Headlight alignment corrector ........ 105
Headlight washers
– activation............................. 222
Headlights
– adjusting the light beam ......... 105
– headlight alignment corrector ... 106
– headlight alignment adjust
abroad ................................. 106
Heating/climate control system ..... 64
Hill Holder system ....................... 108
Identification data
– bodywork paint
identification plate .................. 229
– chassis marking ..................... 229
– engine marking ..................... 229
– identification plate ................. 228
In an emergency ......................... 163
Installation of electrical/
electronic devices........................ 122
Instrument panel
and instruments .................... 8-244
Interior equipment....................... 89
Interiors
– cleaning seats and fabric
parts .................................... 225
– interior plastic parts ................ 225
– leather seats......................... 225
– leather parts ......................... 226
Isofix (standard seat) ................... 144
Jacking the car............................ 199
Jack .......................................... 167
Keys ........................................ 47
Knowing your car ......................... 5
