GETTING TO KNOW YOUR CAR19
1

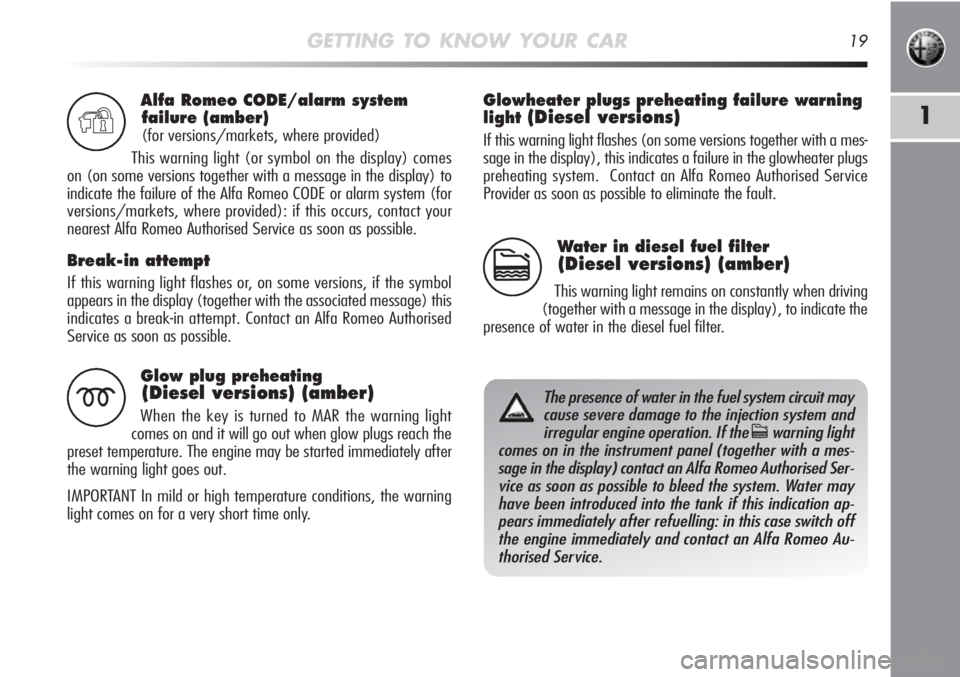

Alfa Romeo CODE/alarm system
failure (amber)
(for versions/markets, where provided)
This warning light (or symbol on the display) comes
on (on some versions together with a message in the display) to
indicate the failure of the Alfa Romeo CODE or alarm system (for
versions/markets, where provided): if this occurs, contact your
nearest Alfa Romeo Authorised Service as soon as possible.
Break-in attempt
If this warning light flashes or, on some versions, if the symbol
appears in the display (together with the associated message) this
indicates a break-in attempt. Contact an Alfa Romeo Authorised
Service as soon as possible.
Y
Glow plug preheating
(Diesel versions) (amber)
When the key is turned to MAR the warning light
comes on and it will go out when glow plugs reach the
preset temperature. The engine may be started immediately after
the warning light goes out.
IMPORTANT In mild or high temperature conditions, the warning
light comes on for a very short time only.m
Water in diesel fuel filter
(Diesel versions) (amber)
This warning light remains on constantly when driving
(together with a message in the display), to indicate the
presence of water in the diesel fuel filter.c
The presence of water in the fuel system circuit may
cause severe damage to the injection system and
irregular engine operation. If the
cwarning light
comes on in the instrument panel (together with a mes-
sage in the display) contact an Alfa Romeo Authorised Ser-
vice as soon as possible to bleed the system. Water may
have been introduced into the tank if this indication ap-
pears immediately after refuelling: in this case switch off
the engine immediately and contact an Alfa Romeo Au-
thorised Service.
Glowheater plugs preheating failure warning
light
(Diesel versions)
If this warning light flashes (on some versions together with a mes-
sage in the display), this indicates a failure in the glowheater plugs
preheating system. Contact an Alfa Romeo Authorised Service
Provider as soon as possible to eliminate the fault.

GETTING TO KNOW YOUR CAR75
1

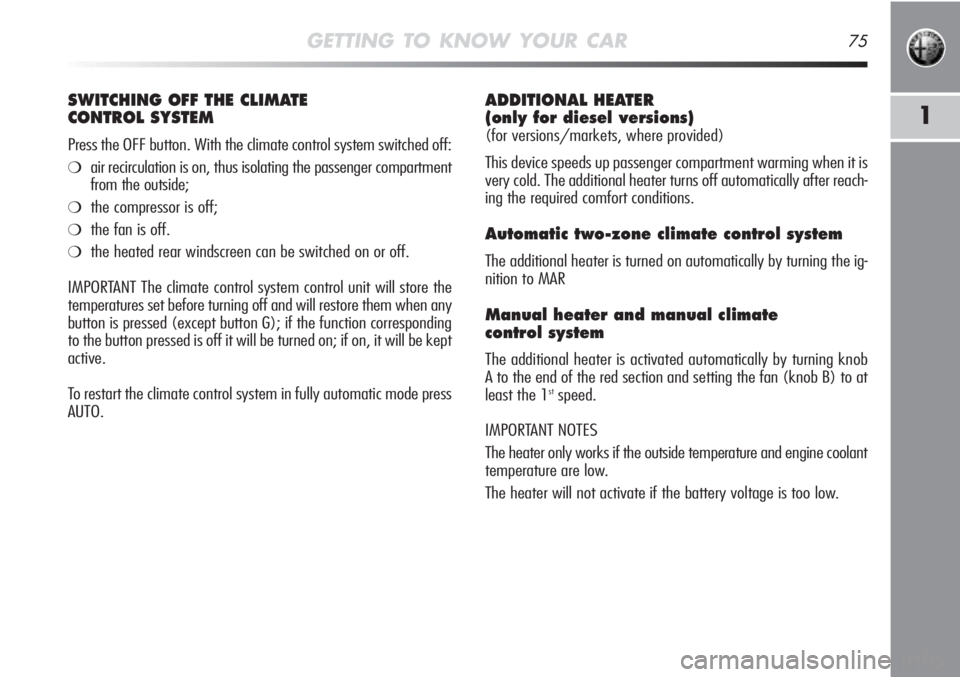

ADDITIONAL HEATER
(only for diesel versions)
(for versions/markets, where provided)
This device speeds up passenger compartment warming when it is
very cold. The additional heater turns off automatically after reach-
ing the required comfort conditions.
Automatic two-zone climate control system
The additional heater is turned on automatically by turning the ig-
nition to MAR
Manual heater and manual climate
control system
The additional heater is activated automatically by turning knob
A to the end of the red section and setting the fan (knob B) to at
least the 1
stspeed.
IMPORTANT NOTES
The heater only works if the outside temperature and engine coolant
temperature are low.
The heater will not activate if the battery voltage is too low.
SWITCHING OFF THE CLIMATE
CONTROL SYSTEM
Press the OFF button. With the climate control system switched off:
❍air recirculation is on, thus isolating the passenger compartment
from the outside;
❍the compressor is off;
❍the fan is off.
❍the heated rear windscreen can be switched on or off.
IMPORTANT The climate control system control unit will store the
temperatures set before turning off and will restore them when any
button is pressed (except button G); if the function corresponding
to the button pressed is off it will be turned on; if on, it will be kept
active.
To restart the climate control system in fully automatic mode press
AUTO.

STARTING UP AND DRIVING159
3
Roof rack/ski rack
Remove the roof rack or the ski rack from the roof after use. These
accessories decrease aerodynamic penetration of the car and have
a negative effect on fuel consumption. It is better to use a trailer,
particularly for transporting bulky objects.
Electric devices
Use electric devices only for the amount of time needed. The heat-
ed rear windscreen, additional headlights, windscreen wipers and
heater fan require a considerable amount of energy; increasing the
current uptake increases fuel consumption (by up to +25% in an
urban cycle).
Climate control
Using the climate control system increases fuel consumption: use
the air vents when outdoor temperature permits.
Spoilers
The use of non-certified spoilers may adversely affect air drag and
fuel consumption.
DRIVING STYLE
Starting
Do not warm the engine up with the car at a standstill and do not
use excessive engine speeds: the engine warms up very slowly in
these conditions, increasing fuel consumption and emissions. It is
advisable to start off immediately and slowly, keeping the engine
speed down: the engine will warm up much faster this way.
Unnecessar y actions
Avoid revving up when starting at traffic lights or before stopping
the engine. The latter action, like double-declutching, is unneces-
sary and causes increased fuel consumption and pollution.
Gear selection
When traffic and road conditions allow, use a high gear. Using a
low gear for faster acceleration will increase fuel consumption. In
the same way improper use of a high gear increases consump-
tion, emissions and engine wear.
Top speed
Fuel consumption considerably increases as speed increases. Keep
your speed as even as possible, avoiding unnecessary braking
and acceleration which cause excessive fuel consumption and in-
creased emissions.

41
41
41
43
41
41
41
41
43
43
4315
20
15
7.5
30
7.5
30
15
5
10
5F08
F09
F10
F13
F15
F19
F20
F21
F31
F36
F37
IN AN EMERGENCY193
4
CONSUMERS FUSE AMPERE FIGURE
Heated windscreen
Headlight washer pump
Two-tone horn
Headlight alignment adjustment system
Additional heater (PTC 1)
“Dynamic Suspension” control system
Air conditioning compressor
Heated rear windscreen, demisting system
Fuel pump on tank
INT/A key exhaust relay coils
on engine fuse box
Radio, Blue&Me
TMcontrol unit, Climate control unit,
Alarm control unit, Volume sensing system control unit,
EOBD external diagnostic socket,
Tyre pressure detection control unit
Instrument panel, Brake light switch,
Gas discharge headlights management system

43
43
45
45
45
45
45
45
41
41
415
5
15
10
15
20
–
15
40
15
7.5F51
F53
F4
F5
F6
F1
F2
F3
F83
F85
F87
IN AN EMERGENCY195
4
CONSUMERS FUSE AMPERE FIGURE
Clutch switch, Brake light
switch, relay coils on
engine fuse box, Control system on
internal heater/air conditioning unit,
Blue&Me
TMcontrol unit,
Radio wiring, Air flow meter,
Water in diesel fuel sensor
Instrument panel
Bose HI-FI system amplifier control unit
Bassbox subwoofer in spare wheel compartment
Left and right front seat heater
Electric sunroof opening system
Fuse wiring
Luggage compartment power socket
Passenger compartment fan
Power socket on tunnel
Passenger/driver-side door mirror demister,
Demister on front jets, Heated windscreen relay coil

CARE AND MAINTENANCE203
5
SCHEDULED SERVICING PLAN
PETROL VERSIONS
Thousands of kilometres
Check tyre condition/wear and adjust pressure if required
Check lighting system operation (headlights, direction indicators, hazard lights, passenger
compartment lights, boot lights, instrument panel warning lights, etc.)
Check windscreen wiper/washer operation
Check the position/wear of the windscreen/rearscreen wiper blades
Check condition and wear of front disc brake pads and
brake pad wear indication
Check rear disc brake pad condition and wear
Visually inspect the condition of: bodywork, underbody
protection, pipes and hoses (exhaust - fuel - brakes),
rubber parts (gaiters, sleeves, bushes, etc.)
Check cleanliness of locks, bonnet and boot, and
cleanliness and lubrication of linkages
Check and top up, if required, fluid levels
(engine coolant, brake/hydraulic clutch fluid, windscreen washer fluid, battery fluid, etc)
Check the handbrake lever travel and adjust it, if necessary
Check timing belt condition
Visually inspect condition of auxiliary drive belt/s
Check tension and adjust auxiliary drive belt (versions with heater system)30 60 90 120 150 180
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●
●●
●●
