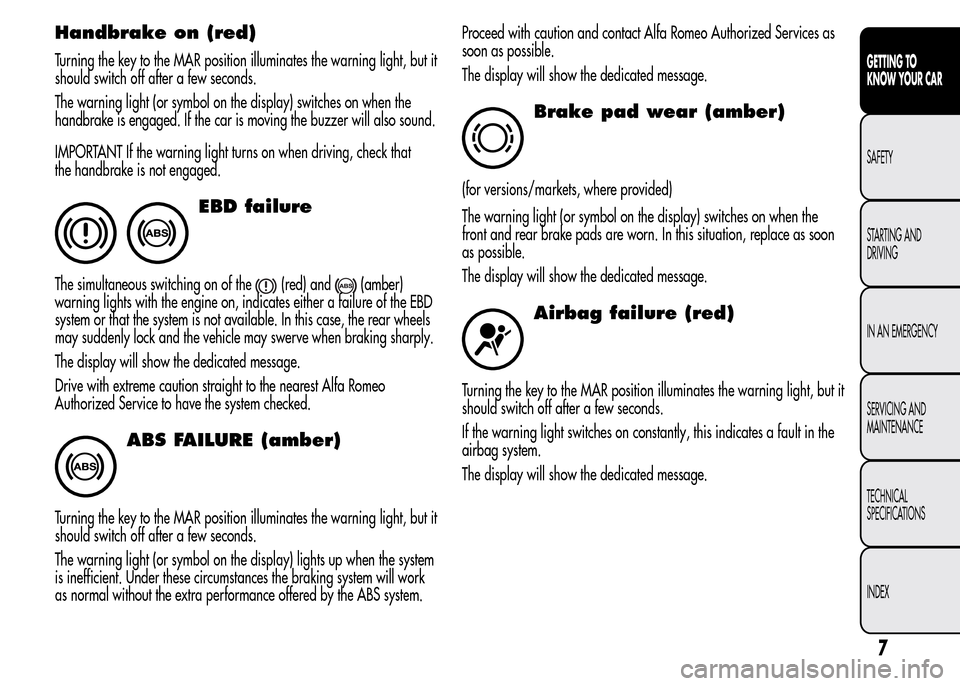

Handbrake on (red)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light (or symbol on the display) switches on when the
handbrake is engaged. If the car is moving the buzzer will also sound.
IMPORTANT If the warning light turns on when driving, check that
the handbrake is not engaged.
EBD failure
The simultaneous switching on of the(red) and(amber)
warning lights with the engine on, indicates either a failure of the EBD
system or that the system is not available. In this case, the rear wheels
may suddenly lock and the vehicle may swerve when braking sharply.
The display will show the dedicated message.
Drive with extreme caution straight to the nearest Alfa Romeo
Authorized Service to have the system checked.
ABS FAILURE (amber)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light (or symbol on the display) lights up when the system
is inefficient. Under these circumstances the braking system will work
as normal without the extra performance offered by the ABS system.Proceed with caution and contact Alfa Romeo Authorized Services as
soon as possible.
The display will show the dedicated message.
Brake pad wear (amber)
(for versions/markets, where provided)
The warning light (or symbol on the display) switches on when the
front and rear brake pads are worn. In this situation, replace as soon
as possible.
The display will show the dedicated message.
Airbag failure (red)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
If the warning light switches on constantly, this indicates a fault in the
airbag system.
The display will show the dedicated message.
7
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 12 of 280

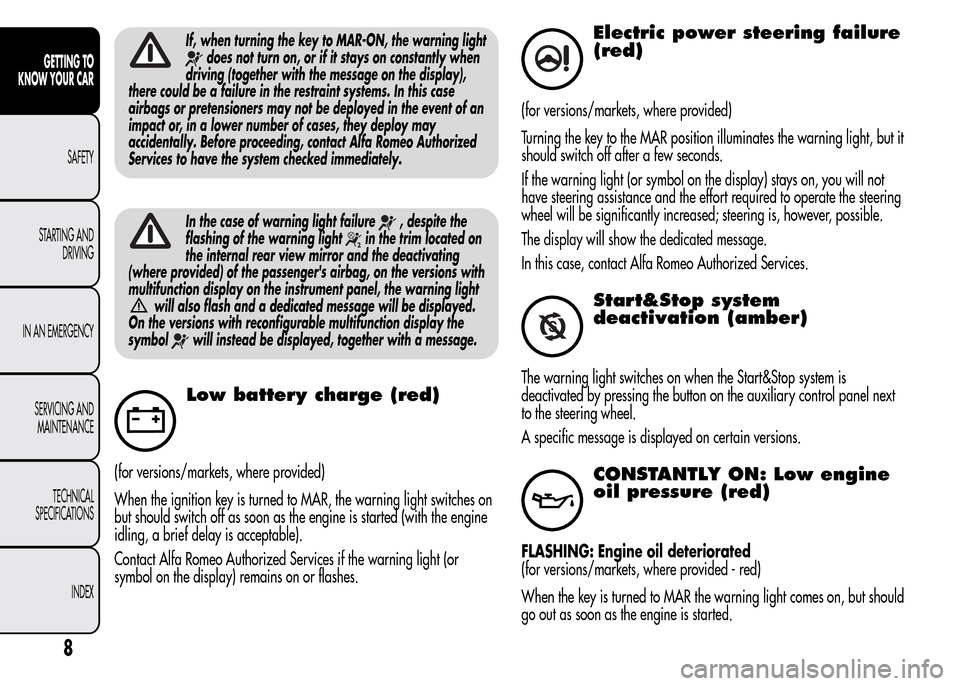

If, when turning the key to MAR-ON, the warning light
does not turn on, or if it stays on constantly when
driving (together with the message on the display),
there could be a failure in the restraint systems. In this case
airbags or pretensioners may not be deployed in the event of an
impact or, in a lower number of cases, they deploy may
accidentally. Before proceeding, contact Alfa Romeo Authorized
Services to have the system checked immediately.
In the case of warning light failure, despite the
flashing of the warning light
in the trim located on
the internal rear view mirror and the deactivating
(where provided) of the passenger's airbag, on the versions with
multifunction display on the instrument panel, the warning light
will also flash and a dedicated message will be displayed.
On the versions with reconfigurable multifunction display the
symbol
will instead be displayed, together with a message.
Low battery charge (red)
(for versions/markets, where provided)
When the ignition key is turned to MAR, the warning light switches on
but should switch off as soon as the engine is started (with the engine
idling, a brief delay is acceptable).
Contact Alfa Romeo Authorized Services if the warning light (or
symbol on the display) remains on or flashes.
Electric power steering failure
(red)
(for versions/markets, where provided)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
If the warning light (or symbol on the display) stays on, you will not
have steering assistance and the effort required to operate the steering
wheel will be significantly increased; steering is, however, possible.
The display will show the dedicated message.
In this case, contact Alfa Romeo Authorized Services.
Start&Stop system
deactivation (amber)
The warning light switches on when the Start&Stop system is
deactivated by pressing the button on the auxiliary control panel next
to the steering wheel.
A specific message is displayed on certain versions.
CONSTANTLY ON: Low engine
oil pressure (red)
FLASHING: Engine oil deteriorated
(for versions/markets, where provided - red)
When the key is turned to MAR the warning light comes on, but should
go out as soon as the engine is started.
8
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 13 of 280

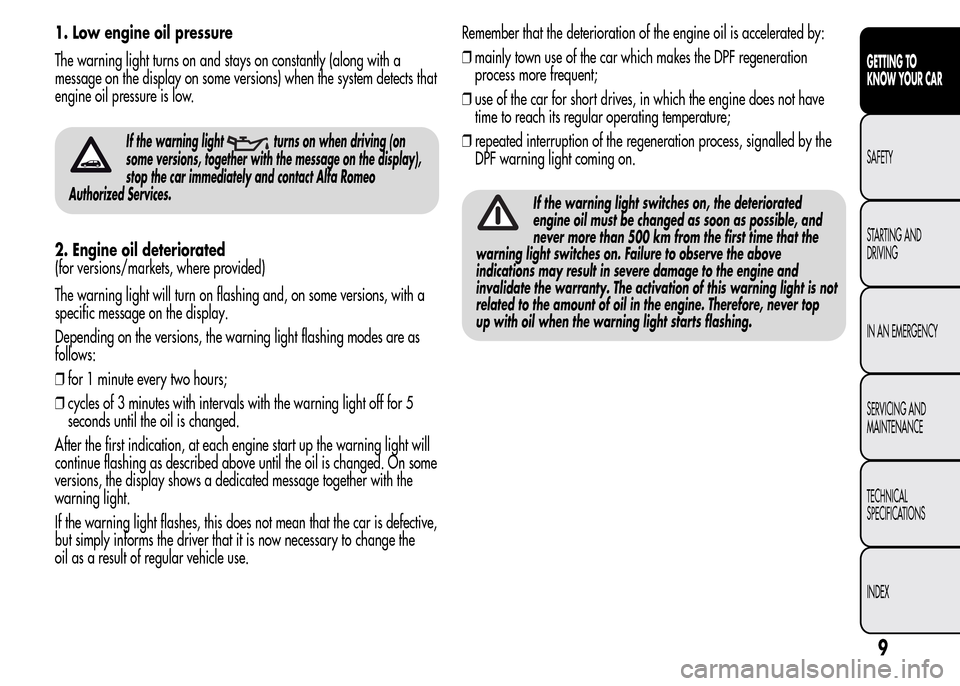

1. Low engine oil pressure
The warning light turns on and stays on constantly (along with a
message on the display on some versions) when the system detects that
engine oil pressure is low.
If the warning lightturns on when driving (on
some versions, together with the message on the display),
stop the car immediately and contact Alfa Romeo
Authorized Services.
2. Engine oil deteriorated
(for versions/markets, where provided)
The warning light will turn on flashing and, on some versions, with a
specific message on the display.
Depending on the versions, the warning light flashing modes are as
follows:
❒for 1 minute every two hours;
❒cycles of 3 minutes with intervals with the warning light off for 5
seconds until the oil is changed.
After the first indication, at each engine start up the warning light will
continue flashing as described above until the oil is changed. On some
versions, the display shows a dedicated message together with the
warning light.
If the warning light flashes, this does not mean that the car is defective,
but simply informs the driver that it is now necessary to change the
oil as a result of regular vehicle use.Remember that the deterioration of the engine oil is accelerated by:
❒mainly town use of the car which makes the DPF regeneration
process more frequent;
❒use of the car for short drives, in which the engine does not have
time to reach its regular operating temperature;
❒repeated interruption of the regeneration process, signalled by the
DPF warning light coming on.
If the warning light switches on, the deteriorated
engine oil must be changed as soon as possible, and
never more than 500 km from the first time that the
warning light switches on. Failure to observe the above
indications may result in severe damage to the engine and
invalidate the warranty. The activation of this warning light is not
related to the amount of oil in the engine. Therefore, never top
up with oil when the warning light starts flashing.
9
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 14 of 280

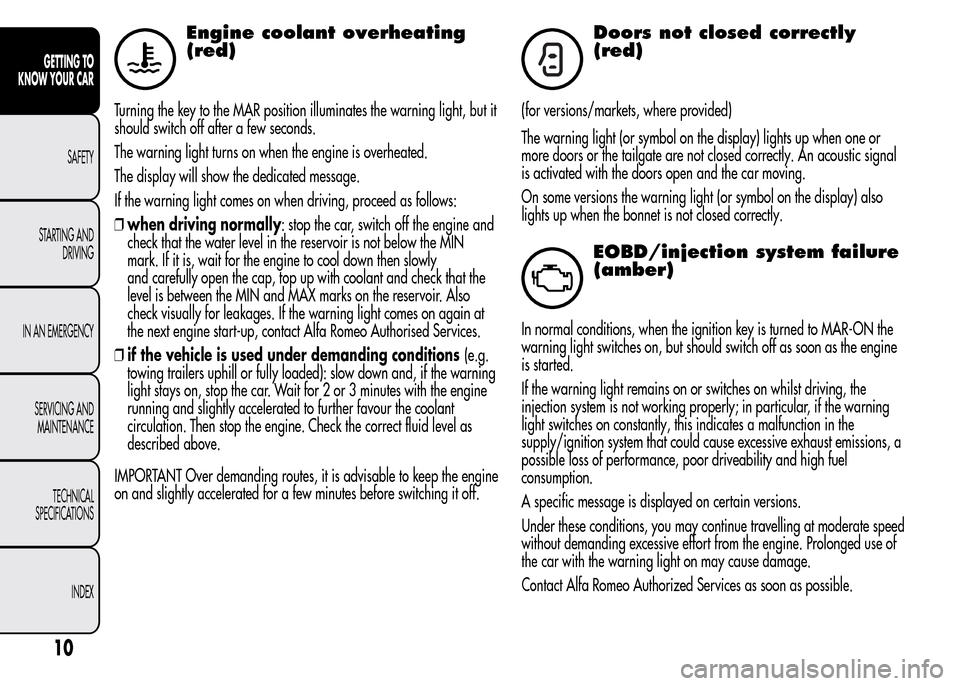

Engine coolant overheating
(red)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light turns on when the engine is overheated.
The display will show the dedicated message.
If the warning light comes on when driving, proceed as follows:
❒when driving normally: stop the car, switch off the engine and
check that the water level in the reservoir is not below the MIN
mark. If it is, wait for the engine to cool down then slowly
and carefully open the cap, top up with coolant and check that the
level is between the MIN and MAX marks on the reservoir. Also
check visually for leakages. If the warning light comes on again at
the next engine start-up, contact Alfa Romeo Authorised Services.
❒if the vehicle is used under demanding conditions(e.g.
towing trailers uphill or fully loaded): slow down and, if the warning
light stays on, stop the car. Wait for 2 or 3 minutes with the engine
running and slightly accelerated to further favour the coolant
circulation. Then stop the engine. Check the correct fluid level as
described above.
IMPORTANT Over demanding routes, it is advisable to keep the engine
on and slightly accelerated for a few minutes before switching it off.
Doors not closed correctly
(red)
(for versions/markets, where provided)
The warning light (or symbol on the display) lights up when one or
more doors or the tailgate are not closed correctly. An acoustic signal
is activated with the doors open and the car moving.
On some versions the warning light (or symbol on the display) also
lights up when the bonnet is not closed correctly.
EOBD/injection system failure
(amber)
In normal conditions, when the ignition key is turned to MAR-ON the
warning light switches on, but should switch off as soon as the engine
is started.
If the warning light remains on or switches on whilst driving, the
injection system is not working properly; in particular, if the warning
light switches on constantly, this indicates a malfunction in the
supply/ignition system that could cause excessive exhaust emissions, a
possible loss of performance, poor driveability and high fuel
consumption.
A specific message is displayed on certain versions.
Under these conditions, you may continue travelling at moderate speed
without demanding excessive effort from the engine. Prolonged use of
the car with the warning light on may cause damage.
Contact Alfa Romeo Authorized Services as soon as possible.
10
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 15 of 280

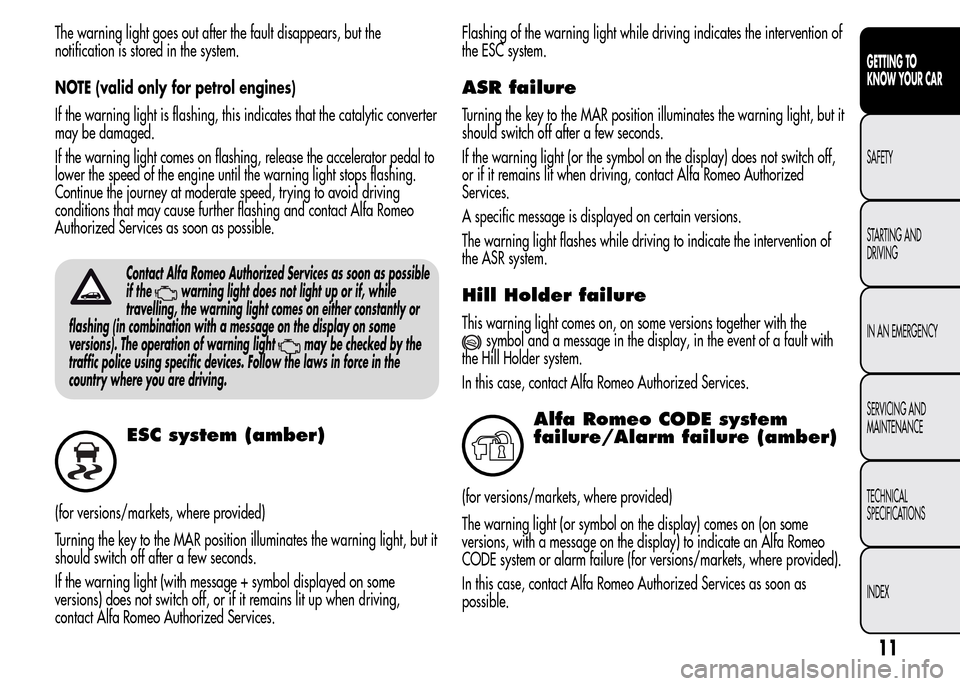

The warning light goes out after the fault disappears, but the
notification is stored in the system.
NOTE (valid only for petrol engines)
If the warning light is flashing, this indicates that the catalytic converter
may be damaged.
If the warning light comes on flashing, release the accelerator pedal to
lower the speed of the engine until the warning light stops flashing.
Continue the journey at moderate speed, trying to avoid driving
conditions that may cause further flashing and contact Alfa Romeo
Authorized Services as soon as possible.
Contact Alfa Romeo Authorized Services as soon as possible
if the
warning light does not light up or if, while
travelling, the warning light comes on either constantly or
flashing (in combination with a message on the display on some
versions). The operation of warning light
may be checked by the
traffic police using specific devices. Follow the laws in force in the
country where you are driving.
ESC system (amber)
(for versions/markets, where provided)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
If the warning light (with message + symbol displayed on some
versions) does not switch off, or if it remains lit up when driving,
contact Alfa Romeo Authorized Services.Flashing of the warning light while driving indicates the intervention of
the ESC system.
ASR failure
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
If the warning light (or the symbol on the display) does not switch off,
or if it remains lit when driving, contact Alfa Romeo Authorized
Services.
A specific message is displayed on certain versions.
The warning light flashes while driving to indicate the intervention of
the ASR system.
Hill Holder failure
This warning light comes on, on some versions together with the
symbol and a message in the display, in the event of a fault with
the Hill Holder system.
In this case, contact Alfa Romeo Authorized Services.
Alfa Romeo CODE system
failure/Alarm failure (amber)
(for versions/markets, where provided)
The warning light (or symbol on the display) comes on (on some
versions, with a message on the display) to indicate an Alfa Romeo
CODE system or alarm failure (for versions/markets, where provided).
In this case, contact Alfa Romeo Authorized Services as soon as
possible.
11
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 16 of 280

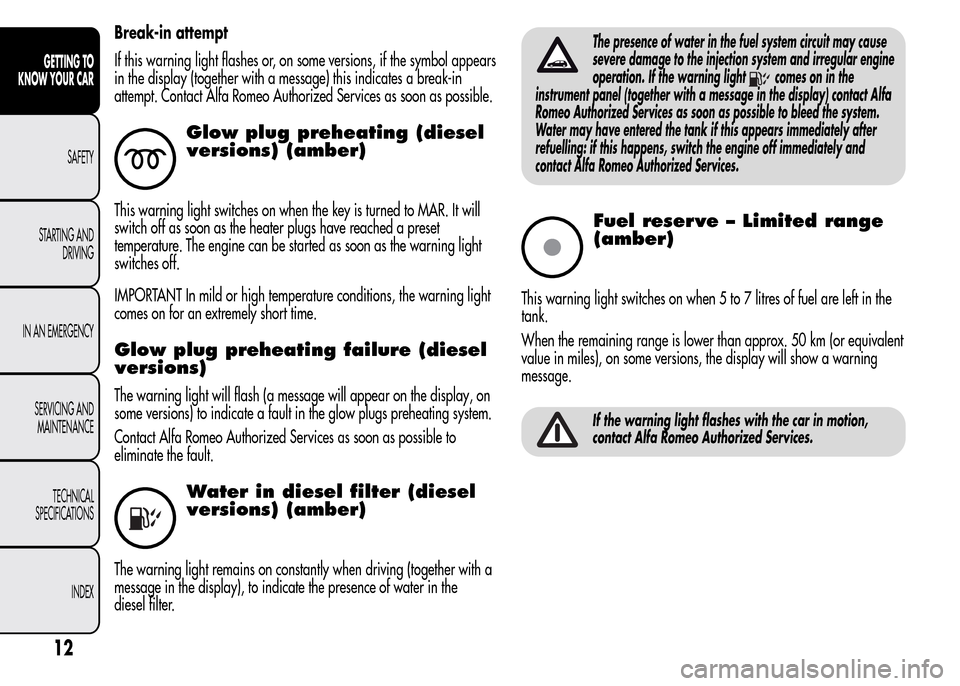

Break-in attempt
If this warning light flashes or, on some versions, if the symbol appears
in the display (together with a message) this indicates a break-in
attempt. Contact Alfa Romeo Authorized Services as soon as possible.
Glow plug preheating (diesel
versions) (amber)
This warning light switches on when the key is turned to MAR. It will
switch off as soon as the heater plugs have reached a preset
temperature. The engine can be started as soon as the warning light
switches off.
IMPORTANT In mild or high temperature conditions, the warning light
comes on for an extremely short time.
Glow plug preheating failure (diesel
versions)
The warning light will flash (a message will appear on the display, on
some versions) to indicate a fault in the glow plugs preheating system.
Contact Alfa Romeo Authorized Services as soon as possible to
eliminate the fault.
Water in diesel filter (diesel
versions) (amber)
The warning light remains on constantly when driving (together with a
message in the display), to indicate the presence of water in the
diesel filter.
The presence of water in the fuel system circuit may cause
severe damage to the injection system and irregular engine
operation. If the warning light
comes on in the
instrument panel (together with a message in the display) contact Alfa
Romeo Authorized Services as soon as possible to bleed the system.
Water may have entered the tank if this appears immediately after
refuelling: if this happens, switch the engine off immediately and
contact Alfa Romeo Authorized Services.
Fuel reserve – Limited range
(amber)
This warning light switches on when 5 to 7 litres of fuel are left in the
tank.
When the remaining range is lower than approx. 50 km (or equivalent
value in miles), on some versions, the display will show a warning
message.
If the warning light flashes with the car in motion,
contact Alfa Romeo Authorized Services.
12
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 17 of 280

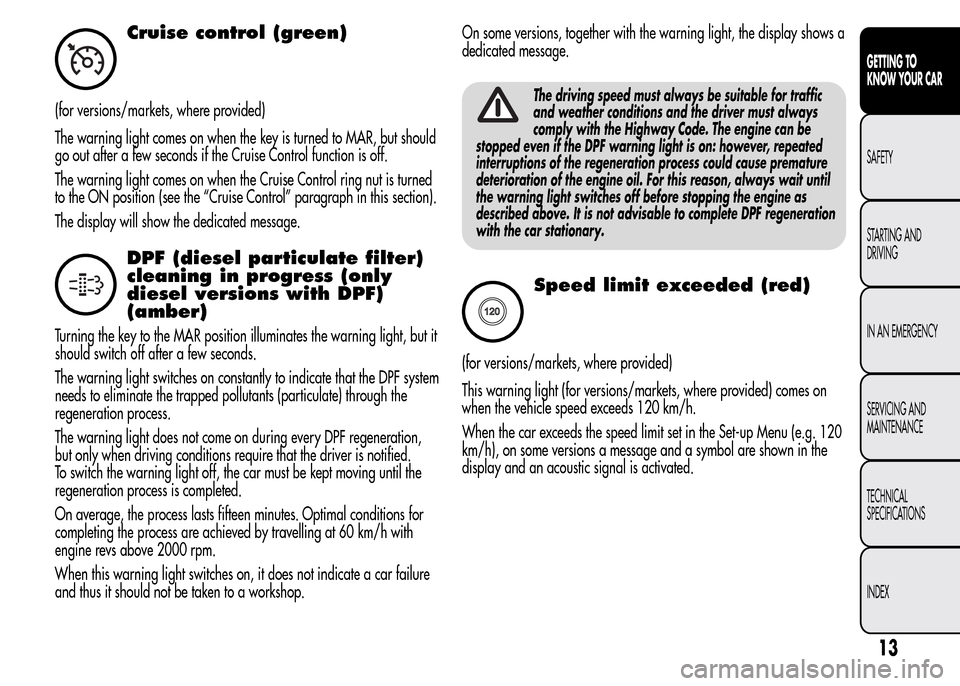

Cruise control (green)
(for versions/markets, where provided)
The warning light comes on when the key is turned to MAR, but should
go out after a few seconds if the Cruise Control function is off.
The warning light comes on when the Cruise Control ring nut is turned
to the ON position (see the “Cruise Control” paragraph in this section).
The display will show the dedicated message.
DPF (diesel particulate filter)
cleaning in progress (only
diesel versions with DPF)
(amber)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light switches on constantly to indicate that the DPF system
needs to eliminate the trapped pollutants (particulate) through the
regeneration process.
The warning light does not come on during every DPF regeneration,
but only when driving conditions require that the driver is notified.
To switch the warning light off, the car must be kept moving until the
regeneration process is completed.
On average, the process lasts fifteen minutes. Optimal conditions for
completing the process are achieved by travelling at 60 km/h with
engine revs above 2000 rpm.
When this warning light switches on, it does not indicate a car failure
and thus it should not be taken to a workshop.On some versions, together with the warning light, the display shows a
dedicated message.
The driving speed must always be suitable for traffic
and weather conditions and the driver must always
comply with the Highway Code. The engine can be
stopped even if the DPF warning light is on: however, repeated
interruptions of the regeneration process could cause premature
deterioration of the engine oil. For this reason, always wait until
the warning light switches off before stopping the engine as
described above. It is not advisable to complete DPF regeneration
with the car stationary.
Speed limit exceeded (red)
(for versions/markets, where provided)
This warning light (for versions/markets, where provided) comes on
when the vehicle speed exceeds 120 km/h.
When the car exceeds the speed limit set in the Set-up Menu (e.g. 120
km/h), on some versions a message and a symbol are shown in the
display and an acoustic signal is activated.
13
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 18 of 280

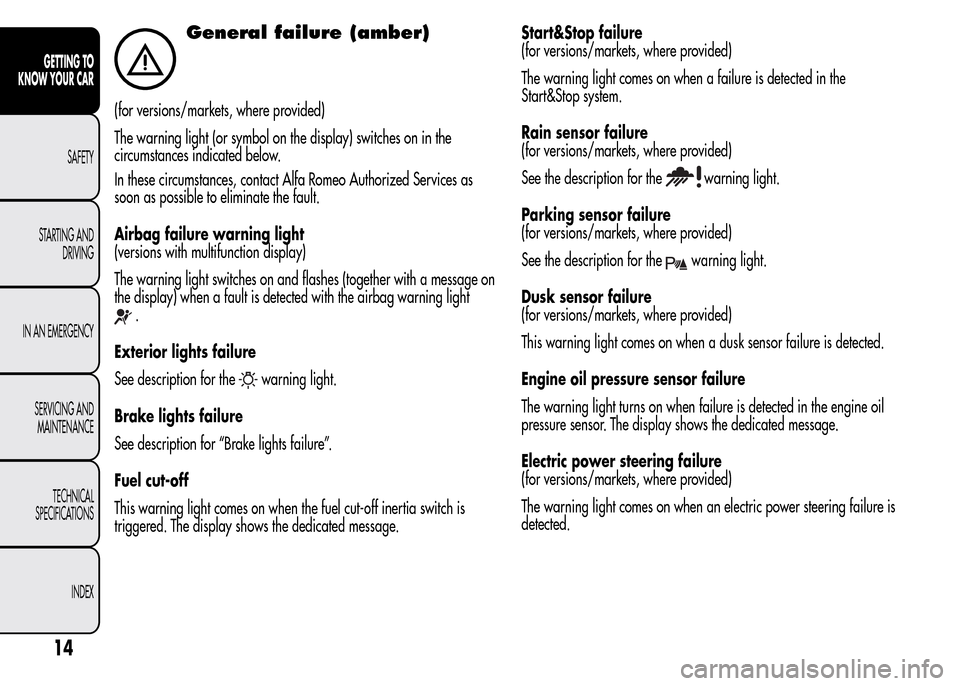

General failure (amber)
(for versions/markets, where provided)
The warning light (or symbol on the display) switches on in the
circumstances indicated below.
In these circumstances, contact Alfa Romeo Authorized Services as
soon as possible to eliminate the fault.
Airbag failure warning light
(versions with multifunction display)
The warning light switches on and flashes (together with a message on
the display) when a fault is detected with the airbag warning light
.
Exterior lights failure
See description for the
warning light.
Brake lights failure
See description for “Brake lights failure”.
Fuel cut-off
This warning light comes on when the fuel cut-off inertia switch is
triggered. The display shows the dedicated message.Start&Stop failure
(for versions/markets, where provided)
The warning light comes on when a failure is detected in the
Start&Stop system.
Rain sensor failure
(for versions/markets, where provided)
See the description for the
warning light.
Parking sensor failure
(for versions/markets, where provided)
See the description for the
warning light.
Dusk sensor failure
(for versions/markets, where provided)
This warning light comes on when a dusk sensor failure is detected.
Engine oil pressure sensor failure
The warning light turns on when failure is detected in the engine oil
pressure sensor. The display shows the dedicated message.
Electric power steering failure
(for versions/markets, where provided)
The warning light comes on when an electric power steering failure is
detected.
14
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 19 of 280

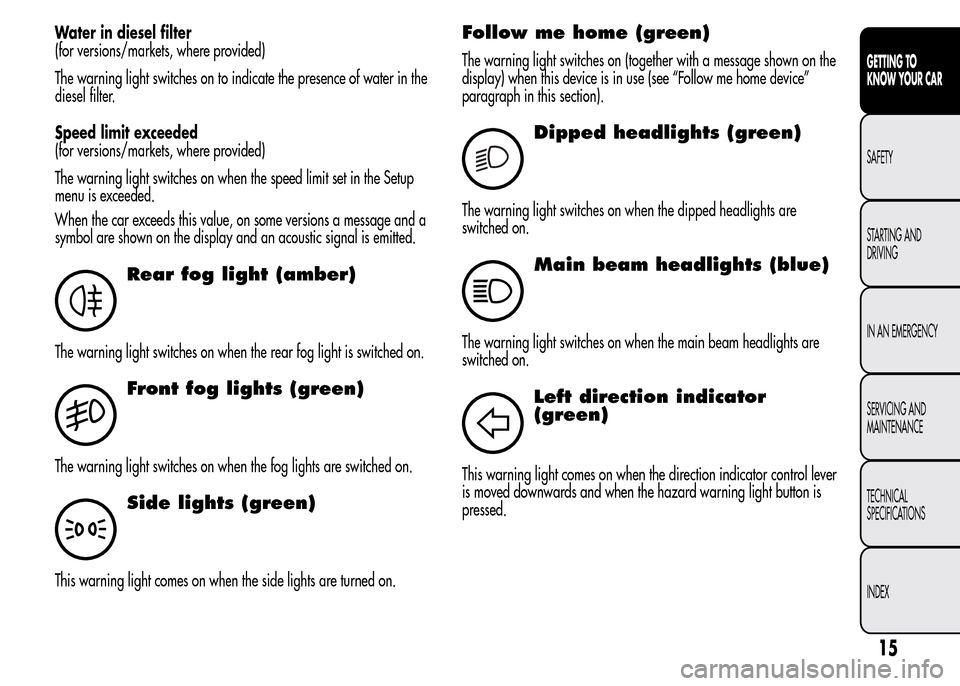

Water in diesel filter
(for versions/markets, where provided)
The warning light switches on to indicate the presence of water in the
diesel filter.
Speed limit exceeded
(for versions/markets, where provided)
The warning light switches on when the speed limit set in the Setup
menu is exceeded.
When the car exceeds this value, on some versions a message and a
symbol are shown on the display and an acoustic signal is emitted.
Rear fog light (amber)
The warning light switches on when the rear fog light is switched on.
Front fog lights (green)
The warning light switches on when the fog lights are switched on.
Side lights (green)
This warning light comes on when the side lights are turned on.
Follow me home (green)
The warning light switches on (together with a message shown on the
display) when this device is in use (see “Follow me home device”
paragraph in this section).
2
Dipped headlights (green)
The warning light switches on when the dipped headlights are
switched on.
Main beam headlights (blue)
The warning light switches on when the main beam headlights are
switched on.
Left direction indicator
(green)
This warning light comes on when the direction indicator control lever
is moved downwards and when the hazard warning light button is
pressed.
15
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 20 of 280

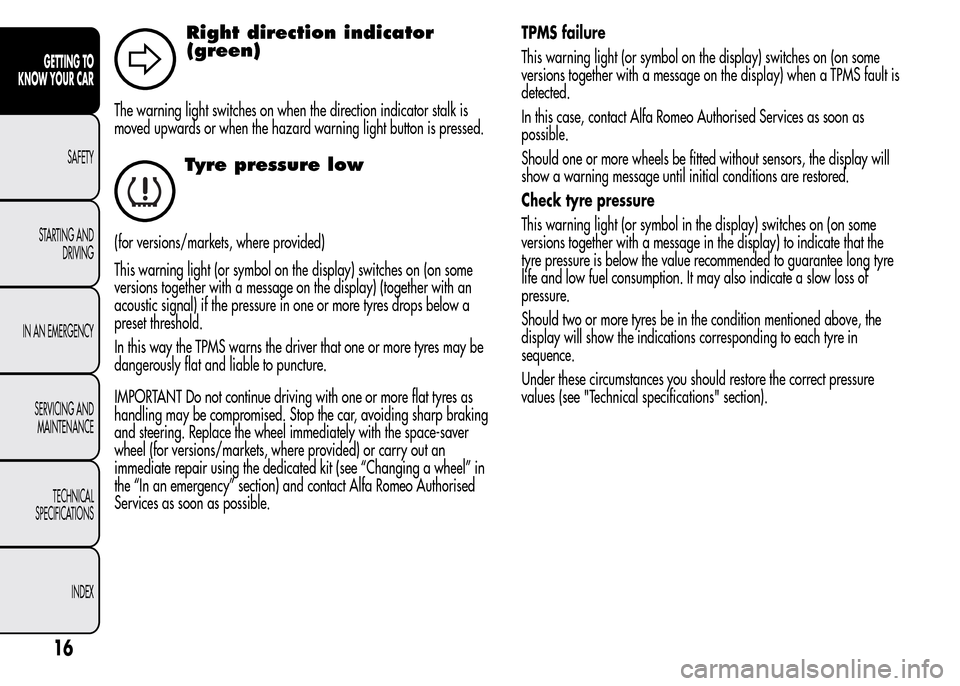

Right direction indicator
(green)
The warning light switches on when the direction indicator stalk is
moved upwards or when the hazard warning light button is pressed.
Tyre pressure low
(for versions/markets, where provided)
This warning light (or symbol on the display) switches on (on some
versions together with a message on the display) (together with an
acoustic signal) if the pressure in one or more tyres drops below a
preset threshold.
In this way the TPMS warns the driver that one or more tyres may be
dangerously flat and liable to puncture.
IMPORTANT Do not continue driving with one or more flat tyres as
handling may be compromised. Stop the car, avoiding sharp braking
and steering. Replace the wheel immediately with the space-saver
wheel (for versions/markets, where provided) or carry out an
immediate repair using the dedicated kit (see “Changing a wheel” in
the “In an emergency” section) and contact Alfa Romeo Authorised
Services as soon as possible.TPMS failure
This warning light (or symbol on the display) switches on (on some
versions together with a message on the display) when a TPMS fault is
detected.
In this case, contact Alfa Romeo Authorised Services as soon as
possible.
Should one or more wheels be fitted without sensors, the display will
show a warning message until initial conditions are restored.
Check tyre pressure
This warning light (or symbol in the display) switches on (on some
versions together with a message in the display) to indicate that the
tyre pressure is below the value recommended to guarantee long tyre
life and low fuel consumption. It may also indicate a slow loss of
pressure.
Should two or more tyres be in the condition mentioned above, the
display will show the indications corresponding to each tyre in
sequence.
Under these circumstances you should restore the correct pressure
values (see "Technical specifications" section).
16
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
