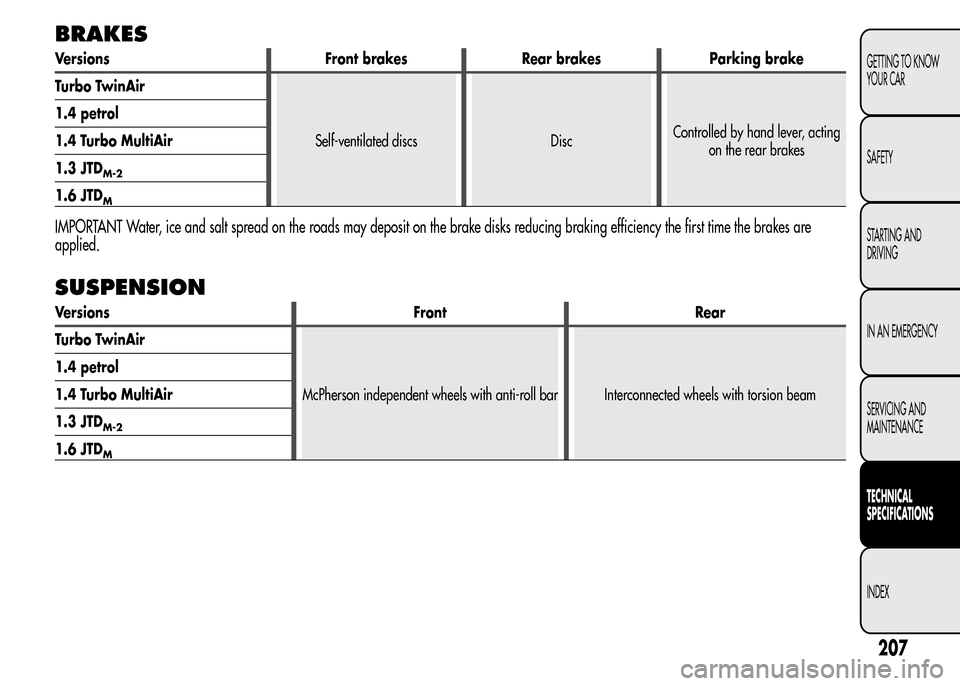

BRAKES
Versions Front brakes Rear brakes Parking brake
Turbo TwinAir
Self-ventilated discs DiscControlled by hand lever, acting
on the rear brakes 1.4 petrol
1.4 Turbo MultiAir
1.3 JTD
M-2
1.6 JTDM
IMPORTANT Water, ice and salt spread on the roads may deposit on the brake disks reducing braking efficiency the first time the brakes are
applied.
SUSPENSION
Versions Front Rear
Turbo TwinAir
McPherson independent wheels with anti-roll bar Interconnected wheels with torsion beam 1.4 petrol
1.4 Turbo MultiAir
1.3 JTD
M-2
1.6 JTDM
207
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

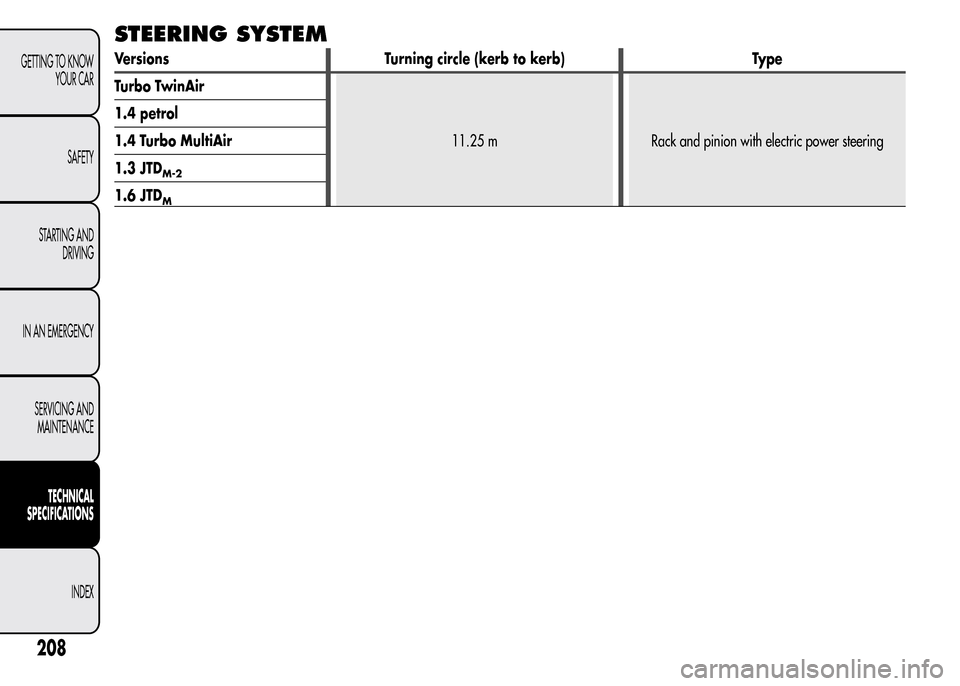

STEERING SYSTEM
Versions Turning circle (kerb to kerb) Type
Turbo TwinAir
11.25 m Rack and pinion with electric power steering 1.4 petrol
1.4 Turbo MultiAir
1.3 JTD
M-2
1.6 JTDM
208
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless radial carcass tyres. The vehicle
registration document also lists all type-approved tyres.
IMPORTANT If there are any discrepancies between the Owner
Handbook and the registration document, take the information from
the latter. For safe driving, the car must be fitted with tyres of the same
make and type on all wheels.
IMPORTANT Do not use tubes with tubeless tires.
SPACE-SAVER WHEEL
Pressed steel rim. Tubeless tyre.
CORRECT TYRE READING
Example fig. 175: 195/55 R 16 87H
195Rated width (S, distance in mm between sidewalls)
55Height/width ratio (H/S) as a percentage
RRadial tyre
16Rim diameter in inches (Ø)
91Load rating (capacity)
VMaximum speed index
fig. 175A0J0139
209
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Maximum speed index
Qup to 160 km/h
Rup to 170 km/h
Sup to 180 km/h
Tup to 190 km/h
Uup to 200 km/h
Hup to 210 km/h
Vup to 240 km/h
Wup to 270 km/h
Yup to 300 km/hMaximum speed index for snow tyres
QM+Sup to 160 km/h
TM + Sup to 190 km/h
HM+Sup to 210 km/h
Load rating (capacity)
60= 250 kg76= 400 kg
61= 257 kg77= 412 kg
62= 265 kg78= 425 kg
63= 272 kg79= 437 kg
64= 280 kg80= 450 kg
65= 290 kg81= 462 kg
66= 300 kg82= 475 kg
67= 307 kg83= 487 kg
68= 315 kg84= 500 kg
69= 325 kg85= 515 kg
70= 335 kg86= 530 kg
71= 345 kg87= 545 kg
72= 355 kg88= 560 kg
73= 365 kg89= 580 kg
74= 375 kg90= 600 kg
75= 387 kg91= 615 kg
210
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

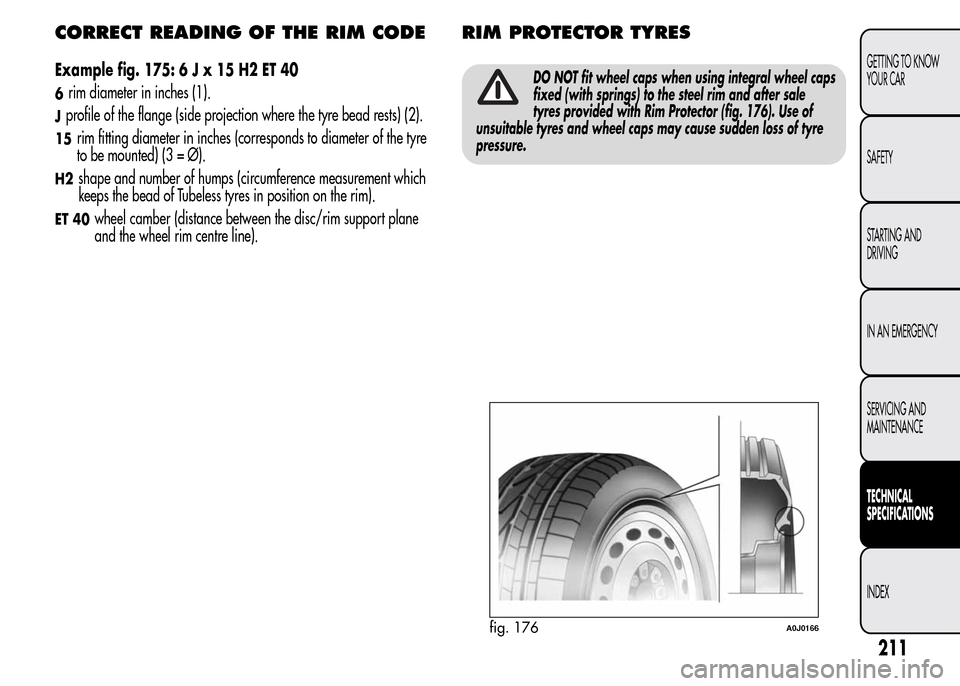

CORRECT READING OF THE RIM CODE
Example fig. 175:6Jx15H2ET40
6rim diameter in inches (1).
Jprofile of the flange (side projection where the tyre bead rests) (2).
15rim fitting diameter in inches (corresponds to diameter of the tyre
to be mounted) (3 = Ø).
H2shape and number of humps (circumference measurement which
keeps the bead of Tubeless tyres in position on the rim).
ET 40wheel camber (distance between the disc/rim support plane
and the wheel rim centre line).
RIM PROTECTOR TYRES
DO NOT fit wheel caps when using integral wheel caps
fixed (with springs) to the steel rim and after sale
tyres provided with Rim Protector (fig. 176). Use of
unsuitable tyres and wheel caps may cause sudden loss of tyre
pressure.
fig. 176A0J0166
211
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

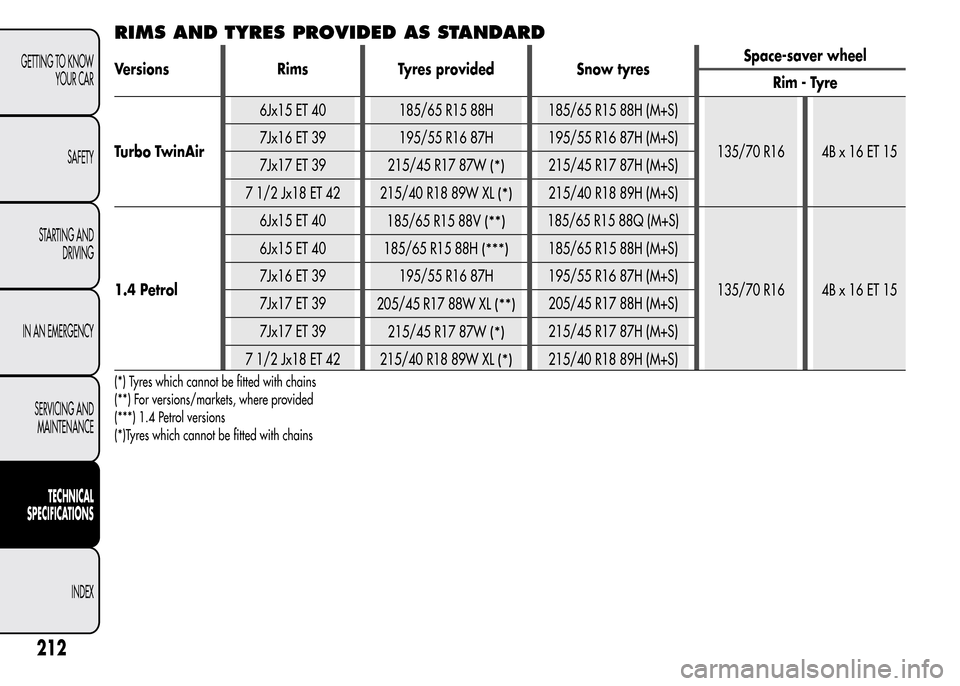

RIMS AND TYRES PROVIDED AS STANDARD
Versions Rims Tyres provided Snow tyresSpace-saver wheel
Rim - Tyre
Turbo TwinAir6Jx15 ET 40 185/65 R15 88H 185/65 R15 88H (M+S)
135/70 R16 4B x 16 ET 15 7Jx16 ET 39 195/55 R16 87H 195/55 R16 87H (M+S)
7Jx17 ET 39
215/45 R17 87W
(*)215/45 R17 87H (M+S)
7 1/2 Jx18 ET 42
215/40 R18 89W XL
(*)215/40 R18 89H (M+S)
1.4 Petrol6Jx15 ET 40
185/65 R15 88V
(**)185/65 R15 88Q (M+S)
135/70 R16 4B x 16 ET 15 6Jx15 ET 40
185/65 R15 88H
(***)185/65 R15 88H (M+S)
7Jx16 ET 39 195/55 R16 87H 195/55 R16 87H (M+S)
7Jx17 ET 39
205/45 R17 88W XL
(**)205/45 R17 88H (M+S)
7Jx17 ET 39
215/45 R17 87W
(*)215/45 R17 87H (M+S)
7 1/2 Jx18 ET 42
215/40 R18 89W XL
(*)215/40 R18 89H (M+S)
(*) Tyres which cannot be fitted with chains
(**) For versions/markets, where provided
(***) 1.4 Petrol versions
(*)Tyres which cannot be fitted with chains
212
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

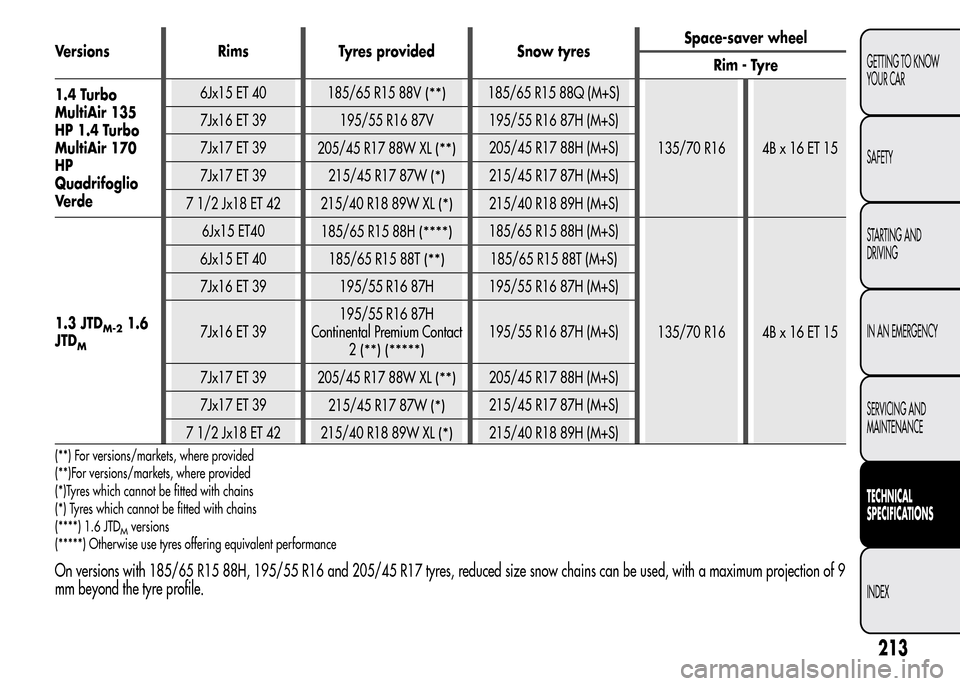

Versions Rims Tyres provided Snow tyresSpace-saver wheel
Rim - Tyre
1.4 Turbo
MultiAir 135
HP 1.4 Turbo
MultiAir 170
HP
Quadrifoglio
Ve r d e6Jx15 ET 40
185/65 R15 88V
(**)185/65 R15 88Q (M+S)
135/70 R16 4B x 16 ET 15 7Jx16 ET 39 195/55 R16 87V 195/55 R16 87H (M+S)
7Jx17 ET 39
205/45 R17 88W XL
(**)205/45 R17 88H (M+S)
7Jx17 ET 39
215/45 R17 87W
(*)215/45 R17 87H (M+S)
7 1/2 Jx18 ET 42
215/40 R18 89W XL
(*)215/40 R18 89H (M+S)
1.3 JTD
M-21.6
JTD
M
6Jx15 ET40
185/65 R15 88H(****)185/65 R15 88H (M+S)
135/70 R16 4B x 16 ET 15 6Jx15 ET 40
185/65 R15 88T
(**)185/65 R15 88T (M+S)
7Jx16 ET 39 195/55 R16 87H 195/55 R16 87H (M+S)
7Jx16 ET 39195/55 R16 87H
Continental Premium Contact
2
(**) (*****)
195/55 R16 87H (M+S)
7Jx17 ET 39
205/45 R17 88W XL
(**)205/45 R17 88H (M+S)
7Jx17 ET 39
215/45 R17 87W
(*)215/45 R17 87H (M+S)
7 1/2 Jx18 ET 42
215/40 R18 89W XL
(*)215/40 R18 89H (M+S)
(**) For versions/markets, where provided
(**)For versions/markets, where provided
(*)Tyres which cannot be fitted with chains
(*) Tyres which cannot be fitted with chains
(****) 1.6 JTD
Mversions
(*****) Otherwise use tyres offering equivalent performance
On versions with 185/65 R15 88H, 195/55 R16 and 205/45 R17 tyres, reduced size snow chains can be used, with a maximum projection of 9
mm beyond the tyre profile.
213
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

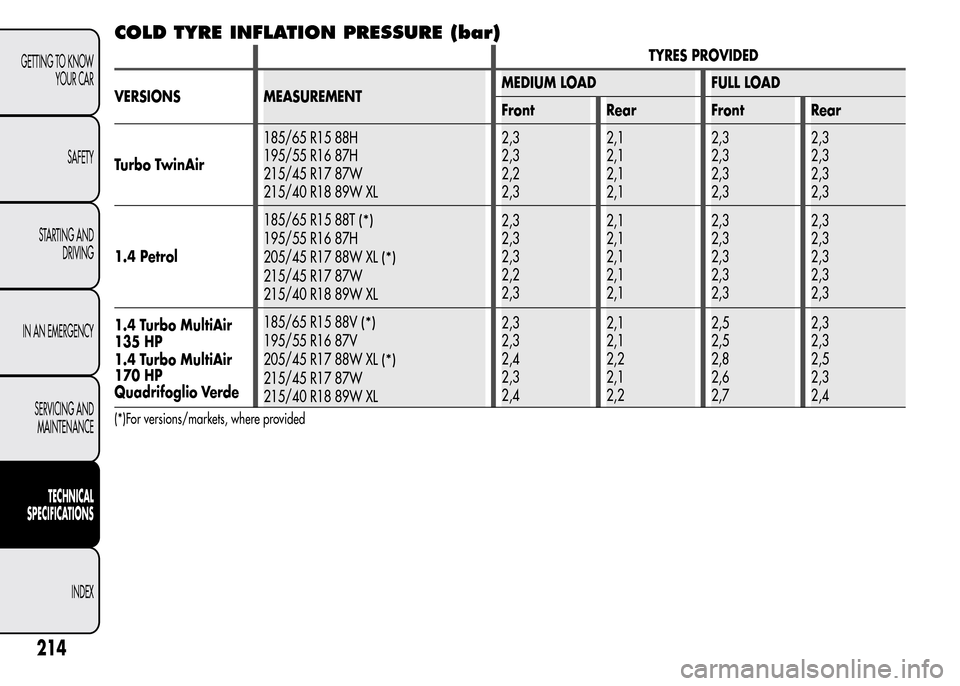

COLD TYRE INFLATION PRESSURE (bar)
TYRES PROVIDED
VERSIONS MEASUREMENTMEDIUM LOAD FULL LOAD
Front Rear Front Rear
Turbo TwinAir185/65 R15 88H
195/55 R16 87H
215/45 R17 87W
215/40 R18 89W XL2,3
2,3
2,2
2,32,1
2,1
2,1
2,12,3
2,3
2,3
2,32,3
2,3
2,3
2,3
1.4 Petrol185/65 R15 88T
(*)
195/55 R16 87H
205/45 R17 88W XL
(*)
215/45 R17 87W
215/40 R18 89W XL2,3
2,3
2,3
2,2
2,32,1
2,1
2,1
2,1
2,12,3
2,3
2,3
2,3
2,32,3
2,3
2,3
2,3
2,3
1.4 Turbo MultiAir
135 HP
1.4 Turbo MultiAir
170 HP
Quadrifoglio Verde185/65 R15 88V
(*)
195/55 R16 87V
205/45 R17 88W XL
(*)
215/45 R17 87W
215/40 R18 89W XL2,3
2,3
2,4
2,3
2,42,1
2,1
2,2
2,1
2,22,5
2,5
2,8
2,6
2,72,3
2,3
2,5
2,3
2,4
(*)For versions/markets, where provided
214
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

TYRES PROVIDED
VERSIONS MEASUREMENTMEDIUM LOAD FULL LOAD
Front Rear Front Rear

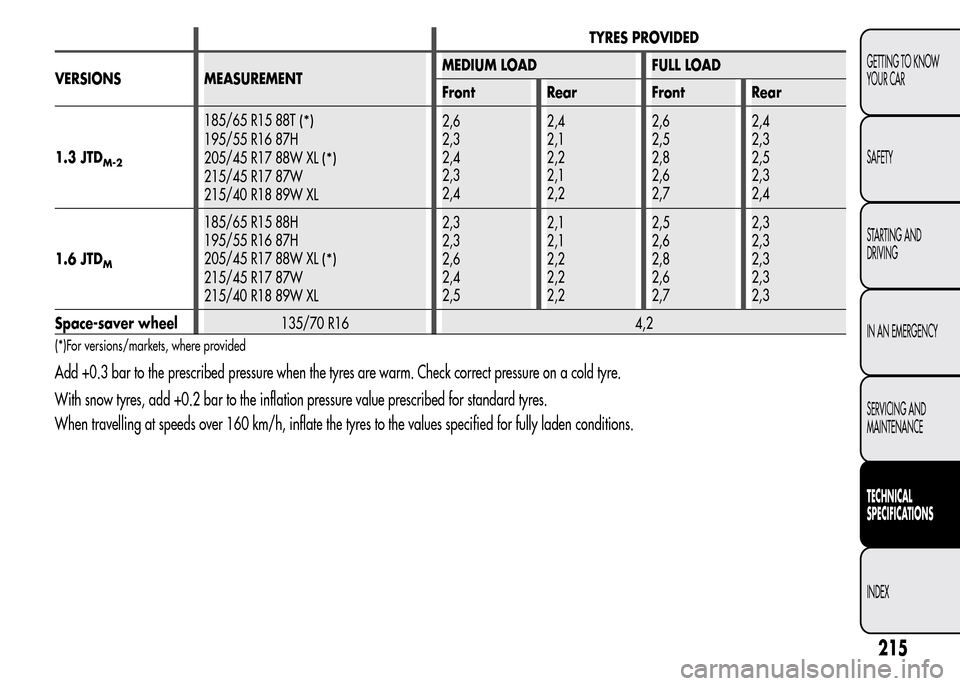

1.3 JTD
M-2
185/65 R15 88T(*)
195/55 R16 87H
205/45 R17 88W XL
(*)
215/45 R17 87W
215/40 R18 89W XL2,6
2,3
2,4
2,3
2,42,4
2,1
2,2
2,1
2,22,6
2,5
2,8
2,6
2,72,4
2,3
2,5
2,3
2,4
1.6 JTD
M
185/65 R15 88H
195/55 R16 87H
205/45 R17 88W XL
(*)
215/45 R17 87W
215/40 R18 89W XL2,3
2,3
2,6
2,4
2,52,1
2,1
2,2
2,2
2,22,5
2,6
2,8
2,6
2,72,3
2,3
2,3
2,3
2,3
Space-saver wheel135/70 R16 4,2
(*)For versions/markets, where provided
Add +0.3 bar to the prescribed pressure when the tyres are warm. Check correct pressure on a cold tyre.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
When travelling at speeds over 160 km/h, inflate the tyres to the values specified for fully laden conditions.
215
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

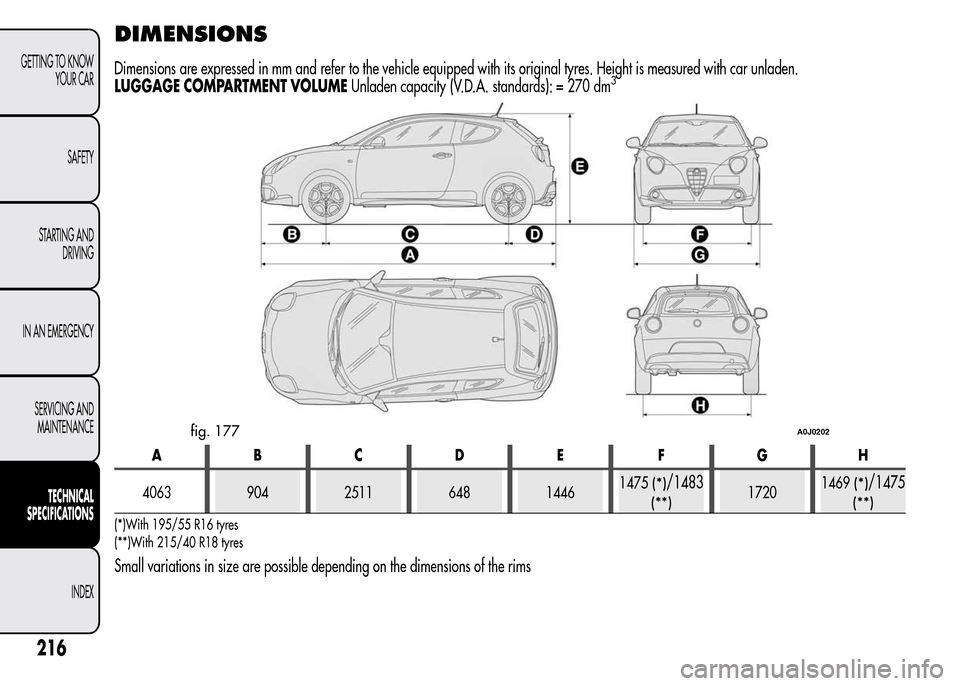

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its original tyres. Height is measured with car unladen.
LUGGAGE COMPARTMENT VOLUMEUnladen capacity (V.D.A. standards): = 270 dm3
AB CD E FGH
4063 904 2511 648 14461475
(*)/1483
(**)17201469(*)/1475
(**)
(*)With 195/55 R16 tyres
(**)With 215/40 R18 tyres
Small variations in size are possible depending on the dimensions of the rims
fig. 177A0J0202
216
