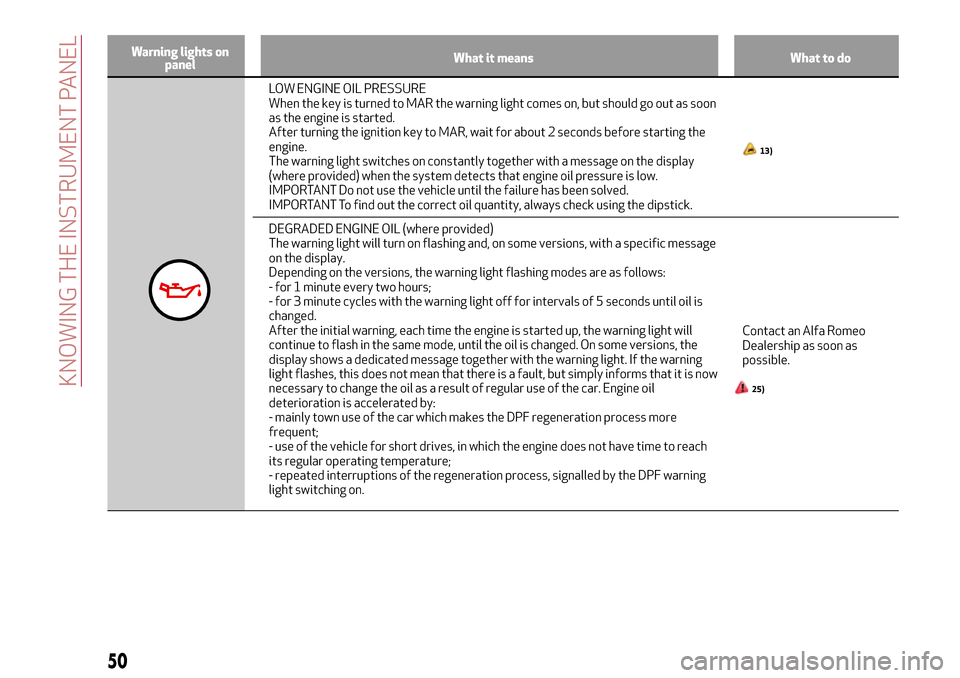

Warning lights on
panelWhat it means What to do
LOW ENGINE OIL PRESSURE
When the key is turned to MAR the warning light comes on, but should go out as soon
as the engine is started.
After turning the ignition key to MAR, wait for about 2 seconds before starting the
engine.
The warning light switches on constantly together with a message on the display
(where provided) when the system detects that engine oil pressure is low.
IMPORTANT Do not use the vehicle until the failure has been solved.
IMPORTANT To find out the correct oil quantity, always check using the dipstick.
13)
DEGRADED ENGINE OIL (where provided)
The warning light will turn on flashing and, on some versions, with a specific message
on the display.
Depending on the versions, the warning light flashing modes are as follows:
- for 1 minute every two hours;
- for 3 minute cycles with the warning light off for intervals of 5 seconds until oil is
changed.
After the initial warning, each time the engine is started up, the warning light will
continue to flash in the same mode, until the oil is changed. On some versions, the
display shows a dedicated message together with the warning light. If the warning
light flashes, this does not mean that there is a fault, but simply informs that it is now
necessary to change the oil as a result of regular use of the car. Engine oil
deterioration is accelerated by:
- mainly town use of the car which makes the DPF regeneration process more
frequent;
- use of the vehicle for short drives, in which the engine does not have time to reach
its regular operating temperature;
- repeated interruptions of the regeneration process, signalled by the DPF warning
light switching on.Contact an Alfa Romeo
Dealership as soon as
possible.
25)
50
KNOWING THE INSTRUMENT PANEL

Symbol on the display What it means What to do
ALFA ROMEO CODE SYSTEM FAILURE/ALARM
FAILURE
(where provided)
The symbol appears on the display to indicate a fault
with the Alfa Romeo CODE system or alarm system
(where provided).Go to an Alfa Romeo Dealership to have the fault fixed
as soon as possible.
BREAK IN ATTEMPT
If the symbol appears on the display (together with a
message) this indicates a break-in attempt.Contact an Alfa Romeo Dealership as soon as possible.
GENERAL FAILURE
(where provided)
The symbol appears on the display in the circumstances
indicated below:
overheating of the Alfa TCT gearbox (where provided);
fuel cut-off;
engine oil pressure sensor fault.
In these cases contact an Alfa Romeo Dealership to have
the fault fixed as soon as possible.
BRAKE PAD WEAR
(where provided)
The symbol appears on the display when the front or rear
brake pads are worn.Have them replaced as soon as possible.
START&STOP SYSTEM FAILURE
The symbol appears on display in case of Start&Stop
system failure. On some versions, a warning message will
be displayed.Contact an Alfa Romeo Dealership as soon as possible.
POSSIBLE ICE ON ROAD
A symbol is displayed when the outside temperature falls
to or below 3°C.
WARNING In the event of an outdoor temperature sensor
fault, dashes are shown on the display instead of a
temperature value.
60
KNOWING THE INSTRUMENT PANEL

PERIODIC CHECKS
Every 1,000 km or before long trips
check and, if necessary, top up:
engine coolant, brake fluid and
windscreen washer fluid level;
tyre inflation pressure and condition;
operation of lighting system
(headlights, direction indicators, hazard
warning lights, etc.);
operation of screen wash/wipe system
and positioning/wear of windscreen/
rearscreen wiper blades
Every 3,000 km check and top up if
required: engine oil level.
IMPORTANT To find out the correct oil
quantity, always check using the dipstick.
Carry out the check with the vehicle
parked on level ground.
DEMANDING USE OF THE CAR
If the vehicle is used mainly under one of
the following conditions:
towing a trailer or caravan;
dusty roads;
short, repeated journeys (less than
7-8 km) at sub-zero outside
temperatures;
engine often idling or driving long
distances at low speeds or long periods
of inactivity;
the following checks must be carried out
more often than indicated in the
Scheduled Servicing Plan:
check front disc brake pad condition
and wear;
check cleanliness of bonnet and
luggage compartment locks, cleanliness
and lubrication of linkage;
visually inspect condition of: engine,
gearbox, transmission, pipes and hoses
(exhaust - fuel system - brakes) and
rubber elements (boots - sleeves - bushes
- etc.);
check battery charge and battery fluid
level (electrolyte);
visually inspect conditions of the
accessory drive belts;
check and, if necessary, change engine
oil and replace oil filter;
check and, if necessary, replace pollen
filter;
check and, if necessary, replace air
cleaner.
136
SERVICING AND MAINTENANCE

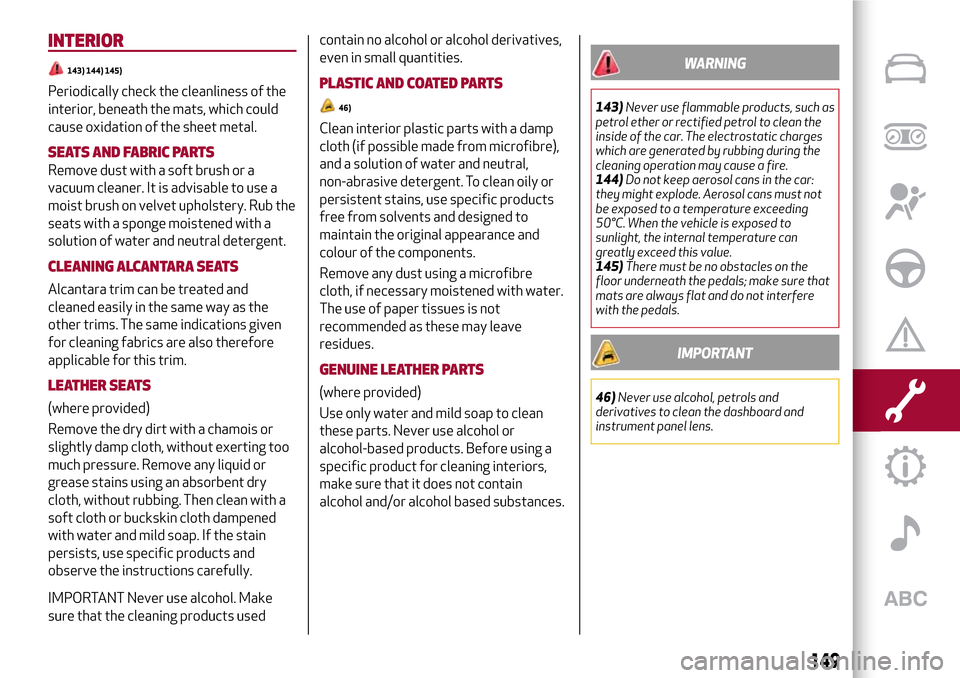

INTERIOR
143) 144) 145)
Periodically check the cleanliness of the
interior, beneath the mats, which could
cause oxidation of the sheet metal.
SEATS AND FABRIC PARTS
Remove dust with a soft brush or a
vacuum cleaner. It is advisable to use a
moist brush on velvet upholstery. Rub the
seats with a sponge moistened with a
solution of water and neutral detergent.
CLEANING ALCANTARA SEATS
Alcantara trim can be treated and
cleaned easily in the same way as the
other trims. The same indications given
for cleaning fabrics are also therefore
applicable for this trim.
LEATHER SEATS
(where provided)
Remove the dry dirt with a chamois or
slightly damp cloth, without exerting too
much pressure. Remove any liquid or
grease stains using an absorbent dry
cloth, without rubbing. Then clean with a
soft cloth or buckskin cloth dampened
with water and mild soap. If the stain
persists, use specific products and
observe the instructions carefully.
IMPORTANT Never use alcohol. Make
sure that the cleaning products usedcontain no alcohol or alcohol derivatives,
even in small quantities.
PLASTIC AND COATED PARTS
46)
Clean interior plastic parts with a damp
cloth (if possible made from microfibre),
and a solution of water and neutral,
non-abrasive detergent. To clean oily or
persistent stains, use specific products
free from solvents and designed to
maintain the original appearance and
colour of the components.
Remove any dust using a microfibre
cloth, if necessary moistened with water.
The use of paper tissues is not
recommended as these may leave
residues.
GENUINE LEATHER PARTS
(where provided)
Use only water and mild soap to clean
these parts. Never use alcohol or
alcohol-based products. Before using a
specific product for cleaning interiors,
make sure that it does not contain
alcohol and/or alcohol based substances.
WARNING
143)Never use flammable products, such as
petrol ether or rectified petrol to clean the
inside of the car. The electrostatic charges
which are generated by rubbing during the
cleaning operation may cause a fire.
144)Do not keep aerosol cans in the car:
they might explode. Aerosol cans must not
be exposed to a temperature exceeding
50°C. When the vehicle is exposed to
sunlight, the internal temperature can
greatly exceed this value.
145)There must be no obstacles on the
floor underneath the pedals; make sure that
mats are always flat and do not interfere
with the pedals.
IMPORTANT
46)Never use alcohol, petrols and
derivatives to clean the dashboard and
instrument panel lens.
149

Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants and greases
for drive transmissionSAE 75W grade
synthetic lubricant.9.55550-MZ6 or
MS.90030–M1TUTELA TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10Mechanical differentials
and gearboxes
Molybdenum disulphide
grease, for use at high
temperatures. N.L.G.I.
consistency 1-2FIAT 9.55580 – GRASS IITUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Grease for constant
velocity joints with low
friction coefficient.
N.L.G.I. consistency 0-1FIAT 9.55580 – GRASS IITUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential side constant
velocity joints
Lubricant for
electro-hydraulic
actuator (versions with
Alfa TCT)Fully synthetic oil with
dedicated additive9.55550-SA1 or
MS.90030-H1TUTELA CS SPEED
Contractual Technical
Reference No. F005.F98Lubricant for
electro-hydraulic
actuator
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS.90039TUTELA TOP 4/S
Contractual Technical
Reference No. F001.A93Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsRed protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.9.55523 or MS.90032PARAFLU
UP(*)
Contractual Technical
Reference No.
F101.M01Percentage of use: 50%
distilled water 50%
PARAFLUUP(**)
(*)IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised
water.
