coolant temperature AUDI A3 1996 8L / 1.G ATW Engine Ignition System Workshop Manual

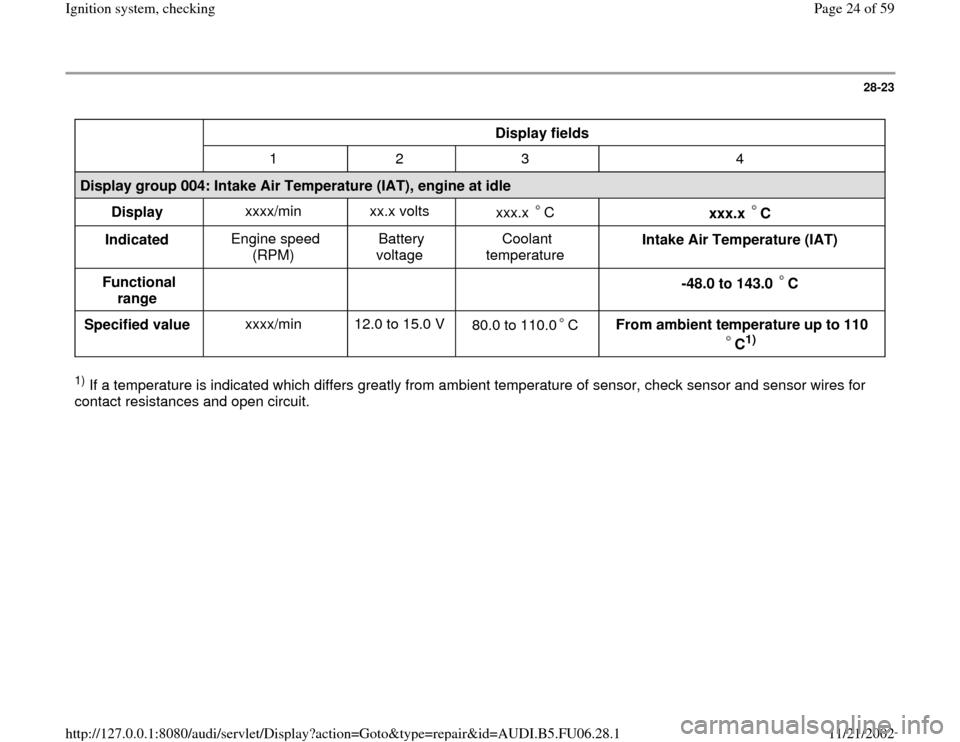

28-23


Display fields

1 2 3 4
Display group 004: Intake Air Temperature (IAT), engine at idle
Display xxxx/min xx.x volts
xxx.x C
xxx.x C
Indicated Engine speed
(RPM) Battery
voltage Coolant
temperature Intake Air Temperature (IAT)
Functional
range
-48.0 to 143.0 C
Specified value xxxx/min 12.0 to 15.0 V
80.0 to 110.0 C
From ambient temperature up to 110
C
1)
1) If a temperature is indicated which differs greatly from ambient temperature of sensor, check sensor and sensor wires for
contact resistances and open circuit.
Pa
ge 24 of 59 I
gnition s
ystem, checkin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU06.28.1

28-30


Engine Coolant Temperature (ECT) sensor
-G62-, checking

Special tools and equipment

VAG1526A
VAG1594A
VAG1598/31
VAS5051 with VAG5051/1
- or
VAG1551 with VAG1551/3A
Pa
ge 31 of 59 I
gnition s
ystem, checkin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU06.28.1

28-32


Display fields

1 2 3 4
Display group 004: Coolant temperature, engine at idle
Display xxxx/min xx.x volts
xxx.x C
xxx.x C
Indicated Engine speed
(RPM) Battery
voltage Coolant temperature Intake Air Temperature (IAT)
Functional
range
-48.0 to 143.0 C

Specified value xxxx/min 12.0 to 15.0
V Temperature value must rise
evenly From ambient temperature up to
110 C
If display field 3 does not have a realistic
indication:

- Disconnect connector at coolant temperature
sensor.

Coolant temperature sensor with square
connector:

- Connect multimeter between terminal 1 and 3 of sensor for resistance
measurement.
Pa
ge 33 of 59 I
gnition s
ystem, checkin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU06.28.1

28-33

Coolant temperature sensor with oval
connector:

All models:
Range A shows the resistance values for the temperature range from 0-
50 C, and range B shows the values for the temperature range from 50-
100 C. - Connect multimeter between terminal C and D of sensor for resistance
measurement.

Read-out examples:
If specified value is not obtained:
30 C corresponds to a resistance of 1500 to 2000 80 C corresponds to a resistance of 275 to 375
- Replace coolant temperature sensor.
Pa
ge 34 of 59 I
gnition s
ystem, checkin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU06.28.1

28-34
If specified value is obtained:

- Connect VAG1598/31 test box at wiring harness
to Engine Control Module (ECM), do not connect
ECM Page 24
-19
.

Coolant temperature sensor with square
connector:

Coolant temperature sensor with oval connector: - Check following wire connections for open circuit and short circuit to
Ground (GND) and B+: Harness connector
Terminal
VAG1598/31 test box
Socket
1 (signal) 93
3 108

- Check following wire connections for open circuit and short circuit to
Ground (GND) and B+: Harness connector
Terminal
VAG1598/31 test box
Socket
3 108
4 (signal) 93
Pa
ge 35 of 59 I
gnition s
ystem, checkin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU06.28.1
