Instruments and warning /indicator lights
Instruments and warning/indicator lights
Instruments
Instrument cluster and controls
The instrument cluster is your central source of informa ­
tion.
Fi g. 2 O ver view of the in strum ent cluster
© Tachometer with t ime and date d is play ........... .
@ Indic ator light s (turn s igna ls) ....... ... . .. .. ... . .
® Coolant temperature gauge . .. .. .. .. .. .. ... .. ... .
© Fue l gauge . ... ... .. ... ..... ... ... .... ... . .. .. .
© Speedomete r with odometer ...... .... .. .. .. . ... .
© Set/Check bu tton ....................... ...... .
(j) Warning/ind icator lights . .... .. .. .. . ... ... .. ... .
@ Reset button fo r
8,9
11
9
10
10
9, 3 1
11
- Trip odometer
- Service in terval disp lay
(D Note 10
27
T
he instrument cluster and center conso le illum ination (gauges and
need les) comes o n when you sw itch on the ign ition and the
vehicle
headlights are off .
Be aware of the following d ifference between
mode ls built to US o r Canadian specifications :
• USA models : illumination of the instrument cluster (gauges and
needles), da sh and c enter console around the g earshift lever is
controlled by a light sensor located in the instrument panel. The
instrum ent panel illumination will automat ically become dimmer
as the d aylight fades awa y and eventually will go out completely
when out side light i s very low . Th is is to remind you, the driver , to
switch on the headlights before it gets too dark .
• Canada models: instrument panel illumin ation will stay bright
r egardless of the intensity of ambient light. Always be awa re of
change s in out side light condition s while you are driving. Re spond
i n time to f ading daylight by turning the light sw itch to position
j D
(or "AUTO " if your car is eq uipped w ith this fea ture) to turn on your
headlights. •
Tachometer (engine rev counter)
The tachometer indica tes the engine RP M (revolutions
per minutes) .
The tachomete r© ::::, fig . 2 is the left one of the two large clo ck-type
displays .
The engine turns at a speed 1 000
times the single digit in the
display, e .g . if the need le points at the "2", the engine tu rns at
2 000 RPM .

Instruments and warning/indicator lights
in. WARNING
• USA models: : If both, the BRAKE warning light and the
warning light come on at the same time, the rear wheels c ould
lo ck up fir st under hard braking . Lo ck-up of the rear wheel brakes
c a n cause loss of vehicle control and an accident. Have your vehicle
repaired immedi ate ly by your authorized Audi dealer or a qualified
workshop . Drive slowly and avoid sudden , hard brake appli cation .
• Canada models : If both, the brake warning light ((j)) and the
ABS warning light
~ come on at the same time , the rear wheels
could lock up first under hard braking . Lock-up of the rear whee l
brakes can cause loss of vehicle control and an accident. Have your
vehicle repaired immediat ely by your authorized Audi dealer or a
qualified work shop. Drive slowly and avoid sudden, hard brake
application
• If the brake warn ing/indicator light does not go out after a few
se cond s and the parking brake rel eased, or light s up while you are
driving , the fluid level in the brake fluid reservoir is too low. If you
believe that it i s safe to do so, proceed immediately at low speed
to the nearest authorized Audi dealer or qualified workshop and
have the brake system in spe cted.
• Please be very careful and always keep
in mind that after
s everal brake application s, you will need greater pressure on the
brake pedal to stop your vehicle. Consequently, you must allow
for increased braking distances. Trying to brake a s quickly a s usual
could lead to an accident. •
Anti-lock brake system B-(USA)/
(Canada)
T his war ning/indicator light monitors th e ABS and the
electronic differential lock (E DL).
The ,... ~ light will come on for a few seconds when the ignition is
switched o n. Th e light w ill go out af ter an automat ic check sequ ence
is comp lete d.
There is a malfunction in the ABS when:
• Th e warning/indicator light does not ill uminate when you swit ch
on t he ignit ion.
• Th e warning/indicator light does not go out after a few seconds.
• The warn ing/ indicator lig ht ill uminates while driv ing.
The brake system will still re spond even without the a ssistance of
the ABS system. See your authorized Audi dealer as soon as
possible to restore full braking performance.
For more information
regard ing the ABS=>
page 192.
The ABS warning light and the brake warning light come on
together. The ABS will not work and you will notice a change in
braking response and performance.
Malfunction in the brake system
USA models: If both, the BRAKE warning light and t he ABS warning
light come on =>
page 15 w hen the par king b rake is re lease d, there
may be a malfunction in the ABS, and there may a lso be a ma lfunction
in the b rake system itself=>&.
Canada models: If both , the brake warning light CCI» and the ABS
wa rni ng light come on=>
page 15 when the parking brake is
re leas ed, there may be a ma lf u nctio n in t he A BS, and there may also
be a malfunction in t he brake system itself=>& .
Malfunction in the electronic differential lock (EDL)
The two systems EDL and ABS work togethe r. T he I ,:- warning light
w ill come on if there is a malfunction in the EDL system=>
page 189.
See your authorized Audi dealer as soon as possib le .
in. WARNING
• If the 11\fl warning light doe s not go out , or if it come s on while
driving , the ABS system is not working properly . The vehicle can
then be stopped only with the brake s operating without ABS
support. You will not have the protection ABS provides. Contact
your Audi dealer as soon as possible. _,,

If the engine control unit receives faulty vehicle roadspeed signals,
t he Mal func tion In dica tor Ligh t (M IL)
t::: will illuminate. If th is
occu rs, contact the nearest authorized Audi dea ler fo r ass istance .
& WARNING
Always observe the posted speed limits and adjust your speed to
suit prevailing road, traffic and weather conditions. Never drive
your vehicl e faster than the m aximum speed rating of the tires
in stalled .•
Trip computer
Introduction
The trip com puter gives you informati on on current a nd
average fuel mileage, a verage speed , fu el range and
driving time.
F ig . 1 0 T rip c ompute r
1
You can switch between the t rip computer 1 an d 2 by p ressing the
[ Reset ] bu tton @ ~ page
22, fig . 11.
You can tell wh ich memory level is currently active by the number in
t he display~ fig. 10. The da ta from t he single -trip memo ry (memory
level 1) is being d isp layed if a
1 appears in the display . If a 2 is shown,
Controls and equip ­
ment Safety first
Driver information display
t
hen the data from the total-trip memory is be ing d isplayed (memory
level 2).
Single-trip memory (Trip computer 1)
Th e sing le- tri p memory sto res t he trip in forma tion from the t ime the
ignition is turned on until it is turned off. If the trip is continued
within 2 hours from the t ime t he ign ition was turned off, the new
data will be included in the ca lculat ion of the c urren t tr ip i nforma­
t ion. If th e t rip is interrupted for
more than 2 hours the memo ry is
reset automa tically .
Total-trip memory (Trip compu ter 2 )
Unlike the single-t rip memory, the total-trip memory is not reset
au tom atically . This permi ts you to ev aluate your d riving data for the
en tire pe riod be twee n manual resets.
Fuel range
The est imated cru is ing range in mi les (km) appears in the display. The
display changes in inc rements of 6 mi les (1 0 km).
Average fuel mileage
The ave rage fuel e co nomy in MP G (l/100 km) s in ce you last clea red
the memory appears in this d isp lay.
Current fuel mileage
Th e instantaneous f uel cons umption in miles pe r ga llon ( l/100 km) is
show n in this d is pl ay. W hen the veh icle is st ationary, the most recent
fue l cons umption is displayed.
Average speed
The average speed in mph (km/h) since the last t ime the display was
reset appea rs in the display .
Elapsed time
T he lengt h of t ime that you have been drivi ng s ince you last reset the
memo ry appears in this dis pl ay . The maxim um time period that can
be recor ded is 999 ho urs and 59 minu tes . .,
Vehicle care Technical data

Service interval display
The service interval display reminds you when your next
service is due.
Fi g. 20 Sec tio n of
in strum ent clu ste r:
Se rvice inte rv a l displ ay
The schedu le for the next oil change or inspection is calcu lated auto­
matically and displayed accor dingly. The display works in two s tages:
Service rem inder
30 days befo re the nex t serv ice is d ue, a serv ice reminde r appears in
the display when you turn on the ignit ion .
After abo ut 5 seconds the d isp lay switches back to normal. The
distance and time rema ining are updated each t ime t he ig nitio n is
t u rne d on unti l the date due for service is reac hed.
Service due
When the due da te for service is rea ched, t he mess age Service due!
appea rs in the instrument cl uste r immed iate ly after you t urn on t he
ignition . Additionally, a warning tone sounds. Afte r abo ut 5 seconds
t he display sw itches back to normal.
Calling up the service schedules
If or when an o il change or inspec tion is due, can be s hown in the
ins trumen t cluste r by se lec ting the se rvice inte rval display . Select
Check > Service > Oil change or Service by using the [ RESET] button
and the rocke r switch =>
page 22, fig. 12 .
Controls and equip ­
ment Safety first
Driver information display
Resetting the service interval display
You
r authori ze d Au di dea ler will reset the correspon ding se rvice
schedule after performing the a pprop ria te serv ice on you r vehicle.
Yo u also have t he possibility to reset t he oil c hange sche dule afte r
having performed an o il change according to Aud i specif ications .
• Switch the ign ition on .
• Pull the knob @=>
page 8, fig. 2 . T he m essag e. Service
due! appears.
• P ull the knob unti l the d is p lay
Oil change in----- mi (km) --- days
appea rs in the display. If the reset b utton is not pulled within 5
seco nds, the display reset mode closes.
0 Note
If you d isconn ect the batte ry termina ls, no ca lcula tions can b e mad e
for the service interva l display during this time and no serv ice
reminde r will appear. Remember that observing t he pr oper serv ice
interva ls is vitally important to extending the life of your veh icle,
p a rti cul arly the e ngine, and main taini ng it s v alue. Eve n if the mileage
dr ive n is low, the maximum per iod of one year from one serv ice to the
next must not be exceeded .
[ i ] Tips
• If a ma lf u nction is present ( red sym bo l), the d istance remaining
canno t be called up .
• D o not rese t the disp lay be tween servi ce int ervals . Doing so w ill
resu lt in a n incor rect d isp lay.
• If the b attery is di sconne cte d, the Se rvice Interval Di spl ay val ue s
are reta ined .
• On vehicles wit h the Dr ive r Info rm ation Syste m, you can a lso ca ll
up t he service interval disp lay =>
page 22.
• If se rv ic e was not perfo rmed at th e correc t time or the s erv ice
interval display was not reset after service was pe rformed, the addi- .,,_
Vehicle care Technical data

Driver information display
tional mileage driven or the elapsed days will be shown as negative
numbers.•
Speed warning system
Overview
The speed warning system helps you to keep your driving
speed below a set speed limit.
Fig . 21 Di splay: speed
warning system
The speed warning system warns the driver if he exceeds a previously
stored maximum speed. A warning tone will sound as soon as the
vehicle speed exceeds the set speed by about 3 mph (3 km/h). At the
same time, a warning symbol appears in the display => fig. 21.
The speed warning system has
two warning thresholds that function
independently of each other and that have somewhat different
purposes:
Speed warning 1 "" / (Canada
models)
You can use speed warning 1 to set the maximum speed wh ile you are
driving. This setting will remain in effect until you turn off the igni­
tion, assuming that you have not changed or reset the setting. The speed warning symbol
(
I (Canada models) in the warning 1
display appears when you exceed the maximum speed.
It goes out
when the speed falls below the stored maximum speed.
Th e speed warning symbol will also go out if the speed
exceeds the
stored maximum speed by more than about 25 mph (40 km/h) for at
least 10 seconds. The stored maximum speed is deleted.
Sett ing speed warn ing 1 =>
page 29.
Speed warning 2 I (Canada models)
Storing warning 2 is recommended if you always want to be reminded
of a certain speed, for example when you are traveling in a country
that has a general maxim um speed limit, or if you do not want to
exceed a specified speed for winter tires.
The speed warning 2 symbo l, / (Canada models) appears in the
display when you exceed the stored speed lim it. Unlike warning 1, it
will not go out until the vehicle speed drops below the stored speed
limit.
Setting speed warn ing 2 =>
page 29.
[ i ] Tips
Even though your vehicle is equipped with a speed warning system,
you should still watch the speedometer to make sure you are not driving faster than the speed limit .•

All the doors and the rear lid are locked by the central locking system
when you lock the vehicle.
The unlock ing and locking mode* can be changed in the driver infor­
mation system~
page 22.
Unlocking the vehicle
You can unlock the vehicle from outside either by using the remote
control
or by inserting and turning the key in the driver's door lock .
When you
unlock your vehicle:
• Th e anti-theft alarm system is deactivated briefly.
• The vehicle interior lights illuminate for approximately 30
seconds .
• All turn signa l lights will flash twice when the car is unlocked .
• After unlocking the vehicle, you have 30 seconds to open a door or
the rear lid. Afte r 30 seconds, the vehicle automatica lly locks and the
anti-theft alarm system activates again.
The rear lid can be locked or unlocked either by using the remote
control or by inserting and turning the key in the dr iver's door lock.
Unlocking the vehicle with the remote control~ will only
unlock the
rear lid, to
open it, the lid handle needs to be pressed.
Locking the vehicle
You can lock the vehicle from outside either by using the remote
control
or by inserting and turning the key in the drivers's door lock.
When you
lock the vehicle:
• All doors and the rear lid are locked.
• All turn signal lights will flash once when the car is locked.
• Th e anti-theft alarm system is activated. The horn of the anti­
theft alarm system will sound and the anti-theft alarm system readi­
ness light, located in the center of the instrument panel below the
windshield on the right side of the air vent, will start to blink.
• Th e vehicle interior lights turn off.
Controls and equip ­
ment Safety first
Opening and closing
Automat
ic locking*
The automatic locking feature locks all the vehicle doors and the rear
lid when you drive faster than 9 mph (15 km/h).
You can unlock the vehicle from the inside by:
• removing the key from the ignition switch (the vehicle wi ll auto­
matically unlock itself) or
• pressing the unlock part of the power lock switch
ll::D or
• pulling the inside handle for that door (once - the front door is
unlocked and opened at the same time, twice to open the rear door).
If you wish, you can have an authorized Audi dealer convert your
power door lock system to automatic locking.
& WARNING
• When you lock your vehicle from outside, nobody· especially
children - should remain inside the vehicle. Remember, when you
lock the vehicle from the outside the windows cannot be opened
from the inside .
• When you leave the vehicle, always remove the ignition key
and take it with you. This will prevent passengers (children, for
example) from accidentally being locked in the vehicle should
they accidentally press the power locking switch on the center
console.
• Do not leave children inside the vehicle unsupervised. In an
emergency it would be impossible to open the doors from the
outside without the key.
[ i ] Tips
• In the event of a crash with airbag deployment all locked doors
will be automatically unlocked to give access to the vehicle occupants
from the outside .
• If the power locking system sho uld fail, you can still open the fuel
tank flap in an emergency~
page 224 . .,_
Vehicle care Technical data

Clear vision

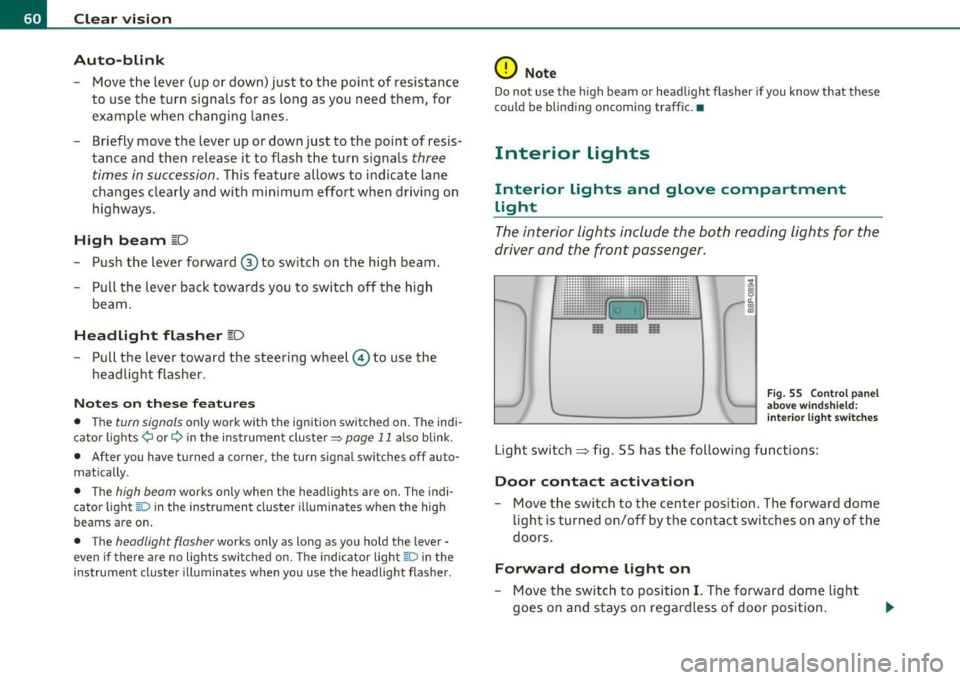

Auto -blink
- Move the lever (up or down) just to the point of resistance
to use the turn signals for as long as you need them, for
example when changing lanes.
- Briefly move the lever up or down just to the point of resis­
tance and then release it to flash the turn signa ls
three
times in succession.
This feature allows to indicate lane
changes clearly and with minimum effort when driving on highways .
High beam ~D
-Push the lever forward @to sw itch on the high beam .
Pull the lever back towards you to switch off the high
beam .
Headlight flasher ~D
-Pull the lever toward the steering wheel © to use the
headlight flasher.
Notes on these features
• The turn signals only work with the ign ition switched on . The indi­
cator lights ¢ or Q in the instrument cluster=>
page 11 also blink.
• After you have turned a corner, the turn signal switches off auto­
matically.
• Th e
high beam works only when the headlights are on. The indi­
cator light [D in the instrument cluster illuminates when the high
beams are on .
• The
headlight flasher works only as long as you hold the lever -
even if there are no lights switched on. The indicator light [Din the
instrument cluster illuminates when you use the headlight flasher.
0 Note
Do not use the high beam or head light flasher if you know that these
could be blinding oncoming traffic. •
Interior lights
Interior Lights and glove compartment
Light
The interior lights include the both reading lights for the
driver and the front passenger .
·······::--·· .. ·················· ············ ··
: illillllllllllll
1
\~l\lllllllilllllll :l;
,.. •eaa1 •u == -=---===
Fig. 55 Control panel
above windshield:
interior light switc hes
Light switch ~ fig. 55 has the following functions:
Door contact activation
-Move the switch to the center position . The forward dome
light is turned on/off by the contact switches on any of the
doors.
Forward dome light on
- Move the switch to position I. The forward dome light
goes on and stays on regardless of door pos ition.

Warm and cold
Please keep in mind that with the air conditioner switched off, the
interior temperature cannot be lower than the outside temperature.
There is no cooling and the air is not dehumidified (danger of the
windows becoming fogged).
[I] Tips
If there is a defect in the air conditioner, the air conditioner cannot be
switched on. In this case, the diode in the button does not light after
being switched on. In the event of a system fault, please contact an
Audi or specialist garage. •
Automatic mode [AUTO]
The automatic mode is the standard setting for all
seasons.
Switching on AUTO
- Select temperature between 64 °F (+18 °() and 84 °F
(+28 °().
- Press!AUTO]=>page97,fig.101.
AUTO only works when you set the inside temperature between 64 °F
(18 °C) and 84 °F (28 °C). If you select a temperature below 64 °F
(18 °(), LO will appear in the display. If you select a temperature
above 84 °F (28 °C),
HI will appear in the display.
The system automatically compensates for changes in outside
temperature and for the intensity of the sunlight.
[I] Tips
By keeping the
(AUTO] button on the driver's side pressed for several
seconds, the temperature of the passenger's side can be set to the
temperature of the driver's side or vice versa. The new temperature
setting will be shown in the display. •
Setting the temperature !
Separate temperatures can be selected for the driver's
and front passenger's side.
- Turn the rotary switch @ on the driver's side and the
rotary switch @on the passenger's side left(-) or right(+)
to control the temperature=>
page 97, fig. 101.
There is a time delay before the selected temperature is reached.
[I] Tips
Th e temperature setting for the driver's side can be transferred to the
passenger's side=>
page 98. •
Defrosting/defogging the windshield~
The windshield and side windows are quickly defrosted or
defogged
-Press(@]=> page 97, fig. 101.
- Press!@] again or press [AUTO] to switch off the
defroster.
Th e temperature is automatically controlled. Maximum airflow is
primarily blown in through outlets©, @ and ®=>
page 101.
Outlets @can be opened and closed with the controls behind them.
Outlets @and ® must be opened so the windows can be defrosted
as quickly as possible.
By pressing(@) and air recirculation are switched off.•

Manual air recirculation mode c::%)
The recirculation mode preve nts polluted outside air
from entering the vehicle interior.
Switching on air recirculation
- Press the button l~l =:> page 97, fig. 101 =:> & .
Switching off air recirculation
- Press th e button l~ l aga in , or
- Press the
[ A UTO I button, or
- Press the
I®] button .
I n air recirculation mode, air is drawn from the ve hicle interior and
rec ircul ated. We recom mend that you use the man ual air r ecircula­
tion mode under the following conditions:
W hen d riving throug h a t unnel o r in a traffic jam so t hat ex haust
fumes cannot enter the ve hicle inter ior .
& WARNING
Do not use thi s setting for e xtended periods of time. The windows
c ould fog up sin ce no fre sh air can enter the vehi cle. If the
windows fog up, press the air recirculation button again immedi·
atel y to switch off the air recirculation function or selec t defro st. •

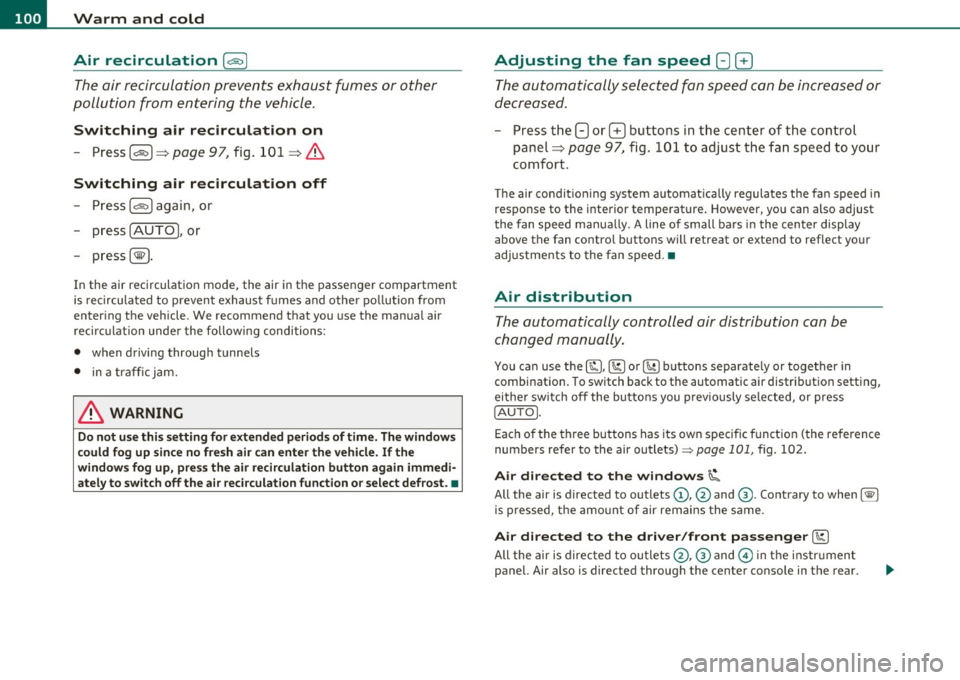

Automatic air recirculation I~ ]
If outside air is polluted, an air quality sensor in the
vehicle will aut omatically switch on the air recirculation .
Switching on air recirculation
-Press l~]=:> page97, fig.101.
Controls and equip ·
ment Safety first
Warm and cold
Switching off air recirculation
- Press@again, or
- press
I A UT O], or
- press
I®] .
The au tomatic a ir recircu lation mode should no rma lly be left
sw itched on at all times.
Th e sys tem is ready to operate approximately 30 seconds a fter yo u
t u rn on t he ignit ion or start the ve hicle . Fres h air ente rs the vehicle
only during this in it ia lizat ion period .
T he air q ual ity senso r fo r de tect ing d ie se l and gasoline exhaust fumes
switches automat ically to air recirculation mode if the o uts ide a ir is
heavily po lluted. The supp ly of outside air is closed o ff.
As soon as the poll ution level d rops, fresh air is automat ically
supplied to the vehicle interior again.
Th e air re ci rculat ion ope ra tes fo r a m ax im um o f 12 mi nutes . If the
windows start to fog up w hile the air recirculation is on, press I@ ]
U nder certain operating condit ions (for examp le, if(@ ] or Ice:,] are
pressed) the a ir recircu lation a utomatically sw itches off. If the air
conditioner is switched off, or if the temperature is below 18 °F (-
8 °(), the a ir recirculation wi ll ope rate only for 12 seconds .•
Switching between Fahrenheit and
Centigrade
Y ou can change the tempera ture display from °F (Fahren­
heit) to °C (Centigrade ) and vi ce ve rsa .
- Hold th e [¢.:>] butto n down =:> page 97, fig. 101.
- Tu rn the rotary switch ( driver's side)@for
3 seconds +.•
Vehicle care Technical data

llffl!l.___w __ a _r_ m __ a_n_ d_ c_ o _ l_d _______________________________________________ _
Air recirculation [a:i ]
The air recirculation prevents exhaust fumes or other
pollution fr om entering the vehicle .
Switching air recirculation on
-Press lo;;, ]~ page 97, fig . 101 ~ &
Switching air recirculation off
- Press 0 agai n, or
- p ress [AUTO], or
- press[@] .
In the air recirculation mode, the air in the passenger compartment
is rec irculated to preven t exhaus t fu mes and othe r po llution from
enter ing the veh icle . We recommend that you use the manua l air
reci rcul atio n under the followi ng conditions:
• when driving through tunnels
• in a traffic jam.
& WARNING
Do not use thi s setting for extended periods of time . The window s
c ould fog up since no fresh air can enter the vehicle. If the
window s fog up, pre ss the air recir culation button again immedi­
ately to swit ch off the air recirculation function or select defrost .•
Adjusting the fan speed G G
The automati cally selected fan speed can be increased or
de creased.
- Press the (:) or G butto ns in t he center o f the con tro l
panel ~
page 97, fig. 10 1 to adjus t the fa n sp ee d to your
comfort .
The air condit ion ing system a utomat ically regulates t he fan speed in
response to the interior temperature . However, you can also adjust
the fan speed manua lly . A line of small ba rs in the cen ter display
above the fan contro l buttons w ill retreat or extend to reflect your
adjustments to the fan speed. •
Air distribution
The automatically controlled air distribution can be
changed manually .
You can use the l~I. l~I or l~ I buttons separate ly or together in
combination . To switch back to the automatic air distribut ion setting,
either sw itc h off the butto ns you previo usly se lected, or press
[AUTO I.
Each of the three buttons has its own specific f unct ion (the re ference
numbers refer to the air outlets):::::,
page 101, fig. 102.
Air directed to the windows ik,,
All the air is directed to outlets (D,@ and @. Contrary to when [@ I
is pressed, the amo unt of air rem ain s the same.
Air di rected to the dri ver /front passenger[ ~]
All the air is directed to outlets @,@ and © in the i nstr ument
panel. Air also is directed throug h the center console in the rear.
