140 Airbag system
-Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates .
- Never place or attach accessories or
other objects (such as cup holders, tel ­
ephone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat backrests.
- Such objects and accessories can be­
come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys.
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other
passengers to travel in this position .
- Always use the built-in coat hooks only
for lightweight clothing . Never leave any
heavy or sharp-edged objects in the
pockets that may interfere with side air­
bag dep loyment and can cause personal
injury in an accident .
- Always prevent the side airbags from be­
ing damaged by heavy objects knocking
against or hitting the sides of the seat ­
backs.
- The airbag system can only be triggered
once. If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealership.
- Damage (cracks, deep scratches etc .) to
the original seat covers or to the seam in
the area of the side airbag module must always be repaired immediately by an au­
thorized Audi dealer .
- If children are seated improperly, their
risk of injury increases in the case of an
accident
q page 143, Child Safety .
- Never attempt to modify any compo­
nents of the airbag system in any way .
- In a side collision, side airbags will not
function properly if sensors cannot cor­
rectly measure increasing air pressure in­
side the doors when air escapes through larger, unclosed openings in the door
panel.
- Never drive with interior door trim pan­
els removed.
- Never drive when parts have been re­
moved from the inside door panel and
the openings they leave have not been
properly closed.
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly
closed.
- Always make certain that openings are
covered or filled if additiona l speakers
or other equipment is installed in the inside door panels.
- Always have work on the doors done by
an authorized Audi dea ler or qualified
workshop.
Side curtain airbags
Description of curtain airbags
The curtain airbags can provide supplemental
protection to properly restrained occupants .
Fig. 137 Cur tain airbag , drive r's sid e: s ide cu rtain a ir­
bag locat ion
The side curtain airbags are located on both
sides of the interior above the front and rear
side windows
c;, fig. 137 . T hey are identified
by the word "AIRBAG " on the windshield
frame and the center roof pillar .
The side curtain airbag system supplements
the safety belts and can help to reduce the risk of injury for occupants' heads and upper
torso on the side of the vehicle that is struck
liJI,

in a side collision. The side curtain ai rbag in ­
f lates in side impacts and on ly when the vehi­
cle acce lerat ion reg istered by the contro l unit
is high enough. If th is rate is be low the refer ­
ence value programmed into the control un it,
the side airbags will not be triggered, even
though the car may be badly damaged as a re­ sult of the collision . It is not possible to de­
f ine an a irbag tr igger ing range that will cover
every possible angle of impac t, since the ci r­
cumstances wi ll vary conside rably between
one co llision and another . Important factors
include, for examp le, the nat ure ( hard o r soft)
of the impacting object, the ang le of impact,
veh icle speed, etc.
c:> page 141.
Aside from the ir normal safety function , safe ­
ty belts work to he lp keep the driver or front
passenger in posit ion in the event of a co lli­
sion so that the side curtain airbags can pro­
vide protection.
The airbag system is not a s ubstitute for yo ur
safety belt. Rather, it is part of the overall oc­
cupant restraint system in your vehicle. Al­
ways remember that the airbag system can
only help to protect you if you are wearing
your safety belt and wear ing it prope rly. Thi s
i s another reason why you sho uld always wear
your safety bel ts, not just beca use the law re­
q uir es you to do so
<=:>page 113, General
notes.
It
is important to rememb er that while the
side curta in a irbag sys tem is designed to he lp
r educe the like lihood of se rious injur ies, other
in ju ries, for example, swell ing, bruising, and
minor abrasions can a lso be associated with
these airbags upon deployment. Remember
too, these a irbags w ill dep loy on ly once and
only in certain kinds of accide nts - your safety
be lts are a lways there to offer protection .
The side curtain airbag sy stem ba sically
consi sts of:
- The electronic control mod ule and external
s ide impact sensors
- The side curtain airbags ab ove the front and
rear side w indows
A irba g sy stem 141
- The a irbag indicator light in the instrument
pane l
T he airbag system is mon itored e lec troni cally
to make ce rtain i t is func tioning prope rly at all
times . Each time you turn on the ignit ion, the
airbag system indicator light will come on for
a few seconds (self diagnostics).
The side curtain airbag is not activated :
-if the ignition is turned off ,
- in side co llisions whe n the accele ration
meas ured by the sensor is too low,
- in rea r-end collisions,
- in rollovers.
A WARNING
- Safety belts and the airbag system will
only provide protection w hen occupants
a re in the proper seating posi tion
c:> page 61, General re commendation s.
- If th e air bag ind icator lig ht comes on
when the vehicle is being used, h ave the
sys tem inspected immedi ately by your
author ized A udi dealer. The s ide cur tain
airbag may not wo rk proper ly even w hen
the vehicle acce lerat ion in a side collision
is high enoug h to activate the airbag.
How side curtain airbags work
Side curtain airbags ca n work together with
side airbags to help reduce the risk of head
and upper torso injuries for occupants who
are properly restrained.
Fi g. 13 8 Illust rat io n o f pri nc iple: I nflated s ide c urtai n
a irbags o n the le ft sid e
The side c urtai n airbags inflate betwee n the
occupant and the windows on the s ide of the ..,.

144 Child Safety
-Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rear-facing child safety seat in
a rear seating position and have the air­
bag system inspected immediately by
your authorized Audi dealer.
_& WARNING
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag.
- Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be adjusted to an upright position .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
(D Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with an "Advanced
Airbag System" in compliance with United
States Federal Motor Vehicle Safety Standard (FMVSS) 208 as applicable at the time your
vehicle was manufactured.
The Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on the driver side. The low risk deployment criteria
are intended to reduce the risk of injury
through interaction with the airbag that can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates . In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front
passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system , all children, espe­
cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and size. The airbag on the pas­
senger side makes the front seat a potentially dangerous place for a child to ride . The front
seat is not the safest place for a child in a for­
ward-facing child safety seat. It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat .
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle
detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight-sensing mat in the seat cush ­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight -sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger
seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the .,..

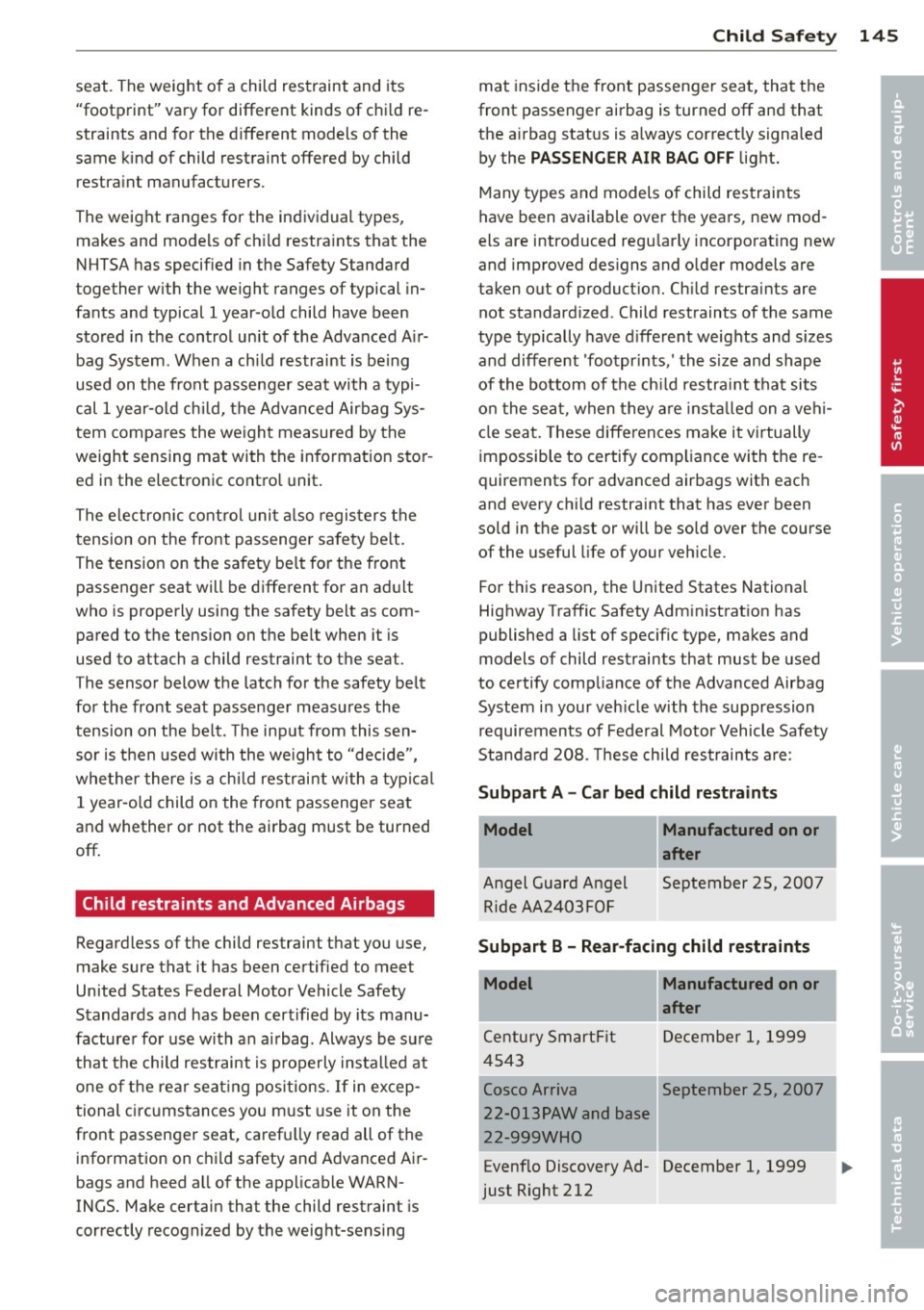

seat. The weight of a child restraint and its
"footprint" vary for different kinds of child re­
straints and for the different models of the
same kind of child restraint offered by child restra int manufacturers.
The weight ranges for the individual types, makes and mode ls of ch ild restra ints that the
NHTSA has specified in the Safety Standard
together with the we ight ranges of typical in­
fants and typical 1 year -old child have been
stored in the control unit of the Advanced A ir­
bag System . When a chi ld restraint is being
used on the front passenge r seat with a typi­
cal 1 year -old ch ild, the A dvanced Airbag Sys­
tem compares the we ight measured by the
weight sensing mat with the information stor­
ed in the electronic control unit.
The electron ic contro l unit al so registers the
tension on the front passenger safety be lt.
The tension on the safety be lt for the front
passenger seat will be different for an adult
who is properly using the safety belt as com­
pared to the tension on the be lt when it is
used to attach a child restraint to the seat.
T he sensor below the latch for the safety belt
for the front seat passenger measures the
tension on the belt . T he input from this sen­
sor is t hen used w ith the we ight to "decide",
whether there is a ch ild restraint with a typ ica l
1 year-o ld child on the front passenger seat
and whether or not the airbag must be turned
off .
Child restraints and Advanced Airbags
Regard less of the child restraint that you use,
make sure that it has been certified to meet
United States Federal Motor Vehicle Safety
Standards and has been certified by its manu­
facturer for use with an airbag . Always be sure
that the chi ld restraint is p roperly instal led at
one of the rear seat ing pos itions . If in excep­
tional ci rcumstances you must use it on the
front passenger seat, carefu lly read all of the
information on child safety and Advanced Air­
bags and heed a ll of the app licable WARN­
INGS. Make certain that the child restraint is
correctly recognized by the weight-sensing
Child Sa fet y 145
mat inside the front passenger seat, that the
front passenger airbag is turned off and that
the a irbag status is always correct ly signaled
by the
PAS SENGE R AIR BAG OFF light.
Many types and models of child restraints
have been available over t he years, new mod­
els are introduced regu larly incorporating new
and improved des igns and o lder models are
taken out of product ion. Ch ild restraints are
not standard ized . Child restraints of the same
type typ ically have d ifferent weights and sizes
and different 'footpr ints,' the size and shape
of the bottom of the ch ild restrai nt that sits
o n the seat, when they a re insta lled on a veh i­
cle seat. These diffe rences make it v irtually
impossible to certify compliance with the re­
quirements for advanced airbags with each
and every ch ild restraint that has ever been
sold in the past or will be sold over the course
of the useful life of your veh icle.
For this reason, the United States National
Highway Traffic Safety Adm inistrat ion has
published a list of spec ific type, makes and
models of child restraints that must be used
to certify comp liance of the Advanced Airbag
System in your veh icle with the suppression
requirements of Federal Motor Vehicle Safety
Standa rd 208. These chi ld restraints are :
Subpart A - Car bed child restraints
Model
Angel Guard Angel Ride AA 2403FOF
Manufactured on or
after
September 25, 2007
Subpart B - Rear-facing child restraints
Model Manufactured on or
after
Century SmartF it December 1, 1999
4543
Cosco Arriva September 25, 2007
22-013PAW and base
22-999WHO
Evenf lo Discovery Ad- December 1, 1999
just Right 212
I
j
•
•
....

244 Fuses and bulbs
Fuse Location, Instrument Panel left
Fuses which can be replaced.
Fig. 191 Cockp it driver 's s ide: fuse pane l layout
Note that the following table is accurate at
the time of going to pr ess and i s subject to
change . In the event of d iscrepancies, the la­
bel on the in side of the cover always take s
pr eceden ce .
The power seats are protected by circuit
break ers,
which automatically reset after a
few seconds after the ove rload has been rem­
ed ied .
Equipment
Manua l head light beam ad­
justment, a utomat ic head­
light beam adjustment, AFS
1 co ntrol m odule, engine
components, light switch
(switch lighting/illumina­
ti on), diagnosis socke t
2
3
4
5
6
8
9
Automatic transmission,
control module for CAN data
transfer (gateway), electro­
mechanical steering, shift
gate automatic transmis­
sion, fuel tank control unit,
engine control unit, brakes
control (A BS), Electronic
Stabili zation Program (ESP) ,
Anti-Slip Regulation (ASR)
Air bag
Air-conditioning (pressure
sensor, air quality sensor), button for Electronic Stabili ­
zation Program (ESP), Anti ­
Slip Regulat ion
(ASR), tire
pressure monitor display, oil
level senso r, back-up ligh t
s w itch, front se at he ati ng ,
p ark ing aid, sea t-occupancy
recognition (on USA vehi ­
cles), garage door opener,
automa tic mirror dimming,
headlight assistant, heated
windshield washer nozzles, air conditioning (control
module)
AFS headlights ( left si de)
AFS headlights (right side) Instr ument cluster
Navigation system, radio
system
1 0 digital
radio, cell phone, TV
equipment
11 Automatic mirror dimming,
headlight assistant
12 Central lock ing (front doors)
Central locking ( rear doors)
Amps
10
10
5
5
5
5
5
15
7 ,5
10
10
10

No. Equ ipment
Electronic Stabilization Pro-
14
gram (ESP) (control mod-
u le), shift gate automatic
transmission
15 Interior lights, reading
lights
Diagnostic connector, rain
sensor, air conditioning
16 (control module), t
ire pres-
sure monitor d isplay (con-
trol module)
I 17
Anti-theft alarm warning
system
18 D iagnose Starter
19 All Wheel D rive
20 Audi magnetic ride
Blower fan
23
Driver's
side power window,
front
24 Power outlet front
2S Rear window defogger
26 Power outlet in luggage
compartment
27 Fuel tank control module,
fuel pump
28 Power window, rear
33 Slidi ng/pop-up roof
36 Lumbar support
37 Heated sea ts, front
1 38
Passenger side power win-
dow, front
39 Specia l func tion interface
40 Starter
41 Rear window wiper
43 Body control module
47
Ce ll phone package (V OA in-
terface)
Automatic circuit breakers:
10
10
10
5
5
10
40
30
20
30
20
15
30
20 10
20
30
5
40
15
20 5
The electri c power w in dows and the e lectr ic
seat adjusters are pro tected with circu it
breake rs which reset automatically after the
circuit overload has been corrected.
Fu se s and bulb s 245
@ Tips
-Whenever rep lacing a fuse, always con­
sult the sticker on the inside of the f use
pane l cover. It contains the most up-to­
date information regarding the fuse ar­
rangement. If in doubt, ask your author­
ized Aud i Service adviso r.
- Some of the equipment items listed are
opt ional or only available on certa in
mode l configurations.
Fuse location, left side of engine
compartment
Fig . 192 En gine compar tment : fuse assig nment
,._
-d. a, a>
Check the fuse layout with the f use panel cov­
er removed
¢ page 243, Fuse cover in engine
comportment.
Some of the equipmen t items listed are op­
tiona l or only ava ilab le on certain model con ­
figurations.
Please note tha t the preced ing tab le was ac­
c u rate at the time of pr int ing and is subject to
c h ange.
No. Equipment
F2 Engine compone nts
F3 Battery voltage ESP valves, Anti-lock brake
F4 system (ABS) valves
Transmission control mod­
F5 ule
F6 Steering wheel e lectronics
Amps
20
5
20
15
s

264 Index .:..:..:..::....::..
...:..._ ___________________________ _
A
ABS
refer to Anti-lock brake system . ... .. . 164
Accessories .. ... .. ..... ... .. .. .. .. . 26 1
Acoust ic park assist ........ .. .. .... .. 93
AC (a ir cond itioner) ......... .. .. .. .. .. 81
Adapter for anti-theft wheel bolts . .. .. . 238
Adaptive light
defective . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Adding Engine coolant .......... .... ..... . 204
Engine oil . ...... ....... ... .. .... . 200
Windshield washer fluid ............ 211
Addit ional accessories .......... .... . 261
Additional heater Climate controls . . . . . . . . . . . . . . . . . . . . 85
Additives Engine oil . ............... ... .. .. . 200
Adj ustab le steering wheel column .... .. 88
Adjusting Steer ing wheel column ........ .. .... 88
Adjusting front seats ........ ... .... .. 61
Advanced Airbag System
Components ... .......... .. .. .. .. . 129
Fr ont airbags ................ .... . 127
How the components work together .. 130
Monitoring ................. ..... . 133
PASS ENG ER A IR BAG OFF light .. .... . 133
A irbag
Warning/indicator lights ............. 16
A irbag system . . . . . . . . . . . . . . . . . 122, 139
Advanced Airbag System . . . . . . . . . . . . 126
Care . .. .. ............... .. .. .... . 135
Ch ildren . .... ........... .. .. .. .. . 144
Ch ild r estra ints ........... .. .. .. .. . 145
Components (front airbags) . ... .... . 129
Danger of fitting a child safety seat on
the front passenger seat . . . . . . . . . . . . 123
Disposal . ................. .. .... . 135
Front airbags . ........... .. .. .... . 126
How do the front airbags work? . . . . . . 131
H ow many airbags does my vehicle
have? ..... .......... ...... ... .. . 129
I mportant things to know .... .. .... . 122
I ndicator light ........... .. .. .. .. . 133
Monitoring ................. ..... . 133 Repairs ...
.... .. ............. .... 135
Side airbags ..... ................ . 137
S ide curtain airbags ................ 140
When must the system be inspected? 133
Airbag System
Weight-sensing mat .............. . 144
Air conditioner .. .. ................ .. 81
also refer to Climate controls .. .. .. .. . 79
Air conditioning Switching on and off ........... .. .. . 81
Air distribution Climate controls . ................. .. 83
Air outlets Adjusting the outlets for rapid defrost -
ing/defogging ... ................ .. 84
Climate controls . .............. ..... 84
Air quality sensor . . . . . . . . . . . . . . . . . . . . 82
Air recirculation . .. ... .......... .... . 83
Climate controls .. ............. .... . 82
When should I use the air recirculation? 82
Air recirculation mode Climate controls . ................. .. 82
All-wheel drive Winter tires ... .. ... .......... .... 227
Alloy wheels ...... ................ . 182
All Wheel Drive .... ............. .... 166
Alternator
refer to Generator ............. .. .. . 16
Aluminum alloy wheels .... ...... .... 182
Ambient lighting . . . . . . . . . . . . . . . . . . . . 52
Anti-lock brake system How the ABS system works ........ .. 164
Warning/ind icator lights ........ .. .. . 18
Anti -theft systems
Anti-Theft Alarm System . . . . . . . . . . . . . 42
Anti-theft wheel bolts ........... .... 238
Armrest Center armrest . . . . . . . . . . . . . . . . . . . . . 66
Rear armrest .... ................ .. 67
Asterisk What does it mean when something is
marked with an aster isk? ........ .... .. 6
Audi magnetic ride . . . . . . . . . . . . . . . 22, 9S
Description . . . . . . . . . . . . . . . . . . . . . . . . 95
Indicator light ... ....... ...... .. .. . 22
Audi Service Repair Manuals and Litera-
ture 259

Lifting jack .... .... .... ... .. .. .. ... 239
Lifting po ints ...................... 253
Light coming/leaving home ............... 48
Exterior lighting .......... .......... 48
Light/ra in sensor defective . ... .. .. .. .. 22
Lights .. .. ..... ........... ...... ... 47
E mergency flasher . . . . . . . . . . . . . . . . . . SO
Fr ont fog l igh ts .......... .... .. .. .. 49
H eadlig hts ... .... .... ... .. .. .. .... 47
High beam . . . . . . . . . . . . . . . . . . . . 47, 50
Instrument panel i llum ination . ... .. .. 49
Side marker lights ........ ...... .... 47
Turn signals .. ........... .. .. .. .... 50
Xeno n headlights ................... 47
L oading the l uggage compartment . ... . 109
L oading the roof rack . . . . . . . . . . . . . . . . . 73
Locking Manual back-up .......... .. .. .. .. .. 41
Power locking switch . . . . . . . . . . . . . . . . 39
Rear lid .. ..... ........... ...... ... 40
Remote control . . . . . . . . . . . . . . . . . . . . 3 7
Using the fo ld-out key . . . . . . . . . . . . . . . 38
Lower universa l anchorage bars (Canada) 155
L ower universa l anchorages (Canada) 155
L uggage
Stowing . .. ..... ....... .... ... .. . 109
Luggage compartment
Cargo net .. ............. .... .. .... 69
Fasten ing eyes .................. ... 68
Increasing size ... .. ... ... .. .. .. .. .. 67
L ight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Re tractable cover . . . . . . . . . . . . . . . . . . . 70
Ski sack . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
also refer to Loading the l uggage com ­
partment . . . . . . . . . . . . . . . . . . . . . . . . 109
L umbar support ..................... 64
M
Maintenance ............... ...... .. 259
M alfunction Indicator Lamp (MIL) . . 1 9, 25
M anual tra nsmission ................. 96
G ea rshift lever ........... .. .. .. .. .. 96
Master key . ................ ...... ... 35
Battery replacement ................ 35
Master key remote control ... .. .. .. .. .. 35
Inde x 271
Menu bu tton . ..... .. . .. .. ..... ... .. . 28
Menu display Drive r Infor mation Display ........... 27
Mirrors Activating the dig ital compass ........ 59
Adjus ting the exterior m irrors . . . . . . . . . 53
dimming ........ .. ................ 54
Monitoring the Advanced Airbag System 133
Mo unti ng hoo ks . . . . . . . . . . . . . . . . . . . . . 69
N
Natura l leather .. .. .. ..... .......... 185
New t ires and wheels ................ 223
N HT SA
Co ntacting . ... .... . ... ...... ... .. 111
Number of sea ts ... .. ............... 113
0
Occupant seating positions .......... . 104
Octane rating ....... . .. .. ..... ... .. 189
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Oil Wha t kind of oil should I put in my en-
gine? ........ ... .. ............... 197
also refer to Engine o il ... ... ..... .. 197
On-Board D iagnost ic System ........... 25
E lectronic speed limiter .............. 2S
Malfunction Indicator Lamp (MIL) ..... 25
On-Boa rd Diagnostic System (OBD) ... .. . 24
Data Link Connector ( DLC) .... ... .. .. . 24
Open door o r fron t lid wa rn ing ......... 23
Operate your vehicle economically and
minimize pollution ... . .. .... ...... .. 171
Optional eq uipment
Marked with an asterisk . . . . . . . . . . . . . . . 6
O ther equ ipment (e fficiency program) ... 29
Out lets ............................ 75
Outside ai r poll ution
How to prevent from entering the vehi-
cle ............................... 83
Outs ide mir ro rs
refer to E xterio r mi rro rs . . . . . . . . . . . . . 53
Outs ide temperature disp lay ......... .. 23
Owner's manual How the Owner 's Manual is organ ized ... 6
•
•

272 Index
p
Paint
Touch-up ... .. ........ ... .. .. .... . 181
Paint no . .... ..... ..... ...... ... .. . 255
panoramic sliding sunroof ..... .. .. .. .. 45
Comfort closing .................... 46
to close . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
to open . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Park assist . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Park ing . .. .. .. . .......... .. .. .. .. .. 92
Automatic transmission . . . . . . . . . . . . . 98
Park ingbrake .............. ... .. .... 91
Setting and releasing . . . . . . . . . . . . . . . . 91
Park ing brake warning ................ 15
Park ing on a decline (downhill) ... .. .... 92
Park ing on an incline (uphill) ...... ..... 92
Particle filter
refer to Diesel particulate filter . . . . . . . 22
Parts rep lacement .................. 261
PASSENGER AIR BAG OF F light . .. .... . 133
Passive safety system ...... ... .. .... .
Pedals .. .. .. ................ ... .. .
Physical principles of a frontal collision . 103
108
114
Polishing
.. ... ............ .. .. .. .. . 180
Power locking switch ........... .. .... 39
Rearcenterconso~ ......... .. .. .. .. 40
Power locking system ................. 36
Conven ience close/open feature ... .. .. 44
Locking and unlocking the vehicle from
ins ide . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Opening and closing the w indows .. .. . . 44
Operating locks from w ith key . . . . . . . . . 38
Rear lid .. .... ............. .. .... .. 40
Remote control . . . . . . . . . . . . . . . . 35, 37
Unlocking and locking vehicle ..... .. .. 3 7
Power outlets .............. .... ... .. 75
Power seat
Adjusting the seatback .............. 64
Adjustment ............. .. .. .. .. .. 63
Power steering
refer to Electro -mechanica l power as-
sist . . . . . . . . . .. . . . . . . . . . . . . . . 17, 165
Power sunroof
refer to panoramic slid ing sunroof . .. .. 45 Power window switches
....... ... .. .. . 43
In the driver's door .. ....... ... .. .. . 43
Reactivating the system .......... .. . 45
Pregnant women Spec ial considerations when wear ing a
safety belt . ..... ... ....... ... .. .. 118
Proper occupant seating positions ..... 104
Proper safety belt position . . . . . . . . . . . . 117
Proper seating position Front passenger .. ... .. ..... ... .. .. 105
Occupants ..... .. .. .... .... ... .. .. 104
Rear passengers . ... ............ ... 106
Q
Quartz clock . . . . . . . . . . . . . . . . . . . . . . . . 11
quatt ro ®
refer to All Wheel Dr ive .... ..... .. .. 166
Question Wha t happens to unbelted occupants? 114
Why safety belts? ................. 113
R
Radiator fan 205
Radio
Replacing ..... .. .. ............ ... 262
Rain sensor defective . . . . . . . . . . . . . . . . . 22
Reading light Rear . ........ .. ............. .... . 52
Reading lights Front ... .. .... .. ... .. .. ... ... .. .. . 51
Rear ... .. .... .. .. ... .. ... ... .. .. . 51
Rea r a rmrest . . . . . . . . . . . . . . . . . . . . . . . . 67
Rear lid Emergency release .................. 41
Locking/unlock ing ................ .. 40
Rear light defective ............. .... . 21
Rear power lock ing swi tch ........ .... . 40
Rear seat bottom .................. .. 67
Rear view mirror ... ... .. ..... ... .. .. . 54
Rear window defogger with air-cond it ion ing ........... .. .. . 85
Refuell ing .. .. .. .. ............. .. .. 192
Re lease lever for engine hood . . . . . . . . . 194
