seats AUDI A3 2012 Owner´s Manual

2 Table of contents Vehicle literature .. .. .. .. .. ... .
About this Owner's Manual ...
Controls and equipment .. ... .
Ins truments and controls .. . .
General illus tration .... ... .. .. ... .
Instruments and warning /
indicator lights ..... ... .. .. .. . .
Ins trum ents . .. .. ..... ... .. .. ... .
War ning/ ind ic ator lights ... .. ... .. .
Driver information d isplay .. . .
Introduct ion . .. .. ..... ... .. .. ... .
On-Boa rd Diagnostic syst em (OBD) .. .
T rip compute r .. ... .... ..... .. .. . .
M en u dis pl ay ... ...... ... .. .. .. . .
Efficien cy progr am . ........ ... .. . .
Service in terval d is pl ay .. .. .. .. .. . .
E ng ine oi l tempe ratu re d is pl ay .... . .
S peed warn ing syste m ..... .. .. ... .
Opening and closing .... .. .. . .
Keys .. .. .. ................ ... . .
P ower locking sys tem . .. .. .. .. .. . .
D oors, power lo cks . .... ..... .. .. . .
P owe r win dows .. .. ... ... .. .. ... .
P anoram ic slid ing su nroof . ... ... .. .
Clear vision .. . ...... ... .. .. ... .
Lights ...... .. .. .. ... ... .. .. ... .
Int erior lights .. .. ..... ... .. .. ... .
V1s1on . .. .. .. . .. ..... ... .. .. .. . .
M irro rs . ... .... .. ... ...... .. .. . .
W iper and w asher sy stem .. .. .. ... .
Dig ita l comp ass ... .... ... .. .. .. . .
Seats and storage ..... .. .. ... .
General recommendat ions ... .. .. . .
Ad just ing front seats manua lly .. .. . .
Ad just ing the powe r sea t ... .. .. .. . .
Ad just ing the lumb ar su pport . .. .. . .
H ead res traints ... ....... .. .. .. . .
Ce nte r arm rest . .. ..... ... .. .. ... .
R ear s eats . .... .. ..... ... .. .. ... .
L uggag e com partm ent . ... .. .. ... .
Roof r ack* insta llat ion . .... .. .. .. . .
5
6
8
8
8
10
10
1 3
23
2 3
24
25
27
29
30
31
3 1
34
34
36
3 8
4 3
45
47
47
5 1
53
53
55
59
61
61
62
63
64
65
6 6
6 6
6 7
7 1
Cu p ho lde rs ... .. ... .. ..... .... . .
Sock et . ... .... .. .. ... ..... ... .. .
Storage ... .. .. .. .. ... .. .. .. .. .. .
Warm and cold ... .. ..... .... . .
Clima te cont rols .. .. .... .... ... .. .
E lect rically he ated front se ats .. .. .. .
Eng ine p rehe ater
On the road ... ... .. ..... ... .. .
Steer ing .. .. .. .. ...... ....... .. .
I g nit ion lock and ig ni tion sw it ch .. .. .
St arting and stopp ing the engine ... .
Pa rking brak e .. .. ............... .
Sta rt ing on h ills .. ... .. ..... ... .. .
A coustic parking sys tem . ....... .. .
C ruise con trol .. . .. ... ... ... .. ... .
Audi mag net ic r ide . .... ..... ... .. .
Transm ission .. ...... ....... .. .
Manua l transm ission . ... .... ... .. .
S tronic transmiss ion . .. ..... ... .. .
Safety first .. .. ...... ....... .. .
Driving Safely ... .... .... ... .. .
Gene ra l notes .... .. ... ..... ... .. .
Pro per occupant seat ing posit ions . . .
Pedal a rea . .. .. .. ...... ....... .. .
S tow ing lugg age . ... .. ..... ... .. .
Repo rting Safety Defects .......... .
Safety belts ... ...... ....... .. .
Gener al note s .... .... ...... ... .. .
Why safety belts? ... .. ..... ..... .
Safety belts . .. ............ ..... .
Safety be lt pretensioners . ........ .
74
75
75
79
79
85
86
88
88
89
90
91
92
93
9 4
95
96
96
96
103
103
103
104
108
109
1 11
113
113
114
116
120
Airbag sy stem . . . . . . . . . . . . . . . . . 122
Important th ings to know . . . . . . . . . . 122
Fron t air bags . . . . . . . . . . . . . . . . . . . . 1 26
Moni toring the Adv anced Ai rb ag
Syst em . . . . . . . . . . . . . . . . . . . . . . . . .
133
Sid e airbags . . . . . . . . . . . . . . . . . . . . . 137
Sid e curtain airbags . . . . . . . . . . . . . . . 140
Child Safety . . . . . . . . . . . . . . . . . . . 143
Important things to know . . . . . . . . . . 143
Child safety se ats . . . . . . . . . . . . . . . . . 148

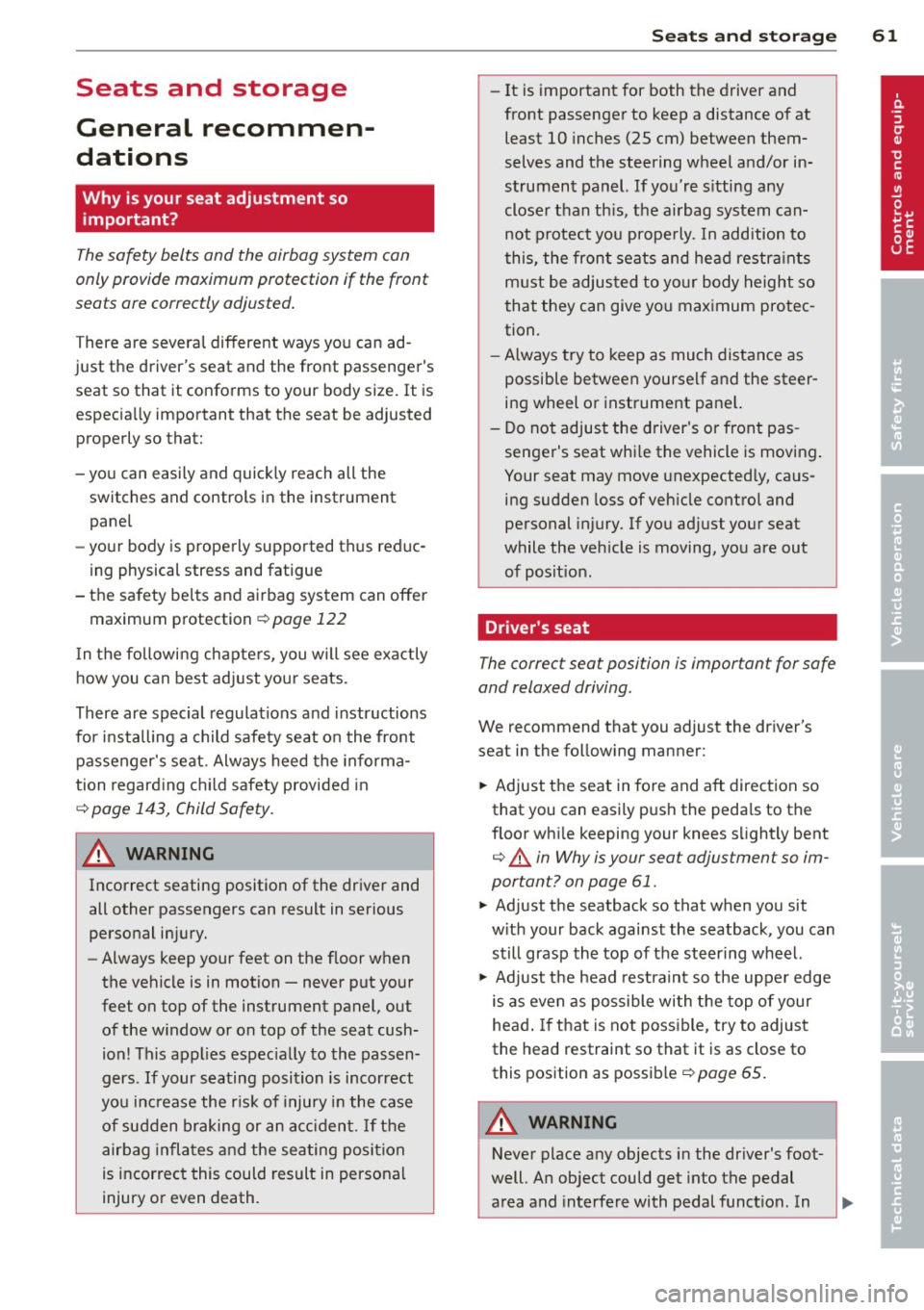

Seats and storage
General recommen­
dations
Why is your seat adjustment so important?
The safety belts and the airbag system can
only provide maximum protection if the front
seats are correctly adjusted.
There are several different ways you can ad­
just the driver's seat and the front passenger's seat so that it conforms to your body size.
It is
especia lly important that the seat be adjusted
properly so that:
- you can easily and quick ly reach all the
switches and controls in the instrument
panel
- your body is properly supported thus reduc­
ing physical stress and fatigue
- the safety belts and airbag system can offer
maximum protection ¢
page 122
In the following chapte rs, you will see exactly
how you can best adjust your seats.
There are special regulations and instructions
for installing a child safety seat on the front passenger's seat. Always heed the informa­
tion regard ing child safety provided in
¢ page 143, Child Safety .
A WARNING
Incorrect seating position of the driver and
all other passengers can result in serious
personal injury.
- Always keep your feet on the f loor when
the vehicle is in motion -never put your
feet on top of the instrument panel, out of the w indow or on top of the seat cush­
ion! This applies espec ially to the passen­
gers.
If your seating position is incorrect
you increase the r isk of injury in the case
of sudden braking or an acc ident. If the
airbag infla tes and the seating posi tion
is incorrect this could result in personal
injury or even death.
S eat s an d sto rage 61
-It is important for both the driver and
front passenger to keep a distance of at
least 10 inches (25 cm) between them­
selves and the steering wheel and/or in­
strument panel.
If you're s itting any
closer than th is, the airbag system can­
not protect you prope rly. In addition to
this, the front seats and head restra ints
m ust be adjusted to yo ur body height so
that they can give you maximum protec ­
tion.
'
- Always try to keep as much distance as
possible between yourself and the steer­
ing wheel or instrument pane l.
- Do not adjust the driver's or front pas­
senger's seat whi le the vehicle is moving .
Your seat may move unexpected ly, caus­
ing sudden loss of veh icle control and
personal injury. If you adjust your seat
while the veh icle is moving, you are out
of posit ion .
Driver's seat
The correct seat position is important for safe
and relaxed driving .
We recommend that you adjust the driver 's
seat in the fo llow ing manner :
.. Adjust the seat in fo re and aft direction so
that you can easily push the peda ls to the
floor wh ile keeping your knees slight ly bent
¢ .& in Why is your seat adjustment so im­
portant? on page 61.
.. Adjust the seatback so that when you sit
w ith your back against the seatback, you can
st ill grasp the top of the steering wheel.
.. Adjust t he head restra int so the upper edge
is as even as possible wi th the top of your
head . If that is not poss ible , try to adjust
the head restraint so that it is as close to
this position as possib le
<=:> page 65.
A WARNING
-Never place any objects in the dr iver's foot-
well. An object could get into the pedal
area and interfere with pedal funct ion. In

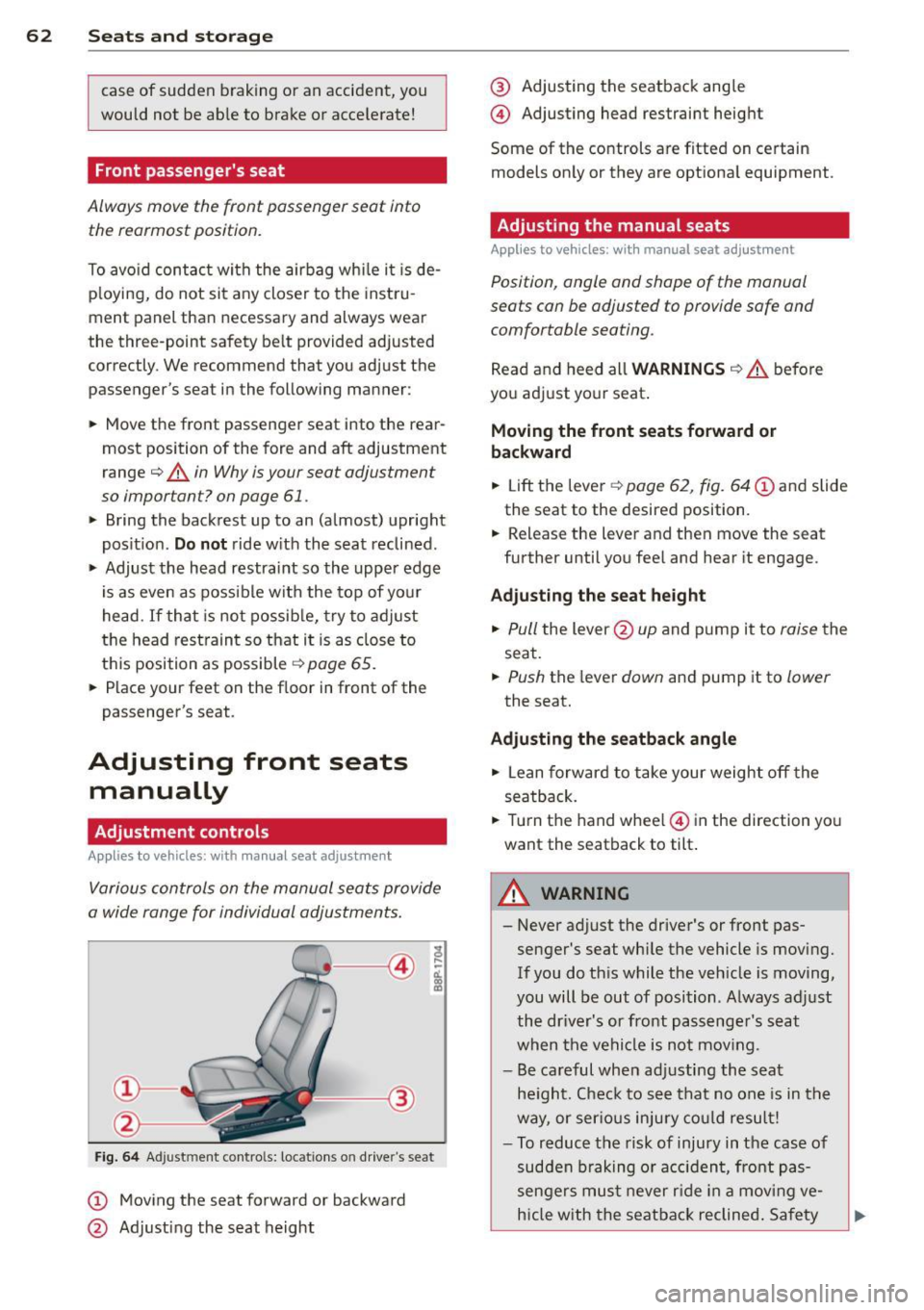

62 Seats and storage
case of sudden braking or an accident, you
would not be ab le to brake or acce lerate!
Front passenger's seat
Always move the front passenger seat into
the rearmost position.
To avo id contact with the airbag wh ile i t is de ­
p loying, do not sit a ny closer to the inst ru ­
ment panel than necessary and always wear
the three-point safety be lt provided adjusted
correctly. We recommend that you adjust the passenger's seat in the following manner:
... Move the front passenger seat into the rear ­
most position of the fore and aft adjustment
range
¢ .&.. in Why is your seat adjustment
so important? on page
61.
... Bring the backrest up to an (almost) upright
pos it ion .
Do not ride w ith the seat reclined.
... Adjust the head restraint so the upper edge
i s as
even as possible with the top of your
head. If that is not possib le, try to adjust
the head rest raint so that it is as close to
t h is position as possible
¢ page 65.
... Place your feet on the f loor in front of the
passenger's seat.
Adjusting front seats manually
Adjustment controls
Applies to vehicles: with manual seat adjustme nt
Various controls on the manual seats provide
a wide range for individual adjus tments.
==""" -®
Fig . 6 4 Ad just ment contro ls: locat ions on drive r"s seat
CD Moving the seat forward or backward
@ Adjusting the seat height
@ Adjusting the seatback ang le
@ Adjusting head restraint height
Some of the co ntrols are fitted on certain
models on ly or they are optiona l equipment.
Adjusting the manual seats
Applies to vehicles: with manual seat adjust ment
Position, angle and shape of the manual
seats can be adjusted to provide safe and
comfortable seating.
Rea d and heed all WARNINGS ¢.&.. befo re
you adjust yo ur seat .
Moving the front seats forward or
backward
"' Lift the leve r¢ page 62, fig. 64 CD and slide
the seat to the desired position .
... Release the lever and then move the seat
further until you feel and hear it engage .
Ad justing the seat height
... Pull the lever @up and pump it to raise the
seat.
... Push the lever down and pump it to lower
the seat.
Adjusting the seatback angle
... Lean forward to take your weight off the
seatback .
... Tur n the hand wheel@ in the di rection yo u
want the seatback to tilt.
A WARNING
- Never adjust the driver's or front pas­
senger's seat whi le the vehicle is moving.
If you do th is while the veh icle is moving,
you will be out of position . Always adjust
the dr iver's or front pass enge r's seat
when the vehi cle is not mov ing.
- Be careful when adj usting the seat
he ight. Check to see that no one is in t he
way, or ser io us inju ry co ul d result!
- To reduce the risk of injury in the case of
sudden b raking o r acciden t, front pas­
senge rs mus t never r ide in a mov ing
ve­
h icle with the seatback reclined . Sa fety

belts and the airbag system only offer
maximum protection when the seatback
is upright and the safety belts are prop­
erly positioned on the body . The more
the seatback is reclined, the greater the
risk of personal injury from an incorrect
seating pos it ion and improperly posi­
tioned safety belts!

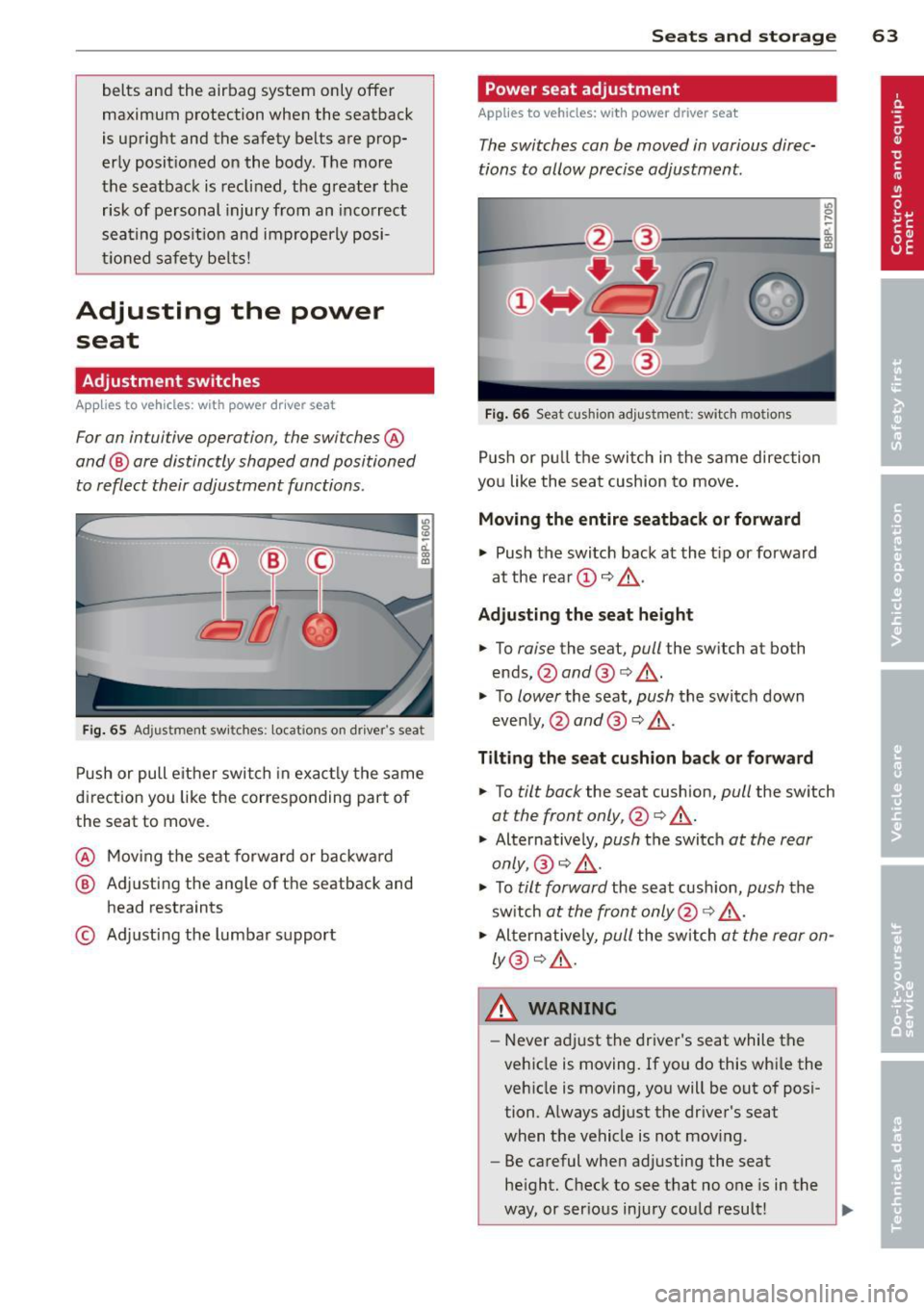

Adjusting the power
seat
Adjustment switches
Ap plies to vehicles: with power driver seat
For an in tuitive operation, the swi tches @
and @ are distinctly shaped and positioned
to reflect their adjustment functions .
Fig. 65 Adjust men t sw it c h es : locat ions on driver 's seat
Push or pull e ither switch in exactly the same
direction you like the corresponding part of
the seat to mov e.
@ Moving the seat forward or backward
@ Adjusting the angle of the seatback and
he ad restraints
© Adjust ing the lumbar support
Seats and storage 63
Power seat adjustment
Applies to vehicles: with power driver seat
The switches can be moved in various direc­
tions to allow precise adjustment.
Fig. 66 Sea t cush io n adju stme nt: sw it c h m otions
Push or pull the switch in the same direction
you like the seat cushion to move.
Moving the entire seatback or forward
.,. Push the switch back at the tip or forward
at the rear@c::>
,&..
Adjusting the seat height
.,. To raise the sea t, pull t he switch at both
ends, @
and@ c::> ,&. .
.,. To lower the seat, push the switch down
evenly,
@ and @<=:>,&. .
Tilting the seat cushion back or forward
.,. To tilt ba ck the seat cushion, pull the switch
a t the fron t only, @ c::> ,&. .
.,. Alternatively, push the switch at the rear
only,
@ <=:> ,&. .
.,. To tilt forward the seat cushion, push the
sw itch
at the front only@ Q ,&..
.,. Alternatively, pull the switch at the rear on­
ly @
Q ,&. .
A WARNING
-Never adjust the driver's seat while the
vehicle is moving. If you do this whi le the
veh icle is moving, you will be out of posi­
tion . Always adjust the driver 's seat
when the vehicle is not mov ing.
- Be careful when adjusting the seat
height. Check to see that no one is in the
way, or serious injury could result!

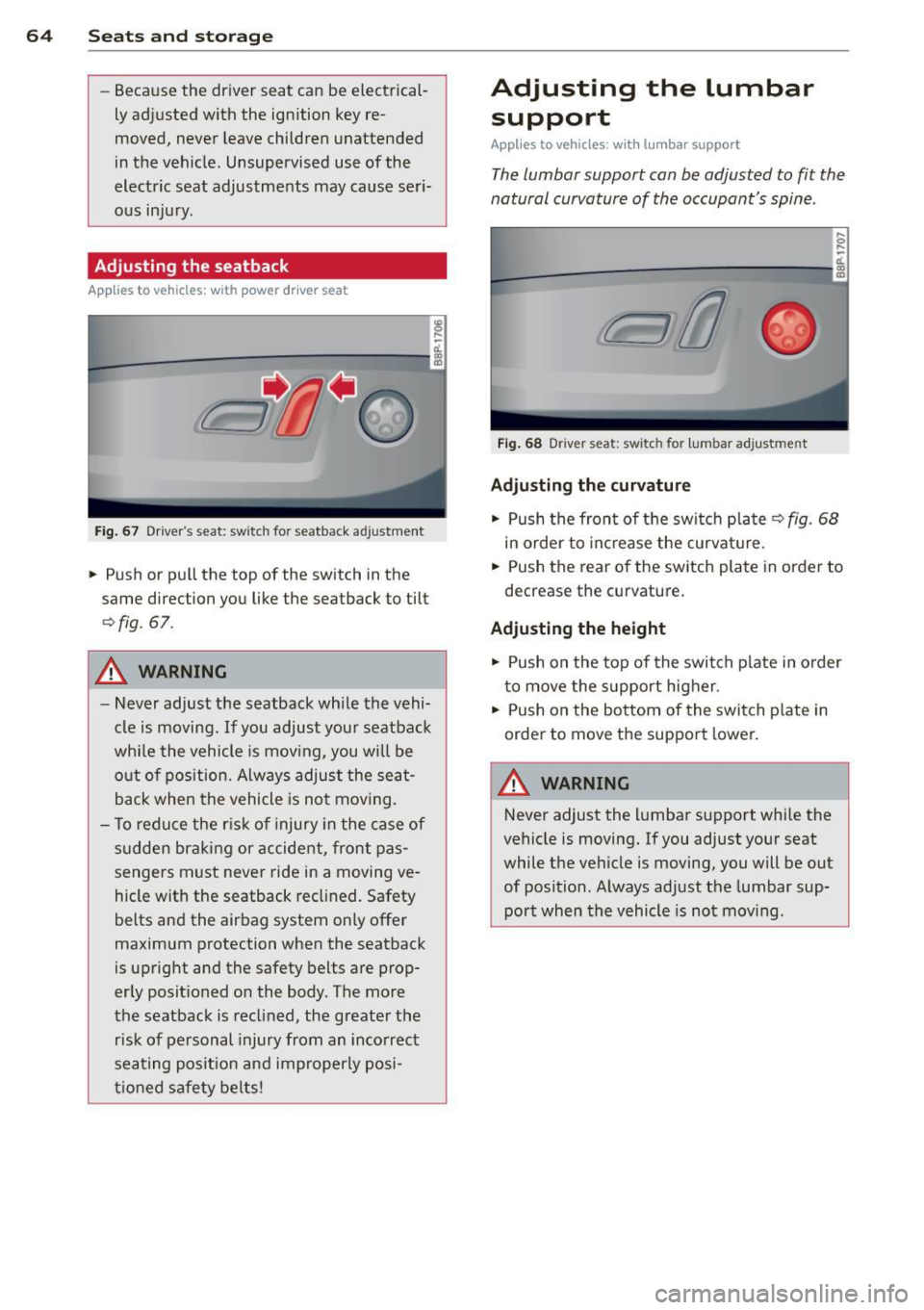

64 Seats and storage
-Beca use the driver seat can be electrical­
ly ad justed with the ign ition key re­
moved, never leave children unattended
in the vehicle . Unsupervised use of the
electric seat adjustments may cause seri­ o us in jury.
Adjusting the seatback
App lies to vehicles: with power driver seat
u-
Fig . 67 Drive r's seat: switc h for seatback adjustment
• Push or pull the top of the switch in the
same direction you like the seatback to tilt
¢fig. 67.
A WARNING
- Never adjust the seatback whi le the vehi­
cle is moving. If you adjust your seatback
w hil e the vehicle is mov ing, you wi ll be
o ut of pos ition. Always adjust the seat­
back when the vehicle is no t mov ing.
- T o redu ce the r is k of injury in the case of
sudden bra king or accident, front pas­
sengers must never ride in a moving ve ­
hicle with the seatback reclined. Safety
belts and the airbag system only offe r
maximum protection when the seatback
is upright and the safety belts are prop­
er ly posit ioned on the body . The more
the seatback is reclined, the greate r the
risk of personal injury from an incorrect
seating posit ion and improperly posi­
tioned safety be lts!
Adjusting the lumbar
support
Applies to vehicles: with lumba r support
The lumbar support can be adjusted to fit the
natural curvature of the occupant's spine.
F ig . 68 Driver seat: switc h for lumbar ad justment
Ad justing the curv atur e
.,. Push the front of t he sw itch plate c:> fig . 68
in order to in cr ease the curva ture.
• Push the rear o f the switch plate in order to
decrease the curvature.
A dj usting the height
• Push on the top of the switch p late in order
t o move the s upport higher .
• Push on the bottom of the switch p late in
order to move t he support lower.
A WARNING
-
Never adjust the lumbar support while the
vehicle is moving. If you adjust your seat
while the vehicle is moving, you will be out
of position. Always adjust the lumbar sup­
port when the vehicle is not mov ing .

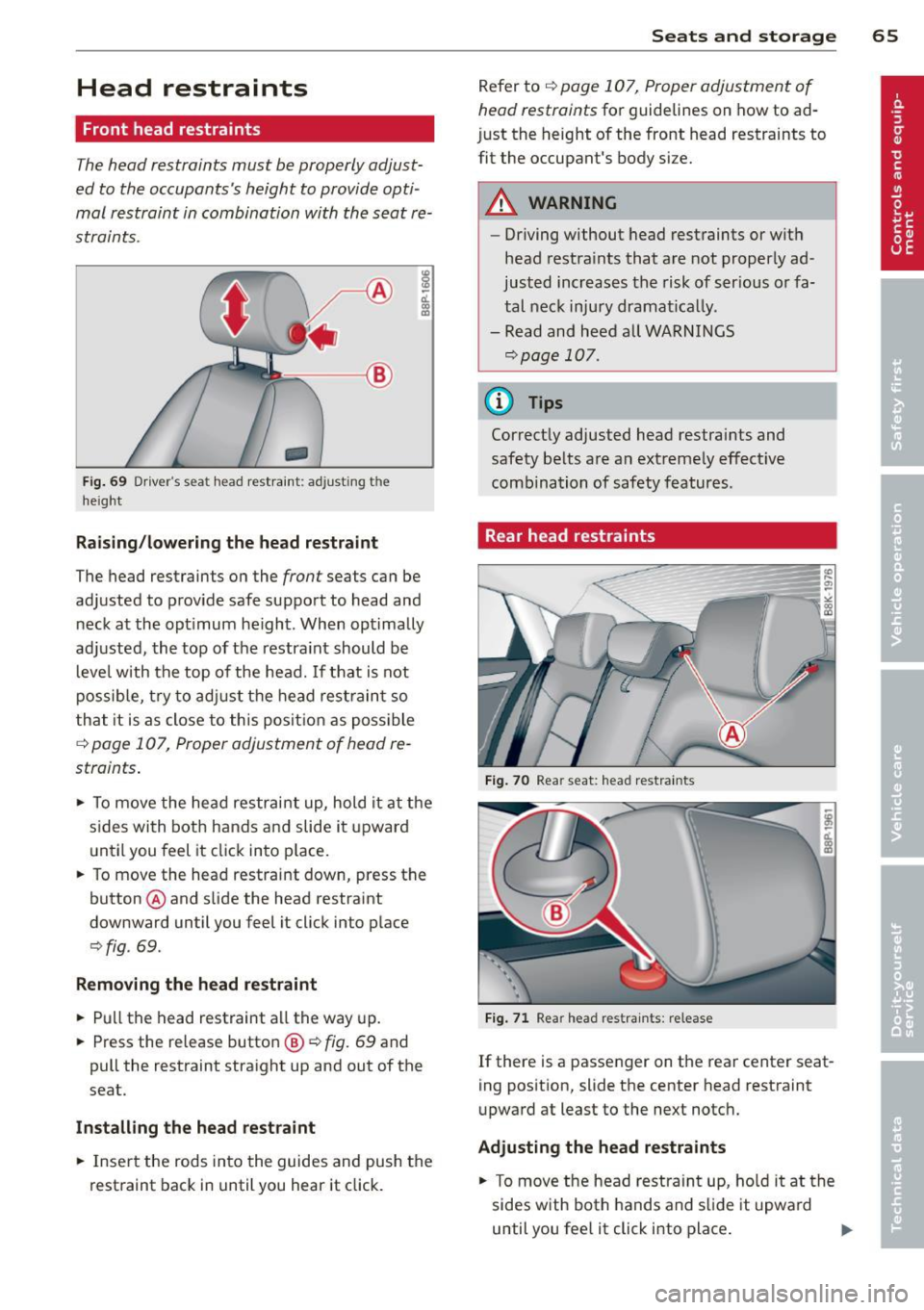

Head restraints
Front head restraints
The head restraints must be properly adjust­
ed to the occupants's height to provide opti ­
mal restraint in combination with the seat re­
straints.
Fi g. 69 Driver's s eat head restra int: ad just ing the
heigh t
Raising /lowering the head restraint
s
-d. a, a,
The head restraints on the front seats ca n be
adjusted to prov ide safe suppo rt to head and
neck at the opt imum he ight. When optimally
adj usted, the top of the restra int should be
L eve l w ith the top of the head. If that is not
possible, try to ad just the head restrain t so
that it is as close to th is pos it ion as poss ible
r:=> page 107, Proper adjustment of head re­
straints .
.,. To move the head restrai nt up, hold it a t the
s ides with bot h hands a nd slide it upward
un til you feel it click into p lace .
.,. To move the head restraint dow n, press the
button @ and slide the head restraint
downward until you feel it click into p lace
r:=> fig . 69.
Removing the head re straint
.,. Pu ll the head restraint a ll the way up.
.,. Press the re lease butto n@
r:=> fig. 69 and
pull the restraint stra ight up and out of the
seat.
Install ing the head rest raint
.,. Inse rt the rods into the guides and push the
rest raint back in until you hear it click.
Seats and storage 65
Refer to r=> page 10 7 , Proper adjustment of
head restraints
for guidelines on how to ad­
j ust the height of the front head restraints to
fit the occupant's body size.
A WARNING
- Driving without head restraints or wit h
head restra ints that a re not proper ly ad­
justed increases the risk of ser ious or fa­
tal nec k inju ry dramat ica lly.
- Read and heed all WARNI NGS
r:=>page 107 .
(D Tips
Correct ly adjusted head restrai nts and
safety be lts a re an e xtreme ly effect ive
combination of safety features.
Rear head restraints
Fi g. 7 0 Rea r seat: head restra ints
Fig. 7 1 Rear head res tra ints: release
If there is a passenger on the rear center seat­
ing pos ition, slide the center head restraint
u pward at least to the next notch.
Adjusting the head restraints .,. To move t he head restra int up, ho ld it at the
sides with both hands and s lide it upwa rd
until you fee l it click into place .

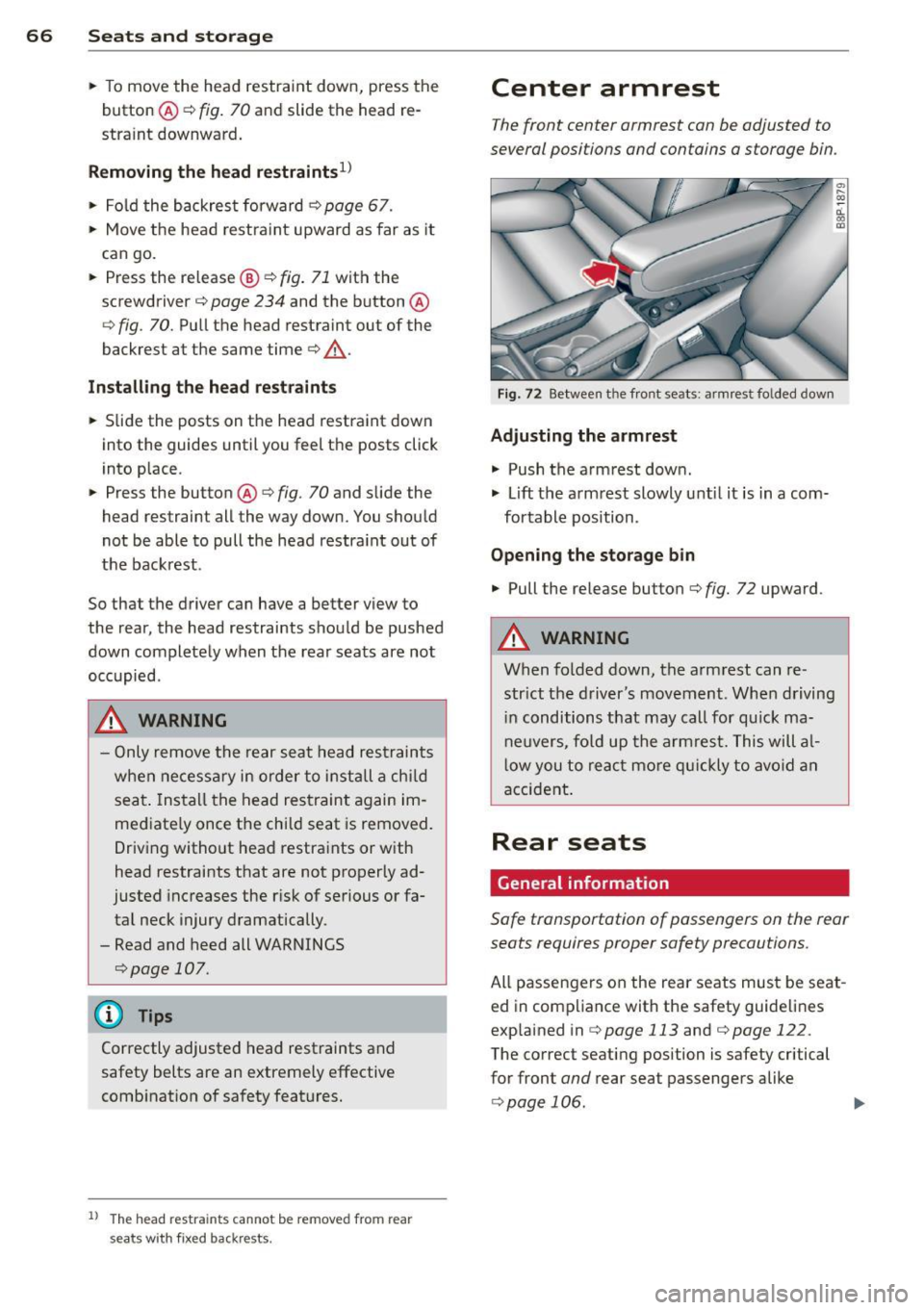

66 Seats and st o rage
• To move the head restraint down, press the
button @c>
fig. 70 and slide the head re ­
straint downward.
Removing the h ead restraint s
1>
• Fold the backrest forward ¢ page 67.
• Move the head restra int upward as far as it
can go.
• Press the re lease @ c>
fig. 71 with the
screwdriver¢
page 234 and the button @
¢fig. 70. Pull the head restraint out of the
backrest at the same time
c> &_.
Install ing th e head re st ra int s
• Slide the posts on the head restraint down
into the guides until you feel the posts click
into place.
• Press the button @¢
fig. 70 and slide the
head restraint all the way down. You should
not be able to pull the head restra int out of
the backrest.
So that the driver can have a better view to
the rear, the head restraints should be pushed
down completely when the rear seats are not
occ upied.
A WARNING
- Only remove the rear seat head res traints
when necessary in order to install a chi ld
seat . Install the head restraint again im­
mediately once the child seat is removed.
Driving without head restraints or with
head restraints that are not properly ad­
justed increases the r isk of serious or fa­
tal neck injury dramatically.
- Read and heed all WARNINGS
¢page 107.
@ Tips
Correctly adjusted head restraints and
safety belts are an extremely effective combinat io n of safety features.
l) The head restraints cannot be removed from rear
seats with fixed backrests .
Center armrest
The front center armrest con be adjusted to
several positions and contains a storage bin.
F ig . 72 Between the front seats: armrest folded down
Adjusting the armrest
• Push the arm rest down.
• Lift the arm rest slowly unt il it is in a com­
fortable position.
Opening the storage bin
• Pull the release button ¢
fig. 72 upward.
A WARNING
-
When folded down, the a rmrest can re­
str ict the d river's movement. Whe n driving
i n conditions that may call for qu ick ma­
neuvers, fo ld up the armrest. This will a l­
l ow you to react more qu ickly to avoid an
accident .
Rear seats
General information
Safe transportation of passengers on the rear
seats requires proper safety precautions.
All passengers on the rear seats mus t be seat­
ed in compliance with the safety guide lines
exp lained in
c> poge 113 and r=>poge 122.
The correct seating position is safety critical
for front
and rear seat passengers alike
r=> poge 106. .,,_

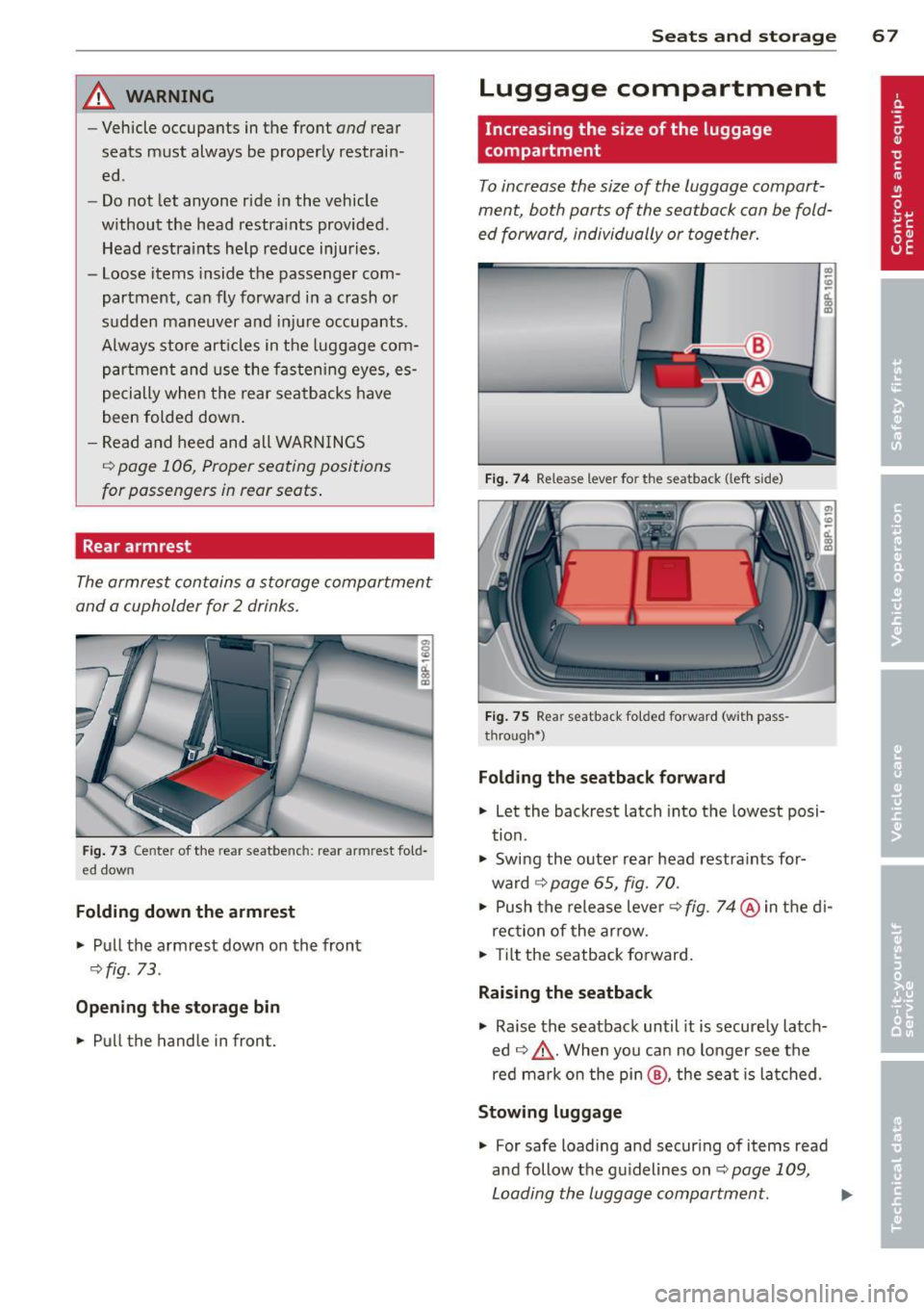

_& WARNING
-Vehicle occupants in the front and rear
seats must always be properly restrain ­
ed .
- Do not let anyone ride in the vehicle
without the head restra ints provided .
Head restraints help reduce injuries .
- Loose items inside the passenger com ­
partment, can fly forward in a crash or
sudden maneuver and injure occupants.
Always store articles in the luggage com ­
partment and use the fastening eyes, es­
pecially when the rear seatbacks have
been folded down .
- Read and heed and all WARNINGS
r::';> page 106 , Proper seating positions
for passengers in rear seats .
Rear armrest
The armrest contains a storage compartment
and a cupholder for 2 drinks.
F ig . 73 Ce nter of the re ar s eatbe nch : rear armrest fo ld ­
e d dow n
Folding d own the armre st
.,. Pull the armrest down on the front
¢fig . 73 .
Opening the stor age bin
.,. Pull the handle in front.
Sea ts a nd s to rage 67
Luggage compartment
Increasing the size of the luggage
compartment
To increase the size of the luggage compart­
ment, both parts of the seatback can be fold­
ed forward, individually or together.
Fig . 7 4 Re lease leve r fo r th e seatbac k (left side)
Fig . 75 Re ar seatback fo lde d fo rw ar d (w it h pa ss­
thro ugh• )
Folding th e seatb ack forward
.,. Let the backrest latch into the lowest posi­
tion.
.,. Swing the outer rear head restra ints for­
ward
¢ page 65, fig . 70 .
.,. Push the release lever¢ fig. 74 @ in the di-
rection of the arrow .
... Tilt the seatback forward.
Rai sing th e se atback
.,. Raise the seatback until it is secure ly latch­
ed
c::> &,. . When you ca n no longer see the
red mark on the pin @, the seat is latched .
Stowing luggage
.,. For safe loading and secur ing of items read
and follow the gu idelines on
c::, page 109 ,
Loading the luggage compartment. ..,.

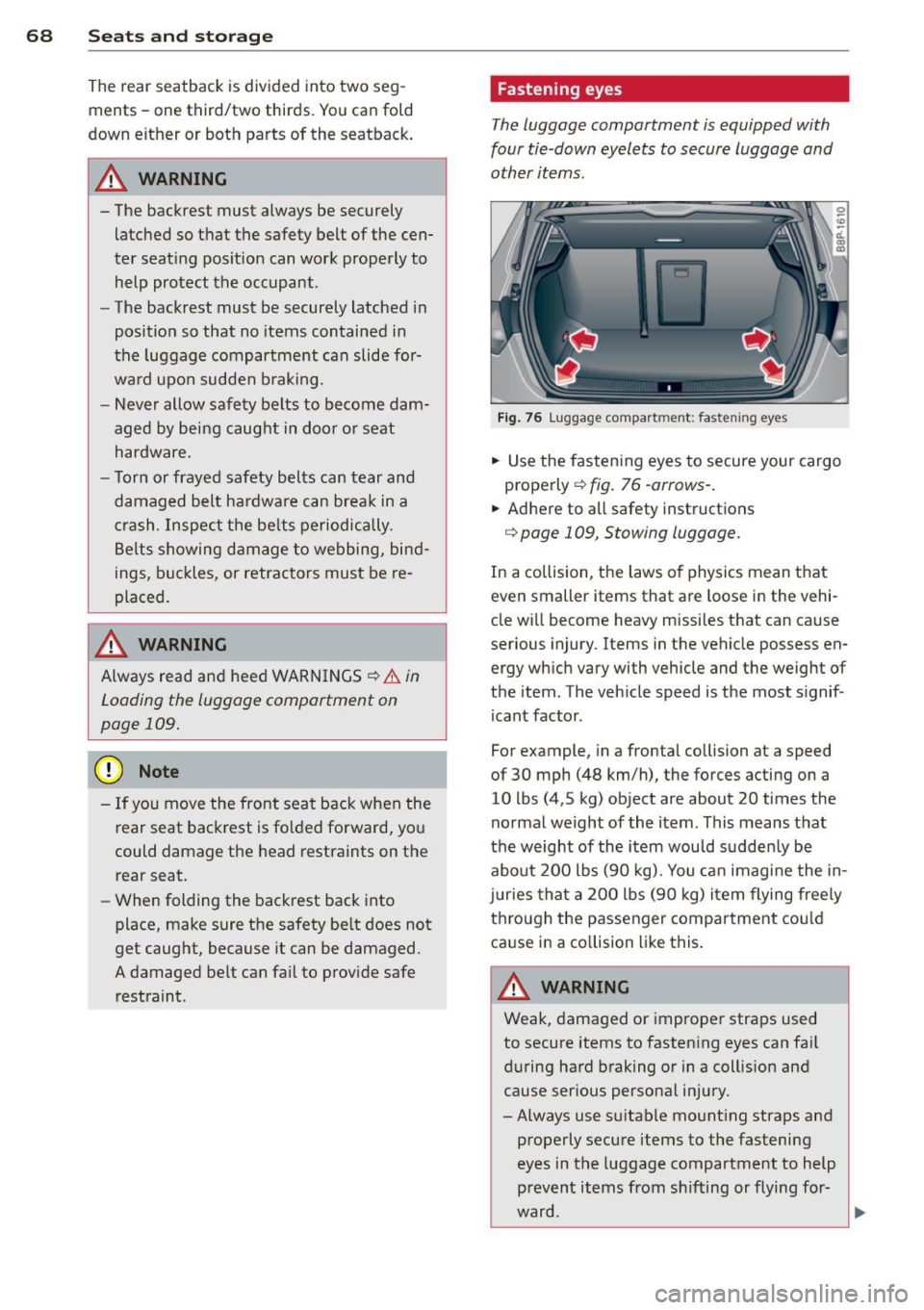

68 Seats and storage
The rear seatback is divided into two seg ­
ments - one third/two thirds. You can fold
down either or both parts of the seatback .
.&_ WARNING
-
- The backrest must always be securely
latched so that the safety belt of the cen­
ter seat ing pos ition can work properly to
help protect the occupant .
- The backrest must be securely latched i n
posit ion so that no items containe .d in
the luggage compartment can slide for­
wa rd upo n sudden b rak ing .
- Never allow safety belts to become dam­
aged by being caught in doo r or seat
hardware.
- Torn or frayed safety belts can tear and
damaged belt ha rdware can brea k in a
c rash . Inspect the be lts periodica lly .
Belts showing damage to we bbing, bind­
ings, b uckles, or retractors must be re ­
placed.
.&_ WARNING
Always read and heed WA RNINGS c:> .&. in
Loading the luggage comportment on
page 109.
(D Note
- If you move the fro nt seat back when the
r ear seat backrest is fo lded fo rward, yo u
could damage the head restraints on the rear seat.
- When folding the backrest back into
place, make sure the safety be lt does not
get caught, because it can be damaged.
A damaged be lt can fa il to prov ide safe
r est raint.
-
Fastening eyes
The luggage comportment is equipped with
four tie-down eyelets to secure luggage and
other items.
F ig. 7 6 Lugg age compart men t: fas tenin g ey es
.,. Use the fastening eyes to secure your cargo
properly
c:> fig. 76 - arrows -.
.,. Ad here to all safety instructions
<=> page 109, Stowing luggage.
In a co llision, t he laws o f physics mean that
even smaller items that a re loose in the vehi­
cle w ill become heavy missiles that can cause
serious injury. Items in the vehicle possess en­
ergy wh ich vary with vehicle and t he weight of
the item. The veh icle speed is the most s ignif ­
icant factor .
For example, in a frontal collision at a speed
of 30 mph (48 km/h), the forces acting on a 10 lbs (4,5 kg) object are about 20 times the
normal weight of the item . This means that
the weight of the item wou ld sudden ly be
about 2 00 lbs (90 kg). You ca n imagine the in­
j u ries tha t a 200 lbs (90 kg) item flying free ly
t hr ough the passenger comp artment cou ld
ca use in a co llision like this .
_& WARNING
Weak, damaged or improper straps used
to secure items to fasten ing eyes can fai l
d uring hard braking or in a coll is ion and
cause ser ious personal injury. -
-A lways use s uitable mount ing straps an d
properly secure items to the fasteni ng
eyes in the luggage compartment to help
prevent items from sh ifting or flying for-
~~-~

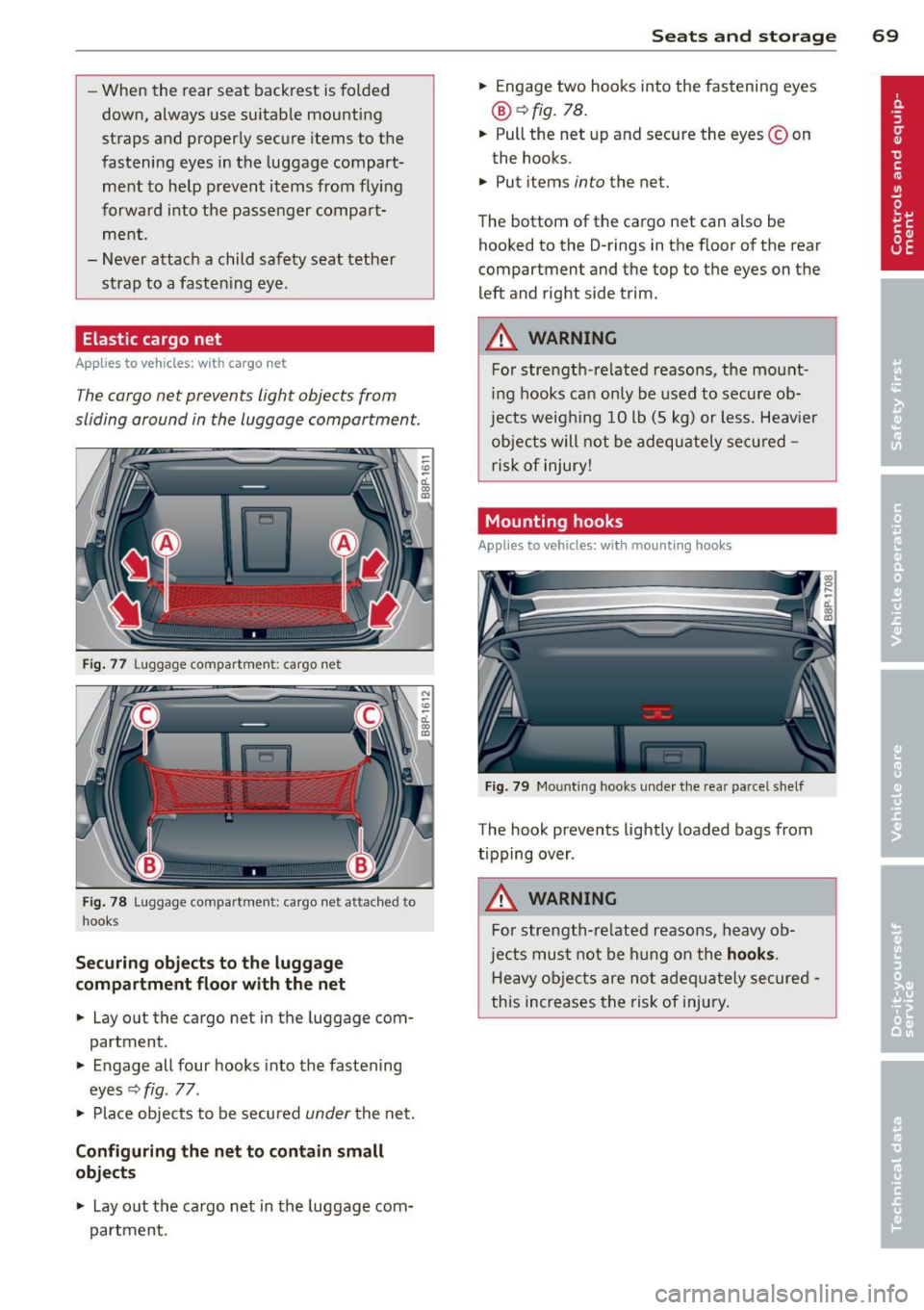

-When the rear seat backrest is folded
down, always use su itable mounting
straps and properly secure items to the
fastening eyes in the luggage compart­
ment to help prevent items from flying
forward into the passenger compart­ ment.
- Never attach a child safety seat tether
strap to a fastening eye.
Elastic cargo net
App lies to vehicles: with cargo net
The cargo net prevents light objects from
sliding around in the luggage compartment.
Fig . 77 Luggage compartmen t: cargo net
Fig. 78 Luggage compartmen t: ca rgo net attached to
hooks
Securing objects to the luggage
compartment floor with the net
.. Lay out the cargo net in the luggage com­
partment .
.. Engage all four hooks into the fastening
eyes
~ fig . 77 .
.. Place objects to be secured
under the net.
Configuring the net to contain small
objects
.. Lay out the cargo net in the luggage com­
partment.
Seats and storage 69
.. Engage two hooks into the fastening eyes
@~fig. 78.
.. Pull the net up and secure the eyes © on
the hooks.
.. Put items
into the net.
The bottom of the cargo net can also be hooked to the D-rings in the floor of the rear
compartment and the top to the eyes on the
left and right side trim .
.&_ WARNING
For stre ngth-re lated reasons, the mount­
in g hooks can only be used to secure ob­
jects weighing 10 lb (5 kg) or less. Heavier
objects will not be adequately secured -
risk of injury!
Mounting hooks
Applies to vehicles: with mounting hooks
Fig. 79 Mounting hooks under the rear pa rce l shelf
The hook prevents lightly loaded bags from
tipping over .
.&_ WARNING
For strength-related reasons, heavy ob­
jects must not be hung on the
hooks.
Heavy objects are not adequately secured -
this increases the risk of injury .
