Power top
-Be careful when installing so you do not
pinch your fingers.
- Pay attention to the traffic when installing
the wind def lector. Install the w ind deflec­
tor from the s ide of the vehicle that is away
from traffic.
(D Note
Do not lean against the veh icle when instal­
ling the wind deflector. Hard objects and dec­
orations on clothing such as belt buckles can
scratch the pa int.
{!) Tips
- The wind deflector works best when a ll of
the w indows are rolled up wh ile driving.
- Only store the wind deflector in the storage
bag* when it is dry.
Power top emergency
operation
General information
The power top con be closed manually if there is
o malfunction.
• Set the parking brake.
• Open all windows.
• Switch the ignition off.
• Pull the button@ for approximately 10 to
15 seconds to reduce th e pressure in the power
top hydraulics ¢
page 36, fig. 25.
Only close the power top m anually in an eme r­
gency . Have a second person assist . Drive to an
author ized Audi dealer or author ized Audi Service
Facility immediately to have the malfunction cor­
rected.
A WARNING
- There is a r isk of pinching the hands or othe r
people during all of the power top emergen­
cy operat ion steps.
- Make sure a ll windows are lowered during
emergency ope ration.
- Do not reach into the power top suppor ts
or other moving components .
40
-Never drive when the power top is not
locked correct ly. The wind from driving
could cause the power top to open. This can
result in injur ies and damage to the vehicle .
{!) Tips
The power top storage compartment cover is
not latched after the emergency operation is
complete. Dr ive to an authorized Audi dealer
or authorized Audi Service Facility immediate­
l y to have the malfu nction corrected.
Step 1: Release the power top storage
compartment cover
Fig. 31 Rear seats fo lded forward : release loop for the
power top storage compartment cover
Fig. 32 Open ing the s ide covers
• Open the luggage compartment lid.
• Fold the rear seat backrests forward.
• Remove the wheel wrench from the vehicle tool
kit.
• Close the luggage compartment lid .
• Pull the release loop down from the rear to re­
lease the power top storage compartment cov­
er
¢ fig. 31.
• Slide the covers on both sides of the veh icle in
the direction of the arrow until they lock in
place
¢fig. 32.

Sea ts and stor age
_& WARNING
- Only adjust the front seat with when the ve ­
hicle is stationary. Otherwise, this increases
the risk of an accident
- The power adjustment for the front seats al­
so works wit h the ignition switched off or
with the ignition key removed. For this rea­
son, children shou ld never be left unattend­
ed in the veh icle - they could be injured!
- Exercise caution when adjusting the seat height. Unsuperv ised or careless seat ad­
justment can p inch f ingers or hands causing
injuries.
- The front seat backrests must not be re­
clined too far back when driving, because
this impairs the effectiveness of the safety belts and airbag system, which increases
the risk of injury.
- To reduce the risk of injury during sudden
bra king or i n a co llision, the driver and front
p as senge r shou ld no t have the ir back rests in
the reclined posit ion while driv ing or riding.
T he safety belts and airbag system can pro ­
vide the greatest protection possible when
the backrests are in the upr ight position and
the safety be lts a re worn correctly. The
more a backrest is reclined, the greater the
risk of injury due to an incorrect seating po­
sit ion and safety belt position.
Easy seat entry
Easy seat entry makes it easier to get into the
back seats.
F ig. 55 Driver's seat: easy seat entry cont rols
54
C0 ID
F ig. 56 Easy seat entry operat io n, seat returning to the
or igi nal position w ith seat memory
Folding the front s eat backres ts forward
.. Pull the handle (D ¢ fig. 55 forward.
.. Fold the backrest forward unti l it locks into
place and then slide the seat a ll the way for­
ward using the backrest @.
Fold ing the front seat back rests back
.. Slide the seat all the way back using the back­
rest @¢
fig. 56 .
.. Fold the backrest back until it locks into
place @.
The seat will return to its original posit ion after
u sing easy seat entry.
A WARNING
:;; N 0
> 00 ID
-The front seat backrests must a lways be
l ocked in lace wh ile driving for safety reasons.
- When using easy seat entry, t he seat must
always slide all the way back when returning
it to its orig inal position. Otherwise, the set
w ill not be ab le to lock in place. Only drive
once the seat is locked into place.
{D Tips
If the seat w ill not lock in place after using
easy seat entry, slide the seat all the way back unt il it stops. Then adjust the seat to the de­
sired posit ion.

<( co ..... N
" N ..... 0 r--. > 00
Folding th e ba ckr est back into the upright
po sition
• Fold th e backrest down un til i t latches securely
Q .&. -
A WARNING
-
-When releasing the rear seat backrest,
make sure there are no people or animals
within its range of motion . The backrest will
fold forwa rd automatically after it is re­
leased .
- The backrest must be securely latched so
objects cannot slide forward out of the lug­
gage compa rtment dur ing sudden bra king.
- Always make sure the back rest is la tched
completely by pulling forward on it.
- Make sure the safety be lt is not ca ught in
t he door h inges o r the seat fitt ings and
damaged.
- Torn or frayed safety belts can break , and
bel t anchors can break d uring a co llision .
C heck the safety bel ts regularly . Safe ty
bel ts wit h noti ce a ble damage to the web­
bing, bindings, buckles or retractors mus t
be rep laced .
(D Note
-If yo u move the front seat ba ck when t he
rear se at backres t is folded forward, you
could damage the head restraints on the rear seat. If necessary, remove the rear seat
head restra int before moving the front seat
back
- Make su re the safety be lt is not pinched in
the backrest lock and damaged when the rear seat backrest if fo lded back. Other ob­
j ects should be
removed from the rear
bench seat to p rotect the rear backrest from
damage .
Seats and storag e
Tie-downs
Applies to: vehicles w ith tie-dow ns
---~~~ --- --
Fig. 66 Lug gag e compa rtm en t: loc ation of th e t ie -d owns
( exa mpl e)
• Sec ure the cargo to the tie-downs -arrows- .
• Observ e the safety precaut ions <=>
page 130,
Stor ing cargo correctly .
A WARNING ~ -
Weak, damaged or fau lty straps used to se­
cure objects to t he tie-downs can fail dur ing
heavy braking or a collision and lead to seri­
ous injur ies.
- Always use suitable straps and secure ob­
jects to the tie-downs in the luggage com­
pa rtme nt to prevent objects from shifting
a nd slid ing forwa rd .
- Never secure a child seat restraint to a tie ­
down .
- Because of the ir load capacity, the hooks
should only be used to secure objects that
weigh a max imum of 10 lb (5 kg) . Heavy ob­
jects will not be secu red s ufficiently , and
this in creases the risk of in jury.
59

Safety belts
_& WARNING
Not wearing safety belts or wearing them im­
properly increases the risk of serious personal
injury and death . Safety belts can work only
when used correctly.
-Always fasten your safety belts correctly be­ fore driving off and make sure all passen­
gers are correctly restrained.
- For maximum protection, safety belts must
always be positioned properly on the body.
- Never strap more than one person, includ­
ing small children, into any belt.
- Never place a safety belt over a child sitting
on your lap.
- Always keep feet in the footwell in front of
the seat while the vehicle is being driven.
- Never let any person ride with their feet on
the instrument panel or sticking out the
window or on the seat.
- Never
remove a safety belt while the vehicle
is moving . Doing so will increase your risk of
being injured or killed .
- Never wear belts twisted.
- Never wear belts
over rigid or breakable ob-
jects in or on your clothing, such as eye
glasses, pens, keys, etc., as these may cause
injury.
- Never allow safety belts to become dam­
aged by being caught in door or seat hard­
ware .
- Do not wear the shoulder part of the belt
under your arm or otherwise out of position.
- Several layers of heavy clothing may inter­
fere with correct positioning of belts and re­
duce the overall effectiveness of the system.
- Always keep belt buckles free of anything
that may prevent the buckle from latching
securely .
- Never use comfort clips or devices that cre­
ate slack in the shoulder belt. However, spe­
cial clips may be required for the proper use
of some child restraint systems.
- Torn or frayed safety belts can tear, and
damaged belt hardware can break in an acci­
dent . Inspect belts regularly.
If webbing,
bindings, buckles, or retractors are dam-
138
aged, have belts replaced by an authorized
Audi dealer or qualified workshop.
- Safety belts that have been worn and loaded
in an accident must be replaced with the
correct replacement safety belt by an au­
thorized Audi dealer. Replacement may be
necessary
even if damage cannot be clearly
seen . Anchorages that were loaded must al­
so be inspected.
- Never
remove, modify , disassemble, or try
to repair the safety belts yourself .
-Always keep the belts clean. Dirty belts may not work properly and can impair the func­
tion of the inertia reel¢
table Internal
cleaning on page 226.
Safety belts
Fastening safety belts
Safety first -everybody buckle up!
Fig. 133 Be lt buckle and tongue on the driver's seat
To provide maximum protection, safety belts
must always be positioned correctly on the wear­
er's body .
.. Adjust the front seat and head restraint proper­
ly¢
page 53, Front seats.
.. Make sure the seatback of the rear seat bench
is in an upright position and securely latched in
place before using the belt
q ,&. .
.. Hold the belt by the tongue and pull it evenly
across the chest and pelvis¢,&..
.. Insert the tongue into the correct buckle of
your seat until you hear it latch securely
¢fig. 133.
.. Pull on the belt to make sure that it is securely
latched in the buckle. .,,._

<( co ..... N
" N ..... 0 r--. > 00
Automatic safety belt r etractors
Every safety be lt is equ ipped wi th an automatic
be lt retractor on the shoulder belt. Th is feature
l ocks the belt when the belt is p ulled out fast,
during hard braking and in an accident. The belt
may also lock when you drive up or down a steep
h ill or through a sharp curve. During normal driv­
ing the belt lets you move freely .
Safety be lt pret en sioner s
The safety belts are equipped with a belt preten­
sioner that helps to tighten the safety belt and
remove slack when the pretensioner is activated
c:> page 141. The function of the pretensioner is
monitored by a warning light
c:> page 17.
Con vertible loc king retractor
Every safety belt exc ept the one on the driver
seat is equipped with a convertible locking retrac­
tor that
mu st be used when the safety belt is
used to attach a child seat. Be sure to read the
important information about this featu re
c:> page 176.
A WARNING
Improperly posit ioned safety be lts ca n cause
ser ious injury in an accident ¢
page 139,
Safety belt position.
-Safety belts offer optimum protection only
when the seatback is upr ight and belts are
prope rly pos itioned on the body.
- Never a ttac h the safety belt to the buckle
for ano ther sea t. Att aching the bel t to the
wrong buck le w ill reduce safety belt effec­
tiveness and can cause serious persona l in ­
jury .
- A passenger who is no t properly restrained
can be se riously in jured by the safety be lt it­
self when it moves from the stronger parts of the body into cr itical areas like the abdo­
men .
- Always lock the convert ible lock ing retractor
when you are secur ing a child seat in the ve­
hicle
c:> page 177.
Safet y bel ts
(D Tips
For information on safety belt pretensioners,
refer to
r=:; page 141 .
Safety belt position
Correct belt position is the key to getting maxi­
mum protection from safety belts.
F ig. 134 Safety be lt pos it ion
Standard features on your vehicle help you adjust
the position of the safety belt to match your body s iz e.
- he ight -adjustable front seats .
A WARNING
'"' -Improperly posi tioned safety belts can cause
se rious pe rsonal injury in an acc ident.
- The s hou lder belt should lie as close to the
center of the collar bone as possib le and
should fit well on the body . Ho ld the belt
above the latch tongue and pull it evenly
a cross the chest so tha t it sits as low as pos­
sible on the pe lvis and there is no p ressure
on the abdomen . The belt should a lways fit
snug ly
r=:; fig. 134. Pu ll on the belt to tighten
if necessary.
- The lap be lt portion of the safety belt must
be positioned as low as possible across pel­
vis and never over the abdomen . Make s ure
the belt lies flat and snug
c:> fig. 134. Pull on
the bel t to tighten if necessary .
- A loose-fitting safety belt can cause serious
in ju ries by s hifting its position on your body
from the stro ng bones to more vulnerable,
soft tissue and cause se rious i nju ry .
~
139

<( co .... N ,.__
N .... 0 ,.__
> co
switched on and turns the airbag indicator light
on when a malfunction in the one of the system
components is detected
c::> page 155. Because
the front passenger seat contains important
parts of the Advanced Airbag System, you must
take care to prevent it from being damaged .
Damage to the seat may prevent the Advanced
Airbag System for the front passenger seat from
doing its job in a crash.
The front Advanced Airbag System consists
of the following:
-Crash sensors in the front of the vehicle that
measure vehicle acceleration/ deceleration to
provide information to the Advanced Airbag
System about the severity of the crash.
- An electronic control unit, with integrated
crash sensors for front and side impacts. The
control unit "decides" whether to fire the front
airbags based on the information received from
the crash sensors. The control unit also "de­
cides" whether the safety belt pretensioners
should be activated .
- An Advanced Airbag with gas generator for the
driver inside the steering wheel hub.
- An Advanced Airbag with gas generator inside
the instrument panel for the front passenger.
- A capacitive passenger detection system under­
neath the front passenger seat cover. This sys­
tem measures the electrical capacitance of the person in the seat. The information registered
is sent continuously to the electronic control
unit to regulate deployment of the front Ad­
vanced Airbag on the passenger side .
- An airbag monitoring system and indicator
light in the instrument cluster
c::> page 155 .
-A sensor in each front seat registers the dis­
tance between the respective seat and the
steering wheel or instrument panel. The infor­
mation registered is sent continuously to the
electronic control unit to regulate deployment
of the front Adv a need Airbags.
- The
PASSENGER AIR BAG OFF light comes on
and stays on in the center of the instrument
panel
c::> page 188 and tells you when the front
Advanced Airbag on the passenger side has been turned off.
Airbag system
-A sensor in the safety belt latch for the driver
and for the front seat passenger that senses
whether that safety belt is latched or not and
transmits this information to the electronic control unit.
A WARNING ,.__
Damage to the front passenger seat can pre­
vent the front airbag from working properly .
- Improper repair or disassembly of the front
passenger and driver seat will prevent the
Advanced Airbag System from functioning properly.
- Repairs to the front passenger seat must be
performed by qualified and properly trained
workshop personnel.
- Never remove the front passenger or driver
seat from the vehicle .
- Never remove the upholstery from the front
passenger seat.
- Never disassemble or remove parts from the
seat or disconnect wires from it.
- Never carry sharp objects in your pockets or
put them on the seat. The capacitive pas­
senger detection mat in the front passenger
seat will not function properly if it is punc­
tured.
- Never carry things on your lap or carry ob­
jects on the front passenger seat. Such ob­
jects can influence the capacitance regis­
tered by the capacitive passenger detection
system, so that incorrect information is pro­
vided to the airbag control unit.
- Never store items under the front passenger
seat. Parts of the Advanced Airbag System
under the passenger seat could be dam­
aged, preventing them and the airbag sys­
tem from working properly.
- Never place seat covers or replacement up­
holstery that have not been specifically ap­
proved by Audi on the front seats.
- Seat covers can prevent the Advanced Air­
bag System from recognizing child re­
straints or occupants on the front passenger
seat and prevent the side airbag in the seat
backrest from deploying properly .
151

Airbag system
electrical capacitance of the person occupying
the front passenger seat . Always make sure that
the safety belt for the front passenger seat is
properly fastened.
The PASSENGER AIR BAG OFF light will show
the status of the front seat passenger's frontal
Advanced Airbag a few seconds after the igni­
tion is switched on and the airbag indicator
light goes off . The PASSENGER AIR BAG OFF
light:
- will stay on if the front passenger seat is not
occupied;
- will stay on if the electrical capacitance meas­
ured by the capacitive passenger detection sys­
tem for the front passenger seat equals the combined capaci tance of an infant up to about
one year of age and one of the rearward-facing
or forward-facing child restra ints listed in Fed­
era l Motor Vehicle Safety Standard 208 with
wh ich the Advanced Airbag System in your vehi­
cle was certified; For a lis ting of the child re­
strain ts that were used to certify you r vehi cle's
compliance with the U.S. Safety Standard
¢page 167.
-will go out if the front passenger seat is occu­
pied by an adult as registered by the capacitive
passenger detection system.
- The
PASSENGER AIR BAG OFF light must come
on and stay on if the ignition is on and ...
- a car bed has been installed on the front pas­
senger seat, or
- a rearward -facing child restraint has been in­
stalled on the front passenger seat, or
- a forward-facing child restraint has been instal­
led on the front passenger seat,
- and if the electrica l capacitance registered on
the front passenger seat is eq ua l to or less than
the combined capacitance of a typical 1 year­
o ld infant and one of the rearward -facing or
forward-facing child restraints listed in Federal
Motor Vehicle Safety Standard 208 w ith which
the Advanced Airbag System in your vehicle was
certified .
If the front passenger seat is not occupied, the
front airbag will not deploy, and the
PASSENGER
AIR BAG OFF
light will stay on. Never install a
rearward -fac ing c hild restraint on the front pas-
156
senger seat, the safest place fo r a child in any
kind of child restraint is at one of the seating po­
s itions on the rear seat
¢ page 144, Child re­
straints on the front seat -some important
things to know
and ¢ page 165, Child safe ty .
If the PASSENGER AIR BAG light comes
on ...
If the PASSENGER AIR BAG OFF light comes on
when one of the conditions listed above is met,
be sure to check the light regularly to make cer­
ta in that the
PASSENGER AIR BAG OFF light
stays on continuously whenever the ignition is
o n. If the
PASSENGER AIR BAG OFF light does
not appear on and does not stay on all the time,
stop as soon as it is safe to do so and
- react ivate the system by turning the ignition
off for more than 4 seconds and then turning it
on again;
- remove and re insta ll the child restrain t. Make
sure that the child restraint is properly instal­
led and that the safety belt for the front pas­
senger seat has been correct ly routed through
the child restraint as described in the child re­
straint manufacturer's instructions;
- make sure that the convertible locking retrac­
tor on the safety belt for the front passenger
seat has been activated and that the safety belt
has been pulled t ight.
- make sure that no e lectrica l device (such as a
laptop, CD player, e lectronic games device,
power inverter or seat heater for chi ld seats) is
placed or used on the front passenger seat if
the device is connected to the 12-volt socket or
the cigarette lighter socket;
- make sure that no seat heater has been retro ­
fitted or otherw ise added to the front passen­
ger seat;
- make sure that noth ing can inte rfere with the
safety belt buckles and that they are not ob­
structed;
- make sure that there are no wet objects (such
as a wet towe l) and no water or other liquids on
the front passenger seat cushion . .,..

<( co .... N ,.__
N .... 0 ,.__
> co

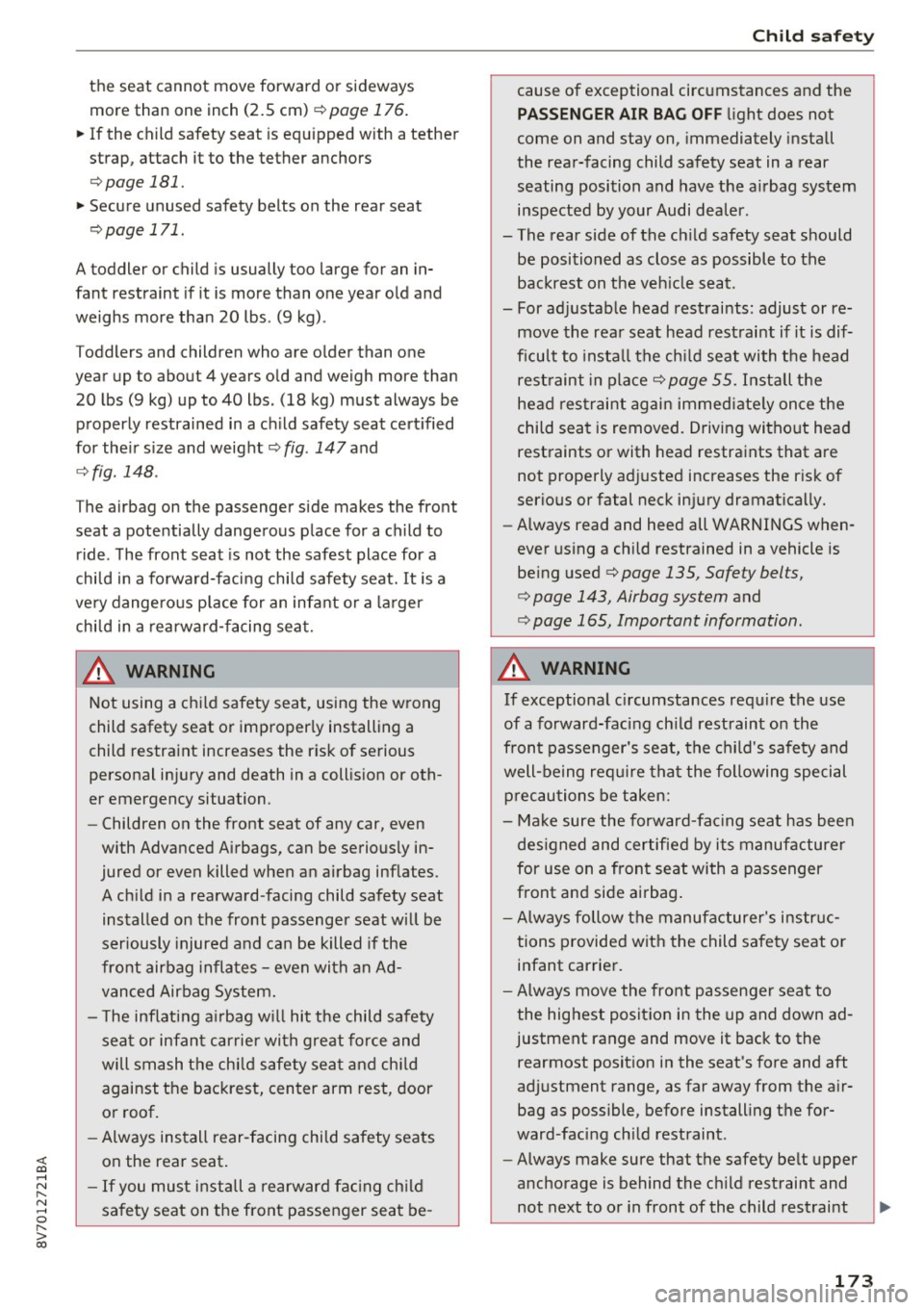

the seat cannot move forward or sideways more than one inch (2.5 cm)
c::!;> page 176.
~ If the child safety seat is equ ipped with a tether
strap, attach it to the tether anchors
<=> page 181.
~ Secure unused safety belts on the rear seat
<=> page 171.
A toddler or child is usually too large for an in­
fant restraint if it is more than one year old and
weighs more than 20 lbs. (9 kg) .
T oddlers and children who are o lder than one
year up to about 4 years old and weigh more than
20 lbs (9 kg) up to 40 lbs. (18 kg) must always be properly restrained in a ch ild safety seat cert ified
for the ir s ize and weight <=>
fig. 147 and
¢ fig. 148 .
The airbag on the passenger side makes the front
seat a potentially dangerous place for a child to
ride . The front seat is not the safest place for a
child in a fo rward-facing child safety seat. It is a
ve ry dangero us p lace for an infant or a larger
chi ld in a rearward-facing seat.
_.6 WARNING
-Not using a ch ild safety seat, using the wrong
child safety seat or improper ly installing a
child restraint increases the risk of serious
personal injury and death in a collis ion or oth­
er emergency situation.
- Children on the front seat of any car, even
with Advanced Airbags, can be seriously in­
jured or even killed when an airbag inf lates.
A ch ild in a rearward-facing child safety seat
installed on the front passenger seat will be
seriously injured and can be killed if the
front airbag inflates - even with an Ad­
vanced Airbag System.
- T he inflating a irbag w ill hit the child safety
seat or infant carrier with great force and
will smash the chi ld safety seat and chi ld
against the backrest, center arm rest, door
or roof.
- Always install rear-facing child safety seats
on the rear seat.
- If you must install a rearward fac ing ch ild
safety seat on the front passenger seat be-
Ch ild safety
cause of exceptional circumstances and the
PASS ENGER AIR BA G OFF light does not
come on and stay on, immediately install
the rear-facing child safety seat in a rear
seating position and have the a irbag system
inspected by your Audi dealer.
- The rear side of the ch ild safety seat should
be positioned as close as possible to the
backrest on the veh icle seat.
- For adjustable head restraints: adjust or re­
move the rear seat head rest raint if it is dif­
ficult to insta ll the ch ild seat with the head
restraint in place¢
page 55. Install the
head res traint again immed iate ly once the
child seat is removed. Driving witho ut head
restraints or with head restraints that are
not properly ad justed increases the r isk of
serious or fatal neck injury dramatically.
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
be ing used ¢
page 135, Safety belts,
<=> page 143, Airbag system
and
<=> page 165, Important information.
A WARNING
-
If exceptional c ircumstances requ ire the use
of a forward-facing ch ild restraint on the
front passenger's seat, the child 's safety and
well-being req uire that the following special
precautions be taken:
- Make sure the forward-fac ing seat has been
des igned and certified by its manufacturer
for use on a front seat with a passenger
front and side ai rbag .
- Always follow the manufacturer's instr uc­
tions provided with the child safety seat o r
infant carrier.
- Always move the front passenger seat to
the highest position in the up and down ad­
justment range and move it back to the rearmost posit ion in the seat's fore and aft
adjustment range, as far away from the a ir­
bag as possible, before install ing the for­
ward-facing ch ild restraint .
- Always make sure that the safety be lt upper
anchorage is behind the ch ild restraint and
not next to o r in front of the child restraint
~
173

<( co .... N ,.__
N .... 0 ,.__
> co
It is usually best to put these children in appro­priate booster seats. Be sure the booster seat
meets all applicable safety standards.
Booster seats ra ise the seat ing pos it ion of the
child and reposition both the lap and shoulder
parts of the safety be lt so that they pass across
the child's body in the right places . The rout ing of
the belt over the child's body is very important
for the child's protection, whether or not a boos­
ter seat is used. Children age 12 and under must
always ride in the rear seat.
Children who are at least 4 ft. 9 in. (57 inches/ 1.45 meters) tall can generally use the vehicle's
three point lap and shoulder belts. Never use the lap belt portion of the vehicle 's safety belt alone
to restrain any child, regardless of how b ig the
child is. A lways remembe r that children do not
have the pronounced pelv ic struc ture requ ired for
the proper function of lap belt portion of the ve­
hicle's three point lap and shoulder be lts. The
chi ld's safety absolutely requires that a lap belt
port ion of the safety be lt be fastened snugly and
as low as possible around the pelvis. Never let
the lap belt portion of the safety belt pass over
the child's stomach or abdomen.
In a crash, airbags must inflate within a blink of
an eye and with considerable force. In order to do its job, the airbag needs room to inflate so that it
will be there to protect the occupant as the occu­
pant moves forward into the a irbag .
A vehicle occupant who is out of position and too
close to the airbag gets in the way of an inflating
airbag. When an occupant is too close, he or she
will be struck v iolently and will receive ser ious or
possibly even fatal injury.
In order for the airbag to offer protection, it is important that all vehicle occupants, especially
any children, who must be in the front seat be­
cause of exceptional circumstances, be properly
rest rained and as far away from the airbag as
possib le. By keep ing room be tween the child's
body and the front of the passenger compa rt­
ment, the airbag can inflate comp letely and pro­
vide supplemental protection in certain fronta l
coll isions.
Ch ild safety
_& WARNING
Not using a booster seat, using the booster
seat improperly, incorrectly installing a boos­
ter seat or us ing the vehicle safety belt im­
p roperly increases the r isk of serious personal
i njury and death in a collision or other emer­
gency situation. To help reduce the risk of se­ rious personal injury and/or death:
- The sho ulde r belt m ust lie as close to the
center of the ch ild's co llar bone as possible
and must lie flat and snug on the upper
body . It must never lie across the throat or
neck. The lap belt must lie across the pelvis
and never across the stomach or abdomen. Make sure that the belt lies f lat and snug.
Pull on the belt to tighten if necessary.
- Fa ilure to properly route safety belts over a
child's body w ill cause severe injuries in an
accident or other emergency situation
c:::>page 135.
- The rear side of the ch ild safety seat should
be positioned as close as possible to the
backrest on the veh icle seat.
- For adjustable head restraints: adjust or re­ move the rea r seat head rest raint if it is dif­
f icult to insta ll the ch ild seat with the head
rest raint in place
c:::> page 55. Install the
head restraint again immed iate ly once the
child seat is removed. Driving witho ut head
restraints or with head restraints that a re
not properly adjusted increases the risk of
serio us or fatal neck injury dramatica lly.
- Never let a chi ld put the shoulder belt under
the arm or behind the back, because it could
cause severe injuries in a crash.
- Chi ldren on the front seat of a ny car, even
with Advanced Airbags, can be seriously in­
jured or even k illed when an airbag inflates.
- Never let a chi ld stand or kneel on any seat,
for examp le the front seat.
- Never let a chi ld ride in the cargo area of
your veh icle.
- Always remember that a chi ld leaning fo r­
ward, sitting sideways or out of position in
any way during an accident can be struck by
a dep loying airbag. Th is w ill result in serious
-
personal injury or death . ~
175

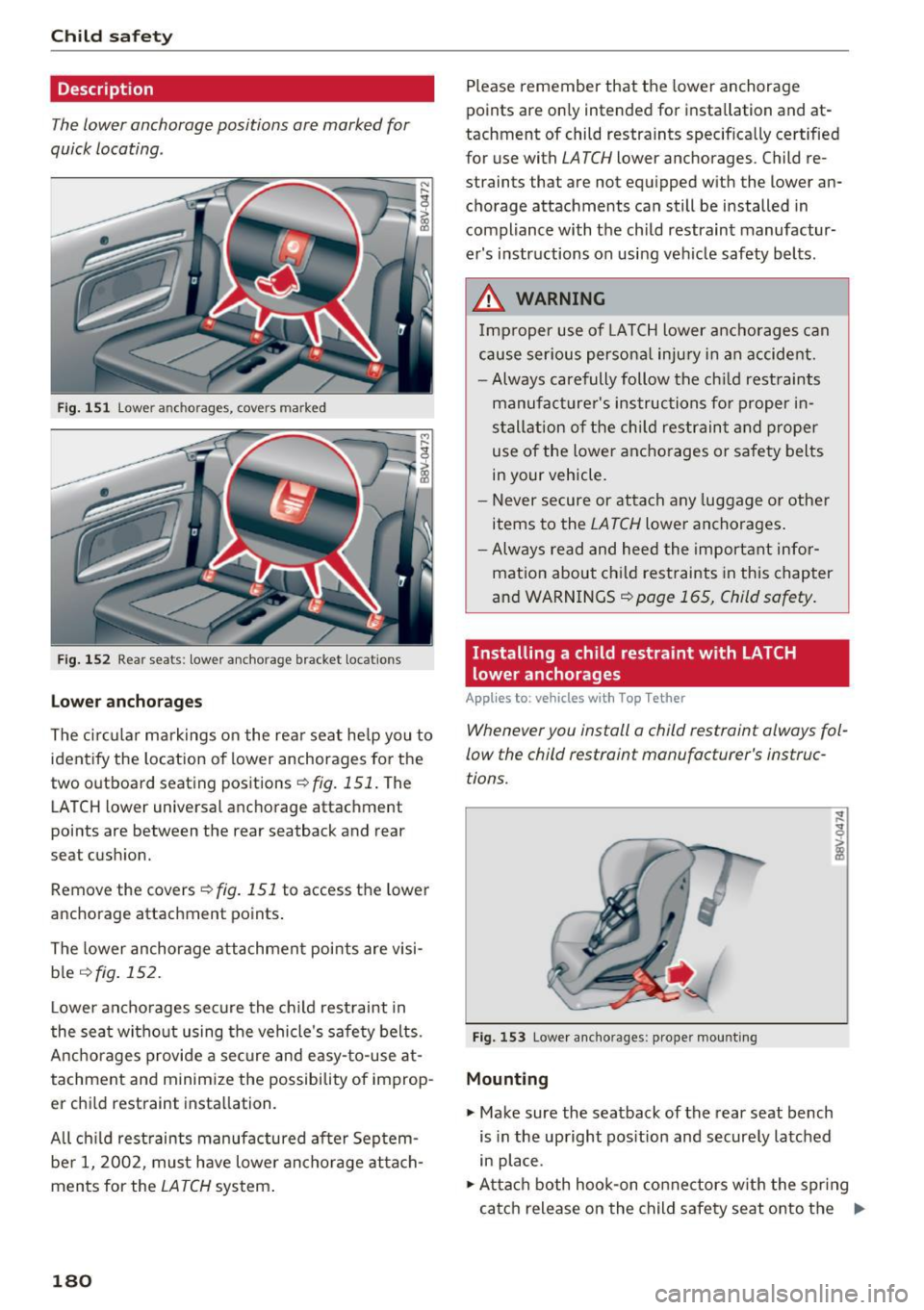

Child safety
Description
The lower anchorage positions are marked for
quick locating .
Fig. 151 Lower an ch orages, cove rs marked
Fig. 152 Rear seats: lower anchorage bracke t locations
Lowe r anchor ag es
The circular mark ings on the rea r seat he lp you to
ident ify the location of lower anchorages for the
two outboard seating positions
r=> fig. 151. The
LATCH lower universal anchorage attachment
points are between the rear seatback and rear
seat cushion.
Remove the covers
r=> fig. 151 to access the lower
anchorage attachment points.
The lower anchorage attachment poi nts are visi­
b le
r=> fig. 152.
Lower ancho rages secure the ch ild rest raint in
the sea t witho ut using the vehicle 's safety belts.
Anchorages provide a secure and easy-to-use at­
tachment and minimize the possibility of improp­
er child restraint installation .
All ch ild rest raints manufactured after Septem ­
ber 1, 2002, must have lowe r anchorage at tach­
ments for the
LATCH sys tem .
180
Please remember that the lower anchorage
points are on ly intended for installation and at­
tachment of child restraints specif ically certified
for use with
LATCH lower anchorages . Child re ­
straints that are not equipped with the lower an­
chorage attachments can still be installed in
compliance with t he ch ild restraint manufactur­
er's instructions on using vehicle safety belts .
.&_ WARNING
Imp roper use of LATCH lower anchorages can
cause serious personal inju ry in an accident.
- Always carefully follow the ch ild restraints
manufact urer's instructions for proper in­
stallat ion of the chi ld restraint and proper
use of the lower anchorages or sa fety belts
in your vehicle.
- Never secure or attach any luggage o r othe r
items to the
LATCH lower anchorages .
- Always read and heed the important infor­
mation about child restraints in this chapter
and WARN INGS
~page 165, Child safety.
Installing a child restraint with LATCH
lower anchorages
Applies to : vehicles with Top Tether
Whenever you install a child restraint always fol­
low the child restraint manufacturer's instruc­
tions.
Fig. 153 Lowe r anchorages: p rope r mount ing
Mounting
.., Make sure the seatback of the rear seat bench
is in the upright pos ition and secure ly latched
in place .
.., Attach both hook-on connectors w ith the spr ing
catch release on the child safety seat o nto the .,.
