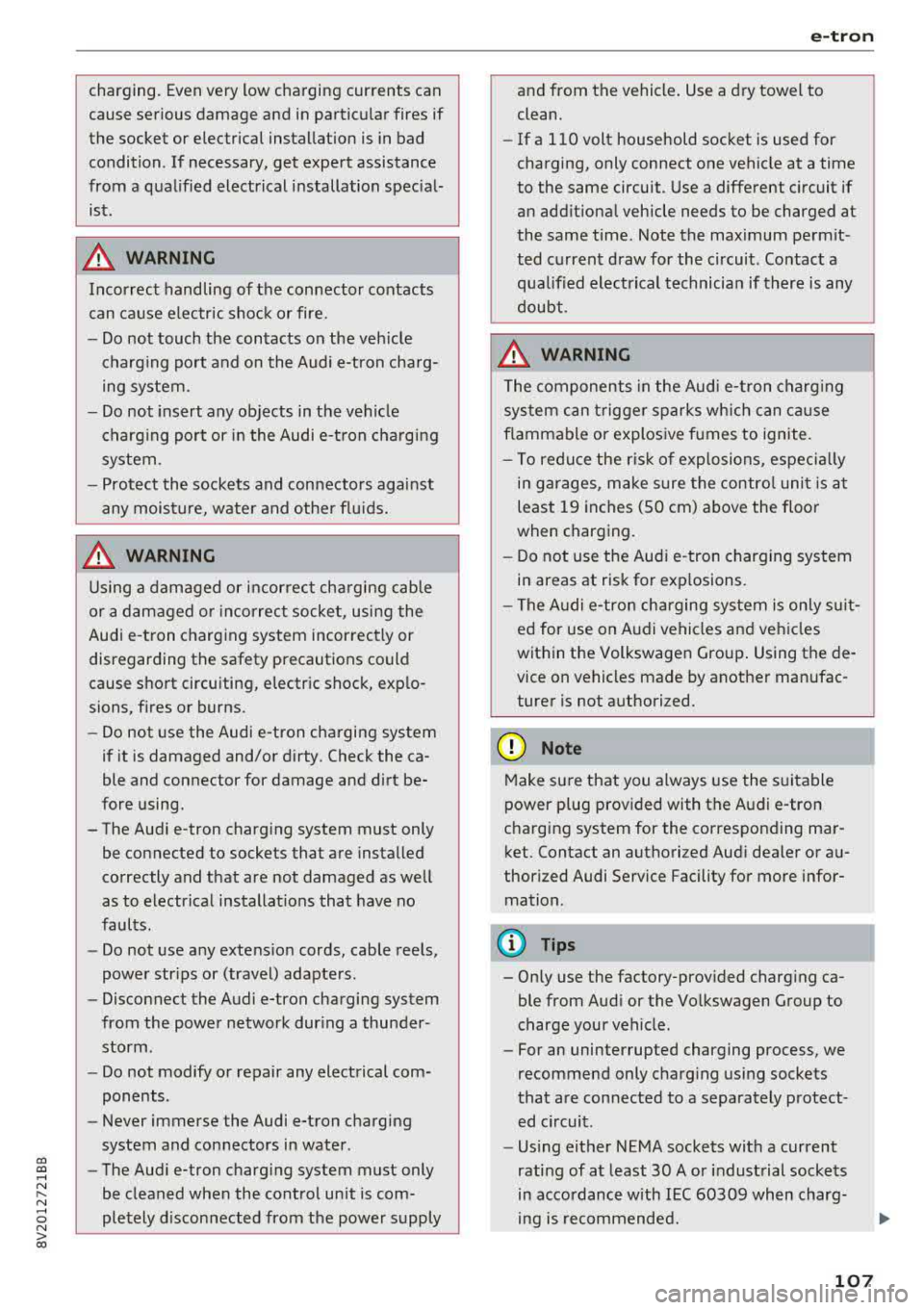

Page 109 of 400

CXl CXl .... N ,.__
N .... 0 N > 00
charging. Even very low charging currents can
cause serious damage and in partic ular fires if
the socket or e lectrical installation is in bad
condition . If necessary, get expert assistance
from a qual ified electrical installation spec ial
ist .
A WARNING
Incorrect handling of the connector contacts
can cause e lectric shock or fire.
- Do not touch the contacts on the veh icle
charg ing port and on the Audi e-tron cha rg
ing system .
- Do not insert any objects in the vehicle
charg ing port or i n the Audi e-t ron charging
system.
- Protect the sockets and connectors against
any moisture, water and other flu ids.
A WARNING
Using a damaged or incorrect cha rging cable
or a damaged or incorrect socket, using the
Audi e -tron charging system incorrectly or
disregarding the safety precautions could
cause short circuiting, electric shock, explo
sions, fires or burns.
- Do not use the Audi e-tron charging system
if it is damaged and/or dirty . Check the ca
ble and connector for damage and dirt be
fore using.
- The Audi e-tron charging system must only be connected to sockets that are installed
correctly and that are not damaged as well
as to electr ical installat ions that have no
faults.
- Do not use any extens ion cords, cable reels,
power str ips or (travel) adapters .
- Disconnect the Audi e-tron charging system
from the power network dur ing a thunder
storm .
- Do not modify or repair any electrical com
ponents .
- Never immerse the Audi e-tron charging
system and connectors in water .
- The Audi e-tron charg ing system must only
be cleaned when the control unit is com
pletely d isconnected from the power supply
e-tron
and from the vehicle . Use a dry towel to
clean.
- If a 110 volt household socket is used for
charging, only connect one vehicle at a time
to the same circuit . Use a different c ircuit if
an add it ional vehicle needs to be charged at
the same time. Note the maximum perm it
ted c urrent draw for the c ircuit . Contact a
qualified electrical technicia n if there is any
doubt .
A WARNING
The components in the Audi e-tron charg ing
system can trigger sparks which can ca use
f lammable or explosive fumes to ignite.
- To reduce the r isk of exp losions, espec ia lly
in garages, make sure the contro l uni t is a t
least 19 inches (50 cm) above the floor
when charging.
- Do not use the Audi e-tron charging system
in areas at risk for exp losions .
- The A udi e -tron charging system is only suit
ed for use on A udi vehicles and veh icles
within the Volkswagen Group . Using the de ·
vice on vehicles made by another manufac
turer is not authori zed.
(D Note
Make su re that you a lways use the suitable
power plug provided with the Audi e-tron
charging system for the corresponding mar ket . Contact an authori zed Aud i dealer or au
thorized Audi Service Facility for more infor mation .
(D Tips
- Only use the factory-prov ided charg ing ca
ble from Aud i or the Vo lkswagen Group to
charge your vehicle.
- For an uninterrupted charging process, we
recommend only charg ing using sockets
that are connected to a separately protect
ed circuit .
- Us ing either NEMA sockets with a current
rating of at least 30 A or industrial sockets
in accordance w ith IEC 60309 when charg
ing is recommended.
107

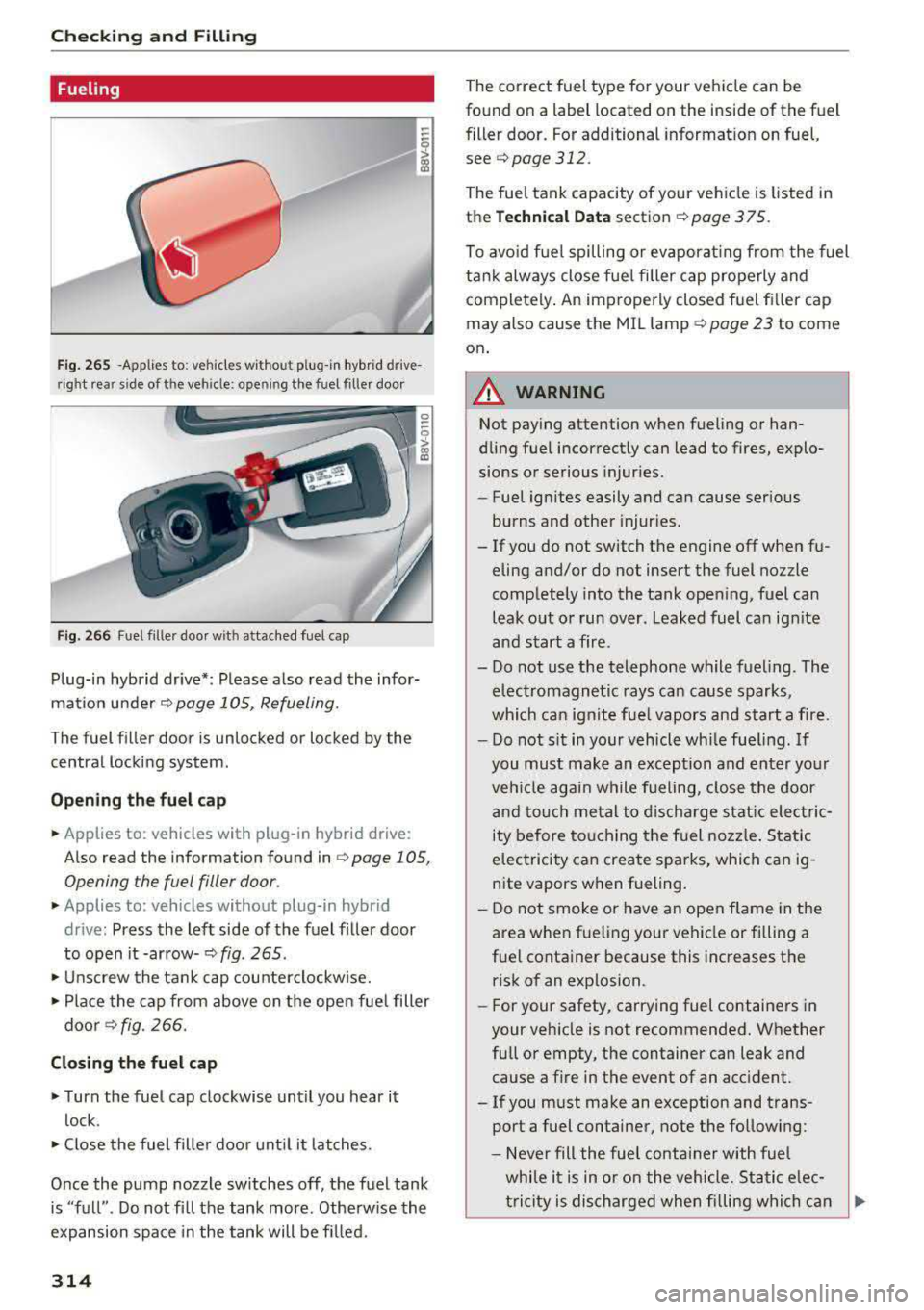

Page 316 of 400

Checking and Filling
Fueling
Fig . 265 -Applies to: veh icles wi tho ut p lug -in hybrid dr ive
ri ght rea r side of t he veh icle: ope nin g the fuel filter door
Fig. 266 Fue l fi ll er doo r w it h attached fuel cap
Plug-in hybrid drive* : Please a lso read the infor
matio n under
¢page 105, Refueling.
The fuel filler door is unlocked or locked by the
central locking system.
Op en ing th e fuel cap
"' Applies to : vehicles with p lug-in hybri d drive :
Also read the information found
in c> page 105,
Opening the fuel filler door .
"'Applies to : vehicles wi tho ut plug-in hybrid
dr ive: Press the left side of the fuel filler door
to open it-arrow-
¢ fig . 265.
"' Unscrew the tank cap counterclockw ise.
"' Place the cap from above on the open fue l filler
door ¢ fig. 266.
Closing th e fu el cap
"' Turn the fuel cap clockwise until you hear it
lock.
"' Close the fuel fille r door unt il it l atches.
Once the pump nozzle sw itches off, the fuel tank
is
" full" . Do not fi ll the tank more . Otherw ise the
expansion space in the tank will be f illed.
314
The correct fuel type for your vehicle can be
found on a label located on the inside of the fuel
filler door. For additional informat ion on fuel,
see
¢ page 312.
The fuel tank capacity of your ve hicle is listed in
the
T echn ical Dat a section ¢ page 375.
To avoid fuel spilling or evaporat ing from the fuel
tank always close fue l fi ller cap properly and
completely . An improperly closed fuel fi ller cap
may also cause the MIL
l amp ¢ page 23 to come
on .
_& WARNING
Not pay ing attention when fueling or han
dling fuel incorrectly can lead to fires, explo
sions or serious injur ies.
-Fue l ignites easily and can cause serious
burns and other injur ies.
-
-If you do not switch the engine off when fu
eling and/or do not insert the fuel nozzle
completely into the tank open ing, fuel can
leak out or run over . Leaked fuel ca n ign ite
and start a fire.
-Do not use the telephone while f ueling. The
elec tromagnetic rays ca n cause sparks,
which can ignite fue l vapors and start a fire.
- Do not sit in your vehicle wh ile fue ling. If
you must make an exception and ente r your
veh icle agai n while fueling, close the door
an d touch me tal to d ischarge stat ic elect ric
ity before to uching the f uel nozz le . Static
electricity can create spa rks, which can ig
nite vapors when fueling.
-Do not smoke or have an open flame in the
area when fueling your vehicle or fi lling a
fue l container because this increases the
risk of an explosion.
-For your safety, carrying fuel containers in
your vehicle is not recommended. W hether
fu ll or empty, the container can leak and
cause a fire in the event of an acc ident.
- If you must make an exception and trans- port a fuel container, note the fo llow ing:
- Never fill the fuel container with fuel
while i t is in o r on the vehicle. Static e lec
tricity is discharged whe n filling w hich can
.,._
