- When the vacuum hose is re-connected the fuel
pressure should drop by around 0.5 bar.

If the pressure does not change as specified,
carry out the following tests:


Check vacuum hose for cracks and other
damage.

Test vacuum hose for blockages at intake
manifold. To do this, disconnect hose at fuel
pressure regulator and blow into it.

- If there are no leaks and no blockages in the
vacuum hose, install new fuel pressure
regulator.

- Replace hose clamp that secures vacuum hose
to the fuel pressure regulator and make sure
that new clamp is properly installed.

Checking residual fuel pressure

- Residual pressure 10 minutes after switching off
engine (minimum pressure)

With engine cold: at least 2.2 bar
Pa
ge 41 of 90 Motronic Multi
port Fuel In
jection
(MFI
) system, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.1

With engine at operating temperature: approx:
3.0 bar
Pa
ge 42 of 90 Motronic Multi
port Fuel In
jection
(MFI
) system, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.1

24-37

Note:
A rise in pressure (due to fuel expansion) when
the engine is at operating temperature is normal.

- Start the engine and run at idling speed.

- Switch ignition off after the pressure has built-
up. At the same time close pressure gauge cut-
off tap (lever at 90 to through flow direction). If the pressure does not drop, the following faults
are possible:

Union between pressure gauge and fuel supply
pipe leaking
Supply pipe leaking at fuel tank
Return valve in fuel pump leaking

Repair Manual, Fuel Supply System, Repair
Group 20


Note:
When the cut-off tap is closed the pressure
gauge will indicate the pressure downstream of
Pa
ge 43 of 90 Motronic Multi
port Fuel In
jection
(MFI
) system, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.1

the cut-off tap, i.e. on the same side as the intake
manifold, injectors and fuel pressure regulator. If
there is then a drop in pressure upstream of the
cut-off tap (same side as fuel tank), the change
will not be registered by the pressure gauge. This
is why the paragraph beginning "If the pressure
does not drop..." has been included above.
Pa
ge 44 of 90 Motronic Multi
port Fuel In
jection
(MFI
) system, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.1

24-38
If the pressure drops again, the following
malfunctions are possible:

Fuel pressure regulator faulty
Fuel Injectors leaking
Unions on pressure gauge downstream of cut-
off valve leaking

Note:
When disconnecting the pressure gauge, close
the cut-off valve, unscrew the union on adapter
VAG 1318/15, then open the cut-off valve to
drain off excess fuel into a suitable container.
Pa
ge 45 of 90 Motronic Multi
port Fuel In
jection
(MFI
) system, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.1

24-39

Fuel injectors, checking


A - Electrical testing of fuel injectors

- Disconnect harness connector from injector to
be tested.

Note:
When the engine is at operating temperature the electrical resistance of
the injectors will be about 4 - 6 . higher.
If the specification is not obtained: - Connect hand-held multimeter to fuel injector (resistance measurement
range).

Specified value: 13.5 - 15.5 - Replace fuel injector Page 24
-53
. Also observe notes on Page
24
-51
.
Pa
ge 46 of 90 Motronic Multi
port Fuel In
jection
(MFI
) system, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.1

24-40

Checking voltage supply

Test conditions

Fuse for injectors OK

Electrical Wiring Diagrams, Troubleshooting &
Component Locations

- Disconnect harness connector from fuel injector
to be tested.

- Connect diode test lamp (for measuring voltage) between Ground
(GND) and socket 1 of connector.
Pa
ge 47 of 90 Motronic Multi
port Fuel In
jection
(MFI
) system, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.1

24-41

- Switch ignition on. The diode test lamp should
light up.

- If diode test lamp does not light up, test for open
circuits in wiring between contact 1 and fuse for
injectors. If necessary, rectify open circuit.

Electrical Wiring Diagrams, Troubleshooting &
Component Locations
- If diode test lamp lights up, test activation of
injectors.

C - Testing activation of injectors

- Remove plug connector from the injector which
is to be tested.

Specified value: the diode test lamp should start flashing.
Note:
Diode test lamps with a low current draw continue to glow faintly between - Connect diode test lamp VAG 1527 between the battery positive
terminal (+) and contact 2 on the connector.
- Operate starter for a few seconds (the engine can be allowed to start).
Pa
ge 48 of 90 Motronic Multi
port Fuel In
jection
(MFI
) system, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.1

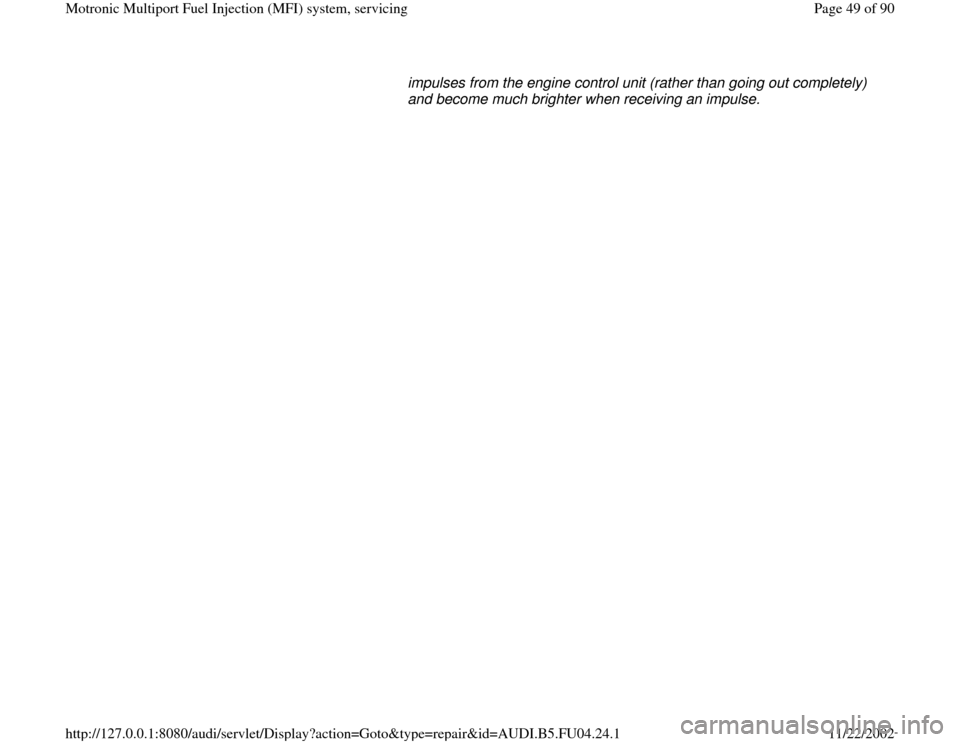

impulses from the engine control unit (rather than going out completely)
and become much brighter when receiving an impulse.
Pa
ge 49 of 90 Motronic Multi
port Fuel In
jection
(MFI
) system, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.1

24-42
If the diode test lamp does not flash:

- Connect test box VAG 1598/31 to wiring
harness for engine control unit. Do not connect
to the engine control unit itself. Page 24
-20
.

- Test for open circuit or short to B+ in wiring between engine control
module and contact 2 on harness connector for fuel injector being
tested.
Contact 2 on
connector for injector,
Cylinder No. Test box VAG 1598/31, socket
1 96
2 112
3 88
4 97
5 113
6 89
- Rectify short circuit or open circuit if necessary.
- If wiring is OK, install a new engine control module Page 24
-24
.
Pa
ge 50 of 90 Motronic Multi
port Fuel In
jection
(MFI
) system, servicin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.24.1
