24-49
Fuel Pump (FP) relay -J17- and activation,
checking
Special Tools and Equipment
VAG1526A
VAG1594A
VAG1598/31
VAS5051 with VAG5051/1
- or
VAG1551 with VAG1551/3B
Pa
ge 59 of 78 Motronic in
jection s
ystem, servicin
g
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU05.24.1
Page 60 of 78

24-50
Voltage is supplied to the Fuel Pump (FP) and
several components of the injection system via
the Fuel Pump (FP) relay -J17-.
Engine must be turning for Fuel Pump (FP) relay
-J17- to close. This means that the relay does
not receive Ground (GND) (via ECM) until the
ECM recognizes RPM signals.
Note:
Fuel Pump (FP) relay is located at position 4 of central electrics in driver's
footwell, left.
Test requirement:
Battery voltage at least 12.7 V
Pa
ge 60 of 78 Motronic in
jection s
ystem, servicin
g
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU05.24.1
Page 61 of 78

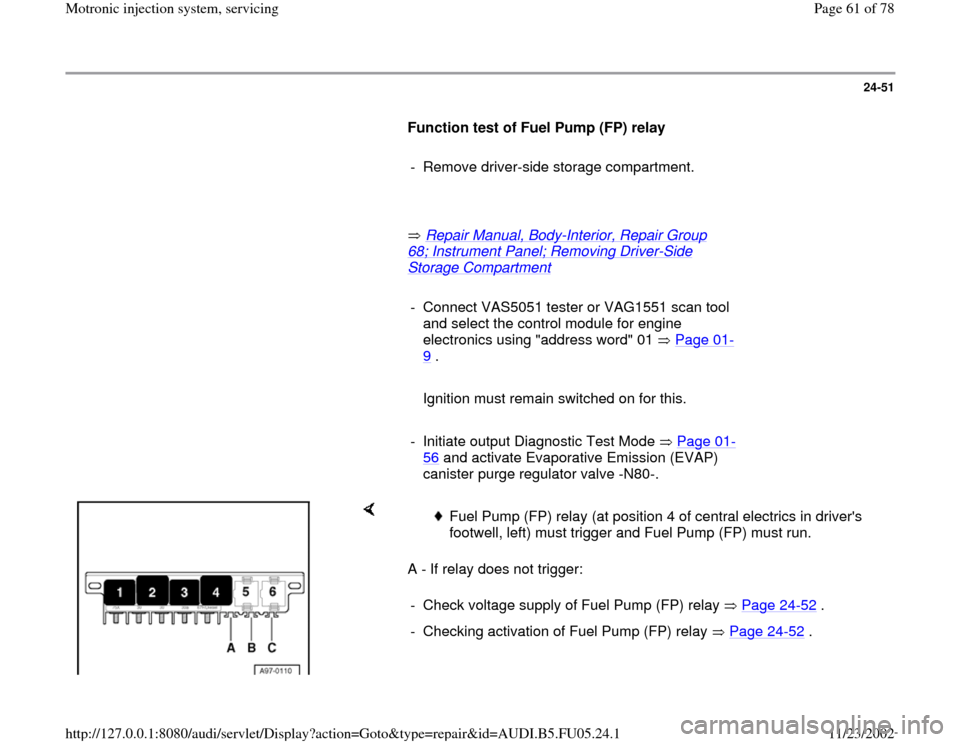

24-51
Function test of Fuel Pump (FP) relay
- Remove driver-side storage compartment.
Repair Manual, Body
-Interior, Repair Group
68; Instrument Panel; Removing Driver
-Side
Storage Compartment
- Connect VAS5051 tester or VAG1551 scan tool
and select the control module for engine
electronics using "address word" 01 Page 01
-
9 .
Ignition must remain switched on for this.
- Initiate output Diagnostic Test Mode Page 01
-
56
and activate Evaporative Emission (EVAP)
canister purge regulator valve -N80-.
A - If relay does not trigger:
Fuel Pump (FP) relay (at position 4 of central electrics in driver's
footwell, left) must trigger and Fuel Pump (FP) must run.
- Check voltage supply of Fuel Pump (FP) relay Page 24
-52
.
- Checking activation of Fuel Pump (FP) relay Page 24
-52
.Pa
ge 61 of 78 Motronic in
jection s
ystem, servicin
g
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU05.24.1
Page 62 of 78

24-52
B - If relay triggers, but Fuel Pump (FP) does not
run:
- Check voltage supply for Fuel Pump (FP) and
components (via Fuel Pump -FP- relay) Page
24
-54
.
Check voltage supply of Fuel Pump (FP)
relay
- Remove Fuel Pump (FP) relay.
If specified value is not obtained:
Checking activation of Fuel Pump (FP) relay - Connect multimeter to terminal 17 of relay socket and Ground (GND)
for voltage measurement.
Specification: approx. battery voltage
- Replace central electrics.
- Switch ignition off.
- Connect VAG1598/31 test box at wiring harness to ECM, do not
connect ECM Page 24
-17
.
- Bridge terminals 1 and 65 at test box using wires from VAG1594A
adapter test kit.
Pa
ge 62 of 78 Motronic in
jection s
ystem, servicin
g
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU05.24.1
Page 63 of 78

24-53
If relay triggers now, but didn't during output DTM:
If relay does not trigger:
Fuel Pump (FP) relay (at position 4 of central electrics in driver's
footwell, left) must trigger.
- Replace Engine Control Module (ECM) Page 24
-21
.
- Remove cable bridge.
- Remove Fuel Pump (FP) relay.
If specified value is not obtained:
Electrical Wiring Diagrams, Troubleshooting & Component Locations
binder - Connect multimeter to terminal 19 of relay socket and Ground (GND)
for voltage measurement.
Specification: approx. battery voltage
- Check wire connections.
Pa
ge 63 of 78 Motronic in
jection s
ystem, servicin
g
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU05.24.1
Page 64 of 78

24-54
If specified value is obtained:
If no malfunctions are detected:
Check voltage supply for Fuel Pump (FP) and components - Check the following wire connection for open circuit and short circuit to
Ground (GND) and B+:
Central electric
in driver-side footwell, left, position 4
Terminal
VAG1598/31 test box
Socket
16 65
- Repair open circuit or short circuit if necessary.
- Replace Fuel Pump (FP) relay -J17-.
- Re-connect Engine Control Module (ECM).
- Remove fuses S228, S229, and S234 (positions 28, 29, and S234)
from fuse holder.
- Initiate output Diagnostic Test Mode Page 01
-56
and activate
Evaporative Emission (EVAP) canister purge regulator valve -N80-.
Pa
ge 64 of 78 Motronic in
jection s
ystem, servicin
g
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU05.24.1
Page 65 of 78

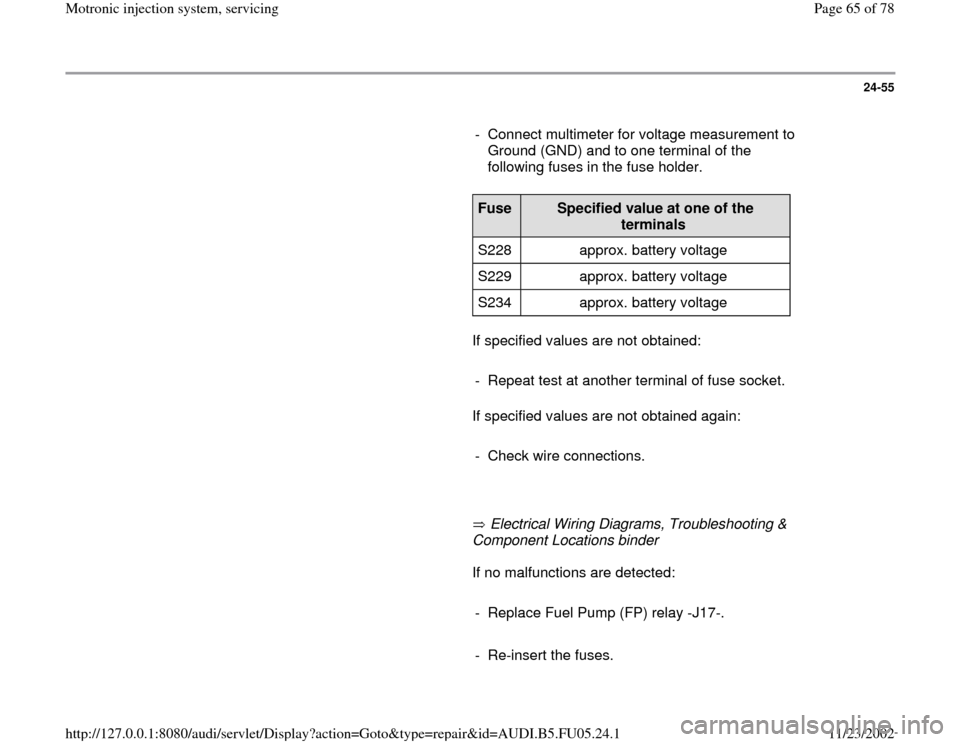

24-55
- Connect multimeter for voltage measurement to
Ground (GND) and to one terminal of the
following fuses in the fuse holder.
Fuse
Specified value at one of the
terminals
S228 approx. battery voltage
S229 approx. battery voltage
S234 approx. battery voltage
If specified values are not obtained:
- Repeat test at another terminal of fuse socket.
If specified values are not obtained again:
- Check wire connections.
Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder If no malfunctions are detected:
- Replace Fuel Pump (FP) relay -J17-.
- Re-insert the fuses.
Pa
ge 65 of 78 Motronic in
jection s
ystem, servicin
g
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU05.24.1
Page 73 of 78

24-61
Voltage supply for Mass Air Flow (MAF)
sensor, checking
- Disconnect connector from Mass Air Flow (MAF)
sensor.
Note:
Voltage is supplied to Mass Air Flow (MAF) sensor from Fuel Pump (FP)
relay.
If specified value is not obtained:
Electrical Wiring Diagrams, Troubleshooting & Component Locations
binder - Connect multimeter for voltage measurement as follows.Harness connector
Terminal
Measure to
3 Engine Ground (GND)
- Operate starter briefly.
Specification: approx. battery voltage
- Check wire connection from terminal 3 of connector to Fuel Pump (FP)
relay via fuse for open circuit and short circuit to Ground (GND):
