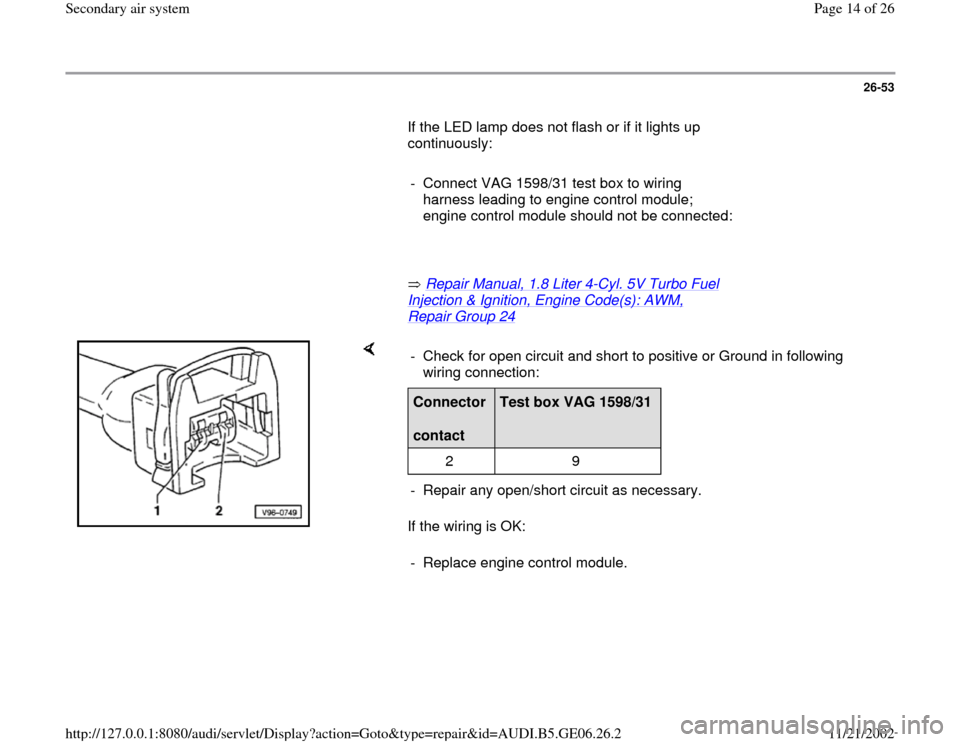

26-53
If the LED lamp does not flash or if it lights up
continuously:

- Connect VAG 1598/31 test box to wiring
harness leading to engine control module;
engine control module should not be connected:

Repair Manual, 1.8 Liter 4
-Cyl. 5V Turbo Fuel
Injection & Ignition, Engine Code(s): AWM, Repair Group 24


If the wiring is OK: - Check for open circuit and short to positive or Ground in following
wiring connection: Connector
contact
Test box VAG 1598/31
2 9
- Repair any open/short circuit as necessary.
- Replace engine control module.
